Wiring Diagrams for Lincoln MKX II (2015-2018)

Automatic a/c circuit

Anti-lock brakes circuit

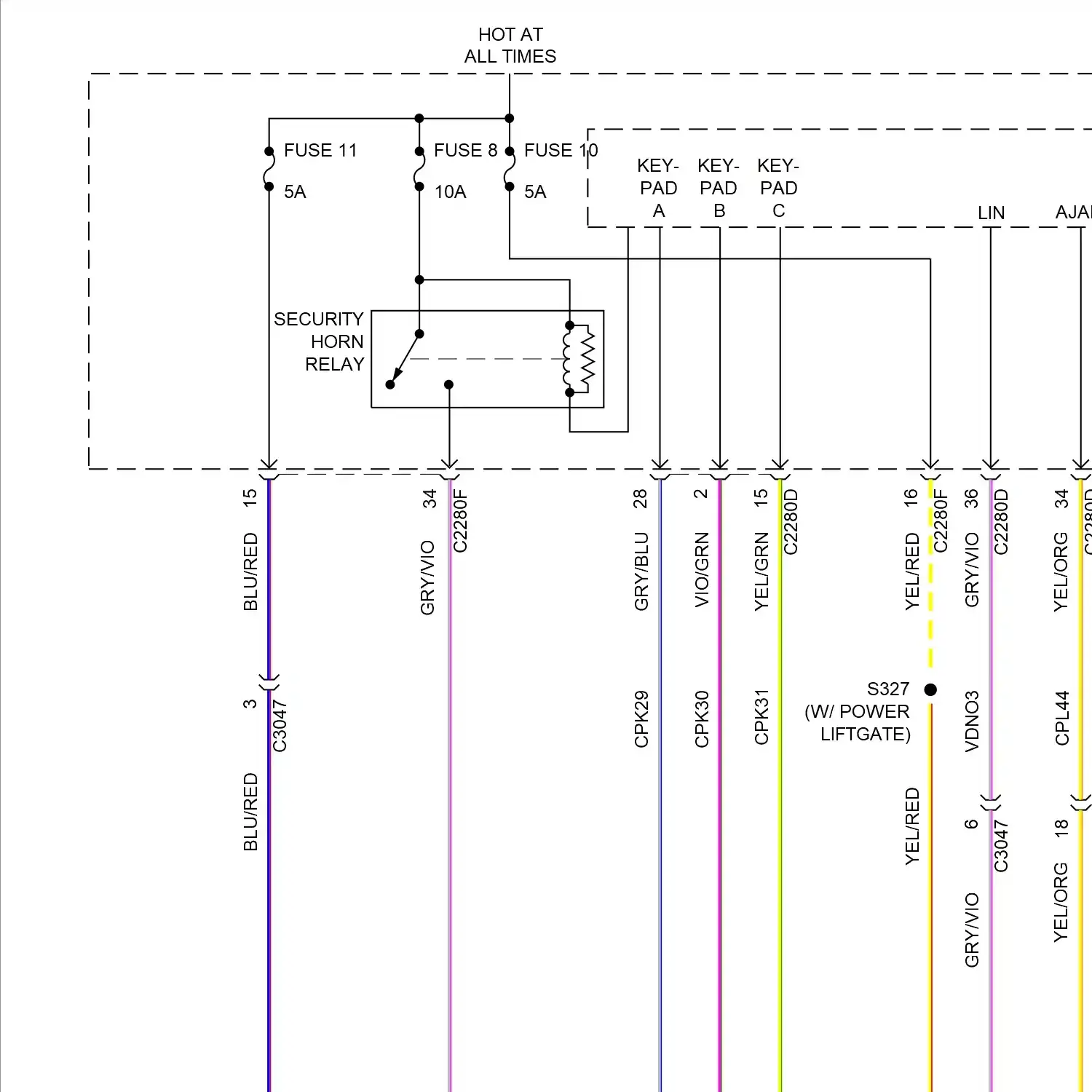

Anti-theft circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Adaptive steering circuit Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.7l turbo

Wiring diagram engine performance 3.7l

Backup lamps circuit Exterior lamps circuit Trailer adapter circuit

Ground distribution circuit

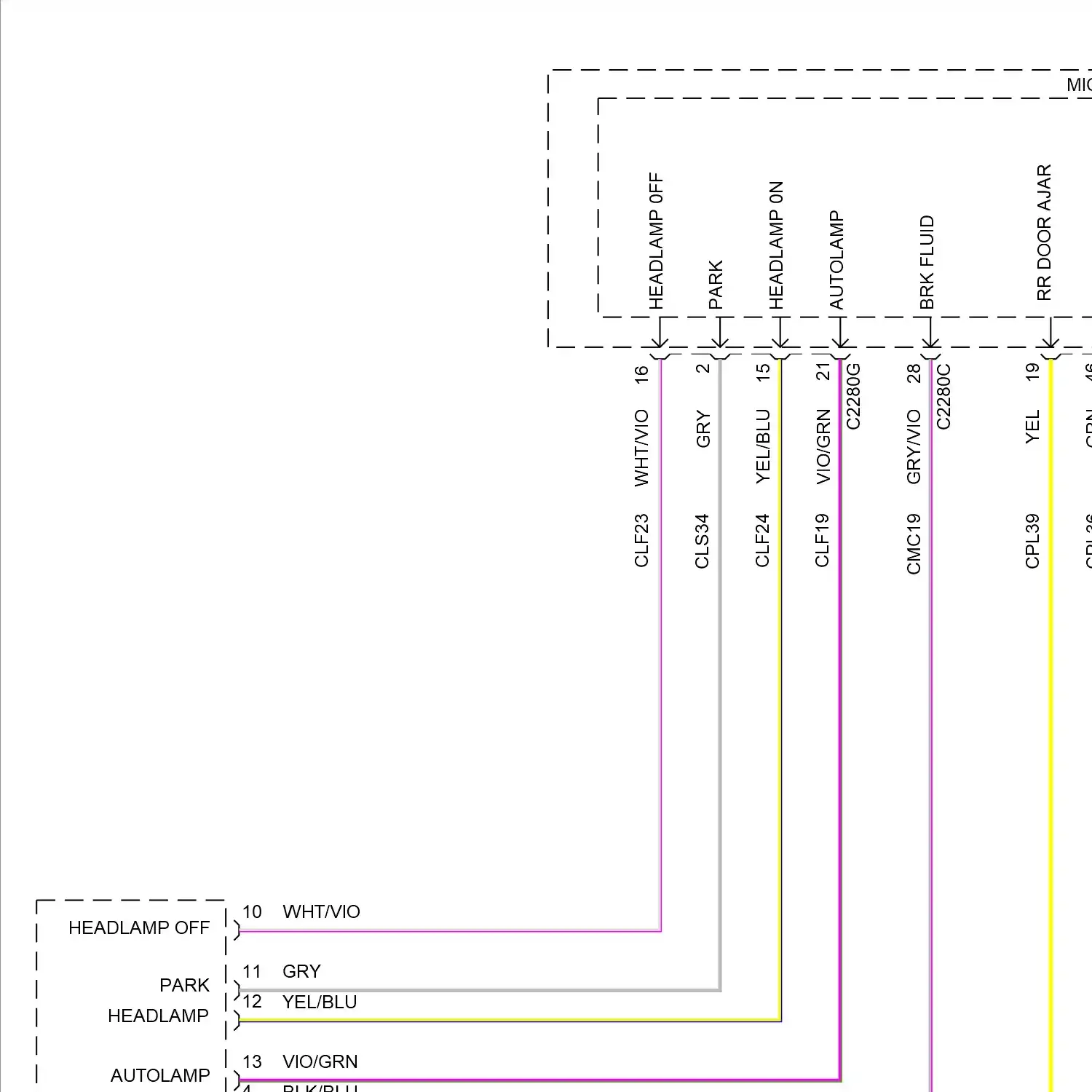

Headlights circuit, w/ high intensity gas discharge headlights Headlights circuit, w/o high intensity gas discharge headlights

Horn circuit

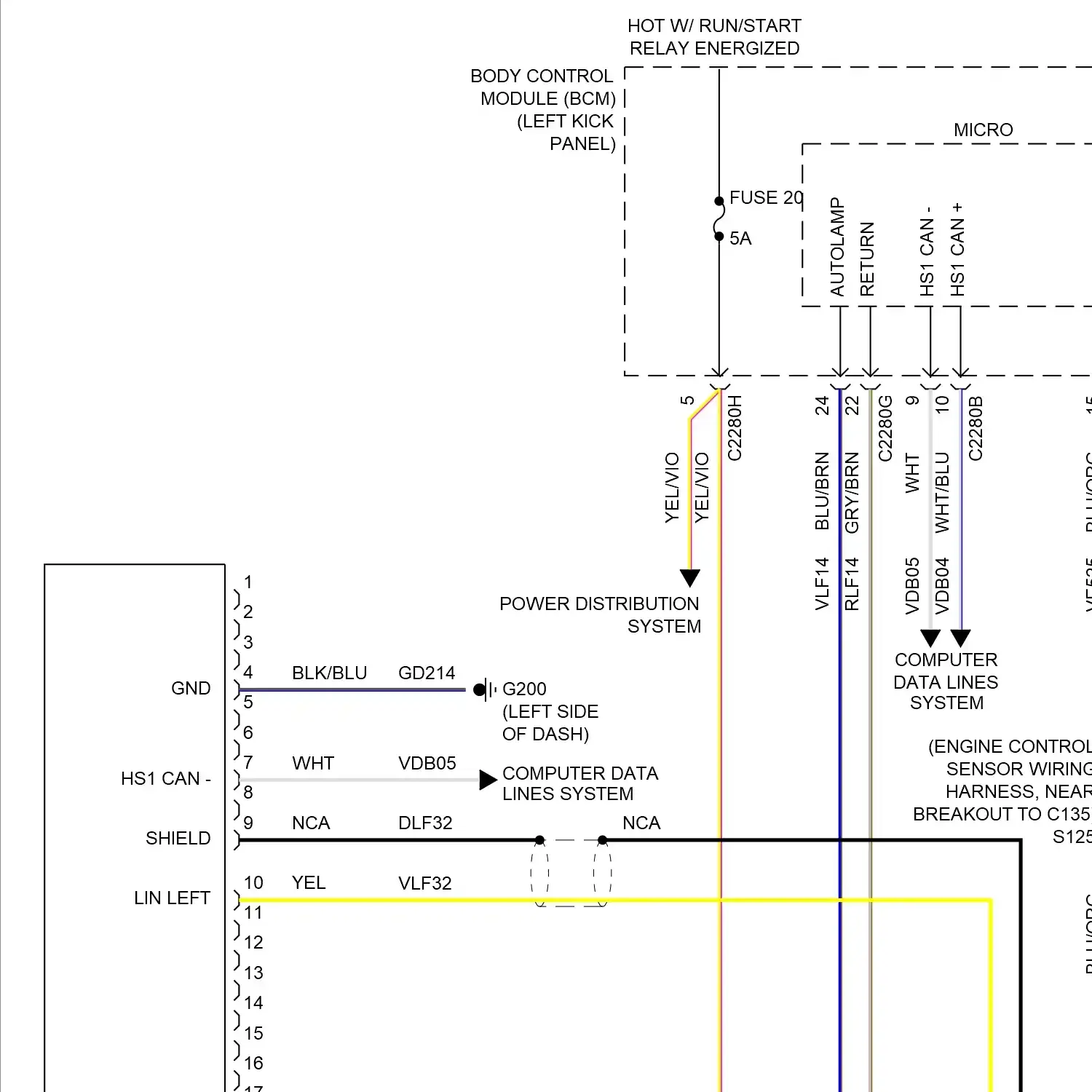

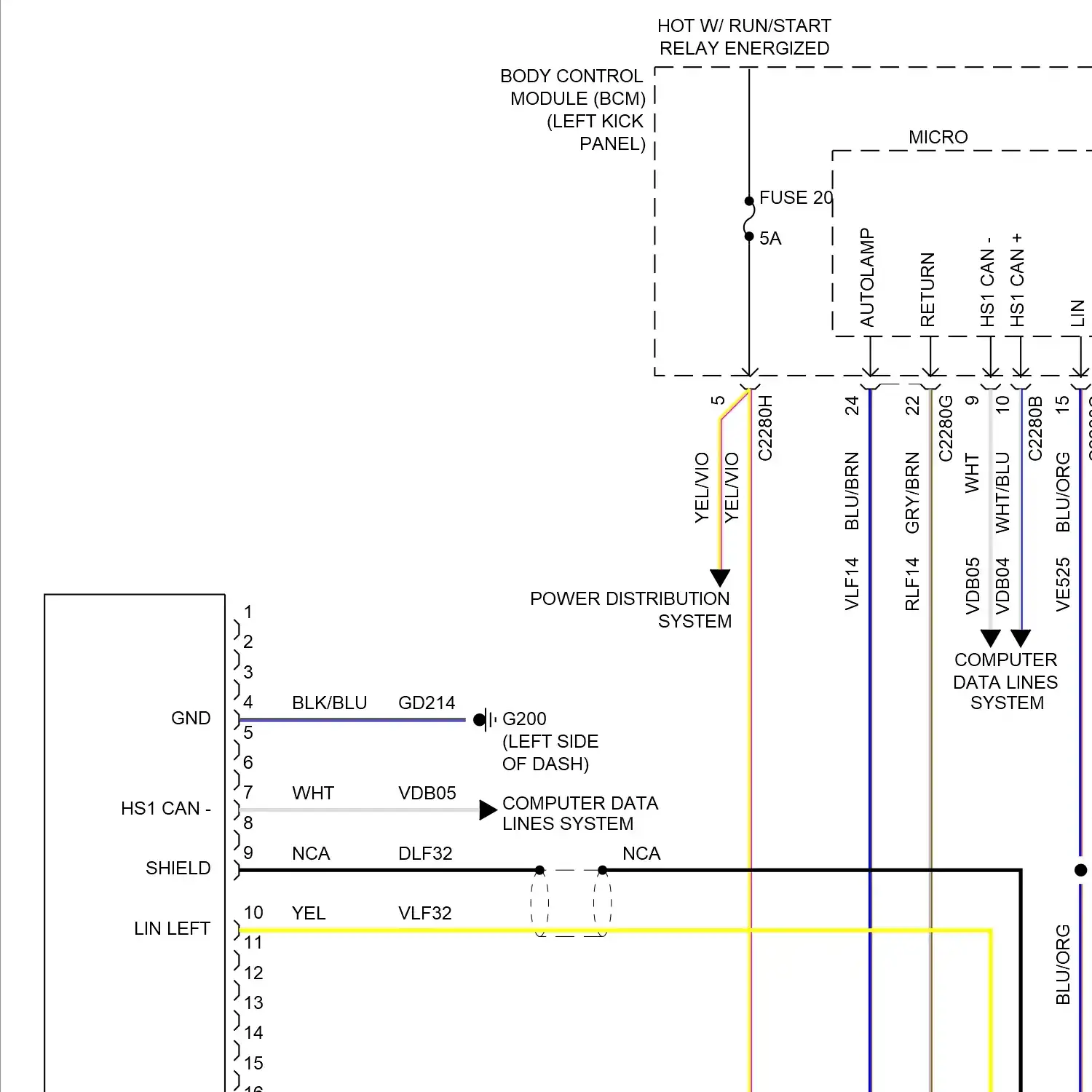

Instrument cluster circuit Overhead console circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit, 10-way driver seat Driver"s memory seat circuit, 16-way driver seat Memory mirrors circuit Steering column memory circuit

All around vision camera circuit Blind spot information system circuit Navigation circuit, w/o touch screen & ultima Navigation circuit, w/o touch screen w/ ultima Navigation circuit, w/ touch screen Parking assistant circuit Rear camera circuit Telematics circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit, w/ automatic wiper Electrochromic mirror circuit, w/o automatic wiper Power mirrors circuit

Climate control seats circuit Front heated seats circuit Heated steering wheel circuit Power seats circuit, 10-way passenger seat Power seats circuit, 16-way passenger seat Rear heated seats circuit Second row folding seat circuit

Power top/sunroof circuit

Power windows circuit

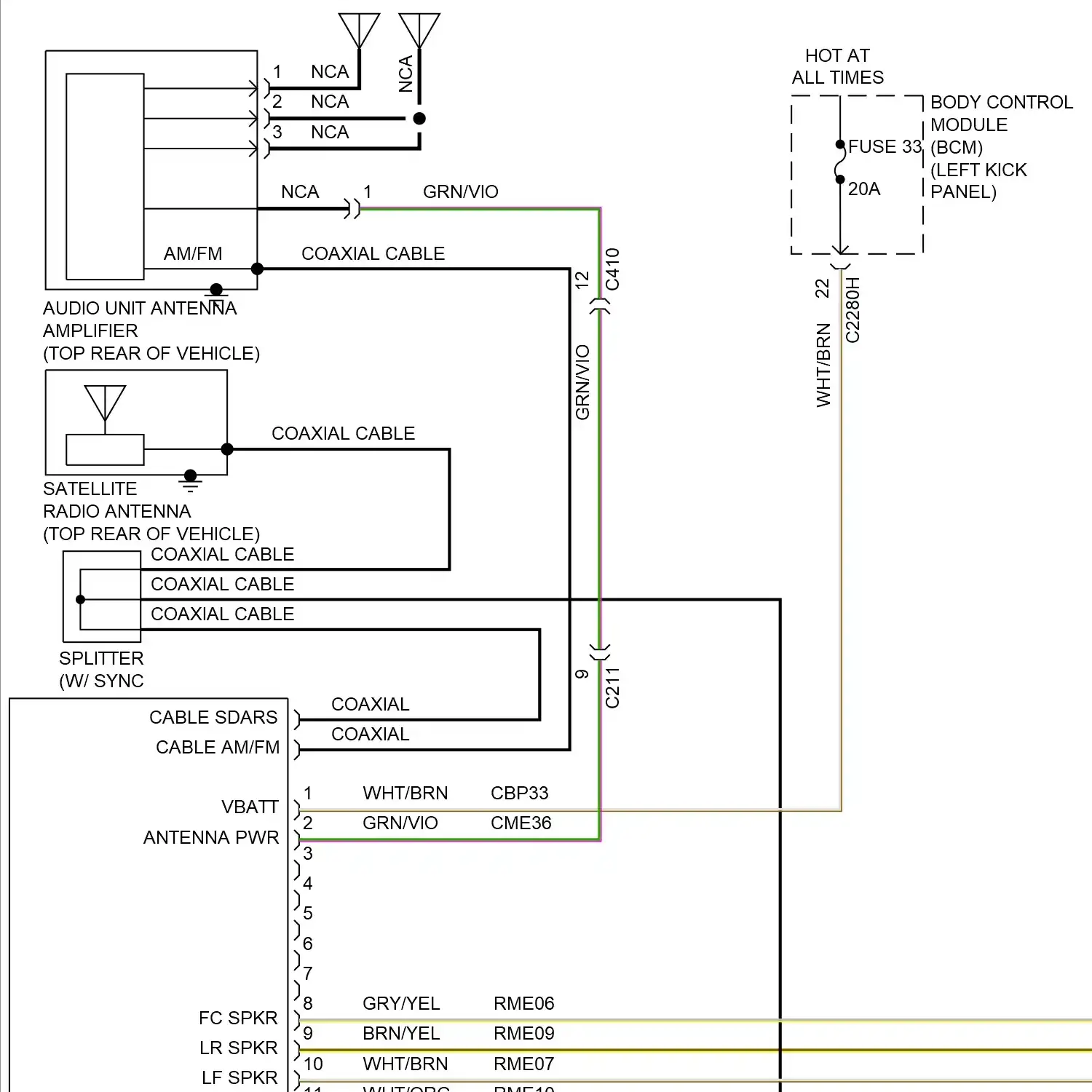

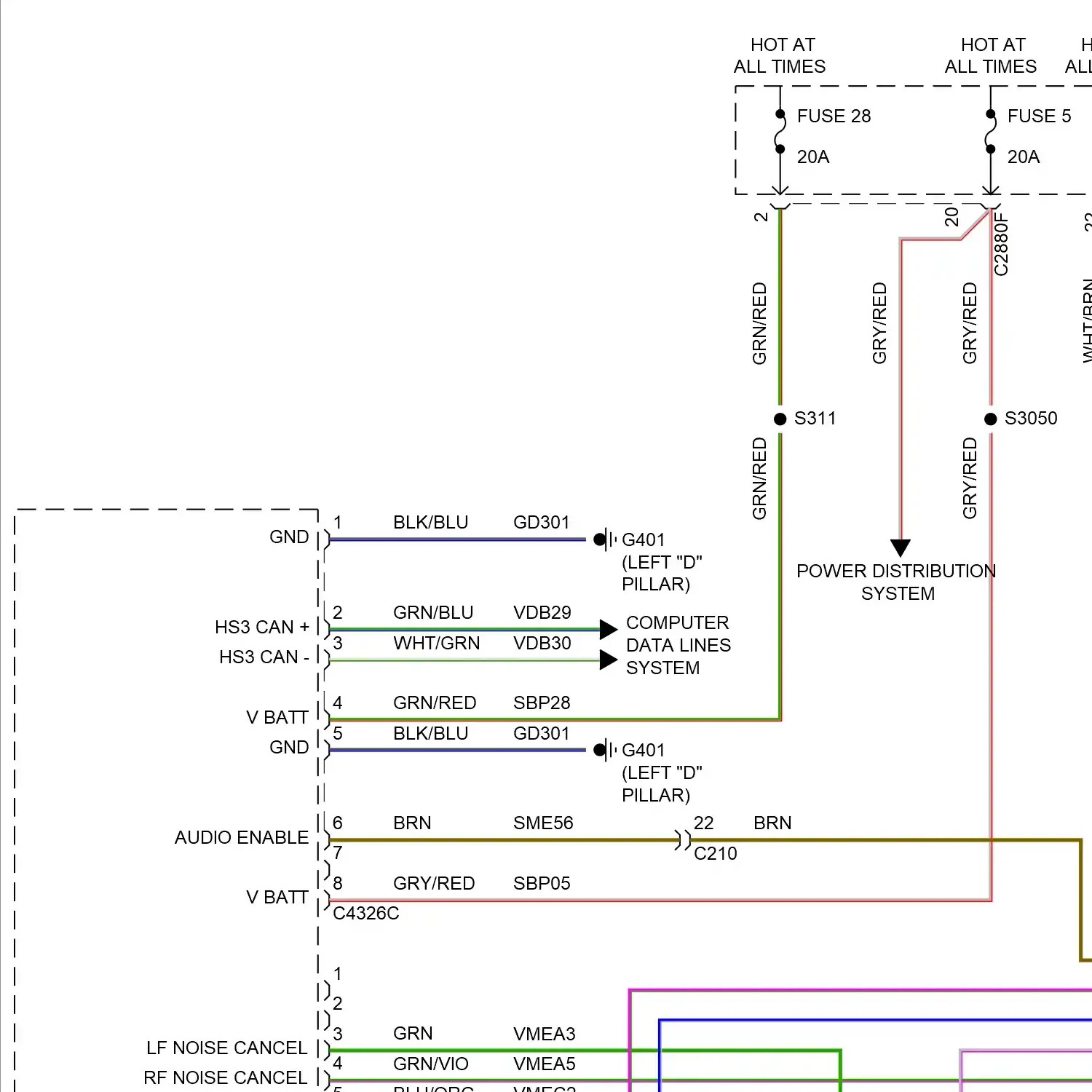

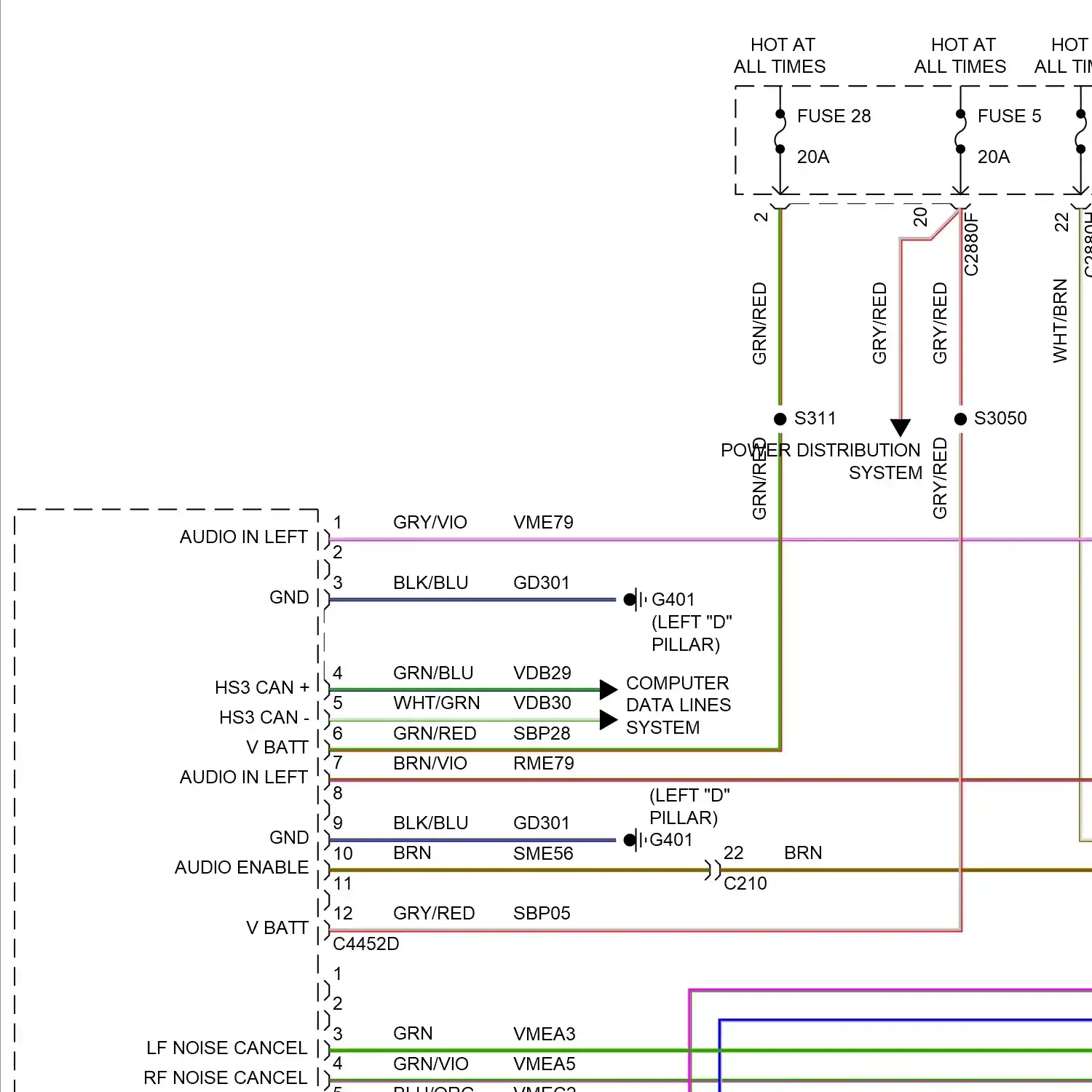

Radio circuit, w/o touch screen & ultima Radio circuit, w/o touch screen w/ ultima Radio circuit, w/ touch screen

Shift interlock circuit

Charging circuit Starting circuit

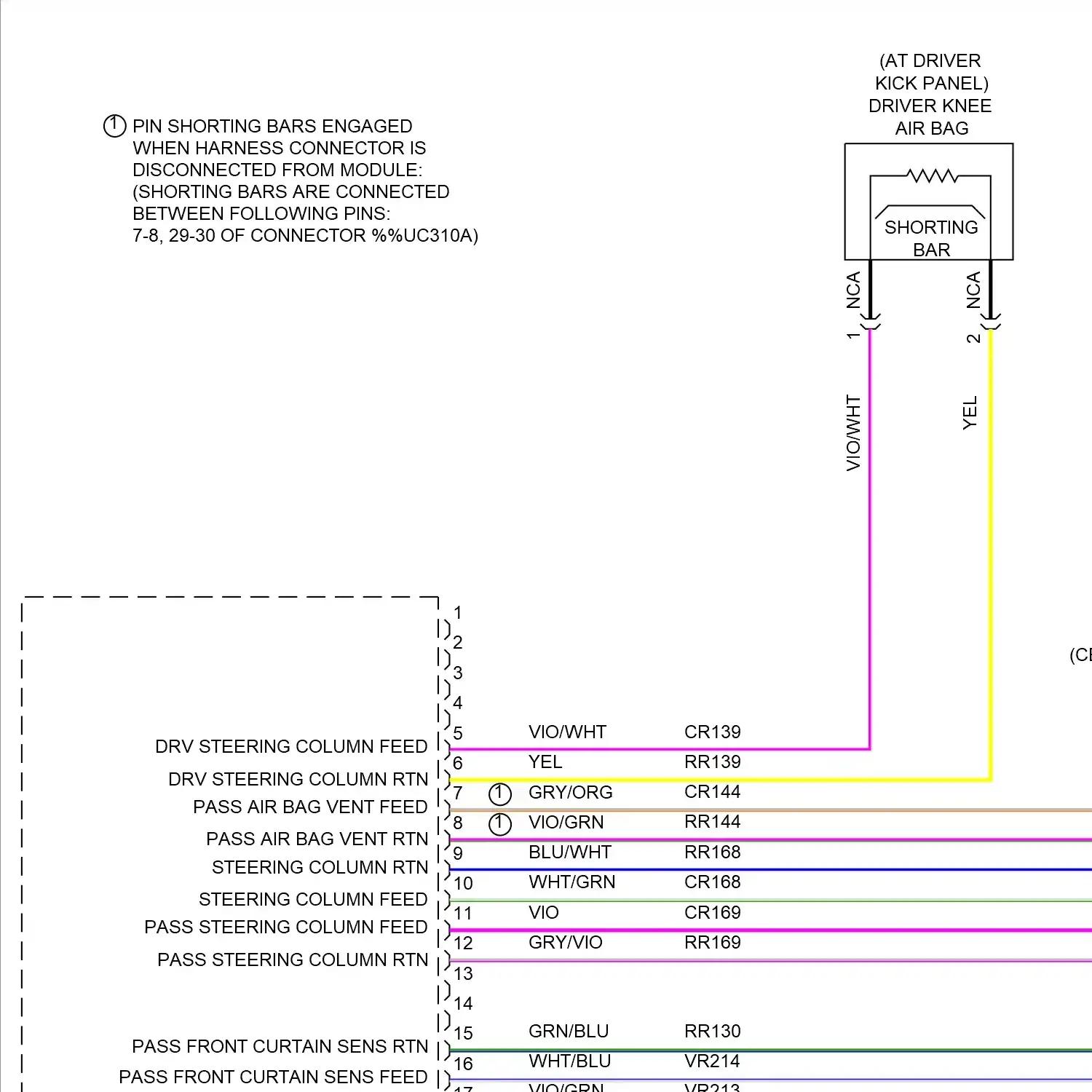

Supplemental restraints circuit

A/t circuit Awd circuit

Liftgate release circuit Power liftgate circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ANTI- THEFT HORN ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS BATTERY SAVER CENTRAL LOCK RLY CHILD LOCK CHILD LOCK RLY HIGH CURRENT BATTERY JUNCTION BOX HORN RLY IN HORN SW IGNITION COIL ON PLUG 1 IGNITION COIL ON PLUG 2 IGNITION COIL ON PLUG 3 IGNITION COIL ON PLUG 4 IGNITION COIL ON PLUG 5 IGNITION COIL ON PLUG 6 LOCK CHILD

(REAR WINDOW WIPER MOTOR WIRING HARNESS, NEAR BREAKOUT TO REAR GATE MODULE (RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE AIR DISTRIBUTION DOOR ACTUATOR AIR INLET DOOR ACTUATOR BLOWER MOTOR BLOWER MOTOR SPEED CONTROL COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 DRIVER SIDE TEMPERATURE DOOR ACTUATOR ENGINE CONTROLS SYSTEM FUEL FILLER DOOR LATCH MOTOR GLOVE COMPARTMENT RELEASE ACTUATOR LEFT FRONT SEAT BACKREST BLOWER MOTOR LEFT FRONT SEAT CUSHION BLOWER MOTOR LEFT FRONT SEAT CUSHION MOTOR LEFT FRONT SEAT HEAD RESTRAINT IN/OUT MOTOR LEFT FRONT SEAT HEAD RESTRAINT UP/DOWN MOTOR LEFT FRONT SEAT HEIGHT ADJUSTMENT MOTOR LEFT FRONT SEAT RECLINER MOTOR LEFT FRONT SEAT TILT MOTOR LEFT FRONT SEAT TRACK MOTOR LEFT PARKING BRAKE ACTUATOR MOTOR LEFT POWER FOLD SEAT MOTOR LEFT WINDSHIELD WIPER MOTOR MOTOR CLOSE, MOTOR OPEN, PASSENGER SIDE TEMPERATURE DOOR ACTUATOR POWER LIFTGATE MOTOR REAR WINDOW WIPER MOTOR RIGHT FRONT SEAT BACKREST BLOWER MOTOR RIGHT FRONT SEAT CUSHION BLOWER MOTOR RIGHT FRONT SEAT CUSHION MOTOR RIGHT FRONT SEAT HEAD RESTRAINT IN/OUT MOTOR RIGHT FRONT SEAT HEAD RESTRAINT UP/DOWN MOTOR RIGHT FRONT SEAT HEIGHT ADJUSTMENT MOTOR RIGHT FRONT SEAT RECLINER MOTOR RIGHT FRONT SEAT TILT MOTOR RIGHT FRONT SEAT TRACK MOTOR RIGHT PARKING BRAKE ACTUATOR MOTOR RIGHT POWER FOLD SEAT MOTOR STARTER MOTOR STEERING COLUMN TELESCOPIC MOTOR STEERING COLUMN TILT MOTOR VPWR MOTOR LIN VPWR MOTOR-

ANTENNA PWR CENTER PASSIVE ANTI-THEFT SYSTEM ANTENNA INTERNAL ANTENNA RKE RECEIVER PROTECT 2 ANTENNA REAR PASSIVE ANTI-THEFT SYSTEM ANTENNA SATELLITE RADIO ANTENNA

DRIVER DOOR WINDOW REGULATOR MOTOR LEFT REAR DOOR WINDOW REGULATOR MOTOR PASSENGER DOOR WINDOW REGULATOR MOTOR RIGHT REAR DOOR WINDOW REGULATOR MOTOR

CAMERA WINDSHIELD DEFROST HEATER FRONT PARKING AID CAMERA REAR PARKING AID CAMERA W/ FRONT VIEW CAMERA W/ REAR VIEW CAMERA, W/O ACTIVE PARK ASSIST

DATA LINK CONNECTOR FRONT POWER OUTLET SOCKET FRONT POWER OUTLET SOCKET 2 LUGGAGE COMPARTMENT POWER OUTLET SOCKET REAR PASSENGER POWER OUTLET SOCKET TRAILER SOCKET

FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE SHIELD HEADLAMP CONTROL MODULE POWERTRAIN CONTROL MODULE REAR LAMP FADE CONTROL MODULE STEERING COLUMN CONTROL MODULE

AUDIO UNIT ANTENNA AMPLIFIER FUEL PUMP, SENDER UNIT FUEL PUMP, SENDER UNIT SHIELD PROXIMITY WARNING RADAR UNIT SUBWOOFER, AMPLIFIER UNIT TELEMATIC CONTROL UNIT MODULE

FUSE 1 FUSE 2 FUSE 3 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 44 FUSE 50 FUSE 53 FUSE 54 FUSE 55 FUSE 58 FUSE 59 FUSE 60 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 77 FUSE 78 FUSE 79 FUSE 81 FUSE 83 FUSE 84 FUSE 87

DRV HEATER FEED LEFT FRONT SEAT BACKREST HEATER MAT LEFT FRONT SEAT CUSHION HEATER MAT LEFT REAR SEAT BACKREST HEATER MAT LEFT REAR SEAT CUSHION HEATER MAT LR HEATER FD PASS HEATER FEED RIGHT FRONT SEAT BACKREST HEATER MAT RIGHT FRONT SEAT CUSHION HEATER MAT RIGHT REAR SEAT BACKREST HEATER MAT RIGHT REAR SEAT CUSHION HEATER MAT RR HEATER FD

BLIS INDICATOR LEFT FRONT DOOR LOCK INDICATOR LEFT REAR DOOR LOCK INDICATOR LOW BRAKE FLUID WARNING INDICATOR SWITCH LOW WASHER FLUID WARNING INDICATOR SWITCH RIGHT FRONT DOOR LOCK INDICATOR RIGHT REAR DOOR LOCK INDICATOR

DRIVER INNER I/P LAMP DRIVER OUTER I/P LAMP FLOOR CONSOLE CUP HOLDER AMBIENT LIGHTING LAMP FLOOR CONSOLE FRONT AMBIENT LIGHTING LAMP FLOOR CONSOLE LOWER AMBIENT LIGHTING LAMP FLOOR CONSOLE MEDIA BIN AMBIENT LIGHTING LAMP FLOOR CONSOLE STORAGE BIN AMBIENT LIGHTING LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP INTERIOR LIGHTS SYSTEM SHIFT INTERLOCK SYSTEM LAMP DIMMING LEFT FOOTWELL LAMP LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR INTERIOR LAMP LEFT REAR LAMP ASSEMBLY LEFT SCUFF PLATE LAMP LEFT VANITY MIRROR LAMP LICENSE LAMP LIFT GATE CARGO LAMP PASSENGER I/P LAMP REAR FOG LAMP REVERSING LAMP RIGHT FOOTWELL LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR LAMP ASSEMBLY RIGHT SCUFF PLATE LAMP RIGHT VANITY MIRROR LAMP SECOND ROW INTERIOR LAMP

CABIN HEATER COOLANT PUMP FUEL INJECTION PUMP HEADLAMP WASHER PUMP LEFT FRONT MULTI-CONTOUR CONTROL PUMP RIGHT FRONT MULTI-CONTOUR CONTROL PUMP TRANSMISSION FLUID PUMP WINDSHIELD WASHER PUMP

ACCESSORY DELAY RELAY AIR CONDITIONING CLUTCH RELAY BATT SAVER RELAY BATTERY SAVER RELAY BLOWER MOTOR RELAY BLOWER RELAY CENTRAL LOCK RELAY CENTRAL UNLOCK RELAY CHILD LOCK RELAY DECKLID/ LIFTGATE RELAY DOUBLE/ AUX LOCK RELAY DRIVER/ FUEL FLAP UNLOCK RELAY FUEL PUMP RELAY GLOVE BOX RELAY HEADLAMP WASHER RELAY HORN RELAY HOT W/ ACCESSORY DELAY RELAY ENERGIZED HOT W/ IGNITION RELAY ENERGIZED HOT W/ PCM POWER RELAY ENERGIZED HOT W/ RUN/ START RELAY ENERGIZED HOT W/ RUN/START RELAY ENERGIZED LATCHING POWER POINT RELAY 1 LATCHING POWER POINT RELAY 2 LEFT SECOND ROW SEAT RELAY MULTI- CONTOUR SEAT RELAY REAR WASHER RELAY REAR WINDOW DEFROST RELAY RELAY BOX RIGHT SECOND ROW SEAT RELAY RUN/ START RELAY RUN/START RELAY SECURITY HORN RELAY STARTER RELAY WIPER RELAY

AMBIENT AIR QUALITY SENSOR AUTOLAMP SENSOR INPUT AUTOLAMP SENSOR RETURN BATTERY CURRENT SENSOR BRAKE VACUUM SENSOR CRANKCASE PRESSURE SENSOR CYLINDER HEAD TEMPERATURE SENSOR DRIVER DOOR SIDE IMPACT SENSOR EVAPORATOR TEMPERATURE SENSOR FUEL LEVEL SENSOR FUEL PRESSURE SENSOR GENERATOR CURRENT SENSOR HALL SENSOR 1 HALL SENSOR 1 HALL SENSOR SUPPLY HALL SENSOR 2 HALL SENSOR GND HALL SENSOR SPLY HALL SENSOR SUPPLY IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR INTRUSION SENSOR LEFT C-PILLAR SIDE IMPACT SENSOR LEFT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR LEFT FRONT ACTIVE PARK ASSIST SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT SEVERITY IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR ACTIVE PARK ASSIST SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT REGISTER AIR DISCHARGE TEMPERATURE SENSOR LEFT SEAT POSITION SENSOR LEFT/CENTER REAR INNER PARKING AID SENSOR LF SENSOR HI LF SENSOR LO LR SENSOR HI LR SENSOR LO PARKING AID SENSOR PASSENGER DOOR SIDE IMPACT SENSOR POSITION SENSOR RAIN SENSOR RF SENSOR HI RF SENSOR LO RIGHT C-PILLAR SIDE IMPACT SENSOR RIGHT FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR RIGHT FRONT ACTIVE PARK ASSIST SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT SEVERITY IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR ACTIVE PARK ASSIST SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT REGISTER AIR DISCHARGE TEMPERATURE SENSOR RIGHT SEAT POSITION SENSOR RR SENSOR HI RR SENSOR LO SENSOR PWR SENSOR PWR SENSOR RTN SENSOR RTN SENSOR SIG 1 SENSOR SIG 2 TRANSFER CASE FLUID TEMPERATURE SENSOR WASTEGATE VACUUM SENSOR

INSTRUMENT PANEL SPEAKER LEFT D PILLAR SPEAKER LEFT FRONT DOOR MIDRANGE SPEAKER LEFT FRONT DOOR TWEETER SPEAKER LEFT FRONT DOOR WOOFER SPEAKER LEFT REAR DOOR TWEETER SPEAKER LEFT REAR DOOR WOOFER SPEAKER RIGHT D PILLAR SPEAKER RIGHT FRONT DOOR MIDRANGE SPEAKER RIGHT FRONT DOOR TWEETER SPEAKER RIGHT FRONT DOOR WOOFER SPEAKER RIGHT REAR DOOR MIDRANGE SPEAKER RIGHT REAR DOOR TWEETER SPEAKER RIGHT REAR DOOR WOOFER SPEAKER

DOWNSHIFT PADDLE SWITCH DRIVER BUCKLE SWITCH DRIVER DOOR WINDOW CONTROL SWITCH DRIVER SAFETY BELT BUCKLE SWITCH DRV SIDE AJAR SWITCH EXTERIOR REAR VIEW MIRROR SWITCH FRONT POWER LIFTGATE SWITCH HEADLAMP SWITCH HEATED REAR SEAT SWITCH HOOD AJAR SWITCH HORN SWITCH LEFT FRONT DOOR LOCK CONTROL SWITCH LEFT FRONT DOOR LOCK SWITCH LEFT FRONT SEAT CONTROL SWITCH LEFT REAR DOOR WINDOW CONTROL SWITCH LEFT SECOND ROW SAFETY BELT BUCKLE SWITCH LEFT STEERING WHEEL SWITCH LEFT SWITCH LEVEL SWITCH LIFTGATE RELEASE SWITCH MEMORY SET SWITCH MULTI- FUNCTION SWITCH PARKING BRAKE SWITCH PASSENGER DOOR WINDOW CONTROL SWITCH PASSENGER SAFETY BELT BUCKLE SWITCH POWER FOLD SEAT CONTROL SWITCH REAR HEATED SEAT SWITCH REAR POWER LIFTGATE SWITCH RIGHT FRONT DOOR LOCK SWITCH RIGHT FRONT SEAT CONTROL SWITCH RIGHT REAR DOOR WINDOW CONTROL SWITCH RIGHT SECOND ROW SAFETY BELT BUCKLE SWITCH RIGHT STEERING WHEEL SWITCH RIGHT SWITCH UPSHIFT PADDLE SWITCH

LEFT FRONT DAMPER SOLENOID LEFT REAR DAMPER SOLENOID OIL PRESSURE CONTROL SOLENOID RIGHT FRONT DAMPER SOLENOID RIGHT REAR DAMPER SOLENOID

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/WHT WIRE PNK WIRE RED WIRE TAN WIRE VIO WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

1/2 3/4 2.7L TURBO 2.7L TURBO W/ STOP/START W/O STOP/START 3.7L 3.7L, 2.7L TURBO 16 WAY PASSENGER POWER SEAT 16-WAY POWER SEAT 10-WAY POWER SEAT W/ STOP/START W/O STOP/START (W/ TRAILER TOW A/C COMPRESSOR A/D CHANNEL 1 A/D CHANNEL 2 A/D CHANNEL 3 A/D CHANNEL 4 A/D RETURN A/D RTN AC-A AC-B ACTIVE DMPR FL HI ACTIVE DMPR FL LO ACTIVE DMPR FR HI ACTIVE DMPR FR LO ACTIVE DMPR RL HI ACTIVE DMPR RL LO ACTIVE DMPR RR HI ACTIVE DMPR RR LO ACTIVE GRILLE SHUTTER ACTIVE NOISE CONTROL MICROPHONE 1 ACTIVE NOISE CONTROL MICROPHONE 2 ACTIVE NOISE CONTROL MICROPHONE 3 ACTIVE PARK ASSIST AFT FORE/ AIR CONDITIONING SYSTEM AMBIENT NOISE 1 - AMBIENT NOISE 2 - AMBIENT NOISE 3 - ATCC SOL - AUDIO DIGITAL SIGNAL PROCESSING MODULE AUDIO ENABLE AUDIO IN LEFT- AUDIO IN RIGHT- AUTO DIMMING INTERIOR MIRROR AWD FWD AWD-C AWD-M BACKUP LAMPS CIRCUIT BASE BACKWARD BASE BWD BASE FORWARD BASE FWD BATT MONITOR BATT MONITORING SYS BATT PWR BIN SENSE BLIS IND BLOWER CONTROL BRK FLUID BRK FLUID SW BTS SIG BTS VREF BUCKLE SW CANCEL GAP DOWN CASE GROUND CENTER NOISE CANCEL - CHARGING SYSTEM CIRCUIT BREAKER 38 CLOCK- SPRING COAXIAL CABLE COAXIAL CABLE SDARS COAXIAL CABLE AM/FM COLLAPSIBLE STEERING COLUMN MODULE COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM CRUISE CONTROL SYSTEM DATA LINES DBKTED- DBLWR+ DCSHTED- DECKLID AJAR SW DEFOGGER SYSTEM DEFROST REQUEST DICKLID/LIFTGATE RLY DIM + DIM+ CAN+ DIMMER IP/SW ILL DIM DOWN DIMMER IP/SW ILL DIM UP DM PWR DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOOR LOCKS, WARNING, ANTI-THEFT SYSTEMS DOOR STATUS DPM GND DRIVER AIR BAG DRIVER DOOR LATCH DRIVER KNEE AIR BAG DRIVER SAFETY BELT BUCKLE DRIVER SAFETY BELT RETRACTOR PRETENSIONER DRIVER SIDE AIR BAG DRIVER TRACK POS DRIVER'S MEMORY SEAT CIRCUIT DRL LED ANODE DRL LED ANODE LED SENSE DRL LED CATHODE DRL/NTC- DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV AJAR SW DRV BATT DRV BUCKLE SW DRV CURTAIN FEED DRV CURTAIN RTN DRV FRONT CURTAIN SENS FEED DRV FRONT CURTAIN SENS RTN DRV HEATED DRV HIGH SW DRV MIRR HORZ POT DRV MIRR MTR DN/RT DRV MIRR MTR DOWN/RIGHT DRV MIRR MTR LEFT DRV MIRR MTR VERT UP DRV MIRR VERT POT DRV MIRROR MTR DRV MIRROR MTR VERT UP DRV PRETENSIONER FEED DRV PRETENSIONER RTN DRV PUDDLE DRV PWR/DATA SENS DRV RETRACTOR PRETESIONER + DRV ROW 2 IMPACT SENS FEED DRV ROW 2 IMPACT SENS RTN DRV SIDE AIR BAG FEED DRV SIDE AIR BAG RTN DRV SIDE IMPACT SENS FEED DRV SIDE IMPACT SENS RTN DRV SIDE PWR/DATA SENS DRV ST NTC SENSE DRV STEERING COLUMN FEED DRV STEERING COLUMN RTN DRV SUNLOAD DRV TRACK POSITION DRV TURN EARLY PRODUCTION ELECTROCHROMIC MIRROR CIRCUIT ELECTRONIC POWER STEERING, HEADLIGHTS SYSTEMS ENG SW ETC REF ETCRTN TSS/OSS/TR GND EXT MIRR POT FEED EXT MRR POT FEED EXTERNAL CONTROL 1 FAPA SENS LH IN FAPA SENS RH IN FC SPKR + FC TWEETER + FIL SENS LH IN FIR SENS RH IN FL SIG FOL SENS LH IN FOLD OUT FOLD-IN FOR SENS RH IN FP PWR FP RTN FR SIG FRONT DOWN FRONT HEIGHT FRONT UP FRT WIPER HI FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL SENDER 1 FUEL SENDER 1 RTN FUEL SENDER 2 FUEL SENDER 2 RTN FUEL SHUTOFF ENS CTRL MOD GAP UP GLASS CLOSE GLASS OPEN GUARD TRACK HALF BRIDGE HALL EFFECT RTN HALL EFFECT SENS HANDS FREE LIFTGATE ACTUATION MODULE HANDSFREE LIFT GATE ACTUATION MODULE HAZARD SW HEADLAMP LEVELING HEADLAMP OFF HEADLAMP OFF SW HEADLAMP ON HEADLAMP ON SW HEADLAMP PARK ON OFF HEADLIGHTS SYSTEM HEATED REAR WINDOW ELEMENT HIGH BEAM HOMELINK MODULE HOOD AJAR HOOD AJAR SW HORNS SYSTEM HOT AT ALL TIMES HOT IN RUN OR START HTR RTN HUMIDITY MTR HUMIDITY SIG HW RC ID-LO ILLUM GND IN VEHICLE SIG DRV ST NTC SENS INJ 1 INJ 2 INJ 3 INJ 4 INJ 5 INJ 6 INSIDE DRIVER DOOR) INSIDE LIFTGATE) INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL CLUSTER ISP-R K LINE KEY- KEY- KEY- PAD PAD PAD KEYLESS ENTRY KEYPAD KEYLESS KEYPAD LINE A SW KEYLESS KEYPAD LINE B SW KEYLESS KEYPAD LINE C SW KEYLESS VEH HANDLE SENS KEYLESS VEHICLE SW LADDER FEED LADDER RTN LATCH GND LATE PRODUCTION LCK STATUS LED SENSE LEFT EXTERIOR MIRROR LEFT FRONT EXTERIOR DOOR HANDLE LEFT FRONT SAFETY BELT ANCHOR, PRETENSIONER LEFT FRONT SEAT POWER LUMBAR ASSEMBLY LEFT GATE AJAR LEFT HEADLAMP ASSEMBLY LEFT HIGH IND LEFT LIFTGATE ANTI PINCH STRIP LEFT LOW IND LEFT REAR DOOR LATCH LEFT REAR DOOR MODULE LEFT REAR EXTERIOR DOOR HANDLE LEFT ROW 2 BELT FEED LEFT ROW 2 BELT RTN LEFT ROW 2 BUCKLE SW LEFT SECOND ROW SAFETY BELT LEFT SIDE AIR CURTAIN LEFT TURN LF AMBIENT NOISE 1 + LF DOOR LF DOOR AJAR LF DR AJAR LF NOISE CANCEL + LF SIDE PARKING AID SENS LF SPKR LF SPKR LOW- LF SPKR MID + LF TWEETER+ LI RC BVS LIFT GATE AJAR LIFTGATE AJAR LIFTGATE RELEASE LIFTGATE/ LUGGAGE COMPARTMENT LID LIFTGATE/DECKLID RELEASE AJAR LIFTGATE/LUGGAGE COMPARTMENT LID LIFTGATE/LUGGAGE COMPARTMENT LID LATCH LIN 1 LIN 2 LIN 4 LIN BUS LIN GND LIN LEFT LIN RIGHT LO BEAM LOGIC GND LOGIC RLY LOW LEVEL BRAKE FLUID SW LOW WASHER LR DOOR LR DOOR AJAR LR DR AJAR LR SEAT NTC LR SPKR LR SPKR LOW - LR SPKR MID + LR TURN SIG OUT LP LR TWEETER + LT FRT SENS 1 LT FRT SENS 2 LT PINCH STRIP SIG LTCH GND LVL SW MEDIA GND MEDIA HUB MEMORY SYSTEMS MIC - MICRO - MIRRORS SYSTEM MIRRORS, SEATS SYSTEMS MONITORING SYS MS CAN + MTR A EPB LT MTR A EPB RT 3 4 MTR B EPB RT MTR B EPB LT NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NOISE 1 + NOISE 2 + NOISE 3 + NOT USED NOT USED NOT USED NTC SENSE OPEN SESAME INPUT OSS + OUTAGE TURN OVERHEAD CONSOLE OVERRIDE SW 1 OVERRIDE SW 2 PARK LAMPS PASS ADAPTIVE LOAD LIMITER FEED PASS ADAPTIVE LOAD LIMITER RTN PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS AIR BAG 2 FEED PASS AIR BAG 2 RTN PASS AIR BAG VENT FEED PASS AIR BAG VENT RTN PASS AJAR SW PASS BATT PASS BUCKLE SW PASS CURTAIN FEED PASS CURTAIN RTN PASS FRONT CURTAIN SENS FEED PASS FRONT CURTAIN SENS RTN PASS HEATED PASS HIGH LED PASS HIGH SW PASS LOW IND PASS MIRR HORZ POT PASS MIRR MTR DN/RT PASS MIRR MTR DOWN/RIGHT PASS MIRR MTR LT PASS MIRR MTR VERT UP PASS MIRR VERT POT PASS MIRROR MTR LEFT PASS PRETENSIONER FEED PASS PRETENSIONER RTN PASS PUDDLE PASS PWR/DATA SENS PASS RETRACTOR PRETESIONER - PASS ROW 2 IMPACT SENS FEED PASS ROW 2 IMPACT SENS RTN PASS SIDE AIR BAG FEED PASS SIDE AIR BAG RTN PASS SIDE IMPACT SENS FEED PASS SIDE IMPACT SENS RTN PASS SIDE PWR/DATA SENS PASS ST NTC SENS PASS ST NTC SENSE PASS STEERING COLUMN FEED PASS STEERING COLUMN RTN PASS SUNLOAD PASS TRACK POSITION PASS TURN PASSENGER DOOR LATCH PASSENGER KNEE AIR BAG PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER SAFETY BELT RETRACTOR PRETENSIONER PASSENGER SIDE AIR BAG PAWL SIG PBKTED- PBLWR+ PCSHTED- PEDALS FORWARD PEDALS MTR FORWARD PEDALS MTR REARWARD PEDALS REARWARD PEDALS SENS+ PINCH STRIP RTN POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PR DOOR PRIMARY RATCHET SIG SECONDARY RATCHET SIG PRKING AID SENS FRT-CTRL MOD PWM 1 PWM 2 PWM 3 PWM IN PWR GND PWR LOGIC RLY PWR MTR- RAPA SENS LH IN RAPA SENS RH IN REAR DEFROST REQUEST REAR DOWN REAR FOG REAR FOOTWELL LAMPS REAR HEATED SEAT MODULE REAR HEIGHT REAR INTERIOR SW REAR NOISE CANCEL + REAR UP REAR WIPER RELEASE MTR REMOTE RF RECEIVER RES+ RESET+ RF AMBIENT NOISE 2 - RF DOOR RF DOOR AJAR RF DR AJAR RF NOISE CANCEL - RF SPKR RF SPKR LOW- RF SPKR MID - RF TWEETER - RIGHT EXTERIOR MIRROR RIGHT FRONT EXTERIOR DOOR HANDLE RIGHT FRONT SAFETY BELT ANCHOR, PRETENSIONER RIGHT FRONT SEAT POWER LUMBAR ASSEMBLY RIGHT HEADLAMP ASSEMBLY RIGHT HIGH IND RIGHT INNER SENS RIGHT LIFTGATE ANTI PINCH STRIP RIGHT LOW IND RIGHT OUTER SENS RIGHT REAR DOOR LATCH RIGHT REAR DOOR MODULE RIGHT REAR EXTERIOR DOOR HANDLE RIGHT ROW 2 BELT FEED RIGHT ROW 2 BELT RTN RIGHT ROW 2 BUCKLE SW RIGHT SECOND ROW SAFETY BELT RIGHT SECOND ROW SAFETY BELT BUCKLE RIGHT SIDE AIR CURTAIN RIGHT TURN RIL SENS LH IN RIR SENS RH IN RL SIG ROL SENS LH IN ROOF OPENING PANEL MODULE ROR SENS RH IN RR AMBIENT NOISE 3 - RR DOOR AJAR RR DR AJAR RR HIGH/OFF RR LOW/OFF RR NOISE CANCEL + RR SEAT NTC RR SIG RR SPKR RR SPKR LOW - RR SPKR MID - RR TURN SIG OUT RR TWEETER - RT FRT SENS 1 RT FRT SENS 2 RT PINCH STRIP SIG LIFTGATE AJAR SDL H SDL L SEATS SYSTEM SEEK LEFT/ SEEK RIGHT/ SEN+ SENDER 1 SENS GND SENS SIG SET 1 SET 2 SET 3 SET- SHADE CLOSE SHADE OPEN SHD RTN SHIFT DN SHIFT INTERLOCK SYSTEM SHIFT UP SHORTING BAR SHORTING BAR SHORTING BAR SIDE MARKER SIG GND SIG RTN SOLID STATE SOUND SYSTEMS STAGE 1 STAGE 2 START ENG SW START/ STOP LIN 4 START/STOP 2 + SW START/STOP IND STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN FEED STEERING COLUMN MEMORY CIRCUIT STEERING COLUMN RTN STEERING COLUMN) STEERING WHEEL) STEREO L+ STEREO R+ STRT/STP IND SUB 1 - SUB 2- SUB AUDIO - SUB SHIELD SUPPLEMENTAL RESTRAINTS SYSTEM SYNC ALERT - TACM+ TEL MTR FWD TEL MTR RWD TEL SENS TFT SIG RTN THERM FD THERM RTN TILT MTR DOWN TILT MTR UP TILT SENS TPA+ TPMS RECEIVER TR 1 TR 2 TR 3 TR 4 TR GND TR-4 TR-2 TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TSS/OSS GND TSS/OSS VPWR TSS/OSS/ TR GND ETC RTN TFT TSS/OSS/TR GND TSS/OSS/TR VPWR TURN OUTAGE TURN OUTAGE PARK TURN OUTGATE UNLOCK AJAR USB CABLE V BATT VAC GND VAC SENSE P VAC SIG VIDEO+ VOLUME- VPWR BALLAST W/ ACTIVE PARKING ASSIST W/ ADAPTIVE CRUISE W/ ADAPTIVE STEERING W/ ADAPTIVE STEERING W/O ADAPTIVE STEERING W/ AMBIENT LIGHTING W/ BLIND SPOT MONITORING W/ HARMAN REVEL ULTIMA AUDIO SYSTEM W/ HEATED SEATS W/ HID W/ LED W/ MANUAL LIFTGATE W/ MYLINCOLN MOBILE, HARMAN REVEL AUDIO SYSTEM, HARMAN REVEL ULTIMA AUDIO SYSTEM W/ POWER LIFTGATE W/ POWER OUTLET W/ REAR FOG LAMPS W/ REAR HEATED SEATS W/ START/ STOP W/ START/STOP W/O START/STOP W/ STOP, START W/O STOP, START W/ STOP/START W/O STOP/START W/ TOUCH SCREEN W/ ULTIMA W/O TOUCH SCREEN, ULTIMA W/ ULTIMA W/ VISTA ROOF W/ VISTA ROOF W/O VISTA ROOF W/O ADAPTIVE STEERING W/O ADAPTIVE STEERING W/ ADAPTIVE STEERING W/O HID W/ HID W/O POWER LIFTGATE W/O POWER OUTLET W/O START/STOP W/O STOP/ START W/O TOUCH SCREEN, ULTIMA W/O TOUCH SCREEN W/ ULTIMA W/O TRAILER TOW W/O ULTIMA WAKE-UP WASHER FLUID RESERVOIR) WAVE TRAPPER WINDOW DOWN WINDOW UP WIPER/WASHER SYSTEM ZERO POSITION ZERO POSITION SIG CONSOLE OPEN/ CLOSE SW
