Lincoln MKX I (2006-2010) joint connector 7 (left rear Wiring diagram
This page shows the only wiring diagram for the component.joint connector 7 (left rear, which is found in the car Lincoln MKX I (2006-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

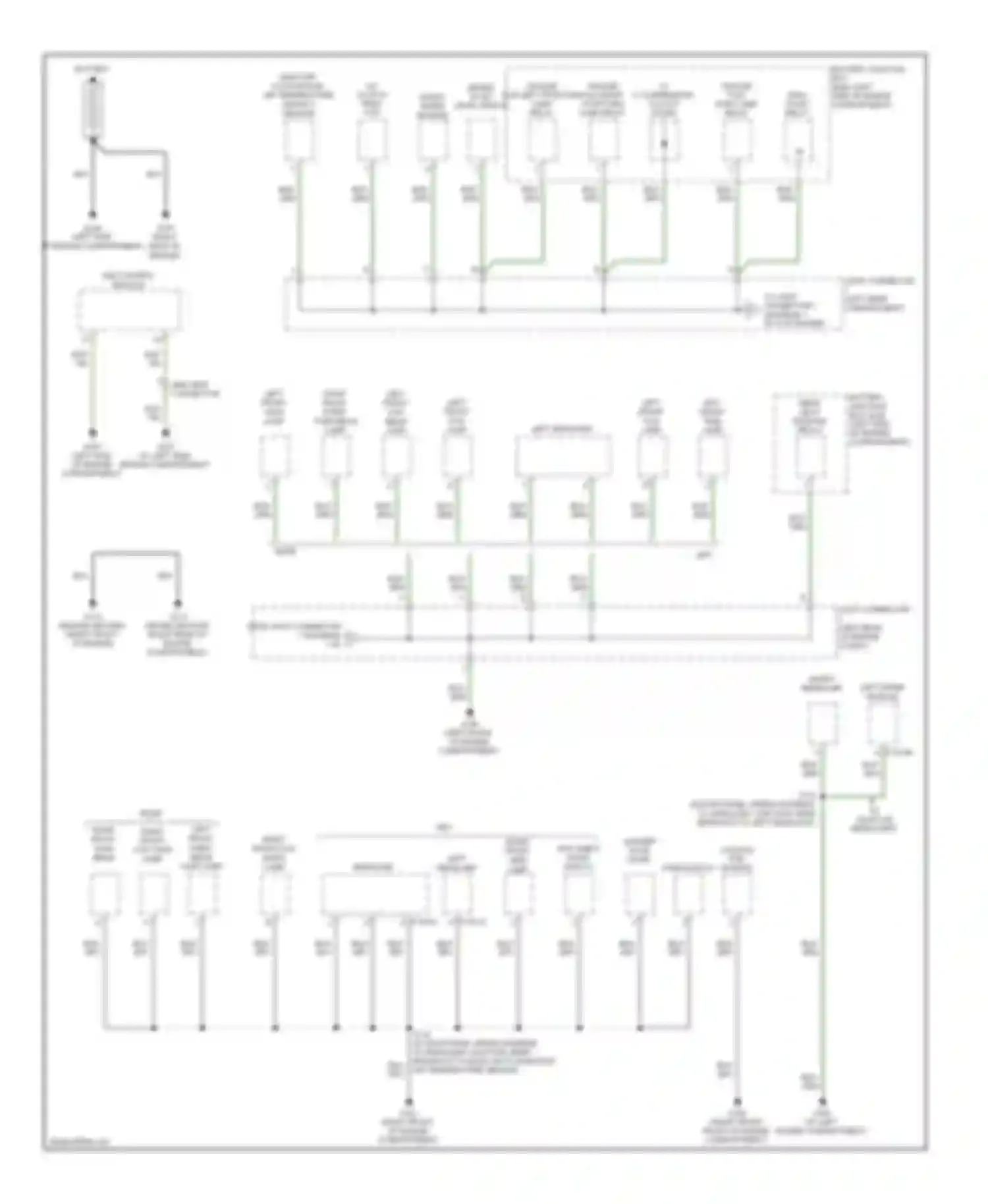

Wiring diagram joint connector 7 (left rear (1 of 1)
A/C CLUTCH FIELD COIL
A/C COMPRESSOR CLUTCH DIODE
ABS CONTROL MODULE
ABS TEST CONNECTOR
BATTERY
BATTERY JUNCTION BOX (BJB) (LEFT SIDE OF ENGINE COMPARTMENT)
BLK WIRE
BRAKE FLUID LEVEL SWITCH
COOLING FAN MODULE
EDGE
FROM JOINT CONNECTOR 7 (DIAGRAM 1 OF 4)
GRN WIRE
GRY WIRE
JOINT CONNECTOR 7 (LEFT REAR
JOINT CONNECTOR 7 (LEFT REAR OF ENGINE COMPT)
LEFT FRONT FOG LAMP
LEFT FRONT LOW BEAM LAMP
LEFT FRONT SIDE LAMP
LEFT HEADLAMP
LEFT RIGHT RIGHT FRONT FRONT FRONT PARK/ HIGH LOW TURN BEAM BEAM LAMP LAMP LAMP
MASS AIR FLOW/ INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR
MKX
RELAY
RIGHT ANTI-THEFT FRONT HOOD SIDE SWITCH LAMP
RIGHT FRONT FOG RIGHT HEADLAMP LAMP
RIGHT LEFT FRONT FRONT PARK/ HIGH TURN BEAM LAMP LAMP
RUN/
SMART LEFT WIPER HEADLAMP MODULE
SMART WIPER MODULE
TO JOINT CONNECTOR 7 (DIAGRAM 1 OF 4) OF ENGINE COMPARTMENT)
TRAILER TOW LEFT STOP/TURN LAMP RELAY
TRAILER TOW PARK LAMP RELAY
TRAILER TOW RIGHT STOP/TURN LAMP RELAY
WASHER FLUID LEVEL HORN SWITCH
YEL WIRE
Go to component -> Ground distribution circuit (1 of 4) -> JOINT CONNECTOR 7 (LEFT REAR
