Lincoln MKC I facelift (2018-2019) left in ropa sensor Wiring diagram
This page shows the only wiring diagram for the component.left in ropa sensor, which is found in the car Lincoln MKC I facelift (2018-2019). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

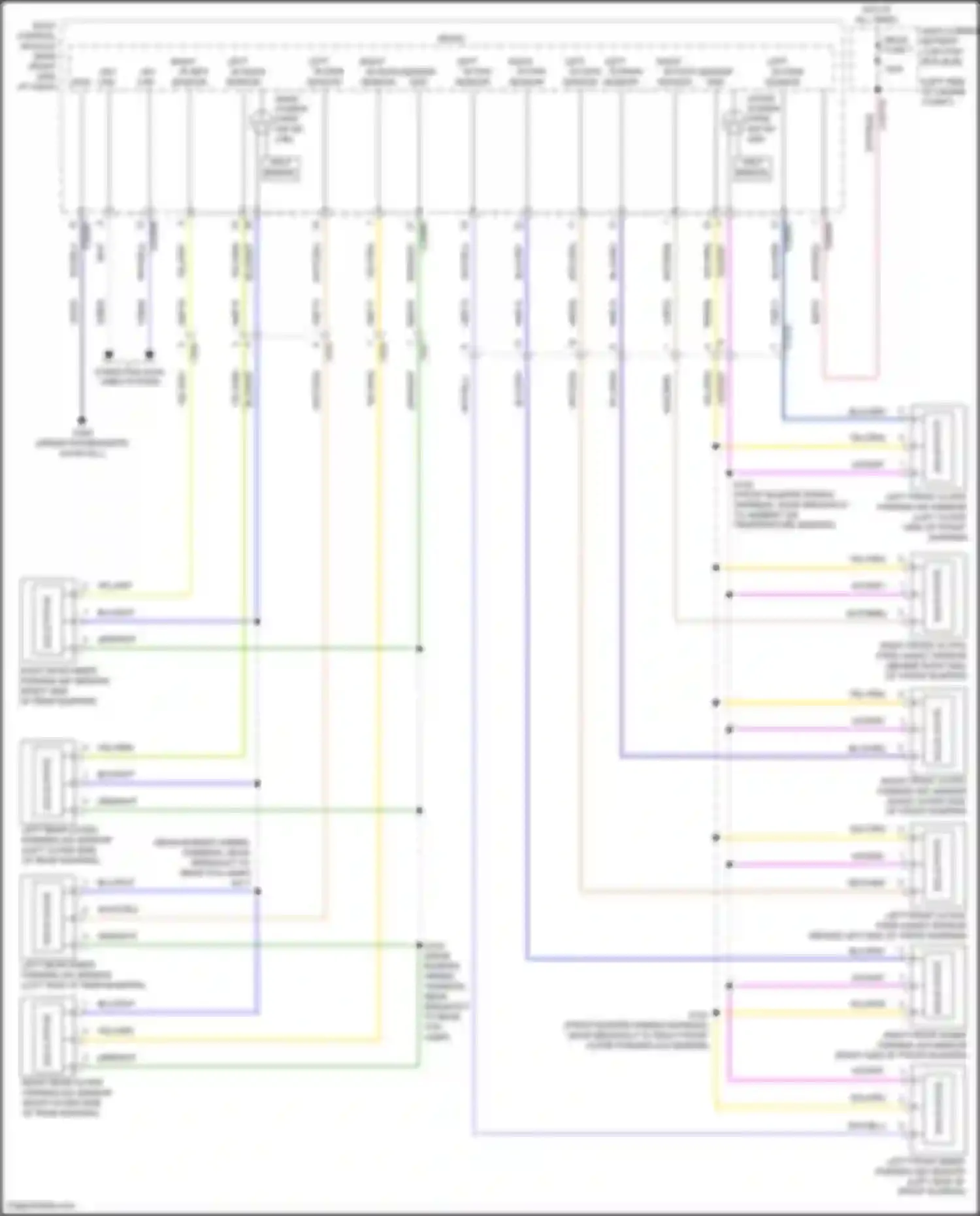

Wiring diagram left in ropa sensor (1 of 1)
BLK/BLU WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BODY CONTROL MODULE (BCM)
CAN (+)
COMPUTER DATA LINES SYSTEM
FRONT POWER PARK AID SN (HB)
GND CAN -
GRN/WHT WIRE
GRY/ORG WIRE
HALF BRIDGE
HIGH CURRENT BATTERY JUNCTION BOX (BJB)
HOT AT ALL TIMES
LEFT FRONT ACTIVE PARK ASSIST SENSOR
LEFT FRONT INNER PARKING AID SENSOR
LEFT FRONT OUTER PARKING AID SENSOR
LEFT IN FAPA SENSOR
LEFT IN FIPA SENSOR
LEFT IN FOPA SENSOR
LEFT IN RAPA SENSOR
LEFT IN RIPA SENSOR
LEFT IN ROPA SENSOR
LEFT REAR INNER PARKING AID SENSOR
LEFT REAR OUTER PARKING AID SENSOR
MEGA FUSE 7
MICRO -
REAR POWER PARK AID SN (HB)
RIGHT FRONT ACTIVE PARK ASSIST SENSOR
RIGHT FRONT INNER PARKING AID SENSOR
RIGHT FRONT OUTER PARKING AID SENSOR
RIGHT IN FAPA SENSOR
RIGHT IN FIPA SENSOR
RIGHT IN RIPA SENSOR
RIGHT IN ROPA SENSOR
RIGHT REAR INNER PARKING AID SENSOR
RIGHT REAR OUTER PARKING AID SENSOR
SENSOR GND
SOLID STATE
VIO/GRY WIRE
WHT WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/ORG WIRE
WHT/RED WIRE
YEL/GRN WIRE
YEL/GRY WIRE
YEL/ORG WIRE
Go to component -> Parking assistant circuit -> LEFT IN ROPA SENSOR
