Wiring Diagrams for Lincoln Continental X (2016-2024)

Automatic a/c circuit

Anti-lock brakes circuit

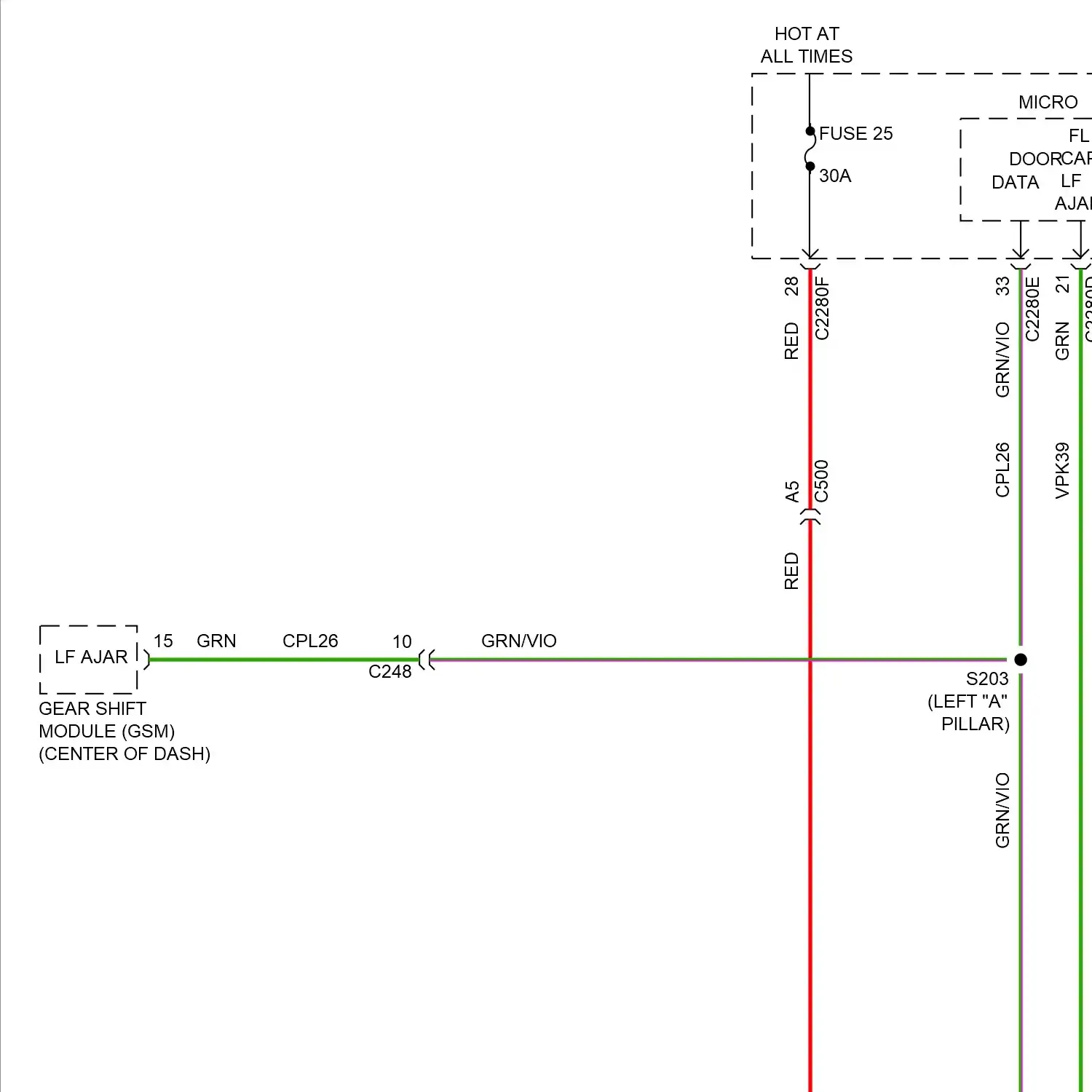

Anti-theft circuit

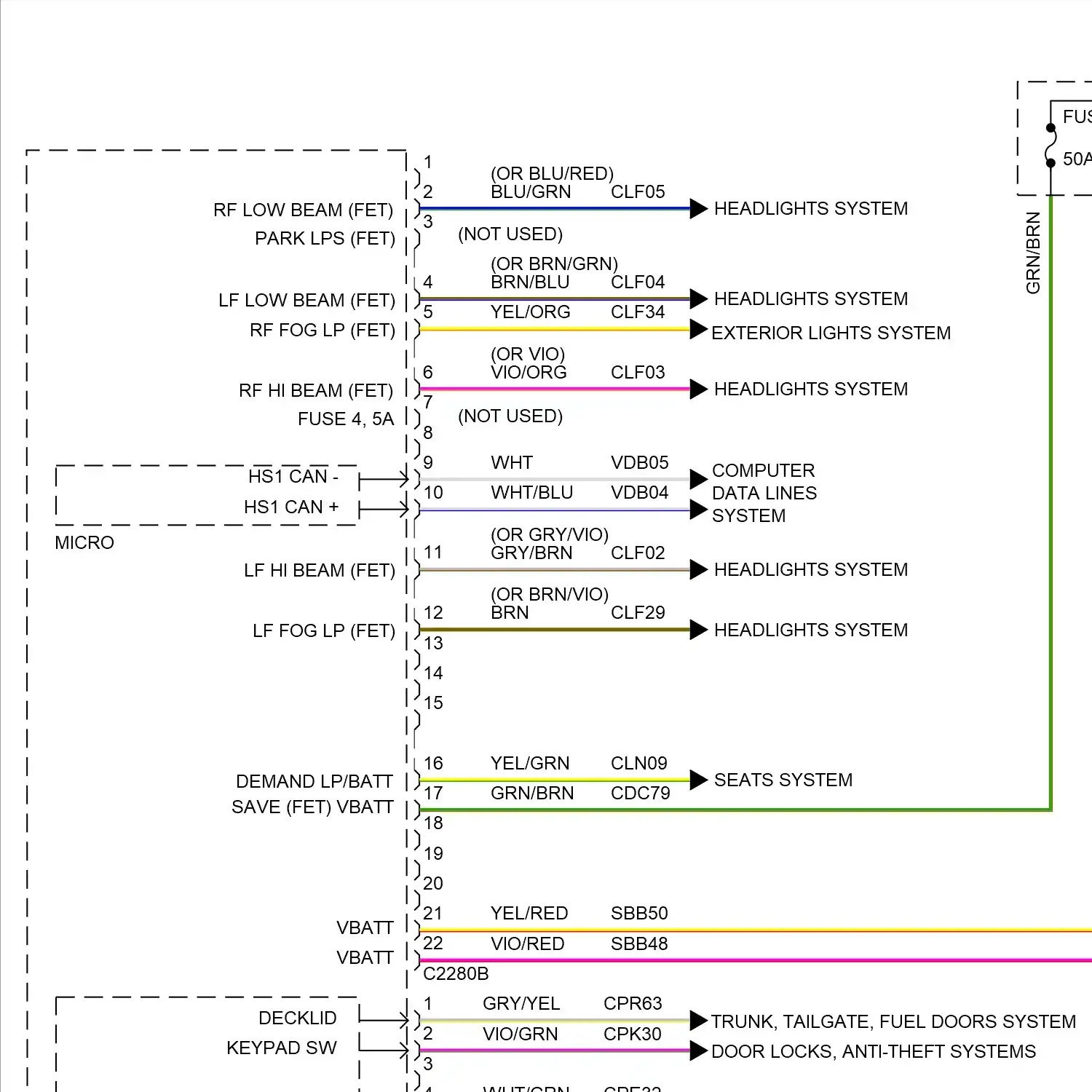

Body control modules circuit

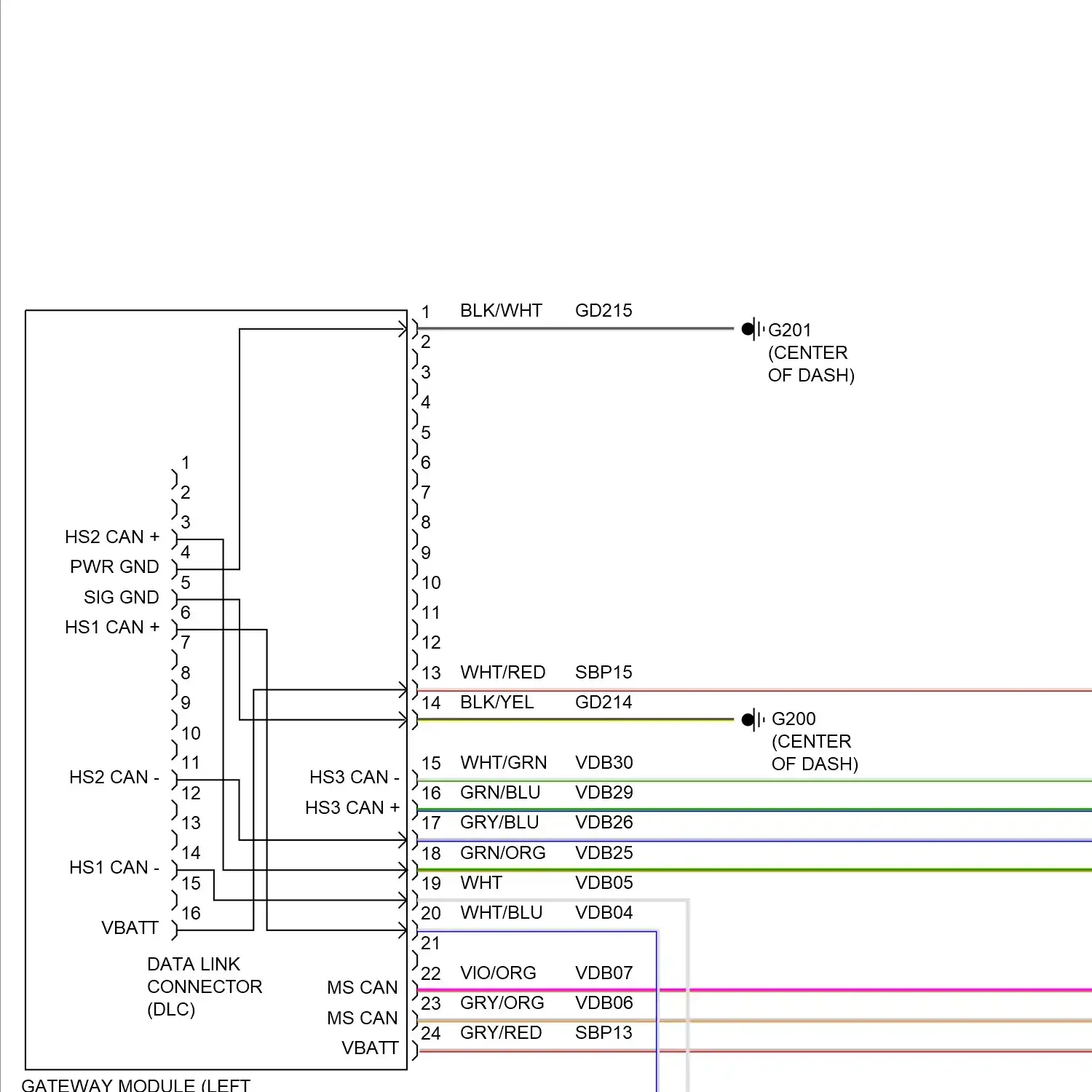

Computer data lines circuit

Cooling fan circuit

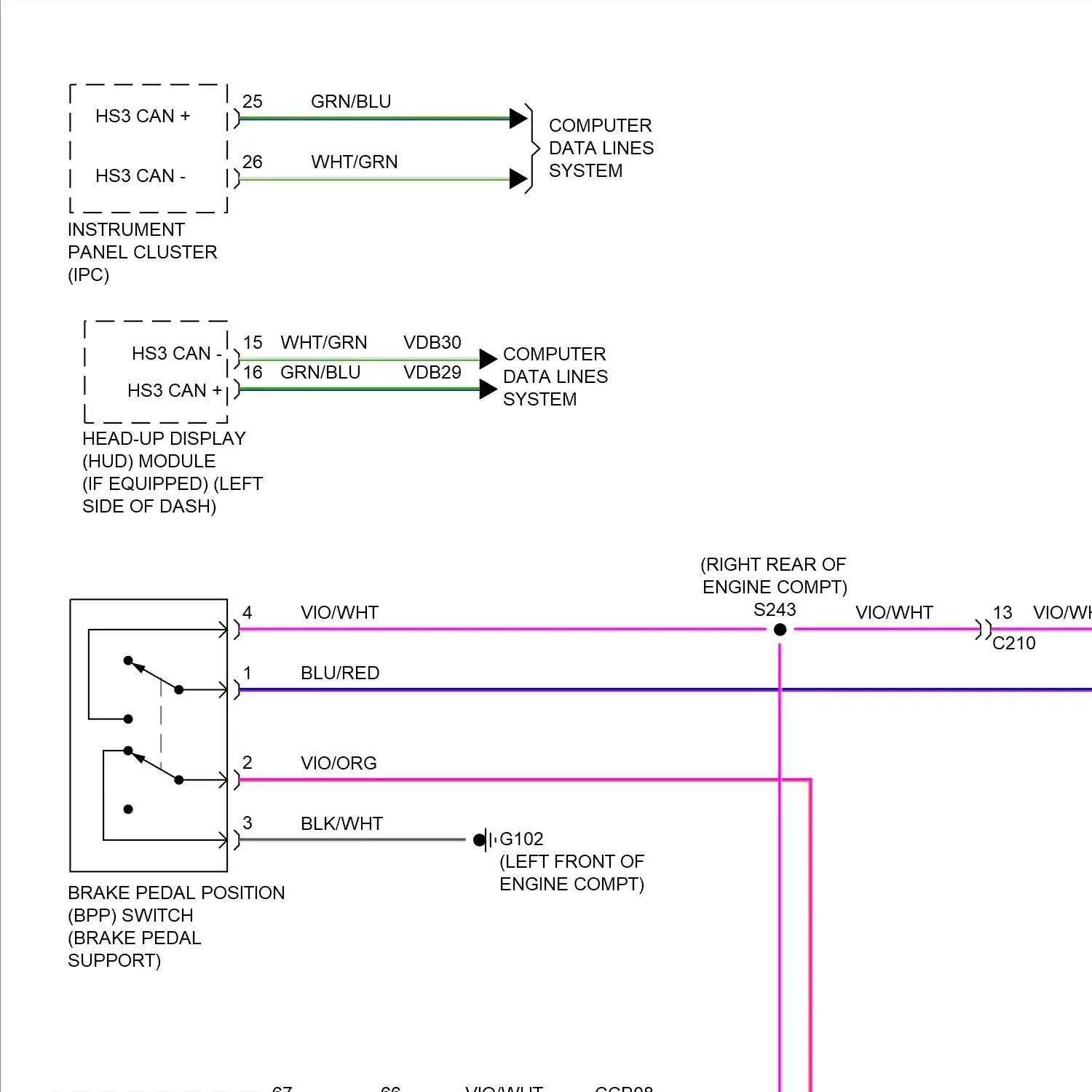

Cruise control circuit

Defoggers circuit

Adaptive steering circuit Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.7l turbo

Wiring diagram engine performance 3.0l turbo

Wiring diagram engine performance 3.7l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

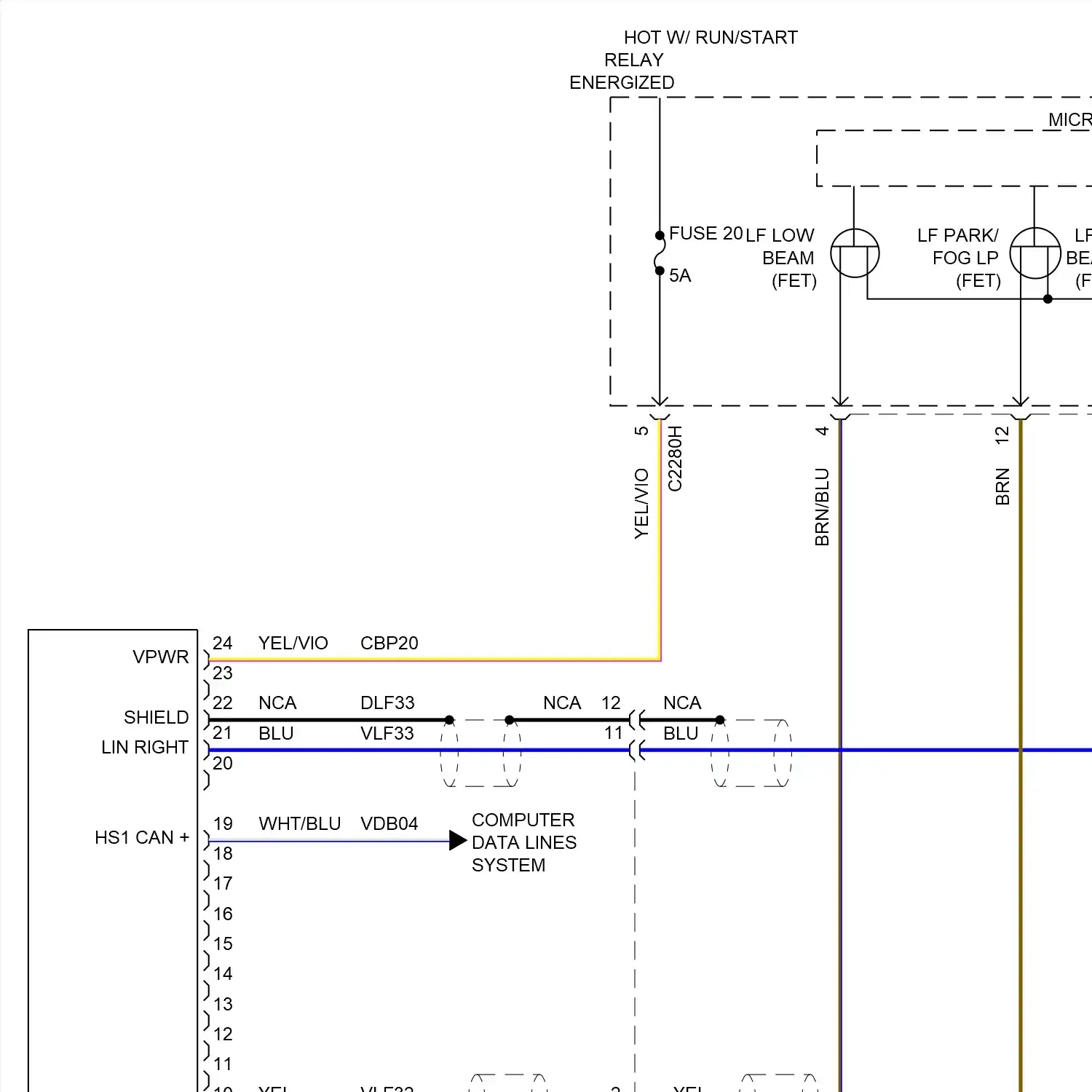

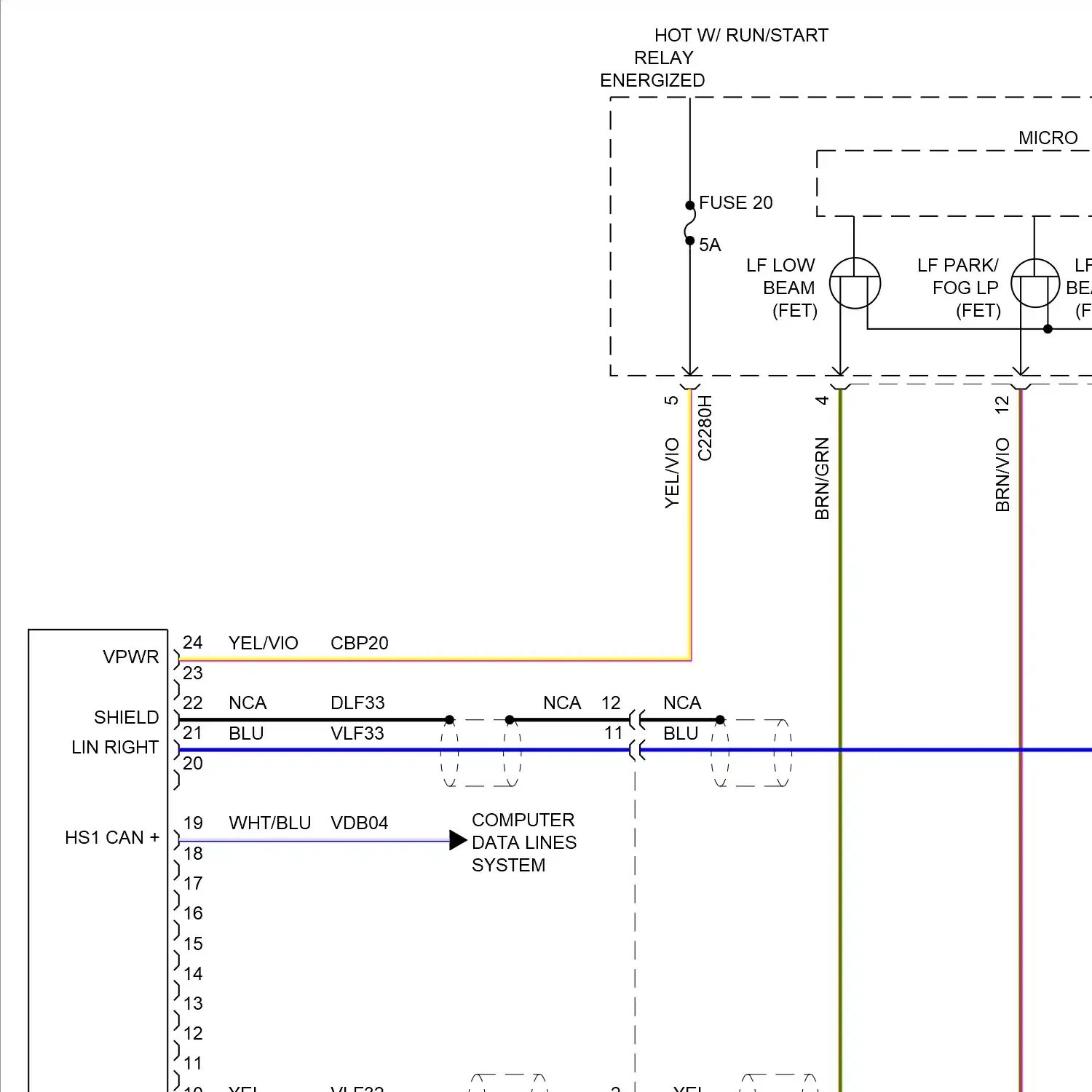

Headlights circuit, w/ high intensity gas discharge headlights Headlights circuit, w/o high intensity gas discharge headlights

Horn circuit

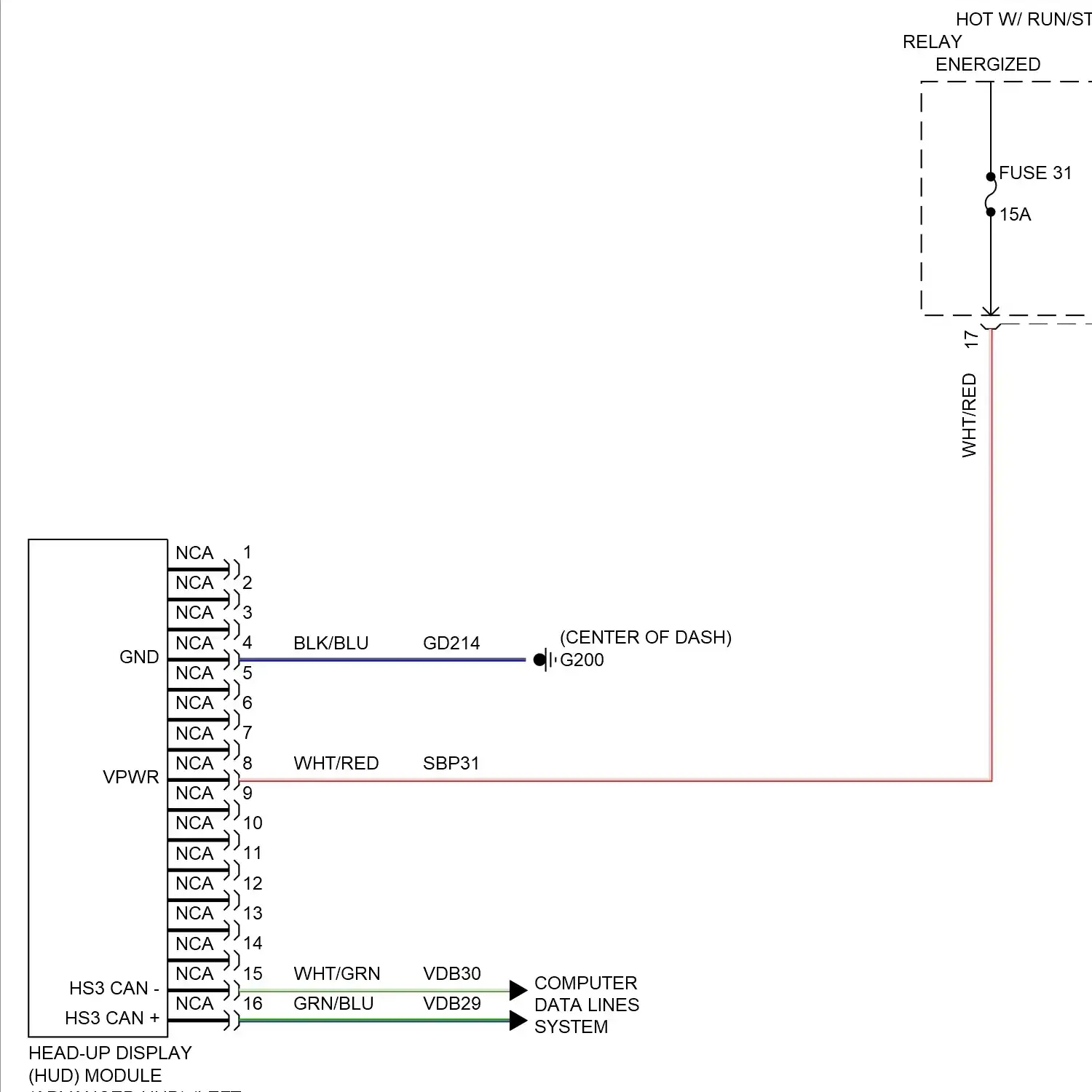

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Steering column memory circuit

All around vision camera circuit Blind spot information system circuit Crew chief circuit Lane departure warning circuit Navigation circuit, w/o touch screen & ultima Navigation circuit, w/o touch screen w/ ultima Navigation circuit, w/ touch screen Parking assistant circuit Rear camera circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

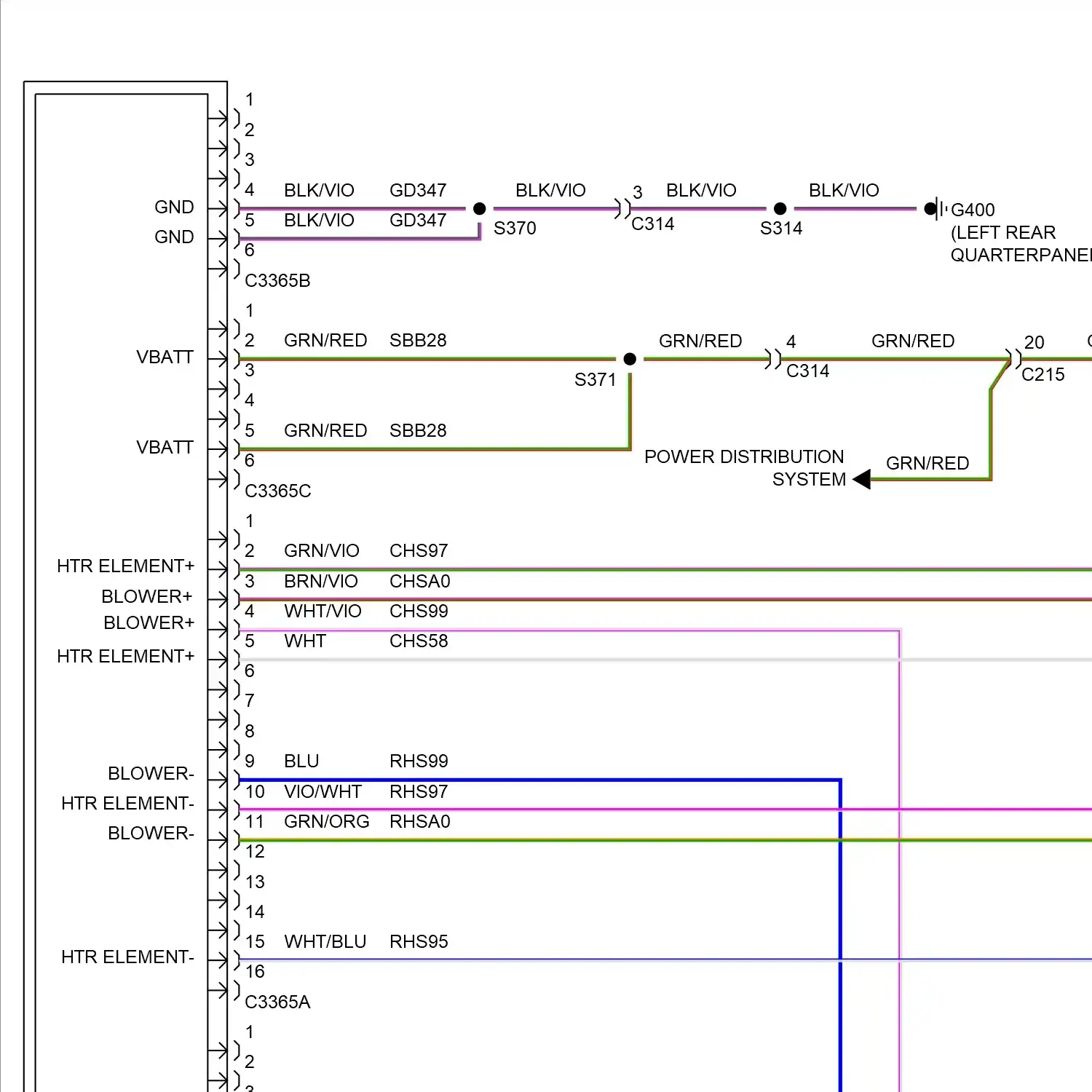

Front climate control seats circuit Front heated seats circuit Front multicontour seat circuit Heated steering wheel circuit Passenger power seat circuit Rear climate control seats circuit Rear heated seats circuit Rear multicontour seat circuit

Power top/sunroof circuit

Power windows circuit Rear window sun shade circuit

Radio circuit, w/o touch screen & ultima Radio circuit, w/o touch screen w/ ultima Radio circuit, w/ touch screen

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

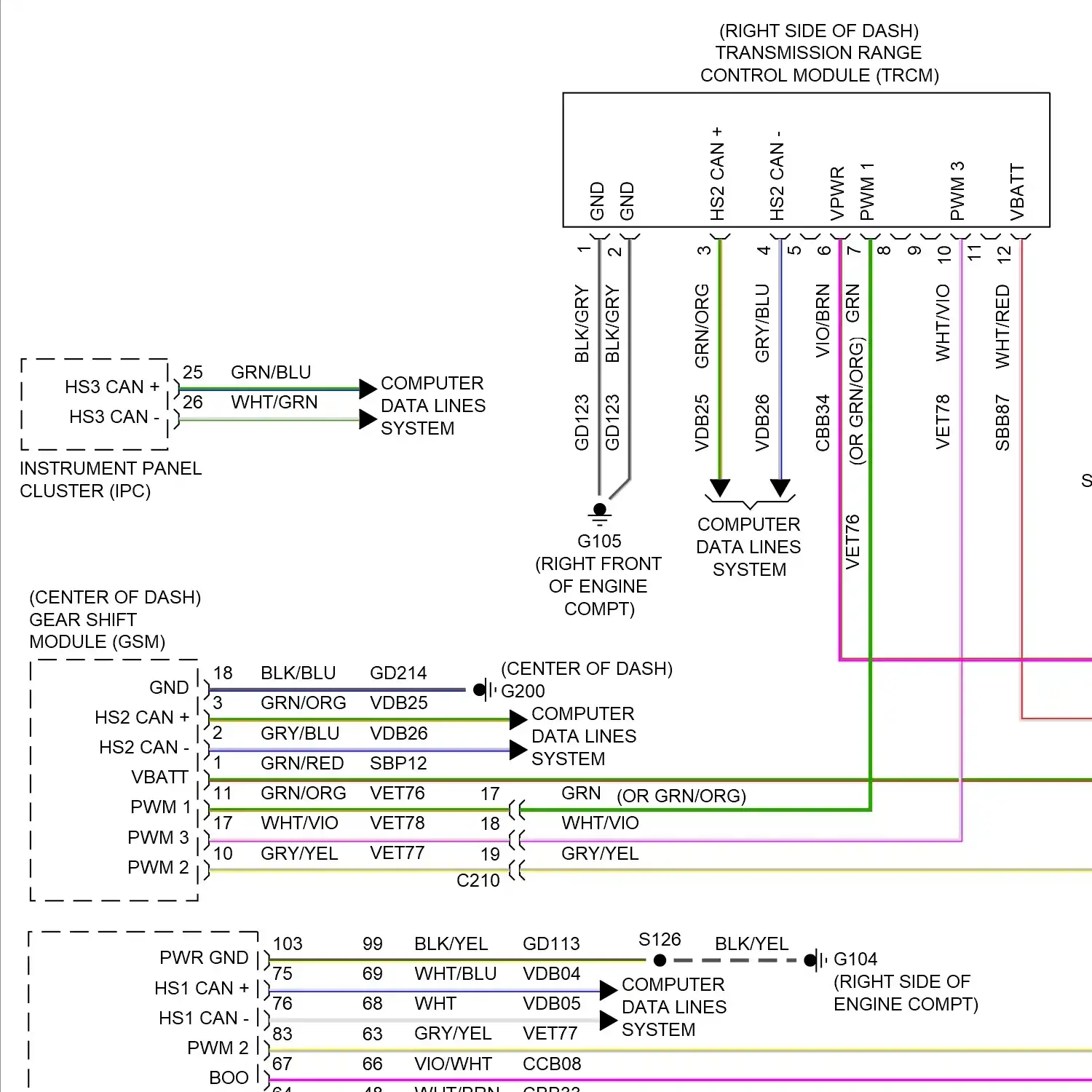

A/t circuit Awd circuit, w/ active torque coupling Awd circuit, w/ torque vectoring

Trunk release circuit, w/o power decklid Trunk release circuit, w/ power decklid

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ALL LOCK/ ANTI- THEFT HORN ANTI-LOCK BRAKES SYSTEM CHILD LOCK RLY HORN RLY I/P HORN SW LEFT HORN LOCK IND LOCK RPTR OUTSIDE LOCK SW RIGHT HORN SECURITY HORN RLY UNLOCK RPTR LOCK RPTR

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE AIR DISTRIBUTION DOOR ACTUATOR AIR INLET DOOR ACTUATOR BLOWER MOTOR DRIVER SEAT CUSHION BLOWER MOTOR DRIVER SEAT FRONT HEIGHT MOTOR DRIVER SEAT HORIZONTAL MOTOR DRIVER SEAT REAR HEIGHT MOTOR DRIVER SEAT RECLINER MOTOR DRIVER SEAT UPPER BACKREST HORIZONTAL MOTOR ENGINE CONTROLS SYSTEM LEFT COOLING FAN MOTOR LEFT DRIVER SEAT CUSHION EXTEND MOTOR LEFT FRONT DOOR CINCH MOTOR LEFT FRONT SEAT HEADREST MOTOR ASSEMBLY LEFT PARKING BRAKE ACTUATOR MOTOR LEFT PASSENGER SEAT CUSHION EXTEND MOTOR LEFT REAR DOOR CINCH MOTOR LEFT REAR POWER FOLD HEADREST MOTOR LEFT REAR SEAT CUSHION VENT MOTOR LEFT REAR SEAT RECLINER MOTOR LEFT SEAT BACKREST BLOWER MOTOR LEFT TEMPERATURE DOOR ACTUATOR PASSENGER FRONT SEAT HEIGHT MOTOR PASSENGER REAR SEAT HEIGHT MOTOR PASSENGER SEAT CUSHION BLOWER MOTOR PASSENGER SEAT HORIZONTAL MOTOR PASSENGER SEAT RECLINER MOTOR PASSENGER SEAT UPPER BACKREST HORIZONTAL MOTOR POWER DECKLID MOTOR REAR AIR DISTRIBUTION DOOR ACTUATOR REAR AIR INLET SHUT-OFF DOOR ACTUATOR REAR BLOWER MOTOR REAR TEMPERATURE DOOR ACTUATOR RIGHT COOLING FAN MOTOR RIGHT DRIVER SEAT CUSHION EXTEND MOTOR RIGHT FRONT DOOR CINCH MOTOR RIGHT FRONT SEAT HEADREST MOTOR ASSEMBLY RIGHT PARKING BRAKE ACTUATOR MOTOR RIGHT PASSENGER SEAT CUSHION EXTEND MOTOR RIGHT REAR DOOR CINCH MOTOR RIGHT REAR POWER FOLD HEADREST MOTOR RIGHT REAR SEAT CUSHION VENT MOTOR RIGHT REAR SEAT RECLINER MOTOR RIGHT SEAT BACKREST BLOWER MOTOR RIGHT TEMPERATURE DOOR ACTUATOR STARTER MOTOR STEERING COLUMN TELESCOPING MOTOR STEERING COLUMN TILTING MOTOR TOP OF ENGINE) WINDSHIELD WIPER MOTOR

ANTENNA PWR FRONT CONSOLE ANTENNA INTERNAL ANTENNA RKE RECEIVER KEYLESS ENTRY REAR ANTENNA LEFT KEYLESS ENTRY DOOR ANTENNA RIGHT KEYLESS ENTRY DOOR ANTENNA SATELLITE RADIO/GPS ANTENNA

DRIVER DOOR WINDOW REGULATOR MOTOR LEFT REAR DOOR WINDOW REGULATOR MOTOR PASSENGER DOOR WINDOW REGULATOR MOTOR PUSH BUTTON START IGNITION SWITCH RIGHT REAR DOOR WINDOW REGULATOR MOTOR

360 CAMERA 360 CAMERA ENABLE CAMERA WINDSHIELD DEFROST HEATER COAX FRONT CAMERA VIDEO COAX LEFT CAMERA VIDEO FRONT PARKING AID CAMERA LEFT CAMERA REAR CAMERA VIDEO + REAR COAX CAMERA VIDEO REAR PARKING AID CAMERA RIGHT CAMERA VIDEO

BLOWER MOTOR CONTROL MODULE DC TO DC CONVERTER CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE 2 HEADLAMP CONTROL MODULE LEFT FRONT DOOR CONTROL MODULE LEFT REAR DOOR CONTROL MODULE REAR LAMP FADE CONTROL MODULE RIGHT FRONT DOOR CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 42 FUSE 44 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 60 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 72 FUSE 74 FUSE 76 FUSE 78 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 85 FUSE 86 FUSE 87 FUSE 88 FUSE 89 FUSE 90 FUSE 91 FUSE 92 FUSE 93 FUSE 94 FUSE 95 FUSE 96 FUSE 97 FUSE 98 MEGA FUSE 1 MEGA FUSE 2 MEGA FUSE 3

DRIVER SEAT HEATING/COOLER ELEMENT DRV HEATER FEED HEATER WIPER PARK CTRL LEFT DRIVER SEAT BACKREST HEATER MAT LEFT FRONT SEAT BACKREST HEATER LEFT FRONT SEAT CUSHION HEATER LEFT REAR SEAT BACKREST HEATER LEFT REAR SEAT BACKREST HEATER MAT LEFT REAR SEAT CUSHION HEATER MAT LF WINDSHIELD HEATER CTRL LR HEATER FD PASS HEATER FEED PASSENGER SEAT HEATING/COOLER ELEMENT RIGHT FRONT SEAT BACKREST HEATER RIGHT FRONT SEAT CUSHION HEATER RIGHT PASSENGER SEAT BACKREST HEATER MAT RIGHT REAR SEAT BACKREST HEATER RIGHT REAR SEAT BACKREST HEATER MAT RIGHT REAR SEAT CUSHION HEATER MAT RR HEATER FD

BLIS INDICATOR LEFT FRONT INTERIOR DOOR LOCK INDICATOR/AMBIENT LIGHTING LAMP LEFT INTERIOR FRONT DOOR LOCK INDICATOR/ AMBIENT LIGHTING LAMP LEFT INTERIOR REAR DOOR LOCK INDICATOR/ AMBIENT LIGHTING LAMP LEFT REAR INTERIOR DOOR LOCK INDICATOR/AMBIENT LIGHTING LAMP LOW BRAKE FLUID WARNING INDICATOR SWITCH LOW WASHER FLUID WARNING INDICATOR SWITCH RIGHT FRONT INTERIOR DOOR LOCK INDICATOR/AMBIENT LIGHTING LAMP RIGHT INTERIOR FRONT DOOR LOCK INDICATOR/ AMBIENT LIGHTING LAMP RIGHT INTERIOR REAR DOOR LOCK INDICATOR/ AMBIENT LIGHTING LAMP RIGHT INTERIOR REAR DOOR LOCK INDICATOR/AMBIENT LIGHTING LAMP RIGHT REAR INTERIOR DOOR LOCK INDICATOR/AMBIENT LIGHTING LAMP

ASHTRAY LAMP AUTO LAMP DECKLID LAMP ASSEMBLY DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS FLOOR CONSOLE CUP HOLDER AMBIENT LIGHTING LAMP FLOOR CONSOLE STORAGE BIN AMBIENT LIGHTING LAMP FRONT CONSOLE CUP HOLDER AMBIENT LIGHTING LAMP GLOVE COMPARTMENT LAMP HIGH MOUNTED STOP LAMP LEFT FOOTWELL LAMP LEFT FRONT SCUFF PLATE LAMP LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR FOOTWELL LAMP LEFT REAR LAMP ASSEMBLY LEFT VANITY MIRROR LAMP PASSENGER I/P LAMP POWER WINDOWS, INTERIOR LIGHTS, MEMORY SYSTEMS RIGHT FOOTWELL LAMP RIGHT FRONT SCUFF PLATE LAMP RIGHT LUGGAGE COMPARTMENT LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR LAMP ASSEMBLY RIGHT VANITY MIRROR LAMP

FUEL INJECTION PUMP FUEL PUMP SHIELD HEADLAMP WASHER PUMP LEFT MULTI-CONTOUR CONTROL PUMP LEFT REAR MULTI-CONTOUR SEAT CONTROL PUMP LUMBAR PUMP RIGHT MULTI-CONTOUR CONTROL PUMP RIGHT REAR MULTI-CONTOUR SEAT CONTROL PUMP TRANSFER CASE COOLANT PUMP WINDSHIELD WASHER PUMP

A/C CLUTCH RELAY ACCESSORY DELAY RELAY AUXILIARY RELAY BOX BLOWER RELAY CENTRAL LOCK RELAY CENTRAL UNLOCK RELAY CHILD LOCK RELAY DECKLID RELAY DOUBLE/ AUX LOCK RELAY DOUBLE/AUX LOCK RELAY DRIVER/ FUEL FLAP UNLOCK RELAY FRONT BLOWER MOTOR RELAY HEADLAMP WASHER RELAY HEATED WIPER PARK RELAY HORN RELAY HOT W/ PCM POWER RELAY ENERGIZED HOT W/ RUN/START RELAY ENERGIZED LEFT REAR AFT RELAY LEFT REAR FORWARD RELAY LEFT WINDSHIELD HEATER RELAY PCM POWER RELAY POWER POINT RELAY 1 POWER POINT RELAY 2 REAR BLOWER MOTOR RELAY REAR RECLINE RELAY REAR WINDOW DEFROST RELAY RELAY MODULE RIGHT REAR AFT RELAY RIGHT REAR FORWARD RELAY RUN/ START RELAY RUN/START RELAY SECURITY HORN RELAY STARTER MOTOR RELAY TORQUE VECTORING RELAY WIPER RELAY

AIR QUALITY SENSOR AUTOLAMP/SUNLOAD SENSOR BATTERY CURRENT SENSOR BRAKE BOOSTER VACUUM SENSOR CRANKCASE PRESSURE SENSOR DRIVER DOOR SIDE IMPACT SENSOR DRIVER SIDE FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR DRIVER SIDE REGISTER AIR DISCHARGE TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR FUEL LEVEL SENSOR FUEL PRESSURE SENSOR GENERATOR CURRENT SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR GND HALL SENSOR SPLY HALL SENSOR SUPPLY IN-VEHICLE TEMPERATURE/ HUMIDITY SENSOR INTRUSION SENSOR LEFT FRONT ACTIVE PARK ASSIST SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT IMPACT SEVERITY SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR ACTIVE PARK ASSIST SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SEAT POSITION SENSOR LEFT SECOND ROW SIDE IMPACT SENSOR LF SENSOR HI LF SENSOR LO LR SENSOR HI LR SENSOR LO PASSENGER DOOR SIDE IMPACT SENSOR PASSENGER SIDE FOOTWELL AIR DISCHARGE TEMPERATURE SENSOR PASSENGER SIDE REGISTER AIR DISCHARGE TEMPERATURE SENSOR POSITION SENSOR RAIN SENSOR MODULE REAR AIR DISCHARGE TEMPERATURE SENSOR REAR TEMPERATURE SENSOR RF SENSOR HI RF SENSOR LO RIGHT FRONT ACTIVE PARK ASSIST SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT IMPACT SEVERITY SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR ACTIVE PARK ASSIST SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SEAT POSITION SENSOR RIGHT SECOND ROW SIDE IMPACT SENSOR RR SENSOR HI RR SENSOR LO TRANSFER CASE TEMPERATURE SENSOR WASTEGATE VACUUM SENSOR

CENTER INSTRUMENT PANEL SPEAKER CENTER REAR SUBWOOFER SPEAKER LEFT FRONT DOOR MIDDLE SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT DOOR TWEETER SPEAKER LEFT REAR DOOR MIDDLE SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR DOOR SUBWOOFER SPEAKER LEFT REAR DOOR TWEETER SPEAKER LEFT REAR TWEETER SPEAKER RIGHT FRONT DOOR MIDDLE SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT DOOR TWEETER SPEAKER RIGHT REAR DOOR MIDDLE SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR DOOR SUBWOOFER SPEAKER RIGHT REAR DOOR TWEETER SPEAKER RIGHT REAR SUBWOOFER SPEAKER RIGHT REAR TWEETER SPEAKER SUBWOOFER AMPLIFIER SUBWOOFER SPEAKER

DOWNSHIFT PADDLE SWITCH DRIVER DOOR WINDOW CONTROL SWITCH EXTERIOR REAR VIEW MIRROR SWITCH HAZARD FLASHER SWITCH HEADLAMP SWITCH HOOD AJAR SWITCH HORN SWITCH INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY LEFT FRONT DOOR LOCK SWITCH LEFT FRONT EXTERIOR DOOR LATCH LOCK SWITCH LEFT FRONT EXTERIOR DOOR LATCH SWITCH LEFT FRONT INTERIOR DOOR LATCH SWITCH LEFT REAR DOOR LOCK SWITCH LEFT REAR DOOR WINDOW CONTROL SWITCH LEFT REAR EXTERIOR DOOR LATCH SWITCH LEFT REAR INTERIOR DOOR LATCH SWITCH LEFT REAR SEAT ADJUST SWITCH LEFT SEAT ADJUST SWITCH LEFT STEERING WHEEL SWITCH LEVEL SWITCH LUGGAGE COMPARTMENT LID CONTROL SWITCH LUGGAGE COMPARTMENT LID RELEASE SWITCH MODE SWITCH MULTI- FUNCTION SWITCH PARKING BRAKE SWITCH PASSENGER DOOR WINDOW CONTROL SWITCH REAR CLIMATE CONTROL SEAT SWITCH REAR HEATED SEAT SWITCH RIGHT FRONT DOOR LOCK SWITCH RIGHT FRONT EXTERIOR DOOR LATCH LOCK SWITCH RIGHT FRONT EXTERIOR DOOR LATCH SWITCH RIGHT FRONT INTERIOR DOOR LATCH SWITCH RIGHT REAR DOOR LOCK SWITCH RIGHT REAR DOOR WINDOW CONTROL SWITCH RIGHT REAR EXTERIOR DOOR LATCH SWITCH RIGHT REAR INTERIOR DOOR LATCH SWITCH RIGHT REAR SEAT ADJUST SWITCH RIGHT SEAT ADJUST SWITCH RIGHT STEERING WHEEL SWITCH SHIFT INTERLOCK OVERRIDE SWITCH UPSHIFT PADDLE SWITCH

FUEL FILLER DOOR LOCK SOLENOID INTELLIGENT TORQUE CONTROL SOLENOID OIL PRESSURE CONTROL SOLENOID TRANSMISSION FLUID HEATER COOLANT CONTROL VALVE VALVE L VALVE R

BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/WHT WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/WHT WIRE TAN WIRE VIO WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

2.7L TURBO, 3.0L TURBO 2.7L TURBO, 3.0L TURBO 3.7L 3.0L TURBO 3.0L TURBO 3.7L, 2.7L TURBO 3.0L TURBO, 2.7L TURBO 3.7L 3.7L 2.7L TURBO, 3.0L TURBO 3.7L, 2.7L TURBO 5/6 3/4 "BACK", VOICE A/D CHANNEL 1 A/D CHANNEL 2 A/D CHANNEL 3 A/D CHANNEL 4 A/D RETURN A/D RTN AC OUTLET AC-A AC-B ACTIVE DMPR FL HI ACTIVE DMPR FL LO ACTIVE DMPR FR HI ACTIVE DMPR FR LO ACTIVE DMPR RL HI ACTIVE DMPR RL LO ACTIVE DMPR RR HI ACTIVE DMPR RR LO ACTIVE GRILLE SHUTTER ADAPTIVE STRNG FEED ADAPTIVE STRNG RTN AIR CONDITIONING SYSTEM AIR CONDITIONING, HEADLIGHTS SYSTEMS AM/FM ANT APA ENABLE DISABLE SW APA ENABLE/DISABLE SW ATCC SOL - AUDIO ENABLE AUTO DIMMING INTERIOR MIRROR AUTO HOLD ID AUTO HOLD SW AUTO PARK AUTOHOLD IND AUTOHOLD SW AUTOLAMP SENS CAN - RETURN AUTOLAMP SENS I/P AUTOLAMP SENS INPUT AUTOLAMP SENS RTN B+ HI/ILL LO BACKUP LAMPS CIRCUIT BASE BACKWARD BASE BW BASE FORWARD BASE FW BATT MONITOR BIN SNS BLIS IND BLR SPD CTRL BOO BPP BRAKE BOOSTER BRAKE FLUID BRAKE FLUID SW BRK FLUID SW BTS SIG BTS VREF BUCKLE SENSE CASE GROUND CATHODE GND CD IN L - CD IN R - CD OUT L + CD OUT R + CENTER CONSOLE CENTRAL UNLOCK RLY CHARGING SYSTEM CHIME RTN CHIME SIG CINCH CLOSE CINCHED MTR CINCHED SW A CIRCUIT BREAKER 38 COAX AM/FM ANT COLLAPSIBLE STEERING COLUMN MODULE COMPACT DISC PLAYER COMPUTER DATA LINES SYSTEM CONSOLE POWER POINT COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CRUISE CONTROL, NAVIGATION, SOUND SYSTEMS DATA LINES DBLWR+ DCSHTED- DECKLID AJAR DECKLID REL SIG DECKLID RLY DECKLID SW DEFOGGER SYSTEM DEL ACC DEPLOY STRNG COL FEED DEPLOY STRNG COL RTN DIM + DISPLAY/ HUD DM GND DM PWR DN UP DOOR DOOR CAP SNS CAP SNS LK UNLK SW SW DATA DATA DOOR LCK SW DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, POWER WINDOWS SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOOR STATUS DOOR UNLCK SW DRDL TX + DRIV INF BLT- DRIVER AIR BAG MODULE DRIVER DOOR DRIVER LOWER AIR BAG DRIVER SAFETY BELT ANCHOR PRETENSIONER DRIVER SAFETY BELT BUCKLE DRIVER SAFETY BELT RETRACTOR PRETENSIONER DRIVER SEAT ASSEMBLY DRIVER SIDE AIR BAG DRIVER SIDE AIR CURTAIN MODULE DRIVER UNLOCK DRL/NTC- DRL/PARK- DRV AIR BAG 1 FEED DRV AIR BAG 1 RTN DRV AIR BAG 2 FEED DRV AIR BAG 2 RTN DRV CURTAIN FEED DRV CURTAIN RTN DRV FRT CR SN FEED DRV FRT CR SN RTN DRV HEATED DRV MIRR HORZ POT DRV MIRR MTR DOWN/RIGHT DRV MIRR VERT POT DRV MIRROR MTR LEFT DRV MIRROR MTR VERT UP DRV PRET FEED DRV PRET RTN DRV PRETENSIONER FEED DRV PRETENSIONER RTN DRV PUDDLE DRV PWR ST DRV SEAT NTC SENS DRV SEAT SW LIN BUS DRV SIDE AIR FEED DRV SIDE AIR RTN DRV SIDE IM SN FEED DRV SIDE IM SN RTN DRV ST HTR- DRV ST NTC SENS DRV STRNG COL FEED DRV STRNG COL RTN DRV SUNLOAD DRV TURN EC DRIVE ELECTRONIC POWER STEERING SYSTEM ENCODER PWR ENCODER RTN ENCODER SIG 1 ENCODER SIG 2 ENDS IN HARNESS ENG SW ENS SIG ETCRTN TSS/OSS /TR GND EXT MIRR POT FEED EXT SW EXTERIOR SOUNDER FC SPKR + FC TWEETER + FL CAP SNS DATA FL CAP SNS LF DOOR DATA AJAR FL SIG FOLD OUT FOLD-IN FP PWR FP RTN FR CAP SNS DATA FR SIG FRONT CIGAR LIGHTER FRONT DOWN FRONT MULTI-CONTOUR SEATS CIRCUIT FRONT UP FRONT VIDEO + FRONT WASHER FRT DOWN FRT UP FRT WASHER FRT WIPER HI FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL INJECTORS FUEL SENDER 1 FUEL SENDER 1 RTN FUEL SENDER 2 FUEL SENDER 2 RTN FUEL TANK ASSEMBLY GAP UP GATEWAY MODULE GLASS CLOSE GLASS OPEN GND REAR GND STRIKER UP SW GROUND DISTRIBUTION SYSTEM GUARD TRACK H/L OFF H/L ON HALF BRIDGE HALL 1 HALL 2 HALL 3 HALL EFFECT SENS RET HALL EFFECT SENSE HALL GND HALL VCC HANDS FREE HANDSFREE LUGGAGE COMPARTMENT LID ACTUATION MODULE HDLP ON HEADLAMP OFF HEADLAMP ON HEADLAMPS OFF HEADLAMPS ON HEADLIGHTS SYSTEM HEADREST SW HEATED REAR WINDOW ELEMENT HEATED STEERING WHEEL MODULE HEGO RTN 12 HEGO RTN 22 HI BEAM HOOD AJAR HORNS SYSTEM HOT AT ALL TIMES HS VALVES HTR ELEMENT HTR RTN HTR WIPER PARK CTRL HUMIDITY MTR HUMIDITY SIG ID-LO ILL+ GND ILLUM GND IM SN FEED IN VEHICLE SIG INJ 1 INJ 2 INJ 3 INJ 4 INJ 5 INJ 6 INSTRUMENT CLUSTER SYSTEM IP RELEASE IP RELEASE SW ISP-R K LINE KEYLESS ENTRY KEYPAD KEYPAD SW A KEYPAD SW B KEYPAD SW C LED SNS LEFT "C" PILLAR) LEFT EXTERIOR MIRROR LEFT FLOOR CONSOLE TRIM AMBIENT LIGHTING LEFT FRONT SEAT POWER LUMBAR ASSEMBLY LEFT FRONT SHOCK ABSORBER LEFT HEADLAMP ASSEMBLY LEFT HEATED WINDSHIELD ELEMENT LEFT REAR CLIMATE CONTROLLED SEAT SWITCHES LEFT REAR INTERIOR/ MAP LAMPS ASSEMBLY LEFT REAR INTERIOR/MAP LAMPS ASSEMBLY LEFT REAR SCUFF PLATE TRIM PANEL LEFT REAR SHOCK ABSORBER LEFT VIDEO + LEVEL 1 LF AJAR LF AMBIENT NOISE 1 + LF AUTOPARK SNS LF DOOR LF DOOR AJAR LF LED LF LED TURN OUTAGE LF OUTER SNS LF SENS 1 LF SENS 2 LF SPKR LF SPKR LOW- LF SPKR MID + LF TWEETER+ LF WINDSHIELD HTR CTRL LH CLUTCH LH HI LED + LH HIGH LED LH LO LED + LH LOW LED LH SYS LH SYS LO/HI/OFF LICENSE LAMPS LIN 1 LIN 03 LIN 04 LIN 05 LIN 06 LIN 07 LIN BUS LIN LEFT LIN RIGHT LK RPTR LK STATUS RTN LOGIC GND LOW BEAM LOW WASHER LR AJAR LR DOOR LR DOOR AJAR LR INNER SNS LR LED TURN OUTAGE LR OUTER SNS LR SEAT NTC LR SENS SIG LR SIDE SNS LR SPKR LR SPKR LOW - LR SPKR MID + LR TWEETER + LUGGAGE COMPARTMENT LID LATCH LUGGAGE COMPARTMENT LID POWER STRIKER LUGGAGE COMPARTMENT LID POWER STRIKER ASSEMBLY MASTER OPEN/CLOSE SW MEDIA BIN AMBIENT LED MEM 1 MEM 2 MEM 3 MEM POS 1 MEM POS 2 MEM POS 3 MEMORY SYSTEMS MIC - MICRO - MICRO FR CAP SNS MIRRORS SYSTEM MNRF SHADE CLOSE SW MNRF SHADE OPEN SW MODE SELECT MS CAN + MTR A EPB LT MTR A EPB RT 3 4 MTR B EPB RT MTR B EPB LT MTR GND MTR OPEN MUTE VOL + NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NOISE 1 + NOISE 2 + NOISE 3 + NOISE CANCELLATION MICROPHONE 1 NOISE CANCELLATION MICROPHONE 2 NOISE CANCELLATION MICROPHONE 3 NOT USED NOT USED NTC SNS OF RADIATOR) OK DOWN OS 1 OS 2 OSS + OUT UNLATCH RTN OUTAGE TURN OUTPUT SIG OUTSIDE EC DRIVE + OUTSIDE LK SW OVERHEAD CONSOLE OVERRIDE SW 1 OVERRIDE SW 2 PA ENABLE DISABLE SW PA ENABLE/DISABLE SW PARK AID PARK AID SNS PASS AIR BAG 1 FEED PASS AIR BAG 1 RTN PASS AIR BAG 2 FEED PASS AIR BAG 2 RTN PASS BUCKLE SW PASS CURTAIN FEED PASS CURTAIN RTN PASS FRT CR SN FEED PASS FRT CR SN RTN PASS HEATED PASS INF BLT+ PASS LOAD LIMITER FEED PASS LOAD LIMITER RTN PASS MIRR HORZ POT PASS MIRR MTR DOWN/LEFT PASS MIRR MTR VERT UP PASS MIRR VERT POT PASS MIRROR MTR RIGHT PASS PRET FEED PASS PRET RTN PASS PRETENSIONER FEED PASS PRETENSIONER RTN PASS PUDDLE PASS SEAT NTC SNS PASS SEAT SW LIN BUS PASS SIDE AIR FEED PASS SIDE AIR RTN PASS SIDE IM SN FEED PASS SIDE IM SN RTN PASS ST HTR- PASS ST HTR- PBLWR- PASS ST NTC SENS PASS STRNG COL FEED PASS STRNG COL RTN PASS SUNLOAD PASS TURN PASSENGER AIR BAG PASSENGER DOOR) PASSENGER LOWER AIR BAG PASSENGER POWER SEAT CIRCUIT PASSENGER SAFETY BELT ANCHOR PRETENSIONER PASSENGER SAFETY BELT BUCKLE PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER SAFETY BELT RETRACTOR PRETENSIONER PASSENGER SEAT ASSEMBLY PASSENGER SIDE AIR BAG PASSENGER SIDE AIR CURTAIN MODULE PBLWR+ PCM WAKE PCSHTED+ PBLWR+ PCSHTED- PEPS TELEGRAM PHONE DOWN PHONE UP POWER DECKLID CHIME POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PRESENTED MTR PRESENTED SW B PRIVATE HS CAN + PRIVATE HS CAN + PRIVATE HS CAN - PWM 1 PWM 2 PWM 3 PWM IN PWR CLOSE SW PWR GND R/S OUT RCM OUT REAR CLIMATE CONTROL SEAT MODULE REAR DEFROST REQUEST REAR DOWN REAR FOG REAR HEATED SEAT MODULE REAR POWER POINT REAR UP REAR VIDEO - REAR WINDOW REAR WINDOW BLIND MODULE REC AFT REC FORWARD RECIRC DOOR CLOSE CCW RECIRC DOOR CLOSE CW RECIRC DOOR FEEDBACK RECLINE FORWARD RECLINE REARWARD RES LADDER+ RESET GAP DOWN RF AJAR RF AMBIENT NOISE 2 - RF AUTOPARK SNS RF DOOR RF DOOR AJAR RF DOOR AJAR DATA RF INNER SNS RF LED TURN OUTAGE RF OUTER SNS RF SENS 1 RF SENS 2 RF SPKR RF SPKR LOW- RF SPKR MID - RF TWEETER - RF WINDSHIELD HTR CTRL RH CLUTCH RH HI LED RH HIGH LED RH LO LED + RH LOW LED RH SYS RH SYS LO/HI/OFF RIGHT EXTERIOR MIRROR RIGHT FLOOR CONSOLE TRIM AMBIENT LIGHTING RIGHT FRONT SEAT POWER LUMBAR ASSEMBLY RIGHT FRONT SHOCK ABSORBER RIGHT HEADLAMP ASSEMBLY RIGHT HEATED WINDSHIELD ELEMENT RIGHT REAR CLIMATE CONTROLLED SEAT SWITCHES RIGHT REAR DOOR RIGHT REAR INTERIOR/ MAP LAMPS ASSEMBLY RIGHT REAR INTERIOR/MAP LAMPS ASSEMBLY RIGHT REAR SCUFF PLATE TRIM PANEL RIGHT REAR SHOCK ABSORBER RIGHT VIDEO + RL CAP SNS DATA LR OUTER SNS RL SIG ROOF OPENING PANEL MODULE RR AJAR RR AMBIENT NOISE 3 - RR BLWR CTRL PWM COM RR DEFROST REQUEST RR DOOR RR DOOR AJAR RR DOOR LR DOOR AJAR AJAR RR INNER SNS RR LED TURN OUTAGE RR MODE FEED CCW RR MODE FEED CW RR MODE FEEDBACK RR OUTER SNS RR SEAT NTC RR SHUTOFF FEED CCW RR SHUTOFF FEED CW RR BLWR MTR RLY RR SHUTOFF FEEDBACK RR SIDE SNS RR SIG RR SPKR RR SPKR LOW - RR SPKR MID - RR TEMP 1 RR TEMP 2 RR TEMP 3 RR TEMP CCW RR TEMP CW RR TEMP FEED RR TWEETER - RR WIND SHADE CLOSE SW RR WIND SHADE SW SB BLR CTRL SDL H SDL L SEAT BELT SW INPUT SEAT GND SEAT POSITION RH SEAT TRACK POSITION LH SEATS SYSTEM SEATS, ELECTRONIC SUSPENSION SYSTEMS SEATS, MEMORY SYSTEMS SECOND ROW HEADREST FOLD CTRL SECOND ROW HEADREST FOLD SW SEEK LEFT/ SEEK RIGHT/ SEEK SEEK LEFT RIGHT SEN+ SENDER 1 SENS SIG SET- SET+ RES SHADE CLOSE SHADE CLOSE SW SHADE OPEN SHADE OPEN SW SHIFT DN SHIFT DOWN SHIFT INTERLOCK SYSTEM SHIFT UP SHORTING BAR SIDE MARKER SIG GND SIG RTN SOLID STATE SOUNDER KEYLESS HOOD VEHICLE AJAR SOUNDER KEYLESS VEHICLE RR CAP SNS DATA SPLICE BLOCK 7 SPLICE BLOCK 8 SPLICE BLOCK 10 STAGE 1 STAGE 2 START/ START/ STOP 1 STOP 2 START/ STOP 1 START/STOP 1 START/STOP 2 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING WHEEL) STEREO L+ STEREO R+ STRG COLM TELESCOPING MTR FWD STRG COLM TILT MTR UP STRG COLM TELESCOPING POS FEEDBACK SENS STRG COLM TILT MTR DN STRG COLM TELESCOPING MTR RWD STRG COLM TILT POS FEEDBACK SENS STRIKER DN SW STRIKER DN SW SIG STRIKER UP STRIKER UP SW SIG SUB 1 - SUB AUDIO - SUB OUT 1 - SUB OUT 2 + SUB SHIELD SUPPLEMENTAL RESTRAINTS SYSTEM SW A SW B SW ILLUM SYNC ALERT - TACM+ TFT SIG RTN THERM FD THERM RTN TPA+ TPMS RECEIVER TR 1 TR 2 TR 3 TR 4 TR GND TR-4 TR-2 TRANSMISSIONS SYSTEM TRUNK AJAR SW TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS, NAVIGATION SYSTEMS TSS/ OSS GND TSS/ OSS VPWR TSS/OSS GND TSS/OSS VPWR TSS/OSS/ TR GND TSS/OSS/TR GND TURN OUTAGE UNLK RPTR UNLOCK RPTR USB CHARGE PORT USB- HUB VAC GND VAC SENSE P VAC SIG VARIABLE BLOWER CONTROL VBATT INPUT VIDEO+ VPWR BALLAST VPWR PRIVATE HS CAN - W/ 10-WAY POWER SEAT W/ ACTIVE PARK ASSIST W/ ADAPTIVE CRUISE CONTROL W/ ADAPTIVE STEERING W/ ADAPTIVE STEERING W/O ADAPTIVE STEERING W/ AUTO WIPERS W/ DUAL ZONE CLIMATE CONTROL W/ HARMAN REVEL ULTIMA AUDIO SYSTEM W/ HARMAN REVEL ULTIMA AUDIO SYSTEM W/O HARMAN REVEL ULTIMA AUDIO SYSTEM W/ HEATED SEATS W/ HID W/ HID W/O HID W/ HID W/O HID 2.7L TURBO, 3.0L TURBO 3.7L W/ MEMORY W/ MULTI-CONTOUR W/ POWER LUGGAGE COMPARTMENT W/ POWER LUGGAGE COMPARTMENT W/ MANUAL LUGGAGE COMPARTMENT W/ REAR CLIMATE CONTROLS W/O REAR CLIMATE CONTROLS W/ REAR MULTI-CONTOUR SEATS W/O REAR MULTI-CONTOUR SEATS W/ REAR SEAT CONTROL W/ REAR SEAT CONTROLS W/ START-STOP W/O START-STOP W/ START/ STOP W/O ADAPTIVE STEERING W/O BELT TENSIONER W/ BELT TENSIONER W/O HARMAN REVEL ULTIMA AUDIO SYSTEM W/O HID W/O HID W/ HID W/O HEATED WINDSHIELD W/ HEATED WINDSHIELD W/O MEMORY W/O START /STOP W/O TOUCH SCREEN W/ ULTIMA W/O TOUCH SCREEN, ULTIMA W/O START/STOP W/ START/STOP WAKE-UP WASHER FLUID RESERVOIR) WAVE TRAPPER WINDOW DOWN WINDOW UP WIPER/WASHER SYSTEM
