Lexus UX I (2018-2024) except hybrid Wiring diagrams
This page contains all the electrical diagrams for the component. except hybrid, in which he is found in the car Lexus UX I (2018-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram except hybrid (11 of 25)
Go to component -> Courtesy lamps circuit (1 of 3) -> EXCEPT HYBRID
Wiring diagram except hybrid (12 of 25)
Go to component -> Courtesy lamps circuit (3 of 3) -> EXCEPT HYBRID
Wiring diagram except hybrid (13 of 25)
Go to component -> Exterior lamps circuit (5 of 5) -> EXCEPT HYBRID
Wiring diagram except hybrid (14 of 25)
Go to component -> Instrument illumination circuit (1 of 4) -> EXCEPT HYBRID
Wiring diagram except hybrid (15 of 25)
Go to component -> Power door locks circuit (1 of 6) -> EXCEPT HYBRID
Wiring diagram except hybrid (16 of 25)
Go to component -> Power door locks circuit (4 of 6) -> EXCEPT HYBRID
Wiring diagram except hybrid (17 of 25)
Go to component -> Power door locks circuit (5 of 6) -> EXCEPT HYBRID
Wiring diagram except hybrid (18 of 25)
Go to component -> Power door locks circuit (6 of 6) -> EXCEPT HYBRID
Wiring diagram except hybrid (19 of 25)
Go to component -> Power top/sunroof circuit -> EXCEPT HYBRID

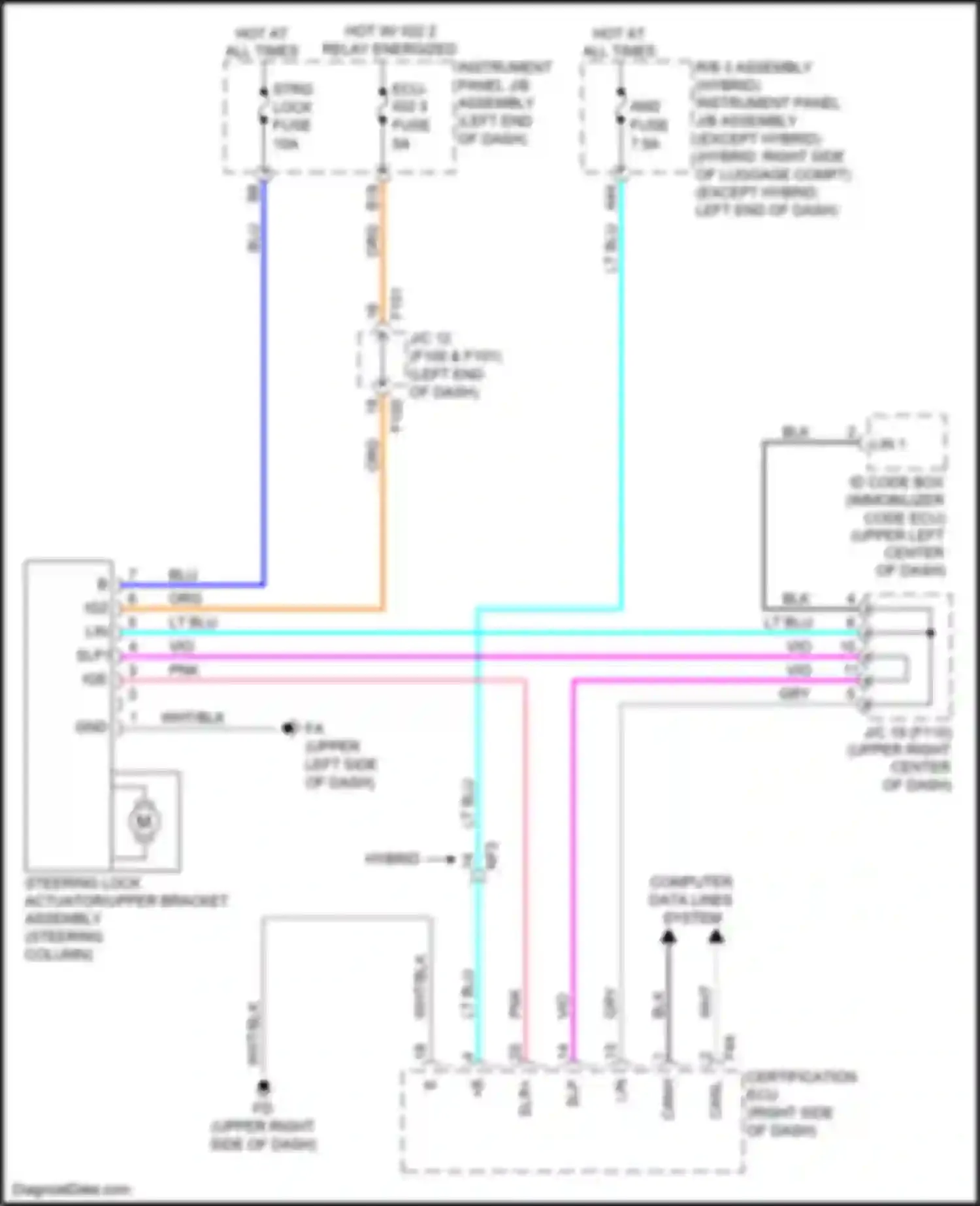

Wiring diagram except hybrid (20 of 25)
Go to component -> Steering column circuit -> EXCEPT HYBRID
