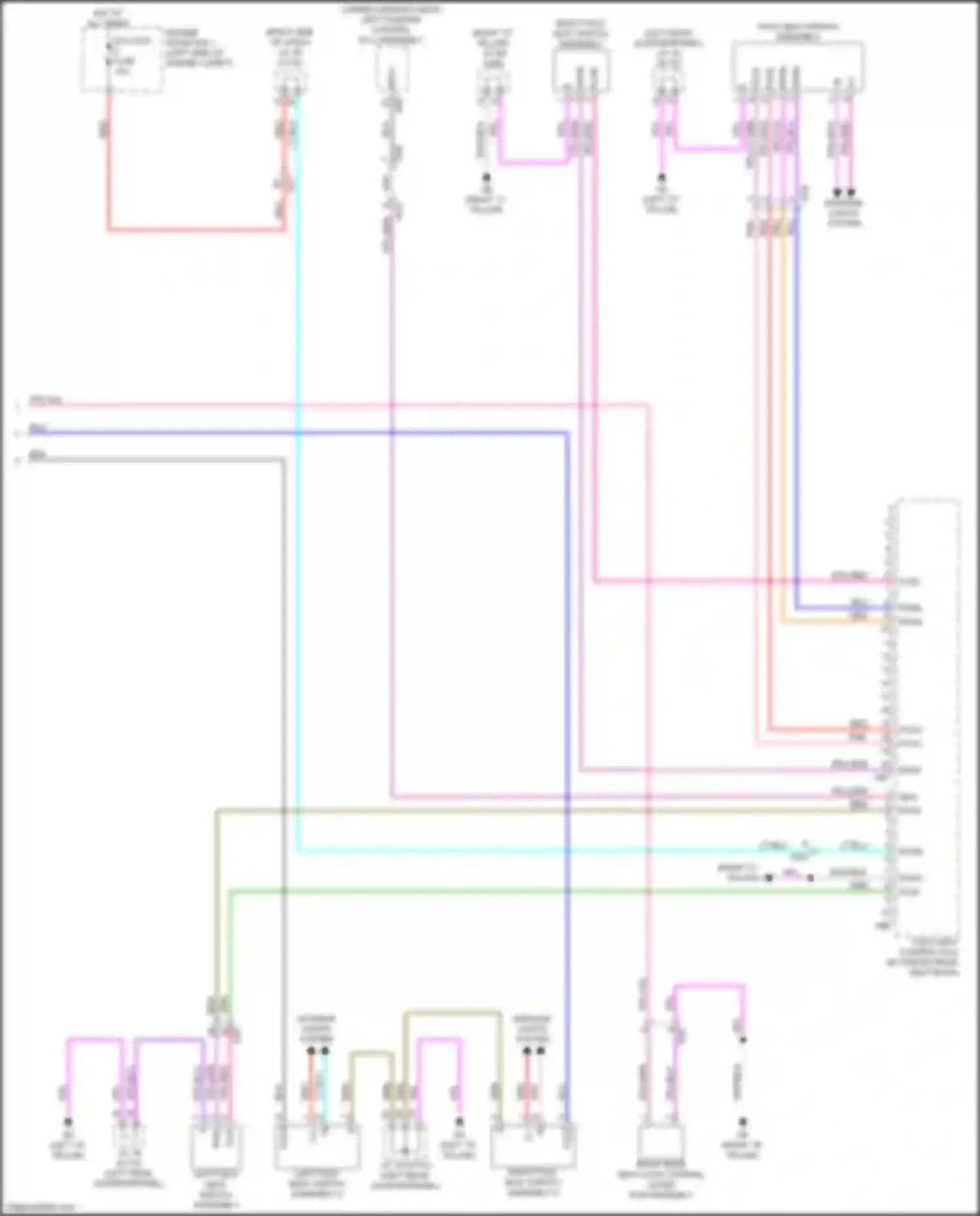

Lexus RX V (2022-2024) left fold seat switch assembly Wiring diagrams

2.4L TURBO HYBRID 2.4L TURBO HYBRID, 2.5L TURBO HYBRID 2.5L TURBO HYBRID BACK DOOR LOCK W/ COURTESY LIGHT SWITCH ASSEMBLY BACK DOOR OPENER SWITCH ASSEMBLY BLK WIRE BLU WIRE BRN WIRE CAN JUNCTION TERMINAL 3 CAN JUNCTION TERMINAL 4 CANISTER PUMP MODULE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY ELECTRICAL KEY, TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY FOLD SEAT SWITCH ASSEMBLY FROM GROUND HE (DIAGRAM 8 OF 9) FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY HG (LEFT "D" PILLAR) HH (LEFT "D" PILLAR) LEFT BLIND SPOT MONITOR SENSOR LEFT FOLD SEAT SWITCH ASSEMBLY LEFT FOLD SEAT SWITCH ASSEMBLY 2 LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR SEAT BACK CLIMATE CONTROL BLOWER LEFT REAR SEAT CUSHION HEATER ASSEMBLY LEFT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LEFT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MULTIPLEX NETWORK DOOR ECU POWER BACK DOOR CONTROL SWITCH POWER BACK DOOR WARNING BUZZER PPL PPL/BLK WIRE PPL/BLU WIRE PPL/GRN WIRE REAR LIGHT ASSEMBLY REAR POWER OUTLET SOCKET ASSEMBLY 1 REAR SEAT HEATER SWITCH REAR TRANSAXLE W/ MOTOR ASSEMBLY REAR WINDOW DEFOGGER (BACK DOOR GLASS) REAR WIPER MOTOR ASSEMBLY RIGHT FOLD SEAT SWITCH ASSEMBLY 2 SHIELD TRANSAXLE W/ MOTOR, INVERTER ASSEMBLY USB CHARGER SOCKET 3 VOLTAGE INVERTER SHIELD WHT/BLK WIRE

BLK WIRE BLU WIRE BRN WIRE ECU-DCC 2 FUSE ECUB ENGINE ROOM R/B 1 FLDL FLDR FOLD FOLD SEAT CONTROL ECU FOLD SEAT SWITCH ASSEMBLY GRN WIRE GRY WIRE HOT AT ALL TIMES LEFT FOLD SEAT SWITCH ASSEMBLY LEFT FOLD SEAT SWITCH ASSEMBLY 2 LEFT POSITION CONTROL ECU ASSEMBLY LT BLU WIRE MPX ORG/ WIRE PNK WIRE PPL PPL/BLK WIRE PPL/BLU WIRE PPL/GRN WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE RIGHT FOLD SEAT SWITCH ASSEMBLY RIGHT FOLD SEAT SWITCH ASSEMBLY 2 RIGHT REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RTNL RTNR RTRN SYSG WHT/BLK WIRE
