Lexus RX V (2022-2024) driver monitor camera Wiring diagram
This page shows the only wiring diagram for the component.driver monitor camera, which is found in the car Lexus RX V (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

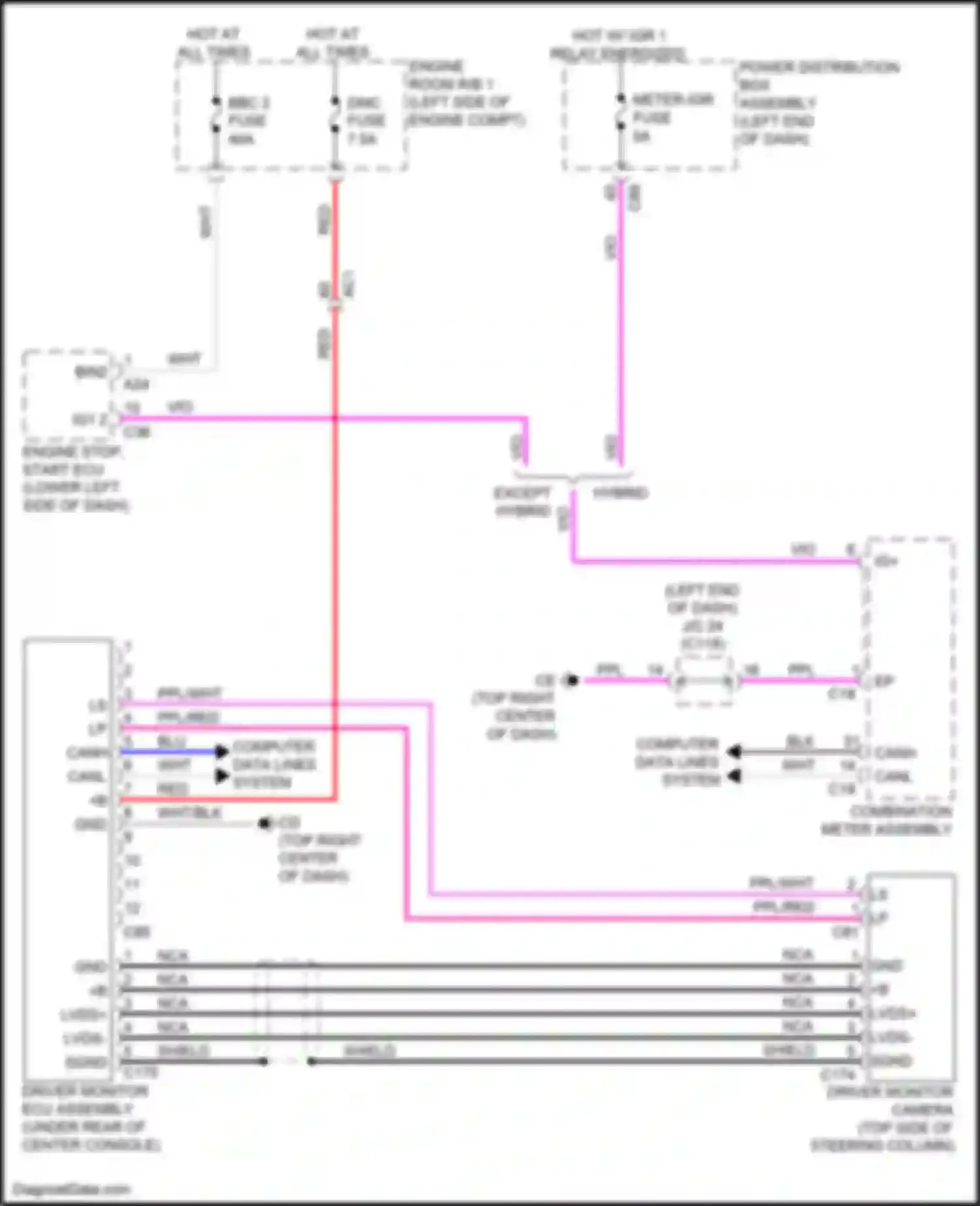

Wiring diagram driver monitor camera (1 of 1)
BBC 2 FUSE
BLK WIRE
BLU WIRE
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DMC FUSE
DRIVER MONITOR CAMERA
DRIVER MONITOR ECU ASSEMBLY
ENGINE ROOM R/B 1
ENGINE STOP, START ECU
EXCEPT HYBRID
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
LVDS
METER-IGR FUSE
NCA WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL CE
PPL/RED WIRE
PPL/WHT WIRE
RED WIRE
SGND
SHIELD
SHIELD SGND
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Driver monitoring circuit -> DRIVER MONITOR CAMERA
