Lexus NX Z10 facelift (2017-2021) can i/f speaker Wiring diagrams
This page contains all the electrical diagrams for the component. can i/f speaker, in which he is found in the car Lexus NX Z10 facelift (2017-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
can i/f speaker wiring diagram (1 of 7)
Go to component -> A/t circuit (3 of 4) -> CAN I/F SPEAKER

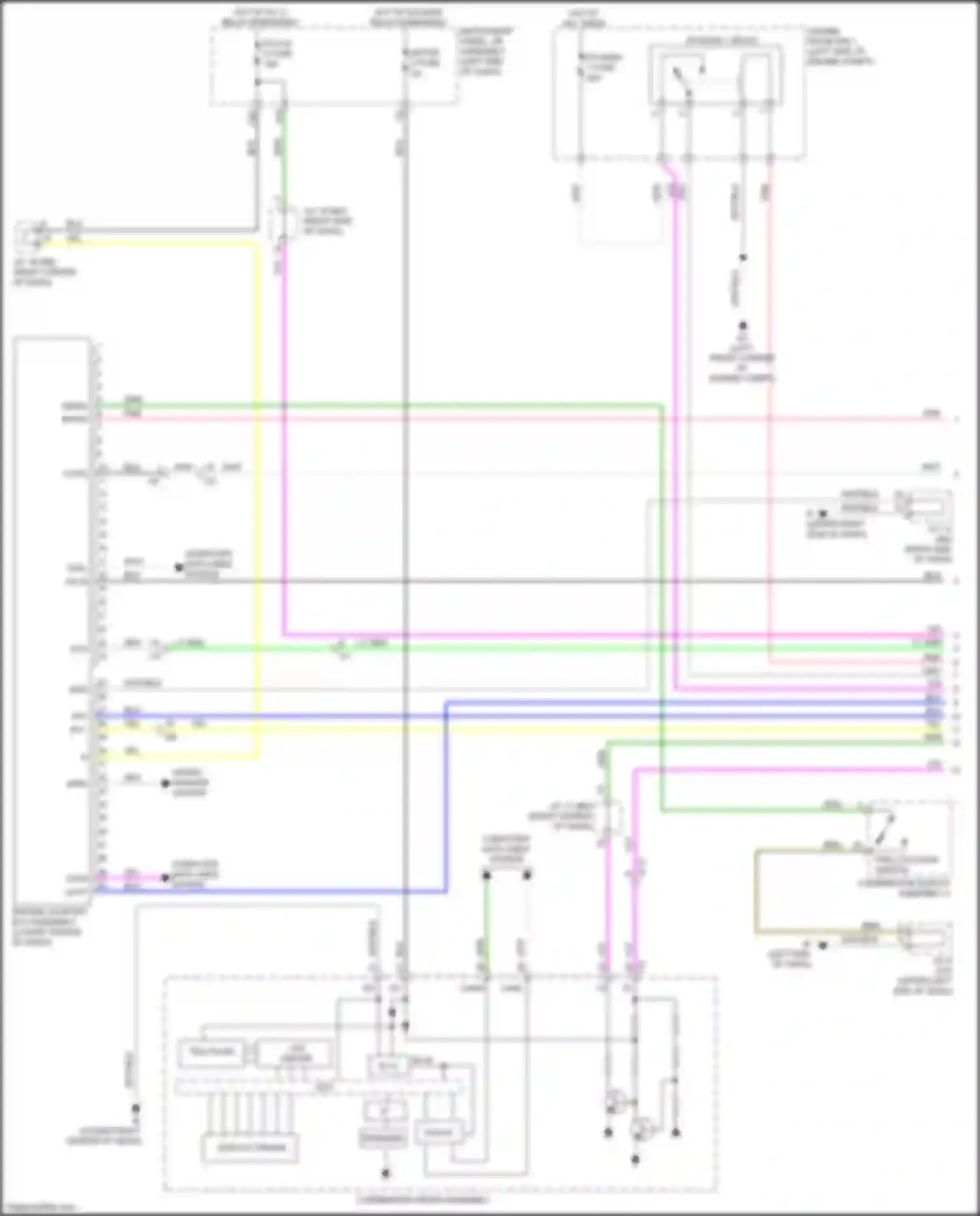

can i/f speaker wiring diagram (2 of 7)
Go to component -> Cruise control circuit, early production w/ dynamic radar controls (1 of 3) -> CAN I/F SPEAKER

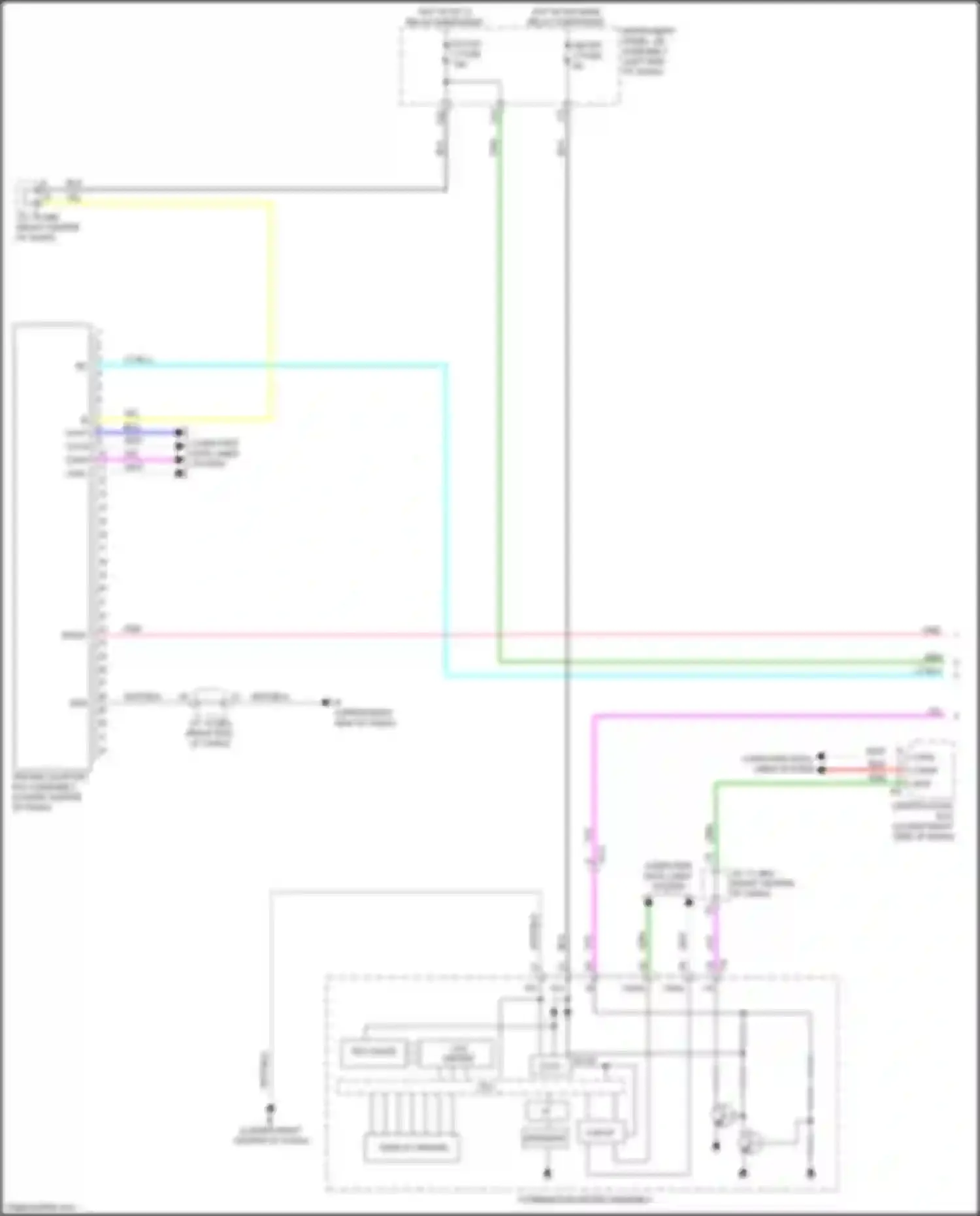

can i/f speaker wiring diagram (3 of 7)
Go to component -> Cruise control circuit, late production w/ dynamic radar controls (1 of 3) -> CAN I/F SPEAKER

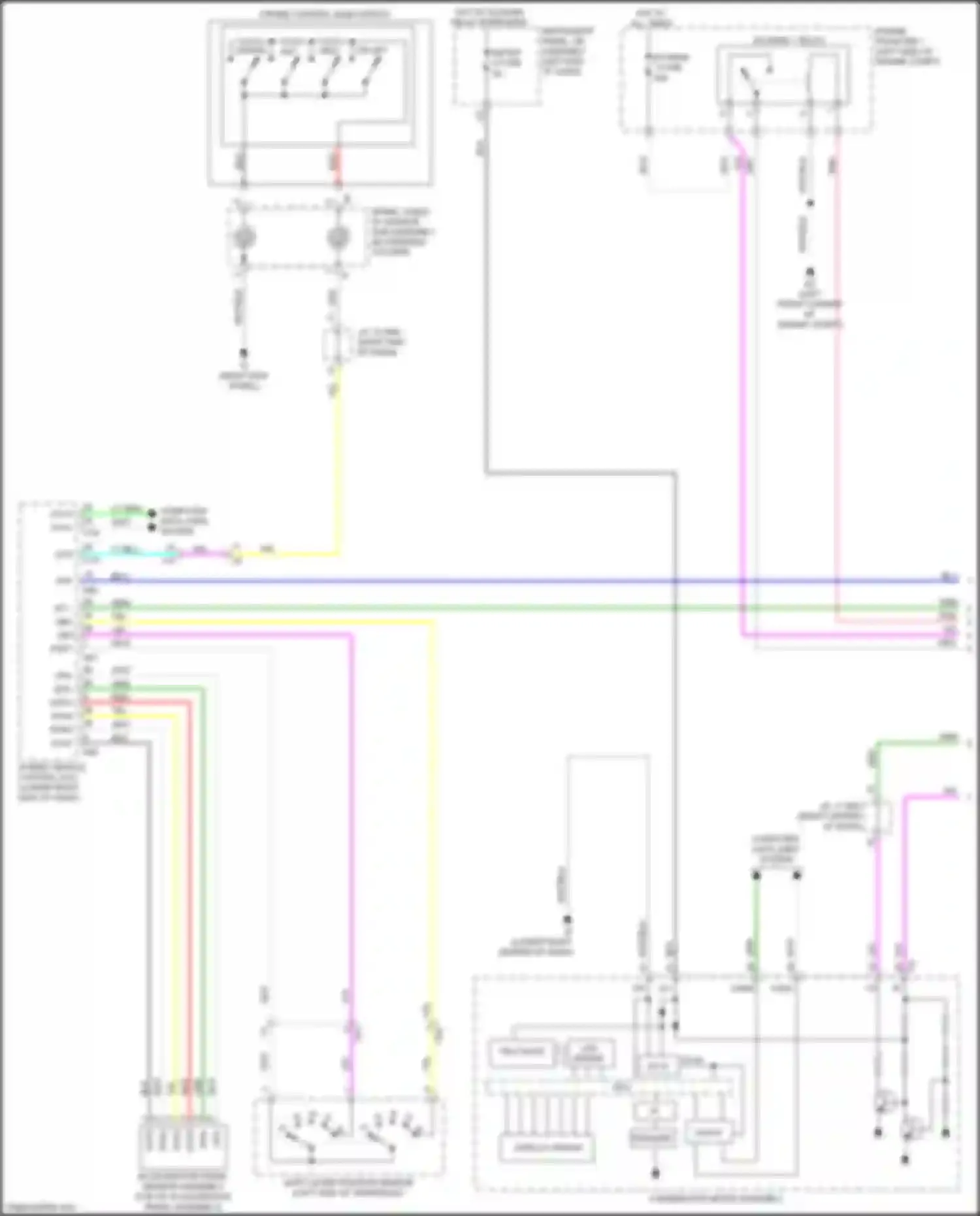

can i/f speaker wiring diagram (4 of 7)
Go to component -> Cruise control circuit, w/o dynamic radar controls (1 of 2) -> CAN I/F SPEAKER

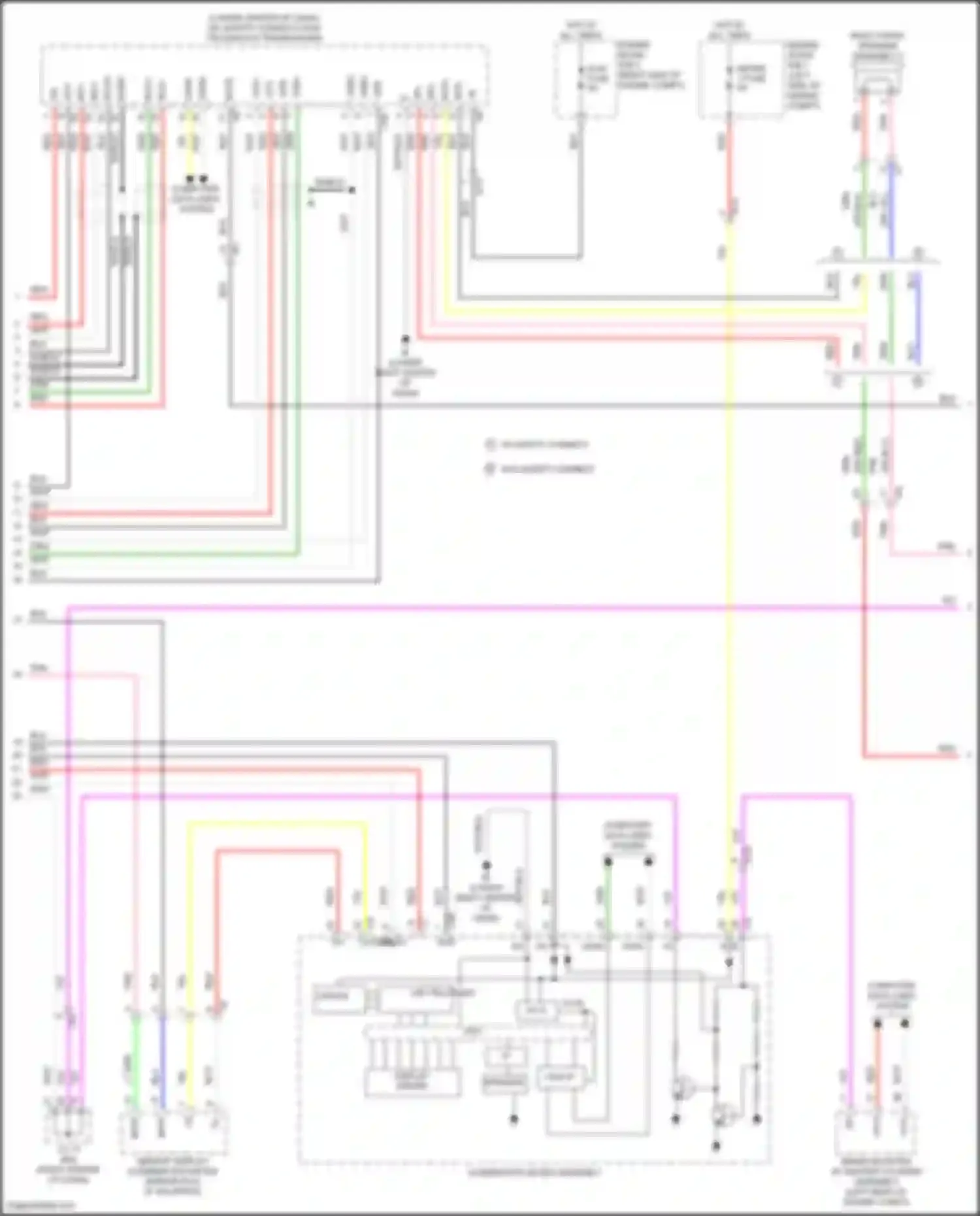

can i/f speaker wiring diagram (5 of 7)
Go to component -> Navigation circuit, early production (5 of 6) -> CAN I/F SPEAKER
can i/f speaker wiring diagram (6 of 7)
Go to component -> Radio circuit, early production w/ navigation (5 of 6) -> CAN I/F SPEAKER
can i/f speaker wiring diagram (7 of 7)
Go to component -> Radio circuit, early production w/o navigation (4 of 5) -> CAN I/F SPEAKER
