Lexus NX Z10 (2014-2017) right power seat reclining motor Wiring diagram
This page shows the only wiring diagram for the component.right power seat reclining motor, which is found in the car Lexus NX Z10 (2014-2017). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

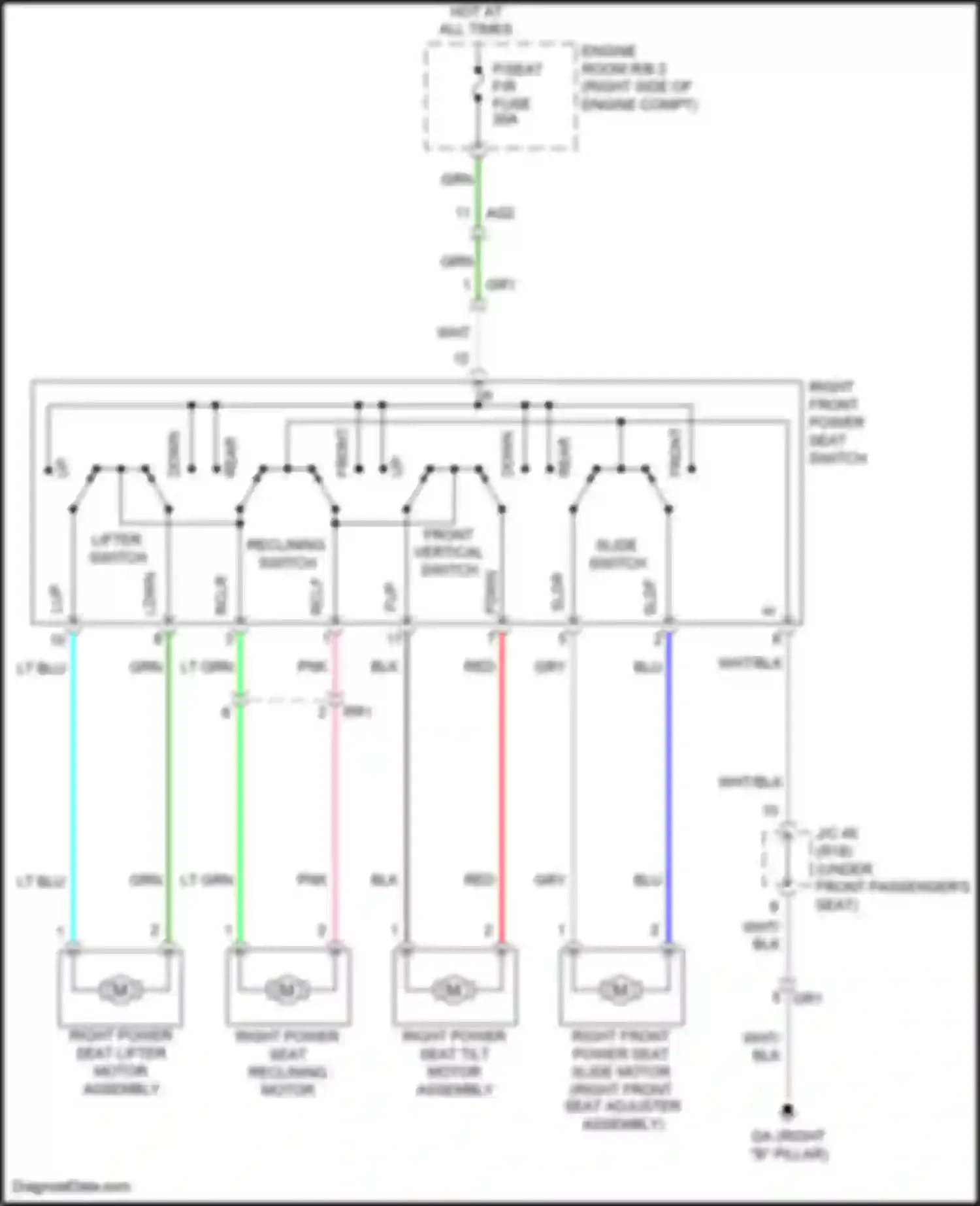

Wiring diagram right power seat reclining motor (1 of 1)
BLK WIRE
BLU WIRE
DOWN
ENGINE ROOM R/B 2
FDWN
FRONT
FRONT VERTICAL SWITCH
FUP
GA (RIGHT "B" PILLAR)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LDWN
LIFTER SWITCH
LT BLU WIRE
LT GRN WIRE
LUP
P/SEAT (FR) FUSE
PNK WIRE
RCLF
RCLR
REAR
RECLINING SWITCH
RED WIRE
RIGHT FRONT POWER SEAT SLIDE MOTOR (RIGHT FRONT SEAT ADJUSTER ASSEMBLY)
RIGHT FRONT POWER SEAT SWITCH
RIGHT POWER SEAT LIFTER MOTOR ASSEMBLY
RIGHT POWER SEAT RECLINING MOTOR
RIGHT POWER SEAT TILT MOTOR ASSEMBLY
SLDF
SLDR
SLIDE SWITCH
WHT WIRE
WHT/BLK WIRE
Go to component: -> Passenger power seat circuit -> RIGHT POWER SEAT RECLINING MOTOR
