Lexus NX AZ20 (2021-2024) p con mtr fuse Wiring diagrams
This page contains all the electrical diagrams for the component. p con mtr fuse, in which he is found in the car Lexus NX AZ20 (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram p con mtr fuse (1 of 4)
BBC 2 FUSE
BIN 2
BLK WIRE
BLU WIRE
BRN WIRE
CAN I/F
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DISPLAY DRIVER
ECU-IGR 13 FUSE
ENGINE ROOM R/B 1
ENGINE STOP, START ECU
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
LT GRN WIRE
METER-IGR FUSE
P CON MTR FUSE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/VIO WIRE
RED WIRE
SHIFT CONTROL ACTUATOR ASSEMBLY
W/ STOP/ START SYSTEM
W/O STOP/ START SYSTEM
WAKE
WHT WIRE
WHT/BLK WIRE
Go to component -> A/t circuit (4 of 4) -> P CON MTR FUSE
Wiring diagram p con mtr fuse (2 of 4)
AVS FUSE
BATTERY
BKUP LP RELAY
BLK WIRE
BLK/WHT WIRE
BLOWER MOTOR W/ FAN SUB-ASSEMBLY
BLU WIRE
BRN WIRE
CABLE EV CHARGER LOCK ASSEMBLY
DC/DC CONVERTER ASSEMBLY
DC/DC FUSE
ECU-B 4 FUSE
ENGINE ROOM J/B 1
EV CHARGER LID INDICATOR ASSEMBLY
FAN FUSE
FAN W/ MOTOR ASSEMBLY
FOG RR RELAY
HTR FUSE
IGR 3 RELAY
INP STD 1 FUSE
INP STD 2 FUSE
LT BLU WIRE
MAIN 2 FUSE
MAIN FUSE
NCA WIRE
NOISE FILTER FUSE
P CON MAIN FUSE
P CON MTR FUSE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY (LEFT END OF DASH)
PPL/GRN WIRE
PTC HTR 3 FUSE
PTC HTR 3 RELAY
R/B 2 FUSE
RADIO SETTING CONDENSER
RED WIRE
RR DEF RELAY
SHIFT CONTROL ACTUATOR ASSEMBLY
SPIRAL CABLE SUB-ASSEMBLY
STEERING COLUMN)
STRG HTR FUSE
TO ENGINE ROOM R/B 1 (DIAGRAM 3 OF 10)
TO ENGINE ROOM R/B 2 (DIAGRAM 2 OF 10)
TO IGCT-SCENE FUSE (DIAGRAM 2 OF 10)
TO POWER DISTRIBUTION BOX ASSEMBLY (DIAGRAM 5 OF 10)
TOWING-B FUSE
TRANSMISSION FLOOR SHIFT ASSEMBLY
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Power distribution circuit (1 of 10) -> P CON MTR FUSE

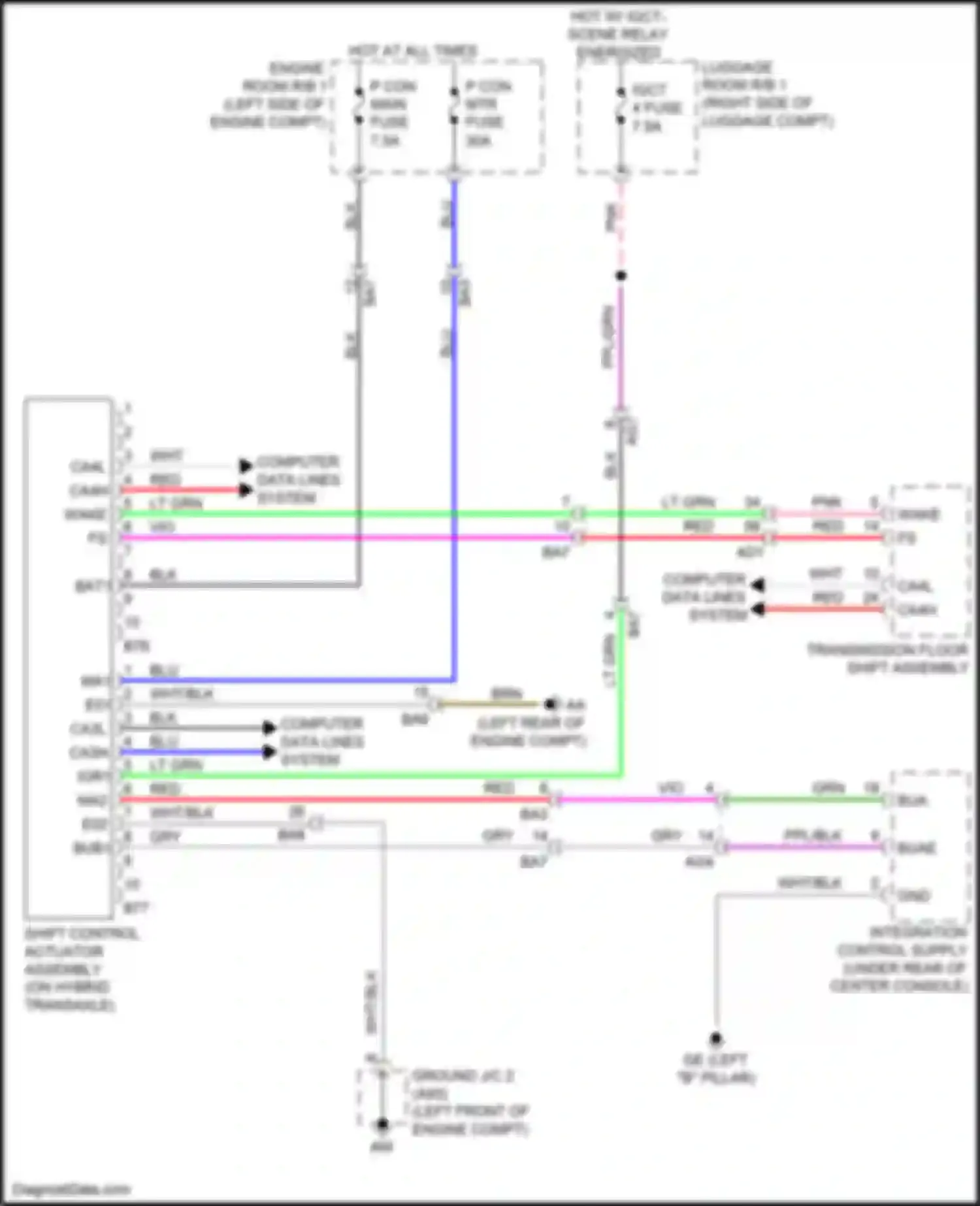

Wiring diagram p con mtr fuse (3 of 4)
BLK WIRE
BLU WIRE
BRN WIRE
BUA
BUAE
COMPUTER DATA LINES SYSTEM
ENGINE ROOM R/B 1
GE (LEFT "B" PILLAR)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGCT SCENE RELAY ENERGIZED
IGCT 4 FUSE
INTEGRATION CONTROL SUPPLY
LT GRN WIRE
LUGGAGE ROOM R/B 1
P CON MAIN FUSE
P CON MTR FUSE
PNK WIRE
PPL/BLK WIRE
PPL/GRN WIRE
RED WIRE
SHIFT CONTROL ACTUATOR ASSEMBLY
TRANSMISSION FLOOR SHIFT ASSEMBLY
VIO WIRE
WAKE
WHT WIRE
WHT/BLK WIRE
Go to component -> Shift interlock circuit -> P CON MTR FUSE
Wiring diagram p con mtr fuse (4 of 4)
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
ECU-IGP 3 FUSE
ENGINE ROOM R/B 1
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGCT RELAY ENERGIZED
HOT W/ IGP 1 RELAY ENERGIZED
IGCT
IGCT 3 FUSE
LT GRN WIRE
P CON MAIN FUSE
P CON MTR FUSE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/GRN WIRE
PPL/LT GRN WIRE
PPL/PNK WIRE
PPL/RED WIRE
PPL/WHT WIRE
RED WIRE
SHIFT CONTROL ACTUATOR ASSEMBLY
STOP FUSE
STOP LIGHT SWITCH ASSEMBLY
WAKE
WHT WIRE
WHT/BLK WIRE
Go to component -> Shift interlock circuit (1 of 2) -> P CON MTR FUSE
