Lexus LX J80 (1995-1997) slide control motor Wiring diagrams
This page contains all the electrical diagrams for the component. slide control motor, in which he is found in the car Lexus LX J80 (1995-1997). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram slide control motor (1 of 2)
BLU WIRE
BLU/BLK WIRE
DOWN
DRIVER'S POWER SEAT CONTROL SWITCH
FRONT
FRONT VERTICAL
FRONT VERTICAL CONTROL MOTOR
FUSE BLOCK (UNDER LEFT I/P LOWER TRIM PANEL) POWER FUSE
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
LUMBAR SUPPORT
LUMBAR SUPPORT CONTROL MOTOR
PASSENGER POWER SEAT CIRCUIT
REAR
REAR VERTICAL
REAR VERTICAL CONTROL MOTOR
RECLINE CONTROL MOTOR
RECLINING
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
SLIDE
SLIDE CONTROL MOTOR
WHT/BLK WIRE
Go to component -> Driver power seat circuit -> SLIDE CONTROL MOTOR

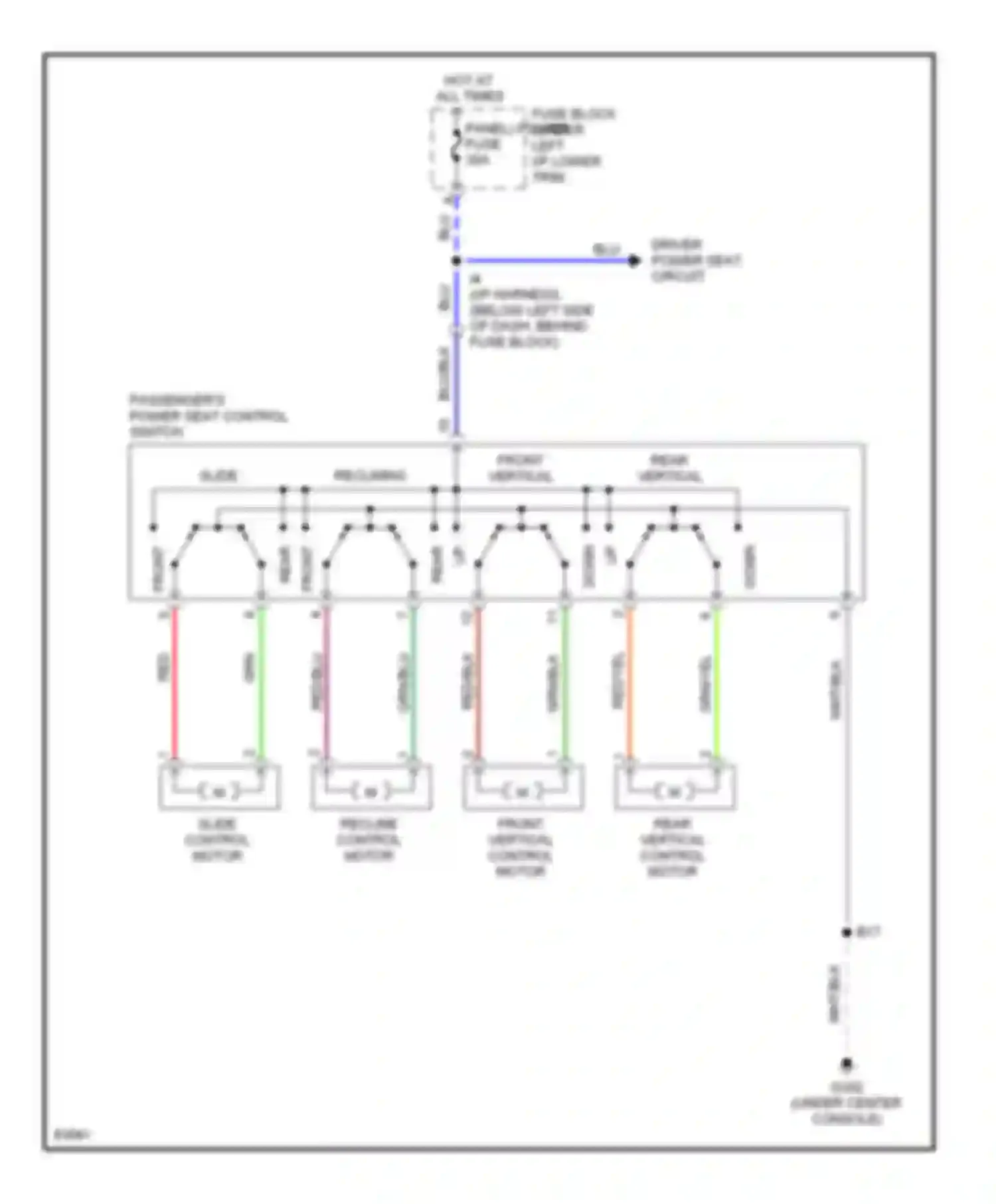

Wiring diagram slide control motor (2 of 2)
BLU WIRE
BLU/BLK WIRE
DOWN
DRIVER POWER SEAT CIRCUIT
FRONT
FRONT VERTICAL
FRONT VERTICAL CONTROL MOTOR
FUSE BLOCK (UNDER LEFT I/P LOWER TRIM PANEL) POWER FUSE
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
PASSENGERS POWER SEAT CONTROL SWITCH
REAR
REAR VERTICAL
REAR VERTICAL CONTROL MOTOR
RECLINE CONTROL MOTOR
RECLINING
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
SLIDE
SLIDE CONTROL MOTOR
WHT/BLK WIRE
Go to component -> Passenger power seat circuit -> SLIDE CONTROL MOTOR
