Lexus LX J80 (1995-1997) illumination lamp interior lights system Wiring diagram
This page shows the only wiring diagram for the component.illumination lamp interior lights system, which is found in the car Lexus LX J80 (1995-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

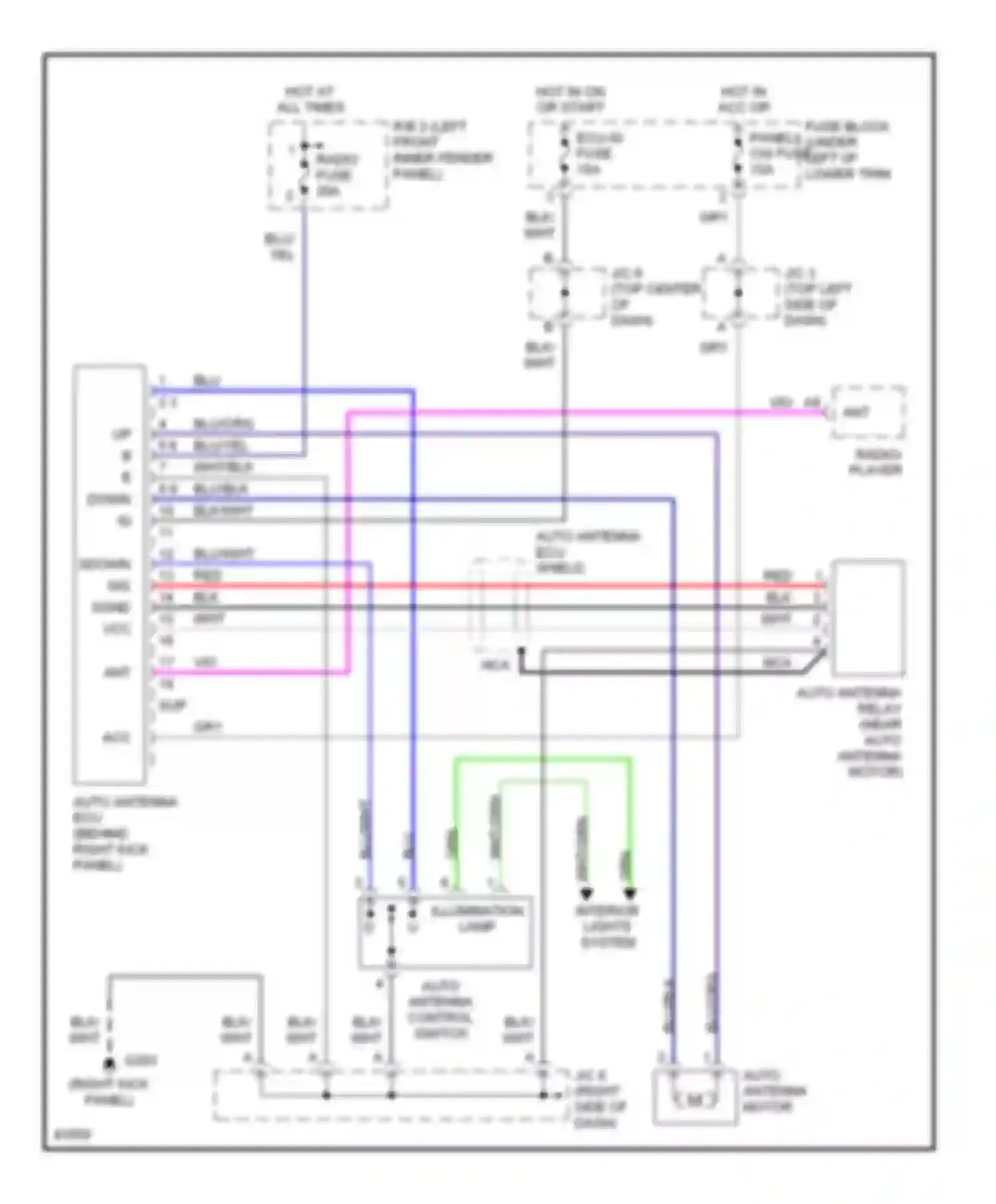

Wiring diagram illumination lamp interior lights system (1 of 1)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 SUP
ANT
AUTO ANTENNA CONTROL SWITCH
AUTO ANTENNA ECU (BEHIND RIGHT KICK PANEL)
AUTO ANTENNA ECU SHIELD
AUTO ANTENNA MOTOR
AUTO ANTENNA RELAY (NEAR AUTO ANTENNA MOTOR)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BLU/YEL WIRE
DOWN IG
ECU-IG FUSE
FUSE BLOCK (UNDER LEFT I/P LOWER TRIM PANEL) CIG FUSE
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ACC OR ON
HOT IN ON OR START
ILLUMINATION LAMP INTERIOR LIGHTS SYSTEM
J/C 3 (TOP LEFT SIDE OF DASH)
J/C 6 (TOP CENTER OF DASH)
J/C 8 (RIGHT SIDE OF DASH)
NCA WIRE
R/B 2 (LEFT FRONT INNER FENDER PANEL)
RADIO FUSE
RADIO, PLAYER
RED WIRE
SDOWN SIG SGND VCC
VIO WIRE
WHT WIRE
WHT/BLK WIRE
WHT/GRN WIRE
YEL WIRE
Go to component -> Power antenna circuit -> ILLUMINATION LAMP INTERIOR LIGHTS SYSTEM
