Lexus LX J300 (2021-2024) right end of dash) Wiring diagrams
This page contains all the electrical diagrams for the component. right end of dash), in which he is found in the car Lexus LX J300 (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
right end of dash) wiring diagram (101 of 110)
BBC 2 FUSE
BIN 2
BLK WIRE
BLU WIRE
CAN I/F
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DISPLAY DRIVER
ENGINE ROOM R/B 2
ENGINE STOP, START ECU
GRILLE SHUTT FUSE
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
IG 12
LED DRIVER
METER-IGR FUSE
MOTOR
POWER DISTRIBUTION BOX ASSEMBLY
RADIATOR SHUTTER ASSEMBLY
RED WIRE
RIGHT END OF DASH)
TELLTALES
W/ STOP/ START SYSTEM
W/O STOP/ START SYSTEM
WHT WIRE
WHT/BLK WIRE
Go to component -> Active bodyworks circuit -> RIGHT END OF DASH)
right end of dash) wiring diagram (102 of 110)
BLK WIRE
BLU WIRE
CAN I/F
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
ENGINE STOP, START ECU
GRN WIRE
HAZ FUSE
HAZARD SWITCH
HAZM
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
HZSW
INTEGRATION CONTROL, PANEL ASSEMBLY
LED DRIVER
LEFT FRONT MULTIPLEX NETWORK DOOR ECU
LEFT OUTER MIRROR CONTROL ECU ASSEMBLY
LEFT OUTER REAR VIEW MIRROR ASSEMBLY
LEFT TURN IND
METER-IGR FUSE
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/BLU WIRE
PPL/PNK WIRE
PPL/VIO WIRE
RED WIRE
RIGHT END OF DASH)
RIGHT FRONT MULTIPLEX NETWORK DOOR ECU
RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY
RIGHT OUTER REAR VIEW MIRROR ASSEMBLY
RIGHT TURN IND
SPEAKER
STOP FUSE
TELLTALES FLASHER CIRCUIT
TRN+
TRNI
TRNL
TRNR
TURN
VIO WIRE
W/ DOOR CLOSER
W/ STOP/ START SYSTEM
W/O DOOR CLOSER
W/O STOP/ START SYSTEM
WHT WIRE
WHT/BLK WIRE
Go to component -> Exterior lamps circuit (2 of 4) -> RIGHT END OF DASH)
right end of dash) wiring diagram (103 of 110)
BLK WIRE
BLU WIRE
BRAKE BOOSTER CONTROL ECU (BRAKE BOOSTER W/ MASTER CYLINDER ASSEMBLY)
BRN WIRE
CENTER STOP LIGHT ASSEMBLY
CERTIFICATION ECU
COMPUTER DATA LINES SYSTEMS
CXPI
GRN WIRE
LEFT REAR COMBINATION LIGHT ASSEMBLY
MAIN BODY ECU
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/BLU WIRE
PPL/BRN WIRE
PPL/GRN WIRE
PPL/VIO WIRE
RADIO SETTING CONDENSER
RED WIRE
RIGHT END OF DASH)
RIGHT REAR COMBINATION LIGHT ASSEMBLY
SEMICONDUCTOR POWER INTEGRATION ECU
SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
STOP
STP 1
TAIL
TAIL RELAY
TRANSMISSION CONTROL ECU ASSEMBLY
TRN+
TURN
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Exterior lamps circuit (4 of 4) -> RIGHT END OF DASH)
right end of dash) wiring diagram (104 of 110)
AC INV RELAY
AHC RELAY
BLK WIRE
BLU WIRE
BRN WIRE
CONDERSER BLOWER MOTOR ASSEMBLY
ECO RUN VEHICLE CONVERTER ASSEMBLY
ELECTRIC WATER PUMP ASSEMBLY
GENERATOR W/ REGULATOR ASSEMBLY
HEADLIGHT CLEANER MOTOR, PUMP ASSEMBLY
HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)
IGP 1 RELAY
IGR 3 RELAY
IGR 4 RELAY
LEFT FOG LIGHT ASSEMBLY
MILLIMETER WAVE RADAR SENSOR ASSEMBLY
OIL PUMP W/ MOTOR ASSEMBLY
PPL
PPL/BRN WIRE
QUICK HEATER ASSEMBLY
RADIATOR SHUTTER ASSEMBLY
RIGHT END OF DASH)
RIGHT FOG LIGHT ASSEMBLY
RIGHT HEADLIGHT ECU SUB-ASSEMBLY
SEMI CONDUCTOR POWER INTEGRATION ECU
SMOG VENTILATION SENSOR
SUB BATT RELAY
W/ STOP/ START SYSTEM
WHT/BLK WIRE
WIPER RELAY
Go to component -> Ground distribution circuit (11 of 11) -> RIGHT END OF DASH)
right end of dash) wiring diagram (105 of 110)
BATTERY
BLK WIRE
BRN WIRE
CANISTER PUMP MODULE
COMBINATION METER ASSEMBLY
COMBINATION SWITCH ASSEMBLY
DATA LINK CONNECTOR
DIFFERENTIAL LOCK INDICATOR SWITCH
ELECTRIC WATER PUMP ASSEMBLY
FUEL PUMP CONTROL ECU
IGNITION COIL ASSEMBLY 1
IGNITION COIL ASSEMBLY 2
IGNITION COIL ASSEMBLY 3
IGNITION COIL ASSEMBLY 4
IGNITION COIL ASSEMBLY 5
IGNITION COIL ASSEMBLY 6
INSTRUMENT PANEL REGISTER ASSEMBLY 1
INSTRUMENT PANEL REGISTER ASSEMBLY 3
INTEGRATION CONTROL ASSEMBLY
INTEGRATION CONTROL, PANEL ASSEMBLY
MAP LIGHT ASSEMBLY
MULTI- DISPLAY ASSEMBLY
MULTI-MEDIA MODULE RECEIVER ASSEMBLY
POWER WINDOW MASTER SWITCH W/ BEZEL ASSEMBLY
PPL
PPL/BLU WIRE
PPL/GRN WIRE
PPL/LT GRN WIRE
PPL/RED WIRE
PPL/WHT WIRE
RED WIRE
REFRESHING SEAT SWITCH
RIGHT END OF DASH)
RIGHT FRONT POWER WINDOW SWITCH W/ BEZEL ASSEMBLY
SEAT MEMORY SWITCH
TRANSFER ASSEMBLY
TRANSMISSION CONTROL ECU ASSEMBLY
TRIP SWITCH
W/ STOP/ START SYSTEM
WHT WIRE
WHT/BLK WIRE
Go to component -> Ground distribution circuit (1 of 11) -> RIGHT END OF DASH)
right end of dash) wiring diagram (106 of 110)
ACC RELAY
AIR BAG SENSOR W/ ECU ASSEMBLY
ALL DOOR LOCK RELAY
ALL DOOR UNLOCK RELAY
BRN WIRE
D DOOR UNLOCK RELAY
FORWARD RECOGNITION CAMERA
IGR 1 RELAY
IGR 2 RELAY
INNER REAR VIEW MIRROR ASSEMBLY
LEFT VISOR ASSEMBLY
MAIN BODY ECU
MAP LIGHT ASSEMBLY
P/OUTLET RELAY
PPL
PPL/BRN WIRE
RIGHT END OF DASH)
RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY
RIGHT FRONT DOOR LOCK W/ MOTOR ASSEMBLY
RIGHT FRONT MULTIPLEX NETWORK DOOR ECU
RIGHT FRONT POWER WINDOW REGULAR MOTOR ASSEMBLY
RIGHT FRONT POWER WINDOW SWITCH W/ BEZEL ASSEMBLY
RIGHT INTERIOR ILLUMINATION LIGHT ASSEMBLY 1
RIGHT INTERIOR ILLUMINATION LIGHT ASSEMBLY 2
RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY
RIGHT VISOR ASSEMBLY
ROOM LIGHT ASSEMBLY 2
SLIDING ROOF CONTROL ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) ASSEMBLY
TO GROUND ID (DIAGRAM 2 OF 11)
W/ DOOR CLOSER
W/ VANITY LIGHT ASSEMBLY
W/O DOOR CLOSER
WHT/BLK WIRE
WINDSHIELD WIPER MOTOR ASSEMBLY
Go to component -> Ground distribution circuit (6 of 11) -> RIGHT END OF DASH)
right end of dash) wiring diagram (107 of 110)
BKUP LP FUSE
BLK WIRE
BLU WIRE
BRN WIRE
CAN (+)
CERTIFICATION ECU (LEFT END OF DASH)
COMPUTER DATA LINES SYSTEM
ECU- IGP 2 FUSE
ECU-IGR 2 FUSE
ENGINE ROOM R/B 1
GRN WIRE
HOT AT ALL TIMES
HOT W/ IGP 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
LT BLU WIRE
LT GRN WIRE
ORG/ WIRE
P POSITION DETECTION SWITCH
PARK/NEUTRAL POSITION SWITCH ASSEMBLY
PLKC
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL ID
PPL/BLU WIRE
PPL/BRN WIRE
PPL/PNK WIRE
PPL/WHT WIRE
RED WIRE
RIGHT END OF DASH)
SFTD
SFTU
SHIFT LOCK CONTROL UNIT ASSEMBLY
SHIFT LOCK SOLENOID
SHIFT POSITION INDICATOR (SHIFT LOCK CONTROL UNIT ASSEMBLY)
STOP FUSE
STOP LIGHT SWITCH ASSEMBLY
TRANSMISSION CONTROL ECU ASSEMBLY
TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)
TRANSMISSIONS SYSTEM
VIO WIRE
WHT WIRE
Go to component -> Shift interlock circuit -> RIGHT END OF DASH)

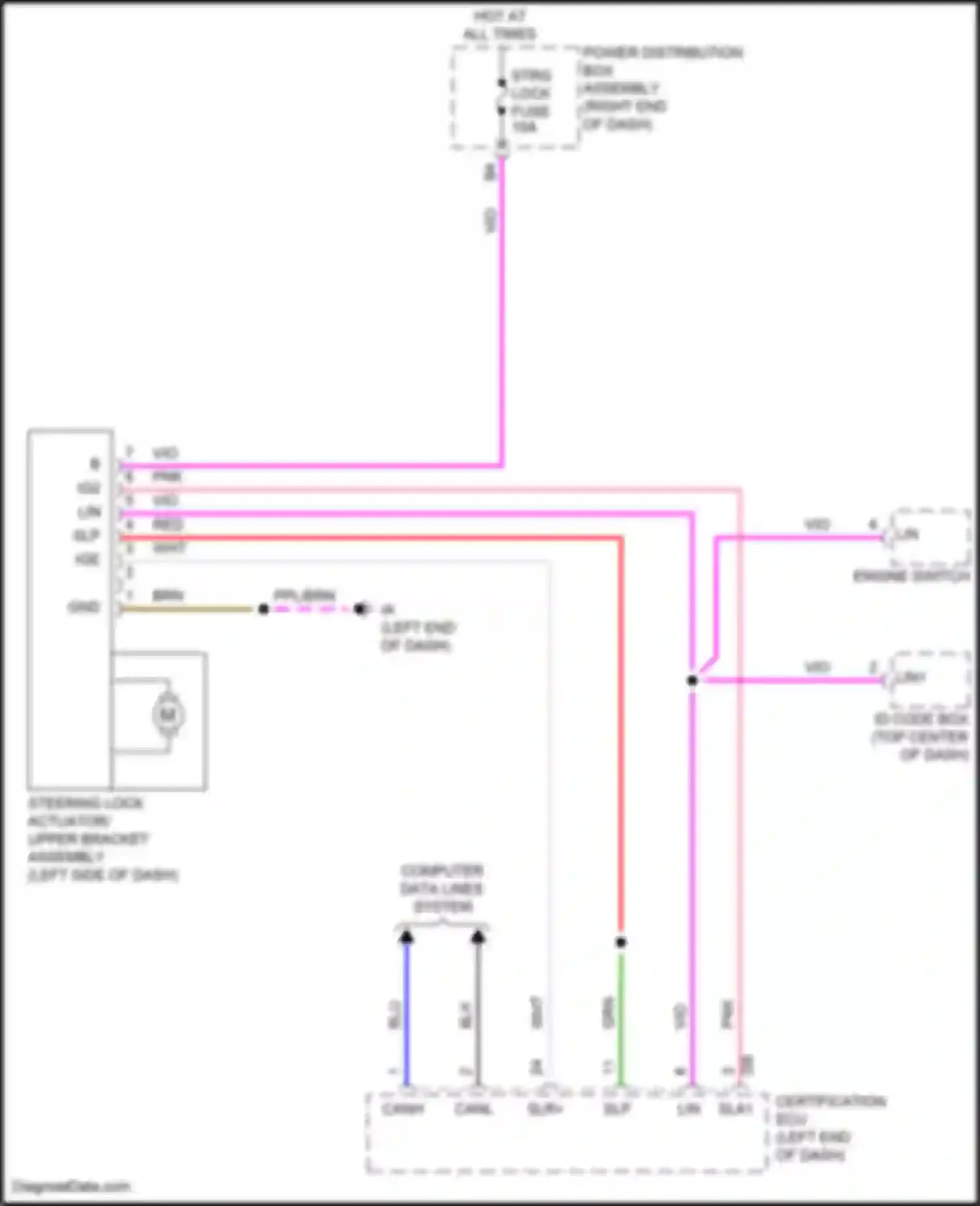

right end of dash) wiring diagram (108 of 110)
BLK WIRE
BLU WIRE
BRN WIRE
CANL SLR+
CERTIFICATION ECU
COMPUTER DATA LINES SYSTEM
ENGINE SWITCH
GRN WIRE
HOT AT ALL TIMES
ID CODE BOX
IGE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL/BRN WIRE
RED WIRE
RIGHT END OF DASH)
SLP
STEERING LOCK ACTUATOR/ UPPER BRACKET ASSEMBLY
STRG LOCK FUSE
VIO WIRE
WHT WIRE
Go to component -> Steering column circuit -> RIGHT END OF DASH)
right end of dash) wiring diagram (109 of 110)
BLK WIRE
BLU WIRE
BRK
CAN I/F
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
CXPI
ENGINE ROOM J/B ASSEMBLY
ENGINE STOP, START ECU
EXTERIOR LAMPS CIRCUIT
FLASHER CIRCUIT
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
IE (LEFT SIDE OF DASH)
LEFT
MAIN BODY ECU
METER-IGR FUSE
OPTION CONNECTOR (TOWING BRAKE CONTROLLER)
ORG/ WIRE
PDB ALT 1 FUSE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/BLU WIRE
PPL/GRN WIRE
PPL/RED WIRE
PPL/VIO WIRE
RED WIRE
RIGHT
RIGHT END OF DASH)
SPEAKER
TAIL
TOWING TAIL-S RELAY
TURN
W/ STOP/ START SYSTEM
W/O STOP/ START SYSTEM
WHT/BLK WIRE
Go to component -> Trailer tow circuit (1 of 2) -> RIGHT END OF DASH)
right end of dash) wiring diagram (110 of 110)
BLK WIRE
BLPE
BLPU
BLPV
BLPW
BLU WIRE
BRN WIRE
CAN I/F
CANISTER PUMP MODULE
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
DISPLAY DRIVER
ECU-IGP 3 FUSE
ECU-IGR 2 FUSE
ELECTRIC WATER PUMP ASSEMBLY
ENGINE ROOM R/B 1
FPC
FPG
FPU
FPV
FUEL PUMP CONTROL ECU (RIGHT SIDE OF CARGO AREA)
FUEL PUMP W/ FILTER ASSEMBLY
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ IGP 1 RELAY ENERGIZED
HOT W/ IGR 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
LED DRIVER
LEFT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (BANK 2 EXHAUST SIDE)
LEFT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (BANK 2 INTAKE SIDE)
LT GRN WIRE
METER-IGR FUSE
MGND
MTRB
NWP
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL/BLK WIRE
PPL/BLU WIRE
PPL/BRN WIRE
PPL/GRN WIRE
PPL/PNK WIRE
PPL/WHT WIRE
RED WIRE
RIGHT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (BANK 1 EXHAUST SIDE)
RIGHT END OF DASH)
SGND
SPEAKER
STOP FUSE
SWP
TELLTALES
VCC
VGND
VLVB
VOUT
WHT WIRE
WHT/BLK WIRE
Go to component -> Wiring diagram engine performance 3.4l turbo (2 of 7) -> RIGHT END OF DASH)
