Lexus LX J300 (2021-2024) left rear light assembly Wiring diagrams
This page contains all the electrical diagrams for the component. left rear light assembly, in which he is found in the car Lexus LX J300 (2021-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

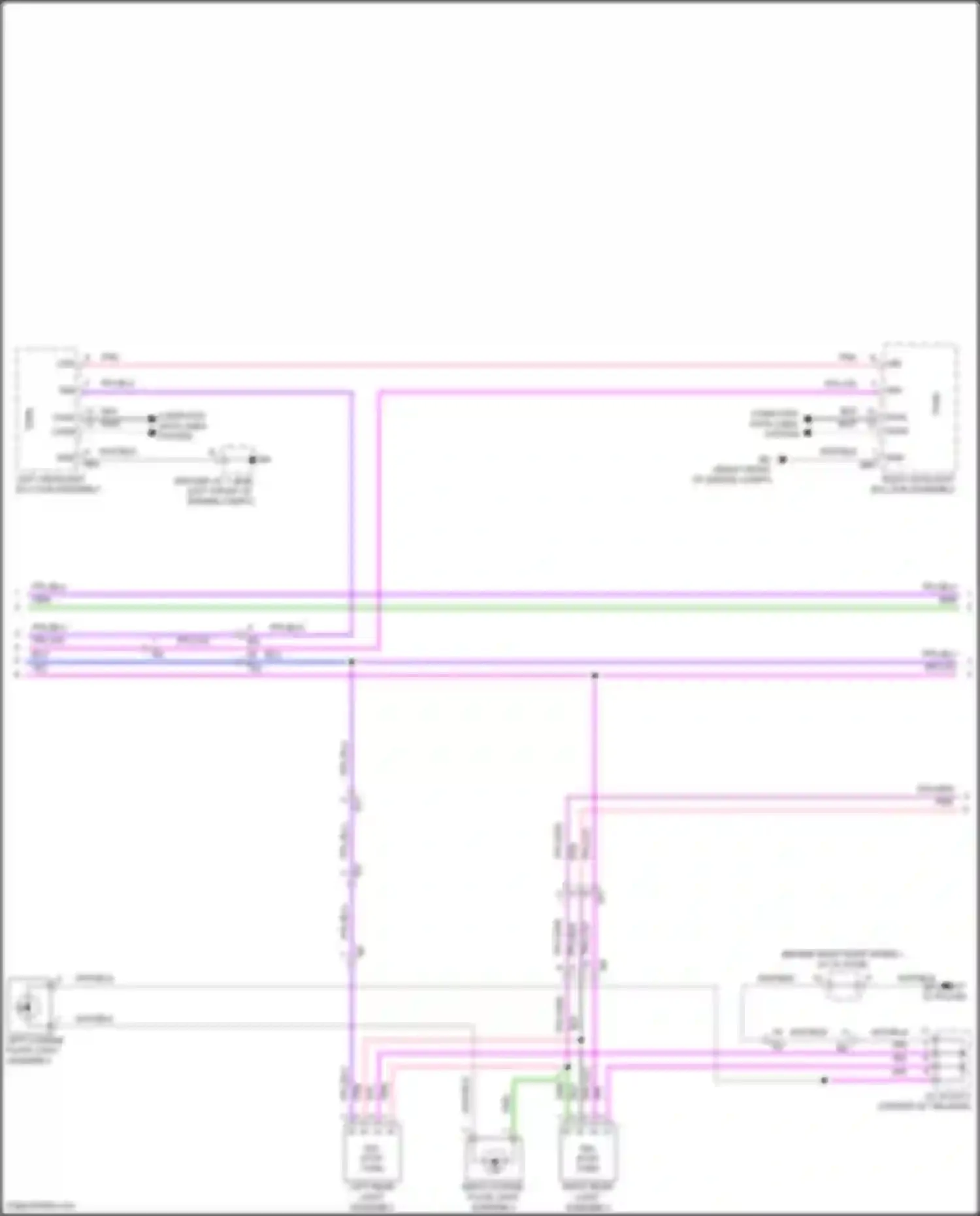

Wiring diagram left rear light assembly (1 of 3)
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
GRN WIRE
LEFT HEADLIGHT ECU SUB-ASSEMBLY
LEFT LICENSE PLATE LIGHT ASSEMBLY
LEFT REAR LIGHT ASSEMBLY
PNK LINL WIRE
PNK WIRE
PPL
PPL/BLK WIRE
PPL/BLU WIRE
PPL/GRN WIRE
PPL/VIO WIRE
QD (RIGHT "D" PILLAR)
RIGHT HEADLIGHT ECU SUB-ASSEMBLY
RIGHT LICENSE PLATE LIGHT ASSEMBLY
RIGHT REAR LIGHT ASSEMBLY
TAIL STOP TURN
TNS
TURN
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Exterior lamps circuit (3 of 4) -> LEFT REAR LIGHT ASSEMBLY

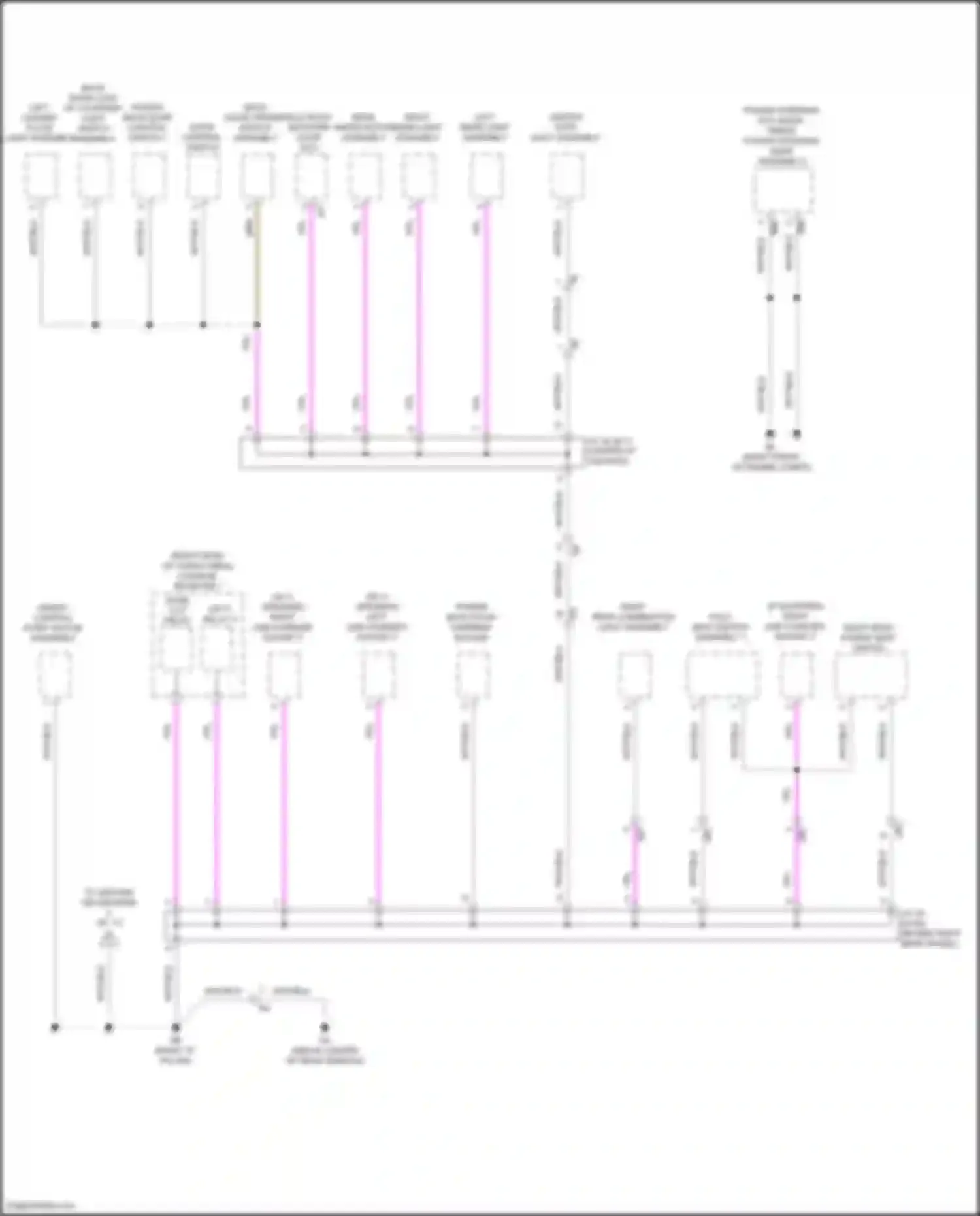

Wiring diagram left rear light assembly (2 of 3)
BACK DOOR LOCK W/ COURTESY LIGHT SWITCH ASSEMBLY
BACK DOOR OPENER SWITCH ASSEMBLY
BRN WIRE
CENTER STOP LIGHT ASSEMBLY
DOME CUT RELAY
DOOR CONTROL SWITCH
FOLD SEAT SWITCH ASSEMBLY 1
HEIGHT CONTROL PUMP, MOTOR ASSEMBLY
IGP 3 RELAY 3
LEFT LICENSE PLATE LIGHT ASSEMBLY
LEFT REAR LIGHT ASSEMBLY
LEFT USB CHARGER SOCKET 2
LUGGAGE ROOM R/B 1
MULTIPLEX NETWORK DOOR ECU
POWER BACK DOOR CONTROL SWITCH 1
POWER BACK DOOR WARNING BUZZER
POWER STEERING ECU (RACK, PINION POWER STEERING GEAR ASSEMBLY)
PPL
REAR WIPER MOTOR ASSEMBLY
RIGHT REAR COMBINATION LIGHT ASSEMBLY
RIGHT REAR LIGHT ASSEMBLY
RIGHT REAR POWER SEAT SWITCH
RIGHT USB CHARGER SOCKET 2
RIGHT USB CHARGER SOCKET 3
TO GROUND QB (DIAGRAM 3 OF 11)
WHT/BLK WIRE
Go to component -> Ground distribution circuit (9 of 11) -> LEFT REAR LIGHT ASSEMBLY

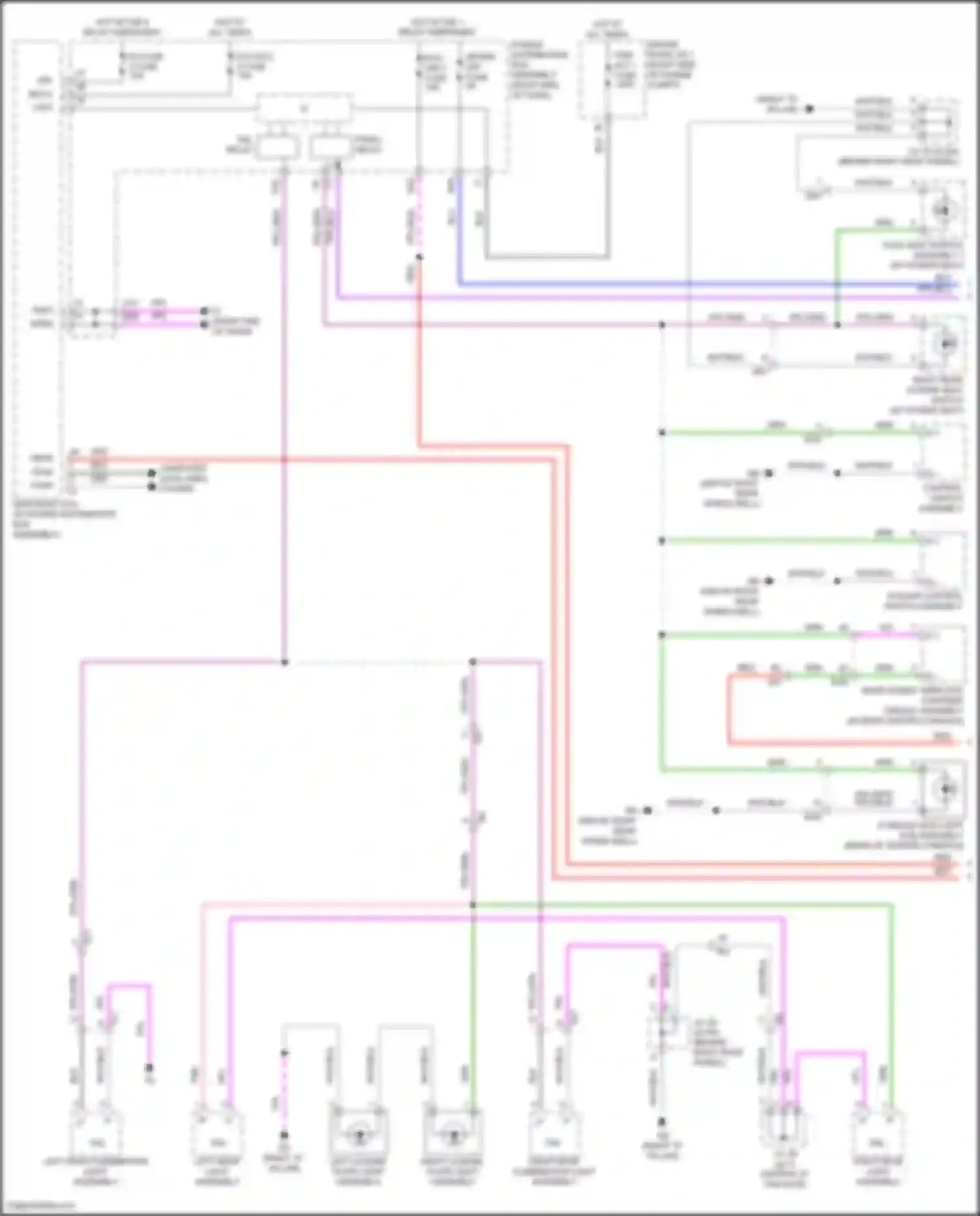

Wiring diagram left rear light assembly (3 of 3)
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
CONSOLE BOX LIGHT SUB- ASSEMBLY
CONTROL SWITCH ASSEMBLY
COOLER CONTROL SWITCH ASSEMBLY
CXPI
ECU-DCC 2 FUSE
ECU-IGR 2 FUSE
ECU-IGR 3 FUSE
ENGINE ROOM J/B 1
FOLD SEAT SWITCH ASSEMBLY 1
GRN WIRE
GRY WIRE
HEAD
HOT AT ALL TIMES
HOT W/ IGR 1 RELAY ENERGIZED
HOT W/ IGR 2 RELAY ENERGIZED
IGR
LEFT LICENSE PLATE LIGHT ASSEMBLY
LEFT REAR COMBINATION LIGHT ASSEMBLY
LEFT REAR LIGHT ASSEMBLY
MAIN BODY ECU
METER-IGR FUSE
PANEL RELAY
PDB ALT 1 FUSE
PNK WIRE
POWER DISTRIBUTION BOX ASSEMBLY
PPL
PPL/BLU WIRE
PPL/GRN WIRE
PPL/RED WIRE
REAR MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
RED WIRE
RIGHT END OF DASH)
RIGHT LICENSE PLATE LIGHT ASSEMBLY
RIGHT REAR COMBINATION LIGHT ASSEMBLY
RIGHT REAR LIGHT ASSEMBLY
RIGHT REAR POWER SEAT SWITCH
TAIL
TAIL RELAY
VIO WIRE
W/ POWER SEAT
WHT/BLK WIRE
Go to component -> Instrument illumination circuit (1 of 4) -> LEFT REAR LIGHT ASSEMBLY
