Lexus LX J200 facelift 2 (2015-2023) air pmp 2 fuse Wiring diagrams
This page contains all the electrical diagrams for the component. air pmp 2 fuse, in which he is found in the car Lexus LX J200 facelift 2 (2015-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

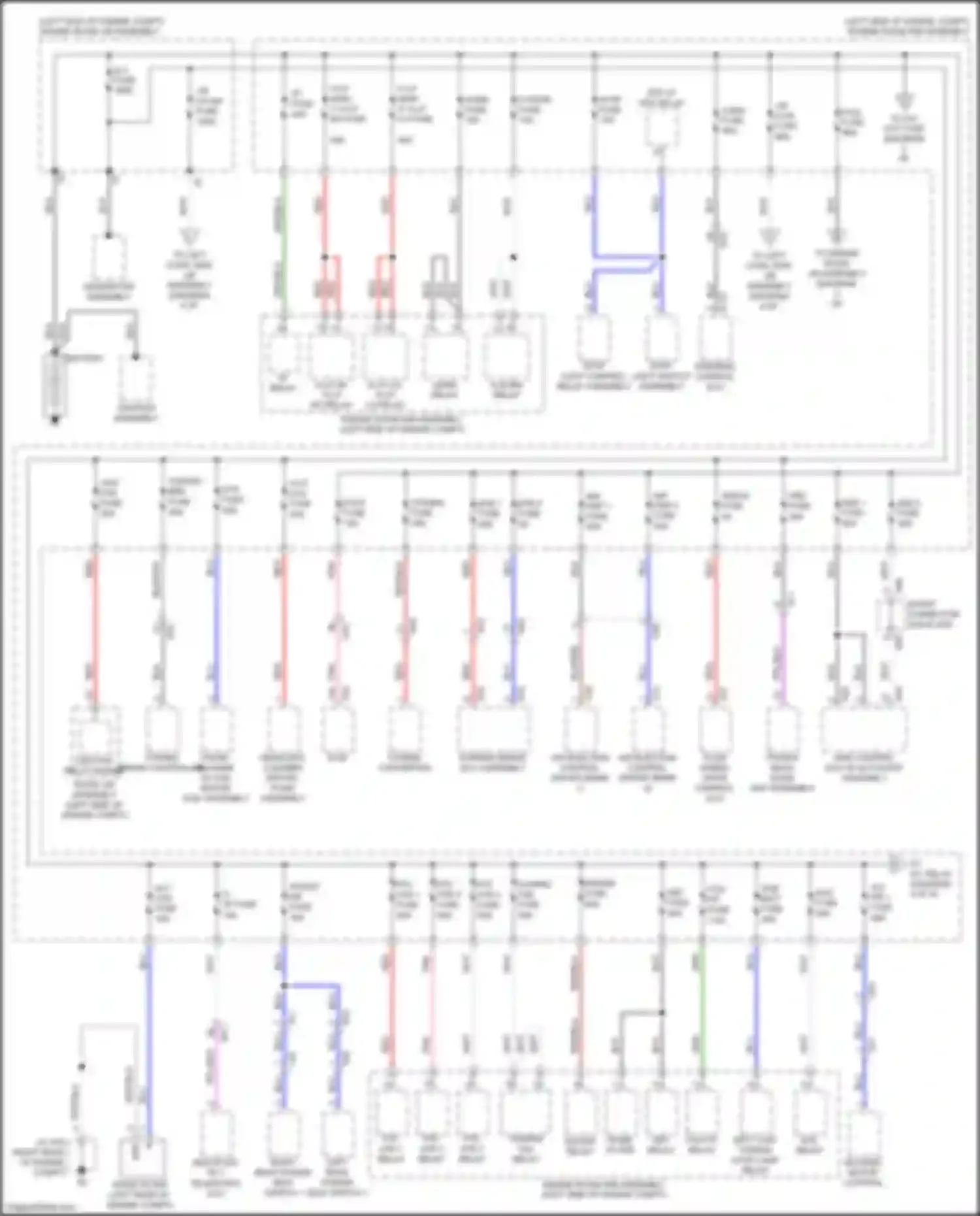

Wiring diagram air pmp 2 fuse (1 of 2)
A/C RR 1 FUSE
ABS 1 FUSE
ABS 2 FUSE
AHC FUSE
AHC RELAY
AIR INJECTION CONTROL DRIVER (BANK 1)
AIR INJECTION CONTROL DRIVER (BANK 2)
AIR PMP 1 FUSE
AIR PMP 2 FUSE
ALT FUSE
ALT-CDS FUSE
BATT CHG/ TOWING STOP LAMP RELAY
BATTERY
BLK WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLOWER MOTOR CONTROL
BLU WIRE
CDS FAN FUSE
CDS FAN RELAY ENGINE ROOM J/B ASSEMBLY
DEF FUSE
DEF RELAY
DEICER FUSE
DEICER RELAY
ENGINE ROOM R/B ASSEMBLY (LEFT SIDE OF ENGINE COMPT)
EPB 1 FUSE
EPB 2 FUSE
ETCS FUSE
FOG FR FUSE
FOG FR RELAY
FOUR WHEEL DRIVE CONTROL ECU
FRONT BLOWER W/ FAN MOTOR SUB- ASSEMBLY
GENERATOR ASSEMBLY
GRN WIRE
GRN/BLK WIRE
H-LP CLN FUSE
H-LP HI/ H-LP RH RELAY
H-LP LO/ H-LP LH RELAY
H-LP MAIN 1/ H-LP RH FUSE
H-LP MAIN 2/ H-LP LH FUSE
HEADLIGHT CLEANER MOTOR, PUMP ASSEMBLY
HORN FUSE
HORN RELAY
HTR FUSE
J/B LH-AM FUSE
J/B LH-B FUSE
LEFT REAR POWER SEAT SWITCH 1
MULTIPLEX TILT, TELESCOPIC ECU
NOISE FILTER
P/I-B FUSE
P/SEAT (RR) FUSE
PARKING BRAKE ECU ASSEMBLY
PBD FUSE
PNK WIRE
POWER BACK DOOR UNIT ASSEMBLY
PPL/BLK WIRE
PPL/WHT WIRE
PTC HTR 1 FUSE
PTC HTR 1 RELAY
PTC HTR 2 FUSE
PTC HTR 2 RELAY
PTC HTR 3 FUSE
PTC HTR 3 RELAY
RED WIRE
RED/BLK WIRE
RIGHT REAR POWER SEAT SWITCH 1
S-HORN FUSE
S-HORN RELAY
SKID CONTROL ECU W/ ACTUATOR ASSEMBLY
ST FUSE
ST RELAY
STARTER ASSEMBLY
STEERING CONTROL ECU
STOP FUSE
STOP LIGHT CONTROL RELAY ASSEMBLY
STOP LIGHT SWITCH ASSEMBLY
STP LP OPE RELAY
SUB BATT FUSE
TI, TE FUSE
TO D/C CUT FUSE (DIAGRAM 2 OF 9)
TO ENGINE ROOM J/B ASSEMBLY (DIAGRAM 3 OF 9)
TO LEFT COWL SIDE J/B ASSEMBLY (DIAGRAM 4 OF 9)
TO LEFT COWL SIDE J/B ASSEMBLY (DIAGRAM 6 OF 9)
TOWING BRAKE CONTROLLER
TOWING BRK FUSE
TOWING CONVERTOR
TOWING FUSE
TOWING TAIL FUSE
TOWING TAIL RELAY
VGRS FUSE
WHT WIRE
WHT/BLK WIRE
Go to component -> Power distribution circuit (1 of 9) -> AIR PMP 2 FUSE

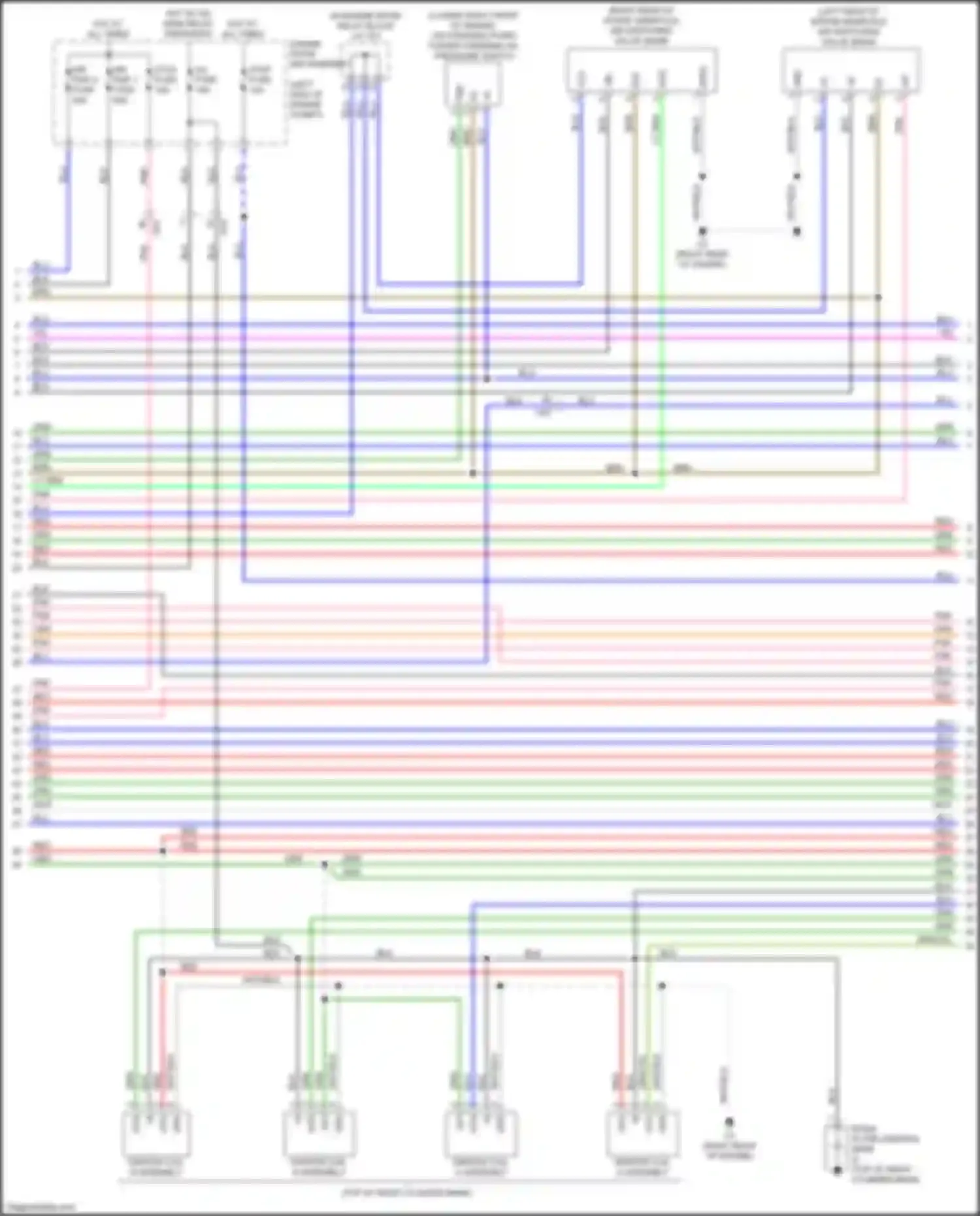

Wiring diagram air pmp 2 fuse (2 of 2)
AIP
AIR PMP 1 FUSE
AIR PMP 2 FUSE
AIR SWITCHING VALVE (BANK 1)
AIR SWITCHING VALVE (BANK 2)
BL (+)
BLK WIRE
BLU WIRE
BRN WIRE
ENGINE ROOM R/B ASSEMBLY
ETCS FUSE
GNDL
GRN WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
IGNITION COIL 2 ASSEMBLY
IGNITION COIL 4 ASSEMBLY
IGNITION COIL 6 ASSEMBLY
IGNITION COIL 8 ASSEMBLY
INJ FUSE
LT GRN WIRE
MAIN RELAY ENERGIZED
NOISE FILTER (IGNITION BANK 2)
ORG/ WIRE
PNK WIRE
POWER STEERING OIL PRESSURE SWITCH
PSP
RED WIRE
STOP FUSE
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Wiring diagram engine performance 5.7l (4 of 7) -> AIR PMP 2 FUSE
