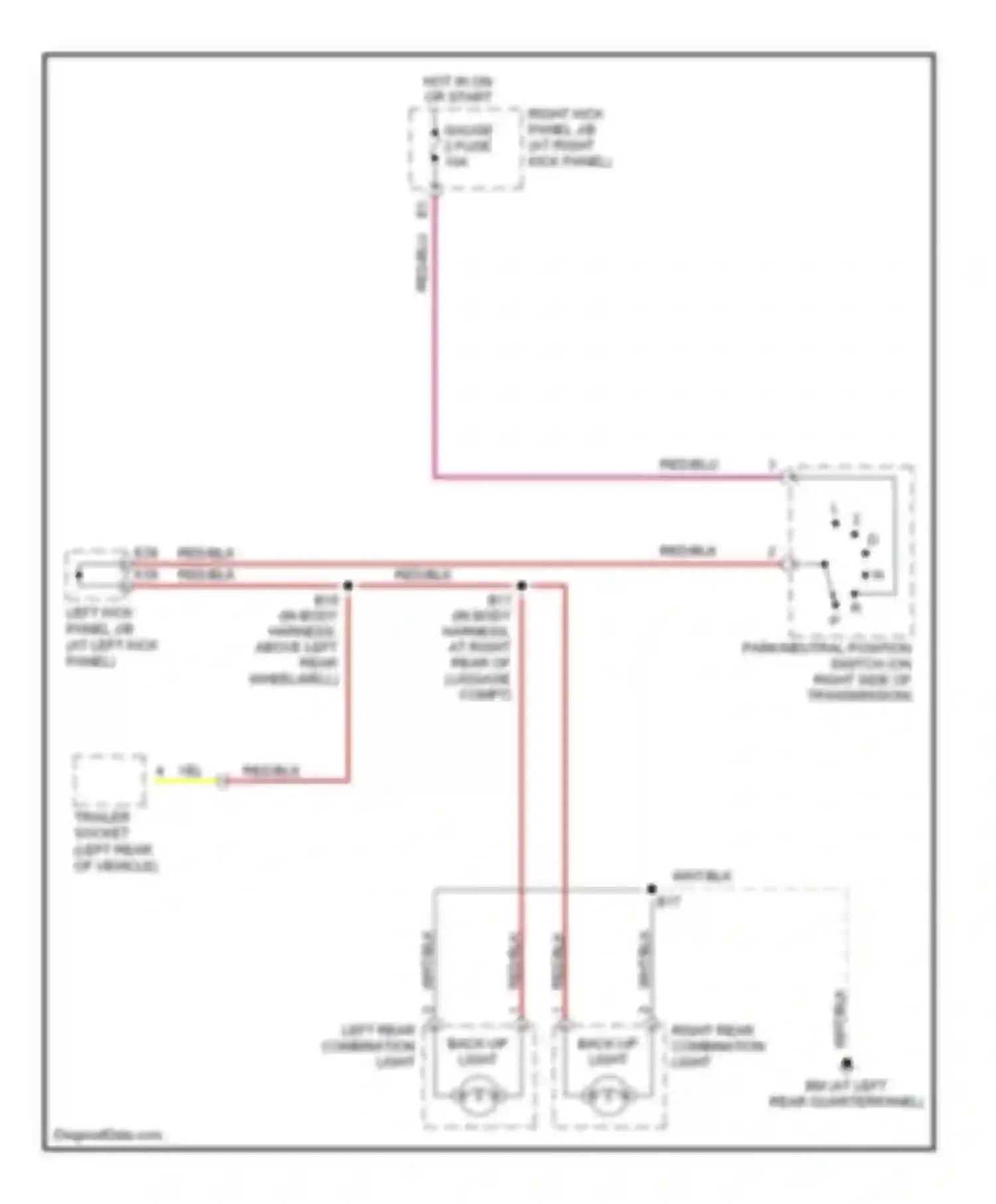

Back-up lamps circuit for Lexus LX J100 facelift (2002-2007)
Back-up lamps circuit
BM (AT LEFT REAR QUARTERPANEL)
GAUGE 2 FUSE
HOT IN ON OR START
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LEFT REAR COMBINATION LIGHT BACK-UP LIGHT
PARK/NEUTRAL POSITION SWITCH (ON RIGHT SIDE OF TRANSMISSION)
RED/BLK WIRE
RED/BLU WIRE
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RIGHT REAR COMBINATION LIGHT BACK-UP LIGHT
TRAILER SOCKET
WHT/BLK WIRE
YEL WIRE
