Lexus LX J100 (1998-2002) wht Wiring diagrams
This page contains all the electrical diagrams for the component. wht, in which he is found in the car Lexus LX J100 (1998-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram wht (41 of 43)
A/T P INDICATOR
ABS ECU
BLK WIRE
BLK/RED WIRE
BLU WIRE
BLU/BLK WIRE
CENTER DIFFERENTIAL INDICATOR
CENTER DIFFERENTIAL LOCK CONTROL MOTOR (ON CENTER DIFFERENTIAL)
CENTER DIFFERENTIAL LOCK CONTROL RELAY (BEHIND RIGHT SIDE OF DASH)
CENTER DIFFERENTIAL LOCK DETECTION SWITCH (ON CENTER DIFFERENTIAL)
CENTER DIFFERENTIAL LOCK SWITCH
COMBINATION METER
DIFF FUSE
ENGINE CONTROL MODULE
GAUGE FUSE
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/YEL WIRE
HOT IN RUN OR START
JUNCTION CONNECTOR J/C 14 (UPPER CENTER OF DASH)
JUNCTION CONNECTOR J/C 17 (UPPER CENTER OF DASH)
JUNCTION CONNECTOR J/C 19 (UPPER RIGHT SIDE OF DASH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
PARK/NEUTRAL POSITION SWITCH (ON TRANSMISSION)
PNK WIRE
RED WIRE
RED/BLU WIRE
SUSPENSION CONTROL ECU
TRANSFER L POSITION DETECTION SWITCH (ON LEFT SIDE OF TRANSMISSION)
TRANSFER NEUTRAL POSITION DETECTION SWITCH (ON LEFT SIDE OF TRANSMISSION)
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Center differential lock circuit -> WHT WIRE

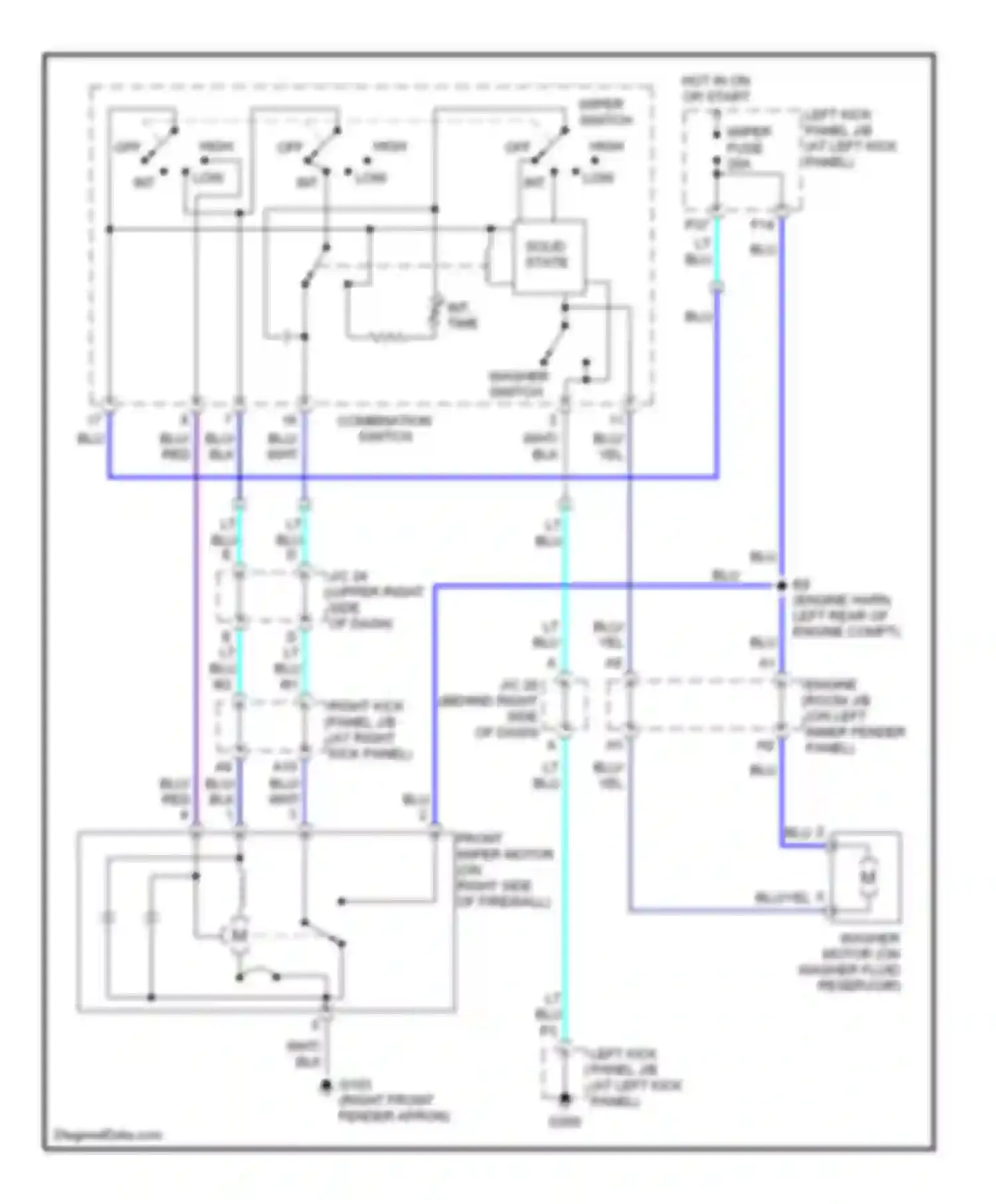

Wiring diagram wht (42 of 43)
BLK WIRE
BLU WIRE
BLU/YEL WIRE
COMBINATION SWITCH
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
FRONT WIPER MOTOR (ON RIGHT SIDE OF FIREWALL)
HIGH OFF
HOT IN ON OR START
INT TIME
J/C 20 (BEHIND RIGHT SIDE OF DASH)
J/C 24 (UPPER RIGHT SIDE OF DASH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LOW INT
LT LT
OFF
RED WIRE
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
SOLID STATE
WASHER MOTOR (ON WASHER FLUID RESERVOIR)
WASHER SWITCH
WHT WIRE
WIPER FUSE
WIPER SWITCH
YEL WIRE
Go to component -> Front wiper/washer circuit -> WHT WIRE

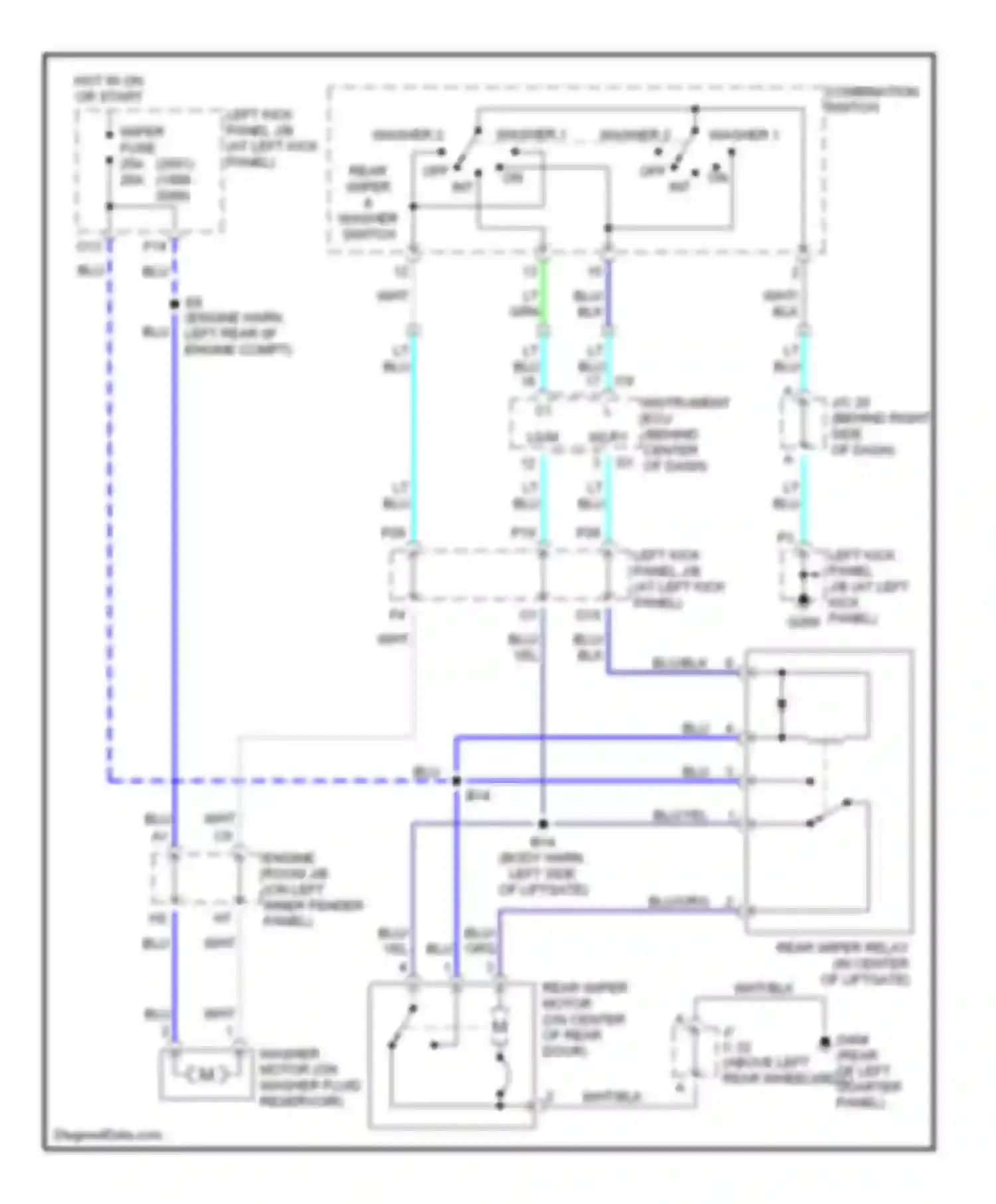

Wiring diagram wht (43 of 43)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/YEL WIRE
COMBINATION SWITCH
ENGINE COMPT)
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
GRN WIRE
HOT IN ON OR START
INSTRUMENT ECU (BEHIND CENTER OF DASH)
J/C 20 (BEHIND RIGHT SIDE OF DASH)
J/C 32 (ABOVE LEFT REAR WHEELWELL)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LS/M WLRY
LT LT LT
OFF ON INT
ORG/ WIRE
REAR WIPER
REAR WIPER MOTOR (ON CENTER OF REAR DOOR)
REAR WIPER RELAY (IN CENTER OF LIFTGATE)
WASHER 1 WASHER 2
WASHER 2 WASHER 1
WASHER MOTOR (ON WASHER FLUID RESERVOIR)
WASHER SWITCH
WHT WIRE
WHT/BLK WIRE
WIPER FUSE
YEL WIRE
Go to component -> Rear wiper/washer circuit -> WHT WIRE
