Lexus LX J100 (1998-2002) shift lock control switch Wiring diagram
This page shows the only wiring diagram for the component.shift lock control switch, which is found in the car Lexus LX J100 (1998-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

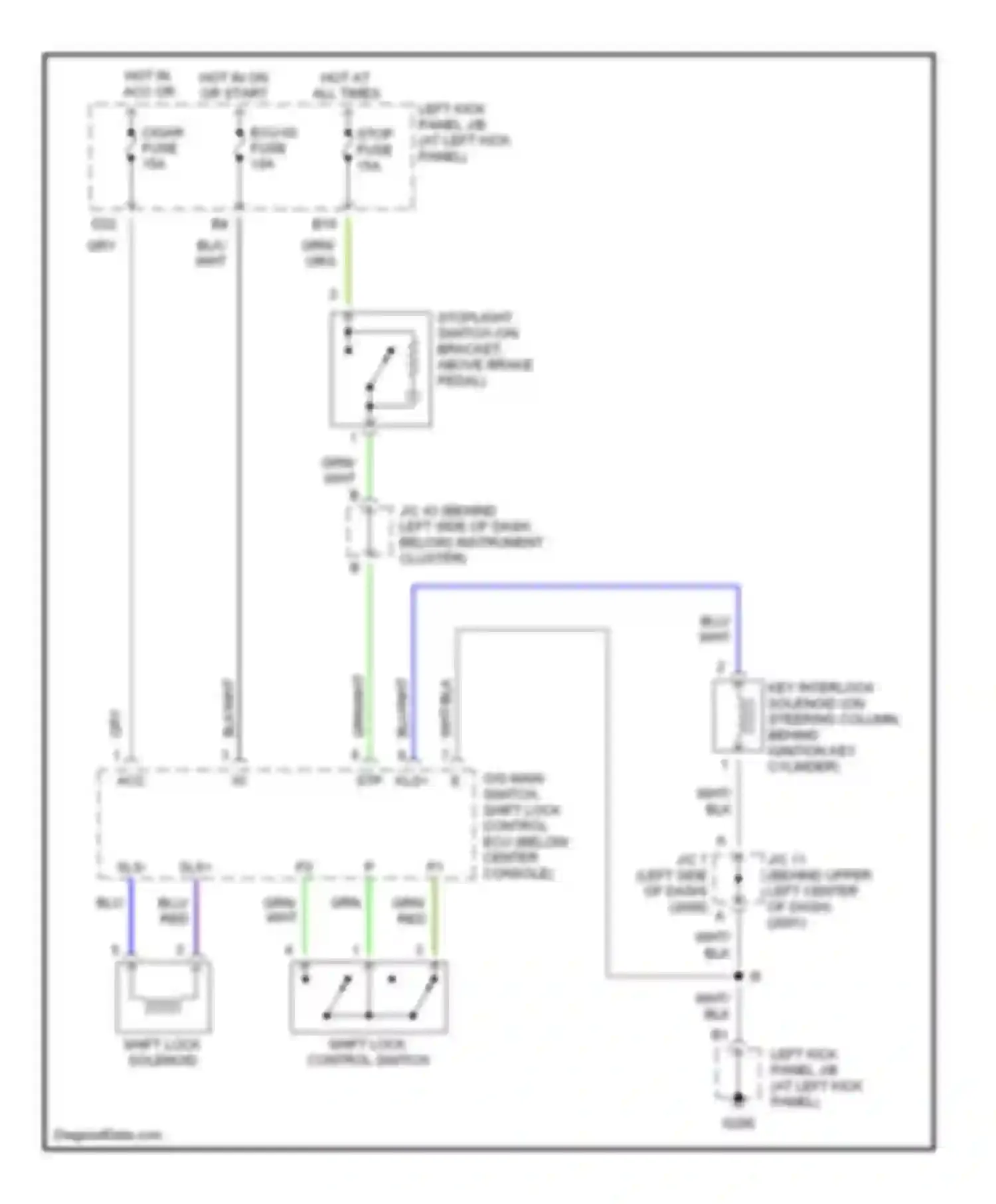

Wiring diagram shift lock control switch (1 of 1)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/WHT WIRE
CIGAR FUSE ECU-IG FUSE
GRN WIRE
GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN HOT IN ON OR START ACC OR ON
J/C 43 (BEHIND LEFT SIDE OF DASH, BELOW INSTRUMENT CLUSTER)
KEY INTERLOCK SOLENOID (ON STEERING COLUMN, BEHIND IGNITION KEY CYLINDER)
KLS+ STP
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
O/D MAIN SWITCH, SHIFT LOCK CONTROL ECU (BELOW CENTER CONSOLE)
ORG/ WIRE
RED WIRE
SHIFT LOCK CONTROL SWITCH
SHIFT LOCK SOLENOID
SLS+ SLS-
STOP FUSE
STOPLIGHT SWITCH (ON BRACKET, ABOVE BRAKE PEDAL)
WHT WIRE
WHT/BLK WIRE
Go to component -> Shift interlock circuit -> SHIFT LOCK CONTROL SWITCH
