Lexus LX J100 (1998-2002) lt blu Wiring diagrams
This page contains all the electrical diagrams for the component. lt blu, in which he is found in the car Lexus LX J100 (1998-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram lt blu (1 of 41)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 SRLR
ABS 1 FUSE
ABS 2 FUSE
ABS MTR 1 RELAY
ABS MTR 2 RELAY
ABS SOL RELAY
ABS, BA, TRAC, VSC ACTUATOR (ON LEFT REAR CORNER OF ENGINE COMPT)
ABS, BA, TRAC, VSC ECU (BEHIND LEFT SIDE OF DASH)
AHCO
AST SRLH SFRR PL
BLK WIRE
BLK/ORG WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BRAIDED
BRAIDED MSS FSS
ENGINE CONTROLS SYSTEM
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
GRN WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
IGN FUSE
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LT BLU WIRE
LT GRN WIRE
MT- SR
MTT MT+
ORG/ WIRE
PNK 2 3 4 5 6 WIRE
PNK FR- FR+ FL- FL+ WIRE
PNK WIRE
RED WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
SFLH PMC
SFLR SRRH SRRR VCM PH
SFRH
STR+
WAHC
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/RED WIRE
YEL WIRE
YEL/BLK WIRE
YEL/GRN WIRE
Go to component -> Anti-lock brake circuits (1 of 3) -> LT BLU WIRE
Wiring diagram lt blu (2 of 41)
AHC-IG FUSE
BLK WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BRAIDED
BRAIDED 14 15 16 17
ECU-IG FUSE
EXI
FLO
FRO
GAUGE FUSE
GRN WIRE
GRN/ORG WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
J/C 12 (BEHIND LEFT SIDE OF DASH)
J/C 14 (BEHIND LEFT CENTER OF DASH)
J/C 17 (BEHIND RIGHT CENTER OF DASH)
J/C 20 (BEHIND RIGHT SIDE OF DASH)
J/C 29 (BEHIND GLOVE BOX)
J/C 41 (BEHIND LEFT SIDE OF DASH)
J/C 45 (LEFT SIDE OF DASH)
LEFT FRONT ABS SPEED SENSOR
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LEFT REAR ABS SPEED SENSOR
LT BLU WIRE
MASTER CYLINDER PRESSURE SENSOR (ON BRAKE MASTER CYLINDER)
PARK/ NEUTRAL POSITION SWITCH (ON LEFT SIDE OF TRANS- MISSION)
PARKING BRAKE SWITCH (ON BASE OF PARK BRAKE LEVER)
PMC
PNK 2 3 4 5 6 WIRE
PNK WIRE
PNK/BLK WIRE
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT ABS SPEED SENSOR
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RIGHT REAR ABS SPEED SENSOR
STEERING ANGLE SENSOR (COMBINATION SWITCH)
STOP FUSE
STOPLIGHT SWITCH (ON BRACKET, ABOVE BRAKE PEDAL)
SUSPENSION CONTROL ECU (BEHIND CENTER OF DASH)
VCM
VSC WARNING BUZZER (BEHIND LEFT SIDE OF DASH)
VSCO
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Anti-lock brake circuits (2 of 3) -> LT BLU WIRE
Wiring diagram lt blu (3 of 41)
1 2 3 4 5 6 7 8 9 10 VGS
1 2 3 4 5 6 7 8 9 10 WA BZ D/G
ABS IND.
ABS, BA, TRAC, VSC ECU (BEHIND LEFT SIDE OF DASH)
ACTIVE TRAC IND
BLK WIRE
BLK/BLU WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRAIDED
BRAIDED 14 15 16 17
BRAIDED GSS 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
BRAIDED YSS YD
BRAKE IND
BRN WIRE
CENTER DIFFER- ENTIAL LOCK SWITCH DETECTION SWITCH (ON CENTER DIFFER- ENTIAL)
COMBINATION METER
DATA LINK CONNECTOR 1 (RIGHT SIDE OF ENGINE COMPT)
DATA LINK CONNECTOR 3 (BEHIND LEFT SIDE OF DASH)
DECELERATION SENSOR (BELOW FRONT OF CENTER CONSOLE)
ENG
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
ENGINE CONTROLS SYSTEM
EXI VSCW BRL IND WT
FRO FLO
GGND
GRN WIRE
GRN/WHT WIRE
GYAW
GYAW YAW
INFR
J/C 16 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 20 (BEHIND RIGHT SIDE OF DASH)
J/C 21 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 25 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 41 (BEHIND LEFT SIDE OF DASH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LT BLU WIRE
NEO
OFF IND
PNK GGND WIRE
PNK WIRE
PNK/BLK WIRE
PNK/BLU WIRE
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
RED/YEL WIRE
RL+ RL- RR+ RR- ENG-
RSS STP TC TS PKB ENG+ TFN TRC-
SLIP IND
TRANSFER NEUTRAL POSITION DETECTION SWITCH (ON LEFT SIDE OF TRANS- MISSION)
TRC+
VGS
VIO WIRE
VIO/WHT WIRE
VSC OFF IND
VSC TRAC IND
VYS
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/RED WIRE
YAW RATE SENSOR (BELOW CENTER OF DASH, FORWARD OF GEAR SELECTOR)
YEL WIRE
YEL/GRN WIRE
Go to component -> Anti-lock brake circuits (3 of 3) -> LT BLU WIRE
Wiring diagram lt blu (4 of 41)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 GRD
1 7 2 11 9 4 BECU RLCY SIG DLRY TRY GRD
14 1 12 18 6 13 ACY RRCY DURY DISW PISW DDRY
20 11 6 10 7 14 3 9 5 8 4 KSW DKU DKL PKU PKL DCY PCY PML PMU DML DMU
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BZR TRLY
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
FUSE
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY/BLU WIRE
HAZ- TRN FUSE
HOT AT ALL TIMES
INSTRUMENT ECU (BEHIND CENTER OF DASH)
JUNCTION CONNECTOR J/C 1 (LEFT END OF DASH)
JUNCTION CONNECTOR J/C 12 (LEFT SIDE OF DASH)
JUNCTION CONNECTOR J/C 14 (BEHIND LEFT CENTER OF DASH)
JUNCTION CONNECTOR J/C 15 (BEHIND LEFT CENTER OF DASH)
JUNCTION CONNECTOR J/C 16 (UPPER RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 23 (UPPER RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 24 (UPPER RIGHT END OF DASH)
JUNCTION CONNECTOR J/C 25 (UPPER RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 3 (LEFT SIDE OF DASH)
JUNCTION CONNECTOR J/C 43 (BEHIND LEFT SIDE OF DASH)
KSW LSWD LSWP IG CTY
LEFT DOOR KEY LOCK/ UNLOCK SWITCH
LEFT DOOR LOCK CONTROL SWITCH (POWER WINDOW MASTER SWITCH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LSWR
LT BLU WIRE
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RIGHT DOOR KEY LOCK/ UNLOCK SWITCH
RIGHT DOOR LOCK CONTROL SWITCH
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
WHT GRN/ WIRE
WHT WIRE
WHT/BLK WIRE
WIRELESS DOOR LOCK BUZZER (IN REAR OF LEFT FRONT FENDER)
WIRELESS DOOR LOCK ECU (BEHIND LEFT OF DASH)
Go to component -> Anti-theft circuit (1 of 3) -> LT BLU WIRE

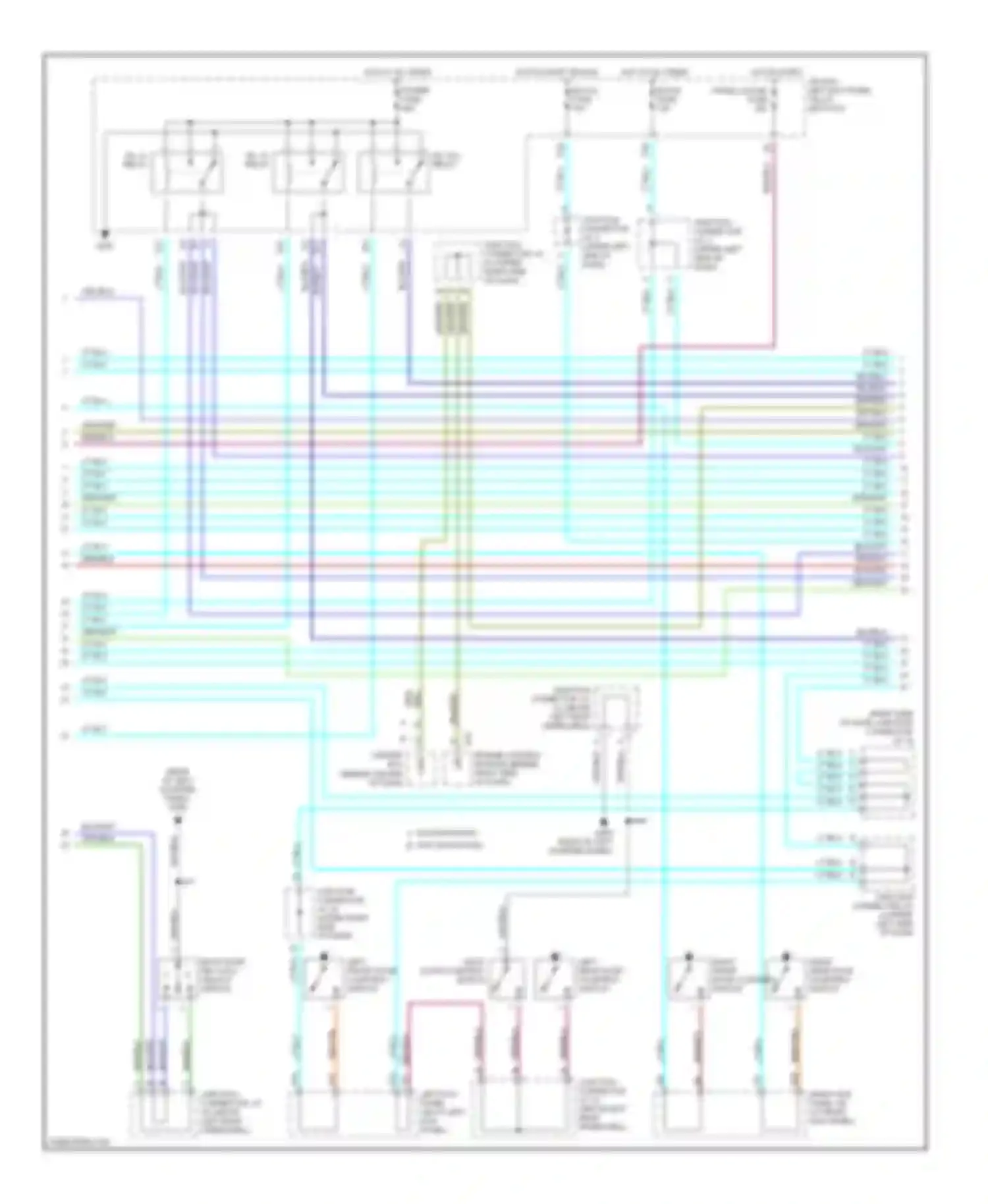

Wiring diagram lt blu (5 of 41)
BACK DOOR COURTESY SWITCH
BACK DOOR KEY LOCK, UNLOCK SWITCH
BLU/BLK WIRE
BLU/WHT WIRE
CENTER ECU
D/L (DU) RELAY
D/L (L) RELAY
D/L (U) RELAY
ECU-B FUSE
ECU-IG FUSE
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
GRN RED/ WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY/BLU WIRE
HOT AT ALL TIMES
HOT IN START OR RUN
HOT IN START OR RUN LEFT KICK PANEL J/B (AT LEFT KICK PANEL) GAUGE FUSE
I-SEC
JUNCTION CONNECTOR J/C 16 (UPPER RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 24 (UPPER RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 3 (UPPER LEFT SIDE OF DASH)
JUNCTION CONNECTOR J/C 32 (ABOVE LEFT REAR WHEELWELL)
JUNCTION CONNECTOR J/C 33 (ABOVE LEFT REAR WHEELWELL)
JUNCTION CONNECTOR J/C 34 (ABOVE LEFT REAR WHEELWELL)
JUNCTION CONNECTOR J/C 4 (UPPER LEFT SIDE OF DASH)
LED
LEFT FRONT DOOR COURTESY SWITCH
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LEFT REAR DOOR COURTESY SWITCH
LT BLU WIRE
POWER FUSE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT FRONT DOOR COURTESY SWITCH
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RIGHT REAR DOOR COURTESY SWITCH
WHT/BLK WIRE
Go to component -> Anti-theft circuit (2 of 3) -> LT BLU WIRE
Wiring diagram lt blu (6 of 41)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 CTY
BACK DOOR LOCK MOTOR, DOOR UNLOCK DETECTION SWITCH
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
DSWH DSWD DSWP KSW LUG
ENGINE HOOD COURTESY SWITCH (ON TOP CENTER OF RADIATOR SUPPORT)
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY/BLU WIRE
HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HORNS SYSTEM
IG LSWD LSWP LSWR
IND
JUNCTION CONNECTOR J/C 11 (UPPER LEFT CENTER OF DASH)
JUNCTION CONNECTOR J/C 20 (RIGHT SIDE OF DASH)
JUNCTION CONNECTOR J/C 3 (UPPER LEFT SIDE OF DASH)
JUNCTION CONNECTOR J/C 32 (ABOVE LEFT REAR WHEELWELL)
JUNCTION CONNECTOR J/C 35 (TOP OF LEFT REAR WHEELWELL)
JUNCTION CONNECTOR J/C 4 (UPPER LEFT SIDE OF DASH)
JUNCTION CONNECTOR J/C 7 (BEHIND LEFT SIDE OF DASH)
LEFT FRONT DOOR LOCK MOTOR, DOOR UNLOCK DETECTION SWITCH
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LEFT REAR DOOR LOCK MOTOR, DOOR UNLOCK DETECTION SWITCH
LT BLU WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
RIGHT FRONT DOOR LOCK MOTOR, DOOR UNLOCK DETECTION SWITCH
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RIGHT REAR DOOR LOCK MOTOR, DOOR UNLOCK DETECTION SWITCH
SH HEAD TAIL HORN
THEFT DETERRENT ECU (BEHIND CENTER OF DASH)
THEFT DETERRENT HORN (ON RIGHT SIDE INNER FENDER PANEL)
UNLOCK WARNING SWITCH
VIO WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Anti-theft circuit (3 of 3) -> LT BLU WIRE

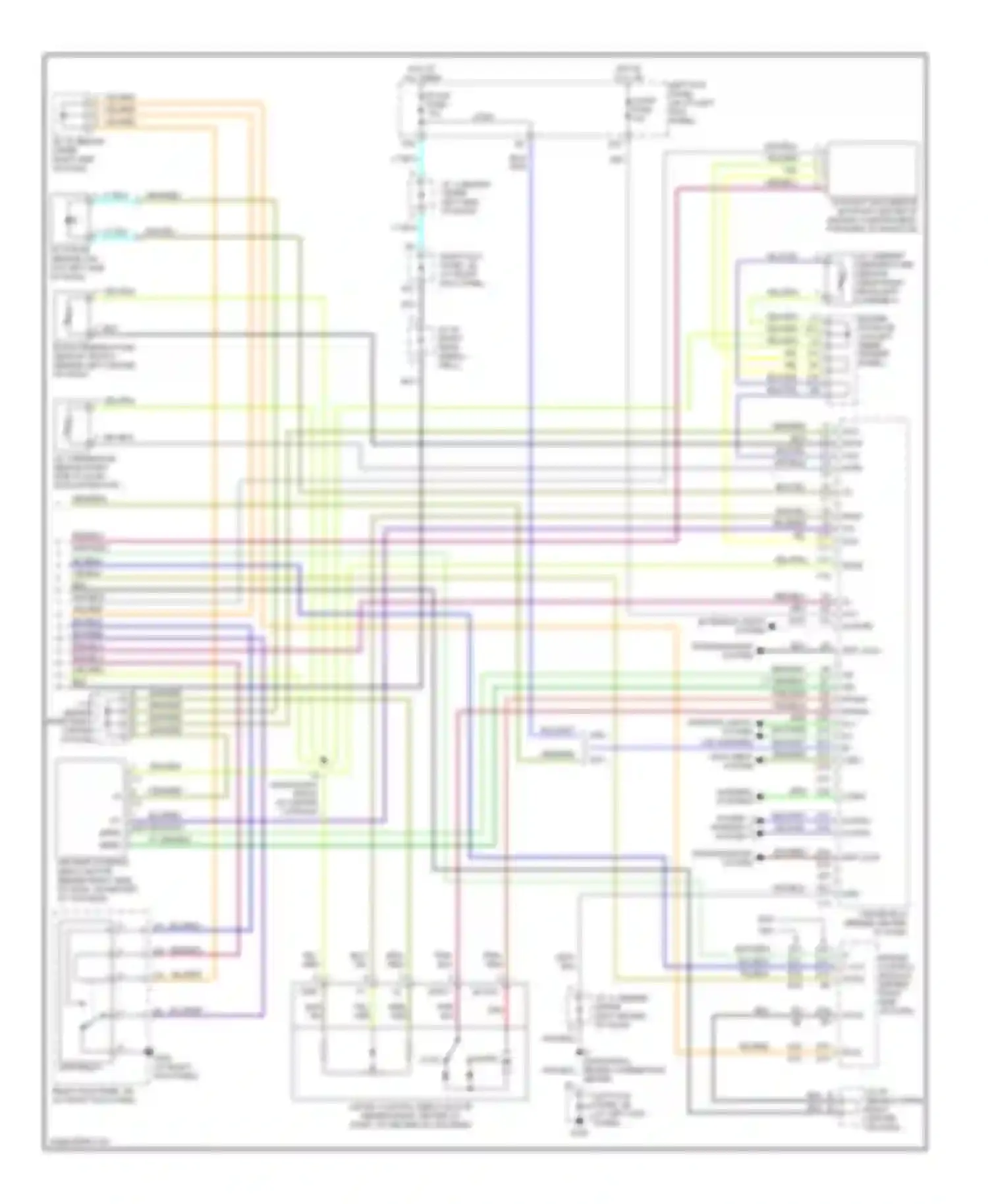

Wiring diagram lt blu (7 of 41)
1 2 3 4 5 6 7 GND
A/C ACT THWO ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
A/C AMBIENT TEMPERATURE SENSOR (NEAR RIGHT HEADLIGHT ASSEMBLY)
A/C SOLAR SENSOR (ON TOP LEFT SIDE OF DASH)
A/C THERMISTOR (BEHIND RIGHT SIDE OF DASH, ON EVAPORATOR)
AIF AIR FRAMC FRAMH ILL+ ILL- B+ I-SEC
AIR MIX CONTROL SERVO MOTOR (BEHIND RIGHT CENTER OF DASH, ON HEATER-A/C HOUSING)
ANTI-THEFT SYSTEM
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
CENTER ECU (BEHIND CENTER OF DASH)
CIGAR FUSE
DASH HARN, BEHIND COMBINATION METER)
DIFF LOCK SW
ECU-B FUSE
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
EXHAUST GAS SENSOR (IN FRONT CENTER OF ENGINE COMPARTMENT, FORWARD OF RADIATOR)
FRSG
FRTP TPI DGS
FRTR TAM FRTE
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
GRY/BLK WIRE
HAZARD SW
HOT AT ALL TIMES
HOT IN ACC OR ON
I-SBW
J/C 11 (BEHIND UPPER LEFT CENTER OF DASH)
J/C 22 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 3 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 40 (RIGHT REAR WHEEL- WELL)
J/C 45 (BEHIND UPPER RIGHT CENTER OF DASH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LT BLU WIRE
LT GRN/BLK WIRE
MCOOL
MTR RELAY
PNK WIRE
PNK/BLK WIRE
PNK/GRN WIRE
POWER ANTENNA SYSTEM
PT MFRS MREC
RED WIRE
RED/BLU WIRE
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
ROOM TEMPERATURE SENSOR (FRONT) (BEHIND LEFT CENTER OF DASH)
S-ANTD S-ANTU
TACH
TRANSMISSIONS SYSTEM
VZ MHOT
WARM COOL
WARNING SYSTEMS
WHT WIRE
WHT/BLK WIRE
WHT/GRN WIRE
YEL WIRE
YEL/BLK WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Automatic a/c circuit (2 of 2) -> LT BLU WIRE

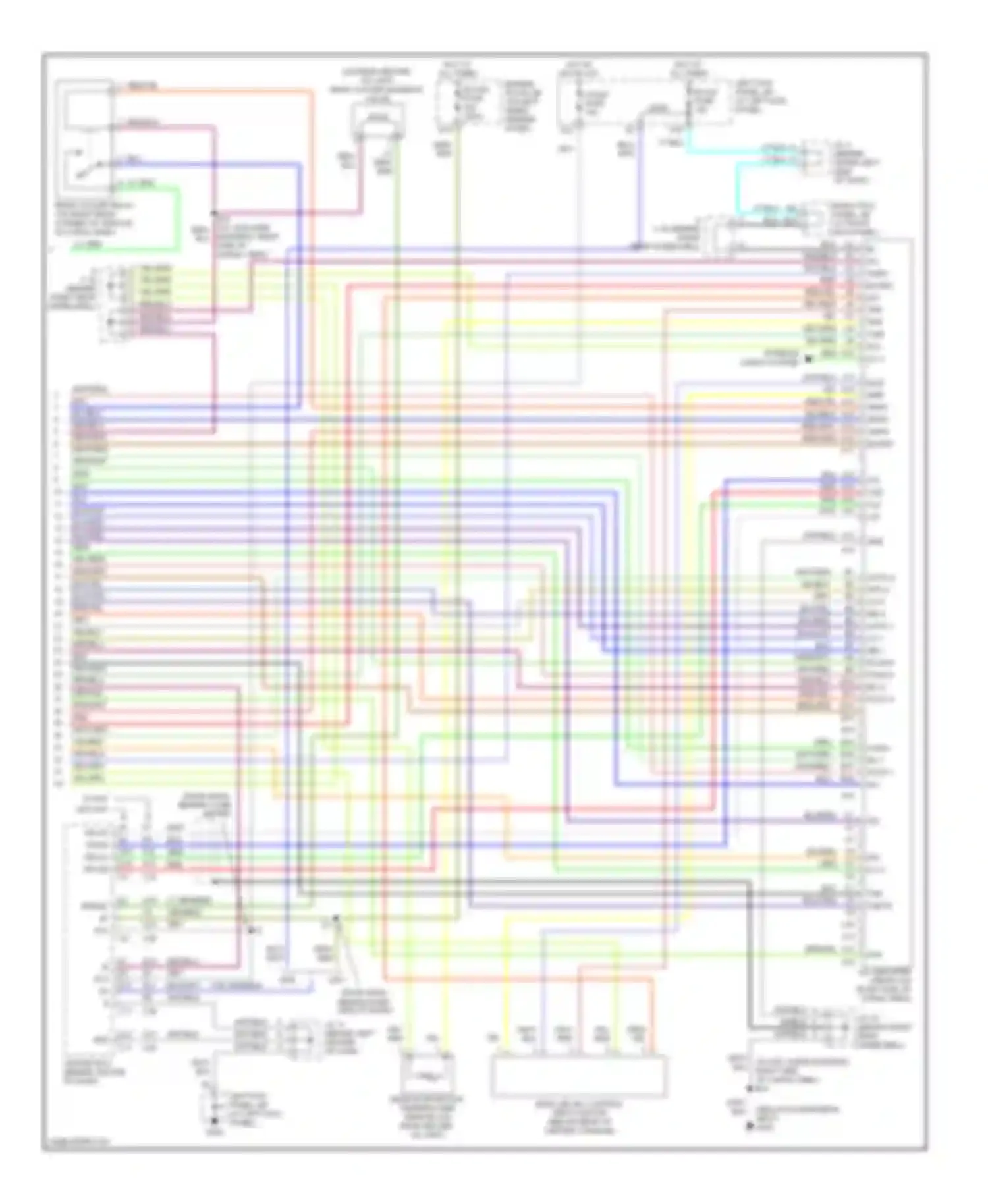

Wiring diagram lt blu (8 of 41)
A/C AMPLIFIER (REAR) (ON RIGHT SIDE OF CARGO AREA)
AUTO-S OFF-S LO-S ME-S AUTO-1 LO-1 ME-1 RG HI-S FACE-S B/L-S FOOT-S
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
CENTER ECU (BEHIND CENTER OF DASH)
CID CSD CLK LAT
CIGAR FUSE
ECU-B FUSE
ENGINE ROOM J/B (ON LEFT INNER FENDER PANEL)
FACE-I B/L-1 FOOT-1 HI-I
FRLAT FRCID FRCLK FRCSD
FUSE
GRN WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
GRY/GRN WIRE
GRY/RED WIRE
HOT AT ALL TIMES
HOT IN ON OR ACC
ILL+2
INTERIOR LIGHTS SYSTEM ILL+1
J/C 11 (BEHIND LEFT CENTER OF DASH)
J/C 3 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 38 (BEHIND RIGHT REAR WHEELWELL)
J/C 39 (BEHIND RIGHT REAR WHEELWELL) SHIELD
J/C 40 (BEHIND RIGHT REAR WHEELWELL)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LT BLU WIRE
LT GRN WIRE
LT GRN/RED WIRE
MCR MHR HRRC HRRH VMRH BLWRH
REAR AIR MIX CONTROL SERVO MOTOR (BELOW REAR OF CENTER CONSOLE)
REAR COOLER RELAY (ON RIGHT REAR CORNER OF VEHICLE, IN CARGO AREA)
REAR EVAPORATOR TEMPERATURE SENSOR (ON REAR HEATER- A/C UNIT)
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RRMGV B+
TPR TER TINR
TRR TSETR
VMRC BLWRC
W/ NAV W/O NAV
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
YEL WIRE
YEL/BLK WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Automatic a/c circuit, rear a/c (2 of 2) -> LT BLU WIRE

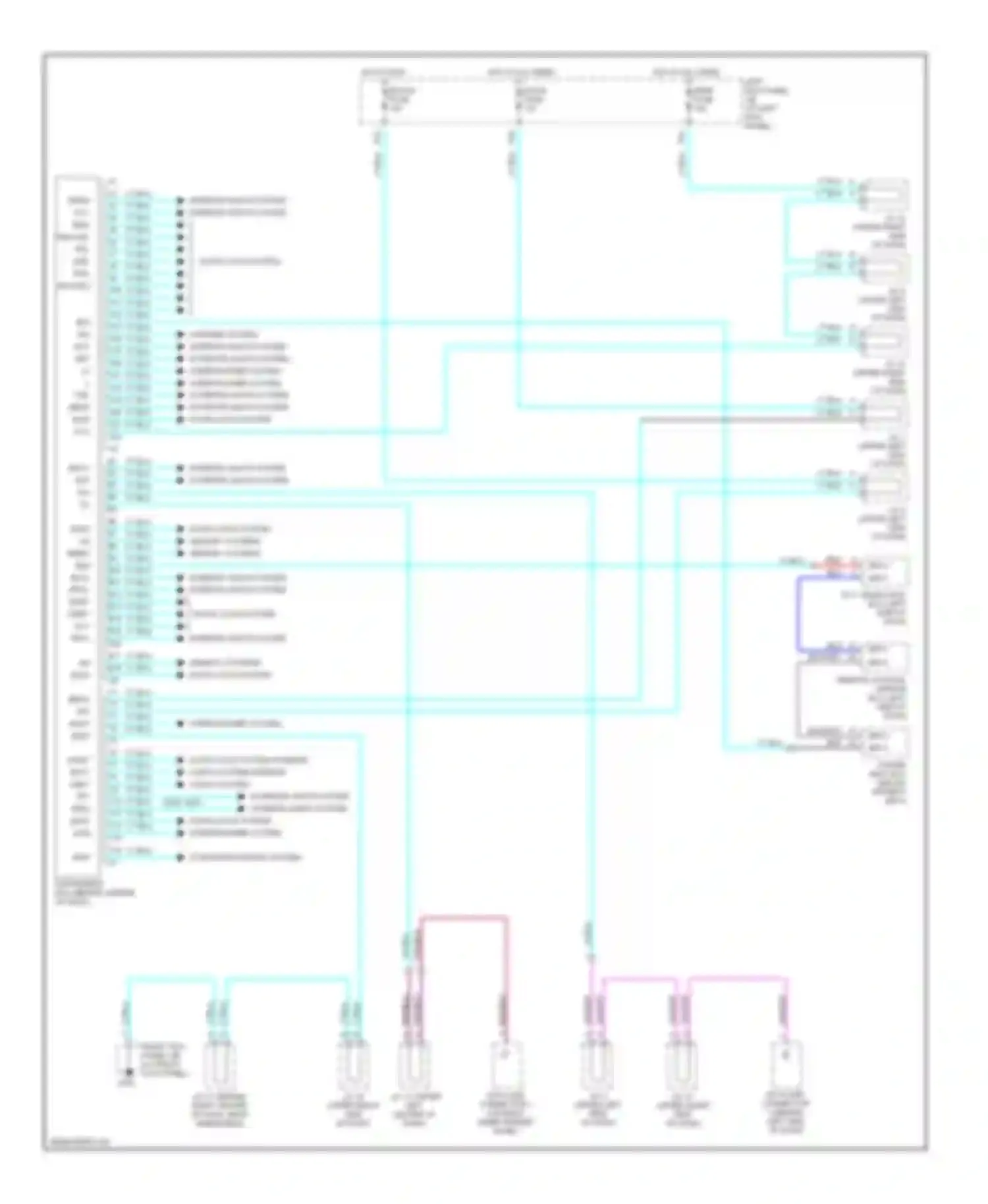

Wiring diagram lt blu (9 of 41)
2000- 2001
BECU SIG WLRY
BLK WIRE
BLK/WHT WIRE
BLU WIRE
DATA LINK CONNECTOR 1 (ON RIGHT INNER FENDER PANEL)
DATA LINK CONNECTOR 3 (BEHIND LEFT SIDE OF DASH)
DISW
DLRY LS/M
DOOR LOCKS SYSTEM
DOOR LOCKS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM
DOOR LOCKS SYSTEM MEMORY SYSTEMS MEMORY SYSTEMS
DOOR LOCKS SYSTEM WIPER/WASHER SYSTEM
ECU-B FUSE
ECU-IG FUSE
EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM
FRRM PCY DMU PMU DKL PKL DML PML PKU DKU
HOT AT ALL TIMES
HOT IN RUN
HW DCY HRY
INDP
INSTRUMENT ECU (BEHIND CENTER OF DASH)
INTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM
INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM
J/C 17 (BEHIND RIGHT CENTER OF DASH, NEAR WINDSHIELD)
J/C 19 (UPPER RIGHT SIDE OF DASH)
J/C 21 (UPPER RIGHT SIDE OF DASH)
J/C 25 (UPPER RIGHT SIDE OF DASH)
J/C 26 (UPPER RIGHT SIDE OF DASH) J/C 11 (UPPER LEFT CENTER OF DASH)
J/C 3 (UPPER LEFT SIDE OF DASH)
J/C 4 (UPPER LEFT SIDE OF DASH)
J/C 6 (UPPER LEFT SIDE OF DASH)
J/C 9 (UPPER LEFT SIDE OF DASH)
LEFT KICK PANEL J/B (AT LEFT KICK PANEL)
LT BLU WIRE
MEMO
MEMORY SYSTEMS DOOR LOCKS SYSTEM
MIRR FUSE
PISW
PNK/BLK WIRE
PNK/BLU WIRE
POWER SEAT ECU (BELOW DRIVER'S SEAT)
PWRY RLCY LMRY TRY
RED WIRE
REMOTE CONTROL MIRROR ECU (LEFT SIDE OF DASH)
RIGHT KICK PANEL J/B (AT RIGHT KICK PANEL)
RLCL RRCL DURY DDRY ACY FRCL
RRCY STP DG TC
SIL
STARTING/CHARGING SYSTEM
TAIL HEAD KSW
TILT, TELESCOPIC ECU (LEFT SIDE OF DASH)
VIO/WHT WIRE
WIPER/WASHER SYSTEM
Go to component -> Body computer circuits -> LT BLU WIRE

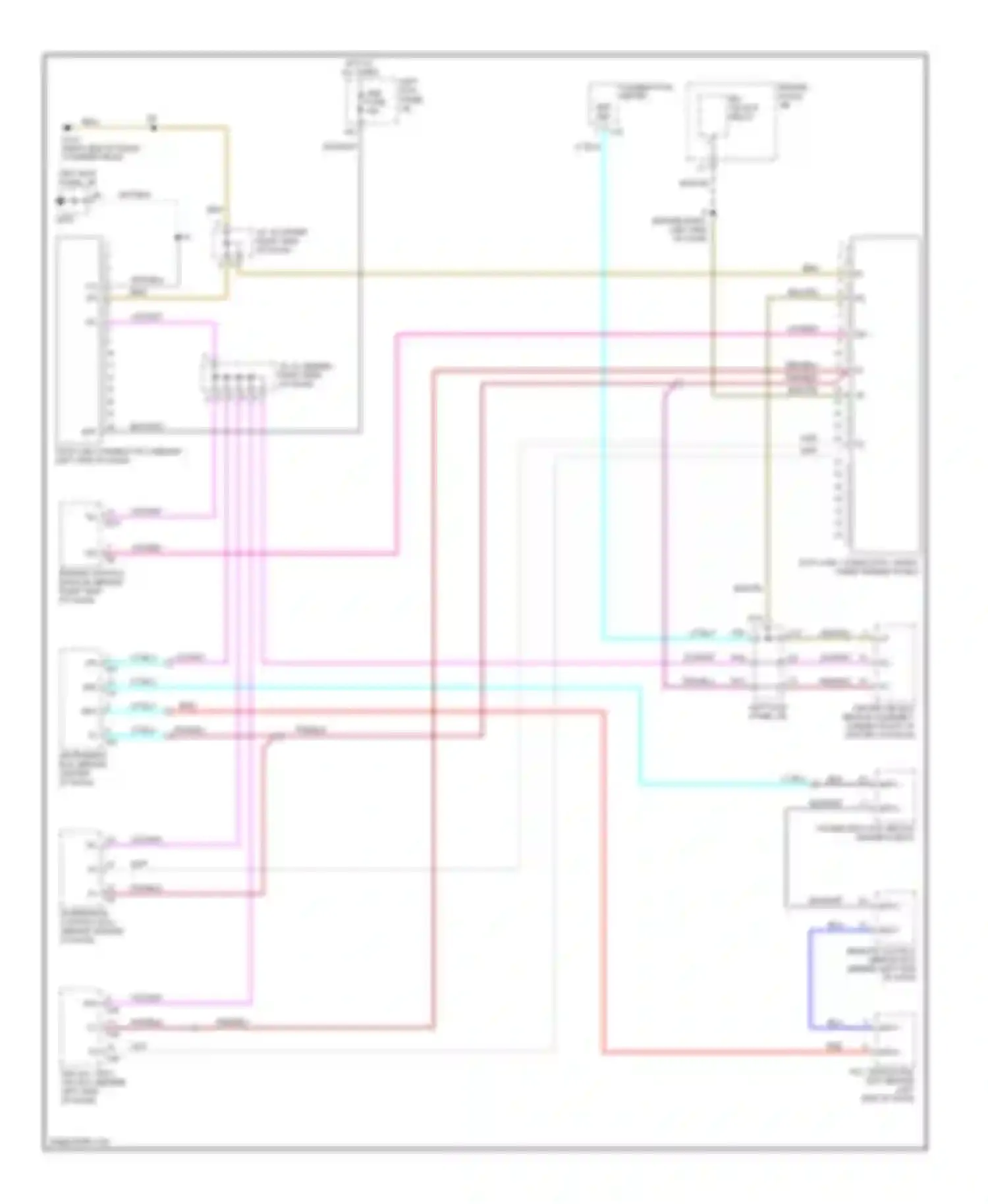

Wiring diagram lt blu (10 of 41)
12 13 14 15 16 +B
ABS, BA, TRAC, VSC ECU (BEHIND LEFT SIDE OF DASH)
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
CENTER AIR BAG SENSOR ASSEMBLY (UNDER FRONT OF CENTER CONSOLE)
CG SG
COMBINATION METER
D/G
DATA LINK CONNECTOR 1 (RIGHT INNER FENDER PANEL)
DATA LINK CONNECTOR 3 (BEHIND LEFT SIDE OF DASH)
EFI OR ECD RELAY
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
ENGINE ROOM J/B
HOT AT ALL TIMES
INSTRUMENT ECU (BEHIND CENTER OF DASH)
J/C 16 (UPPER RIGHT SIDE OF DASH)
J/C 21 (BEHIND RIGHT SIDE OF DASH)
LEFT KICK PANEL J/B
LT BLU WIRE
OBD FUSE
PNK/BLK WIRE
PNK/BLU WIRE
POWER SEAT ECU (BELOW DRIVER'S SEAT)
RED WIRE
RED/BLK WIRE
REMOTE CONTROL MIRROR ECU (BEHIND LEFT SIDE OF DASH)
SIL
SRS IND
SUSPENSION CONTROL ECU (BEHIND CENTER OF DASH)
TILT, TELESCOPIC ECU (BEHIND LEFT SIDE OF DASH)
VIO/RED WIRE
VIO/WHT WIRE
WHT WIRE
WHT/BLK WIRE
Go to component -> Computer data lines -> LT BLU WIRE
