Lexus LS IV (2006-2012) d p/ seat fuse Wiring diagram
This page shows the only wiring diagram for the component.d p/ seat fuse, which is found in the car Lexus LS IV (2006-2012). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

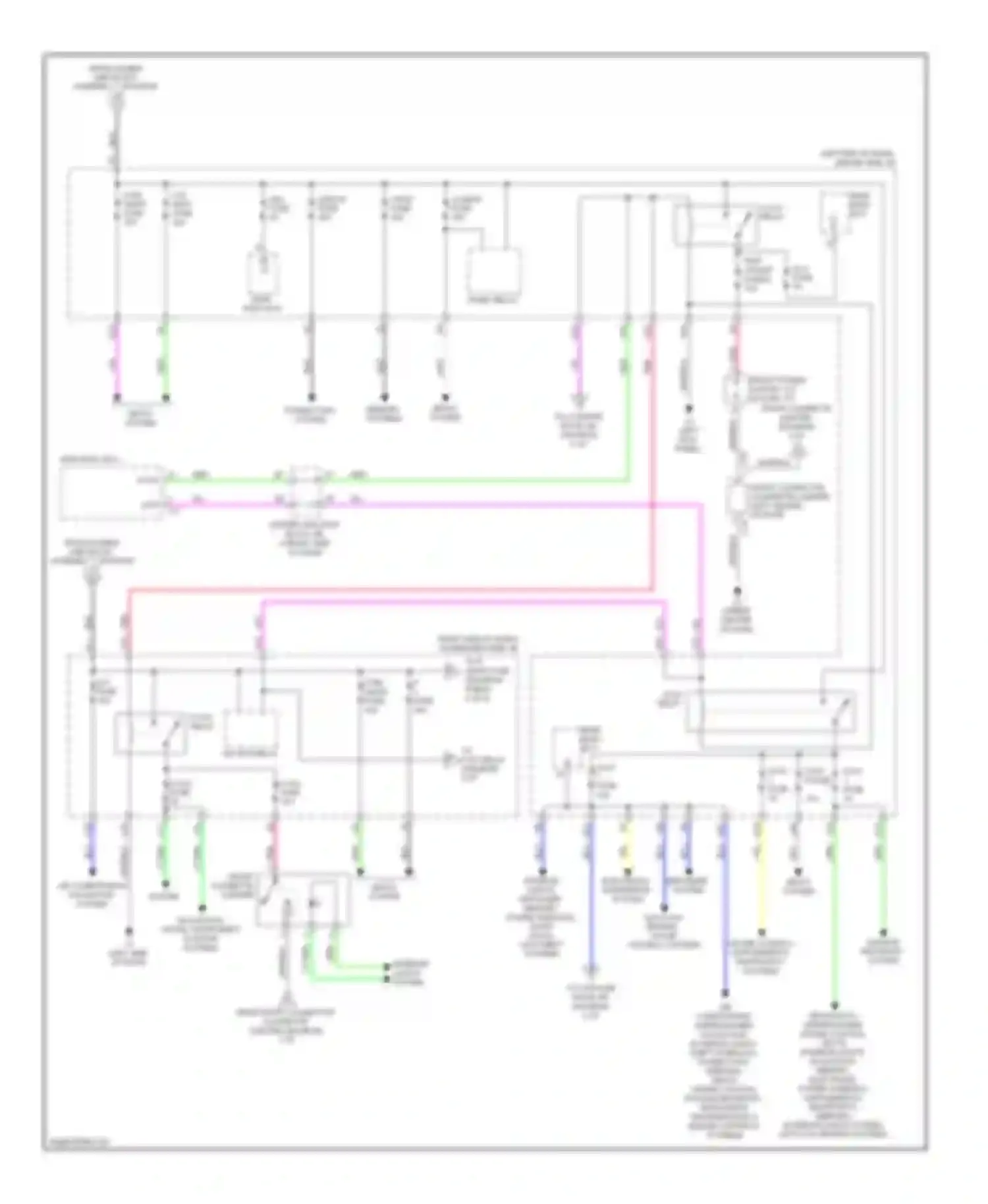

Wiring diagram d p/ seat fuse (1 of 1)
1 FUSE
2 FUSE 4 FUSE
A/C FUSE
ACCD
AIR CONDITIONING NAVIGATION SYSTEM SYSTEM
AIR SUS RELAY
ANTI-LOCK BRAKES, CRUISE CONTROL SYSTEMS
BLK WIRE
BLU WIRE
CENTER JUNCTION BLOCK J/B 4 (RIGHT SIDE OF DASH)
CRUISE CONTROL, SUPPLEMENTAL RESTRAINTS SYSTEMS
D P/ SEAT FUSE
D RR S/HTR FUSE
D S/HTR FUSE
D-ACC RELAY
DEFOGGER SYSTEM
ELECTRONIC SUSPENSION SYSTEM
FROM FUSIBLE LINK BLOCK ASSEMBLY 1 (DIAGRAM 1 OF 6)
FROM FUSIBLE LINK BLOCK ASSEMBLY 2 (DIAGRAM 1 OF 6)
FROM SHORT CONNECTOR (CIGARETTE LIGHTER) (DIAGRAM 3 OF 6)
FRONT CIGARETTE LIGHTER
FRONT POWER
FUSE
GRN WIRE
GRY WIRE
INTERIOR LIGHTS, DEFOGGER, MEMORY, POWER WINDOWS, DOOR LOCKS, ANTI-THEFT SYSTEMS
LT GRN WIRE
MAIN BODY ECU
MEMORY SYSTEMS
NAVIGATION, SOUND, INSTRUMENT CLUSTER SYSTEMS (LEFT SIDE OF DASH)
P ACC RELAY
P CIG FUSE
P RR S/HTR FUSE
P-ACC FUSE
PANEL RELAY
PASSIVE RESTRAINT SYSTEM
PNK WIRE
POWER TOPS SYSTEM
PWR OUTLET FUSE D ACC FUSE
RELAY
S/ROOF FUSE
SEATS SYSTEM
SHORT CONNECTOR (CIGARETTE LIGHTER) (LEFT CENTER OF DASH)
SOCKET TO FRONT CIGARETTE LIGHTER (DIAGRAM 3 OF 6)
TI&TE FUSE
TO LUGGAGE ROOM J/B (DIAGRAM 4 OF 6)
TO P S/HTR FUSE (DIAGRAM P/SEAT 1 4 OF 6) FUSE
VIO WIRE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Power distribution circuit (3 of 6) -> D P/ SEAT FUSE
