Lexus LC I (2016-2024) abs mtr 2 relay Wiring diagrams
This page contains all the electrical diagrams for the component. abs mtr 2 relay, in which he is found in the car Lexus LC I (2016-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

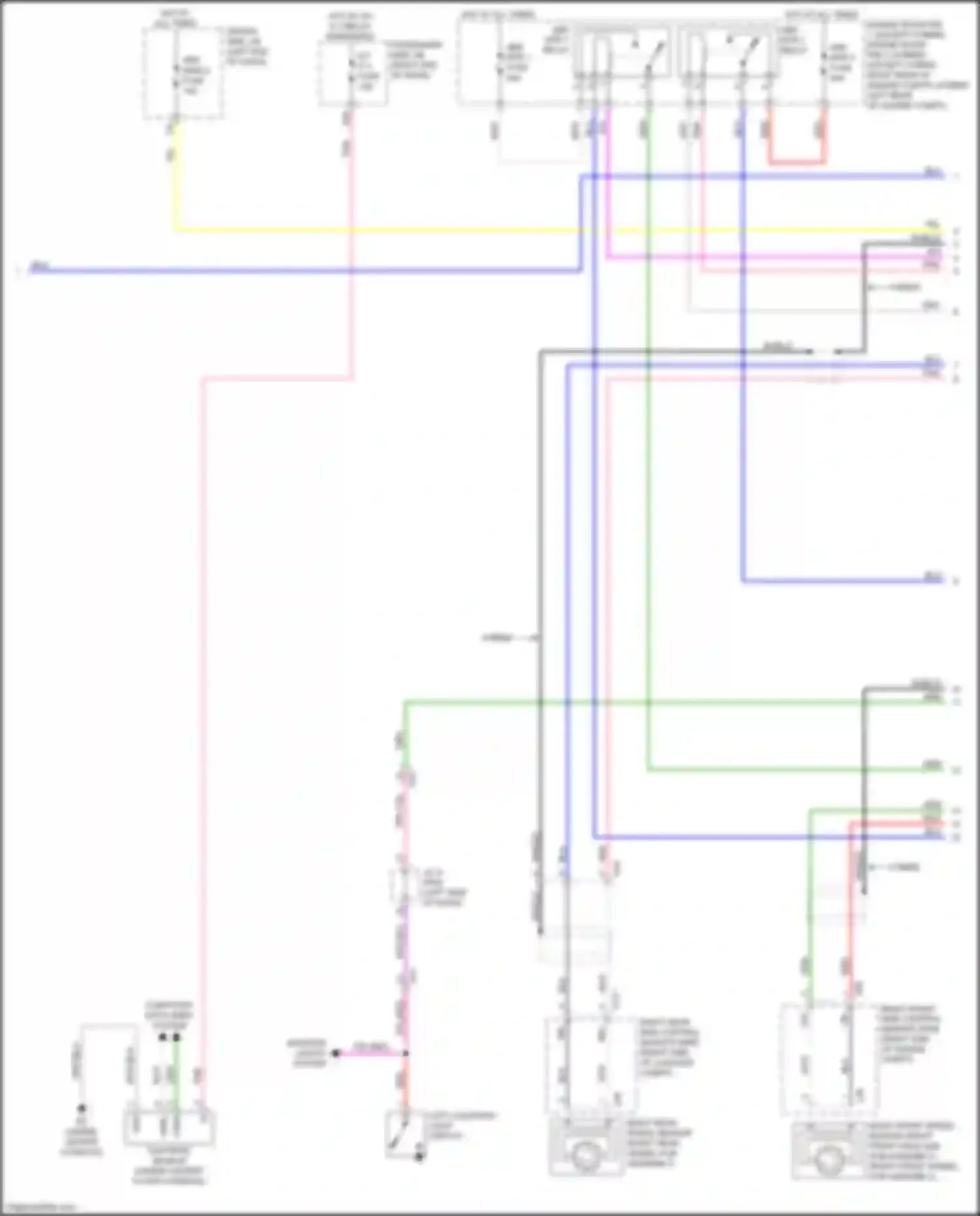

Wiring diagram abs mtr 2 relay (1 of 2)
ABS MAIN 2 FUSE
ABS MTR 1 FUSE
ABS MTR 1 RELAY
ABS MTR 2 FUSE
ABS MTR 2 RELAY
BLK WIRE
BLU WIRE
COMPUTER DATA LINES SYSTEM
DRIVER SIDE J/B
ENGINE ROOM R/B 1 (EXCEPT HYBRID) ENGINE ROOM R/B 2 (HYBRID)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LEFT COURTESY LIGHT SWITCH
P 2 RELAY ENERGIZED
PASSENGER SIDE J/B
PNK WIRE
PPL/BLK WIRE
PPL/RED WIRE
PPL/YEL WIRE
RED WIRE
RIGHT END OF DASH)
RIGHT FRONT SKID CONTROL SENSOR WIRE
RIGHT FRONT SPEED SENSOR (RIGHT FRONT AXLE HUB SUB-ASSEMBLY)
RIGHT REAR SKID CONTROL SENSOR WIRE
RIGHT REAR SPEED SENSOR
SHIELD
VIO WIRE
WHT WIRE
WHT/BLK WIRE
YAW RATE SENSOR
YEL WIRE
Go to component -> Anti-lock brakes circuit (4 of 5) -> ABS MTR 2 RELAY
Wiring diagram abs mtr 2 relay (2 of 2)
ABS MTR 1 FUSE
ABS MTR 1 RELAY
ABS MTR 2 FUSE
ABS MTR 2 RELAY
BATTERY
BLK WIRE
BLK/BLU WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLOWER MOTOR W/ FAN SUB-ASSEMBLY
BLU WIRE
COMPRESSOR W/ MOTOR ASSEMBLY
D/C CUT 1 FUSE
D/C CUT 2 FUSE
DC/DC FUSE
DEICER FUSE
DEICER RELAY
DEICER RELAY ENGINE ROOM R/B 2
ENGINE ROOM J/B 1
ENGINE ROOM J/B 2
ENGINE ROOM R/B 2 (LEFT REAR OF ENGINE COMPT)
FAN 1 FUSE
FAN W/ MOTOR ASSEMBLY
FROM DRIVER SIDE J/B (DIAGRAM 4 OF 7)
FRONT STEERING CONTROL ECU
FUSIBLE LINK BLOCK ASSEMBLY 1
FUSIBLE LINK BLOCK ASSEMBLY 2
GRN WIRE
HTR FUSE
INVERTER BUS-BAR PLATE SUB- ASSEMBLY
INVERTER W/ CONVERTER ASSEMBLY
J/B D-ALT FUSE
J/B P-ALT FUSE
LEFT HEADLIGHT CONTROL ECU ASSEMBLY (LEFT HEADLIGHT ASSEMBLY)
LT BLU WIRE
MILLIMETER WAVE RADAR SENSOR ASSEMBLY
P/I 1 FUSE
P/I 2 FUSE
PNK WIRE
PPL/BLU WIRE
R/B FR FUSE
R/B RR 1 FUSE
R/B RR 2 FUSE
R/B- ALT FUSE
R/B-B 1 FUSE
RACK, PINION POWER STEERING GEAR ASSEMBLY
RED WIRE
RIGHT HEADLIGHT CONTROL ECU ASSEMBLY (RIGHT HEADLIGHT ASSEMBLY)
SEMICONDUCTOR POWER INTEGRATION ECU 1
SEMICONDUCTOR POWER INTEGRATION ECU 2
SMOG VENTILATION SENSOR
TO DRIVER SIDE J/B (DIAGRAM 7 OF 7)
TO ENGINE ROOM J/B 1 (DIAGRAM 2 OF 7)
TO LUGGAGE ROOM J/B 1 (DIAGRAM 3 OF 7)
TO LUGGAGE ROOM J/B 2 (DIAGRAM 3 OF 7)
TO PASSENGER SIDE J/B (DIAGRAM 5 OF 7)
TO PASSENGER SIDE J/B (DIAGRAM 6 OF 7)
VGRS FUSE
WASHER FUSE
WHT WIRE
WHT/BLK WIRE
WHT/RED WIRE
WINDSHIELD WIPER MOTOR ASSEMBLY
WIPER 1 FUSE
WIPER 1 RELAY
WIPER 2 FUSE
WIPER 2 RELAY
YEL WIRE
Go to component -> Power distribution circuit (1 of 7) -> ABS MTR 2 RELAY
