Lexus IS III facelift 2 (2020-2024) lifter switch Wiring diagrams
This page contains all the electrical diagrams for the component. lifter switch, in which he is found in the car Lexus IS III facelift 2 (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

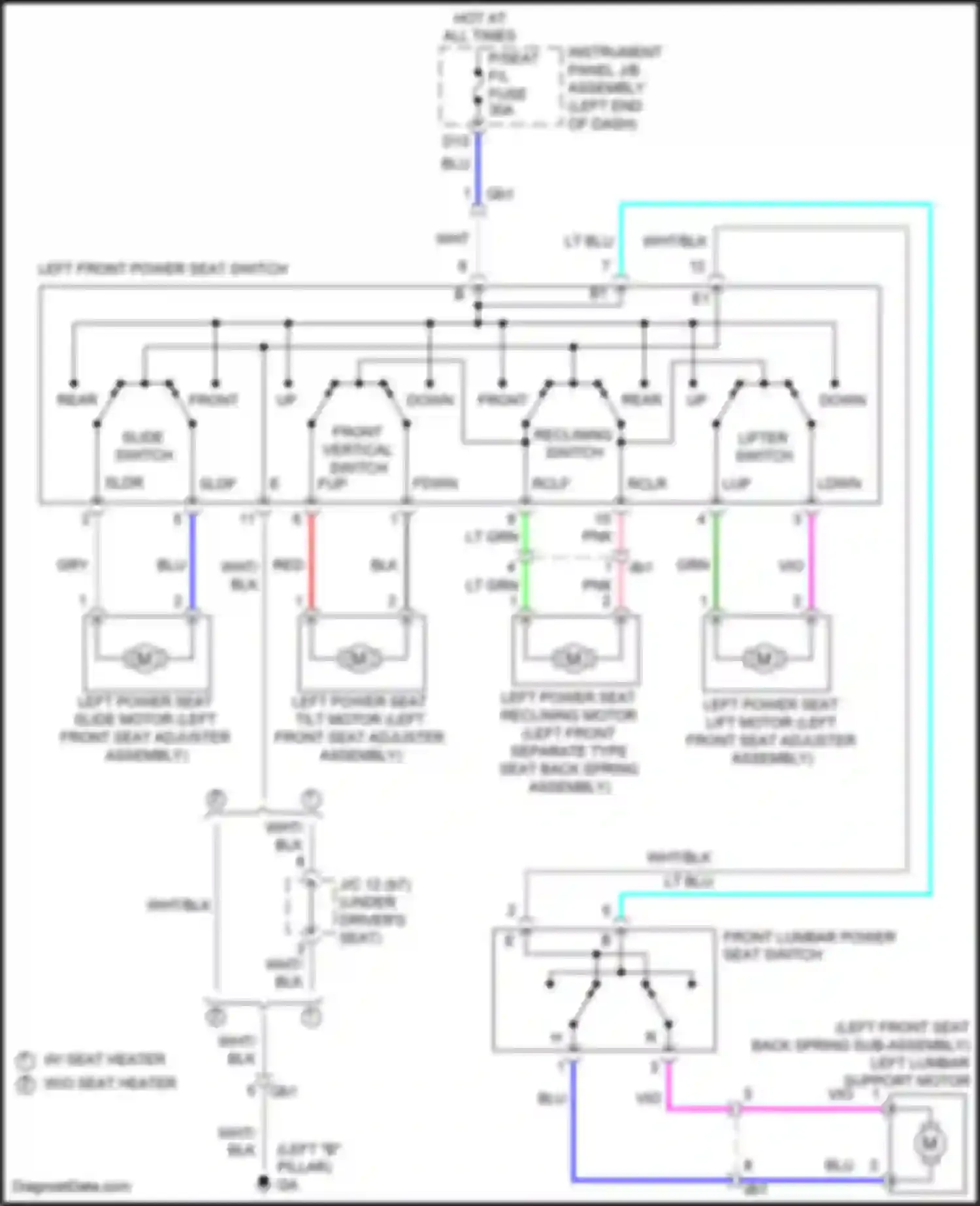

Wiring diagram lifter switch (1 of 2)
BLK WIRE
BLU WIRE
DOWN
FDWN
FRONT
FRONT LUMBAR POWER SEAT SWITCH
FRONT VERTICAL SWITCH
FUP
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
INSTRUMENT PANEL J/B ASSEMBLY
LDWN
LEFT FRONT POWER SEAT SWITCH
LEFT POWER SEAT LIFT MOTOR (LEFT FRONT SEAT ADJUSTER ASSEMBLY)
LEFT POWER SEAT SLIDE MOTOR (LEFT FRONT SEAT ADJUSTER ASSEMBLY)
LEFT POWER SEAT TILT MOTOR (LEFT FRONT SEAT ADJUSTER ASSEMBLY)
LIFTER SWITCH
LT BLU WIRE
LT GRN WIRE
P/SEAT F/L FUSE
PNK WIRE
RCLF
RCLR LUP
REAR
REAR UP
RECLINING SWITCH
RED WIRE
SLDF
SLDR
SLIDE SWITCH
VIO WIRE
W/ SEAT HEATER
W/O SEAT HEATER
WHT WIRE
WHT/BLK WIRE
Go to component -> Driver power seat circuit -> LIFTER SWITCH

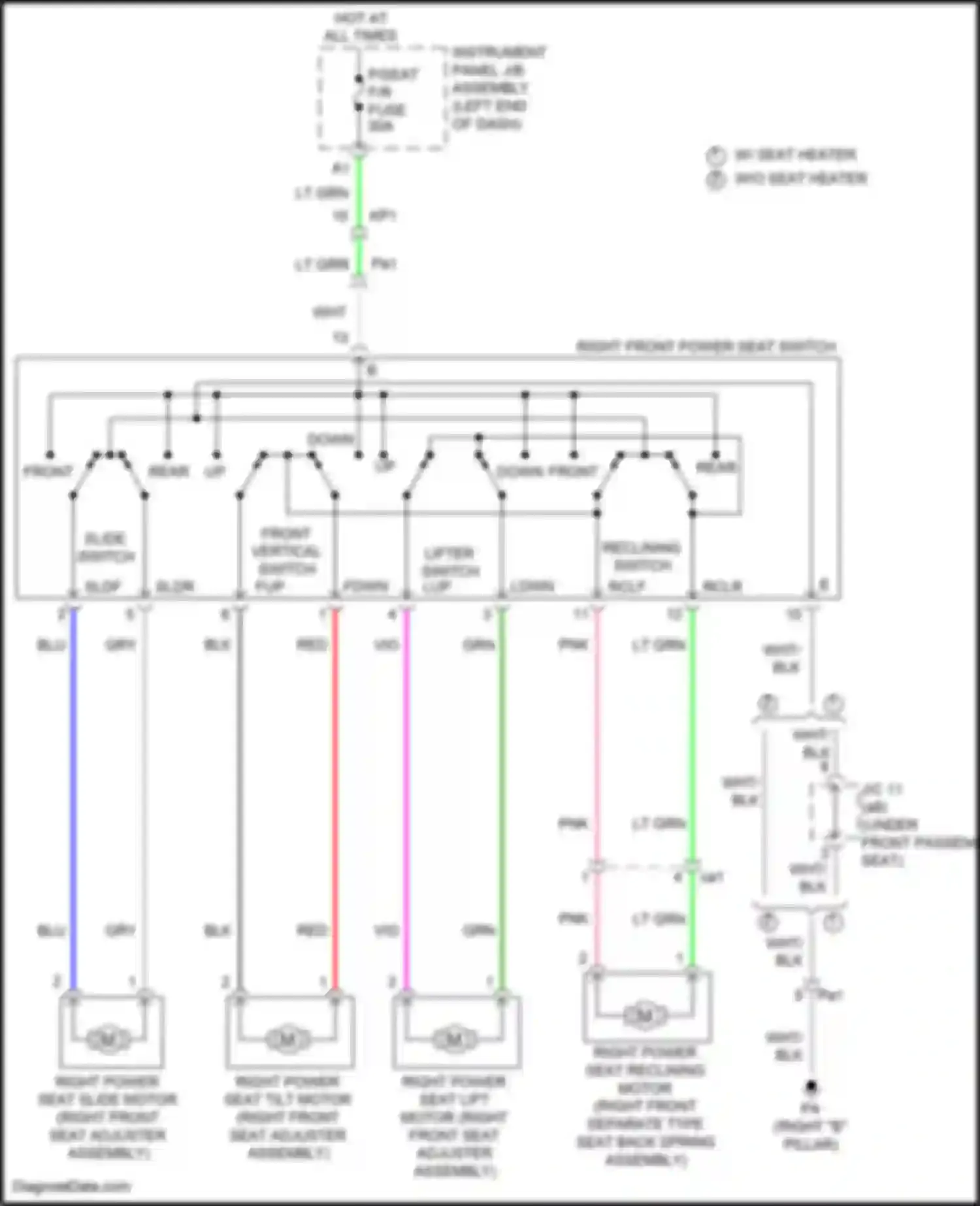

Wiring diagram lifter switch (2 of 2)
BLK WIRE
BLU WIRE
DOWN
FDWN LUP
FRONT
FRONT VERTICAL SWITCH
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
INSTRUMENT PANEL J/B ASSEMBLY
LDWN
LIFTER SWITCH
LT GRN WIRE
P/SEAT (FR) FUSE
PNK WIRE
RCLF
RCLR
REAR
REAR UP
RECLINING SWITCH
RED WIRE
RIGHT FRONT POWER SEAT SWITCH
RIGHT POWER SEAT LIFT MOTOR (RIGHT FRONT SEAT ADJUSTER ASSEMBLY)
RIGHT POWER SEAT SLIDE MOTOR (RIGHT FRONT SEAT ADJUSTER ASSEMBLY)
RIGHT POWER SEAT TILT MOTOR (RIGHT FRONT SEAT ADJUSTER ASSEMBLY)
SLDF
SLDR FUP
SLIDE SWITCH
VIO WIRE
W/ SEAT HEATER
W/O SEAT HEATER
WHT WIRE
Go to component -> Passenger power seat circuit -> LIFTER SWITCH
