Lexus IS III (2013-2016) light switch left front map Wiring diagram
This page shows the only wiring diagram for the component.light switch left front map, which is found in the car Lexus IS III (2013-2016). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

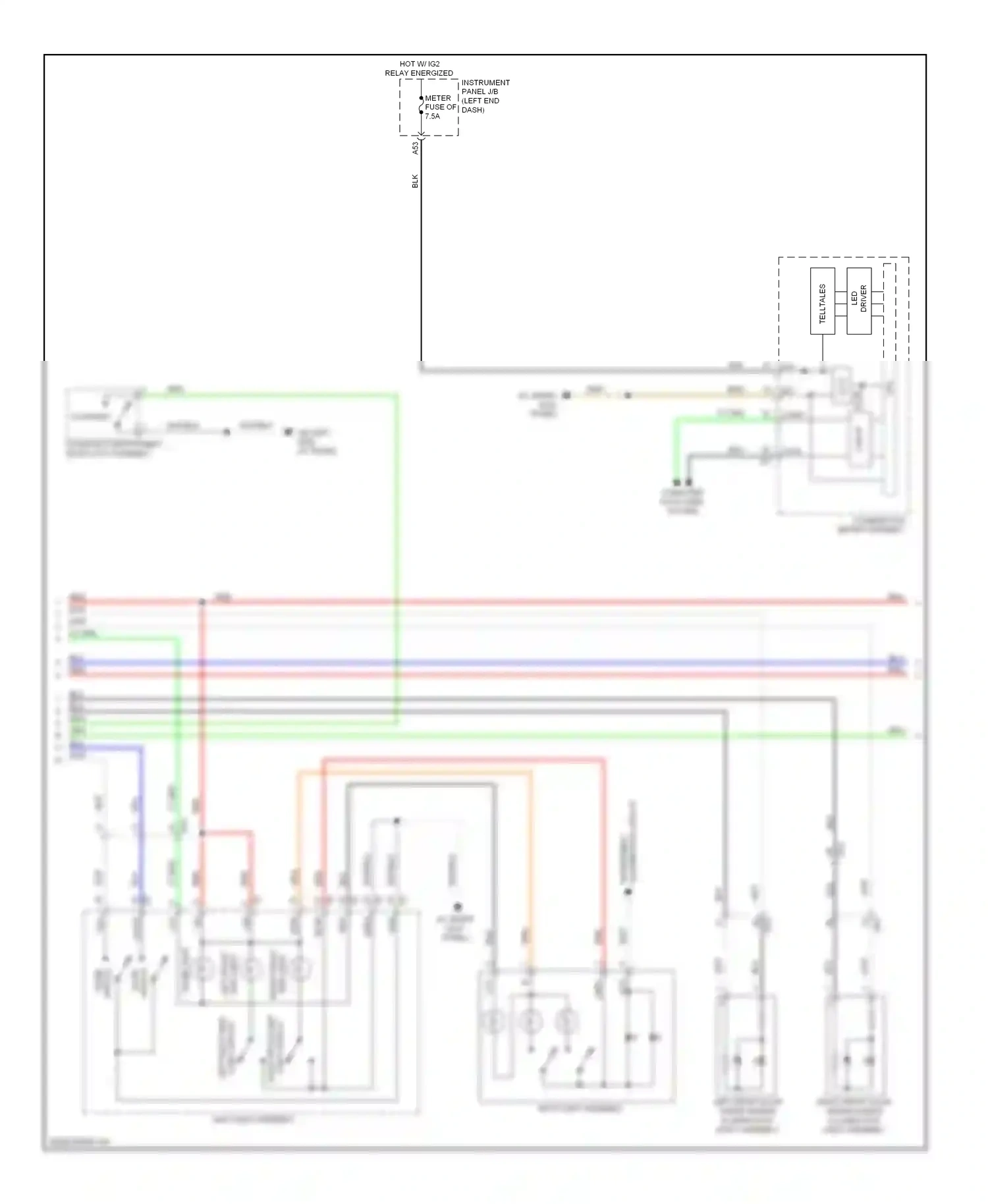

Wiring diagram light switch left front map (1 of 1)
BLK WIRE
BLU WIRE
BRN WIRE
CAN I/F
CILL
COMBINATION METER ASSEMBLY
COMPUTER DATA LINES SYSTEM
COURTESY
CTY
DOME LIGHT
DOOR
DOOR SWITCH
GRN WIRE
ILLB
ILLUMINATION CIRCUIT INSTRUMENT
INSTRUMENT PANEL J/B
KC (RIGHT KICK PANEL)
LED DRIVER
LEFT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY
LIGHT SWITCH LEFT FRONT MAP
LT GRN WIRE
LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
MAP LIGHT ASSEMBLY
MAP LIGHT LEFT FRONT
MAP LIGHT RIGHT FRONT
METER (LEFT END FUSE OF DASH)
ORG/ WIRE
QB (LEFT SIDE OF TRUNK)
RED WIRE
RELAY ENERGIZED
RIFL
RIFR
RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY
RIGHT FRONT MAP LIGHT SWITCH
RLMP
SPOT LIGHT ASSEMBLY
SWITCH DOME
TELLTALES
WHT WIRE
WHT/BLK WIRE
Go to component -> Courtesy lamps circuit (2 of 3) -> LIGHT SWITCH LEFT FRONT MAP
