Lexus IS II (2005-2008) left front door courtesy switch Wiring diagrams

This page contains all the electrical diagrams for the component. left front door courtesy switch, in which he is found in the car Lexus IS II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

Wiring diagram left front door courtesy switch (1 of 4)

Wiring diagram left front door courtesy switch for Lexus IS II (2005-2008) (1 of 4)

Get access

BLK WIRE BLU WIRE BODY COMPUTER BODY ECU BRN WIRE DCTY DCYL FUSE GRN WIRE HOT AT ALL TIMES LCTY LEFT COWL SIDE J/B (AT LEFT END OF DASH) LEFT FRONT DOOR COURTESY LAMP LEFT FRONT DOOR COURTESY SWITCH LEFT OUTER REAR VIEW MIRROR FOOT LAMP LEFT OUTER SCUFF LAMP LEFT REAR DOOR COURTESY SWITCH LGCY LT GRN WIRE LUGGAGE DOOR LOCK ASSEMBLY LUGGAGE ROOM LAMP LUGGAGE ROOM LAMP DIODE LUGGAGE ROOM LAMP NOISE FILTER ORG/ WIRE PARKING BRAKE SWITCH (M/T) PCTY PCYL PNK WIRE POWER SOURCE CONTROL ECU (BEHIND RIGHT SIDE OF DASH) POWER SWITCH RCTY RCTY LGCY ILE BDCY RED WIRE RIGHT COWL SIDE J/B (AT RIGHT END OF DASH) RIGHT FRONT DOOR COURTESY LAMP RIGHT FRONT DOOR COURTESY SWITCH RIGHT OUTER REAR VIEW MIRROR FOOT LAMP RIGHT OUTER SCUFF LAMP RIGHT REAR DOOR COURTESY SWITCH VIO WIRE W/ MEMORY W/O MEMORY WHT WIRE WHT/BLK WIRE YEL WIRE

Go to component -> Courtesy lamps circuit (1 of 2) -> LEFT FRONT DOOR COURTESY SWITCH

Wiring diagram left front door courtesy switch (2 of 4)

Wiring diagram left front door courtesy switch for Lexus IS II (2005-2008) (2 of 4)

Get access

1 3 4 6 GRD SIG CPUB BDR 26 8 MSWE ANT ASEL BLK WIRE BLU WIRE BODY COMPUTER DCTY CERTIFICATION ECU COMPUTER DATA LINES SYSTEM DATA DOOR CONTROL RECEIVER DRIVER'S SEAT MEMORY SWITCH ECU-IG FUSE ELECTRICAL KEY ANTENNA ENGINE ROOM 1 J/B (RIGHT REAR OF ENGINE COMPT) GRD GRN WIRE GRN/RED WIRE GRY WIRE HOT AT ALL TIMES LEFT FRONT DOOR COURTESY SWITCH LT BLU WIRE LT GRN WIRE MPX-B FUSE NEAR LEFT "B" PILLAR) ORG/ WIRE OUTER MIRROR CONTROL ECU (LEFT) (IN LEFT FRONT DOOR) PARKING BRAKE SWITCH (M/T) PNK 34 7 24 WIRE PNK PNK WIRE PNK WIRE POWER SOURCE CONTROL ECU (BEHIND RIGHT SIDE OF DASH) RCO RED WIRE RELAY RIGHT COWL J/B (AT RIGHT END OF DASH) RSSI SET- SILE WHT WIRE WHT/BLK WIRE YEL WIRE

Go to component -> Driver"s memory seat circuit (2 of 2) -> LEFT FRONT DOOR COURTESY SWITCH

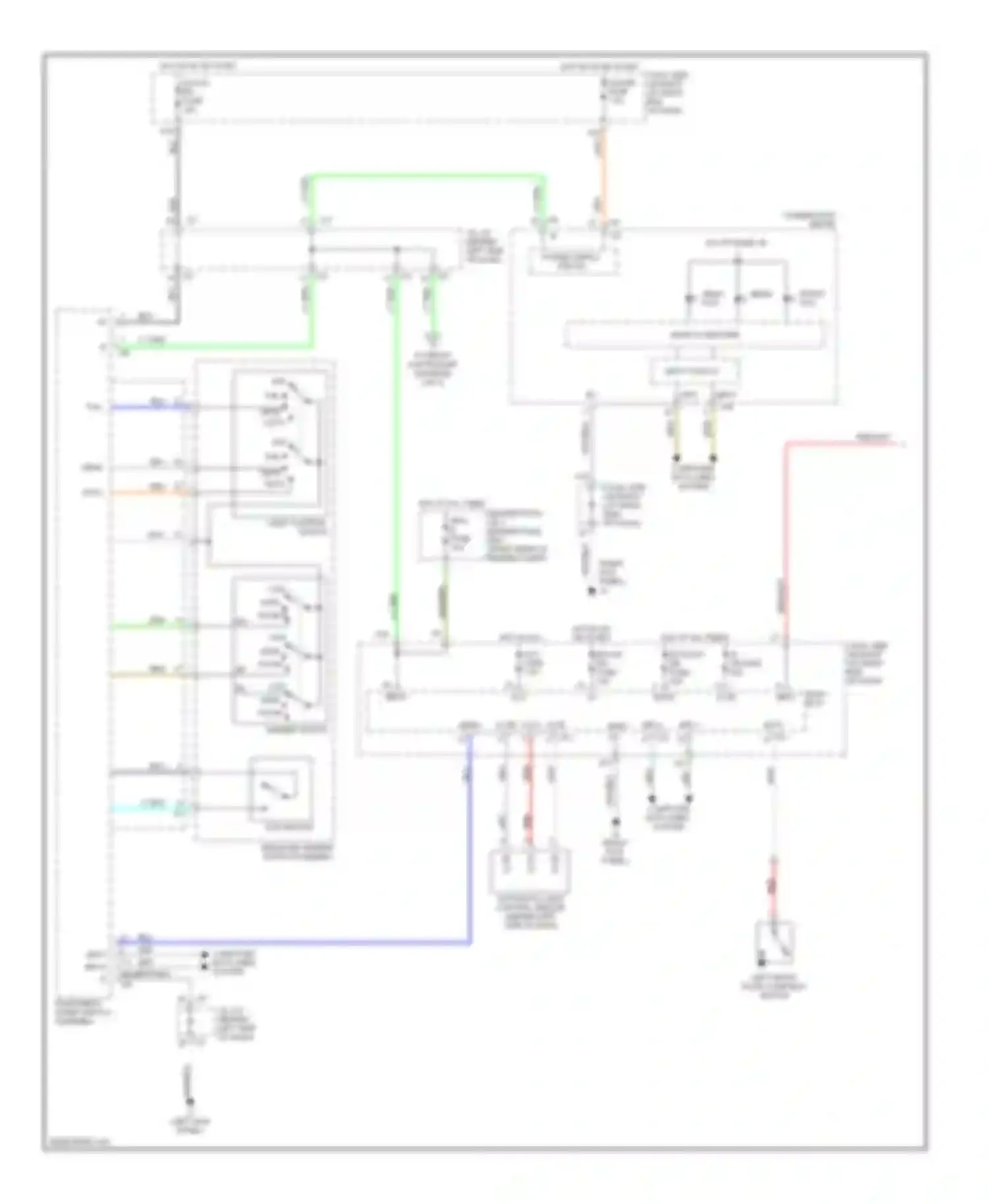

Wiring diagram left front door courtesy switch (3 of 4)

Wiring diagram left front door courtesy switch for Lexus IS II (2005-2008) (3 of 4)

Get access

+IG 23 6 7 5 HEAD AUTO AUTOMATIC LIGHT CONTROL SENSOR (BEHIND LEFT SIDE OF DASH) BATB BEAM BLK WIRE BLU WIRE BODY ECU HRLY BRN WIRE CLTB CLTE CLTS COMBINATION METER COMPUTER DATA LINES SYSTEM COWL SIDE J/B RIGHT (AT RIGHT END OF DASH) DCTY DIMMER SWITCH ECU-IG RH FUSE FOG SWITCH FR DOOR RH FUSE FRONT FOG FUSE GAUGE FUSE GRN WIRE GRN/RED WIRE GRY WIRE HEAD HEAD AUTO HEAD CLTB CLTS HEAD FOG HEADLAMP DIMMER SWITCH ASSEMBLY HOT AT ALL TIMES HOT IN ACC HOT IN ON OR START INPUT CIRCUIT LEFT FRONT DOOR COURTESY SWITCH LIGHT CONTROL SWITCH LT BLU WIRE LT GRN WIRE MICRO COMPUTER MPX+ MPX- OFF TAIL ORG/ WIRE POWER SUPPLY CIRCUIT RED WIRE RED/WHT WIRE TAIL TI, TE FUSE TO FRONT CONTROLLER (DIAGRAM WHT WIRE WHT/BLK WIRE WINDSHIELD WIPER SWITCH ASSEMBLY

Go to component -> Headlamps circuit, with drl (1 of 2) -> LEFT FRONT DOOR COURTESY SWITCH
