Wiring Diagrams for Lexus GX J310 (2023-2024)

Active bodyworks circuit

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

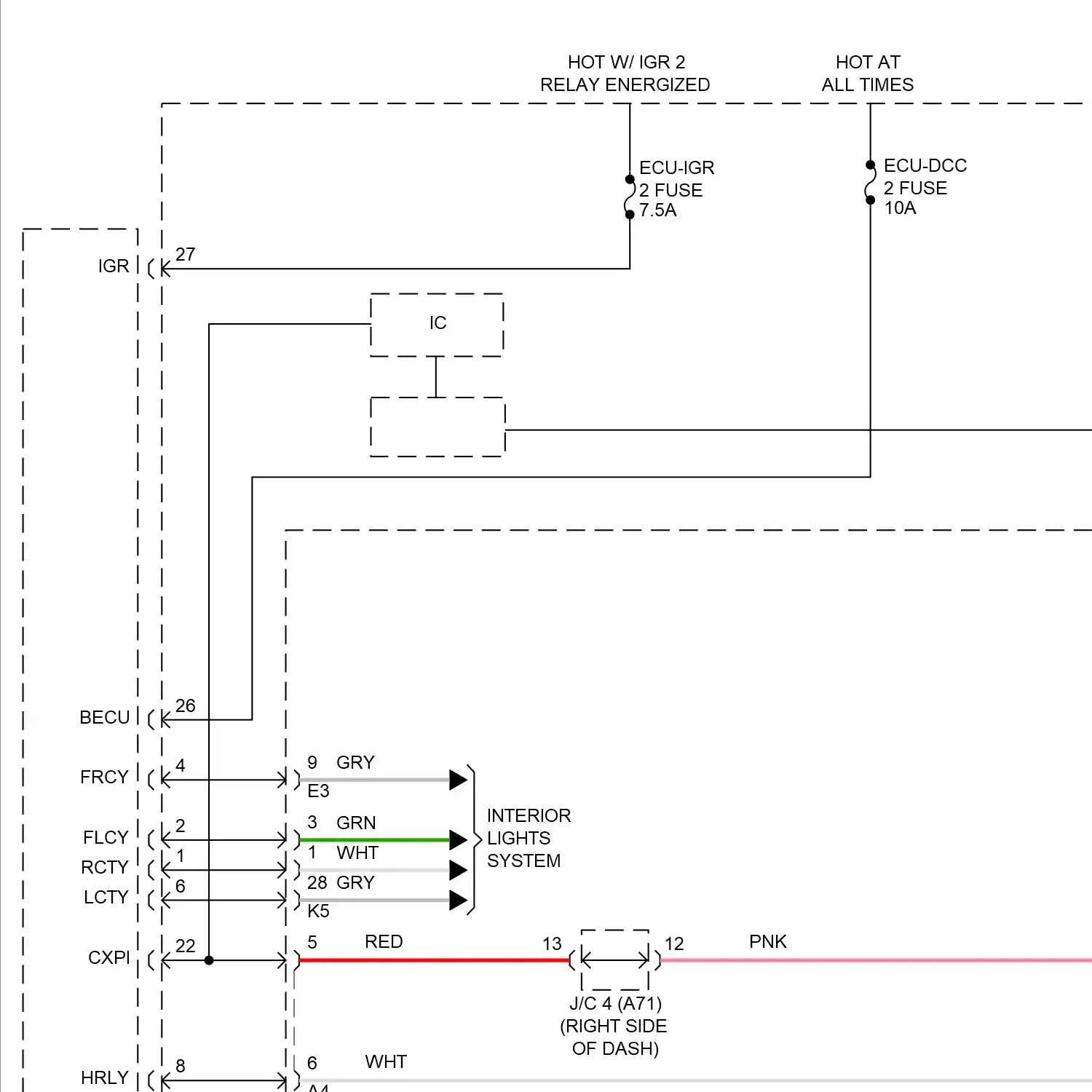

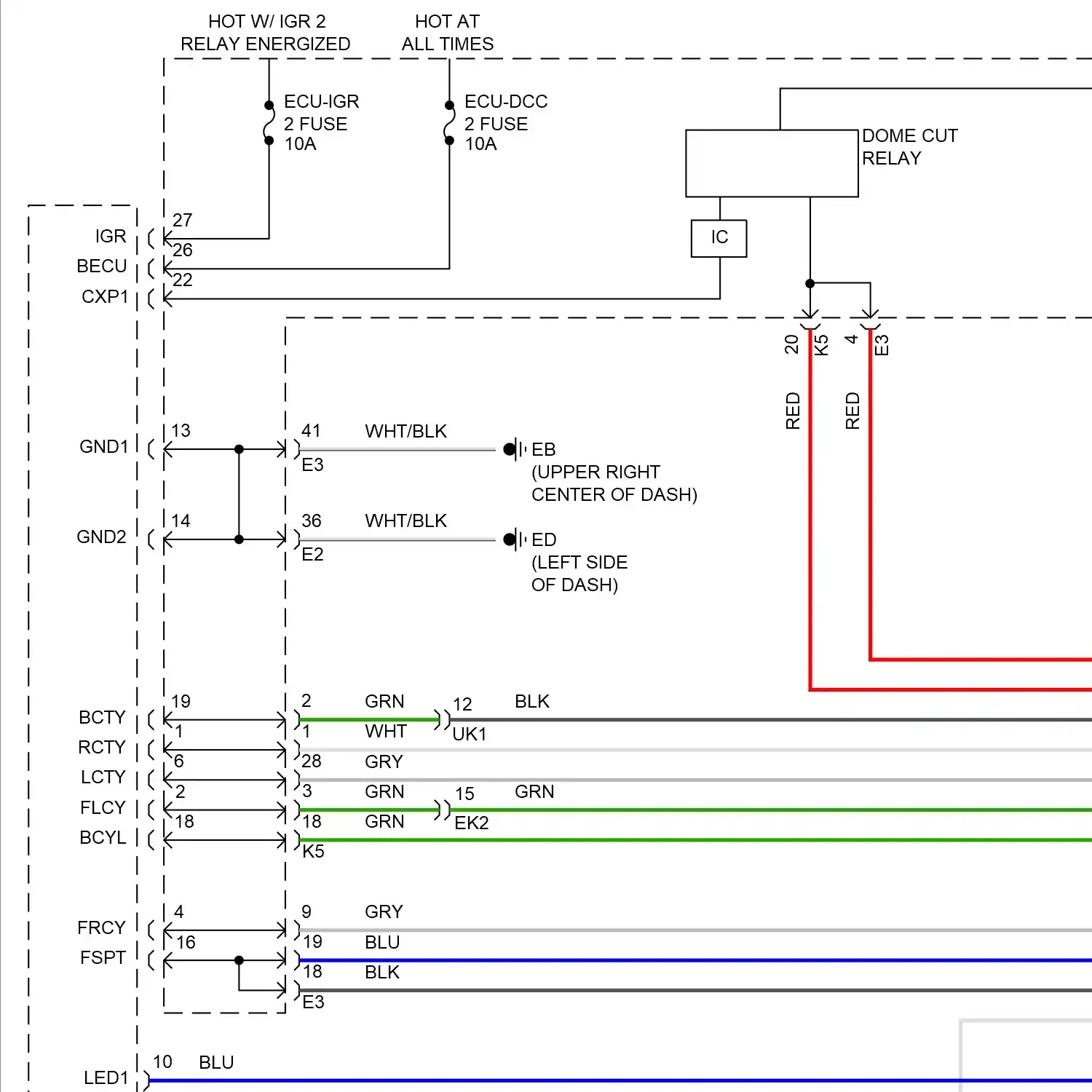

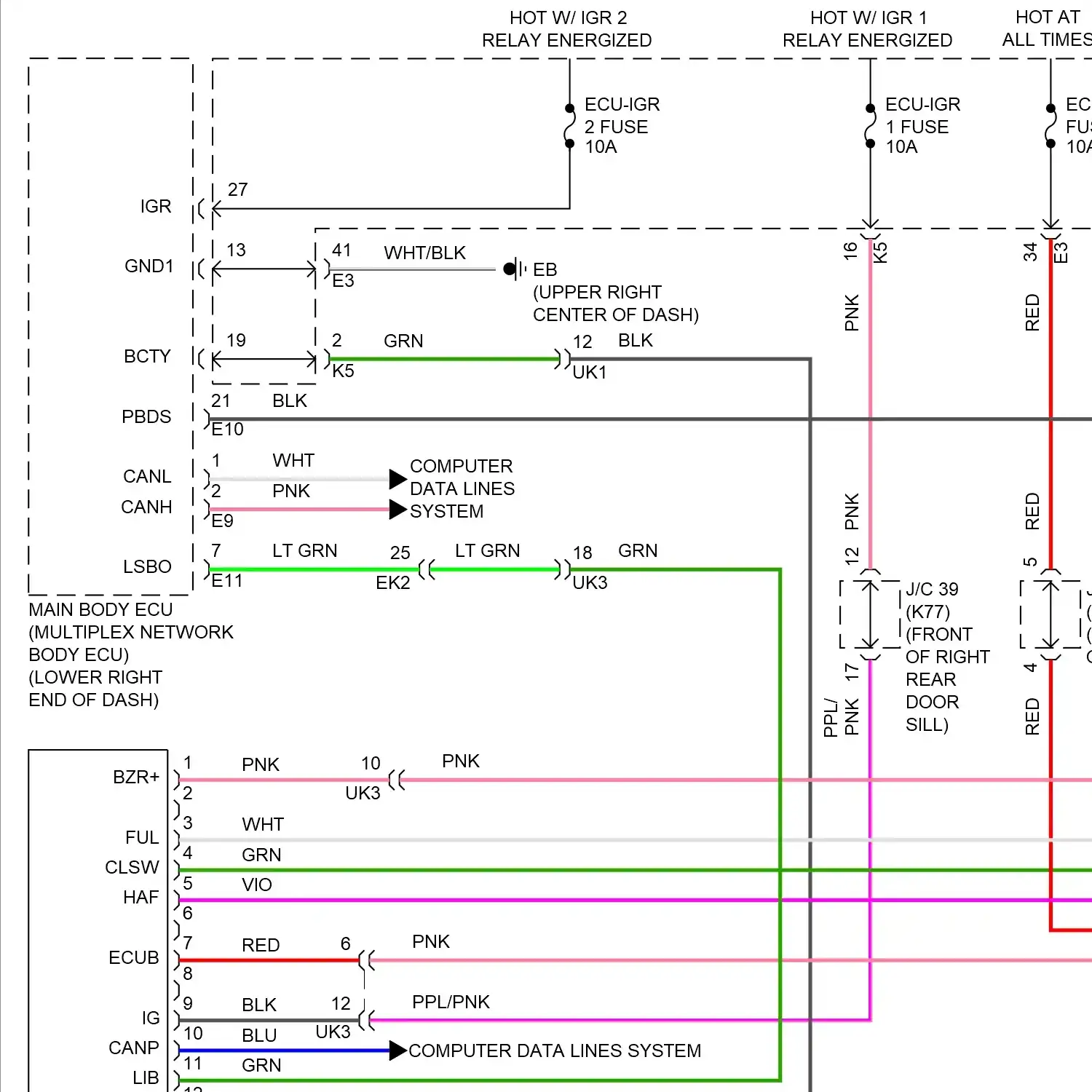

Body ecu circuit Semiconductor power integration ecu circuit

Computer data lines circuit

Cruise control circuit

Front deicer circuit Rear defogger & heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit

Electronic air suspension circuit Kinetic dynamic suspension circuit

Wiring diagram engine performance 3.4l turbo

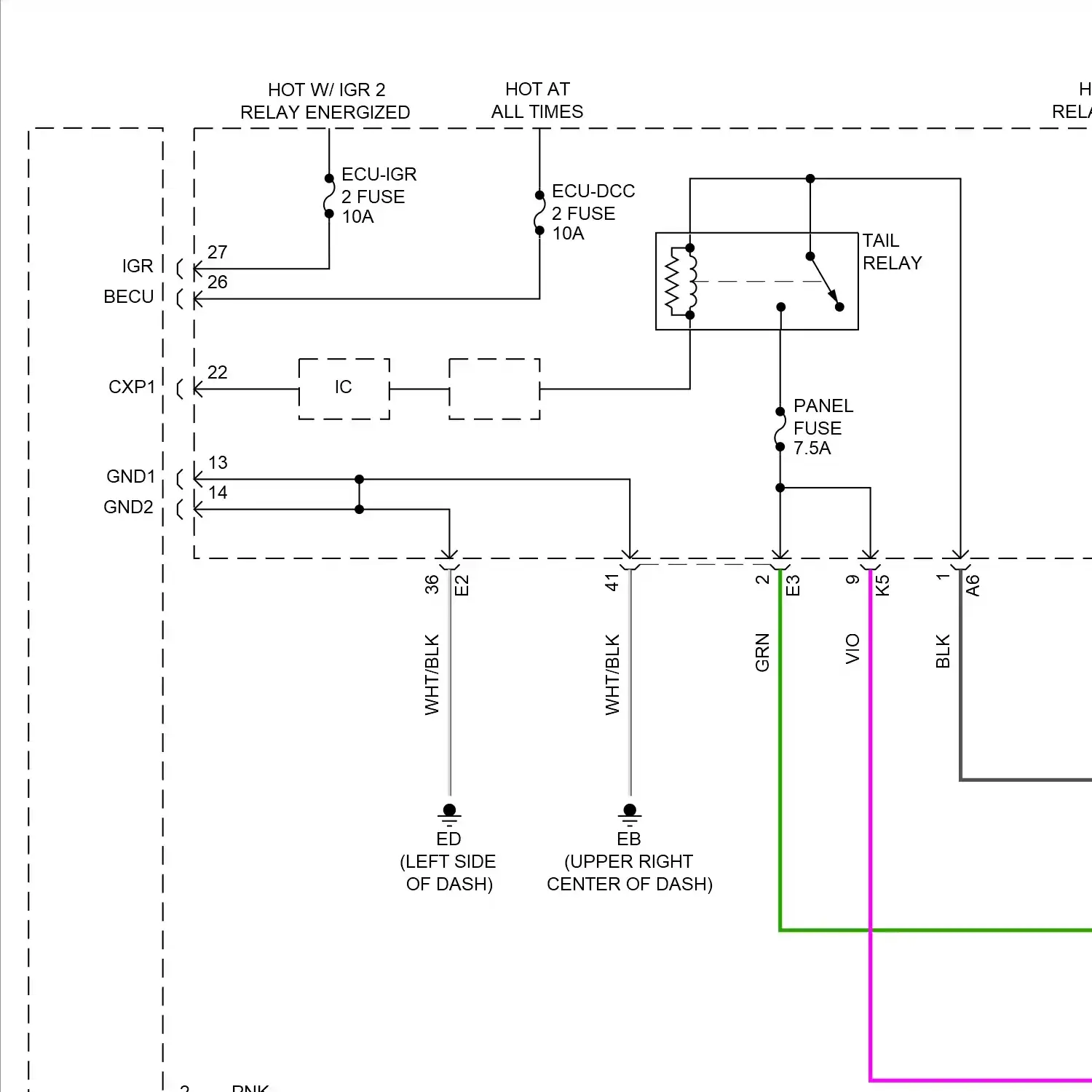

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

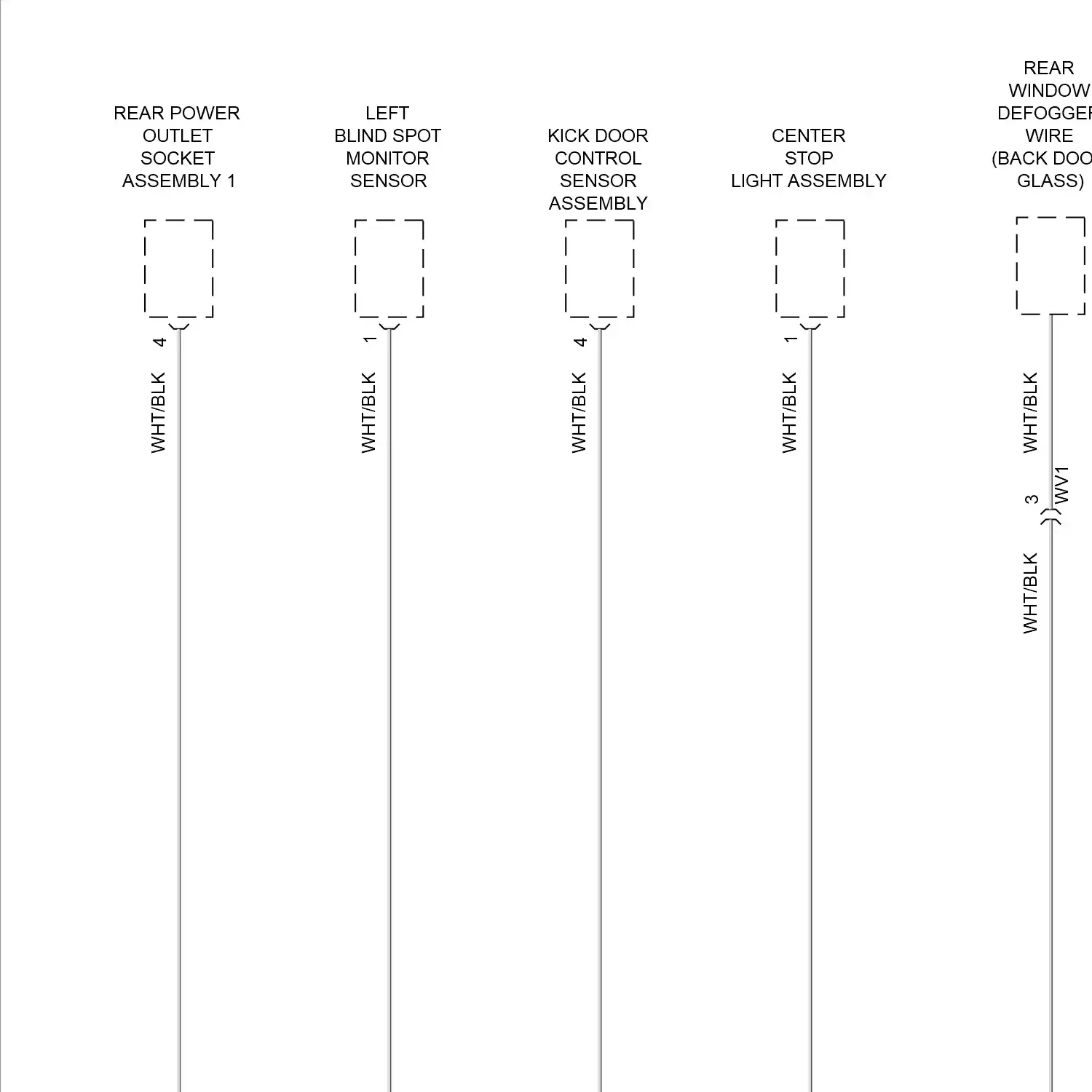

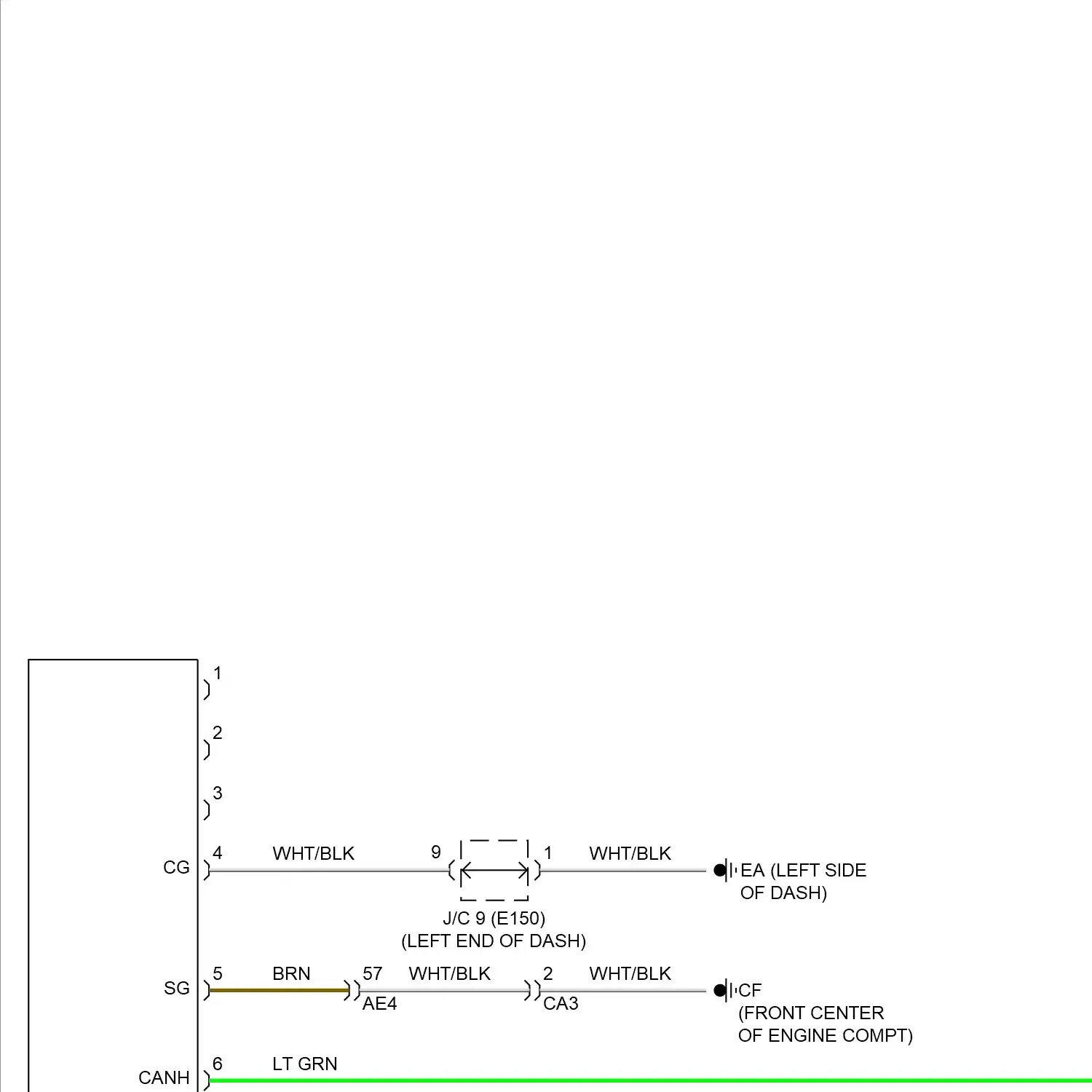

Ground distribution circuit

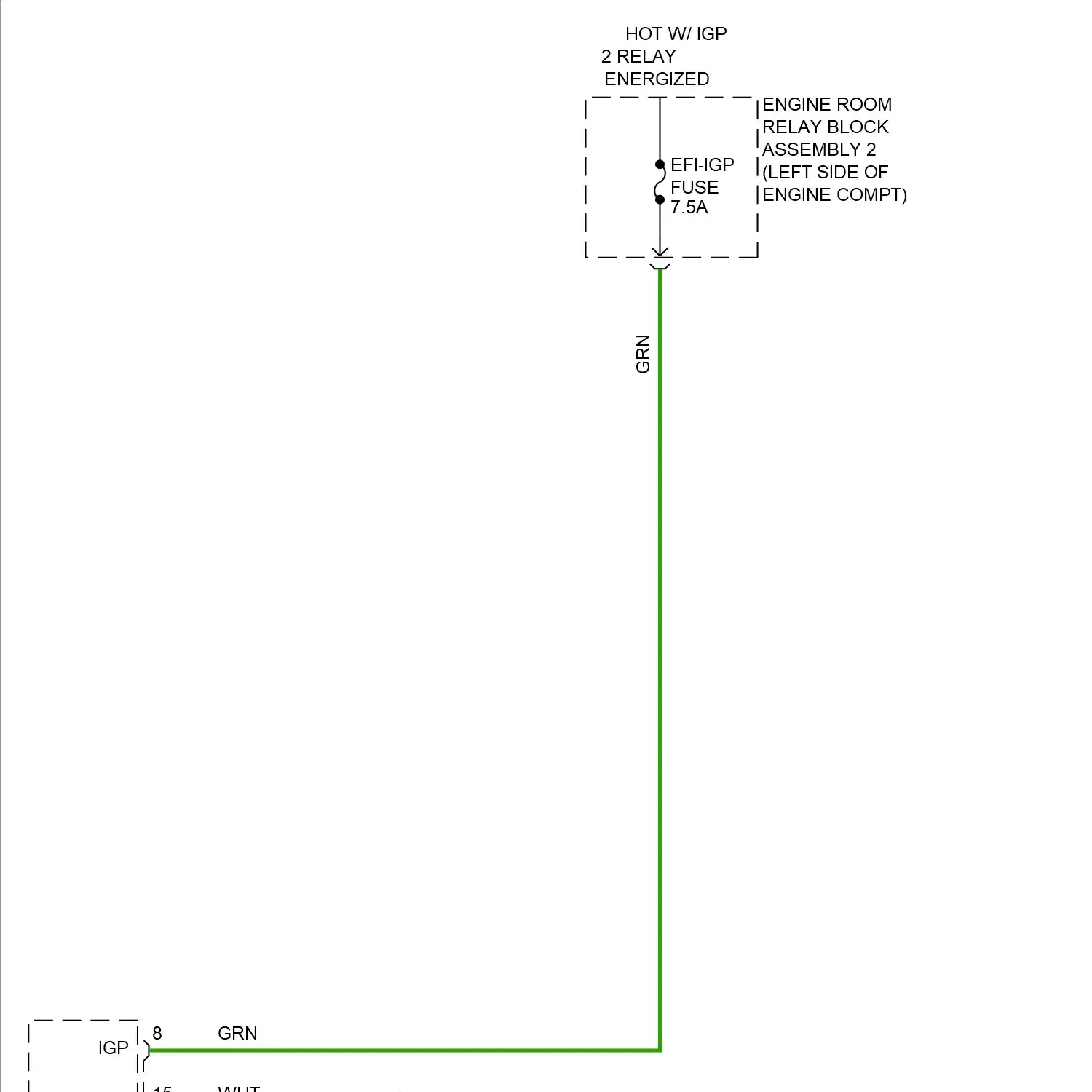

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Memory power tilt & power telescopic circuit Passenger"s memory seat circuit

Blind spot monitoring circuit Camera circuit Driver monitoring circuit Lane departure warning circuit Navigation circuit, 10 speaker Navigation circuit, 21 speaker Parking assistant circuit Rear sonar circuit Telematics circuit

Passive restraints circuit

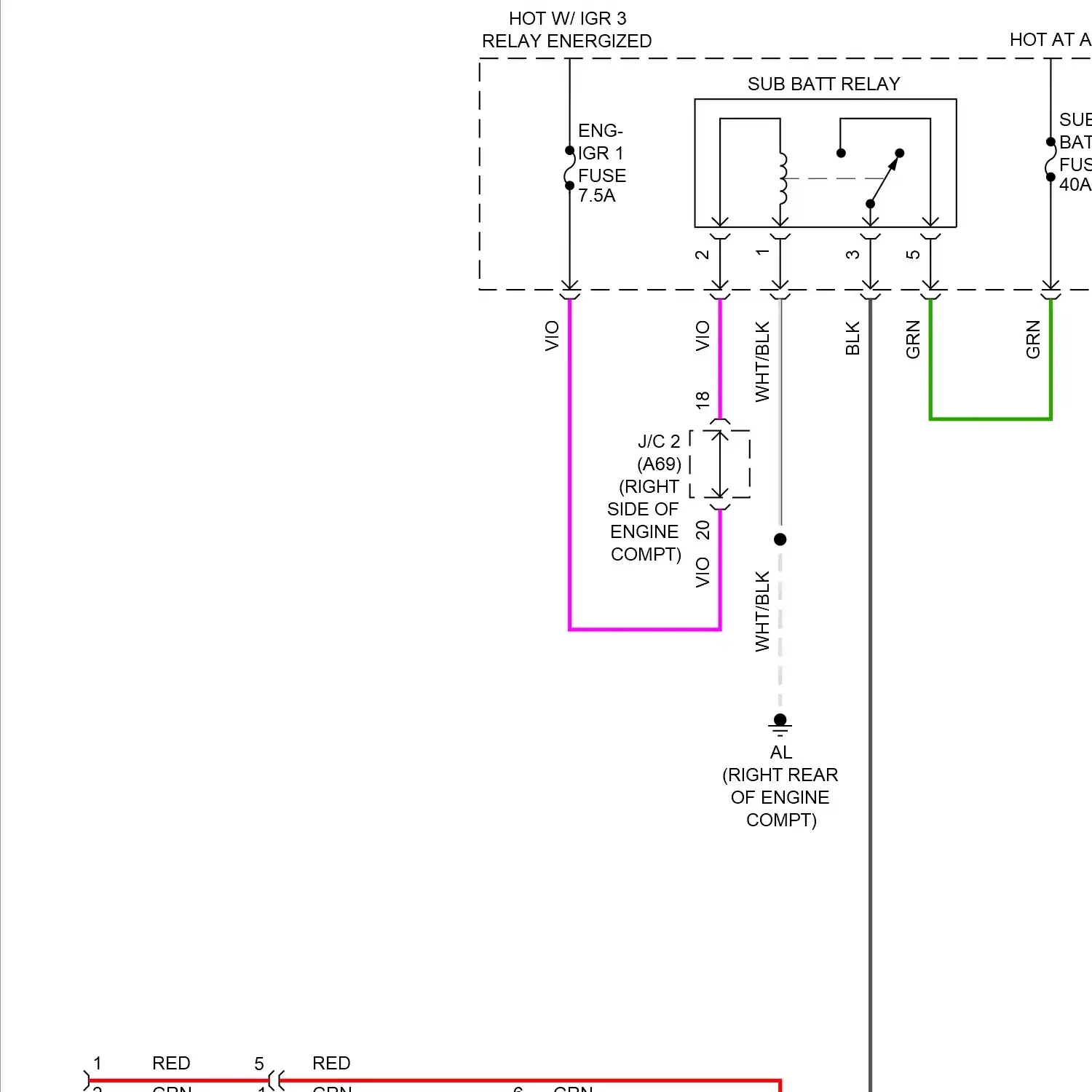

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit, w/ digital rear view mirror Electrochromic mirror circuit, w/o digital rear view mirror Power mirrors circuit

Climate control seats circuit Driver power seat circuit Folding seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit

Panoramic roof circuit Sunroof circuit

Power windows circuit

Active sound control circuit Radio circuit, 10 speaker Radio circuit, 21 speaker

Park brake release circuit Shift interlock circuit

Charging circuit Starting circuit

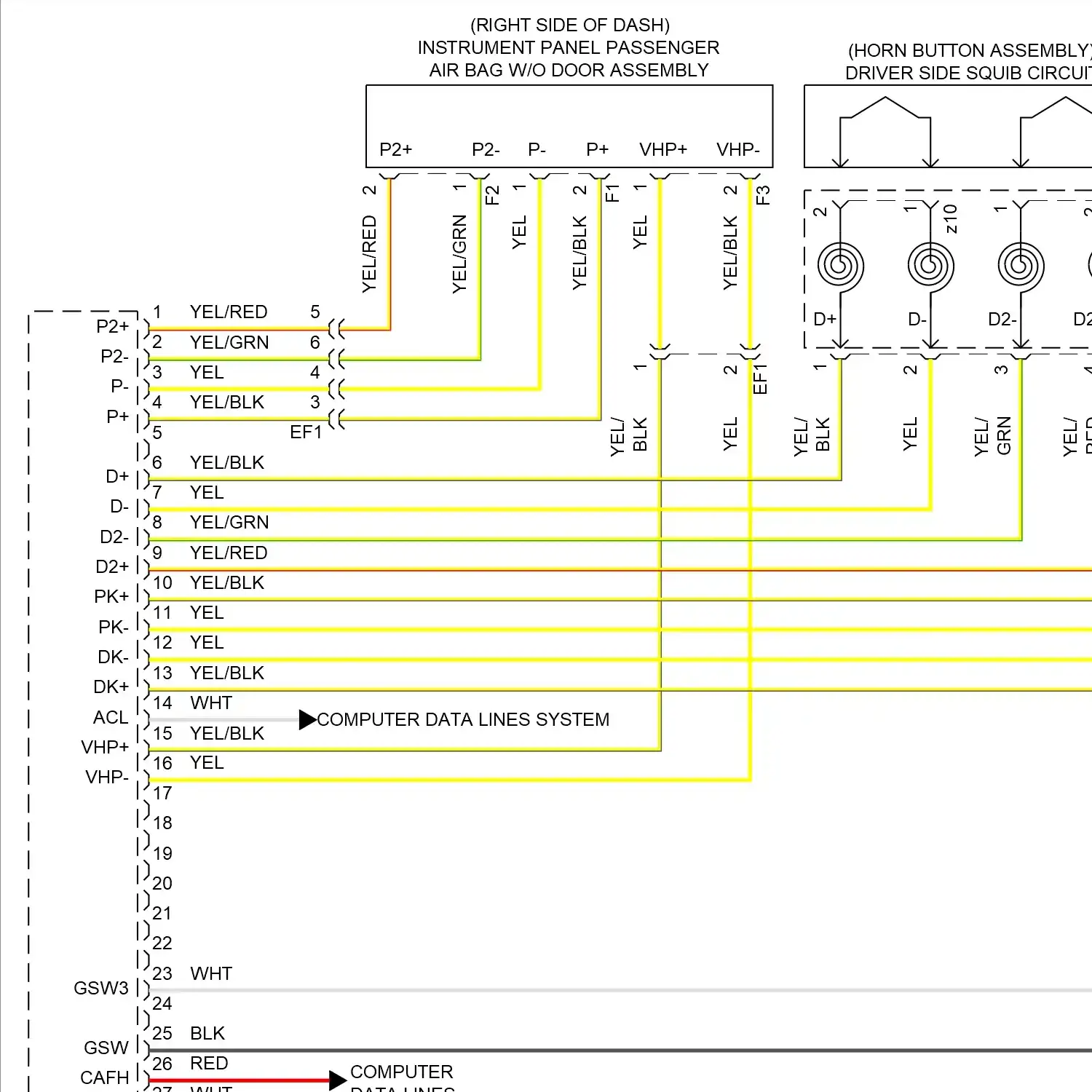

Supplemental restraints circuit

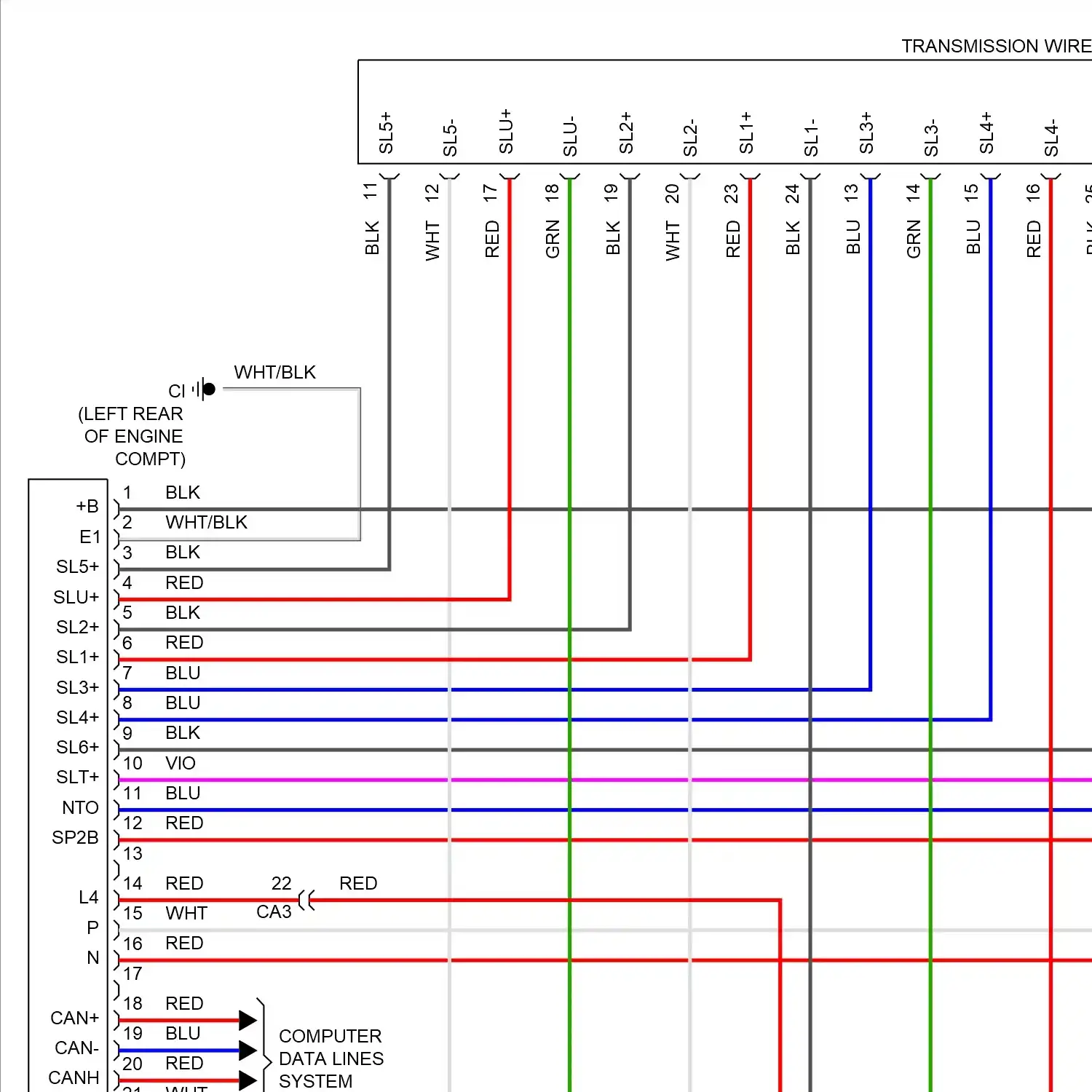

4wd circuit A/t circuit

Back door opener circuit Liftglass release circuit Retractable running boards circuit

Seat belt warning circuit Tire pressure monitoring circuit

Headlamp washer circuit Wiper/washer circuit

AIR CONDITIONING AMPLIFIER ASSEMBLY ANTI-LOCK BRAKES SYSTEM BACK WINDOW LOCK ASSEMBLY COOLING BOX AMPLIFIER GENERATOR ASSEMBLY HIGH PITCHED HORN ASSEMBLY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 IGNITION COIL ASSEMBLY 5 IGNITION COIL ASSEMBLY 6 LOW PITCHED HORN ASSEMBLY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TELEMATICS TRANSCEIVER WIRELESS DOOR LOCK BUZZER

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE BLOWER MOTOR W/ FAN SUB-ASSEMBLY ENGINE ROOM J/B ASSEMBLY 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY 1 ENGINE ROOM R/B ASSEMBLY 2 HEADLIGHT CLEANER MOTOR, PUMP ASSEMBLY LEFT FRONT DOOR LOCK W/ MOTOR ASSEMBLY LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT REAR DOOR LOCK W/ MOTOR ASSEMBLY LEFT REAR W/ MOTOR W/ MOTOR ASSEMBLY REAR WIPER MOTOR ASSEMBLY RIGHT FRONT DOOR LOCK W/ MOTOR ASSEMBLY RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT REAR DOOR LOCK W/ MOTOR ASSEMBLY TRANSFER SHIFT ACTUATOR ASSEMBLY WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

ELECTRICAL KEY ANTENNA

DRIVER DOOR LEFT POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT PASSENGER DOOR RIGHT POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT PASSENGER SIDE POWER WINDOW REGULATOR SWITCH ASSEMBLY HORN BUTTON LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR DOOR LEFT POWER WINDOW REGULATOR MOTOR ASSEMBLY REAR DOOR RIGHT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

DRIVER MONITOR CAMERA FORWARD RECOGNITION CAMERA FRONT TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY

DATA LINK CONNECTOR 3 LEFT USB CHARGER SOCKET 2 LEFT USB CHARGER SOCKET 3 POWER OUTLET SOCKET ASSEMBLY 1 REAR POWER OUTLET SOCKET ASSEMBLY 1 RIGHT USB CHARGER SOCKET 2 RIGHT USB CHARGER SOCKET 3 TRAILER SOCKET USB CHARGER SOCKET

4 WHEEL DRIVE CONTROL ECU ABSORBER CONTROL ECU AIR BAG ECU ASSEMBLY CLEARANCE WARNING ECU ASSEMBLY DIGITAL KEY ECU ASSEMBLY DRIVER MONITOR ECU ASSEMBLY ECU- DCC 1 FUSE ECU- DCC 3 FUSE ECU- IGP 1 FUSE ECU- IGP 2 FUSE ECU- IGP 6 FUSE ECU-ACC FUSE ECU-B 1 FUSE ECU-B 2 FUSE ECU-B 3 FUSE ECU-B FUSE ECU-DCC 2 FUSE ECU-DCC FUSE ECU-IGR 1 FUSE ECU-IGR 2 FUSE ECU-IGR 3 FUSE ECU-IGR 4 FUSE FOLD SEAT CONTROL ECU FUEL PUMP CONTROL ECU ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY LEFT POSITION CONTROL ECU ASSEMBLY LEFT POWER BACK DOOR UNIT ASSEMBLY MULTIPLEX NETWORK BODY ECU MULTIPLEX NETWORK DOOR ECU MULTIPLEX TILT, TELESCOPIC ECU NETWORK GATEWAY ECU PARKING ASSIST ECU RIGHT HEADLIGHT ECU SUB-ASSEMBLY RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY RIGHT POSITION CONTROL ECU AMPLIFIER RIGHT POSITION CONTROL ECU ASSEMBLY RIGHT POWER BACK DOOR UNIT ASSEMBLY SEMICONDUCTOR POWER INTEGRATION ECU SIDE AUTO STEP CONTROLLER ECU ASSEMBLY SKID CONTROL ECU STABILIZER CONTROL ECU STRG-ECU FUSE TRANSMISSION CONTROL ECU ASSEMBLY

+BA 1 FUSE +BA 2 FUSE A/BAG-IGR FUSE A/C COMP FUSE A/C RR FUSE A/F 1 FUSE A/F 2 FUSE A/F FUSE ABS 1 FUSE ABS 2 FUSE ALT FUSE AMP 1 FUSE AVS-IGR FUSE B+ 1 FUSE BACK DOOR FUSE BKUP LP FUSE CDS FAN FUSE D/C CUT FUSE D/L FUSE DCM FUSE DEICER FUSE DOME FUSE DOOR BACK FUSE DOOR DBL/L FUSE DOOR F/L FUSE DOOR F/R FUSE DOOR R/L FUSE DOOR R/R FUSE ECT-1 FUSE ECT-B FUSE ECT-IGP FUSE EDU 1 FUSE EDU 2 FUSE EDU 3 FUSE EDU 4 FUSE EDU FUSE EFI 1 FUSE EFI 2 FUSE EFI 3 FUSE EFI 4 FUSE EFI- IGP FUSE EFI- MAIN 1 FUSE EFI- MAIN 2 FUSE EFI- MAIN 3 FUSE EFI-B 1 FUSE EFI-B 2 FUSE EFI-B 3 FUSE ENG P/I 1 FUSE ENG P/I 2 FUSE ENG- IGR 1 FUSE ENG- IGR 4 FUSE ENG-IGP 2 FUSE ENG-IGR 2 FUSE ENG-IGR 3 FUSE EPS-1 FUSE EPS-IGR FUSE ETCS FUSE FUEL OPN FUSE GRILL SHUTTER FUSE H-LP CLN FUSE HAZ FUSE HORN FUSE HTR FUSE IGN FUSE IGP- MAIN 1 FUSE IGP- MAIN 2 FUSE IGR MAIN 3 FUSE IGR MAIN 4 FUSE IGT/INJ MAIN FUSE INJ FUSE INP STD 1 FUSE INP STD 2 FUSE INP STD B FUSE INV 1 FUSE INV 2 FUSE INV FUSE METER-IGR FUSE OBD FUSE P/OUTLET 1 FUSE P/SEAT D FUSE P/SEAT P FUSE PANEL FUSE PBD FUSE PFS LH FUSE PFS RH FUSE PRB FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE RADIO FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/HTR R/L FUSE S/HTR RR FUSE S/ROOF FUSE SIREN FUSE ST 1 FUSE STB-IGR FUSE STOP FUSE STRG LOCK FUSE SUB BATT FUSE SUB R/B FUSE TAIL FUSE TI, TE FUSE TIRE INF FUSE TOW BK/UP FUSE TOWING BKUP FUSE TOWING BRK FUSE TOWING FUSE TOWING TAIL FUSE TOWING- IGR FUSE USB 1 FUSE WASHER FUSE WIPER FUSE WIPER RR FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

LEFT FRONT SEAT CUSHION HEATER ASSEMBLY LEFT REAR SEAT BACK HEATER ASSEMBLY 1 LEFT REAR SEAT CUSHION HEATER ASSEMBLY 1 LEFT SEAT HEATER CONTROL SUB-ASSEMBLY QUICK HEATER ASSEMBLY RIGHT FRONT SEAT CUSHION HEATER ASSEMBLY RIGHT REAR SEAT BACK HEATER ASSEMBLY 1 RIGHT REAR SEAT CUSHION HEATER ASSEMBLY 1 RIGHT SEAT HEATER CONTROL SUB-ASSEMBLY

DIFFERENTIAL LOCK INDICATOR SWITCH SHIFT POSITION INDICATOR THEFT WARNING INDICATOR LIGHT ASSEMBLY

DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS SUPPLEMENTAL RESTRAINTS, DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS TRUNK, TAILGATE, FUEL DOORS, DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS

ELECTRIC WATER PUMP ASSEMBLY FUEL SUCTION TUBE W/ PUMP, GAGE ASSEMBLY LEAK DETECTION PUMP SUB-ASSEMBLY LEFT LUMBER SUPPORT PUMP SUB-ASSEMBLY RIGHT LUMBER SUPPORT PUMP SUB-ASSEMBLY

+BA RELAY A/F RELAY ACC RELAY ALL DOOR LOCK RELAY BACK DOOR RELAY BRAKE CONTROL RELAY W/ BRACKET CDS FAN RELAY D DOOR UNLOCK RELAY DEICER RELAY DOME CUT RELAY DOOR BACK RELAY EDU RELAY EFI MAIN 2 RELAY EFI- MAIN 1 RELAY EFI- MAIN 3 RELAY ENGINE ROOM RELAY BLOCK ASSEMBLY 1 ENGINE ROOM RELAY BLOCK ASSEMBLY 2 FUEL OPN RELAY H-LP CLN RELAY HORN RELAY HOT W/ +BA RELAY ENERGIZED HOT W/ ACC RELAY ENERGIZED HOT W/ EFI MAIN 3 RELAY ENERGIZED HOT W/ EFI-MAIN 1 RELAY ENERGIZED HOT W/ IGP 1 RELAY ENERGIZED HOT W/ IGP 2 RELAY ENERGIZED HOT W/ IGR 1 RELAY ENERGIZED HOT W/ IGR 2 RELAY ENERGIZED HOT W/ IGR 3 RELAY ENERGIZED HOT W/ IGR 4 RELAY ENERGIZED IGP 1 RELAY IGP 2 RELAY IGR 1 RELAY IGR 2 RELAY IGR 3 RELAY IGR 4 RELAY IGT/INJ MAIN RELAY INV 1 RELAY INV 2 RELAY INV RELAY 2 L/D DOOR UNLOCK RELAY P/OUTLET RELAY PTC HTR 1 RELAY PTC HTR 2 RELAY PTC- HTR 1 RELAY ENGINE ROOM RELAY BLOCK ASSEMBLY 1 ROOM LIGHT CONTROL RELAY RR DEF RELAY S-HORN RELAY S/ HTR RELAY S/HTR RELAY ST RELAY SUB BATT RELAY TAIL RELAY TOWING BK/UP RELAY TOWING CONVERTER RELAY TOWING TAIL RELAY TOWING TAIL-S RELAY

ACCELERATOR PEDAL SENSOR ASSEMBLY AIR BAG SENSOR ASSEMBLY AIR CONDITIONING PRESSURE SENSOR AUTOMATIC LIGHT CONTROL SENSOR CRANK POSITION SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR KICK DOOR CONTROL SENSOR ASSEMBLY LEFT ACCELERATION SENSOR LEFT BLIND SPOT MONITOR SENSOR LEFT EFI VACUUM SENSOR ASSEMBLY LEFT FRONT AIR BAG SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT CORNER ULTRASONIC SENSOR LEFT FRONT SIDE RADAR SENSOR LEFT FRONT SPEED SENSOR LEFT POWER BACK DOOR SENSOR ASSEMBLY LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR CORNER ULTRASONIC SENSOR LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR SPEED SENSOR LEFT SIDE AIR BAG PRESSURE SENSOR LEFT SIDE AIR BAG SENSOR ASSEMBLY 1 LEFT SIDE AIR BAG SENSOR ASSEMBLY 2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY RAIN SENSOR REAR FLOOR SIDE AIR BAG SENSOR RIGHT ACCELERATION SENSOR RIGHT BLIND SPOT MONITOR SENSOR RIGHT EFI VACUUM SENSOR ASSEMBLY RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT CORNER ULTRASONIC SENSOR RIGHT FRONT SIDE RADAR SENSOR RIGHT FRONT SPEED SENSOR RIGHT POWER BACK DOOR SENSOR ASSEMBLY RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR CORNER ULTRASONIC SENSOR RIGHT REAR SPEED SENSOR RIGHT SIDE AIR BAG PRESSURE SENSOR RIGHT SIDE AIR BAG SENSOR ASSEMBLY 1 RIGHT SIDE AIR BAG SENSOR ASSEMBLY 2 SEAT POSITION AIR BAG SENSOR SMOG VENTILATION SENSOR STEERING SENSOR THROTTLE BODY W/ THROTTLE POSITION SENSOR ASSEMBLY TURBO PRESSURE SENSOR 1 TURBO PRESSURE SENSOR 2 VACUUM SENSOR ASSEMBLY W/ FRONT SIDE RADAR SENSOR W/O FRONT SIDE RADAR SENSOR

LEFT REAR SPEAKER ASSEMBLY 2 LEFT SPEAKER W/ BOX ASSEMBLY 1 RIGHT REAR SPEAKER ASSEMBLY 2 RIGHT SPEAKER W/ BOX ASSEMBLY 1 SPEAKER W/ BOX ASSEMBLY

AUDIO SWITCH BACK DOOR CONTROL SWITCH BACK DOOR LOCK W/ COURTESY LIGHT SWITCH ASSEMBLY BACK DOOR OPENER SWITCH ASSEMBLY BRAKE FLUID LEVEL WARNING SWITCH COMBINATION SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY 2 COMBINATION SWITCH ASSEMBLY 3 COMBINATION SWITCH ASSEMBLY 4 CONTROL SWITCH ASSEMBLY DOOR CONTROL SWITCH ASSEMBLY ELECTRIC PARKING BRAKE SWITCH ASSEMBLY FOLD SEAT SWITCH ASSEMBLY 2 HAZARD WARNING SIGNAL SWITCH ASSEMBLY LANE TRACING ASSIST SWITCH LEFT FOLD SEAT SWITCH ASSEMBLY LEFT FOLD SEAT SWITCH ASSEMBLY 1 LEFT FRONT POWER SEAT SWITCH LEVEL WARNING SWITCH ASSEMBLY MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY PADDLE SHIFT SWITCH PARK/NEUTRAL POSITION SWITCH ASSEMBLY POWER BACK DOOR CONTROL SWITCH 1 PUSH START SWITCH REFRESHING SEAT SWITCH RIGHT FOLD SEAT SWITCH ASSEMBLY RIGHT FOLD SEAT SWITCH ASSEMBLY 1 RIGHT FRONT POWER SEAT SWITCH SEAT MEMORY SWITCH SIDE AUTO STEP SWITCH ASSEMBLY STEERING PAD SWITCH ASSEMBLY STEERING WHEEL HOUSING SWITCH STEERING WHEEL SWITCH HOUSING STOP LIGHT SWITCH ASSEMBLY TILT, TELESCOPIC SWITCH TRAILER BRAKE CONTROL SWITCH TRANSFER POSITION SWITCH TRIP SWITCH TURN SIGNAL SWITCH VACUUM WARNING SWITCH ASSEMBLY WINDSHIELD WIPER SWITCH ASSEMBLY

DUTY VACUUM SWITCHING VALVE LEFT AIR BY-PASS VALVE ASSEMBLY RIGHT AIR BY-PASS VALVE ASSEMBLY

+2 PNK -2 WIRE +B PNK CANP WIRE +B PNK SI WIRE BLK WIRE BLK/DK GRN WIRE BLK/GRY WIRE BLK/WHT WIRE BLU WIRE BRN WIRE CANL PNK +B WIRE CANL PNK CANH WIRE CANN PNK CANP WIRE GA- PNK SRF WIRE GRN WIRE GRY WIRE GSW PNK MUTE WIRE HLC PNK IGR WIRE IG PNK BFB+ WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE PNK BAT WIRE PNK CANH WIRE PNK CLSW WIRE PNK IGB WIRE PNK IGR WIRE PNK ILE WIRE PNK MM WIRE PNK PNK SPD WIRE PNK SLT+ WIRE PNK SMIL WIRE PNK SSR+ WIRE PNK VC WIRE PNK VCI WIRE PNK WIRE PNK/ MPX+ WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/PNK HTR WIRE PPL/PNK SPI+ WIRE PPL/PNK WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PPL/YEL WIRE RCL+ PNK WIRE RED WIRE SG-7 PNK TFAR WIRE SIGN PNK BBS WIRE SL PNK SR WIRE TAIL PNK GA+ WIRE TAN WIRE TEM- PNK TIM- WIRE VIO WIRE WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

(RIGHT SIDE OF TRANSMISSION +BM +SM -DP -WR ACTIVE NOISE CONTROL MICROPHONE 1 ACTIVE NOISE CONTROL MICROPHONE 2 ACTIVE NOISE CONTROL MICROPHONE 3 AHB EL AHB HF HU AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM B+ BUS BACKUP LAMPS CIRCUIT BBL+ BBR+ BCB+ BCL+ BCR+ BCV- BD+2 BD- BD-2 BDL- BDL- BDL+ BFB- BH 39 41 BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY 2 BLUETOOTH LOW ENERGY INDOOR DIGITAL KEY RECEIVER ASSEMBLY BLUETOOTH LOW ENERGY LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY BUS - CANH 43 13 CANL CANL CANH CB+ CDL+ CEB+ CENTER STOP LIGHT ASSEMBLY CEV- COMBINATION METER ASSEMBLY COMBINATION METER ASSEMBLY 2 COMPRESSOR W/ MAGNET CLUTCH ASSEMBLY COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEMS CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY COOLING BOX ASSEMBLY CSNR FDWN CSW+ CTR + CV+ DC- DEFOGGER SYSTEM DIRECT FUEL INJECTOR ASSEMBLY 1 DIRECT FUEL INJECTOR ASSEMBLY 1 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 2 DIRECT FUEL INJECTOR ASSEMBLY 2 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 3 DIRECT FUEL INJECTOR ASSEMBLY 3 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 4 DIRECT FUEL INJECTOR ASSEMBLY 4 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 5 DIRECT FUEL INJECTOR ASSEMBLY 5 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 6 DIRECT FUEL INJECTOR ASSEMBLY 6 SHIELD DK+ DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER'S SEAT EC+ ECC CCS ECI+ EFC+ EL AHB ELECTRICAL KEY, TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY ELECTROCHROMIC MIRROR CIRCUIT ET+ EX+ FAL+ FAR- FCP+ FE&B FLUID COUPLING ASSEMBLY FNC- FNO- FP- FRONT STABILIZER HOUSING SUB- ASSEMBLY FRV- FSW+ GA- GB+ GLOVE BOX LIGHT ASSEMBLY GOV+ GVO+ H/T- HEADLIGHTS SYSTEM HF HU HGV+ HGV+ SHIELD HGVG HORNS SYSTEM HOT AT ALL TIMES ICL- ICL- ICL+ ICL+ ICR+ ICR- ICR- ICR+ IL+2 IL-2 INNER REAR VIEW MIRROR ASSEMBLY INP- INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG W/O DOOR ASSEMBLY INTEGRATION CONTROL, PANEL ASSEMBLY L OFF L+ IG LBE- LSP- LSP+ LCB+ LCV- LCV- SHIELD SGND LEFT "C" PILLAR) LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELDS LEFT FOG LIGHT ASSEMBLY LEFT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SEAT OUTER BELT ASSEMBLY LEFT FRONT SIDE COURTESY LIGHT ASSEMBLY LEFT FRONT TELEPHONE MICROPHONE ASSEMBLY LEFT INTAKE MASS AIR FLOW METER SUB-ASSEMBLY LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 LEFT LUMBAR SUPPORT ADJUSTER ASSEMBLY LEFT LUMBER SUPPORT ADJUSTER ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT POWER LIFT STEP ASSEMBLY LEFT REAR COMBINATION LIGHT LENS, BODY LEFT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT REAR DOOR OUTSIDE HANDLE ASSEMBLY LEFT REAR SEAT INNER BELT ASSEMBLY 1 LEFT REAR SEAT INNER BELT ASSEMBLY 2 LEFT REAR SEAT OUTER BELT ASSEMBLY 1 LEFT REAR SHOCK ABSORBER ASSEMBLY LEFT REAR SIDE COURTESY LIGHT ASSEMBLY LEFT SEAT BACK CLIMATE CONTROL BLOWER LEFT SEAT CUSHION CLIMATE BLOWER ASSEMBLY LEFT SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LEFT STEP LIGHT ASSEMBLY LEFT VANITY LIGHT ASSEMBLY LEFT VISOR ASSEMBLY LFT- LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LSP + MAP LIGHT ASSEMBLY MAP LIGHT SUB-ASSEMBLY MCI- MCO- METER MIRROR SUB-ASSEMBLY MG+ MGV- MI+ MIRRORS SYSTEM ML+ MO- MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MR- MRL+ MSM+ MULTI-COLOR NAVIGATION SYSTEM ND+ NE+ OIL PRESSURE SENDER GAGE ASSEMBLY P+ P- PASSIVE RESTRAINTS SYSTEM PK- PL- PLR+ PORT FUEL INJECTOR ASSEMBLY 1 PORT FUEL INJECTOR ASSEMBLY 2 PORT FUEL INJECTOR ASSEMBLY 3 PORT FUEL INJECTOR ASSEMBLY 4 PORT FUEL INJECTOR ASSEMBLY 5 PORT FUEL INJECTOR ASSEMBLY 6 POWER BACK DOOR WARNING BUZZER POWER DISTRIBUTION BOX ASSEMBLY POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, POWER TOPS SYSTEMS PR- PRR- R+ R- RACK, PINION POWER STEERING GEAR ASSEMBLY RADIATOR SHUTTER ASSEMBLY RADIO SETTING CONDENSER RADIO, DISPLAY RECEIVER ASSEMBLY RAL+ RAR+ RBE+ RCB+ RCL- RCLF SLDF RDC BCR+ REAR CENTER SEAT LAP TYPE BELT ASSEMBLY REAR LIGHT ASSEMBLY REAR STABILIZER HOUSING SUB- ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT CUSHION AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SEAT OUTER BELT ASSEMBLY RIGHT FRONT SIDE COURTESY LIGHT ASSEMBLY RIGHT FRONT TELEPHONE MICROPHONE ASSEMBLY RIGHT INTAKE MASS AIR FLOW METER SUB-ASSEMBLY RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY 1 RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT POWER LIFT STEP ASSEMBLY RIGHT REAR COMBINATION LIGHT LENS, BODY RIGHT REAR COURTESY LIGHT ASSEMBLY RIGHT REAR DOOR RIGHT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT REAR DOOR OUTSIDE HANDLE ASSEMBLY RIGHT REAR SEAT INNER BELT ASSEMBLY 1 RIGHT REAR SEAT INNER BELT ASSEMBLY 2 RIGHT REAR SEAT OUTER BELT ASSEMBLY 1 RIGHT REAR SHOCK ABSORBER ASSEMBLY RIGHT SEAT BACK CLIMATE CONTROL BLOWER RIGHT SEAT CUSHION CLIMATE BLOWER ASSEMBLY RIGHT STEP LIGHT ASSEMBLY RIGHT VANITY LIGHT ASSEMBLY RIGHT VISOR ASSEMBLY ROOF WINDOW GLASS SUB-ASSEMBLY ROOM LIGHT ASSEMBLY 1 ROOM LIGHT ASSEMBLY 2 SEATS SYSTEM SFL- SFR- SG-1 SG-2 SG-4 SG-6 SG-7 SG-8 SG-9 SHIELD MGVG SL- SLS+ SLT- SLU+ SOLAR ROOF FILTER SOUND SYSTEMS SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SR- SRR+ SSR+ STA STAR STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEERING COLUMN) STEREO COMPONENT EQUALIZER ASSEMBLY STEREO JACK ADAPTER ASSEMBLY SUPPLEMENTAL RESTRAINTS SYSTEM TRANSMISSIONS SYSTEM TRN+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBOCHARGER SUB-ASSEMBLY 1 TURBOCHARGER SUB-ASSEMBLY 2 TWL- TWR+ UDO+ VHP- VOLTAGE INVERTER ASSEMBLY VOR- VOT+ VVL+ VVR+ W-OFF W/ CAPTAIN SEAT W/ DIGITAL REAR VIEW MIRROR W/ FRONT FOG LIGHT W/ MEMORY W/ PANORAMIC W/ REAR AUTO AIR CONDITIONING W/ TELEMATICS SYSTEM W/ VIBRATION SEAT W/O BACK GUIDE MONITOR SYSTEM W/O CAPTAIN SEAT W/O DIGITAL KEY SYSTEM W/O DIGITAL REAR VIEW MIRROR W/O MEMORY W/O PANORAMIC W/O REAR AUTO AIR CONDITIONING W/O TELEMATICS SYSTEM W/O VIBRATION SEAT WARNING SYSTEMS WB+ WFL- WFR- WGM- WIPER/WASHER SYSTEM
