Lexus GX J150 (2009-2013) front window deicer switch Wiring diagram
This page shows the only wiring diagram for the component.front window deicer switch, which is found in the car Lexus GX J150 (2009-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

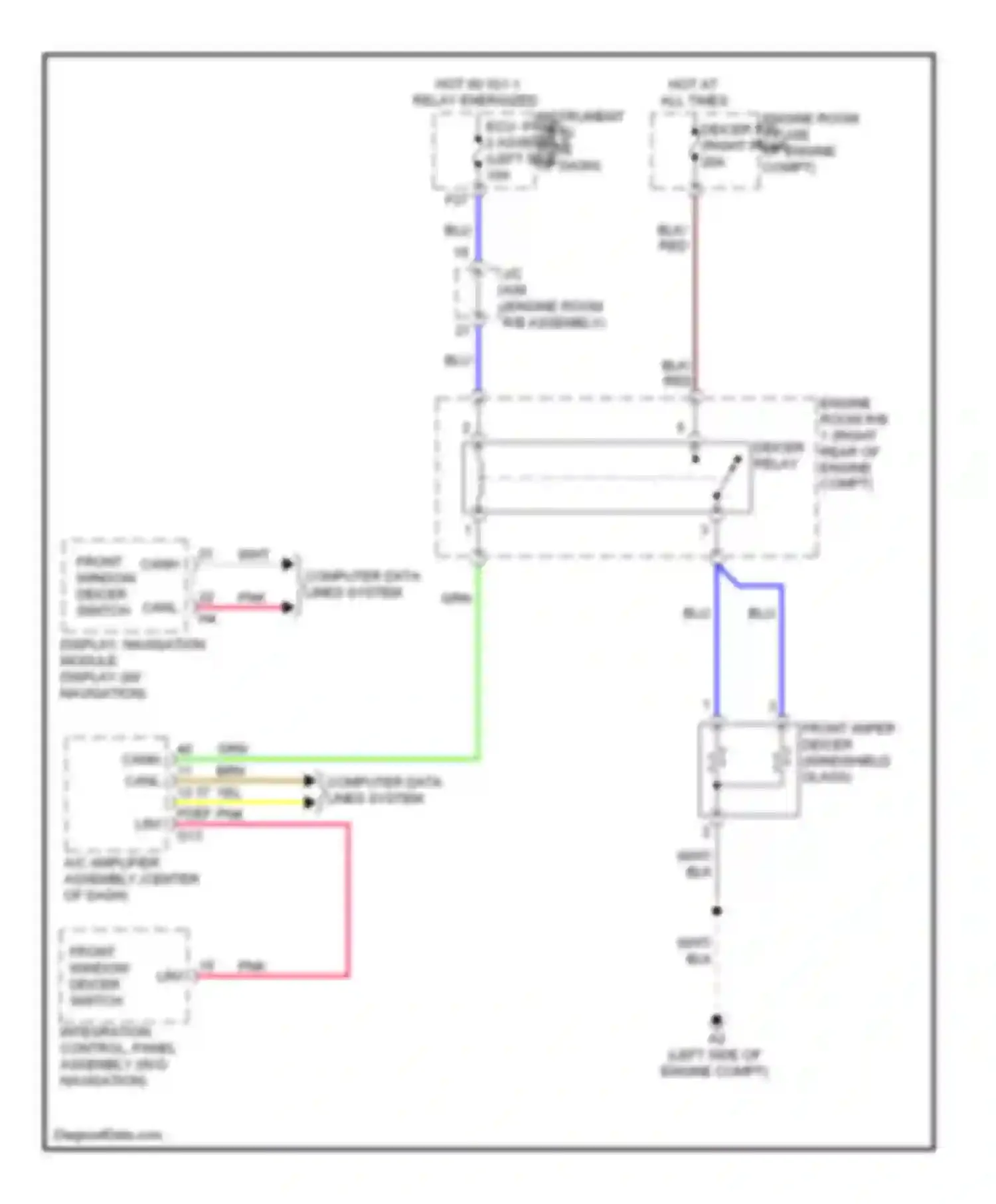

Wiring diagram front window deicer switch (1 of 1)
40 11 12 37 FDEF CANH CANL
A/C AMPLIFIER ASSEMBLY (CENTER OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DEICER R/B 1 FUSE (RIGHT REAR OF ENGINE COMPT)
DISPLAY, NAVIGATION MODULE DISPLAY (W/ NAVIGATION)
ENGINE ROOM
ENGINE ROOM R/B 1 (RIGHT DEICER REAR OF ENGINE COMPT) RELAY
ENGINE ROOM R/B ASSEMBLY
FRONT WINDOW DEICER SWITCH
FRONT WIPER DEICER (WINDSHIELD GLASS)
GRN WIRE
HOT AT ALL TIMES
INTEGRATION CONTROL, PANEL ASSEMBLY (W/O NAVIGATION)
J/C
PNK CANL WIRE
PNK WIRE
RED WIRE
RELAY ENERGIZED INSTRUMENT ECU- PANEL J/B IG 2 ASSEMBLY FUSE (LEFT SIDE OF DASH)
WHT WIRE
YEL WIRE
Go to component -> Front deicer circuit -> FRONT WINDOW DEICER SWITCH
