Lexus GS III facelift (2007-2011) ind lamp security Wiring diagram
This page shows the only wiring diagram for the component.ind lamp security, which is found in the car Lexus GS III facelift (2007-2011). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

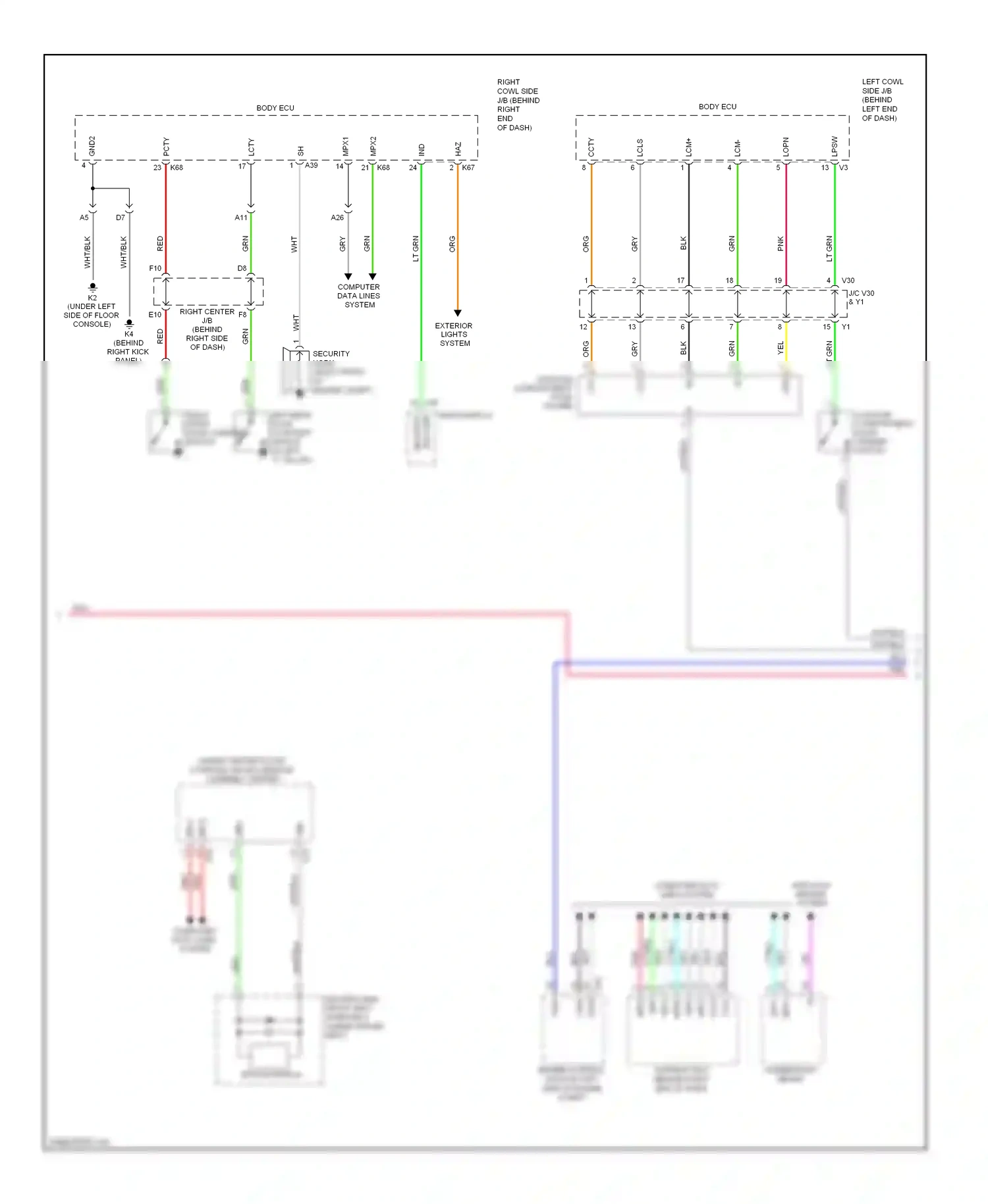

Wiring diagram ind lamp security (1 of 1)
ANTI-LOCK BRAKES SYSTEM
BLK WIRE
BLU WIRE
BODY ECU
BUCKLE SWITCH
CCTY
CLS
COMBINATION METER
COMPUTER DATA LINES SYSTEM
CTY
DRIVER'S SIDE FRONT SEAT INNER BELT (UNDER DRIVER SEAT)
ENGINE CONTROL MODULE (LEFT SIDE OF ENGINE COMPT)
GATEWAY ECU (BEHIND RIGHT END OF DASH)
GRN WIRE
GRY WIRE
IND
IND LAMP SECURITY
LCLS
LCM+
LCTY
LEFT COWL SIDE J/B (BEHIND LEFT END OF DASH)
LEFT REAR DOOR COURTESY SWITCH (IN LEFT "C" PILLAR)
LOPN
LPSW
LT BLU WIRE
LT GRN WIRE
LUGGAGE COMPARTMENT DOOR CLOSER
LUGGAGE COMPARTMENT DOOR OPENER SWITCH
MPX
MULTI-DISPLAY
OPN
ORG/ WIRE
PCTY
PNK WIRE
RED WIRE
RIGHT CENTER J/B (BEHIND RIGHT SIDE OF DASH)
RIGHT COWL SIDE J/B (BEHIND RIGHT END OF DASH)
RIGHT FRONT DOOR COURTESY SWITCH
SECURITY HORN (RIGHT FRONT OF ENGINE COMPT)
VIO WIRE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Anti-theft circuit (4 of 6) -> IND LAMP SECURITY
