Wiring Diagrams for Land Rover Range Rover L322 (2005-2009)

Automatic a/c circuit Rear a/c circuit, w/ three rotary controls Rear a/c circuit, w/ two rotary controls

Anti lock brake circuit Terrain response circuit

Immobilizer circuit

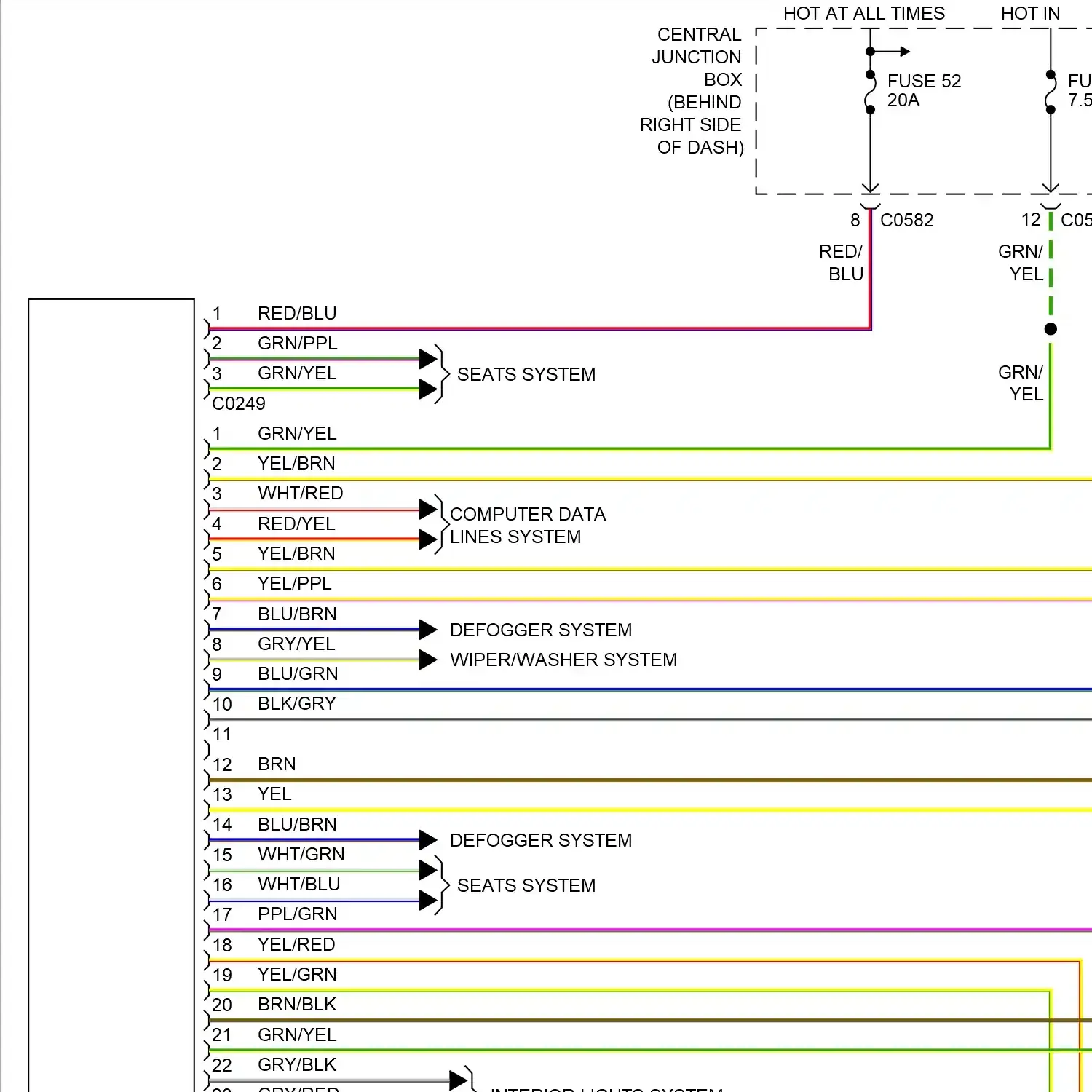

Body control modules circuit

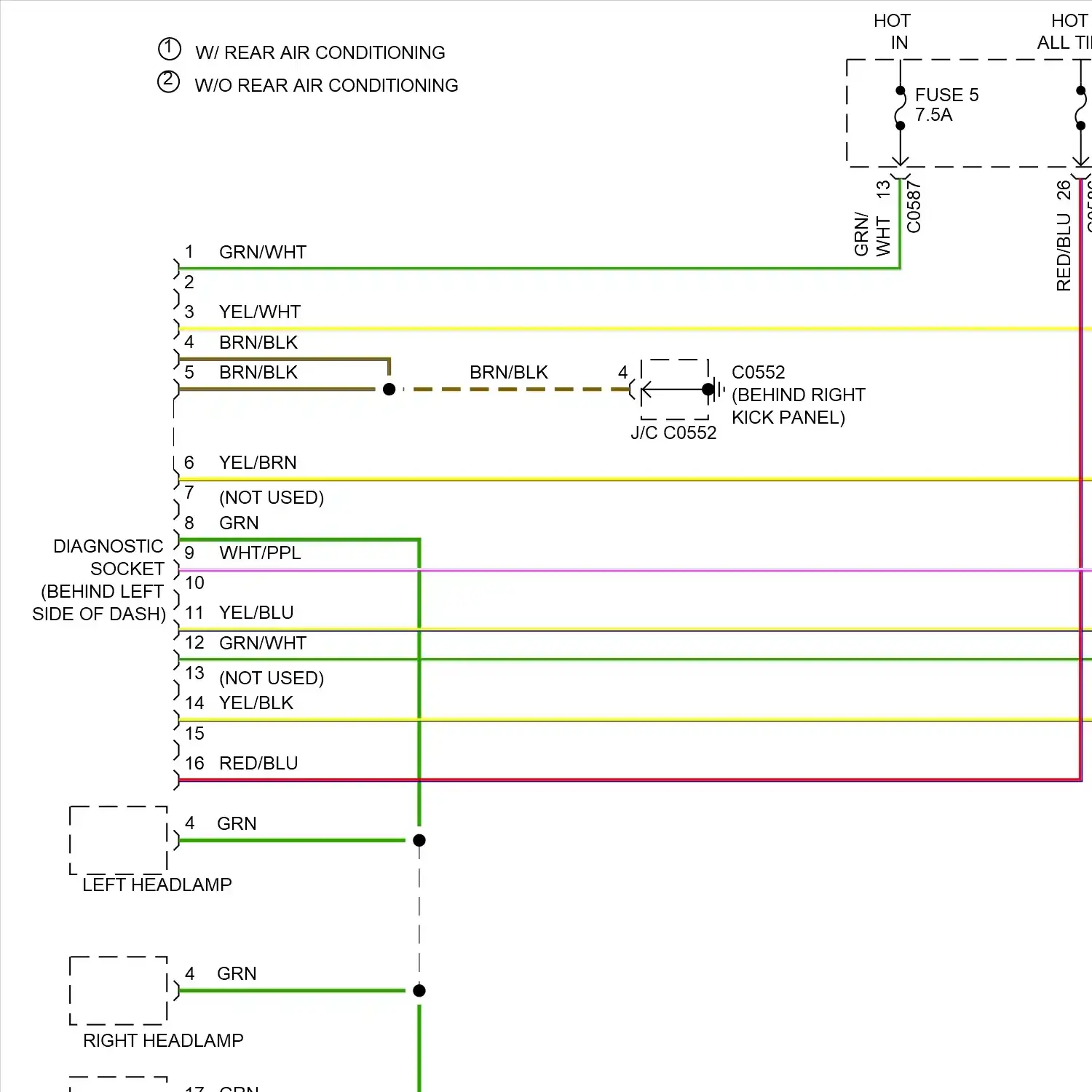

Diagnostic socket circuit Fibre optic network circuit

Cooling fan circuit

Cruise control circuit

Heated windshield circuit Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 4.2l

Wiring diagram engine performance 4.4l

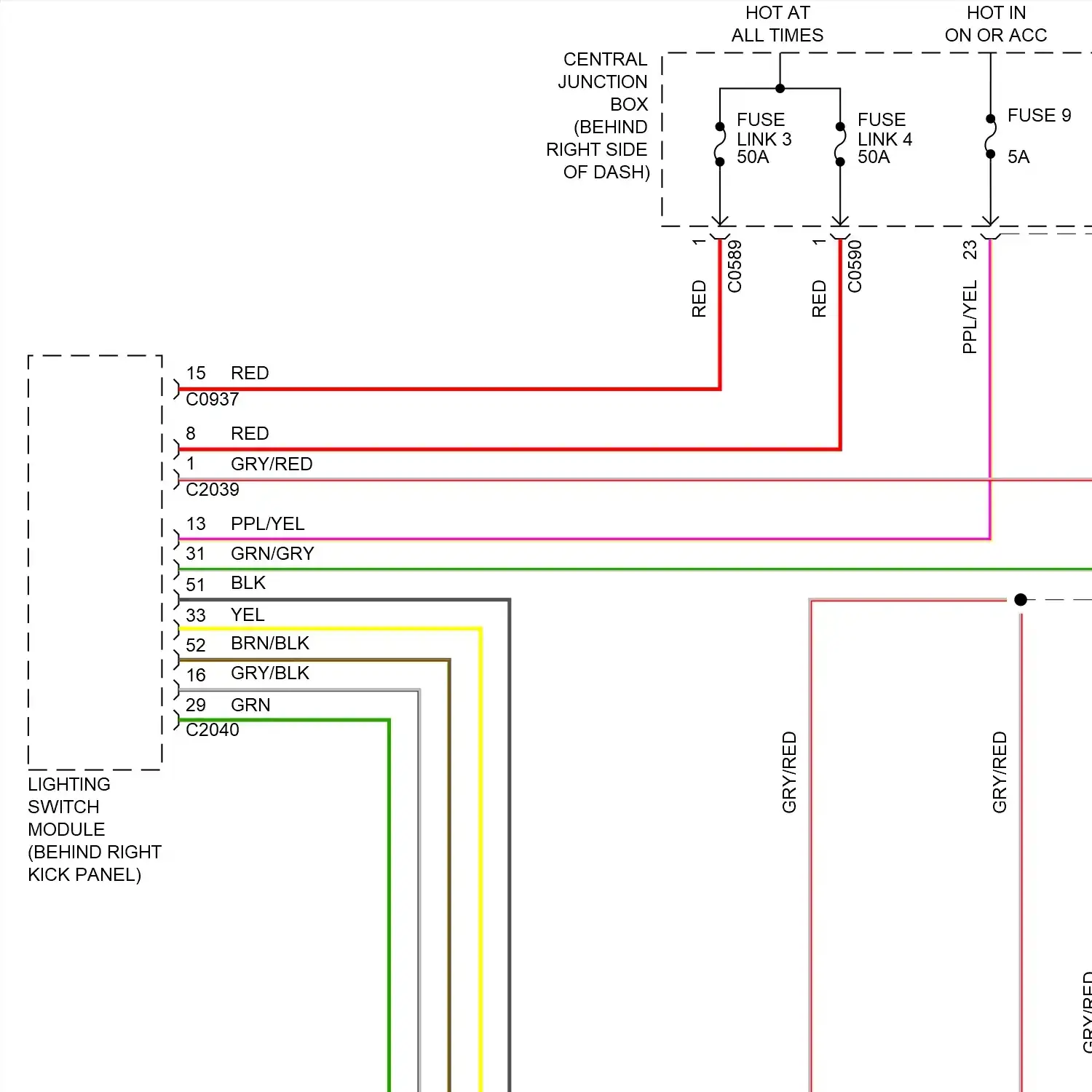

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlamps circuit, w/ adaptive lamp monitor Headlamps circuit, w/ cornering headlights Headlamps circuit, w/o adaptive lamp monitor

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory seat circuit Steering column memory circuit

Parking assistant circuit Rear camera circuit Touch screen interface circuit

Power distribution circuit

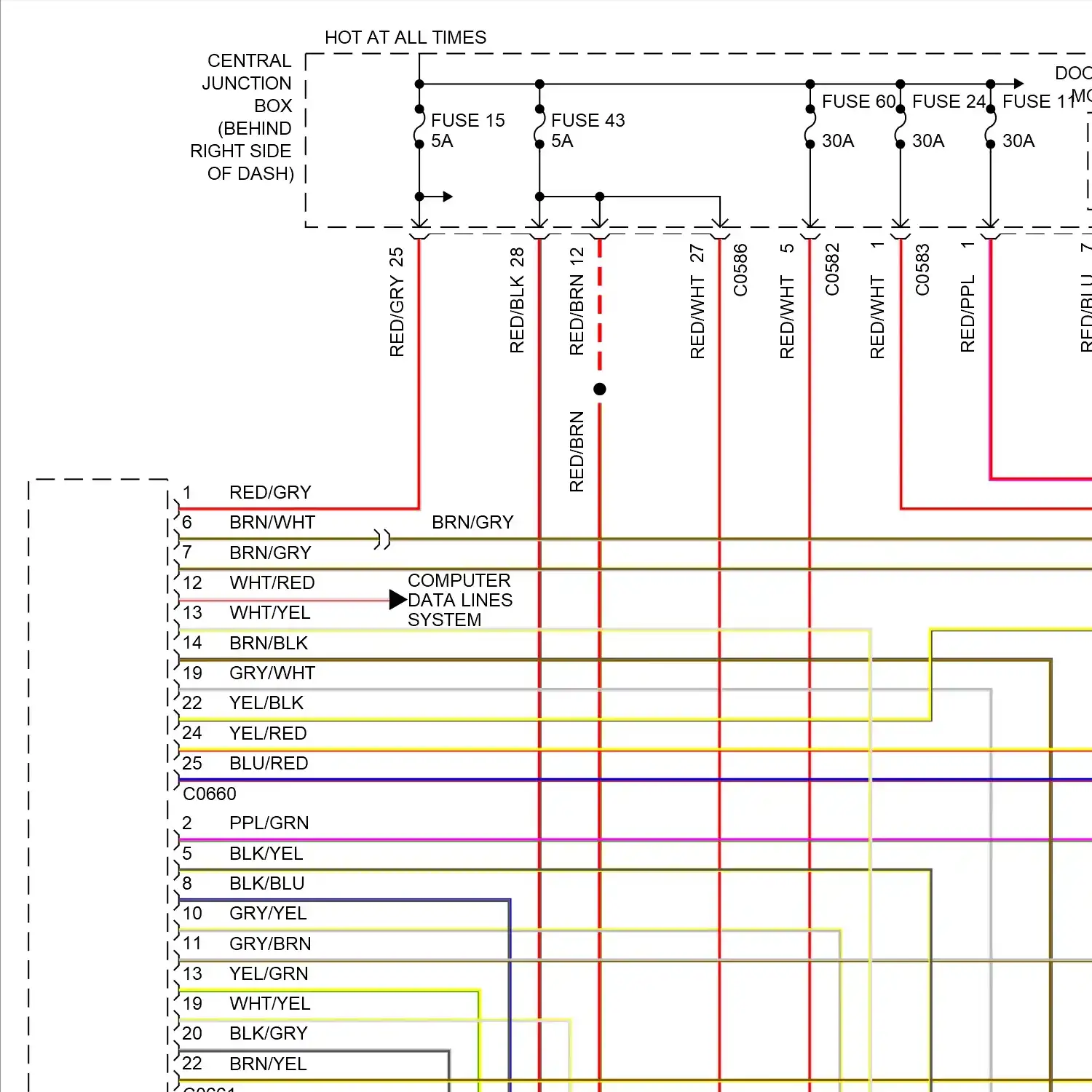

Power door locks circuit

Electrochromic mirror circuit Fold-back mirrors circuit

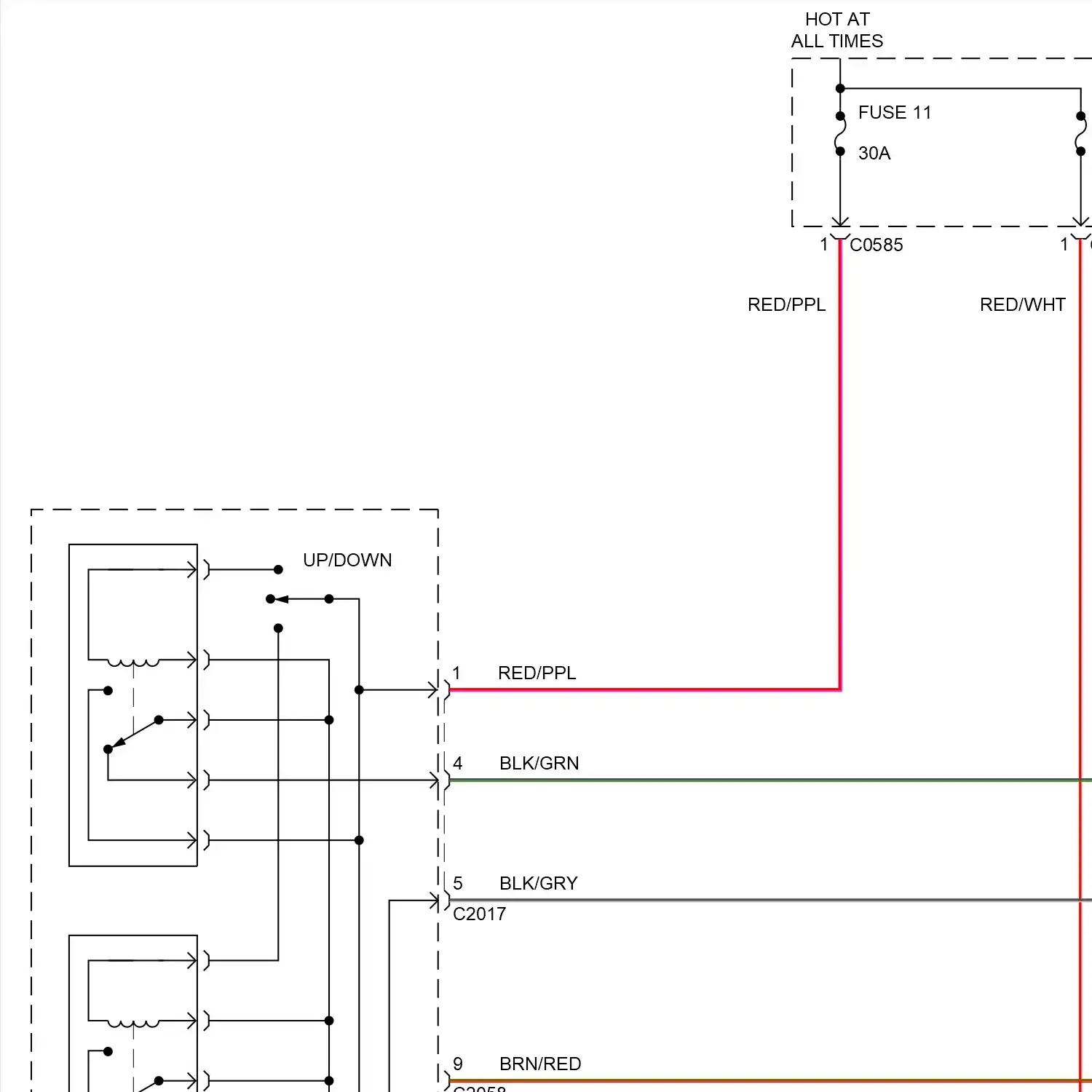

Climate control seats circuit Front seat heater circuit Heated steering wheel circuit Lumbar circuit, electronic Passenger"s power seat circuit Rear seat heater circuit

Power top/sunroof circuit

Power windows circuit

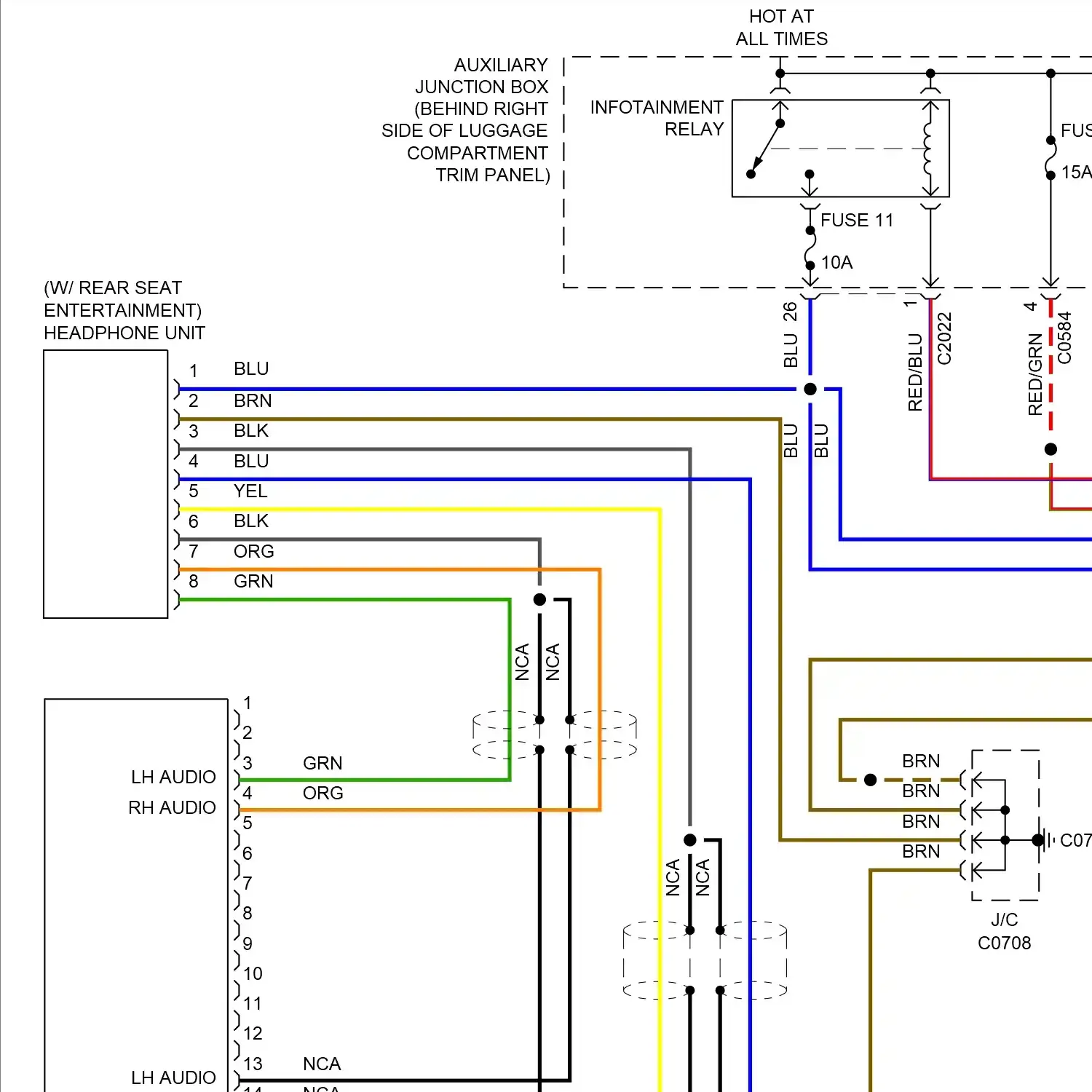

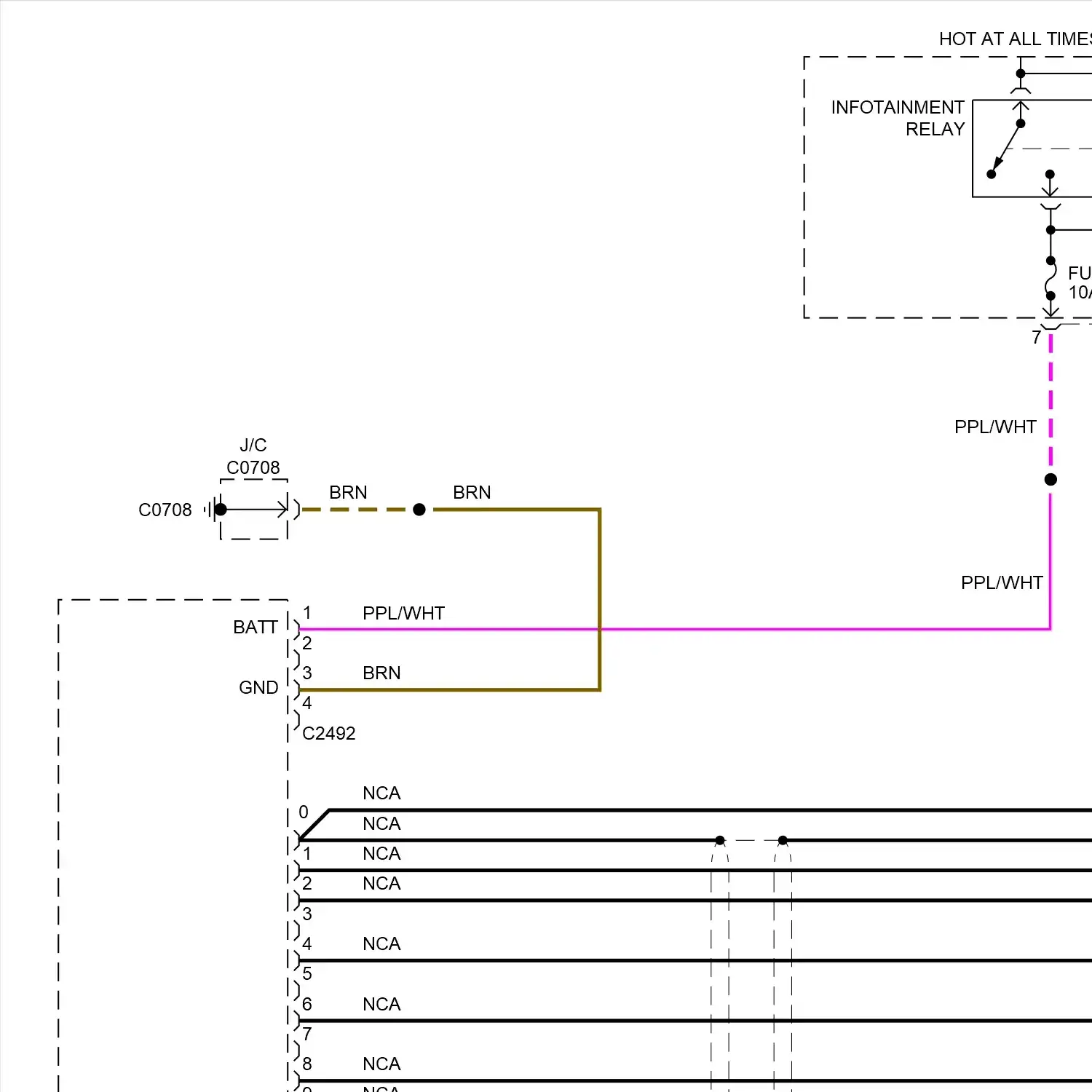

Radio circuit Rear seat entertainment circuit

Park brake release circuit Shift interlock circuit

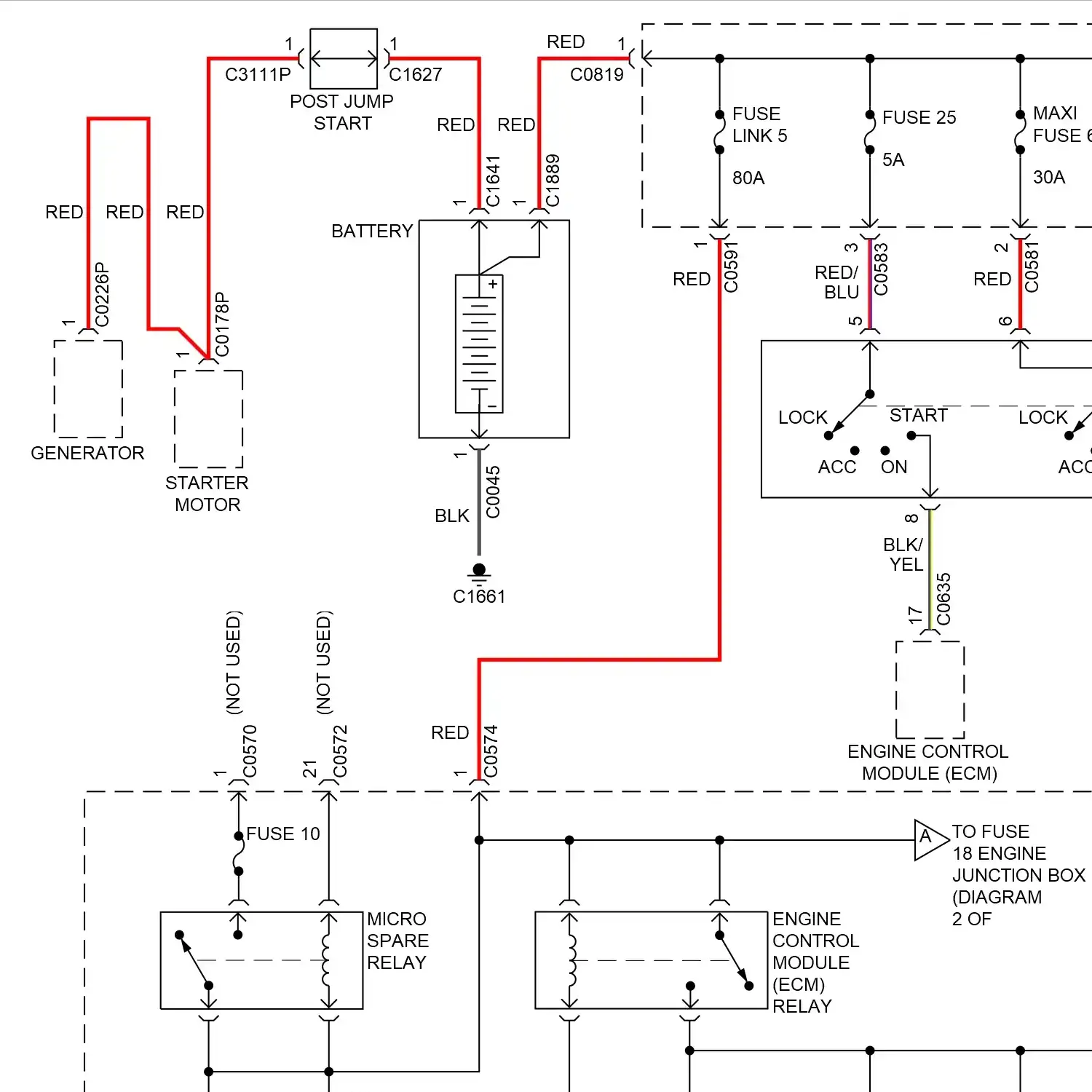

Charging circuit, w/o transit relay Charging circuit, w/ transit relay Starting circuit

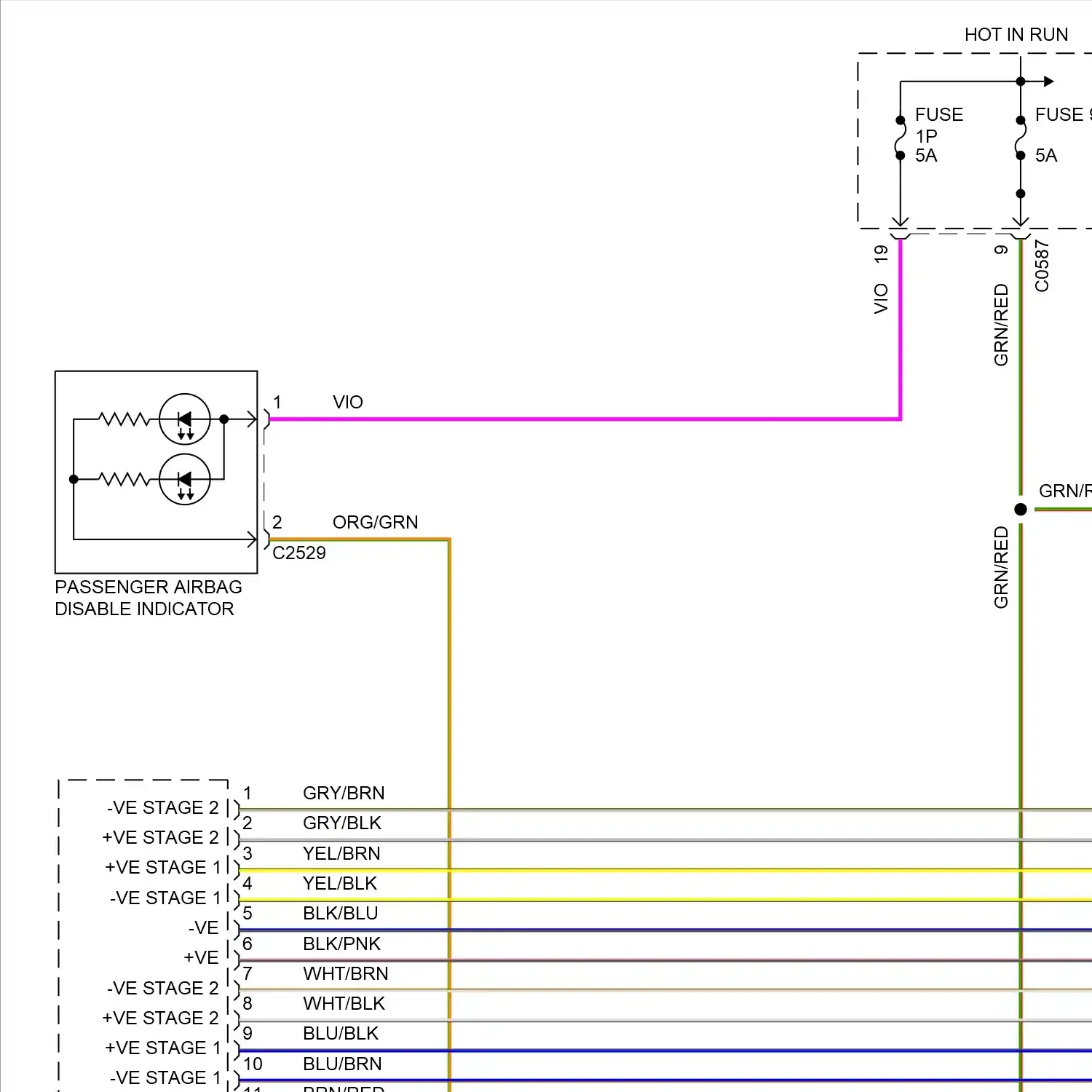

Supplemental restraints circuit

4wd circuit A/t circuit Rear differential lock circuit

Tailgate & fuel door release circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer & jet washer heater circuit Power wash circuit Rear wiper/washer circuit

AERIAL AMPLIFIER ALTERNATOR/ GENERATOR ANTI-LOCK BRAKES SYSTEM BATTERY BACKED SOUNDER BATTERY BACKED UP ALARM SOUNDER BATTERY BACKED UP SOUNDER IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 IGNITION COIL 7 IGNITION COIL 8 LEFT HORN LOCK ON POWER AMPLIFIER RIGHT HORN TRANSPONDER COIL

(LEFT REAR OF ENGINE COMPARTMENT, BRAKE ACTUATOR SOLENOID COLUMN HEIGHT MOTOR COLUMN TELESCOPE MOTOR COLUMN TELESCOPIC MOTOR ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMP. GAUGE ENGINE JUNCTION BOX ENGINE WARNING LAMP FACE AIR DISTRIBUTION MOTOR FACE/FEET AIR DISTRIBUTION DOOR MOTOR FEET AIR DISTRIBUTION MOTOR FRESH AIR MOTOR FRONT BLOWER MOTOR FUEL FLAP RELEASE MOTOR HORIZONTAL ADJUSTMENT MOTOR LEFT AIR TEMPERATURE DOOR MOTOR LEFT DYNAMIC BENDING LAMP MOTOR LEFT FOLDING MIRROR MOTOR LEFT FRONT DOOR LOCK MOTOR LEFT FRONT SEAT UP/DOWN MOTOR LEFT FRONT WINDOW MOTOR LEFT LEVELING DYNAMIC MOTOR LEFT LOWER CDL TAILGATE MOTOR LEFT LOWER TAILGATE CDL MOTOR LEFT REAR CENTRAL DOOR LOCKING MOTOR LEFT REAR SEAT UP/DOWN MOTOR LEFT REAR WINDOW MOTOR LEFT SEAT BACK RECLINE MOTOR LEFT SEAT FORWARD/REARWARD MOTOR LOWER RIGHT FRONT OF ENGINE) REAR BLOWER MOTOR REAR DIFFERENTIAL ACTUATOR REAR WINDOW WIPER MOTOR REAR WIPER SCREEN MOTOR RECIRCULATED AIR MOTOR RIGHT AIR TEMPERATURE DOOR MOTOR RIGHT DYNAMIC BENDING LAMP MOTOR RIGHT FOLDING MIRROR MOTOR RIGHT FRONT DOOR LOCK MOTOR RIGHT FRONT SEAT UP/ DOWN MOTOR RIGHT FRONT WINDOW MOTOR RIGHT LEVELING DYNAMIC MOTOR RIGHT LOWER CDL TAILGATE MOTOR RIGHT LOWER TAILGATE CDL MOTOR RIGHT REAR CENTRAL DOOR LOCKING MOTOR RIGHT REAR SEAT UP/ DOWN MOTOR RIGHT REAR WINDOW MOTOR RIGHT SEAT BACK RECLINE MOTOR RIGHT SEAT FORWARD REARWARD MOTOR SCREEN AIR DISTRIBUTION DOOR MOTOR SERVICE ENGINE SOON WARNING LAMP STARTER MOTOR TAILGATE UPPER CDL MOTOR TELESCOPE COLUMN MOTOR TOP OF ENGINE) TRANSFER BOX MOTOR UPPER TAILGATE CDL MOTOR VERTICAL ADJUSTMENT MOTOR WINDSHIELD WIPER MOTOR

AM/FM ANTENNA AMPLIFIER-ANTENNA- FM, REMOTE KEYLESS ENTRY MODULE DAB ANTENNA AMPLIFIER FM ANTENNA AMPLIFIER, REMOTE KEYLESS ENTRY MODULE FM, REMOTE KEYLESS ENTRY AMPLIFIER ANTENNA MODULE GPS ANTENNA SDARS ANTENNA TMC ANTENNA TV ANTENNA

REAR VIEW CAMERA

CENTER ACCESSORY SOCKET DIAGNOSTIC SOCKET FRONT ACCESSORY SOCKET REAR ACCESSORY SOCKET

AIR SUSPENSION CONTROL MODULE AUTOMATIC TEMPERATURE CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE RELAY GLOVE COMPARTMENT CONTROL MODULE GLOVE COMPT CONTROL MODULE MEMORY CONTROL MODULE PARKING AID CONTROL MODULE REAR AUTOMATIC TEMPERATURE CONTROL MODULE REAR DIFFERENTIAL CONTROL MODULE RESTRAINTS CONTROL MODULE ROOF OPENING PANEL CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE TRANSFER BOX CONTROL MODULE TRANSMISSION CONTROL MODULE

AFS ECU AIR SUPPLY UNIT AUDIO HEAD UNIT AUDIO UNIT CONDENSER FAN CONTROL UNIT COOLING FAN CONTROL UNIT ELECTRIC THROTTLE UNIT FRONT BLOWER MOTOR CONTROL UNIT FUEL TANK UNIT HEADPHONE UNIT HEATED STEERING WHEEL ECU LEFT TAIL LAMP UNIT REAR BLOWER MOTOR CONTROL UNIT REAR SCREEN WIPER ECU REAR WINDOW WIPER ECU RIGHT TAIL LAMP UNIT STEERING LOCK ECU TRAILER ECU UNIT-BATTERY DISCONNECT WINDSCREEN WIPER ECU DELAY WINDSHIELD WIPER DELAY ECU

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 9 FUSE 31 FUSE 10 FUSE 11 FUSE 12 FUSE 12 FUSE 56 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 34 FUSE 51 FUSE 34 FUSE 56 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE LINK 1 FUSE LINK 2 FUSE LINK 3 FUSE LINK 4 FUSE LINK 5 FUSE LINK 49 MAXI FUSE 21 MAXI FUSE 22 MAXI FUSE 23 MAXI FUSE 61 MAXI FUSE 62 MAXI FUSE 63 MAXI FUSE 64

DMTL HEATER FUEL FIRED BOOSTER HEATER FUEL FIRED BOOSTER HEATER RECEIVER LEFT JET WASHER HEATER LEFT REAR CUSHION HEATER LEFT SEAT BACKREST HEATER LEFT SEAT CUSHION HEATER LEFT SEAT SQUAB HEATER LEFT WINDSHIELD HEATER ELEMENT REAR WINDOW HEATER ELEMENT RIGHT JET WASHER HEATER RIGHT REAR CUSHION HEATER RIGHT SEAT BACKREST HEATER RIGHT SEAT CUSHION HEATER RIGHT WINDSHIELD HEATER ELEMENT STEERING WHEEL HEATER WIPER BLADE HEATER

IGNITION/ NO CHARGE WARNING INDICATOR PASSENGER AIR BAG DISABLE INDICATOR PASSENGER AIRBAG DISABLE INDICATOR

BRAKE ASSIST WARNING LAMP DOOR LAMP MODULE EBD WARNING LAMP ELECTRIC PARK BRAKE LAMP IND FRONT FOG LAMP IND FRONT INTERIOR LAMP GLOVE COMPARTMENT LAMP HANDBRAKE WARNING LAMP HIGH MOUNTED STOP LAMP HIGH-MOUNTED BRAKE LAMP LEFT APPROACH LAMP LEFT FRONT DOOR OPEN LAMP LEFT FRONT DOOR SILL LAMP LEFT FRONT FOG LAMP LEFT FRONT FOOTWELL LAMP LEFT FRONT PUDDLE LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT SIDE REPEATER LAMP LEFT HEAD- LAMP LEFT LOAD SPACE LAMP LEFT REAR FOG GUARD LAMP LEFT REAR PUDDLE LAMP LEFT REAR SIDE MARKER LAMP LEFT REAR SIDE REPEATER LAMP LEFT REVERSE LAMP LEFT STATIC BENDING LAMP LH FRONT SIDE LAMP LH FRONT SIDE MARKER LAMP LOAD SPACE LAMP REAR FOG LAMPS WARNING LAMP REAR INTERIOR LAMP REVERSE LAMP SW RH FRONT SIDE LAMP RH FRONT SIDE MARKER LAMP RIGHT APPROACH LAMP RIGHT FRONT DOOR SILL LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOTWELL LAMP RIGHT FRONT PUDDLE LAMP RIGHT FRONT SIDE REPEATER LAMP RIGHT HEAD- LAMP RIGHT LOAD SPACE LAMP RIGHT REAR FOG GUARD LAMP RIGHT REAR PUDDLE LAMP RIGHT REAR SIDE MARKER LAMP RIGHT REAR SIDE REPEATER LAMP RIGHT REVERSE LAMP RIGHT STATIC BENDING LAMP

BOOST BRAKE PUMP BRAKE BOOST PUMP COOLANT PUMP DMTL PUMP DRIVER FUEL PUMP MODULE F/PUMP CONTROL F/PUMP MONITOR FUEL FIRED BOOSTER HEATER PUMP FUEL PUMP FUEL PUMP DRIVER MODULE LEAK DETECTION PUMP POWER WASH PUMP REAR WINDOW WASHER PUMP RIGHT LUMBAR PUMP SUPERCHARGE COOLANT PUMP SUPERCHARGER COOLANT PUMP WINDSHIELD WASHER PUMP

AIR SUSP- ENSION RELAY AIR SUSPENSION RELAY BRAKE BOOST PUMP RELAY CIGAR LIGHTER RELAY FRONT HEATED SCREEN RELAY FRONT SCREEN HEATED RELAY FUEL PUMP RELAY HEATED WASHER JETS RELAY HORN RELAY HOT W/ SEAT RELAY ENERGIZED IGN RELAY INFOTAINMENT RELAY MAIN RELAY MICRO SPARE RELAY POWER WASH RELAY REAR BLOWER RELAY REAR SCREEN HEATED RELAY SEAT RELAY START RELAY STARTER RELAY STEERING COLUMN RELAY TAIL DOOR MOTOR RELAY TAILDOOR MOTOR RELAY TRAILER SOCKET RELAY TRANSIT RELAY TRANSIT RELAY SWITCH WASHER JETS HEATED RELAY

ACCELERATOR PEDAL POSITION SENSOR AIR QUALITY SENSOR AMBIENT AIR TEMPERATURE SENSOR BELT TENSION SYSTEM SENSOR CAMSHAFT POSITION SENSOR CRANKSHAFT POSITION SENSOR DIFFERENTIAL OIL TEMPERATURE SENSOR DRIVER ANTI-TRAP SENSOR DRIVER SEAT TRACK SENSOR ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR EVAPORATOR SENSOR FUEL RAIL PRESSURE SENSOR FUEL RAIL TEMPERATURE SENSOR GEAR BOX POSITION SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR 3 HALL SENSOR 4 HEATER COOLANT TEMPERATURE SENSOR KEY-IN SENSOR LEFT DYNAMIC BENDING LAMP SENSOR LEFT FRONT HEATED OXYGEN SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT IMPACT SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT SIDE IMPACT SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT KNOCK SENSOR LEFT REAR ANTI-TRAP SENSOR LEFT REAR HEATED OXYGEN SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR WHEEL SPEED SENSOR LOW WASHER FLUID LEVEL SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE, TEMPERATURE SENSOR MASS AIR FLOW SENSOR OCCUPANCY DETECTOR SENSOR OIL TEMPERATURE SENSOR PAD WEAR SENSOR PASSENGER ANTI-TRAP SENSOR PCB/PRND POSITION SENSOR PRESSURE MAT SENSOR PRESSURE SENSOR RAIN SENSOR REFRIGERANT PRESSURE SENSOR RIGHT DYNAMIC BENDING LAMP SENSOR RIGHT FRONT HEATED OXYGEN SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT IMPACT SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT SIDE IMPACT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT KNOCK SENSOR RIGHT REAR ANTI-TRAP SENSOR RIGHT REAR HEATED OXYGEN SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR WHEEL SPEED SENSOR SELECTOR POSITION SENSOR SENSOR GND 5 SHAFT OUTPUT SPEED SENSOR STEERING ANGLE SENSOR STEERING WHEEL TEMPERATURE SENSOR TEMP COMPRESSOR SENSOR TEMP MOTOR SENSOR TEMP SENSOR TEMPERATURE MOTOR SENSOR TILT SENSOR TURBINE SPEED SENSOR ULTRASONIC SENSOR YAW RATE SENSOR

CENTER SPEAKER LEFT FRONT MID RANGE DOOR SPEAKER LEFT FRONT SPEAKER LEFT REAR LOW RANGE DOOR SPEAKER LEFT REAR MID RANGE DOOR SPEAKER LEFT REAR SURROUND SPEAKER PDC SPEAKER RIGHT FRONT LOW RANGE SPEAKER RIGHT FRONT MID RANGE DOOR SPEAKER RIGHT REAR LOW RANGE DOOR SPEAKER RIGHT REAR MID RANGE DOOR SPEAKER RIGHT REAR SURROUND SPEAKER SUBWOOFER MODULE

AIR SUSPENSION RIDE HEIGHT SWITCH BRAKE FLUID LEVEL SWITCH CENTER CONSOLE PACK SWITCH CENTER CONSOLE SWITCH PACK CENTER FASCIA PACK SWITCH CENTER FASCIA SWITCH PACK COMMAND SHIFT SWITCH DRIVER PRE-TENSIONER AND BUCKLE SWITCH DRIVER PRE-TENSIONER, BUCKLE SWITCH DSC SWITCH ELECTRIC PARK BRAKE SWITCH FOLDING MIRROR SWITCH FRONT FOG LAMP SWITCH FRONT HEATED SCREEN SWITCH FRONT INTERIOR LAMP SWITCH HAZARD WARNING, CDL MASTER SWITCH HOOD AJAR SWITCH IGNITION SWITCH LEFT DOOR SWITCH LEFT HORN SWITCH LEFT LUMBAR SWITCH LEFT REAR DOOR SWITCH LEFT REAR WINDOW SWITCH LEFT SEAT HEATER SWITCH LEFT SEAT SWITCH PACK LH DOOR SWITCH LIGHTING CONTROL SWITCH LIGHTING MODULE SWITCH LIGHTING SWITCH MODULE MAP LAMP SWITCH NUMBER PLATE LAMP, TAIL DOOR SWITCH NUMBER PLATE, TAIL DOOR LAMP SWITCH NUMBER PLATE, TAIL DOOR SWITCH LAMP OIL PRESSURE SWITCH PARK SWITCH PASSENGER AIR BAG DISABLE SWITCH PASSENGER PRE-TENSIONER AND BUCKLE SWITCH PDC SWITCH REAR AIR CONDITIONING PACK SWITCH REAR AIR CONDITIONING SWITCH REAR AIR CONDITIONING SWITCH PACK REAR FOG GUARD LAMP SWITCH REAR INTERIOR LAMP SWITCH REAR SCREEN HEATED SWITCH RIGHT DOOR SWITCH RIGHT HORN SWITCH RIGHT LUMBAR SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR WINDOW SWITCH RIGHT SEAT HEATER SWITCH RIGHT SEAT SWITCH PACK SOLENOID CLUTCH SWITCH STEERING COLUMN LIGHTING SWITCH STEERING COLUMN SWITCH STEERING COLUMN WIPER SWITCH STOP LAMP SWITCH STOPLAMP SWITCH SUN ROOF SWITCH TAILGATE OPEN SWITCH TAILGATE RELEASE SWITCH TERRAIN OPTIMIZATION SWITCH TRANSMISSION HIGH-LOW SWITCH

DMTL VALVE EGR MODULATOR VALVE FRONT CROSS LINK VALVE INTERLOCK SOLENOID LEFT FRONT CORNER VALVE LEFT LUMBAR VALVE BLOCK LEFT REAR CORNER VALVE REAR CONTROL VALVE MAGNETIC VALVE MODE SELECTOR SOLENOID NON RETURN VALVE POWER STEERING SOLENOID PURGE CONTROL VALVE PURGE VALVE REAR CROSS LINK VALVE RESERVOIR VALVE RIGHT FRONT CORNER VALVE RIGHT LUMBAR VALVE BLOCK RIGHT REAR CORNER VALVE SLS EXHAUST VALVE VALVE OIL VARIABLE VALVE TIMING VARIABLE TIMING OIL VALVE 1 VARIABLE TIMING OIL VALVE 2 WATER VALVE

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/PPL WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/PPL WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK BRN/BLK WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/PNK WIRE BRN/PPL WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/PNK WIRE GRN/PPL WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/PPL WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE INFRA-RED WIRE LT GRN WIRE NCA WIRE ORG/ WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/RED WIRE ORG/YEL WIRE PNK WIRE PNK/BRN WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/RED WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/ORG WIRE RED/PPL WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/ORG WIRE WHT/PPL WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/LT GRN WIRE YEL/PNK WIRE YEL/PPL WIRE YEL/RED WIRE YEL/WHT WIRE

2 ZONE 4 ZONE 4.2L (OR +SM +VE STAGE 2 -VE -VE STAGE 1 ABS MODULE ACCESS IND ACCESS_LED ACCESS_SW AFM IAT AIR CONDITIONING COMPRESSOR CLUTCH AIR CONDITIONING SYSTEM AIR SUS_CTRL AIR SUSPENSION WARNING IND ALT_CON ALT_CONTROL ALT_MON ALT_MONITOR ANALOG CLOCK ANALOGUE CLOCK ANTI-THEFT ALARM IND ANTI-THEFT SYSTEM AUD 2 IN L - AUD 2 IN R + AUD IN L + AUD IN R + AUDIO GND AUDIO O/P LCH AUDIO O/P RCH AUDIO SHIELD GND AUTO CD CHANGER AUTOMATIC A/C CIRCUIT AUTOMATIC GEAR BOX SELECTOR ILLUMI- NATION AUTOMATIC GEARBOX SELECTOR ILLUMI- NATION AUTOMATIC GEARBOX SELECTOR ILLUMINATION AUX 1 AUDIO L- AUX 1 AUDIO R- AUX 1 VIDEO- AUX 2 AUDIO L- AUX 2 AUDIO R- AUX 2 VIDEO- AUXILIARY JUNCTION BOX AV INPUT PANEL B/L DC SUPPLY B/L GND B/L SUPPLY BATT 12+ BATT + BELT MINDER MAT BLOWER CTRL BLOWER FEEDBACK BRAKE SW BRAKE SYSTEM/ PAD WEAR WARNING IND BRAKING SYSTEM/ PAD WEAR WARNING IND BUCKLE SW CAM A GND CAM A+ CAM B GND CAM B+ CAN H IN CAN H OUT CAN HI CAN L CAN L IN CAN L OUT CAN LO CAN MS H CAN MS L CAN-H CAN_OUT_NEG HS CAN L CAN_OUT_POS CD AUTO CHANGER CENTRAL JUNCTION BOX CHARGING CIRCUIT CLIMATE SEATS MODULE CLOCK- SPRING COMMAND SELECT COMP VIDEO GND COMP_REL_NEG COMP_REL_POS COMP_TEMP GND COMP_TEMP SIG COMP_V_MON COMPUTER DATA LINES SYSTEM COMPUTER DATA LINKS SYSTEM COOLANT TEMP COOLING FAN E BOX COOLING FANS SYSTEM CRAWL_LED CRUISE CONTROL SYSTEM CRUISE CTRL SW CVBS 1 IN CVBS 1 IN GND CVBS 2 IN CVBS 2 IN GND CVBS GND CVBS OUT DAB/SDARS TUNER MODULE DEFOGGER SYSTEM DEMAND 1 DEMAND 2 DIPPED BEAM DOOR LOCKS SYSTEM DOOR LOCKS, POWER TOPS SYSTEMS POWER WINDOWS SYSTEM DOOR SW DRIVER AIR BAG DRIVER LOWER AIR BAG DRIVER SIDE AIRBAG DRIVER SIDE DOOR MIRROR DRIVER'S DOOR ELECTROCHROMIC ELEMENT DRIVER'S DOOR MIRROR DRIVER'S DOOR MODULE DRIVER'S SIDE DOOR MIRROR DVD MULTI-CHANGER E-BOX COOLING FAN E-BOX FAN EARTH HEADER ECM POWER EGR 1 EGR 2 EGR 3 EGR 4 ELECTRIC BRAKE TRAILER MODULE ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ENT CTRL EVAP TEMP SENS EX_V_NEG EX_V_POS F_XV_NEG GND F_XV_POS FAN PWM FAN REQUEST FL_CV_NEG FL_CV_POS FR DOOR LH - FR DOOR RH - FR_CV_NEG FR_CV_POS FRONT CIGAR LIGHTER FRONT FOG LAMPS IND FRONT FOGLAMP IND FRT HGT_GND FRT HGT_SIG FSP LED ON/OFF FSP ON/OFF FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL INJECTOR 7 FUEL INJECTOR 8 FUEL INJECTORS FUEL PRESS FUEL TEMP FUSIBLE LINK 3 FUSIBLE LINK 4 GENERIC ELECTRONIC MODULE GND 2 HALL GND HALL SIG A HALL SIG B HALL VSUPP HDC FAULT IND HEGO A GND HEGO A HTR HEGO A SIG HEGO B GND HEGO B HTR HEGO B SIG HID MODULE HIGH SW HIGH_LED HS CAN H HOLD IND HORNS SYSTEM HOT AT ALL TIMES HOT IN HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN RUN HS CAN H IN HS CAN H OUT HS CAN HI HS CAN HI OUT HS CAN L IN HS CAN L OUT HS CAN LO HS CAN LO OUT HS CAN-H HS CAN-L IGNITION/ NO CHARGE WARNING IND INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INTERCOOLER TEMP INTERIOR MIRROR IS-BUS FRAME- IS-BUS SIG- JUMP START POST K LINE K- BUS LCD DISPLAY LED_CATHODE LEFT FRONT CUSHION CLIMATE MODULE LEFT FRONT DOOR HANDLE LED LEFT FRONT DOOR POCKET LED LEFT FRONT INITIATOR LEFT FRONT INNER VENT ILLUMI- NATION LEFT FRONT INNER VENT ILLUMINATION LEFT FRONT OUTER VENT ILLUMI- NATION LEFT FRONT SEATBACK CLIMATE MODULE LEFT FRONT TWEETER LEFT HEADLAMP LEFT POWER MODULE LEFT REAR DOOR HANDLE LED LEFT REAR DOOR SW LEFT REAR INITIATOR LEFT REAR SEAT ENTERTAINMENT SCREEN LEFT REAR SIDE HEAD AIRBAG LEFT REAR VENT ILLUMI- NATION LEFT REAR VENT ILLUMINATION LEFT STEERING WHEEL MODULE LEFT TURN SIGNAL IND LEFT VANITY MIRROR LF IN LF OUT LH AUDIO + LH AUDIO +VE LH AUDIO -VE GND LOW FUEL IND LOWER_SW LOWERING_LED M GND MAF GND MAG+ MAIN BEAM MAIN BEAM IND MANUAL SPORT DISPLAY ILLUMI- NATION MANUAL SPORT DISPLAY ILLUMINATION MAP/BOOST PRESS MAT-BELT MINDER MIC - MOST IN MOST OUT MOT POS LEFT MOT POS RIGHT MOT- MOTOR_TEMP GND RAISING LED MOTOR_TEMP SIG MS CAN-H MS CAN-L NAVIGATION SYSTEM NAVIGATION SYSTEM MODULE NOT INSTALLED NOT USED NOT USED NTC SENSE RH OFF ROAD OFF-ROAD IND OIL PRESSURE WARNING IND OIL TEMP + P-BUS P/N SIGNAL PARKING AID MODULE PARKING BRAKE MODULE PASSENGER AIR BAG PASSENGER DOOR ELECTROCHROMIC ELEMENT PASSENGER DOOR MODULE PASSENGER SIDE AIRBAG PASSENGER SIDE CURTAIN AIRBAG PASSENGER SIDE DOOR MIRROR PASSENGER'S DOOR MIRROR) PICK-UP TRAILER POSITION SIG POST JUMP START POT GND POT SUPP POWER GND POWER GND 1 POWER GND 2 POWER GND 3 POWER WINDOWS SYSTEM PPL PPL PRESSURE_GND PRESSURE_SIG PWR GND R_XV_NEG R_XV_POS RAISE_SW REAR AIR CONDITIONING CIRCUIT REAR CIGAR LIGHTER REAR DOOR SW REAR FOGLAMPS WARNING LAMPS REAR ON/OFF REAR SEAT ENTERTAINMENT REAR SEAT ENTERTAINMENT CIRCUIT REAR SEAT ENTERTAINMENT MODULE REMOCON GND REMOCON SIG REMOTE RADIO RES_V_NEG RES_V_POS RH AUDIO + RH AUDIO -VE RH AUDIO -VE GND RIGHT FRONT CUSHION CLIMATE MODULE RIGHT FRONT DOOR HANDLE LED RIGHT FRONT DOOR POCKET LED RIGHT FRONT INITIATOR RIGHT FRONT INNER VENT ILLUMI- NATION RIGHT FRONT INNER VENT ILLUMINATION RIGHT FRONT OUTER VENT ILLUMI- NATION RIGHT FRONT OUTER VENT ILLUMINATION RIGHT FRONT SEATBACK CLIMATE MODULE RIGHT FRONT TWEETER RIGHT HEADLAMP RIGHT POWER MODULE RIGHT REAR DOOR HANDLE LED RIGHT REAR INITIATOR RIGHT REAR SEAT ENTERTAINMENT SCREEN RIGHT REAR SIDE HEAD AIRBAG RIGHT REAR VENT ILLUMI- NATION RIGHT REAR VENT ILLUMINATION RIGHT STEERING WHEEL MODULE RIGHT TURN SIGNAL IND RIGHT VANITY MIRROR RL_CV_NEG RL_CV_POS RLY CTRL RR DOOR LH - RR DOOR RH - RR HGT_GND RR HGT_SIG RR ON/OFF LED RR_CV_NEG RR_CV_POS RWD FWD SAFETY BELT WARNING IND SDARS TUNER MODULE SEAT BELT WARNING IND SEAT FEED LH SEAT FEED RH SEATS SYSTEM SEATS, MEMORY, SUPPLEMENTAL RESTRAINTS SYSTEMS SELF- LEVELING SUSPENSION COMPRESSOR SEN GND 3 SEN GND 4 SEN GND 6 SENS GND SH FEED RH SHIFTLOCK - SIGNAL GND SLS COMPRESSOR SNS GRD SOUND SYSTEMS SOUNDER- SPEED CONTROL IND SPEED OUT SPK CENTER+ SPORT DISPLAY MANUAL ILLUMI- NATION SRS SIGNAL SRS WARNING IND ST RLY STANDARD IND START UP STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STD HGH_LED STEERING COLUMN LOCKING MODULE STEERING COLUMN MEMORY CIRCUIT SUB WOOFER MODULE SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW 4 SW 5 TELEPHONE MODULE TELL TALE IND TEMPE- RATURE BLEND VENT ILLUMI- NATION TEMPERATURE BLEND VENT ILLUMINATION THROTTLE POWER TIRE PRESSURE MONITORING RECEIVER TMC RECEIVER TOUCH SCREEN DISPLAY TRAILER PICK-UP TURN, HAZ TV TUNER MODULE UHEGO A GND UHEGO A HTR UHEGO A SIG UHEGO B GND UHEGO B HTR UHEGO B SIG VICS RECEIVER VIDEO COMP OUT VIDEO COMP OUTPUT VIDEO GND VISCOUS FAN VVT A VVT B W/ COMPANION, W/ TPMS W/ COMPANION, W/O TPMS W/ INFRARED W/ RADIO REMOTE W/ REAR AIR CONDITIONING W/O REAR AIR CONDITIONING W/ REAR SEAT ENTERTAINMENT W/O COMPANION, W/ TPMS WAKE UP OUT WAKE-UP WATERFALL LAMPS LED WATERFALL LIGHTING LED WIPER/WASHER SYSTEM WSFR DIAG K
