Wiring Diagrams for Land Rover Discovery L462 (2016-2020)

Active bodyworks circuit

Automatic a/c circuit Cool box circuit Rear a/c circuit

Anti lock brake circuit Terrain response circuit

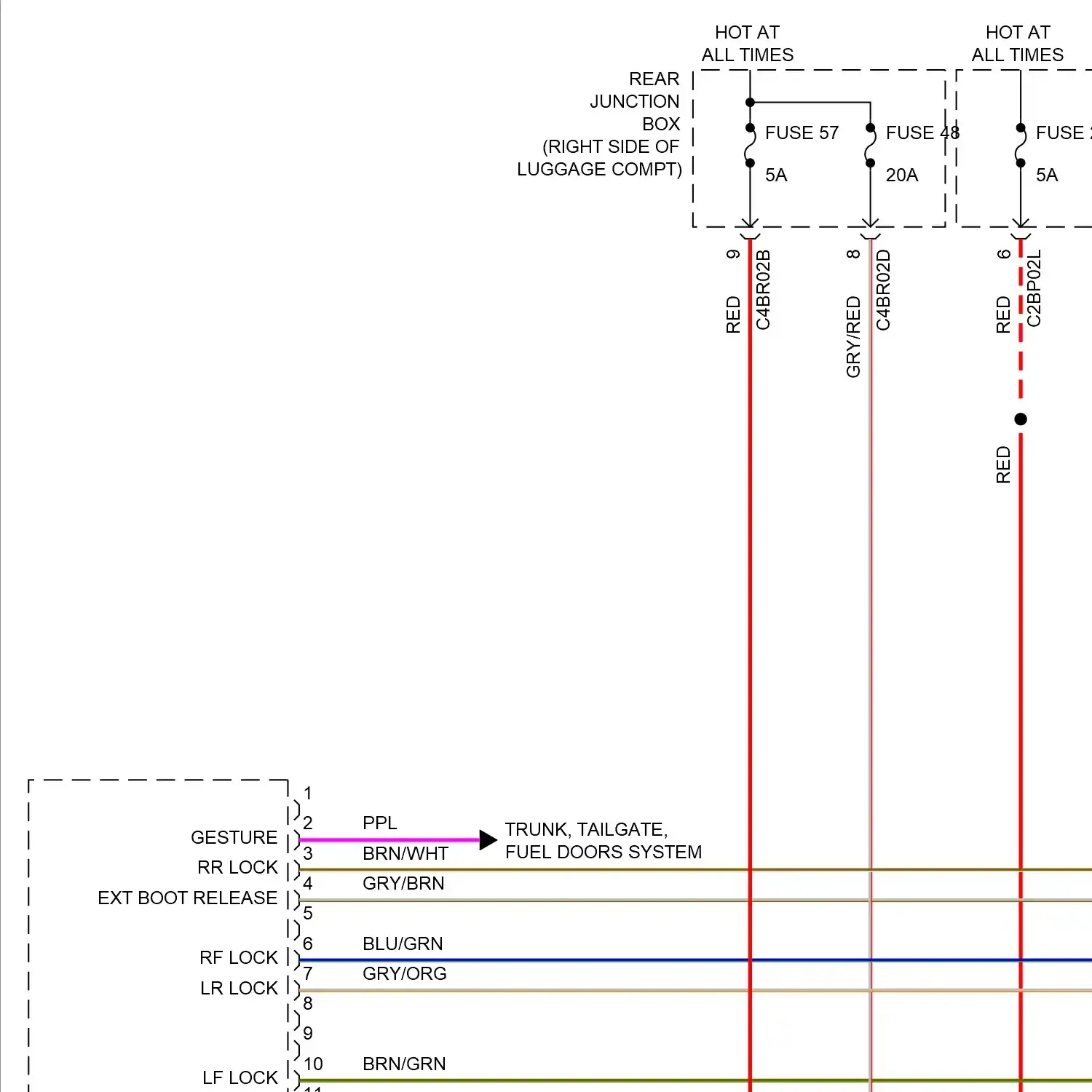

Anti-theft circuit, active Anti-theft circuit, passive

Body control modules circuit

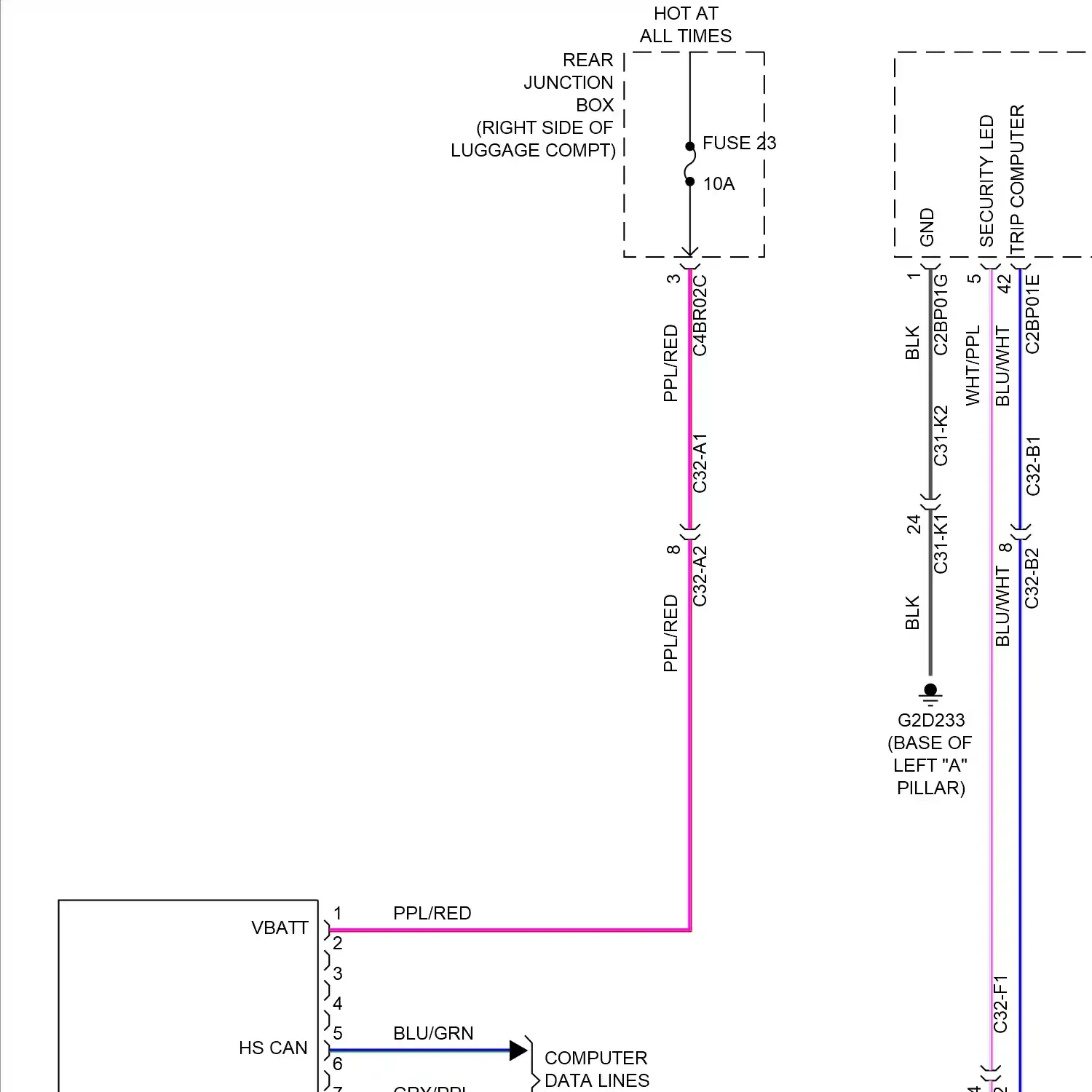

Computer data lines circuit

Cooling fan circuit

3.0l sc, cruise control circuit

3.0l turbo diesel, cruise control circuit

Heated mirrors circuit Heated windshield circuit Rear defogger circuit

Electronic power steering circuit Power steering column circuit

Electronic suspension circuit

Wiring diagram engine performance 3.0l sc

Wiring diagram engine performance 3.0l turbo diesel

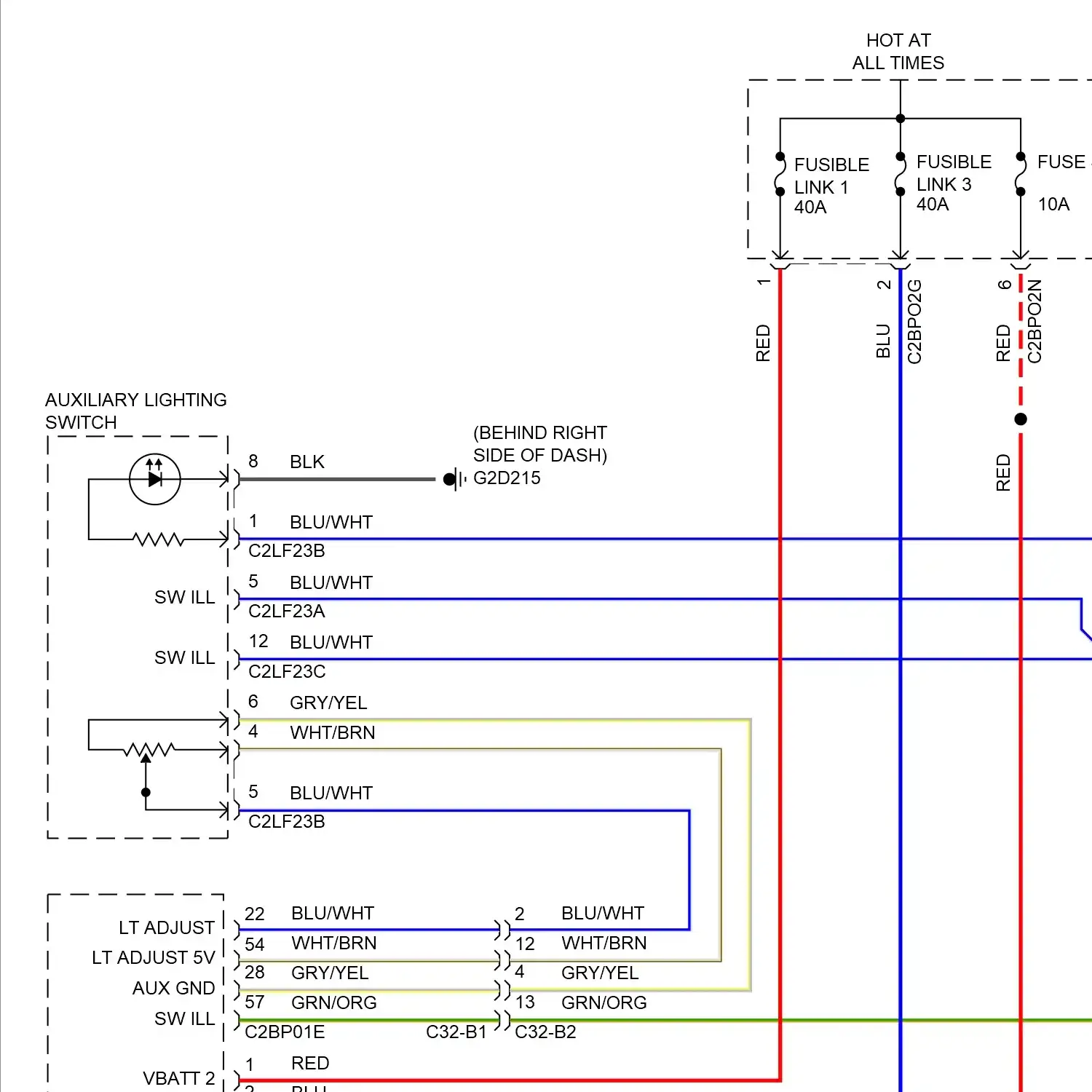

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit

Horn circuit

Head-up display circuit Instrument cluster circuit

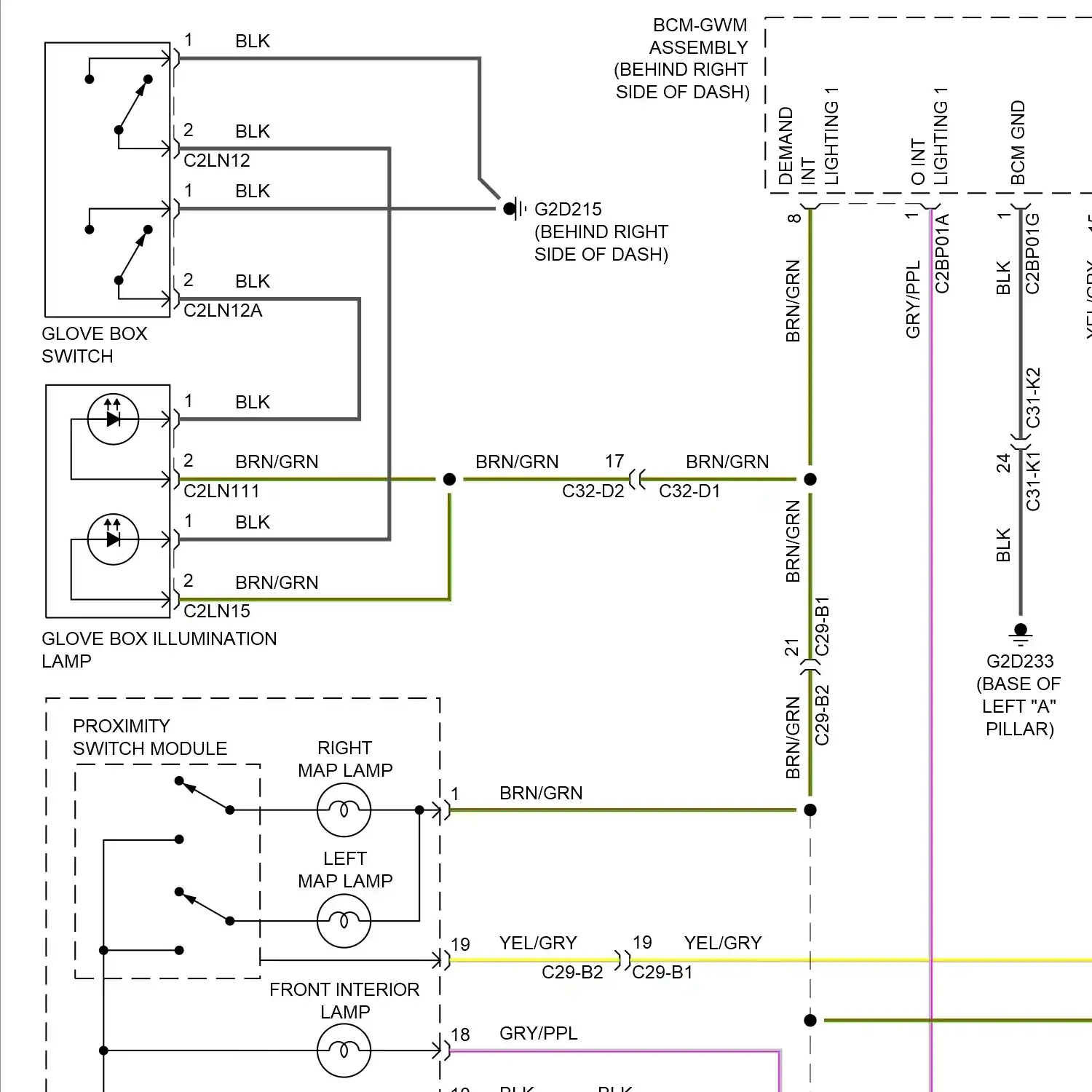

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit, 10-way Driver"s memory seat circuit, 16-way Driver"s memory seat circuit, 8-way Memory mirrors circuit Passenger"s memory seat circuit, 10-way Passenger"s memory seat circuit, 16-way Passenger"s memory seat circuit, 8-way Steering column memory circuit

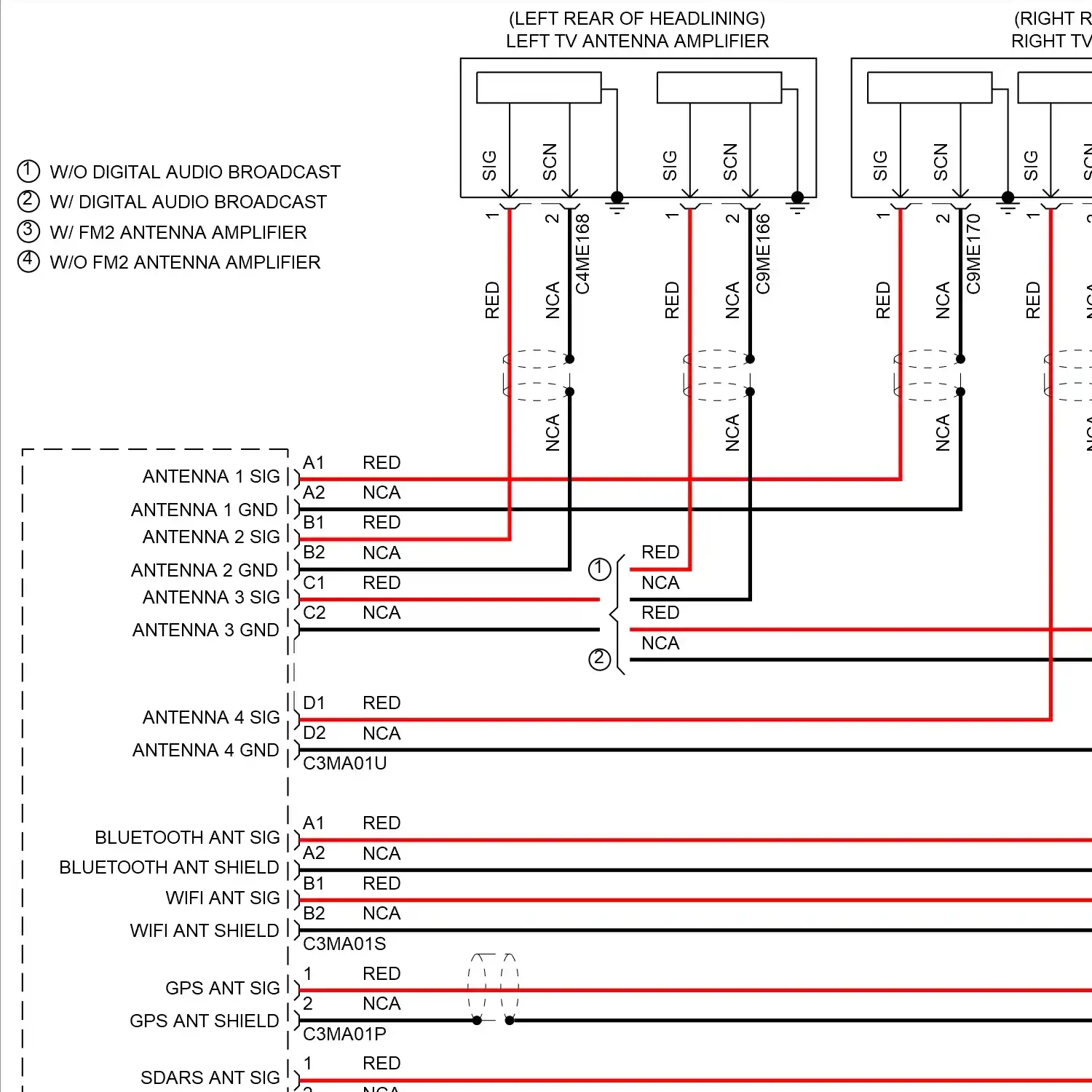

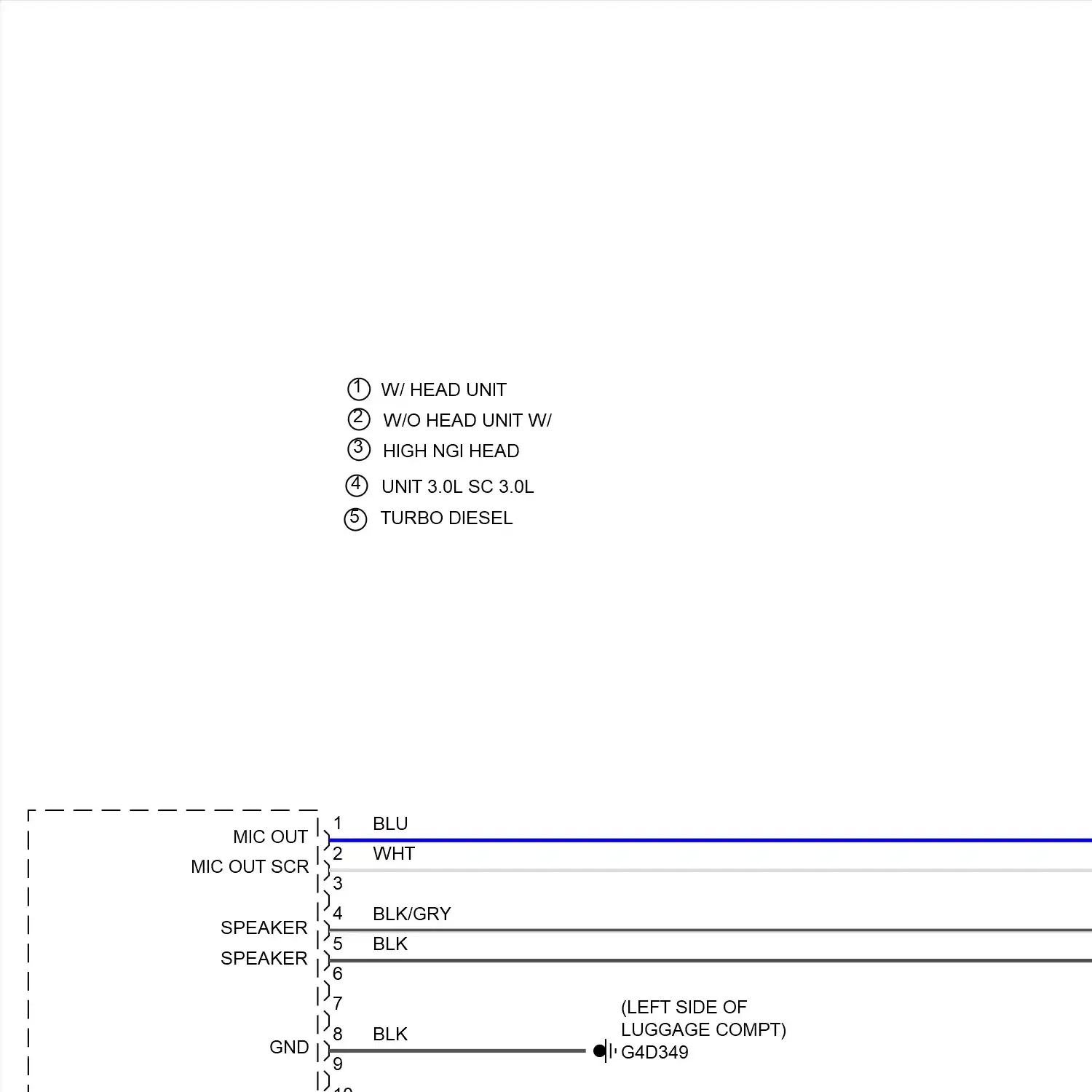

Blind spot monitoring circuit Electronic toll collection circuit Multi camera circuit Navigation circuit, w/ control touch & amplifier Navigation circuit, w/ control touch pro Navigation circuit, w/ control touch & w/o amplifier Parking assistant circuit Rear view camera circuit, w/ control touch Rear view camera circuit, w/ control touch pro Telematics circuit Vehicle proximity notification circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Driver power seat circuit Driver seat lumbar/bolster circuit Front climate control seats circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Passenger seat lumbar/bolster circuit Rear climate control seats circuit Rear heated seats circuit, 5-seat Rear heated seats circuit, 7-seat

Power top/sunroof circuit

Power windows circuit

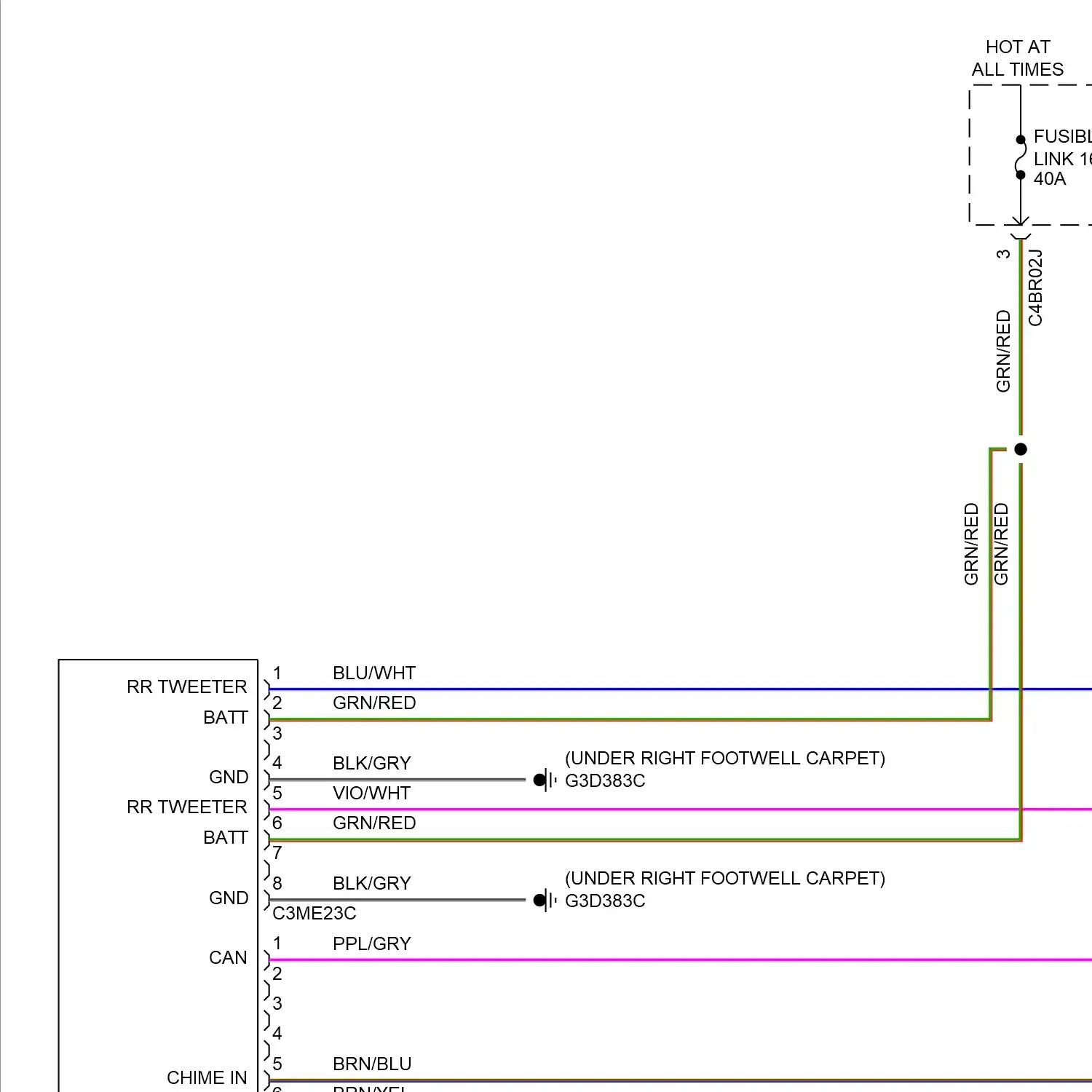

Radio circuit, w/ control touch & amplifier Radio circuit, w/ control touch pro Radio circuit, w/ control touch & w/o amplifier Rear seat entertainment circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear differential lock circuit

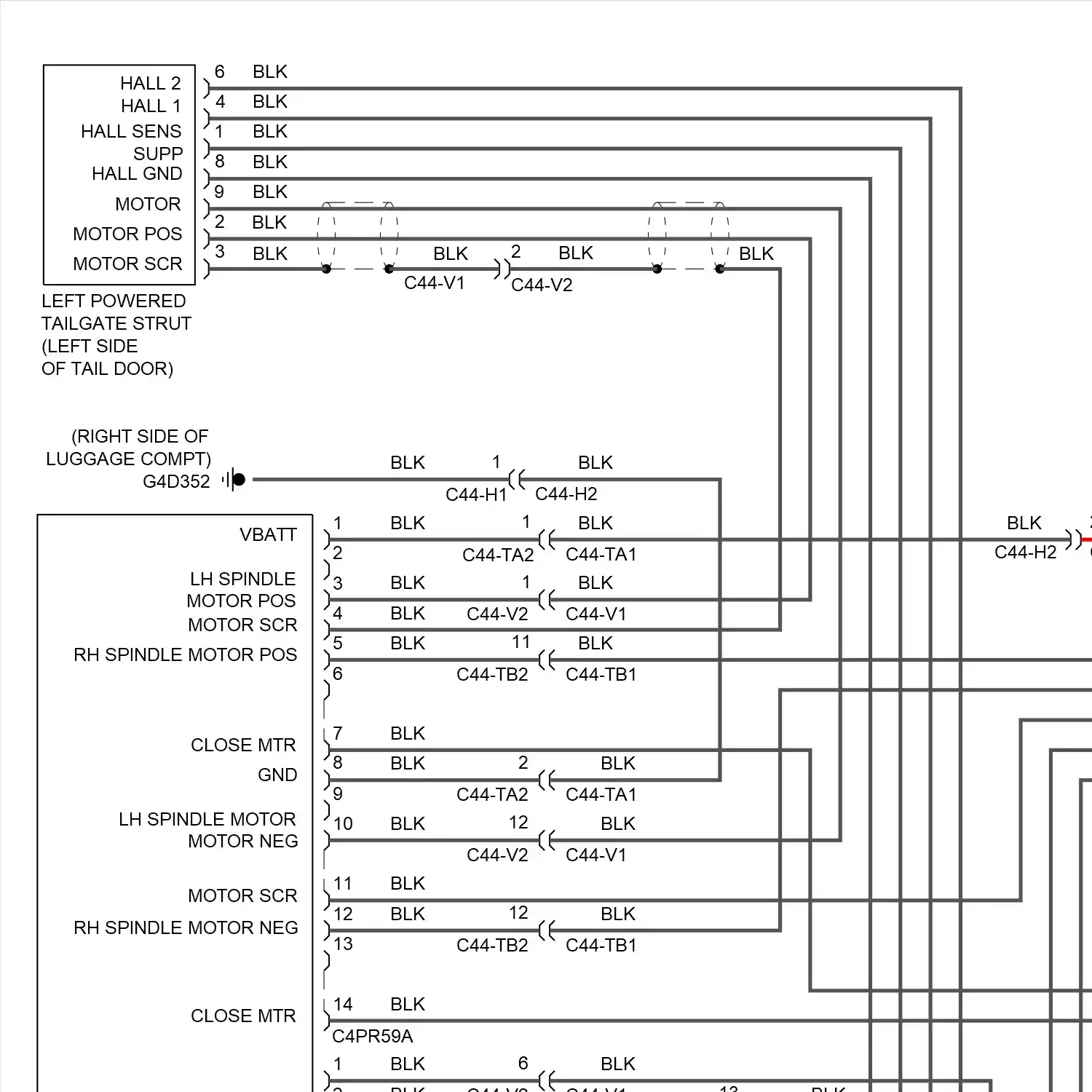

Power tailgate circuit Tailgate & fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit Jet heater circuit Power wash circuit Rear wiper/washer circuit

AUDIO AMPLIFIER MODULE BATTERY BACKUP SOUNDER BATTERY JUNCTION BOX BATTERY MONITORING SYSTEM MODULE C LOCK CHILD LOCK FB D LOCK D LOCK/MIRR FOLD IN FUEL FLAP LOCK GND RESISTOR HORN CTRL HORN GND HORN SW IGN COIL 1 IGN COIL 2 IGN COIL 3 IGN COIL 4 IGN COIL 5 IGN COIL 6 IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 INSTRUMENT CLUSTER, ANTI-LOCK BRAKES SYSTEMS LF LOCK SW LOCK FB LR LOCK SW MIRR FOLD IN/D LOCK O ELECTRIC STEERING COLUMN LOCK O FUEL FLAP LOCK O HORN CTRL RESISTOR A RESISTOR B RF LOCK SW RR LOCK SW STEERING COLUMN LOCK MODULE W/ BATTERY MONITORING SYSTEM MODULE W/O BATTERY MONITORING SYSTEM MODULE

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE ACTIVE ENGINE MOUNTING SOLENOID ACTIVE GRILLE AIR SHUTTER MOTOR ADJUST MOTOR AUXILIARY CLIMATE CONTROL FACE/FEET MOTOR AUXILIARY CLIMATE CONTROL TEMPERATURE BLEND MOTOR BACKREST RECLINE SEAT MOTOR BYPASS VALVE ACTUATOR COOL AIR BYPASS MOTOR COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 DEMIST DISTRIBUTION MOTOR DEPLOYABLE LUGGAGE COMPARTMENT FLOOR SPINDLE ACTUATOR DEPLOYABLE TOWBAR MOTOR DRIVER CENTRAL DOOR LOCKING MOTOR DRIVER DOOR CENTRAL LOCKING MOTOR DRIVER FORWARD/ REARWARD SEAT MOTOR DRIVER SEAT FORWARD REARWARD MOTOR DRIVER SEAT HEIGHT MOTOR DRIVER SEAT RECLINE MOTOR DRIVER SEAT TILT MOTOR DRIVER TILT SEAT MOTOR DRIVER WINDOW MOTOR ENGINE CONTROLS SYSTEM ENGINE JUNCTION BOX ENGINE RUN RLY CTRL FUEL FLAP RELEASE MOTOR HEAD RESTRAINT MOTOR HEIGHT MOTOR DOWN HEIGHT MOTOR SNS HEIGHT MOTOR UP HEIGHT/SLIDE SNS GND TILT/SQUAB GND TILT MOTOR SNS LEFT AUXILIARY TEMPERATURE BLEND MOTOR LEFT DYNAMIC LEVELING MOTOR LEFT EGR ELECTRIC ACTUATOR LEFT ELECTRIC PARK BRAKE ACTUATOR LEFT FRONT FACE/FEET MOTOR LEFT FRONT TEMPERATURE BLEND MOTOR LEFT HEAD RESTRAINT MOTOR LEFT REAR CENTRAL DOOR LOCKING MOTOR LEFT REAR RECLINE BACKREST SEAT MOTOR LEFT REAR TEMPERATURE BLEND MOTOR LEFT REAR WINDOW MOTOR LEFT THIRD ROW BACKREST MOTOR LEFT THIRD ROW HEAD RESTRAINT MOTOR LEFT THIRD ROW SEAT LATCH RELEASE MOTOR LF LATCH MOTOR NEG LF LATCH MOTOR POS LH SPINDLE MOTOR MOTOR NEG LH SPINDLE MOTOR POS MOTOR SCR LR LATCH MOTOR NEG LR LATCH MOTOR POS MOTOR NEG MOTOR POS MOTOR PWR MOTOR SCR MOTOR SHIELD O HDLP MOTOR HCM PASSENGER BACKREST RECLINE SEAT MOTOR PASSENGER DOOR CENTRAL LOCKING MOTOR PASSENGER FORWARD/ REARWARD SEAT MOTOR PASSENGER SEAT BACKREST RECLINE MOTOR PASSENGER SEAT FORWARD REARWARD MOTOR PASSENGER SEAT HEIGHT MOTOR PASSENGER SEAT TILT MOTOR PASSENGER TILT SEAT MOTOR PASSENGER WINDOW MOTOR REAR DIFFERENTIAL ACTUATOR REAR WINDOW WIPER MOTOR RECIRCULATION MOTOR REMOTE FUNCTION ACTUATOR RF LATCH MOTOR NEG RF LATCH MOTOR POS RH SPINDLE MOTOR NEG RH SPINDLE MOTOR POS RIGHT AUXILIARY TEMPERATURE BLEND MOTOR RIGHT DYNAMIC LEVELING MOTOR RIGHT EGR ELECTRIC ACTUATOR RIGHT ELECTRIC PARK BRAKE ACTUATOR RIGHT FRONT FACE/FEET MOTOR RIGHT FRONT TEMPERATURE BLEND MOTOR RIGHT HEAD RESTRAINT MOTOR RIGHT REAR CENTRAL DOOR LOCKING MOTOR RIGHT REAR DOOR CENTRAL LOCKING MOTOR RIGHT REAR RECLINE BACKREST SEAT MOTOR RIGHT REAR TEMPERATURE BLEND MOTOR RIGHT REAR WINDOW MOTOR RIGHT THIRD ROW BACKREST MOTOR RIGHT THIRD ROW HEAD RESTRAINT MOTOR RIGHT THIRD ROW SEAT LATCH RELEASE MOTOR RR LATCH MOTOR NEG RR LATCH MOTOR POS SLIDE MOTOR RWD SLIDE MOTOR SNS SLIDE MOTOR SNS HEIGHT MOTOR SNS SQUAB MOTOR INCLINE SQUAB MOTOR RECLINE SQUAB MOTOR SNS SQUAB SNS GND TILT MOTOR SNS STARTER MOTOR STARTER MOTOR SOLENOID TAILGATE CLOSING MOTOR TILT MOTOR TILT MOTOR DOWN TILT MOTOR UP TILT/SQUAB GND TILT MOTOR SNS TOP OF ENGINE) UPPER GLOVE BOX LATCH MOTOR UPPER TAILGATE CDL MOTOR WINDSHIELD WIPER MOTOR

AM FM ANTENNA SCR AM/FM ANTENNA 1 AMPLIFIER ANTENNA 1 GND ANTENNA 2 SIG ANTENNA 1 SIG ANTENNA 2 GND ANTENNA 3 SIG ANTENNA 3 GND ANTENNA 4 GND ANTENNA 4 SIG ANTENNA NEG CENTER LUGGAGE COMPARTMENT LF ANTENNA DAB ANTENNA DAB ANTENNA AMPLIFIER DIGITAL RADIO COMBINER ANTENNA EXTERNAL REAR LF ANTENNA FM 2 SHIELD AM FM ANTENNA SIG FRONT BLUETOOTH ANTENNA FRONT CABIN LF ANTENNA FRONT WIFI ANTENNA GSM 2 ANTENNA REAR BLUETOOTH ANTENNA REAR CENTER CONSOLE LF ANTENNA REAR WIFI ANTENNA RIGHT LUGGAGE COMPARTMENT LF ANTENNA RIGHT TV ANTENNA AMPLIFIER SDARS ANTENNA THIRD ROW LF ANTENNA TV, DIGITAL RADIO BAND 3 ANTENNA VICS ANTENNA

FRONT PROXIMITY CAMERA LEFT MIRROR PROXIMITY CAMERA REAR VIEW CAMERA RIGHT MIRROR PROXIMITY CAMERA

DIAGNOSTIC CONNECTOR LEFT REAR FLOOR CONSOLE USB CHARGING SOCKET LEFT THIRD ROW USB CHARGING SOCKET O ACC SOCKET 1 CTRL O ACC SOCKET 2 CTRL RIGHT THIRD ROW USB CHARGING SOCKET ROAD PRICING CONNECTOR

ABS CONTROL MODULE AUTOMATIC TEMPERATURE CONTROL MODULE BLOWER CONTROL MODULE CAMERA CONTROL MODULE DEF HEATING CONTROL MODULE DEPLOYABLE TOWBAR CONTROL MODULE HEAD-UP DISPLAY CONTROL MODULE IMAGE PROCESSING CONTROL MODULE INTEGRATED SUSPENSION CONTROL MODULE LEFT GLOW PLUG CONTROL MODULE LEFT REAR SEAT CLIMATE CONTROL MODULE LOWER TAILGATE CONTROL MODULE PARKING AID CONTROL MODULE POWER STEERING CONTROL MODULE POWERTRAIN CONTROL MODULE REAR CLIMATE CONTROL MODULE REAR DIFFERENTIAL CONTROL MODULE RIGHT GLOW PLUG CONTROL MODULE RIGHT REAR SEAT CLIMATE CONTROL MODULE ROOF OPENING PANEL CONTROL MODULE SPEED CONTROL MODULE STEERING WHEEL HEATER CONTROL MODULE TELEMATIC CONTROL MODULE TRAILER BRAKE CONTROL MODULE TRANSFER CASE CONTROL MODULE TRANSMISSION CONTROL MODULE UPPER TAILGATE CONTROL MODULE

AUDIO HEAD UNIT ECU OUTPUT FUEL TANK UNIT IMMOBILIZER ANTENNA UNIT NLI HEAD UNIT LEVEL B NLI HEAD UNIT LEVEL C W/ HEAD UNIT W/O HEAD UNIT W/ HIGH NGI HEAD UNIT 3.0L SC 3.0L TURBO DIESEL W/ HIGH NGI HEAD UNIT W/O HIGH NGI HEAD UNIT W/ TELEMATICS W/O TELEMATICS W/O HIGH NGI HEAD UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 39 FUSE 40 FUSE 41 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 57 FUSE 58 FUSE 59 FUSE 60 STARTER MEGA FUSE

BLOCK HEATER HARNESS TO AC MAINS SUPPLY DEF PRESSURE LINE HEATER DRIVER BACKREST HEATER ELEMENT DRIVER CUSHION HEATER ELEMENT ELECTRIC BOOSTER HEATER FUEL FIRED BOOSTER HEATER HEATER BLOCK LEFT REAR BACKREST HEATER ELEMENT LEFT REAR CUSHION HEATER ELEMENT LEFT WINDSHIELD HEATER MIRR HEATING MIRROR HEATER PASSENGER BACKREST HEATER ELEMENT PASSENGER CUSHION HEATER ELEMENT RIGHT REAR BACKREST HEATER ELEMENT RIGHT REAR CUSHION HEATER ELEMENT RIGHT WINDSHIELD HEATER STEERING WHEEL HEATER

PASSENGER AIR BAG DISABLE INDICATOR

BACKLIGHT SW BCALL BTN BACKLIGHT DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS DRIVER APPROACH LAMP DRIVER PUDDLE LAMP ECALL BTN BACKLIGHT FRONT INTERIOR LAMP GLOVE BOX ILLUMINATION LAMP HIGH MOUNTED STOP LAMP I BACKLIGHT ADJUST INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS LEFT FRONT FOG LAMP LEFT FRONT FOOTWELL LAMP LEFT LAMP LEFT MAP LAMP LEFT REAR FOG LAMP LEFT REAR FOG LAMP FOG LED ARRAY LEFT REAR FOOTWELL LAMP LEFT REAR INTERIOR LAMP LEFT REAR PUDDLE LAMP LEFT UPPER TAILGATE LAMP LH DI STOP LAMP LR POS LAMP LUGGAGE COMPARTMENT LAMP O FOG LIGHTS FRONT CTRL PAD LAMP 1 PASSENGER APPROACH LAMP PASSENGER PUDDLE LAMP REAR INTERIOR LAMP REPEATER LAMP REV LIGHTS RH DI STOP LAMP RH STOP LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOTWELL LAMP RIGHT LAMP RIGHT LUGGAGE COMPARTMENT LAMP RIGHT MAP LAMP RIGHT REAR FOG LAMP RIGHT REAR FOG LAMP FOG LED ARRAY RIGHT REAR FOOTWELL LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR PUDDLE LAMP RIGHT UPPER TAILGATE LAMP SIDE REPEATER LAMP STOP LAMP

COOLANT PUMP DRIVER FUEL PUMP MODULE DRIVER LUMBAR PUMP FRONT/REAR WINDOW WASHER PUMP FUEL PUMP FUEL PUMP CTRL FUEL PUMP DRIVER MODULE HIGH PRESSURE FUEL PUMP 1 HIGH PRESSURE FUEL PUMP 2 I FUEL LIFT PUMP REQUEST I FUEL SENS PUMP MASSAGE LUMBAR PUMP O FUEL PUMP CTRL PASSENGER LUMBAR PUMP POWER WASH PUMP PPL LUMBAR PUMP PUMP GND PUMP HSG GND PUMP SUPPLY PUMP U PUMP V PUMP W SUPERCHARGE COOLANT PUMP SUPLY PUMP

ACCESSORY SOCKET RELAY AIR SUSPENSION CUT OFF RELAY AIR SUSPENSION RELAY BLOWER RELAY CHARGE AIR COOLANT PUMP RELAY CIGAR LIGHTER RELAY CJB IGNITION RELAY COMFORT RELAY 1 COMFORT RELAY 2 DEF TANK CONTROL MODULES RELAY ENGINE RUN RELAY ESCL RELAY CTRL EXTENDED IGNITION RELAY FRONT FOG LAMP RELAY FRONT WASH PUMP RELAY FUEL PUMP RELAY HORN RELAY HOT W/ CJB IGNITION RELAY ENERGIZED HOT W/ COMFORT RELAY 1 ENERGIZED HOT W/ COMFORT RELAY 2 ENERGIZED HOT W/ ENGINE RUN RELAY ENERGIZED HOT W/ EXTENDED IGNITION RELAY ENERGIZED HOT W/ IGNITION RELAY ENERGIZED HOT W/ QUIESCENT CURRENT RELAY ENERGIZED HOT W/ VOLTAGE QUALITY MODULE RELAY ENERGIZED IGNITION RELAY LEFT FRONT HEATED SCREEN RELAY LEFT HEADLAMP WASHER PUMP RELAY PTC 1 RELAY PTC 2 RELAY QUIESCENT CURRENT RELAY REAR BLOWER RELAY REAR HEATED SCREEN RELAY REAR SEAT RELAY REAR WASH PUMP RELAY REAR WIPER RELAY RELAY ENERGIZED RIGHT FRONT HEATED SCREEN RELAY RIGHT HEADLAMP WASHER PUMP RELAY SLOW-FAST WIPER RELAY STARTER PINION RELAY TRANSFER CASE RELAY VOLTAGE QUALITY MODULE RELAY WIPER ON/ OFF RELAY

ACCELERATOR PEDAL POSITION SENSOR AIR CONDITIONING PRESSURE SENSOR AIR PRESSURE SENSOR AMBIENT AIR TEMPERATURE SENSOR BRAKE FLUID LEVEL SENSOR BRAKE VACUUM SENSOR CHARGE AIR TEMPERATURE SENSOR CRANKCASE PRESSURE SENSOR CYLINDER HEAD TEMPERATURE SENSOR DIFFERENTIAL OIL TEMPERATURE SENSOR DIFFERENTIAL PRESSURE SENSOR DOWNSTREAM CATALYTIC CONVERTER TEMPERATURE SENSOR DOWNSTREAM SCR NOX SENSOR DOWNSTREAM SCR SOOT SENSOR DPF OUTLET TEMPERATURE SENSOR DRIVER FORWARD/ REARWARD SEAT MOTOR HALL EFFECT SENSOR DRIVER SEAT POSITION SENSOR EGR INLET TURBINE TEMPERATURE SENSOR EGR OUTLET TEMPERATURE SENSOR FIXED TURBOCHARGE OUTLET TEMPERATURE SENSOR FRONT EVAPORATOR TEMPERATURE SENSOR FRONT SUNLOAD SENSOR FUEL RAIL PRESSURE SENSOR FUEL TEMPERATURE SENSOR GENERAL PROXIMITY SENSOR MODULE HALL EFFECT SENSOR HALL SENSOR 1 HALL SENSOR 2 HEAD RESTRAINT MOTOR HALL EFFECT SENSOR HUMIDITY SENSOR IN-VEHICLE TEMPERATURE SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT DOOR IMPACT PRESSURE SENSOR LEFT FRONT FACE DUCT AIR TEMPERATURE SENSOR LEFT FRONT FOOT DUCT AIR TEMPERATURE SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT PARK ASSIST SENSOR LEFT FRONT SIDE IMPACT SENSOR LEFT FRONT TIRE SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT MID CATALYST HEATED OXYGEN SENSOR LEFT POST CATALYST HEATED OXYGEN SENSOR LEFT PRE CATALYST HEATED OXYGEN SENSOR LEFT REAR FACE DUCT AIR TEMPERATURE SENSOR LEFT REAR FOOT DUCT AIR TEMPERATURE SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR PARK ASSIST SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR TIRE SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE FRONT IMPACT SENSOR LEFT UPPER ANTI TRAP SENSOR LOW PRESSURE EGR COOLER OUTLET TEMPERATURE SENSOR LOW PRESSURE FUEL SENSOR LOWER HANDS FREE TAILGATE SENSOR OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE OCCUPANT DETECTION SENSOR OIL LEVEL, TEMPERATURE SENSOR OIL TEMPERATURE, LEVEL SENSOR PASSENGER FORWARD/ REARWARD SEAT MOTOR HALL EFFECT SENSOR PASSENGER SEAT POSITION SENSOR POLLUTION SENSOR PRE-CATALYTIC CONVERTER TEMPERATURE SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RAIN/ LIGHT SENSOR RAIN/LIGHT SENSOR REAR EVAPORATOR TEMPERATURE SENSOR RIGHT FRONT DOOR IMPACT PRESSURE SENSOR RIGHT FRONT FACE DUCT AIR TEMPERATURE SENSOR RIGHT FRONT FOOT DUCT AIR TEMPERATURE SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT PARK ASSIST SENSOR RIGHT FRONT SIDE IMPACT SENSOR RIGHT FRONT TIRE SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT MID CATALYST HEATED OXYGEN SENSOR RIGHT POST CATALYST HEATED OXYGEN SENSOR RIGHT PRE CATALYST HEATED OXYGEN SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR FACE DUCT AIR TEMPERATURE SENSOR RIGHT REAR FOOT DUCT AIR TEMPERATURE SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR PARK ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR TIRE SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE FRONT IMPACT SENSOR RIGHT UPPER ANTI TRAP SENSOR SEAT BELT TENSION SENSOR SELECTOR POSITION SENSOR SENSOR RTN SPARE TIRE SENSOR TEMPERATURE COMPRESSOR SENSOR TILT SENSOR TORQUE SENSOR TURBINE INTAKE VALVE POSITION SENSOR UPPER HANDS FREE TAILGATE SENSOR UPSTREAM SCR NOX SENSOR WASHER FLUID LEVEL SENSOR WATER IN-FUEL SENSOR

DEPLOYABLE TOWBAR SPEAKER INSTRUMENT PANEL MID-RANGE SPEAKER INSTRUMENT PANEL TWEETER SPEAKER LEFT FRONT DOOR BASS SPEAKER LEFT FRONT DOOR MID RANGE SPEAKER LEFT MID RANGE LUGGAGE COMPARTMENT SPEAKER LEFT REAR DOOR BASS SPEAKER RIGHT FRONT DOOR BASS SPEAKER RIGHT FRONT DOOR MID RANGE SPEAKER RIGHT MID RANGE LUGGAGE COMPARTMENT SPEAKER RIGHT REAR DOOR BASS SPEAKER SUBWOOFER SPEAKER TELEMATICS SPEAKER

AJAR SWITCH ALL REAR SEATS FOLD FLAT SWITCH AUTOMATIC TRANSMISSION SWITCH AUXILIARY LIGHTING SWITCH BRAKE DIAGNOSTIC SWITCH BRAKE PEDAL SWITCH CANCEL/ON SWITCH DEPLOYABLE LUGGAGE COMPARTMENT FLOOR SWITCH DEPLOYABLE TOWBAR SWITCH DISC EJECT SWITCH DOOR AJAR SWITCH DOWNSHIFT PADDLE SWITCH DRIVER BUCKLE SWITCH DRIVER CENTRAL DOOR LOCKING SWITCH ELECTRIC PARK BRAKE SWITCH FLOOR DEPLOYABLE LUGGAGE COMPARTMENT SWITCH GLOVE BOX LATCH SWITCH GLOVE BOX SWITCH HAZARD WARNING SWITCH HAZARD WARNING SWITCH DISC EJECT SWITCH HOOD SWITCH HORN SWITCH HTR SWITCH I WASHER FLUID LEVEL SWITCH I WIPER FRONT SLOW SWITCH I WIPER PARK FRONT SWITCH I WIPER PARK REAR SWITCH ICP ISOLATION SWITCH ISOLATOR SWITCH LEFT INBOARD THIRD ROW BUCKLE SWITCH LEFT REAR BUCKLE SWITCH LEFT REAR DOOR LOCKING SWITCH LEFT REAR SEAT HEAT SWITCH LEFT REAR WINDOW SWITCH LICENSE PLATE LAMP, TAILDOOR SWITCH LICENSE PLATE, TAIL DOOR SWITCH LOW COOLANT SWITCH MODE SWITCH OIL PRESSURE SWITCH PASSENGER BUCKLE SWITCH PASSENGER CENTRAL DOOR LOCKING SWITCH PASSENGER DOOR WINDOW SWITCH PHONE END SWITCH PHONE SEND SWITCH PROXIMITY SWITCH MODULE REAR ACCESS HEIGHT SWITCH REAR CENTER BUCKLE SWITCH REAR WIPER PARK SWITCH RELEASE EXT SWITCH RIGHT INBOARD THIRD ROW BUCKLE SWITCH RIGHT REAR BUCKLE SWITCH RIGHT REAR DOOR LOCKING SWITCH RIGHT REAR SEAT HEAT SWITCH RIGHT REAR WINDOW SWITCH SEAT POSITION SWITCH SEAT RELEASE SWITCH SEEK DOWN SWITCH SEEK UP SWITCH SET SWITCH START/STOP SWITCH STEERING WHEEL HEATER SWITCH STOP LAMP SWITCH STOP START SWITCH STOP/START SWITCH SWITCH 1 SWITCH 2 SWITCH ILL SWITCH ILLUM. TAIL DOOR RELEASE SWITCH TAIL DOOR SWITCH, LICENSE PLATE LAMP TAILGATE GLOBAL CLOSE SWITCH UPSHIFT PADDLE SWITCH VOLUME SWITCH

CHANGEOVER VALVE CHARGE AIR SOLENOID EGR COOLER BYPASS VALVE SOLENOID FRONT CROSS LINK VALVE FUEL PRESSURE CONTROL VALVE FUEL VOLUME CONTROL VALVE LEFT FRONT CORNER VALVE LEFT REAR CORNER VALVE MAGNETIC VALVE MANIFOLD TUNING VALVE MASSAGE MASTER SOLENOID OIL PUMP SOLENOID PURGE CONTROL VALVE REAR CROSS LINK VALVE REAR VALVE BLOCK REFRIGERANT SOLENOID VALVE RESERVOIR VALVE RIGHT FRONT CORNER VALVE RIGHT REAR CORNER VALVE RR MAG VALVE SLS EXHAUST VALVE TURBINE SHUT-OFF VALVE SOLENOID VALVE GND VALVE SPLY VALVE SUPPLY VARIABLE COOLANT PUMP SOLENOID

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/PPL WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/PPL WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE BSM ORANGE BSM ORANGE WARNING LED FUSIBLE WIRE LINK GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/PPL WIRE GRN/RED WIRE GRN/WHT WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/PPL WIRE GRY/RED WIRE GRY/YEL WIRE LIGHTING BLUE LIGHTING RED WIRE NCA WIRE O MOOD LIGHTING BLUE O MOOD LIGHTING RED WIRE ORG/ WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/YEL WIRE PNK FXRY BP WIRE PNK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/ORG WIRE PPL/RED WIRE PPL/RED) GRY/RED WIRE PPL/WHT WIRE PPL/YEL WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/WHT WIRE RED/YEL WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/PPL WIRE WHT/RED WIRE YEL WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/PPL WIRE YEL/RED WIRE

1 BR LEFT - 2 BR LEFT - 2 BR RIGHT - 2 WAY 2 WAY LUMBAR 2.0 DATA NEG 2.0 DATA POS 3.0L SC 3.0L TURBO DIESEL 3.0L TURBO DIESEL 3.0L TURBO DIESEL 3.0L SC 5 SEAT 7 SEAT 8 WAY 8-WAY 10-WAY 10 WAY 16 WAY 10-WAY 16-WAY 8-WAY 10-WAY 16-WAY 10-WAY 8-WAY 16-WAY 10-WAY 8-WAY W/ MEMORY W/O MEMORY 55 56 CO CAN H (BASE OF (OR ACT 1 + AEM 1 AIR BAG FIRED SIG AIR CONDITIONING AIR CONDITIONING SYSTEM AIR SUS AIR SUS CONT AIR TEMPERATURE AJAR SW ALERT LED AM FM SCN AM FM SIG AMP SHIELD AMP WAKE UP ANTI THEFT ALARM WARNING IND ANTI-THEFT SYSTEM APP 1 APP 2 APPROACH LIGHT APPROACH LT AQS SENS SIG ASPIRATOR DRIVE AUDIO LIN AUDIO VIDEO INPUT OUTPUT PANEL AUDIO-VIDEO INPUT/OUTPUT PANEL AUX GND AUX L + AUX R + AUX SHIELD AUXILIARY JUNCTION BOX B B FR BM FXRY BM B D FR BM FXRY BM B D FR BM FXRY BP B D FR BP FXRY BD B D LIN B-B-FR-BM B-D-FR-BM B-D-FR-BM FRXY BM B-D-FR-BP B-D-FR-BP FRXY BP BACKUP LAMPS CIRCUIT BAND 3 GND BAND 3 SIG BCALL ACTIVATED LED BCM GND BCM LIN BCM-GWM ASSEMBLY BEAM FLAP BLUETOOTH ANT SHIELD BLUETOOTH ANT SIG BO CAN H BO CAN HI BO CAN HI GWM BCM BO CAN L BO CAN LO BO CAN LO GWM BCM BO CAN TEMP HI BO CAN TEMP LO BO CAN TERM HI BO CAN TERM LO BOLSTER DEF BOLSTER INF BONNET AJAR SW BOO 1 BOO 2 BR SHIELD BRAKE DIAG SW BRAKE FLUID BRAKE SW BRK DIAG SW BRK FLUID BRK PAD BRK PAD WEAR BRK SW BRK SW SIG BSM BLIND BSM BLIND ALERT LED BSM BLIND STATUS LED BSM DOT BSM DOT SYSTEM BSM DOT SYSTEM ALERT LED BTN DIAGNOSTIC O/P BTN INPUT COMM BTS GND BTS VREF BUCK SW - CABLE JUNCTION STUD CAN H 3 CAN HI CAN L CAN L 3 CAN LO CCB CAN H CCB CAN L CCCIT B CCCOT B CENTER CONSOLE ILLUMINATION CENTER HEATED WASHER JET CENTER INSTRUMENT PANEL ILLUMINATION CENTER JUNCTION BOX CENTRAL JUNCTION BOX CH CAN HI GWM CH CAN LO GWM CHILD LK CHILD LK FEEDBACK CHILD LK GND CHIME IN+ CHIP ENABLE CHMSL PWR CLIMATE CONTROL ASSEMBLY CLOCK- SPRING CLOSE MTR + CO CAN H GWM CO CAN HI GWM CO CAN L CO CAN L GWM CO CAN LO GWM COLUMN ADJ EASY ENTRY SW COLUMN ADJ SWPACK COLUMN ADJ SWPACK GND COLUMN) COMP REL NEG COMP REL POS ISO REL POS COMP TEMP GND COMP TEMP SIG COMP V MON COMPRESSOR SOL- COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLANT LEVEL COOLING FAN COOLING FANS SYSTEM COOLING VISCOUS FAN CPS+ CRANK REQ CRANK REQUEST CRASH OUTPUT CRUISE CONTROL SYSTEM CUBBY BOX LED CUBBY BOX LED GND CURRENT RLY 1 OFF CURRENT RLY 1 ON CVBS GND CVBS SIG CVBS SIG SCR CVBS GND CVDS SCR DAB 3 OUT DAB 3 SCR DAB 3 SIG DAB L GND DAB L SCR DAB L SIG DAB OUT SCR DAB OUT SIG DABL/DAB 3 SIG SCRA DABL/DAB 3 GND DAB 3 SIG DATA 1 POS DATA 2 INV DC TO DC CONVERTER MODULE DEF INJECTOR DEF TANK MODULE DEFOGGER SYSTEM DI FEEDBACK DI LED ARRAY DIAG CAN H GWM DIAG CAN HI GWM DIAG CAN L GWM DIAG CAN LO GWM DIAG JAE CONN DIAGNOSTICS CONTROL DIGITAL DISC PLAYER DIP BEAM LH DIP BEAM RH DN GND DN ILLUM DOOR HANDLE SPLY DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOWN ILLUM DR AJAR SW DRB BACK BLOW SPEED DRIVER AIR BAG DRIVER ANCHOR PT DRIVER ANCHOR PT GND DRIVER ANCHOR SEAT BELT PRETENSIONER DRIVER DOOR DRIVER DOOR AMBIENCE LIGHTING LED DRIVER DOOR HANDLE DRIVER DOOR HANDLE AMBIENCE LIGHTING LED DRIVER DOOR LATCH ASSEMBLY DRIVER DOOR MODULE DRIVER DOOR POCKET AMBIENCE LIGHTING LED DRIVER LUMBAR SOLENOIDS DRIVER SB RETRACTOR GND DRIVER SB RETRACTOR PWR DRIVER SB SW DRIVER SEAT BACKREST CLIMATE ASSEMBLY DRIVER SEAT BELT PRETENSIONER DRIVER SEAT CUSHION CLIMATE ASSEMBLY DRIVER SEAT MEMORY SWITCHPACK DRIVER SEAT MODULE DRIVER SEAT SWITCHPACK DRIVER SIDE AIR BAG DRIVER SIDE DOOR MIRROR DRIVER WINDOW MIRROR SWITCHPACK DRV AJAR SW DRV BACK BLOW SPEED DRV BACK SENS SIG DRV BACK TED - DRV CUSH BLOW SPEED DRV CUSH SENS RTN DRV CUSH SENS SIG DRV CUSH TED - DRV DOOR AJAR SW DRV SEAT BLOW + DRV SEAT POS SENS PWR DSRC ON DSRC RF ECALL + BCALL BTN ECALL ACTIVATED LED ECFC 2 ECT A ECT B EDT 1 MTR - EDT 2 MTR LOC - EDT 2 MTR UNLK + EDT DEPLOY/STOW EGR A- EGR B+ EGR INTAKE THROTTLE EGR THROTTLE ELECTRIC THROTTLE ELECTROCHROMIC MIRROR CIRCUIT ELECTRONIC SUSPENSION SYSTEM EMS RLY ENS RLY ESCL GND ESCL PWR ESCL RLY CTRL ESD GROUND ETH OBD RX M ETH OBD RX P ETH OBD TX M ETH OBD TX P EVAP TEMP EVP A EVP B EX V NEG EX V POS EXT BOOT RELEASE SW EXT IGN EXT SW EXT TRUNK ANT NEG EXT TRUNK ANT POS EXTERIOR LAMPS CIRCUIT EXTERNAL WIFI EXTERNAL WIFI SCR F PMP + F SW BLIND CLOSE F SW BLIND OPEN F XV NEG F XV POS FAN CTRL FAN GND FERRITE CORE FLOOR CONSOLE TRAY ILLUMINATION FOLD ALL SEAT SW FOLD OUT/Y AXIS FOLD-IN FP CTRL FRONT BLOWER FRONT BLOWER RLY CTRL FRONT CABIN ANT NEG FRONT CABIN ANT POS FRONT CIGAR LIGHTER FRONT COOL BOX FRONT ELECTRIC COOLING FAN FRONT EVAP TEMP FRONT FOG LIGHT CTRL FRONT GND FRONT HCM SENS FRONT LVDS NEG FRONT LVDS POS FRONT OVERHEAD CONSOLE FRONT SENS PWR FRONT V POS FRT BLIND CLOSE FRT BLIND OPEN FRT HI NEG FRT HI POS FRT MID NEG FRT MID POS FRXY BM FRXY BP FUEL FLAP UNLOCK FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUSIBLE LINK 1 FUSIBLE LINK 2 FUSIBLE LINK 3 FUSIBLE LINK 5 FUSIBLE LINK 6 FUSIBLE LINK 7 FUSIBLE LINK 8 FUSIBLE LINK 9 FUSIBLE LINK 10 FUSIBLE LINK 12 FUSIBLE LINK 13 FUSIBLE LINK 15 FUSIBLE LINK 16 FUSIBLE LINK 17 FXRY-BM FXRY-BP G G BAT 1 PWR GND 1 G R ATS G R BPS G R CRS G R ENGTS G R FLPS G R GNDA 17 G R IMPS G R OCS G R RAILPS G R TVA G-R-ATS SENS GND 7 G-R-OTS GESTURE IP GLOW PLUG 1 GLOW PLUG 2 GLOW PLUG 3 GLOW PLUG 4 GLOW PLUG 5 GLOW PLUG 6 GND 7 GND A GND AUX SWITCHPACK GND B+ GND COLUMN ADJ SWITCHPACK GND FRONT GND ID SEL GND LEFT GND PPL PWM GND REAR GND RIGHT GND SCR SCR GND SCREEN GPS ANT SHIELD GPS ANT SIG GPS OUT GND GPS OUT SIG GPS SCN GPS SHIELD GPS SIG GPS SIGNAL SPLITTER GWM LIN 2 HALL 1 HALL 1 LHS HALL 2 HALL 2 HALL 1 HALL SENS SUPP HALL 2 LHS HALL GND HALL GND LHS HALL IN 1 HALL IN 2 HALL PWR HALL SENS 1 - HALL SENS 2 HALL SENS GND HALL SENS SPLY HALL SENS SUPP HALL GND HALL SENSE SPLY HALL SHIELD HALL SNS GND A HALL SNS GND C-D HALL SPLY LHS HALL SUPP HALL-V HAZARD SW HC POWER HDLP MTR HCM HE EJC OUTPUT HEAD-UP DISPLAY COOLING FAN HEAD-UP DISPLAY COOLING FAN MODULE HEADLIGHTS SYSTEM HEADREST DN HEADREST DOWN HEADREST MTR DOWN HEADREST MTR SNS HEADREST MTR UP HEADREST SNS HEADREST UP HEADREST/SLIDE GND HEATED REAR WINDOW ELEMENT HEIGHT DOWN HEIGHT MTR DN HEIGHT MTR DOWN HEIGHT MTR UP HEIGHT SNS + HEIGHT UP HI CURRENT GND HOME POS SW HORNS SYSTEM HOST DIAG HOT AT ALL TIMES HOT W/ HOUSING) HS CAN H LIN HS CAN HI HS CAN L GND HS CAN LO HS CAN+ HS CAN-H HS CAN-L I A APP 1 I A APP 2 I A ATS I A BPS I A BTS I A CACTS I A CBPP I A ENGTS I A FLPS I A FTS I A IMPS I A RADWTS I A RAILPS I BRAKE I BRAKE PAD WEAR I BRK DIAG SW I BRK FLUID LEVEL SW I BRK SW I COLUMN ADJ EASY ENTRY EXIT SW I COLUMN ADJ HALL COUNT TELESCOPE I COLUMN ADJ HALL COUNT TILT I COLUMN ADJ SWITCHPACK I COOLANT LEVEL SW I DR AJAR DRV SW I DR AJAR LR SW I DR AJAR PASS SW I DR AJAR RR SW I ETHERNET WAKE UP I EVENT NOTIFICATION SIG I F CRASH I F CRS I FRONT PASS SBR ODS MAT SW I FUEL SENS EJECT I HAZARD SW I INT LT SW I OIL PRESS SW I P CASEA I P CASEB I P CASIA I P CASIB I PARK NEUTRAL SW I QUIESCENT RLY 1 FEEDBACK I RESISTIVE LADDER SW 1 I S BRK SW I S BRKOS I S BRKSW I S ETS I S ETS PNS I S TNSW I S WAKE I SEAT BELT BUCKLE SECOND ROW LH I SEAT BELT BUCKLE SECOND ROW MIDDLE I SEAT BELT BUCKLE SECOND ROW RH I SEAT BELT BUCKLE THIRD ROW LH I SEAT BELT BUCKLE THIRD ROW RH I SOFTCLOSE TAILGATE TRIGGER SW I T FSS I T OCS I TAILGATE RELEASE EXT SW I TRIP COMPUTER SW DIGITAL I UPPER GLOVE BOX REL SW I WIPER FLUID LEVEL SW I WIPER FRONT SLOW SW I WIPER PARK FRONT SW I WIPER PARK REAR SW I-A-ATS AAT I-A-LSCPA I-A-LSCPB I-A-LSVNA I-A-LSVNB I-BONNET AJAR SW I-TAILGATE AJAR SW ICP ISOLATION SW IF CASH IF CRASH IG 1 2 IGN 1 IGN 3 IGN 5 IGN FRONT IGN LEFT IGN OUT IGN REAR IGN RIGHT IGN SNS ILL SW IMC PWR IMC PWR PPL USB HUB PWR IMS LIN IN CAR TEMP INF CAN 2 + INF CAN - INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, ANTI-THEFT SYSTEMS INSTRUMENT ILLUMINATION CIRCUIT INT TRUNK ANT NEG INT TRUNK ANT POS INTEGRATED CONTROL PANEL INTRUSION DETECTION MODULE IPC LIN ISC GND ISC PWR ISC WAKE UP ISO REL NEG L HLDR GND L HLDR PWR L-BAND GND L-BAND SIG LADDER A LADDER B LADDER SW 1 LAMPS) LATCH GND LATCH RELEASE LATCH) LCK SW GND LED ENABLE LED O/P COMMON LED PARK ASSIST LEFT "C" PILLAR) LEFT ANT NEG LEFT ANT POS LEFT BLIND SPOT MONITORING MODULE LEFT BODY TAILLAMP ASSEMBLY LEFT FRONT ACCELEROMETER LEFT FRONT TWEETER LEFT HANDS FREE TAILGATE MODULE LEFT HANDSFREE TAILGATE MODULE LEFT HEADLAMP LEFT HEATED WASHER JET LEFT IGN LEFT POWERED TAILGATE STRUT LEFT REAR DOOR AMBIENCE LIGHTING LED LEFT REAR DOOR HANDLE LEFT REAR DOOR HANDLE AMBIENCE LIGHTING LED LEFT REAR DOOR LATCH ASSEMBLY LEFT REAR DOOR MODULE LEFT REAR DOOR POCKET AMBIENCE LIGHTING LED LEFT REAR DOOR TWEETER LEFT REAR PRETENSIONER SEAT BELT RETRACTOR LEFT REAR SEAT BACKREST CLIMATE ASSEMBLY LEFT REAR SEAT CUSHION CLIMATE ASSEMBLY LEFT REAR SEAT ENTERTAINMENT SCREEN LEFT REAR SEATS SWITCHPACK LEFT SIDE AIR CURTAIN LEFT STEERING WHEEL SWITCHPACK LEFT TAILGATE TAILLAMP ASSEMBLY LEFT THIRD ROW SEAT BELT PRETENSIONER LEFT THIRD ROW SEAT SWITCHPACK LEFT TOUCH SCREEN SWITCHPACK LEFT VANITY MIRROR LEVEL B LEVEL C LEVEL B, C LEVEL C W/ TELEMATICS W/O TELEMATICS LEVEL C LEVEL SW LF CLUTCH SW LF CV NEG LF CV POS LF FACE DUCT SENS LF FOOT DUCT SENS LF HGT GND LF HGT SIG LF HI NEG LF HI POS LF LO NEG LF LO POS LF MID NEG LF MID POS LF PWR LF RTN LF SIDE MARKER LF UNLOCK SW LH - LH B PILLAR CS GND LH B PILLAR CS PWR LH C PILLAR CS GND LH C PILLAR CS PWR LH CRASH SENS PWR LH CRASH SENS RTN LH CURTAIN SIDE AIR BAG PWR LH CURTAIN SIDE AIR BAG RTN LH DI IND FRONT LH DIR IND LH DRL SPLY LH HALL SENS 1 LH HALL SENS 2 LH IN + LH MIRROR GND LH MIRROR LVDS NEG LH MIRROR LVDS POS LH MIRROR V POS LH MTR- LH POS LIGHT LH PPS GND LH PPS PWR LH REV LIGHT LH SIDE AIR BAG PWR LH SOL SIG LH STATUS 1 LH STATUS 2 LH STATUS 3 LH SURR NEG LH SURR POS LH THIRD ROW LH TRAILER DI IND LIGHTING 1 LIN 1 LIN 1 BCM LIN 1 GWM LIN 1 LIN 3 LIN 2 LIN 2 BCM LIN 2 GWM LIN 3 LIN 3 BCM LIN 3 GND LIN 3 GWM LIN 4 LIN 4 BCM LIN 5 BCM LIN A LIN B LIN BUS LIN C LIN D LIN E LIN GND LIN IN LIN OUT LIN PPL PWR LIN PWR LIN SPLY+ LINE HTR PWR LINES SYSTEM LLPC A LOAD SPACE ANT NEG LOAD SPACE ANT POS LOC MTR ENCODER CH 1 LOC MTR ENCODER CH 2 LOGIC FEED LOGIC GND LOGIC POWER LOGIC PWR LOW BEAM LOWER SW LPC A LPEFP+ LPPH A LR AJAR SW LR ANT NEG LR ANT POS LR CLUTCH SW LR DIRECTION IND LR FACE DUCT SENS LR FOG LR FOOT DUCT SENS LR HGT GND LR HGT SIG LR LO NEG LR LO POS LR MID/HI NEG LR MID/HI POS LR PWR LR RTN LR TWEETER + LR UNLOCK SW LT ADJUST LUMBAR DEFLATE LUMBAR DN LUMBAR DWN LUMBAR FWD LUMBAR INF LUMBAR RWD LUMBAR UP LVDS NEG LVDS POS LVDS SCR MAF A MAG CLUTCH MAG+ MAIN BEAM MAIN BEAM LH MAIN BEAM RH MAP A MBM ANT SIG MEM SET SW MEM STATUS LED MEM SW GND MEMORY OUT MEMORY SYSTEMS MIC 1 NEG MIC 1 POS MIC 1 SCR MIC - MIC IN - MIC NEG MIC OUR SCR MIC OUT + MIC OUT SCR MIC POS MIRR FOLD IN MIRR FOLD OUT MIRR FOLD OUT/Y MIRR GND MIRR SENS GND MIRR SENS GND/MEM SW MIRR SENS SPLY MIRR SENS SUPPLY MIRR SENS X MIRR SENS Y MIRR X MIRR XY MIRR Y/FOLD OUT MIRROR GND MIRROR GROUND MIRRORS SYSTEM MOD SELECT A MOD SELECT B MODULE SEL PIN A MODULE SEL PIN B MOV MTR ENCODER CH 1 MOV MTR ENCODER CH 2 MS CAN-L MTR 1 MOV - MTR 2 LCK/UNLCK - MTR GND MTR HCM MTR HOUSING GND MTR PWR NAV/HFM IN - NAVI/HFM+ NAVIGATION SYSTEM NERNST V NEUTRAL SW NOT USED NTC 1 NTC 2 NTC- NTSC + SCR NTSC - NUMBER PLATE O AIR SUSPENSION WAKE-UP O BRK LT LH O BRK LT RH O CHSML O COLUMN ADJ DOWN O COLUMN ADJ EXTEND O COLUMN ADJ RETRACT O COLUMN ADJ UP O COMFORT SPLY CTRL O CRANK REQUEST O DEMAND INT LIGHTING 1 O DIPPED BEAM LH O DIPPED BEAM RH O DIRECTION IND LF O DIRECTION IND LR O DIRECTION IND RF O DIRECTION IND RR O EXT IGN CTRL 1 O EXT IGN CTRL 2 O FOG LT LR/SIG O FOG LT RR O FUEL FLAP UNLOCK O HAZARD SW ILL O HDLP ELECTRONIC SPLY LH O HDLP ELECTRONIC SPLY RH O HDLP WASHER LEFT OR SIG CTRL O HDLP WASHER LH/SIG CTRL O HDLP WASHER RH CTRL O HDLP WASHER RIGHT CTRL O HEATED WASHER JETS O HTD FRONT SCREEN CTRL O HTD REAR SCREEN CTRL O HTD WASHER JETS O IGN 1 O IGN 3 O IGN 4 O IGN 5 O IGN 6 O IGN 8 O IGN 9 O IGN OUT 6 O INT O INT LIGHTING 1 O INT LT SW O MAIN BEAM LH O MAIN BEAM RH O NUMBER PLATE LAMPS O PCM EARLY WAKE UP O POS DRL SPLY LH O POS DRL SPLY RH O POS LT LR O POS LT RR O REAR WIPER CONTROL O REAR WIPER CTRL O RESTRAINS O RESTRAINTS IGN 1 O RESTRAINTS IGN 2 O REV LT LH/SIG O REV LT RH O S ASS O S CACWPR O S MRLY O S STRMRH SM COMM H O S STRMRL SM COMM L O S TDMH O S TDMP O S TDMV O SIDE MARKER LF O SIDE MARKER RF O SW ILL O T CASECA O T CASECB O T CASICA O T CASICB O T CBPNEG O T CBPPOS O T CTH O T EVF O T FPMC O T OILP O T PCSV O T TVANEG O T TVAPOS O TAILGATE RELEASE O TRAILER DIRECTION IND LH O TRAILER DIRECTION IND RH O TRAILER POS LT LH O TRAILER REV LTS O TRUNK LIGHT O UPPER GLOVE BOX RELEASE O WASHER FORWARD CONTROL O WASHER FWD CTRL O WASHER REV CTRL O WASHER REVERSE CONTROL O WIPER FRONT FAST CONTROL O WIPER FRONT FAST CTRL O WIPER FRONT ON CONTROL O WIPER FRONT ON CTRL O-PASSIVE SOUNDER O-R-LSVGA O-R-LSVGB O-S-STRMRL O-SECURITY-LED O-V-STRMRH OIL PRESS SW OIL PRESSURE SW OPT DRV USB SHIELD OTG DIAG P SIG P/N SIG P/N SW PAB GND PAB PWR PAD WEAR PADDLE DOWN PADDLE UP PANEL STOWAGE PARK ASSIST STATUS PDC OUT PARK NEUTRAL SW PAS A PASS AJAR SW PASS BACK BLOW SPEED PASS BACK SENS SIG PASS BACK TED - PASS CUSH BLOW SPEED PASS CUSH SENS RTN PASS CUSH SENS SIG PASS CUSH TED - PASS DOOR AJAR SW PASS FRONT SB SW PASS LOAD LIMITER GND PASS LOAD LIMITER PWR PASS SB RETRACTOR GND PASS SB RETRACTOR PWR PASS SEAT BLOWER + PASS SEAT POS SENS PWR PASSENGER AIR BAG PASSENGER DOOR AMBIENCE LIGHTING LED PASSENGER DOOR HANDLE PASSENGER DOOR HANDLE AMBIENCE LIGHTING LED PASSENGER DOOR LATCH ASSEMBLY PASSENGER DOOR MODULE PASSENGER DOOR POCKET AMBIENCE LIGHTING LED PASSENGER DOOR) PASSENGER LOAD LIMITER SEAT BELT RETRACTOR PASSENGER LUMBAR SOLENOIDS PASSENGER SEAT BACKREST CLIMATE ASSEMBLY PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT CUSHION CLIMATE ASSEMBLY PASSENGER SEAT MODULE PASSENGER SEAT SWITCHPACK PASSENGER SIDE AIR BAG PASSENGER SIDE DOOR MIRROR PASSIVE SOUNDER PCM WAKE UP PDC LED PDC STATUS PARK ASSIST OUT PDC SW PHASE 1 U PHASE 2 V PHASE 3 W PMZ CAN H PMZ CAN HI PMZ CAN HI GWM BCM PMZ CAN L PMZ CAN LO PMZ CAN LO GWM BCM POS LIGHT POS LT POS LT POS SW POWER DISTRIBUTION SYSTEM POWER FEED 1 POWER FEED 2 POWER GND 1 POWER GND 2 POWER WINDOWS SYSTEM PPL IGN PPL INFLATE PPL PWR PPL RF RTN PPL SIG PRESSURE GND PRESSURE SIG PRIVATE CAN H PRIVATE CAN L PT CAN H PT CAN H GWM PT CAN HI GWM PT CAN L PT CAN L GWM PT CAN LO GWM PTC RLY CTRL 1 PTC RLY CTRL 2 PWR ENABLE PWR FEED 1 PWR FEED 2 PWR FEED 3 PWR GND PWR GND 1 PWR GND 2 PWR GND 3 PWR GND 4 PWR SPLY PWRGND 1 QUIESCENT CURRENT QUIESCENT RLY CTRL R HLDR GND R HLDR PWR R SW BLIND CLOSE R SW BLIND OPEN R XV NEG R XV POS RAISE SW RAMV H RAMV L REAR A/C SIG REAR ACCELEROMETER REAR BLOWER REAR BLOWER RLY CTRL REAR CABIN ANT NEG REAR CABIN ANT POS REAR CLIMATE CONTROL PANEL REAR CONSOLE SWITCHPACK REAR DOOR MODULE REAR EVAP REAR EVAP GND REAR EVAP TEMP REAR GND REAR HCM SENS REAR JUNCTION BOX REAR LH SB RETRACTOR GND REAR LH SB RETRACTOR PWR REAR LVDS NEG REAR LVDS POS REAR PORTABLE DEVICE INTERFACE PANEL REAR RH SB RETRACTOR GND REAR RH SB RETRACTOR PWR REAR SEAT ENTERTAINMENT CIRCUIT REAR SEAT POWER FOLD SWITCHPACK REAR SENS PWR REAR V POS REAR VIEW MIRROR) REAR WINDOW HEATED ELEMENT REC SIG RELEASE SW REMINDER SENS RES V NEG RES V POS RESTRAINTS SYSTEM REV LAMPS REVERSE LED ARRAY RF CLUTCH SW RF CV NEG RF CV POS RF FACE DUCT SENS RF FOOT DUCT SENS RF HGT GND RF HGT SIG RF HI NEG RF HI POS RF LO NEG RF LO POS RF MID NEG RF MID POS RF PWR RF RECEIVER RF RTN RF SIDE MARKER RF SIG RF UNLOCK SW RH B PILLAR CS GND RH B PILLAR CS PWR RH C PILLAR CS GND RH C PILLAR CS PWR RH CRASH SENS PWR RH CRASH SENS RTN RH CURTAIN SIDE AIR BAG PWR RH CURTAIN SIDE AIR BAG RTN RH DI IND FRONT RH DIR IND RH FRONT LVDS POS RH HALL SENS 1 RH HALL SENS 2 RH IN + RH MIRROR GND RH MIRROR LVDS NEG RH MIRROR V POS RH MTR+ RH PPS GND RH PPS PWR RH REV LIGHT RH RR POSI RH SIDE AIR BAG PWR RH SIDE AIR BAG RTN RH SOL SIG RH STATUS 1 RH STATUS 2 RH STATUS 3 RH SURR NEG RH SURR POS RH THIRD ROW RH TRAILER DI IND RH- RIGHT ANT NEG RIGHT ANT POS RIGHT BLIND SPOT MONITORING MODULE RIGHT BODY TAILLAMP ASSEMBLY RIGHT DRIVER SEAT SWITCHPACK RIGHT DRL SPLY RIGHT FRONT ACCELEROMETER RIGHT FRONT TWEETER RIGHT GND RIGHT HANDS FREE TAILGATE MODULE RIGHT HANDSFREE TAILGATE MODULE RIGHT HEADLAMP RIGHT HEATED WASHER JET RIGHT IGN RIGHT REAR DOOR AMBIENCE LIGHTING LED RIGHT REAR DOOR HANDLE RIGHT REAR DOOR HANDLE AMBIENCE LIGHTING LED RIGHT REAR DOOR LATCH ASSEMBLY RIGHT REAR DOOR MODULE RIGHT REAR DOOR POCKET AMBIENCE LIGHTING LED RIGHT REAR DOOR TWEETER RIGHT REAR PRETENSIONER SEAT BELT RETRACTOR RIGHT REAR SEAT BACKREST CLIMATE ASSEMBLY RIGHT REAR SEAT CUSHION CLIMATE ASSEMBLY RIGHT REAR SEAT ENTERTAINMENT SCREEN RIGHT REAR SEATS SWITCHPACK RIGHT SIDE AIR CURTAIN RIGHT SIG RIGHT STEERING WHEEL SWITCHPACK RIGHT TAILGATE TAILLAMP ASSEMBLY RIGHT THIRD ROW SEAT BELT PRETENSIONER RIGHT VANITY MIRROR RL CV NEG RL CV POS RL DOOR AJAR SW RL PWR ROOF PAD ROW 2 ACT LATCH ROW 2 ACT RELEASE ROW 2 ACT SNS ROW 2 LEFT HEADREST NEG ROW 2 LEFT HEADREST POS ROW 2 MID HEADREST NEG ROW 2 MID HEADREST POS ROW 2 SQUAB MTR INCLINE ROW 2 SQUAB MTR RECLINE ROW 2 SQUAB MTR SNS ROW 3 LATCH ROW 3 RELEASE ROW 3 RELEASE SNS ROW 3 SQUAB MTR FOLD ROW 3 SQUAB MTR INCLINE ROW 3 SQUAB MTR RECLINE ROW 3 SQUAB MTR SNS ROW 3 SQUAB MTR UNFOLD RR AJAR SW RR ANT NEG RR ANT POS RR BLIND CLOSE RR BLIND OPEN RR CLUTCH SW RR CV NEG RR CV POS RR DIRECTION IND RR DOOR AJAR SW RR FACE DUCT SENS RR FOG RR FOOT DUCT SENS RR HGT GND RR HGT SIG RR LO NEG RR LO POS RR MID/HI NEG RR MID/HI POS RR PWR RR RTN RR TWEETER - RR UNLOCK SW RX SERIAL DATA SBR BUCK LH SW SBR BUCK MID SW SBR BUCK RH SW SCN A SCR AMP SHIELD SCR BR SHIELD SCR BT ANT SCR BT ANT SIG SCR CVBS GND SCR DSRC GND SCR FRONT LVDS SCR SCR L HLDR SHIELD SCR LH MIRROR LVDS SCR SCR LVDS SCR SCR R HLDR SHIELD SCR REAR LVDS SCR SCR RH MIRROR LVDS SCR SCR SCR SCR SCREEN SCR SHIELD SCR UIP USB SHIELD SCRB DAB 3 GND FM 2 SIG SCREEN CTRL SDARS ANT SHIELD SDARS ANT SIG SDARS SCRN SDARS SHIELD SDARS SIG SEAT BELT SEATS SYSTEM SECURITY LED SELF- LEVELING SUSPENSION COMPRESSOR SENDER ACTIVE +VE SENDER PASSIVE +VE SENDER PASSIVE+VE SENDER RTN SENS GND SENS GND 1 SENS GND 3 SENS GND 5 SENS GND 6 SENS GND 7 SENS GND 8 SENS GND 9 SENS GND 10 SENS GND 11 SENS GND 12 SENS GND 13 SENS GND 14 SENS GND 15 SENS GND 16 SENS GND 20 SENS GND 21 SENS GND 22 SENS PWR SENS RTN SENS SIG SENS SPLY SENS SUPPLY SENS X SENS Y SHIELD 1 SHIELD 2 SHIFT INTERLOCK SYSTEM SIDE MARKER SIDE REPEATER SIDE TURN IND SIG A SIG A TRIGGER SIG B AJAR SIG C ALARM SIG GND SIG LEFT SIG LF INNER SIG LF OUTER SIG LF SLOT SIG LR INNER SIG LR OUTER SIG LR SLOT SIG OUTPUT SIG RF INNER SIG RF OUTER SIG RF SLOT SIG RIGHT SIG RR INNER SIG RR OUTER SIG RR SLOT SIGNAL GND SLIDE MTR REARWARD SLIDE MTR RWD SLIDE MTR SNS SLIDE SNS GND SLS COMPRESSOR SM COMMAND H SM COMMAND L SNS GND SOUND SYSTEMS SPD MONITOR SPK-FL - SPK-FL HIGH - SPK-FL LOW - SPK-FR + SPK-FR HIGH - SPK-FR LOW - SPK-RL - SPK-RR - SQUAB MTR INCLINE SQUAB MTR RECLINE SQUAB MTR SNS SQUIB PWR SQUIB RTN SSS GND SSS LADDER A SSS LADDER B SSS VARIENT A SSS VARIENT B STAGE 1 GND STAGE 1 PWR STAGE 2 GND STAGE 2 PWR START STOP GND START/ STOP SW 1 START/ STOP SW 2 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS 1 STATUS 2 STATUS 3 STATUS ILL/IN STATUS ILLUM STATUS LED STEERING COLUMN ADJUSTMENT SWITCHPACK STEERING COLUMN ASSEMBLY STEERING COLUMN) STEERING WHEEL MODULE STEERING WHEEL) STOWAGE COMPARTMENT ILLUMINATION SUNROOF K-LINE 1 SUNROOF K-LINE 2 SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 1 NEG SW 1 POS PPL SW 2 POS SW 2 SW 2 NEG SW 3 SW 4 SW EJECT SW GND SW I/P SW ILL. SW ILLUM SW LT SW PARK ASSIST SYSTEM TEMP SENS TAIL AJAR TAIL LAMPS TAIL PWR TAILGATE CLOSE TAILGATE REL TAILGATE RELEASE TAILGATE REVERSE TANK HTR TANK HTR GND TANK LEAKAGE DIAGNOSTIC MODULE TCM P TEMP 2 TEMP SENS TEMP SENS SPLY TEMP SIG TERMINAL JUMP START TERRAIN RESPONSE SWITCHPACK TEST SW I/P THIRD ROW POWER FOLD SWITCHPACK THIRD ROW SEAT POWER FOLD SWITCHPACK THROUGH PANEL STUD TILT MTR DOWN TILT MTR SNS TILT MTR UP TILT/SQUAB SNS GND TILT MTR SNS TIT 1 TOUCH- SCREEN TPA+ TRAILER BRAKE TRAILER LIGHT TEST TRAILER PICK-UP TRANSMISSIONS SYSTEM TRIP COMP TRIP COMPUTER TRUNK LIGHT TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEMS UIP USB 2.0 D - UIP USB 3.0 SSRX - UIP USB 3.0 SSTX + SCR UIP USB SHIELD UIP USB 3.0 SSTX - UIP USB GND UIP VBUS UIP VBUS GND UP ILLUM UP/DOWN SW UPPER GLOVE BOX) USB 2.0 D + USB 2.0 DATA NEG USB 2.0 DATA POS USB 2.0 HUB USB 3.0 SSRX + USB 3.0 SSTX - USB D- USB GND USB HOST DATA + USB HUB 2.0 D + USB HUB GND USB HUB SHIELD USB HUB USB 2.0 D- USB HUB VBUS USB OTG DATA + USB SHIELD USB V BUS USB VBUS USBH 1 DATA + SCR SHIELD USBH 1 DATA+ USBOTG 0 DATA + USS GND USS PWR USS UBAT V BAT V BATT V BATT 1 V BATT 2 V POS V REF VA LF GND VA RF GND VA RF SIG VA RR GND VA RR SIG VBATT 1 VBATT 2 VBATT AIR VBR 1 VBR 2 VBUS GND VGT B+ VGT FB VICS GND VICS RXD VICS SHIELD VICS TXD VID OUT VOLTAGE QUALITY MODULE W/ CONTROL TOUCH PRO W/ CONTROL TOUCH PRO W/ CONTROL TOUCH W/ CONTROL TOUCH PRO W/ CONTROL TOUCH W/ MEMORY W/O MEMORY W/ CONTROL TOUCH PRO W/ CONTROL TOUCH W/ START/STOP SYSTEM W/O START/STOP SYSTEM W/ CONTROL TOUCH W/ CONTROL TOUCH PRO W/ FRONT, REAR PREMIUM AIR CONDITION W/O FRONT, REAR PREMIUM AIR CONDITION W/ HALOGEN W/ HEATED SEATS W/ HIDDEN CENTRAL INSTRUMENT PANEL STOWAGE W/ HIDDEN INSTRUMENT W/ HIDDEN INSTRUMENT PANEL STOWAGE W/ HIDDEN INSTRUMENT PANEL STOWAGE W/O HIDDEN INSTRUMENT PANEL STOWAGE W/ INSTRUMENT PANEL STOWAGE W/O INSTRUMENT PANEL STOWAGE W/ LDW W/ LED W/ LED W/ HALOGEN W/ MEMORY W/ MEMORY W/O MEMORY 16-WAY 8-WAY 10-WAY W/ PACOS W/ REAR SEAT ENTERTAINMENT W/ START/STOP SYSTEM W/ TELEMATICS W/O HEATED SEATS W/O HIDDEN CENTRAL INSTRUMENT PANEL STOWAGE W/O HIDDEN INSTRUMENT W/O HIDDEN INSTRUMENT PANEL STOWAGE W/O LDW W/O MEMORY W/O MEMORY W/ MEMORY 8 WAY 10 WAY 16 WAY W/O PACOS W/O START/STOP SYSTEM W/O TCCM W/ TCCM 3.0L SC 3.0L TURBO DIESEL W/O TELEMATICS WAKE GND WAKE-UP WARNING LED WARNING SYSTEMS WEAR SENS WIFI ANT SHIELD WIFI ANT SIG WIFI SCR WIND DOWN WIND DOWN SW WIND SW DOWN WIND SW GND WIND SW ILLUM WIND SW UP WIND UP WIND UP SW WIPER LIMP WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER, HEADLIGHTS SYSTEMS WIRELESS HEADPHONES X AXIS XY AXIS
