Kia Telluride I facelift (2022-2024) auto defogger actuator close Wiring diagram
This page shows the only wiring diagram for the component.auto defogger actuator close, which is found in the car Kia Telluride I facelift (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

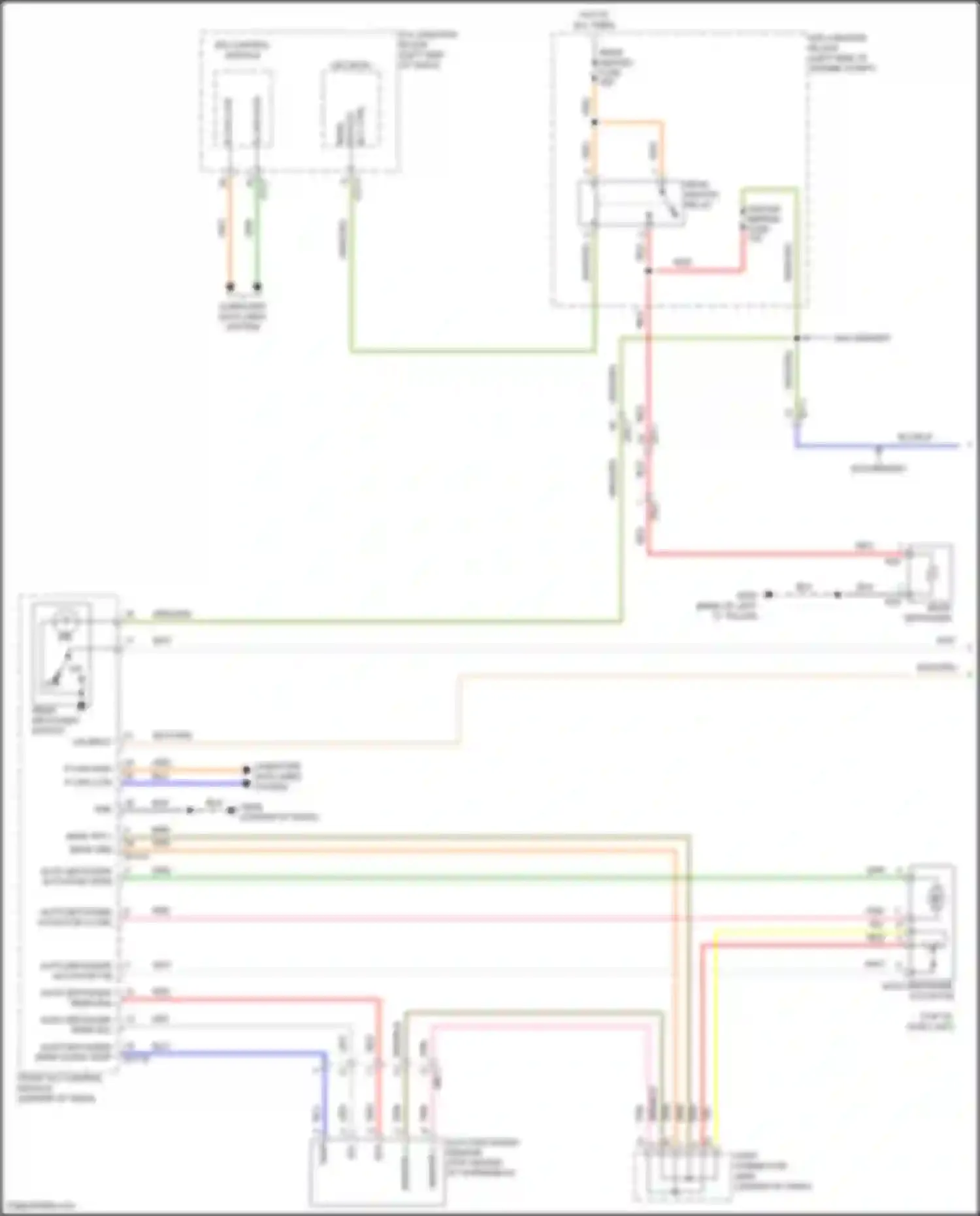

Wiring diagram auto defogger actuator close (1 of 1)
AUTO DEFOGGER ACTUATOR
AUTO DEFOGGER ACTUATOR CLOSE
AUTO DEFOGGER ACTUATOR F/B
AUTO DEFOGGER ACTUATOR OPEN
AUTO DEFOGGER SENS GLASS TEMP
AUTO DEFOGGER SENS SCL
AUTO DEFOGGER SENS SDA
AUTO DEFOGGER SENSOR
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BRN WIRE
BRN/BLK WIRE
COMPUTER DATA LINES SYSTEM
E/R JUNCTION BLOCK
FRONT A/C CONTROL MODULE
GRN WIRE
GRN/ORG WIRE
GRY WIRE
HEATED
HEATED MIRROR FUSE
HOT AT ALL TIMES
ICU JUNCTION BLOCK
ICU-A
ICU-F
IND
IPS CONTROL MODULE
OFF
ON INPUT
ORG/ WIRE
P-CAN HIGH
P-CAN LOW
PNK WIRE
REAR
REAR DEFOGGER
REAR DEFOGGER SWITCH
REAR HEATED FUSE
REAR HEATED RELAY
RED WIRE
RLY CTRL
SCL
SDA
SENS GND
SENS SPLY
SENSOR
TEMP
W/O MEMORY
WHT WIRE
WHT/ORG WIRE
YEL WIRE
Go to component -> Defoggers circuit, w/ auto defogger (1 of 2) -> AUTO DEFOGGER ACTUATOR CLOSE
