Kia Stinger I (2017-2021) step mtr ism hlld actr Wiring diagram
This page shows the only wiring diagram for the component.step mtr ism hlld actr, which is found in the car Kia Stinger I (2017-2021). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

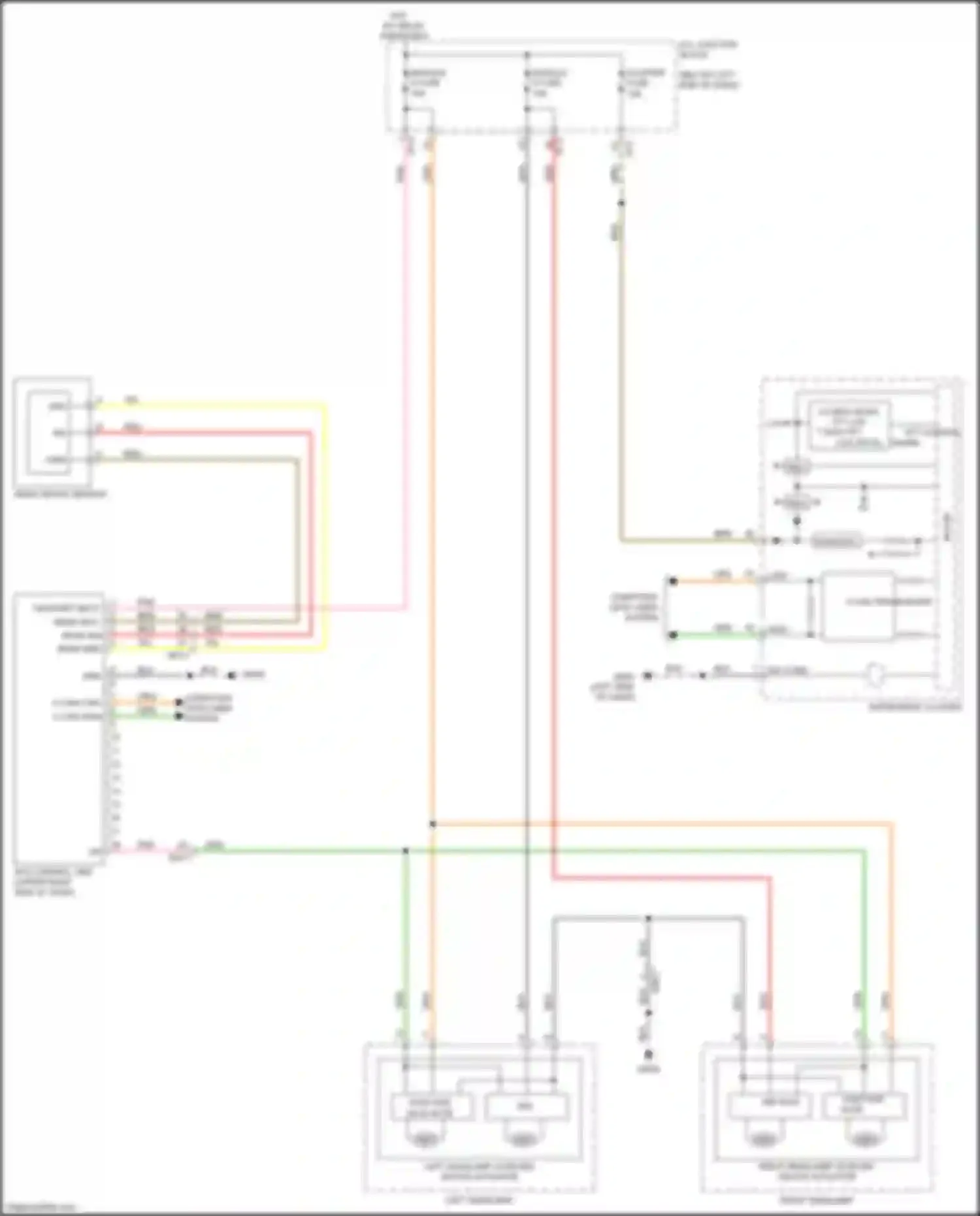

Wiring diagram step mtr ism hlld actr (1 of 1)
3.5 INCH MONO TFT LCD/ 7 INCH TFT LCD (AFLS)
AFS CONTROL UNIT
BLK WIRE
BRN WIRE
C-CAN HIGH
C-CAN LOW
C-CAN TRANSCEIVER
CLUSTER FUSE
COMPUTER DATA LINES SYSTEM
GRN WIRE
HOT W/
I/P-C
I/P-F
I/P-G
ICU JUNCTION BLOCK
INSTRUMENT CLUSTER
ISM
LEFT HEADLAMP
LEFT HEADLAMP LEVELING DEVICE ACTUATOR
MICOM
MODULE 4 FUSE
MODULE 5 FUSE
MONITOR
ON/START INPUT
ORG/ WIRE
PNK WIRE
PWR
REAR GND
REAR HEIGHT SENSOR
REAR SIG
REAR SPLY
RED WIRE
REG
RIGHT HEADLAMP
RIGHT HEADLAMP LEVELING DEVICE ACTUATOR
SIG
SIG 3 GND
STEP MTR HLLD ACTR
STEP MTR ISM HLLD ACTR
TFT CONTROL SIGNAL
YEL WIRE
Go to component -> Adaptive front lighting circuit -> STEP MTR ISM HLLD ACTR
