Kia Spectra II (2004-2008) front wiper relay ctrl parking position 5 13 i/p-d 3 4 2 Wiring diagram

This page shows the only wiring diagram for the component.front wiper relay ctrl parking position 5 13 i/p-d 3 4 2, which is found in the car Kia Spectra II (2004-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

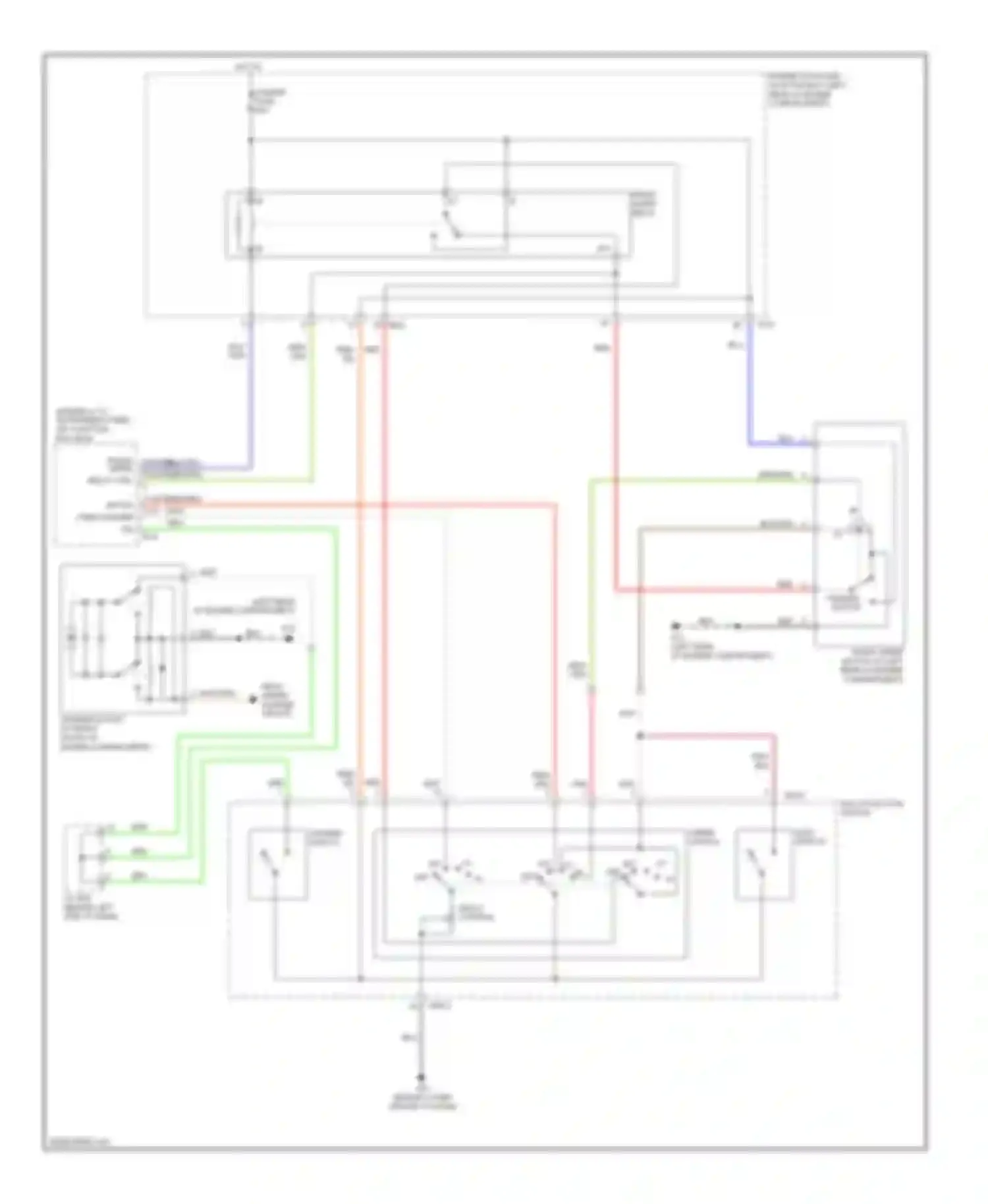

Wiring diagram front wiper relay ctrl parking position 5 13 i/p-d 3 4 2 (1 of 1)

Wiring diagram front wiper relay ctrl parking position 5 13 i/p-d 3 4 2 for Kia Spectra II (2004-2008)

Get access

BLK WIRE BLK/ORG WIRE BLU WIRE BLU/ORG WIRE DELAY CONTROL ENGINE ROOM (E/R) JUNCTION BOX (LEFT REAR OF ENGINE COMPARTMENT) F/WIPER FUSE FRONT WIPER MOTOR (AT LEFT REAR OF ENGINE COMPARTMENT) FRONT WIPER RELAY FRONT WIPER RELAY CTRL PARKING POSITION 5 13 I/P-D 3 4 2 GRN WIRE GRN/ORG WIRE HOT IN ON I/P-A INT INT (TIME) WASHER SIG INT LO HI OFF LO INT OFF HI MIST SWITCH MULTI- FUNCTION SWITCH ORG/ WIRE PARKING SWITCH PNK WIRE REAR WIPER/ WASHER CIRCUIT RED WIRE RED/ORG WIRE WASHER MOTOR (AT RIGHT FRONT OF ENGINE COMPARTMENT) WASHER SWITCH WHT WIRE WHT/ORG WIRE WIPER SWITCH YEL WIRE

Go to component: -> Front wiper/washer circuit -> FRONT WIPER RELAY CTRL PARKING POSITION 5 13 I/P-D 3 4 2
