Kia Spectra I facelift (2001-2004) panel light control switch Wiring diagrams
This page contains all the electrical diagrams for the component. panel light control switch, in which he is found in the car Kia Spectra I facelift (2001-2004). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

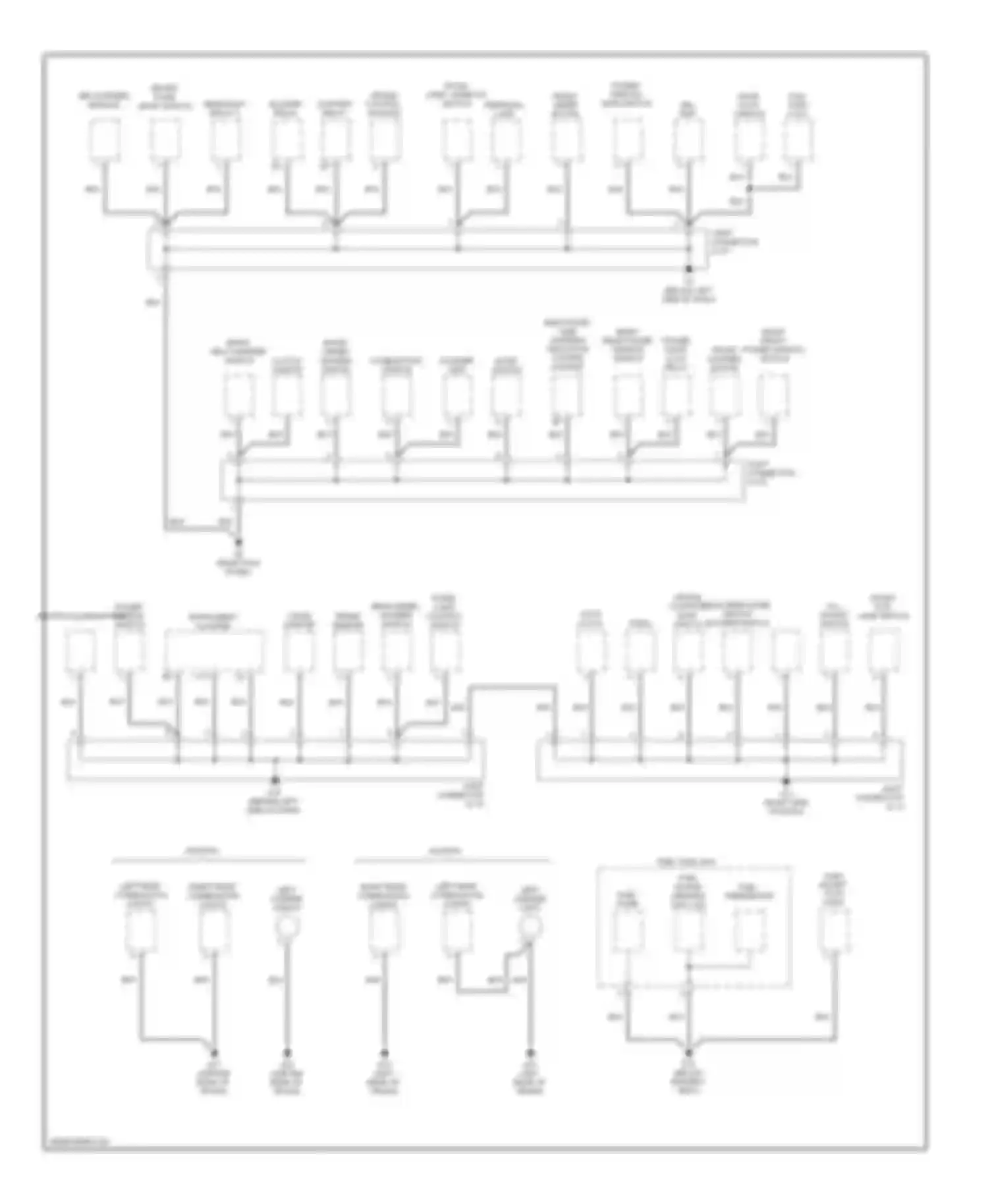

Wiring diagram panel light control switch (1 of 2)
4 DOOR
5 DOOR
A/C, INTAKE SWITCH
ABS WARNING MODULE
ASHTRAY ILLUMINATION
AUTO CLOCK AUDIO
BLK WIRE
BLOWER RELAY
BRAKE FLUID LEVEL SWITCH
CIGAR LIGHTER
CLUTCH SWITCH
COMBINATION SWITCH
CRUISE CONTROL MAIN SWITCH
CRUISE CONTROL MODULE
DOOR LOCK SWITCH
DRL UNIT
ELECTRONIC TIME, WARNING INDICATION SYSTEM MODULE
FLASHER UNIT
FRONT FOG LAMP SWITCH
FRONT WASHER MOTOR
FRONT WIPER MOTOR
FRONT WIPER/ WASHER SWITCH
FUEL GAUGE, SENDING UNIT LOW FUEL THERMISTOR
FUEL PUMP
FUEL TANK UNIT
HEADLIGHT RELAY 2
HIGH MOUNT STOP LIGHT
INSTRUMENT CLUSTER
JOINT CONNECTOR JC-01
JOINT CONNECTOR JC-02
JOINT CONNECTOR JC-10
JOINT CONNECTOR JC-11
LEFT LICENSE LIGHT
LEFT LICENSE LIGHTS
LEFT REAR COMBINATION LIGHTS
LEFT REAR COMBINATION LIGHTS RIGHT REAR COMBINATION LIGHTS
MODE SWITCH
PANEL LIGHT CONTROL SWITCH
PERSONAL LAMP
POWER DOOR LOCK RELAY
POWER MIRROR SWITCH
POWER WINDOW MAIN SWITCH
REAR DEFROSTER SWITCH BLOWER SWITCH
REAR WIPER, WASHER SWITCH SPEED SENSOR
RIGHT FRONT POWER WINDOW SWITCH
RIGHT REAR COMBINATION LIGHTS
RIGHT REAR POWER WINDOW SWITCH
RIGHT SEAT WARMER SWITCH
ROOM LAMP, SUNROOF SWITCH
STARTER RELAY
TWO TURN LOCK
Go to component -> Ground distribution circuit (2 of 2) -> PANEL LIGHT CONTROL SWITCH
Wiring diagram panel light control switch (2 of 2)
A/C, HEATER CONTROL UNIT
ASHTRAY ILLUMI- NATION
AUDIO
AUTO CLOCK
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/WHT WIRE
C-01
CIGAR ILLUMI- NATION
CRUISE CONTROL MAIN SWITCH
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT REAR SIDE OF ENGINE COMPT)
FRONT FOG LAMP SWITCH
HAZARD SWITCH
HOT IN HEAD OR PARK
ILLUMI (-)
INSTRUMENT CLUSTER
J/C 10
J/C-01 (BEHIND RIGHT KICK PANEL)
JB-02
JC-01
LEFT REAR POWER WINDOW SWITCH
LEFT SEAT WARMER SWITCH
MODE SWITCH
OSC
PANEL LIGHT CONTROL SWITCH
POWER WINDOW MAIN SWITCH
REAR DEFROSTER SWITCH
REAR WIPER/ WASHER SWITCH
RIGHT FRONT POWER WINDOW SWITCH
RIGHT REAR POWER WINDOW SWITCH
S/C-04 (BEHIND LEFT KICK PANEL)
S/C-09 (BEHIND CENTER OF DASH)
TAIL LH FUSE
WHT WIRE
Go to component -> Instrument illumination circuit -> PANEL LIGHT CONTROL SWITCH
