Kia Soul III facelift (2022-2024) esp ind Wiring diagrams
This page contains all the electrical diagrams for the component. esp ind, in which he is found in the car Kia Soul III facelift (2022-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram esp ind (1 of 2)
AUTO- HOLD
BLK WIRE
BLU WIRE
BRAKE FLUID LEVEL SENSOR
BRAKE SWITCH FUSE
BRK FLUID LEVEL SENS
BRK LIGHT SW
BRK TEST SW
BRN WIRE
C-CAN
CLUSTER FUSE
COMPUTER DATA LINES SYSTEM
DC-DC
EPB IND
ESP IND
ESP OFF IND
FCA OFF IND
GRN WIRE
HOT AT ALL TIMES
HOT IN ON OR START
ICU JUNCTION BLOCK
ICU-B
ICU-E
ICU-F
ICU-G
INSTRUMENT CLUSTER
INTERFACE
IPS CONTROL MODULE
MICOM
MODULE 3 FUSE
MODULE 4 FUSE
O/P
ORG/ WIRE
P-CAN HIGH
P-CAN LOW
PARKING BRAKE IND.
PCM (LEFT REAR OF ENGINE COMPT)
PNK WIRE
PNK/BLK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
RED/BLK WIRE
SIG GND 1
STOP LAMP SIGNAL
STOP LAMP SWITCH
TFT LCD
TRANSCEIVER/
WHEEL SENS
WHT WIRE
YEL WIRE
Go to component -> Anti-lock brakes circuit, w/ epb (3 of 3) -> ESP IND

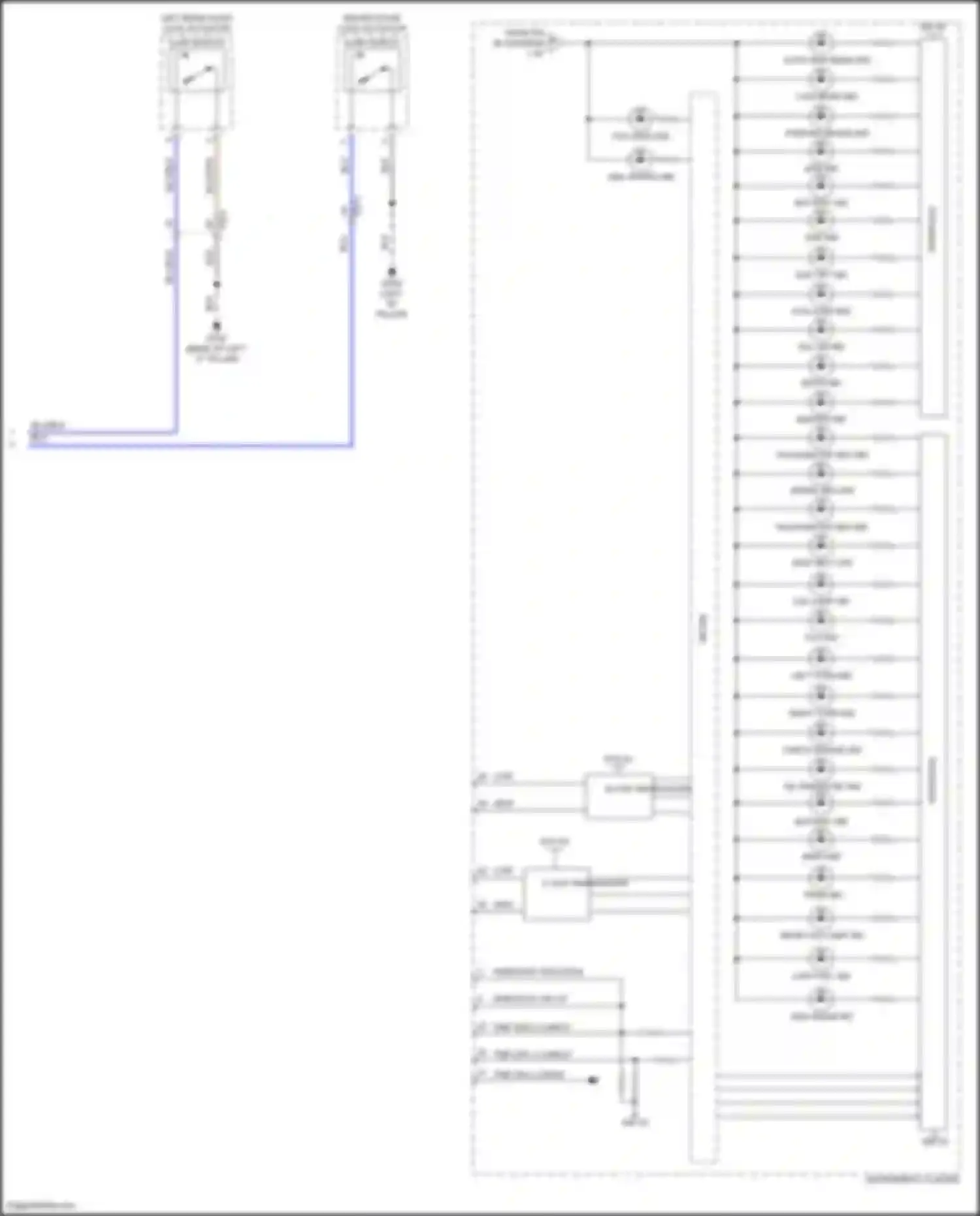

Wiring diagram esp ind (2 of 2)
AJAR SWITCH
AUTO HIGH BEAM IND
BATTERY IND
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/BLK WIRE
C-CAN TRANSCEIVER
CHECK ENGINE IND
DRIVER DOOR LOCK ACTUATOR
EPB IND
ESP IND
ESP OFF IND
FCA (RED) IND WIRE
FCA IND
FOG LAMP IND
FROM PIN 39 (DIAGRAM 1 OF 4)
HBA (WHITE) IND
HIGH BEAM IND
IMMO IND
INSTRUMENT CLUSTER
INTERFACE
LED LAMP IND
LEFT REAR DOOR LOCK ACTUATOR
LEFT TURN IND
LOW BEAM IND
LOW FUEL IND
M-CAN TRANSCEIVER
MASTER IND
MDPS IND
MICOM
OIL PRESSURE IND
PARKING BRAKE IND.
REAR FOG LAMP IND
RHEOSTAT SW DOWN IN
RHEOSTAT SW UP IN
RIGHT TURN IND
SEAT BELT IND
SPEED SEG IND
TACHOMETER SEG IND
TAIL ON IND
TPMS IND
TRIP SW (-) INPUT
Go to component -> Instrument cluster circuit (4 of 4) -> ESP IND
