Kia Soul III (2019-2024) bcw on/off switch ind Wiring diagram
This page shows the only wiring diagram for the component.bcw on/off switch ind, which is found in the car Kia Soul III (2019-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

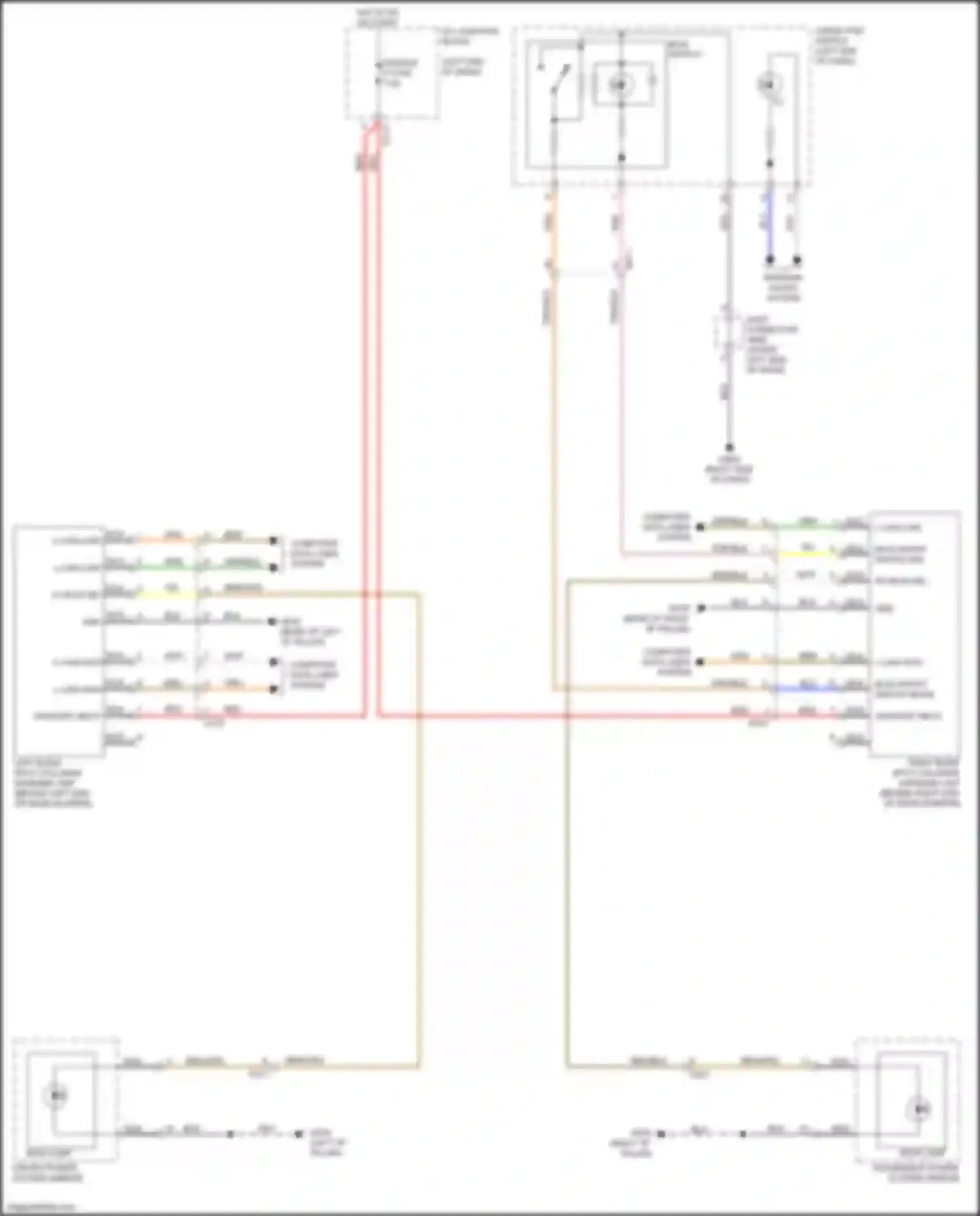

Wiring diagram bcw on/off switch ind (1 of 1)
BCW LAMP
BCW ON/OFF SWITCH IND
BCW ON/OFF SWITCH MODE
BCW SWITCH
BLK WIRE
BLU WIRE
BRN WIRE
BRN/BLK WIRE
BRN/ORG WIRE
C-CAN HIGH
C-CAN LOW
COMPUTER DATA LINES SYSTEM
CRASH PAD SWITCH
DRIVER POWER OUTSIDE MIRROR
GRN WIRE
GRN/BLK WIRE
GRY WIRE
HOT IN ON OR START
ICU JUNCTION BLOCK
ICU-C
ILL
L-CAN HIGH
L-CAN LOW
LEFT BLIND-SPOT COLLISION WARNING UNIT
LH BCW IND
MODULE 4 FUSE
NCA WIRE
ON/START INPUT
ORG/ WIRE
ORG/BLK WIRE
PASSENGER POWER OUTSIDE MIRROR
PNK WIRE
PNK/BLK WIRE
RED WIRE
RH BCW IND
RIGHT BLIND-SPOT COLLISION WARNING UNIT
WHT WIRE
YEL WIRE
Go to component -> Blind spot monitoring circuit -> BCW ON/OFF SWITCH IND
