Kia Soul III (2019-2024) auto light sensor Wiring diagrams
This page contains all the electrical diagrams for the component. auto light sensor, in which he is found in the car Kia Soul III (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

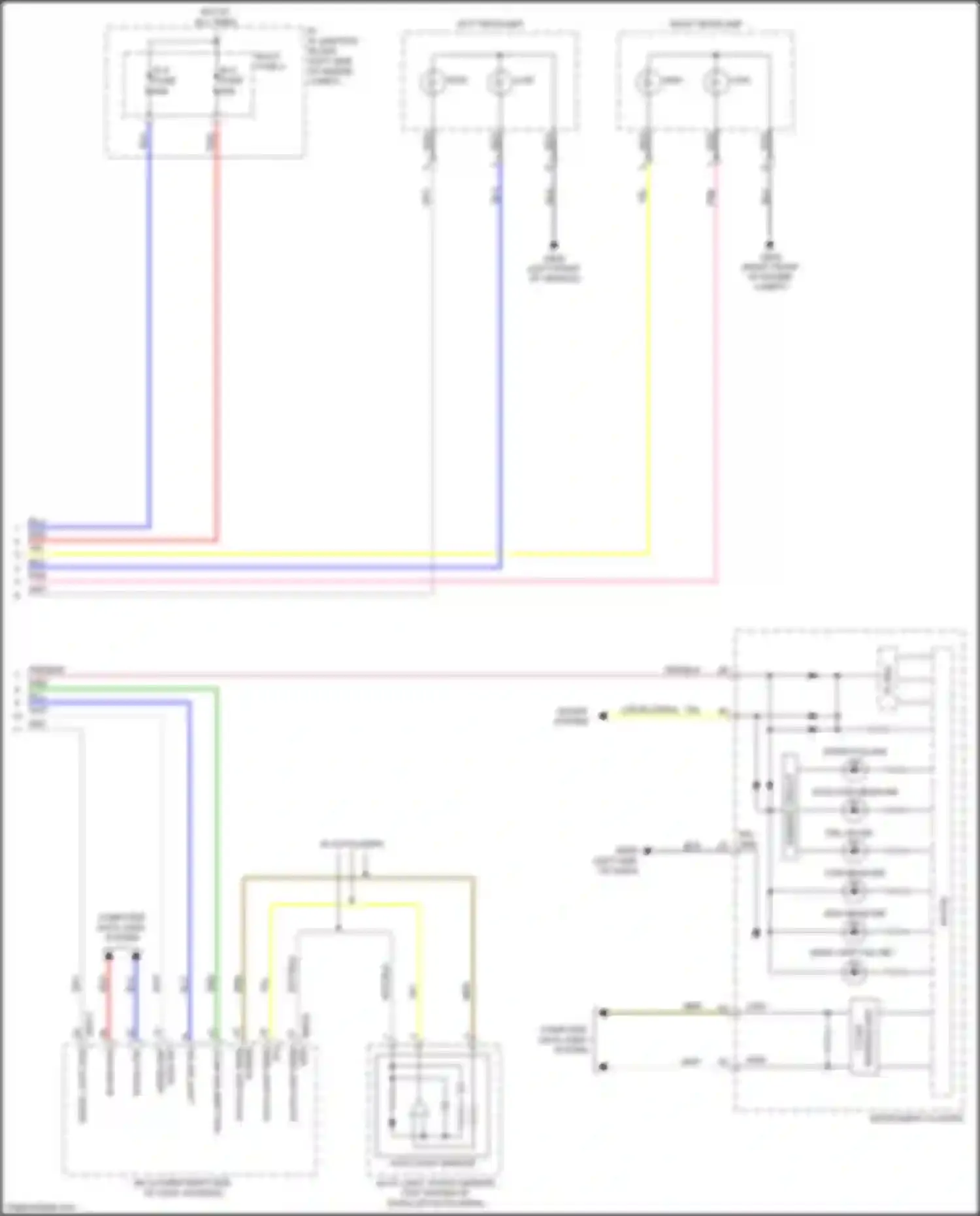

Wiring diagram auto light sensor (1 of 3)
AUTO HIGH BEAM IND
AUTO LIGHT SENS
AUTO LIGHT SENSOR
AUTO LIGHT, PHOTO SENSOR (TOP CENTER OF DASH) (W/ AUTOLAMPS)
B+2 FUSE
B+3 FUSE
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN
COMPUTER DATA LINES SYSTEM
DIMMING CIRCUIT
E/R JUNCTION BLOCK
FOG LAMP SW INPUT
FRONT FOG IND
GRN WIRE
GRY WIRE
H/LAMP HI FUSE
HEAD LAMP FAIL IND
HEAD LAMP HIGH RELAY
HEADLAMP
HIGH BEAM IND
HIGH BEAM SOLENOID
HIGH SW IN
HOT AT ALL TIMES
IBU (LOWER RIGHT SIDE OF HVAC HOUSING)
INSTRUMENT CLUSTER
LEFT HEADLAMP
LIGHT SW SIG
LOW BEAM IND
MICOM
MULTI FUSE 2
NCA WIRE
PNK WIRE
PNK/BLK WIRE
POWER
RED WIRE
RIGHT HEADLAMP
SIG
SIG GND
SOUND SYSTEM
TAIL ON IND
TRANSCEIVER/
WHT WIRE
WHT/BLK WIRE
WIPER, LIGHT GND
YEL WIRE
Go to component -> Headlights circuit, bi-function type (2 of 2) -> AUTO LIGHT SENSOR
Wiring diagram auto light sensor (2 of 3)
AUTO HIGH BEAM IND
AUTO LIGHT SENS
AUTO LIGHT SENSOR
AUTO LIGHT, PHOTO SENSOR (TOP CENTER OF DASH) (W/ AUTOLAMPS)
B+2 FUSE
B+3 FUSE
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN
COMPUTER DATA LINES SYSTEM
DIMMING CIRCUIT
DRL
E/R JUNCTION BLOCK
FOG LAMP SW INPUT
FRONT FOG IND
GRN WIRE
GRN/BLK WIRE
GRY WIRE
HEAD LAMP FAIL IND
HEADLAMP
HIGH BEAM IND
HIGH BEAM SOLENOID
HIGH SW IN
HOT AT ALL TIMES
IBU (LOWER RIGHT SIDE OF HVAC HOUSING)
INSTRUMENT CLUSTER
LEFT HEADLAMP
LIGHT SW SIG
LOW BEAM IND
LOW TELL-TAIL
MICOM
MULTI FUSE 2
NCA WIRE
ORG/ WIRE
PNK WIRE
PNK/BLK WIRE
POWER
RED WIRE
RIGHT HEADLAMP
SIG
SIG GND
SOUND SYSTEM
TAIL ON IND
TRANSCEIVER/
WHT WIRE
WHT/BLK WIRE
WIPER, LIGHT GND
YEL WIRE
Go to component -> Headlights circuit, led type (2 of 2) -> AUTO LIGHT SENSOR
Wiring diagram auto light sensor (3 of 3)
AUTO HIGH BEAM IND
AUTO LIGHT SENS
AUTO LIGHT SENSOR
AUTO LIGHT, PHOTO SENSOR (TOP CENTER OF DASH) (W/ AUTOLAMPS)
B+2 FUSE
B+3 FUSE
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN
COMPUTER DATA LINES SYSTEM
DIMMING CIRCUIT
E/R JUNCTION BLOCK
FOG LAMP SW INPUT
FRONT FOG IND
GRN WIRE
GRY WIRE
HEAD LAMP FAIL IND
HEADLAMP
HIGH BEAM IND
HIGH SW IN
HOT AT ALL TIMES
IBU (LOWER RIGHT SIDE OF HVAC HOUSING)
INSTRUMENT CLUSTER
LEFT HEADLAMP
LIGHT SW SIG
LOW BEAM IND
MICOM
MULTI FUSE 2
NCA WIRE
PNK WIRE
PNK/BLK WIRE
POWER
RED WIRE
RIGHT HEADLAMP
SIG
SIG GND
SOUND SYSTEM
TAIL ON IND
TRANSCEIVER/
WHT WIRE
WHT/BLK WIRE
WIPER, LIGHT GND
YEL WIRE
Go to component -> Headlights circuit, multi-focus reflector type (2 of 2) -> AUTO LIGHT SENSOR
