Wiring Diagrams for Kia Soul III (2019-2024)

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit, w/o smart key system Immobilizer circuit, w/ smart key system

Integrated control unit circuit Ips control module circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.6l turbo

Wiring diagram engine performance 2.0l

1.6l turbo, backup lamps circuit

2.0l, backup lamps circuit

Ground distribution circuit

Headlights circuit, bi-function type Headlights circuit, led type Headlights circuit, multi-focus reflector type

Horn circuit

Head-up display circuit Instrument cluster circuit

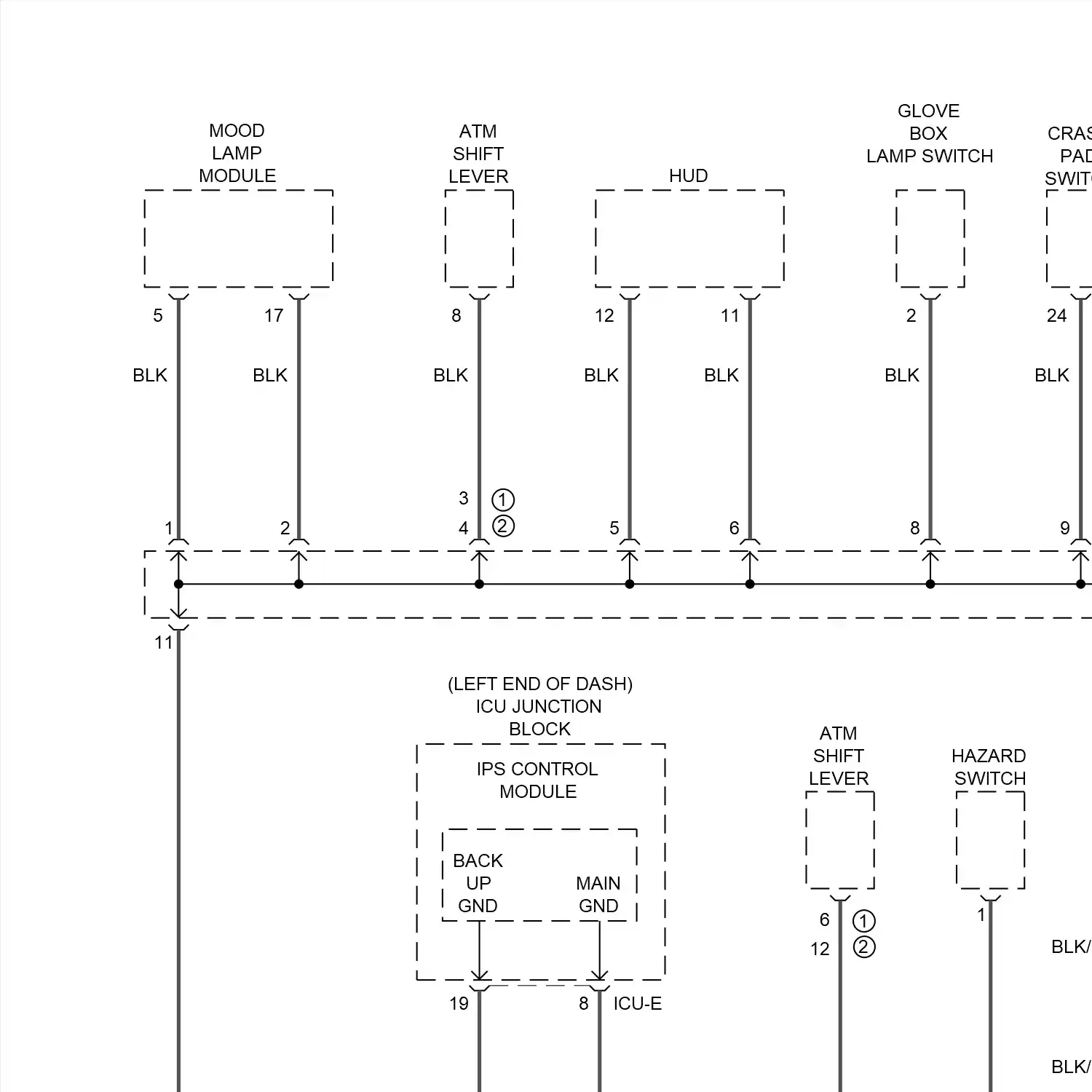

Courtesy lamps circuit, w/ isg 200w Courtesy lamps circuit, w/ isg 450w Courtesy lamps circuit, w/o isg Instrument illumination circuit

Blind spot monitoring circuit Lane keeping assist circuit Navigation circuit, w/ amplifier w/ idle stop/go Navigation circuit, w/ amplifier w/o idle stop/go Navigation circuit, w/o amplifier w/ idle stop/go Navigation circuit, w/o amplifier w/o idle stop/go Parking assistant circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit, w/ mts Electrochromic mirror circuit, w/o mts Power mirrors circuit

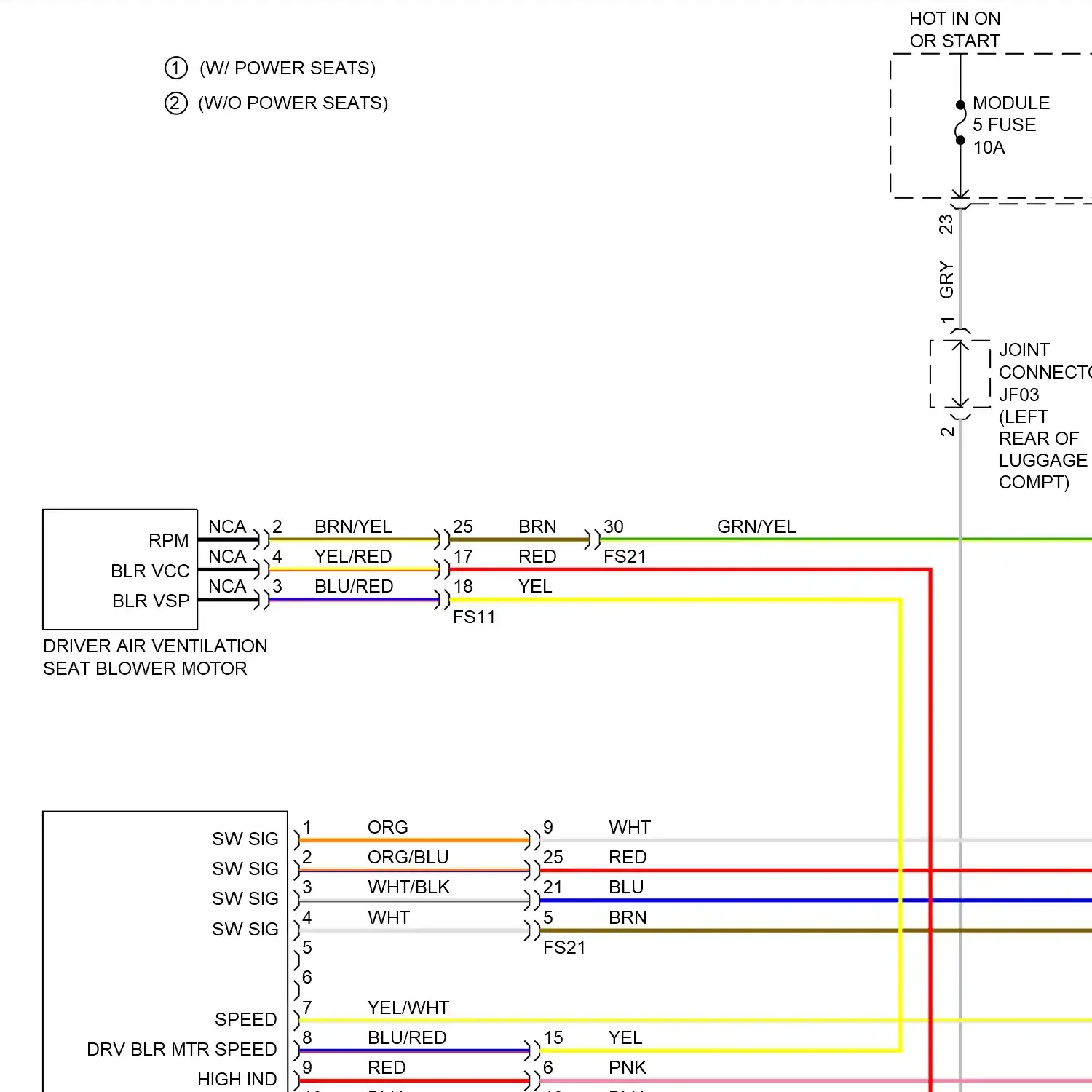

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit Seat ventilation circuit

Power top/sunroof circuit

Power windows circuit, w/ driver auto down power window Power windows circuit, w/ driver auto up/down & safety power windows Power windows circuit, w/ front auto up/down & safety power windows

Radio circuit, w/ amplifier w/ idle stop/go Radio circuit, w/ amplifier w/o idle stop/go Radio circuit, w/o amplifier w/ idle stop/go Radio circuit, w/o amplifier w/o idle stop/go

1.6l turbo, shift interlock circuit

2.0l, shift interlock circuit

1.6l turbo, charging circuit 1.6l turbo, starting circuit, w/o smart key 1.6l turbo, starting circuit, w/ smart key

2.0l, charging circuit 2.0l, starting circuit, a/t & w/ smart key 2.0l, starting circuit, m/t & w/ smart key 2.0l, starting circuit, w/o smart key

Supplemental restraints circuit

1.6l turbo, transmission circuit

2.0l, a/t circuit 2.0l, electric oil pump circuit

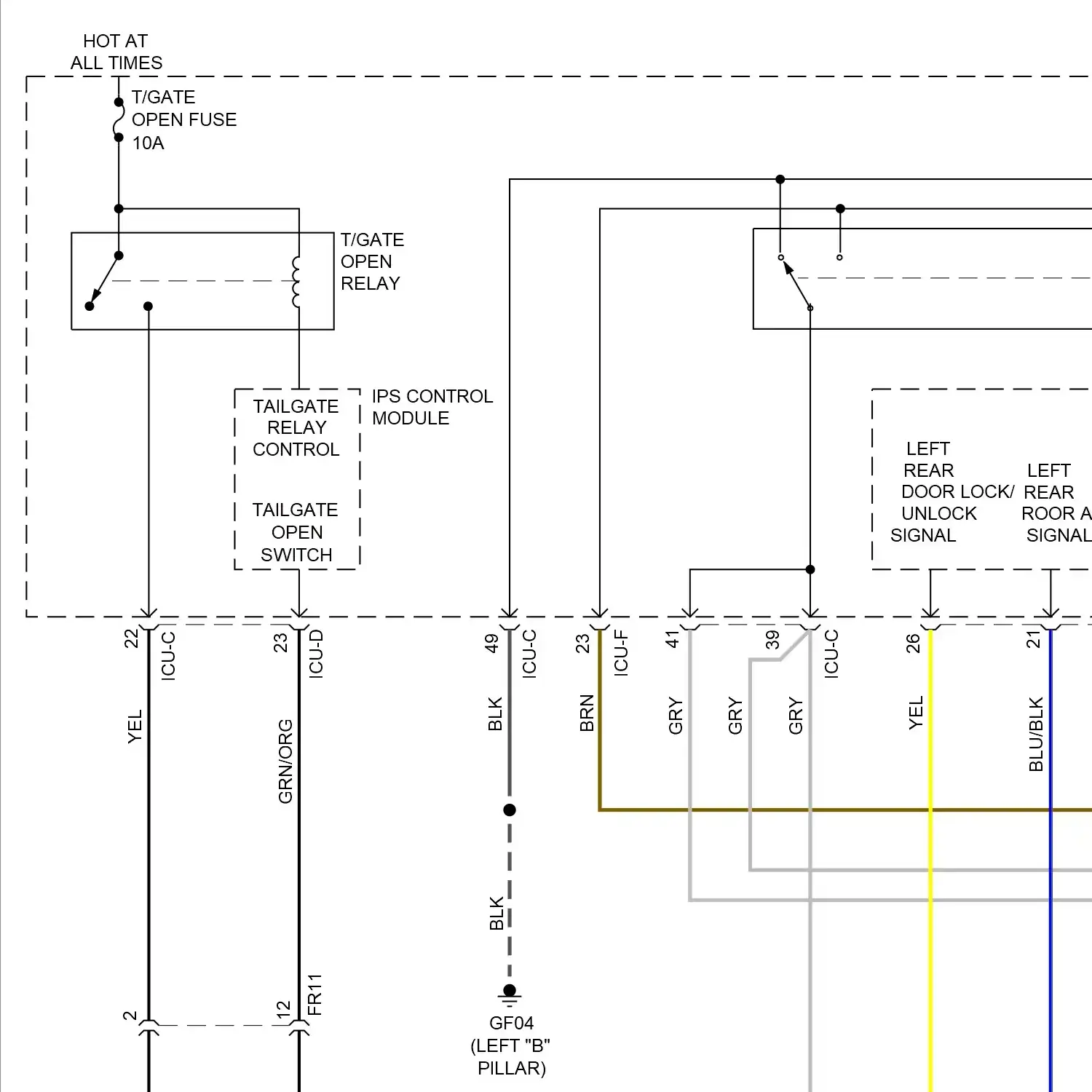

Tailgate release circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear wiper/washer circuit

ALTERNATOR COM ALTERNATOR FR ANTENNA COIL ANTI-LOCK BRAKES, INSTRUMENT CLUSTER, WARNING SYSTEMS BATTERY JUNCTION BLOCK BATTERY SENS BURGLAR SW ALARM HORN RLY CTRL C-CAN TRANSCEIVER DOOR LOCK DOOR LOCK DOOR UNLOCK DOOR LOCK RLY CTRL DRIVER DOOR LOCK/ UNLOCK SIGNAL EXTERIOR LIGHTS, CRUISE CONTROL, SHIFT INTERLOCK, ANTI-LOCK BRAKES SYSTEMS HEATED NOZZLE OUT HTD NOZZLE OUT IGN COIL 1 CTRL IGN COIL 2 CTRL IGN COIL 3 CTRL IGN COIL 4 CTRL IGNITION COIL 1 IGNITION COIL 1 SHIELD IGNITION COIL 2 IGNITION COIL 2 SHIELD IGNITION COIL 3 IGNITION COIL 3 SHIELD IGNITION COIL 4 IGNITION COIL 4 SHIELD IGNITION LOCK SW KEY INTERLOCK SW IGNITION LOCK SW LEFT REAR DOOR LOCK/ UNLOCK SIGNAL LOCK ON LOCK UNLOCK M-CAN TRANSCEIVER PASSENGER DOOR LOCK/ UNLOCK SIGNAL RIGHT REAR DOOR LOCK/ UNLOCK SIGNAL SHIFT-LOCK SOL WASHER NOZZLE HEATER

(LEFT REAR OF ENGINE COMPARTMENT, (RIGHT FRONT OF ENGINE ANTI-THEFT, ENGINE CONTROLS SYSTEMS BLOWER MOTOR CHECK ENGINE IND COOLING FAN MOTOR DRIVER AIR VENTILATION SEAT BLOWER MOTOR DRIVER AIR VENTILATION SEAT CUSHION BLOWER MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER RECLINING, LUMBAR SUPPORT MOTOR DRIVER SLIDE MOTOR DRIVER TEMPERATURE ACTUATOR ELECTRIC WASTEGATE ACTUATOR ENGINE CONTROL SYSTEM ENGINE CONTROLS SYSTEM ENGINE CONTROLS, CRUISE CONTROL, ANTI-LOCK BRAKES SYSTEMS ENGINE CTRL RLY CTRL ENGINE RPM ENGINE RPM SIG ETC DC MOTOR - FRONT WASHER MOTOR SW POWER FRONT WIPER MOTOR FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR INTAKE ACTUATOR INTAKE ACTUATOR F/B INTAKE ACTUATOR FRE INTAKE ACTUATOR REC ISG RLY MOTOR CTRL CTRL RLY ISG START MOTOR CTRL RLY LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE ACTUATOR MODE ACTUATOR DEF MODE ACTUATOR F/B MODE ACTUATOR VENT MOTOR CTRL RLY PASSENGER AIR VENTILATION SEAT BLOWER MOTOR PASSENGER AIR VENTILATION SEAT CUSHION BLOWER MOTOR PASSENGER DOOR LOCK ACTUATOR PASSENGER FRONT HEIGHT ADJUSTER MOTOR PASSENGER POWER WINDOW MOTOR PASSENGER REAR HEIGHT ADJUSTER MOTOR PASSENGER RECLINING MOTOR PASSENGER SLIDE MOTOR PASSENGER TEMPERATURE ACTUATOR REAR WASHER MOTOR SW POWER REAR WIPER MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SELECT ACTUATOR SHIFT MOTOR #1 SHIFT MOTOR #2 START MOTOR SUNROOF MOTOR VARIABLE CHARGE MOTION ACTUATOR WASHER MOTOR

ANTENNA 2 GND ANTENNA 2 PWR ANTENNA 3 GND ANTENNA 3 PWR BUMPER ANTENNA GND BUMPER ANTENNA PWR COMBINATION ANTENNA DRV DOOR ANTENNA GND DRV DOOR ANTENNA PWR LTE ANTENNA PASS DOOR ANTENNA GND PASS DOOR ANTENNA PWR SMART KEY ANTENNA 2 SMART KEY ANTENNA 3 SMART KEY BUMPER ANTENNA

START STOP BUTTON SWITCH START/STOP BUTTON SWITCH

CAMERA B+ CAMERA P GND CAMERA S GND CAMERA V/GND CAMERA V/IN MULTI-FUNCTION CAMERA MULTIFUNCTION CAMERA REAR VIEW CAMERA W/ DYNAMIC GUIDE CAMERA

DATA LINK CONNECTOR MULTI-PURPOSE CHECK CONNECTOR MULTIPURPOSE CHECK CONNECTOR

A/C CONTROL MODULE FRONT AIR SEAT VENTILATION CONTROL MODULE FRONT AIR VENTILATION SEAT CONTROL MODULE FRONT SEAT CONTROL MODULE FRONT SEAT WARMER CONTROL MODULE IPS CONTROL MODULE REAR SEAT WARMER CONTROL MODULE SRS CONTROL MODULE

A/V, NAVIGATION HEAD UNIT AUDIO UNIT AUDIO, NAVIGATION HEAD UNIT CONTROL UNIT) ECU 1 FUSE ECU 2 FUSE ECU 3 FUSE ECU 4 FUSE ECU 5 FUSE ECU GROUND ESC UNIT ESC UNIT ESC MODULE LEFT BLIND-SPOT COLLISION WARNING UNIT LEFT BLINDSPOT COLLISION WARNING UNIT MDPS UNIT MEM PWR ECU MEMORY POWER ECU MULTIFUNCTION CAMERA UNIT RIGHT BLIND-SPOT COLLISION WARNING UNIT RIGHT BLINDSPOT COLLISION WARNING UNIT SAFETY WINDOW ECU

A/BAG IND FUSE A/C 1 FUSE A/C 2 FUSE A/C FUSE ABS 1 FUSE ABS 2 FUSE ABS 3 FUSE AIR BAG 1 FUSE AIR BAG 2 FUSE ALT FUSE AMP FUSE AMS FUSE B+1 FUSE B+2 FUSE B+3 FUSE B+4 FUSE B+5 FUSE BLOWER FUSE BRAKE SWITCH FUSE CLUSTER FUSE COOLING FAN FUSE DCT 1 FUSE DCT 2 FUSE DEICER FUSE DOOR LOCK FUSE DR LOCK FUSE FRT HTD LH FUSE FRT HTD RH FUSE FUEL PUMP FUSE H/LAMP HI FUSE HEATED MIRROR FUSE HORN FUSE IBU 1 FUSE IBU 2 FUSE IGN COIL FUSE INJECTOR FUSE MDPS FUSE MEMORY 1 FUSE MEMORY FUSE MODULE 1 FUSE MODULE 2 FUSE MODULE 3 FUSE MODULE 4 FUSE MODULE 5 FUSE MODULE 6 FUSE MODULE 7 FUSE MULT- MEDIA FUSE MULTI FUSE MULTI FUSE 1 MULTI FUSE 2 MULTI FUSE 3 MULTI MEDIA FUSE OIL PUMP FUSE P/SEAT PASS FUSE P/WINDOW LH FUSE P/WINDOW RH FUSE POWER OUTLET 1 FUSE POWER OUTLET 2 FUSE POWER OUTLET 3 FUSE POWER OUTLET FUSE PTC HEATER 1 FUSE PTC HEATER 2 FUSE REAR HEATED FUSE REAR HEATER FUSE S/HEATER FRT FUSE S/HEATER FUSE S/HEATER RR FUSE START FUSE SUNROOF FUSE T/GATE OPEN FUSE TAILGATE OPEN FUSE TCU 1 FUSE TCU 2 FUSE VACUUM PUMP FUSE WASHER FUSE WIPER FRT 1 FUSE WIPER FRT 2 FUSE WIPER RR FUSE

W/ LOW/HIGH BEAM HEADLIGHT TYPE W/O LOW/HIGH BEAM HEADLIGHT TYPE

DRV SEAT HEATER GND DRV SEAT HEATER PWR HEATER BACK HEATER CUSH HEATER GND HEATER PWR PASS SEAT HEATER GND PASS SEAT HEATER PWR PTC HEATER PTC HEATER 1 PTC HEATER 2 STEERING WHEEL HEATER MODULE STEERING WHEEL HEATER SW STEERING WHEEL HEATER SW IND

ATM LEVER INDICATOR ATM SHIFT LEVER INDICATOR POINTER LED SHIFT LEVER INDICATOR WIRELESS CHARGER INDICATOR

BACK UP LAMP BCW LAMP DRIVER DOOR MOOD RANGE LAMP EXTERIOR LIGHTS EXTERIOR LIGHTS, DEFOGGER SYSTEMS EXTERIOR LIGHTS, WIPER/WASHER, EXTERIOR LIGHTS SYSTEMS EXTERIORS LIGHTS SYSTEM FOG LAMP SW INPUT GLOVE BOX LAMP) HEAD LAMP FAIL IND HEAD LAMP HI SW HEAD LAMP LOW SIG HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP INTERIOR LIGHTS SYSTEM COMPUTER DATA LINES SYSTEM LAMP LOAD LEFT FRONT FOG LAMP LEFT FRONT VANITY LAMP LEFT HEAD- LAMP LEFT LICENSE LAMP LEFT LICENSE PLATE LAMP LEFT MAP LAMP LEFT REAR COMBINATION LAMP LEFT STOP LAMP LEFT VANITY LAMP LOAD LAMP LUGGAGE LAMP MOOD LAMP MODULE OVERHEAD CONSOLE LAMP PASSENGER DOOR MOOD RANGE LAMP RIGHT FRONT FOG LAMP RIGHT FRONT VANITY LAMP RIGHT HEAD- LAMP RIGHT LICENSE LAMP RIGHT LICENSE PLATE LAMP RIGHT MAP LAMP RIGHT STOP LAMP RIGHT VANITY LAMP ROOM LAMP ROOM LAMP CTRL ROOM LAMP OUT ICU-E SOUND MOOD LAMP STOP LAMP LT STOP LAMP SIG STOP LAMP SIGNAL STOP LAMP SW TAILGATE LAMP SW TAILGATE ROOM LAMP TELLTALE LAMP TRUNK ROOM IPS LAMP CTRL TURN LAMP TURN LAMP SIG W/O HIGH/LOW BEAM HI/LAMP

BVS/VAC PUMP SIG ELECTRIC OIL PUMP ELECTRIC VACUUM PUMP ELECTRONIC OIL PUMP FUEL PUMP RLY CTRL FUEL PUMP RLY CTRL CCV CTRL

A/C COMP RELAY A/C ON COMP RELAY A/C RELAY CTRL A/CON COMP RELAY BLOWER RELAY BURGLAR ALARM RELAY BURGLAR ALARM RELAY CONTROL BURGLAR ALARM RELAY CTRL BURGLAR LEFT ALARM REAR HORN ROOR HOOD RELAY AJAR SWITCH CONTROL SIGNAL COOLING FAN 1 RELAY COOLING FAN 2 RELAY DOOR LOCK RELAY DOOR LOCK RELAY CONTROL DOOR UNLOCK RELAY DOOR UNLOCK RELAY CONTROL E/R JUNCTION BLOCK POWER OUTLET RELAY ENG CTRL RELAY ON ENGINE CONTROL RELAY FRONT HEATED LH RELAY FRONT HEATED REAR GLASS GLASS DEFOGGER HEAT SWITCH SW SIG RELAY FRONT HEATED RH RELAY FRONT WIPER HIGH RELAY FUEL PUMP RELAY HEAD LAMP HIGH RELAY HEADLAMP HIGH RELAY HORN RELAY HOT W/ LONG TERM LOAD LATCH RELAY ENERGIZED HOT W/ LONG TERM LOAD LATCH RELAY ON HOT WITH LONG TERM LOAD LATCH RELAY 'ON' INPUT HOT WITH LONG TERM LOAD LATCH RELAY ENERGIZED ICM RELAY BOX LEFT FRONT HEATED RELAY LEFT POWER WINDOW RELAY LONG TERM LOAD LATCH RELAY LONG TERM LOAD LATCH RELAY 'ON' INPUT POWER OUTLET RELAY POWER WINDOW LH RELAY POWER WINDOW RELAY CONTROL POWER WINDOW RH RELAY PTC 1 RELAY CONTROL PTC 1 RELAY CONTROL PNK PTC 2 RELAY CONTROL WIRE PTC 2 RELAY CONTROL PTC HEATER 1 RELAY PTC HEATER 2 RELAY PTC HEATER 2 RELAY E/R JUNCTION BLOCK PWR WINDOW RELAY CONTROL REAR HEATED RELAY REAR HEATER RELAY REAR WIPER RELAY REAR WIPER RELAY CONTROL RELAY CONTROL RIGHT POWER WINDOW RELAY RR HTD RELAY CTRL SLIDE RELAY GND BWD SLIDE RELAY GND FWD SLIDE RELAY GROUND BWD SLIDE RELAY GROUND FWD START 1 RELAY START MOTOR RELAY START RELAY CTRL T/GATE OPEN RELAY T/TURN UNLOCK RELAY TAIL GATE OPEN RELAY TAILGATE OPEN RELAY TAILGATE RELAY CONTROL TOW TURN UNLOCK, DEAD LOCK RELAY TRUNK RELAY TWO TURN UNLOCK RELAY TWO TURN UNLOCK, DEAD LOCK RELAY

ACCEL PEDAL POSITION SENSOR ALR SENSOR AMBIENT TEMP SENSOR AMBIENT TEMPERATURE SENSOR AUTO LIGHT SENSOR AUTO LIGHT SENSOR GROUND AUTO LIGHT SENSOR POWER AUTO LIGHT SENSOR SIGNAL AUTO LIGHT, PHOTO SENSOR PHOTO SENSOR BATTERY SENSOR BRAKE FLUID LEVEL SENSOR BRAKE VACUUM SENSOR CLUTCH SPEED SENSOR ASSEMBLY CRANKSHAFT POSITION SENSOR DRIVER FRONT IMPACT SENSOR DRIVER SIDE IMPACT PRESSURE SENSOR DRIVER SIDE IMPACT SENSOR ENGINE COOLANT TEMPERATURE SENSOR ETC MOTOR, THROTTLE POSITION SENSOR EVAPORATOR SENSOR FUEL TANK PRESSURE SENSOR IND. SWITCH SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEFT FORWARD PARKING DISTANCE WARNING SENSOR LEFT FRONT TIRE PRESSURE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR TIRE PRESSURE SENSOR LEFT REAR WHEEL SENSOR LEFT REVERSE PARKING DISTANCE WARNING SENSOR LEFT/RIGHT FRONT TIRE PRESSURE SENSOR LEFT/RIGHT REAR TIRE PRESSURE SENSOR LEVEL SENSOR MAP SENSOR OCCUPANT DETECTION SENSOR OIL TEMP SENSOR OIL TEMPERATURE SENSOR PASSENGER FRONT IMPACT SENSOR PASSENGER SEAT BELT BUCKLE SENSOR PASSENGER SIDE IMPACT PRESSURE SENSOR PASSENGER SIDE IMPACT SENSOR PDW SENSOR PWR PHOTO SENSOR PINS 1 - 14 NOT USED PNK PASS SEAT BELT BKLE SENSOR WIRE PRESS SENSOR PWR 1/2 PRESSURE SENSOR RAIL PRESSURE SENSOR RAIN SENSOR RAIN SENSOR LIN RIGHT FORWARD PARKING DISTANCE WARNING SENSOR RIGHT FRONT TIRE PRESSURE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR TIRE PRESSURE SENSOR RIGHT REAR WHEEL SENSOR RIGHT REVERSE PARKING DISTANCE WARNING SENSOR RR WHEEL SENSOR SIG SENSOR 1 FUSE SENSOR 2 FUSE SENSOR 3 FUSE SENSOR 4 FUSE SENSOR GND SENSOR GROUND SENSOR POWER SENSOR SIGNAL SENSOR SPLY SPEED SENSOR SPEED SENSOR SIGNAL SPEED SENSOR SUPPLY THROTTLE POSITION SENSOR WASHER HEAD LEVEL LAMP SENSOR HIGH RLY CTRL WASHER LEVEL SENSOR

CENTER SPEAKER DRIVER DOOR SPEAKER DRIVER DOOR TWEETER SPEAKER LEFT DOOR TWEETER SPEAKER LEFT REAR DOOR SPEAKER MID SPEAKER PASSENGER DOOR SPEAKER PASSENGER DOOR TWEETER SPEAKER RIGHT DOOR TWEETER SPEAKER RIGHT REAR DOOR SPEAKER W/0 MIDRANGE SPEAKER W/ MID SPEAKER W/ MID-RANGE SPEAKER W/ MIDRANGE SPEAKER W/MID SPEAKER W/O MID-RANGE SPEAKER WOOFER SPEAKER

AJAR SWITCH BACK-UP LAMP SWITCH BACKUP LAMP SWITCH BCW ON/OFF SWITCH IND BCW ON/OFF SWITCH MODE BCW SWITCH BLOWER SWITCH CLUTCH SWITCH CRASH PAD SWITCH DOOR LOCK SWITCH DOOR SWITCH DOOR WANRING SWITCH K-LINE IMMO EMS COM DOOR WARNING SWITCH DRIVE MODE SWITCH DRIVER CONSOLE SWITCH DRIVER DOOR SWITCH ICU-D DRIVER RECLINING LIMIT SWITCH DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT MANUAL SWITCH DRIVER WINDOW SWITCH DRV DOOR LOCK/UNLOCK SWITCH ESC OFF SWITCH ESC ON/OFF SWITCH FOG LAMP SWITCH FOG LAMP SWITCH SIGNAL FOOT PARKING BRAKE SWITCH FRONT WASHER SWITCH GLOVE BOX LAMP/ SWITCH HAZARD SWITCH HEADLAMP HIGH SWITCH OUT HEADLAMP LOW BACKUP SWITCH OUT HEATED GLASS SWITCH HOOD SWITCH HORN SWITCH HUD SWITCH IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH IGNITION LOCK AND CLUTCH SWITCH IGNITION LOCK SWITCH IGNITION LOCK, CLUTCH SWITCH IGNITION SWITCH IND SWITCH INHIBITOR SWITCH GROUND INHIBITOR SWITCH SUPPLY INT/VOL SWITCH ISG SWITCH KEY INTERLOCK SWITCH KEY/DOOR SWITCH LANE KEEPING ASSIST SWITCH LEFT COOL SWITCH LEFT HEATER SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR WINDOW SWITCH LEFT STEERING WHEEL REMOTE CONTROL SWITCH LIGHT SWITCH LIGHT SWITCH OUT LUGGAGE LAMP SWITCH MOOD LAMP SWITCH MULTI- FUNCTION SWITCH NEUTRAL SWITCH OIL PRESSURE SWITCH P/N SWITCH PARKING BRAKE SWITCH PARKING SWITCH PASS DOOR LOCK/UNLOCK SWITCH PASSENGER CONSOLE SWITCH PASSENGER DOOR SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER RECLINING LIMIT SWITCH PASSENGER SEAT BELT BUCKLE SWITCH PASSENGER SEAT MANUAL SWITCH PASSENGER WINDOW SWITCH POWER OUTSIDE MIRROR SWITCH POWER WINDOW MAIN SWITCH REAR DEFOG SWITCH REAR DEFOG SWITCH IND REAR DEFOG SWITCH SW REAR DEFOGGER SWITCH REAR WASHER SWITCH REAR WASHER SWITCH SIG REAR WIPER SWITCH RIGHT CONSOLE SWITCH RIGHT COOL SWITCH RIGHT HEATER SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR WINDOW SWITCH RIGHT STEERING WHEEL REMOTE CONTROL SWITCH SELECT SWITCH SELECTOR SWITCH SIGNAL, SWITCH STEERING WHEEL HEATER SWITCH STEERING WHEEL HEATING SWITCH STOP LAMP SWITCH SUNROOF SWITCH SWITCH SELECT SWITCH SIG TAILGATE LAMP SWITCH TAILGATE OPEN SWITCH TRANSAXLE RANGE SWITCH WARNING SWITCH WINDOW LOCK SWITCH WIPER LOW SWITCH

CANISTER CLOSE VALVE ELECTRONIC CONTROL VALVE FUEL PRESSURE CONTROL VALVE HIGH BEAM SOLENOID KEY INTERLOCK SOLENOID KEY SOLENOID OIL CONTROL VALVE 3 PURGE CONTROL SOLENOID PURGE CONTROL SOLENOID VALVE SHIFT LOCK SOLENOID START SOLENOID TURBO RECIRCULATION VALVE VARIABLE INTAKE SOLENOID

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE DIAG WIRE GRN BLK/ WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/WHT WIRE GRN/YEL WIRE GROUND PNK CCP-CAN HIGH WIRE GROUND PNK ON/START INPUT WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE HEATED GLASS IND PNK HEATED GLASS SWITCH WIRE INTAKE ACTUATOR REC PNK REAR DEFOG SWITCH IND WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/WHT WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/WHT WIRE P-CAN LOW PNK FET DRAIN WIRE PNK CCP-CAN HIGH WIRE PNK D-CAN HIGH WIRE PNK DRV DR ANT PWR WIRE PNK MODE ACTUATOR F/B WIRE PNK ON/START INPUT WIRE PNK PAB IGN WIRE PNK PNK WIRE PNK WIRE PNK/BLK WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/ORG WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE

1.6L 1.6L, 2.0L 2.0L 2.0L M/T 2.0L ONLY 2.0L, 1.6L TURBO 61.9 OHM 61.9 OHM 120 KM/H IND 511 OHM 'B' OUTPUT (IF (OR A/C BLOWER SIG A/C COMPRESSOR A/C ON COMP RLY CTRL A/C PRESSURE TRANSDUCER A/T M/T ABS IND. ACC OUTPUT ACC RLY CNTRL ACC RLY CTRL ACC/ON INPUT ACTIVE VENT HIGH ACTIVE VENT LOW AGC BPF AIR BAG AIR BAG IND AIR CONDITIONING SYSTEM AIR TEMP SIG ALT IN ALT OUT AM/FM B+ AM/FM OUT AM/FM PWR ANT 2 GND ANT 2 PWR ANT 3 GND ANT 3 PWR ANT-RG ANT-RG SL ANT-RGSL ANTI-THEFT SYSTEM ANTI-THEFT, STARTING/CHARGING SYSTEMS ANTI-THEFT, STARTING/CHARGING, SHIFT INTERLOCK SYSTEMS APS 1 GND APS 1 GROUND APS 1 POWER APS 1 SIG APS 1 SIGNAL APS 1 SPLY APS 2 GND APS 2 GROUND APS 2 POWER APS 2 SIG APS 2 SIGNAL APS 2 SPLY APT GND APT SIG AST SEAT BELT IND OUT ATM SHIFT LEVER AUTO A/C AUTO DOWN AUTO HIGH BEAM IND AUTO LIGHT SENS AUTO STOP IND AUTO TAIL AUTO UP AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUX, USB JACK AVN/ DISPLAY AUDIO B-CAN B-CAN HIGH B-CAN HIGH B-CAN HIGH B-CAN LOW B-CAN LOW ICU-G BACK UP SIGNAL BACK-UP GND BACK-UP GROUND BACK-UP SIG BACK-UP SW BACKUP SIGNAL BCAN-HI BCAN-LO BI-FUNCTION / 2 MFR HEADLAMPS BI-FUNCTION/ 2 MFR H/LIGHT BLOWER IN BLOWER ON SIGNAL BLOWER SIGNAL INPUT BLR VCC BLR VSP BOOST PRESSURE TRANSDUCER BPS GND BPS SIG BRAKE FLUID BRAKE FLUID LEVEL SENS BRAKE IND BRAKE LIGHT SW BRAKE TEST SW BRK FLUID LEVEL SENS BRK LT SW BRK SW BRK TEST SW BUMPER ANT GND BUMPER ANT PWR BURGLAR ALARM RLY CTRL BVS GND BVS SIG BVS/CKPS SPLY C-CAN C-CAN HIGH C-CAN LOW C/FAN 1 RLY CTRL C/FAN 2 RLY CTRL CALL END CALL SEND CALL VOICE END CCP CAN CCP-CAN HIGH CCP-CAN LOW CCV CTRL CHARGE IND CHARGING SYSTEM CHASSIS GROUND CKPS GND CKPS SIG CLIMATE CONTROL SYSTEM CLOCK- SPRING CLOSE/ TILT DOWN CLUTCH SPEED 1 GND CLUTCH SPEED 1 POWER CLUTCH SPEED 2 GND CLUTCH SPEED 2 POWER CLUTCH SW CMPS 1 INTAKE GND CMPS 2 EXHAUST GND CMPS SPLY COMM-GND COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEMS CONSTANT CURRENT CONVENTIONAL SUPERVISION COOLING FANS SYSTEM CRASH IPS INPUT CTRL CRASH OUTPUT CRASH UNLOCK CRUISE CONTROL SYSTEM CRUISE ON/OFF RES+ CRUISE SW PADDLE DOWN CRUISE SW PADDLE UP CTR + CVT, DCT D IND D OUT D-CAN D-CAN HIGH D-CAN LOW DC-DC CONV DC-DC CONVERTER DC-DC CONVERTOR DCT CVT DCT CVT AUTO A/C MANUAL A/C W/ SUNROOF W/O SUNROOF DEDICATE DRL LH DEDICATE DRL RH DEDICATED DRL- RT DEFOGGER SYSTEM DEFROST ACTIVE DETENT OUT DIAGNOSIS CIRCUIT DIAL LED DIMMER PASS DIMMING CIRCUIT DOOR LK SW DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, STARTING/CHARGING SYSTEMS DOOR OPEN IND DOOR UNLOCK DOOR UNLOCK RLY CTRL DOT LCD, ANALOG DOWN SHIFT DOWN SW DOWN/ LEFT DR LK DR LK/UNLK SIG DR UNLK DRIVE MODE SW IN DRIVE MODE SWITCH_IN DRIVER AIR BAG DRIVER AIR VENTILATION SEAT WARMER DRIVER ANCHOR PRETENSIONER DRIVER CURTAIN AIR BAG DRIVER DOOR AJAR SIG DRIVER DOOR AJAR SIGNAL DRIVER DOOR KEY UNLOCK SIGNAL DRIVER POWER OUTSIDE MIRROR DRIVER SAFETY POWER WINDOW MODULE DRIVER SEAT BELT DRIVER SEAT BELT PRETENSIONER DRIVER SEAT WARMER DRIVER SIDE AIR BAG DRIVER SMART KEY OUTSIDE HANDLE DRIVER TEMP ACT COOL DRIVER TEMP ACT F/B DRIVER TEMP ACT WARM DRIVER/ PASSENGER DOOR KEY UNLOCK SIGNAL DRL RH DRL LH DRL- LT DRV BLR MTR PWR DRV BLR MTR SPEED DRV DR ANT GND DRV DR LK/UNLK SW E-MODULE E/R JUNCTION BLOCK E/R-A E/R-B E/R-C E/R-D ECS MODULE ECTS GND ECTS GROUND ECTS SIG ECTS SIGNAL ELEC THERMOSTAT ELECTRO- CHROMIC MIRROR ELECTROCHROMIC MIRROR ELECTRONIC THERMOSTAT EMS COM ENG CTRL RLY CTRL ENG CTRL RLY ON IN ENG RPM ESC IND ESC MODULE ESC OFF IND ETC MTR EWGA GND EWGA SENS SIG EXHAUST MANIFOLD) EXT TAIL FT LT EXT TAIL FT RT EXT TAIL RL EXT TAIL RR EXTERNAL BUZZER EXTERNAL MEMORY FAN PWM FCA OFF IND FET GATE FL SIG FL VCC FOG LMP LT FOG LMP RT FOG LP LH FOG LP RH FOG LP RH FOG LP LH FR SIG FR VCC FRONT DEICER FRONT DEICER 1 FRONT DEICER 2 FRONT FOG FRONT FOG IND FRONT HEATED BOX FRONT PARK DISTANCE WARNING PWR OUT FRONT USB CHARGER FRONT WASHER SW SIG FRONT WIPER LOW BACKUP SIG FRT GLASS HTD RLY FRT TAIL FR FRT TAIL FL FTP SENS GND FTP SENS SIG FTPS GND FTPS SIG FUEL GAUGE FUEL LEVEL SEND FUEL LVL FUEL SENDER FUEL TANK LVL GLASS STATUS GND SIG 1 GND SIGNAL 1 GND SIGNAL 2 GNSS FEEDER CABLE GPS OUT/B+ GROUND DISTRIBUTION SYSTEM H/LMP HI RT H/LMP HI RT LO LT H/LMP LO LT H/LP HI RH H/LP HIGH LH H/LP HIGH RH H/LP LO RH H/LP HI LH H/LP LOW LH H/LP LOW RH HALL 1 HALL 2 HALL 3 HAZARD SW SW IND HBA IND HEAD OFF HEAD TAIL AUTO HEADLAMP FAIL IND HEADLAMP HIGH SIG HEADLAMP LOW SIG HEADLIGHTS SYSTEM HEAT HIGH IND HEAT LOW IND HEATED GLASS IND HI/LO PROJECTOR BI-FUNCTION PROJECTOR/ MULTI-FOCUS REFLECTOR HIGH B-CAN HIGH BEAM IND HIGH IND HIGH LOW HIGH SW IN HIGH/LOW BEAM H/LIGHT HIGH/LOW BEAM HEADLAMPS HOOD PARKING BRAKE SW HOT ALL THE TIME HOT AT ALL TIMES HOT AT ALL TIMES 1.6L HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HPF HPF HTD GLASS SW IN HUD ON/OFF SW I CAN - I-CAN HIGH I-CAN LOW I/P-F IAT SIG IBU SSB IC IGNITER ICU JUNCTION BLOCK ICU-A ICU-B ICU-C ICU-D ICU-E ICU-F ICU-G IIII III II ILLUM SCC IMMO COMM IMMO COMM LINE IMMO DATA LINE IMMO GROUND IMMO IND IMMO POWER IMMOBILIZER IND INJ 1 CTRL INJ 2 CTRL INJ 3 CTRL INJ 4 CTRL INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 4 INJECTOR CTRL 4 INPUT SPEED SUPPLY INSTRU- MENT CLUSTER INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTURMENT CLUSTER SYSTEM INT/VOL SW SIG IPS CTRL ISG B+ ISG INPUT ISG SW ISG SW IND K-LINE IMMO KEY HOLE ILL OUT KEY ILL OUT KEY INTERLOCK SOL KEY INTERLOCK SW KEY LK KEY UNLK KEYPAD GND KEYPAD SIG KNOCK SENS GND KNOCK SENS SIG L-CAN HIGH L-CAN LOW LEAK CURRENT AUTOCUT DEVICE LEFT DRL LEFT FRONT POWER OUTLET LEFT HEADLAMP LEFT REAR LEFT REAR DOOR AJAR B-CAN HIGH SIG LEFT REAR ROOR AJAR SIGNAL LEFT REAR SEAT WARMER LEFT RIGHT LEFT TURN IND LF SIG LF VCC LH BCW IND LIGHT SW SIG LIGHT SW SIGNAL LIN LINE LINES SYSTEM LOCAL CAN HIGH LOCAL CAN LOW LONG TERM LOAD LATCH RLY CTRL LOW B-CAN LOW BEAM IND LOW FUEL IND LOW HIGH LOW IND LOW TELL-TAIL LOW TELL-TALE M-CAN M-CAN HIGH M-CAN LOW M/T A/T MAIN GND MAIN GROUND MANUAL A/C MAP SENS GND MAP SENS SIG MASTER WARNING IND MATCHING CIRCUIT MDPS IND MEM PWR MEMORU PWR MEMORY B+ MEMORY POWER MEMORY PWR MIC - MIC SHIELD MID IND MTR 2 (EVEN HALL 2 N IND N OUT N-POSITION NAVIGATION SYSTEM NEUTRAL SW NTC- OCV 1 CTRL OCV 2 CTRL OCV 3 CTRL OFF DOWN OIL PRESSURE IND OIL PRESSURE SWITCH_IN OIL TEMP + OIL TEMP SENS ON INPUT ON OFF ON/START IN ON/START INPUT ON/START PWR OUTSIDE MIRROR P IND P OUT P- P- CAN CAN LOW HIGH P-CAN P-CAN HIGH P-CAN LOW PAB CUT OFF SIG PAB CUT OFF SIGNAL PAB IGN PARK DISTANCE WARNING LIN PARK DISTANCE WARNING PWR IN PARK DISTANCE WARNING SW IND PARK DISTANCE WARNING SW MODE PARKING BRAKE PARKING BRAKE IND. PARKING BRAKE SW PARKING BRK SW PAS OPT IN PAS OPTION PASS DOOR AJAR SIG PASS DR ANT GND PASS DR ANT PWR PASS DR LK/UNLK SW PASS DRV PASS TEMP ACT COOL PASS TEMP ACT F/B PASS TEMP ACT WARM PASSENGER AIR BAG 1 PASSENGER AIR BAG 2 PASSENGER AIR BAG OFF IND PASSENGER AIR VENTILATION SEAT WARMER PASSENGER CURTAIN AIR BAG PASSENGER DOOR AJAR SIGNAL PASSENGER DOOR KEY UNLOCK SIGNAL PASSENGER POWER OUTSIDE MIRROR PASSENGER SAFETY POWER WINDOW MODULE PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT WARMER PASSENGER SIDE AIR BAG PASSENGER SMART KEY OUTSIDE HANDLE PCB ACC PCB BLOCK PCSV CTRL PDW FWD PWR PDW REV PWR PDW SW IND PDW SW MODE POWER DISTRIBUTION SYSTEM POWER GND POWER GROUND POWER TOPS SYSTEM POWER WINDOW RLY CTRL POWER WINDOWS SYSTEM PRESS SUPPLY 1/2 PRESSURE SUPPLY 1/2 PRIMARY PWR 1 PRIMARY SIG 2 PWM OUT R - OUT R IND RADIO FEEDER CABLE RCV CTRL REAR DEFOGGER REAR OF CYL HEAD) REAR PARK DISTANCE WARN PWR OUT REAR POWER OUTLET REAR SEAT WARMER MODULE REAR USB CHARGER REAR WASHER SW SIG REAR WIPER CIRCUIT REMOTE CTRL SW GND REMOTE CTRL SW SIG RES+ REVERSE GEAR SW IN RF SIGNAL RF VCC RH BCW IND RH LH B+2 RHEO DOWN IN RHEO UP IN RIGHT DRL RIGHT END OF DASH) RIGHT FRONT POWER OUTLET RIGHT HEADLAMP RIGHT LEFT LOW LOW TELL- TELL- TALE TALE RIGHT REAR RIGHT REAR DOOR AJAR SIG RIGHT REAR ROOR AJAR SIGNAL RIGHT REAR SEAT WARMER RIGHT TURN IND RL SIG RL VCC RLY CTRL RLY CTRL #1 RLY CTRL #2 RPM IN RPS GND RPS SIG RR DEF SW IN RR HTD RLY CTRL RR SIG RR VCC RR WIPER RLY OUT S OUT SAFETY ENABLE SBR PASS SEAT BELT IND SEATS SYSTEM SECONDARY PRESS SECONDARY PRESS SUPPLY SEEK DOWN SEEK MODE DOWN SEEK MODE MUTE DOWN SEEK UP SEL 1 POSITION GND SEL 2 POSITION GND SEL 1 POSITION SIG SEL 1 POSITION SPLY SEL 1 SENS GND SEL 1 SENS OUT SEL 1 SENS PWR SEL 1 SOL GND SEL 1 SOL PULL SEL 1 SOL PUSH SEL 2 POSITION SIG SEL 2 POSITION SPLY SEL 2 SENS GND SEL 2 SENS OUT SEL 2 SENS PWR SEL 2 SOL GND SEL 2 SOL PULL SEL 2 SOL PUSH SELECT SW SENS PWR SENS SIG SENS SPLY SET- SHIFT INTERLOCK SYSTEM SHIFT LEVER) SHORT TERM LOAD SIG 1 GND SIG A SIG B SIG C SIG GND SIGNAL 1 SIGNAL 1 GND SIGNAL 2 SIGNAL GROUND SLAVE GND SLAVE LIN SLAVE PCB ACC SMART CRUISE CONTROL RADAR SOL PWR A SOL PWR B SOL_CLUTCH SOL_DC SOL_LP SOL_PRIMARY SOL_SECONDARY SOUND SYSTEM SOUND SYSTEM/ NAVIGATION SYSTEM SOUND SYSTEMS SOUNDS SYSTEMS SPDIF GROUND SPEED OUT SPEED SENS SIG SPEED SENS SUPPLY SPEED SIG SPEEDO- METER SPOC+ CTRL SSB ILL POWER SSB ILL PWR SSB SW 1 SSB SW 2 STANDARD CLUSTER STANDARD SUPERVISION START F/B SIG START F/B SIGNAL START RLY CTRL START RLY O/P START RLY OUTPUT START SIG IN START SW IN STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEERING HEAT STEERING WHEEL) STOP LP SW STOP RT STRG HEAT SUNROOF STATUS SUNROOF/ POWER WINDOW ENABLE SUNROOF/ SAFETY POWER WINDOW ENABLE SUPPLEMENATAL RESTRAINTS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW INPUT SW SIG SXM FEEDER CABLE SXM OUT/VIN SYSTEM STARTING/ CHARGING T/SIG DRV TELL- SEAT TALE BELT RH T/SIG FRT LH H/LP LO LH T/SIG FRT RH T/SIG RR LH T/SIG RR RH T/SIG TELL- TALE LH T/TURN UNLK RLY CTRL TACHO- METER TAIL AUTO TAIL INNER TAIL ON IND TAILGATE HANDLE B+2 SW TAILGATE HANDLE SW TAILGATE LATCH TAILGATE OPEN SW TAILGATE RLY CTRL TEMP GAUGE TFT LCD TILT UP TO DIMMING CIRCUIT TPMS IND TPS 1 SIG TPS 1 SIGNAL TPS 2 SIG TPS 2 SIGNAL TPS GND TPS GROUND TPS SPLY TPS SUPPLY TR SW GND TR SW SUPPLY TRANSAXLE RNG SW SIG D TRANSAXLE RNG SW SIG N TRANSAXLE RNG SW SIG P TRANSAXLE RNG SW SIG R TRANSMISSION ASSEMBLY TRANSMISSIONS SYSTEM TRIP SW PADDLE DOWN TRUNK RLY CTRL TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LF TURN LR TURN RF TURN RR UNLK RR UP DOWN UP DOWN GROUP UP SHIFT UP SW UP/ RIGHT USB D- USB GND USB VCC VBATT MTR RLY VCM GND VCM SIG VEH SPD SIG VEHICLE SPD VEHICLE SPEED VEHICLE SPEED SIG VFS CLUTCH VFS DC VFS LP VFS PRIMARY VFS SECONDARY VFS_CLUTCH VFS_DC VFS_LP VFS_PRIMARY VFS_SECONDARY VIDEO GND VIDEO OUT VIS CTRL VOL 2 VOL 3 VOL 4 VOL + MUTE VOL - VOICE VOL VOL W/ A/T W/ AIR VENTIL- ATION W/ AIR VENTILATION W/ AUDIO W/ AVN W/ FRONT AUTO UP/DOWN, SAFETY W/ FRONT DEICER W/ HIGH LOW BEAM HEADLAMP TYPE W/ HIGH/LOW BEAM HEADLAMPS W/ IDLE STOP-GO W/ IDLE STOP/GO W/ ISG W/ LED W/ M/T W/ NAVIGATION W/ POWER W/ POWER SEAT W/ POWER SEATS W/ POWER SEATS W/O POWER SEATS W/ POWER W/O POWER W/ REAR SEAT WARMER W/O REAR SEAT WARMER W/ SMART KEY W/ SMART KEY/IMMO W/ SMART KEY/IMMO W/O SMART KEY/IMMO W/ START/STOP W/O START/STOP W/ WARMER W/O AIR VENTIL- ATION W/O AIR VENTILATION W/O AMP W/ AMP W/O AVN W/O AVN W/ AVN W/O IDLE STOP-GO W/O IDLE STOP/GO W/O ISG W/O LED W/O NAVIGATION W/O POWER SEATS W/O REAR SEAT WARMER W/ REAR SEAT WARMER W/O SAFETY W/ SAFETY W/O SMART KEY W/O SMART KEY W/ SMART KEY W/O SMART KEY/IMMO WIPER 'P' POSITION WIPER 'P' POSITION IN WIPER B/UP SW SIG WIPER B/UP SW SIGNAL WIPER LOW B/UP SIG WIPER POWER RLY CONTROL WIPER RLY CONTOL HIGH WIPER RLY CONTOL LOW WIPER RLY CTRL HIGH WIPER RLY CTRL LOW WIPER SW WIPER SW IN WIPER SW SIG WIPER, LIGHT GND WIPER, LIGHT GROUND WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIRELESS CHARGER WITH NAVIGATION WITHOUT NAVIGATION WPC SIG WPC SIGNAL
