Wiring Diagrams for Kia Soul II facelift (2016-2019)

1.6l, automatic a/c circuit 1.6l, manual a/c circuit

1.6l turbo, automatic a/c circuit

2.0l, automatic a/c circuit

Anti-lock brakes circuit Autonomous emergency brake circuit

Forced entry circuit Immobilizer circuit, w/o smart key system Immobilizer circuit, w/ smart key system

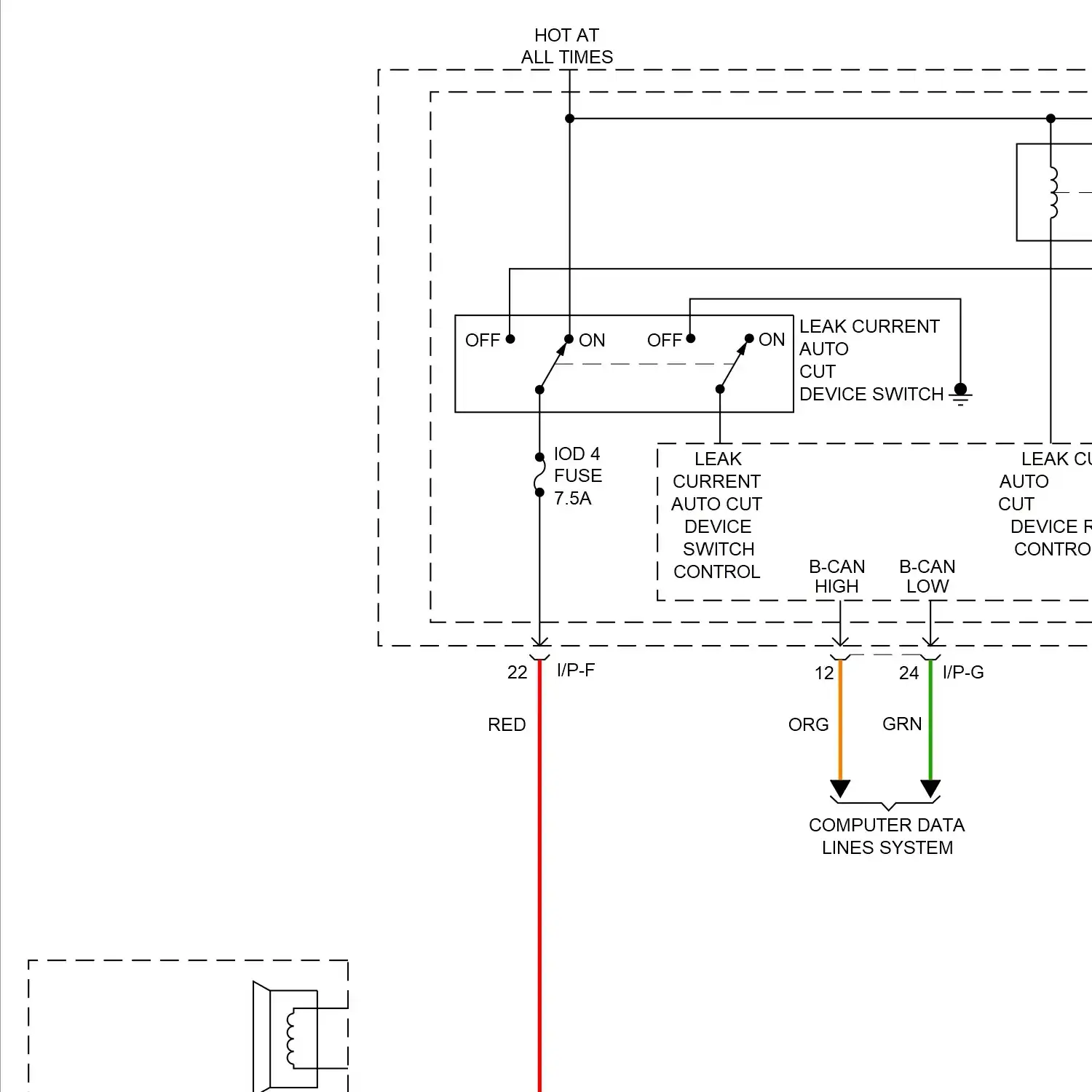

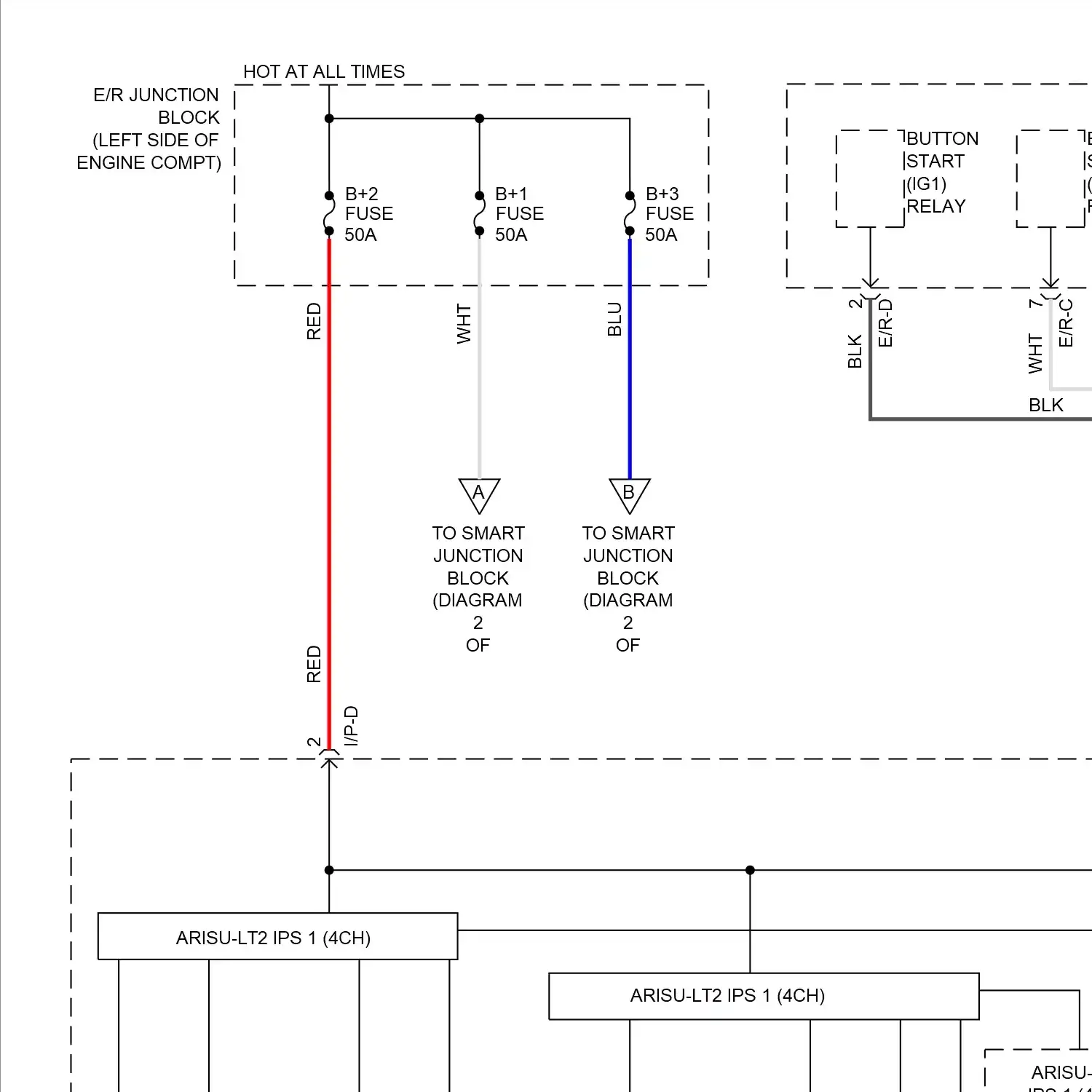

Body control module circuit Ips control module circuit

Computer data lines circuit

1.6l, cooling fan circuit

1.6l turbo, cooling fan circuit

2.0l, cooling fan circuit

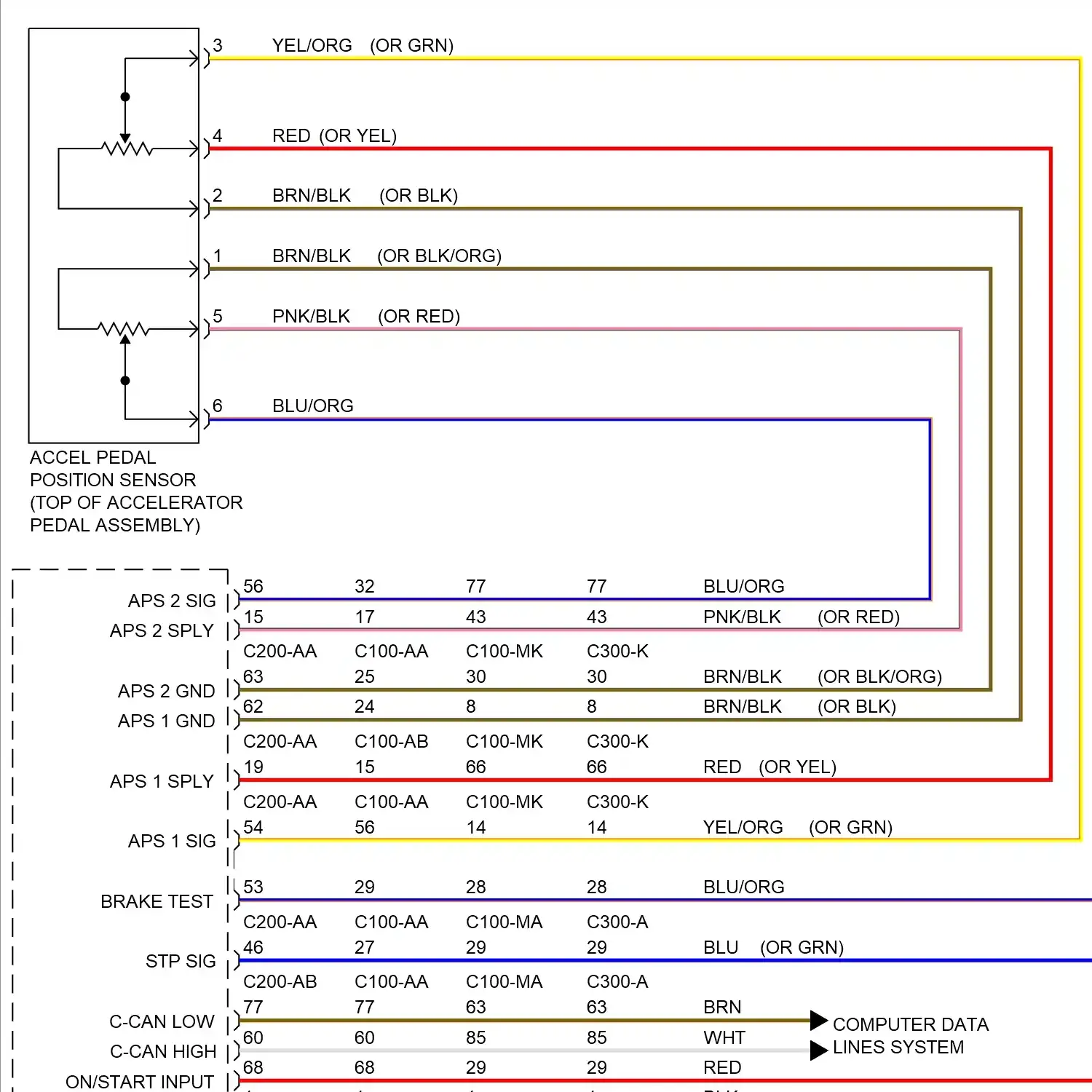

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.6l, a/t Wiring diagram engine performance 1.6l, m/t

Wiring diagram engine performance 1.6l turbo

Wiring diagram engine performance 2.0l

Backup lamps circuit Exterior lamps circuit, w/ drl Exterior lamps circuit, w/o drl

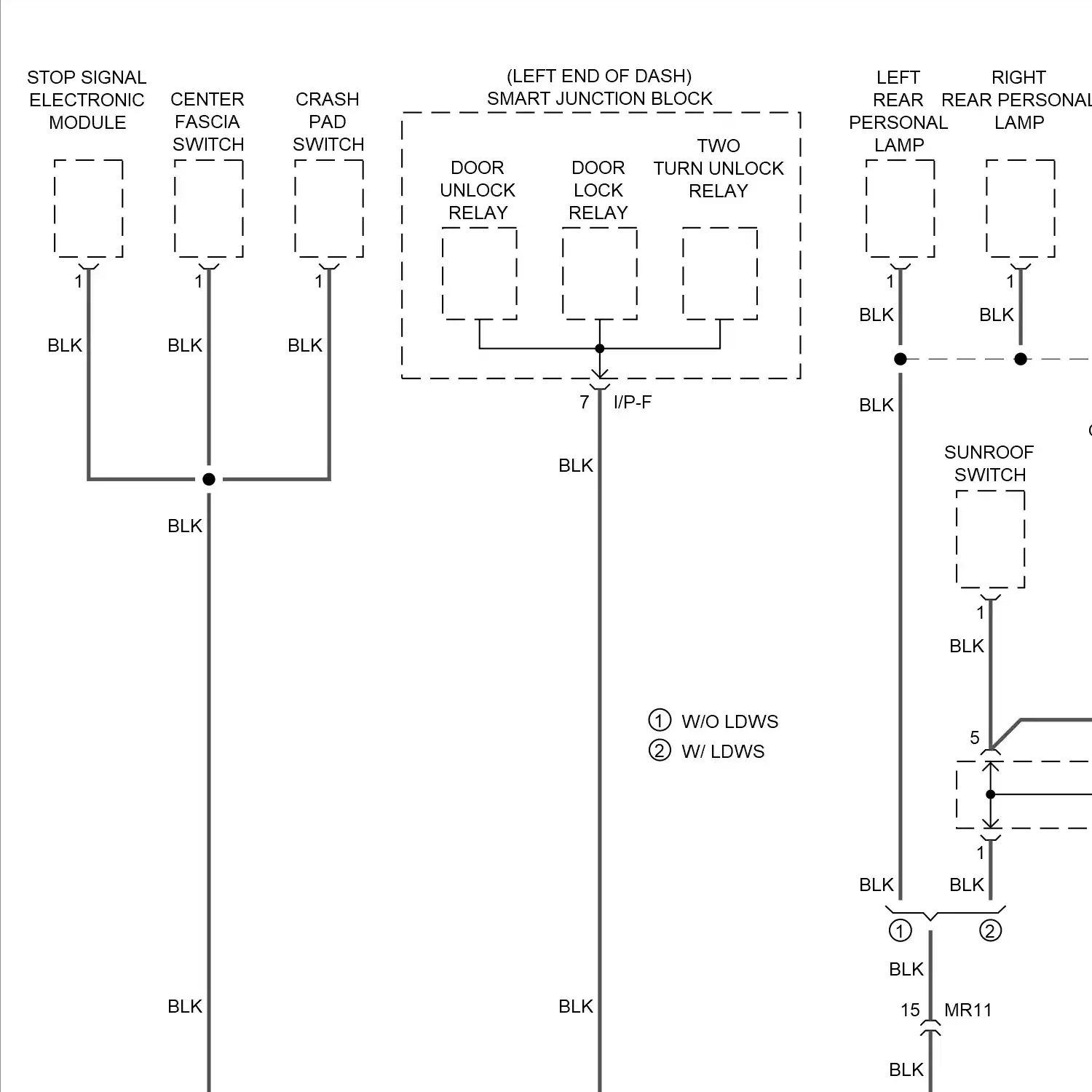

Ground distribution circuit

Auto headlamps leveling system (ahls) circuit Headlamps circuit

Horn circuit

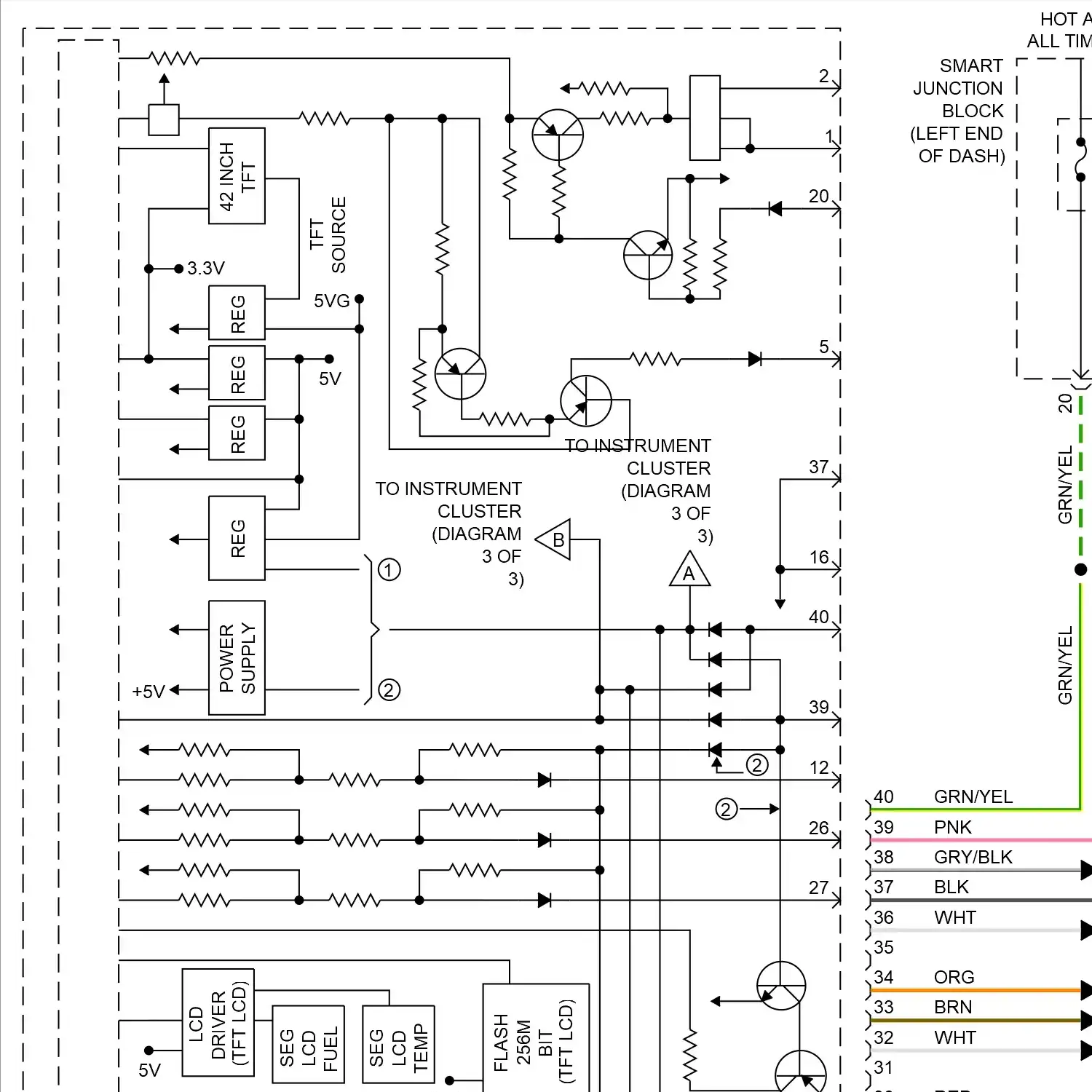

Clock circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Blind spot information system circuit Lane departure warning circuit Navigation circuit

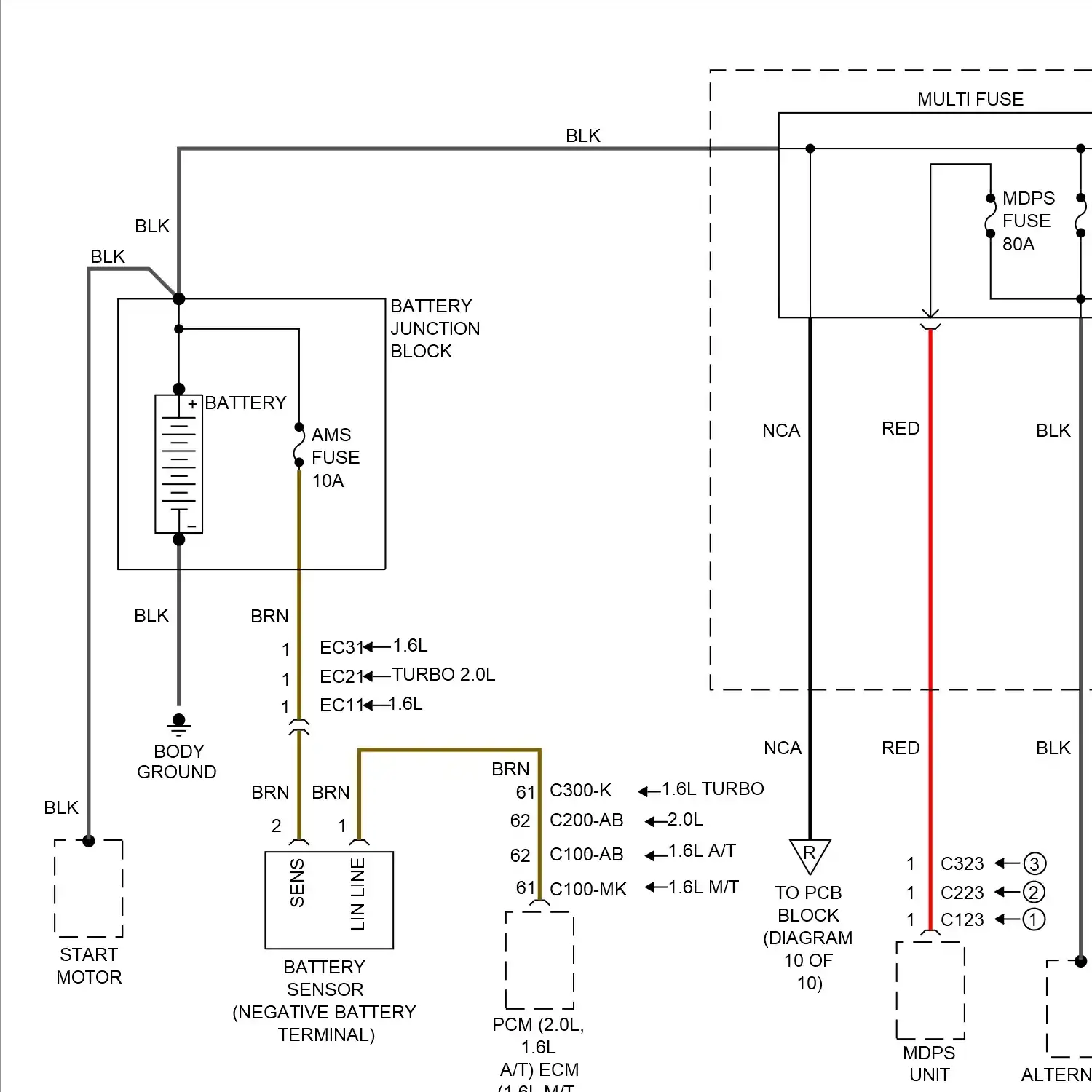

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirror circuit

Driver power seat circuit Front heated seats circuit, 2 steps Front heated seats circuit, 3 steps Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit Seat ventilation circuit

Power top/sunroof circuit

Power windows circuit, w/ auto up/down power window Power windows circuit, w/o auto up/down power window

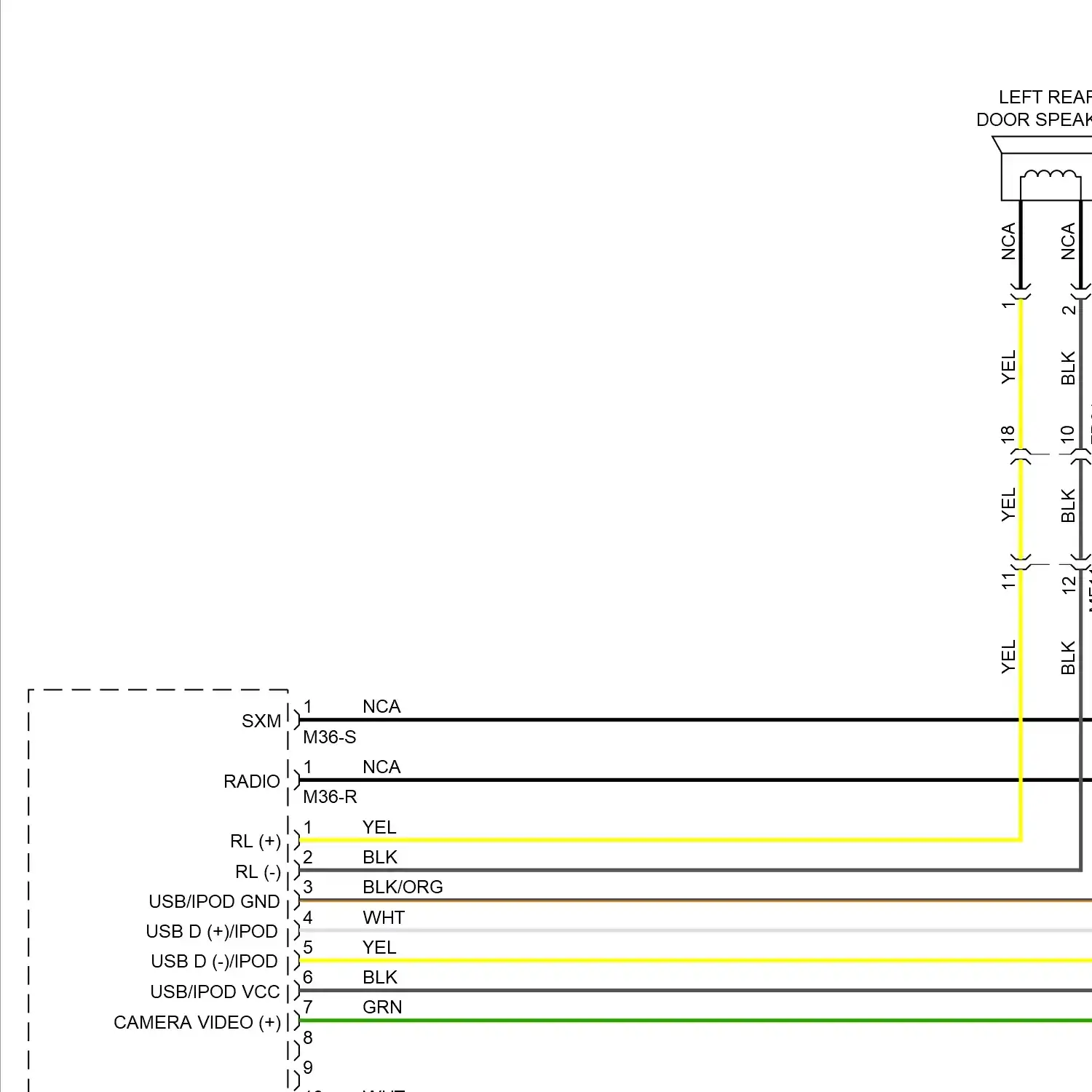

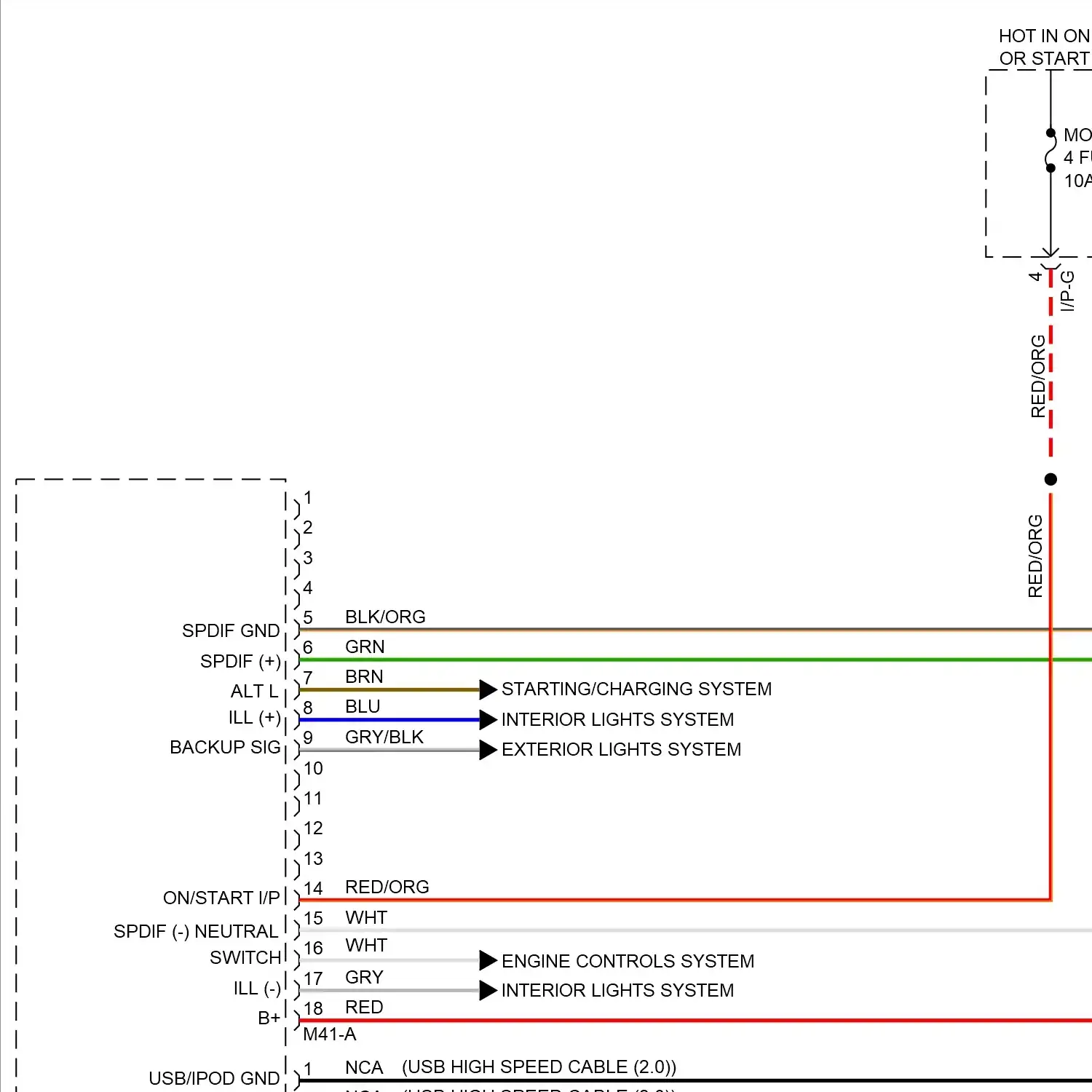

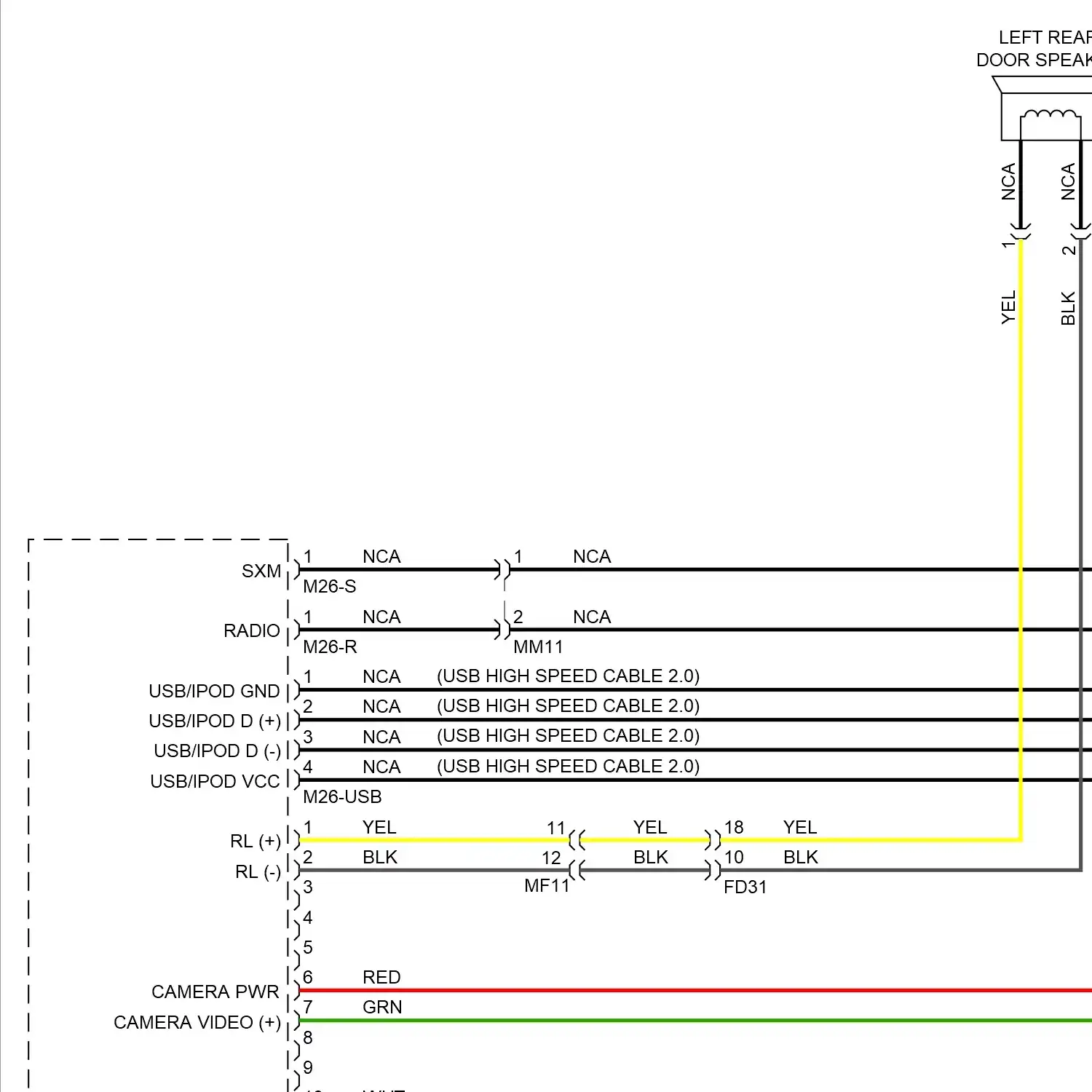

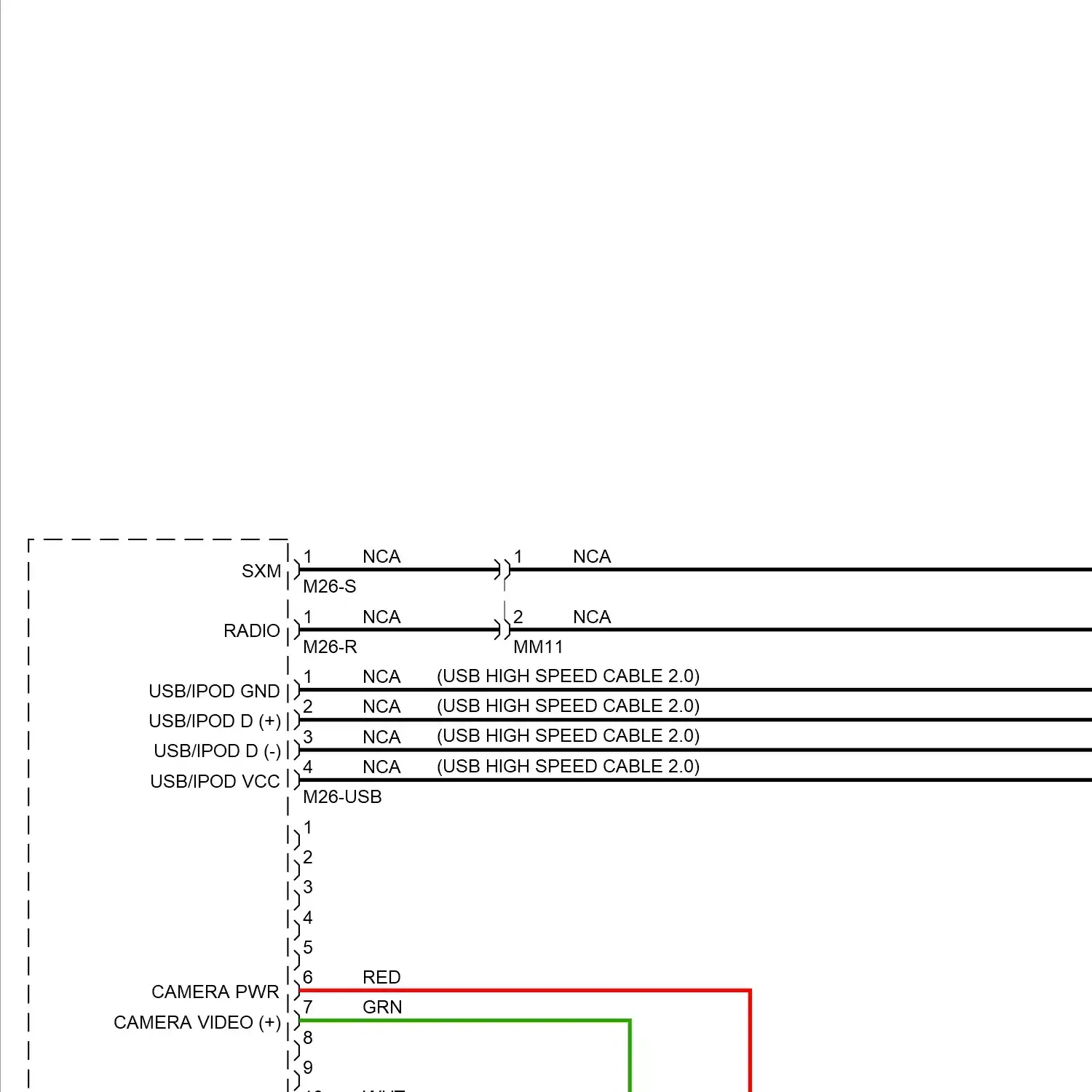

Radio circuit, w/ navigation Radio circuit, w/o navigation & uvo Radio circuit, w/o navigation w/ uvo & amplifier Radio circuit, w/o navigation w/ uvo w/o amplifier

Shift interlock circuit

1.6l, charging circuit 1.6l, starting circuit, w/o smart key 1.6l, starting circuit, w/ smart key

1.6l turbo, charging circuit 1.6l turbo, starting circuit, w/o smart key 1.6l turbo, starting circuit, w/ smart key

2.0l, charging circuit 2.0l, starting circuit, w/o smart key 2.0l, starting circuit, w/ smart key

Supplemental restraints circuit

1.6l, transmission circuit

1.6l turbo, transmission circuit

2.0l, transmission circuit

Tailgate release circuit

Chime circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear wiper/washer circuit

ALTERNATOR COM ALTERNATOR PWM OUTPUT ANTENNA COIL ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS APT/RPS PWR PWM OUTPUT ALTERNATOR BATTERY JUNCTION BLOCK C-CAN TRANSCEIVER DOOR LOCK DOOR LOCK DOOR UNLOCK DOOR LOCK/UNLOCK SIGNAL DRIVER DRIVER DOOR DOOR KEY LOCK/ UNLOCK UNLOCK SIGNAL SIGNAL DRIVER/ PASSENGER DOOR KEY LOCK SIGNAL ELECT LOAD SIG ALTERNATOR HORNS SYSTEM HORN SIG IGN COIL CTRL 1 IGN COIL CTRL 2 IGN COIL CTRL 3 IGN COIL CTRL 4 IGN COIL CTRL CYL 1 IGN COIL CTRL CYL 2 IGN COIL CTRL CYL 3 IGN COIL CTRL CYL 4 IGNITION COIL 1 IGNITION COIL 1 SHIELD IGNITION COIL 2 IGNITION COIL 2 SHIELD IGNITION COIL 3 IGNITION COIL 3 SHIELD IGNITION COIL 4 IGNITION COIL 4 SHIELD IGNITION COIL CTRL 1 IGNITION COIL CTRL 2 IGNITION COIL CTRL 3 IGNITION COIL CTRL 4 LEFT REAR DOOR LOCK LOCK LOCK ON LOCK SIGNAL LOCK UNLOCK P POSITION SW IGN LOCK SW PASSENGER DOOR LOCK/ UNLOCK SIGNAL RIGHT REAR DOOR LOCK/ UNLOCK SIGNAL SHIFT LOCK SOL OUTPUT SHIFT INTERLOCK SYSTEM SHIFT-LOCK SOL SHUNT RESISTOR TRIM RESISTOR W/ CENTER DOOR LOCK W/O CENTER DOOR LOCK W/ CENTRAL DOOR LOCK W/ CENTRAL DOOR LOCK W/O CENTRAL DOOR LOCK W/O CENTRAL DOOR LOCK

(RIGHT FRONT OF ENGINE ACTUATOR OUTPUT BLOWER MOTOR CLUTCH ACTUATOR COOLING FAN MOTOR DRIVER AIR VENTILATION SEAT CUSHION BLOWER MOTOR DRIVER AIR VENTILATION SEAT WARMER, RECLINING BLOWER MOTOR DRIVER BACK BLOWER MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER SLIDE MOTOR ENGINE CHECK IND ENGINE CONTROLS SYSTEM ENGINE CTRL ENGINE CTRL RLY ENGINE CTRL RLY CTRL ENGINE CTRL RLY ON INPUT ENGINE RPM OUTPUT ENGINE RPM SIG ETC MOTOR, +/- FOLDING MOTOR FRONT WIPER MOTOR FRONT WIPER WASHER MOTOR FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR INTAKE ACTUATOR INTAKE ACTUATOR F/B INTAKE ACTUATOR FRE INTAKE ACTUATOR REC LEFT HEADLAMP LEVELING DEVICE ACTUATOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE ACTUATOR MODE ACTUATOR DEF MODE ACTUATOR F/B MODE ACTUATOR VENT PASSENGER AIR VENTILATION SEAT CUSHION BLOWER MOTOR PASSENGER AIR VENTILATION SEAT WARMER, RECLINING BLOWER MOTOR PASSENGER BACK BLOWER MOTOR PASSENGER DOOR LOCK ACTUATOR PASSENGER FRONT HEIGHT ADJUSTER MOTOR PASSENGER LUMBAR SUPPORT MOTOR PASSENGER POWER WINDOW MOTOR PASSENGER REAR HEIGHT ADJUSTER MOTOR PASSENGER RECLINING MOTOR PASSENGER SLIDE MOTOR REAR WIPER MOTOR REAR WIPER WASHER MOTOR RIGHT HEADLAMP LEVELING DEVICE ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SELECT ACTUATOR SHIFT ACTUATOR START MOTOR TEMP ACTUATOR COOL TEMP ACTUATOR F/B TEMPERATURE ACTUATOR WIPER WASHER MOTOR

ANTENNA GND ANTENNA PWR IMMO ANTENNA GND IMMO ANTENNA PWR IMMO ANTENNA GROUND IMMO ANTENNA POWER SMART KEY ANTENNA 1 SMART KEY ANTENNA 2 SMART KEY BUMPER ANTENNA

DRV TOGGLE BUTTON PASS TOGGLE BUTTON START STOP BUTTON SWITCH START/STOP BUTTON SWITCH

CAMERA GND CAMERA PWR CAMERA SHIELD GND CAMERA V GND CAMERA V/GND CAMERA VIDEO LDWS CAMERA MODULE

DATA LINK CONNECTOR MULTI-PURPOSE CHECK CONNECTOR MULTIPURPOSE CHECK CONNECTOR

A/C CONTROL MODULE DRIVER AIR VENTILATION SEAT CONTROL MODULE IPS CONTROL MODULE PASSENGER AIR VENTILATION SEAT CONTROL MODULE SMART KEY CONTROL MODULE SRS CONTROL MODULE

+ECU A/V, NAVIGATION HEAD UNIT AEB UNIT CONTROL UNIT) ECU 1 FUSE ECU 2 FUSE ECU 3 FUSE ECU 4 FUSE ECU 5 FUSE ECU FUSE ESC MODULE ESC UNIT ESC UNIT ESC UNIT ESC MODULE MDPS UNIT SUNROOF MOTOR, MASTER CONTROL UNIT SUNROOF ROLLER BLIND MOTOR, SLAVE CONTROL UNIT

A/BAG IND FUSE A/CON 1 FUSE A/CON 2 FUSE ABS 1 FUSE ABS 2 FUSE ABS FUSE ACC FUSE AEB FUSE AIR BAG FUSE ALT FUSE AMP FUSE AMS FUSE B+1 FUSE B+2 FUSE B+3 FUSE B/UP LAMP FUSE BLOWER FUSE BRAKE SWITCH FUSE CLUSTER FUSE COOLING FAN FUSE DEICER FUSE DR LOCK FUSE DRL FUSE FUEL PUMP FUSE HEADLAMP FUSE HEATED MIRROR FUSE HEATED STEERING FUSE HORN FUSE IG 1 FUSE IG 2 FUSE IGN COIL FUSE IOD 1 FUSE IOD 2 FUSE IOD 4 FUSE MDPS FUSE MODULE 1 FUSE MODULE 2 FUSE MODULE 3 FUSE MODULE 4 FUSE MODULE 5 FUSE MODULE 6 FUSE MODULE 7 FUSE MULTI FUSE P/SEAT PASS FUSE P/WDW LH FUSE P/WDW RH FUSE PDM 1 FUSE PDM 2 FUSE POWER OUTLET 2 FUSE POWER OUTLET 3 FUSE POWER OUTLET 4 FUSE REAR HEATED FUSE S/HEATER FRT FUSE S/HEATER RR FUSE START FUSE STOP LAMP FUSE STOP LP FUSE STP LP FUSE SUNROOF 1 FUSE SUNROOF 2 FUSE T/GATE OPEN FUSE TCU 2 FUSE TCU 3 FUSE TCU 4 FUSE TCU FUSE VACUUM PUMP 1 FUSE VACUUM PUMP 2 FUSE WIPER FRT 1 FUSE WIPER FRT 2 FUSE WIPER FUSE WIPER RR FUSE

HEATER BACK HEATER CUSHION HEATER PAD STEERING WHEEL HEATER MODULE W/ STEERING WHEEL HEATER W/O STEERING WHEEL HEATER W/O STEERING WHEEL HEATER W/O STEERING WHEEL HEATER W/ STEERING WHEEL HEATER

ATM LEVER INDICATOR IMMO INDICATOR POINTER BACK ILL

ANTI-THEFT, DOOR LOCKS, INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS BACKUP LAMP DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS DRIVER DOOR MOOD LAMP EXTERIOR LIGHTS, DEFOGGER SYSTEMS FRONT FOG LAMP SW 'ON' GLOVE BOX LAMP) GLOW BOX LAMP HAZ LAMP HAZARD LAMP SIGNAL HIGH MOUNTED STOP LAMP INTERIOR LIGHTS SYSTEM DOOR OPEN SIG LAMP SIG LAMP SW LEFT FRONT FOG LAMP LEFT MAP LAMP LEFT REAR COMBINATION LAMP LEFT REAR PERSONAL LAMP LEFT VANITY LAMP LH TURN LAMP LICENSE LAMP LUGGAGE LAMP MOD LAMP MODULE MOOD LAMP MODULE OVERHEAD CONSOLE LAMP PARKING LAMP PASSENGER DOOR MOOD LAMP PORTABLE LAMP RH TURN LAMP RIGHT FRONT FOG LAMP RIGHT MAP LAMP RIGHT REAR COMBINATION LAMP RIGHT REAR PERSONAL LAMP RIGHT VANITY LAMP ROOM LAMP ROOM LAMP OUT SIDE MARKER LAMP STOP LAMP STOP LAMP POWER STOP LAMP SIG STOP LAMP SW TAIL LAMP SW TAILGATE ROOM LAMP TELLTALE LAMP TURN LAMP TURN LAMP SIGNAL W/ PROJECTION LAMP W/ PROJECTION LAMP W/O PROJECTION LAMP W/ PROJECTION LAMP W/O PROJECTION LAMP W/ LED W/O LED W/O PROJECTION LAMP

F/PUMP RLY CTRL CCV CTRL FUEL PUMP RLY CTRL FUEL PUMP RLY CTRL CCV CTRL VACUUM PUMP

BI-FUNCTION HEADLAMP RELAY BI-FUNCTION HEADLAMP RELAY ICM RELAY BOX BLOWER RELAY COOLING FAN 1 RELAY COOLING FAN 2 RELAY DEFOGGER SYSTEM FRONT DEICER RELAY DOOR LOCK RELAY DOOR LOCK RELAY CONTROL DOOR UNLOCK RELAY DOOR UNLOCK RELAY CONTROL E/R FUSE, RELAY BLOCK E/R JUNCTION BLOCK COOLING FAN 2 RELAY ENGINE CONTROL RELAY FOLDING RELAY CTRL FRONT DEICER RELAY FRONT DEICER RELAY ICM RELAY BOX FRONT WIPER HIGH RELAY FRONT WIPER HIGH RELAY PCB BLOCK FUEL PUMP RELAY HORN RELAY HOT W/ LEAK CURRENT AUTO CUT DEVICE RELAY ENERGIZED ICM RELAY BOX LEAK CURRENT AUTO CUT DEVICE RELAY LEAK CURRENT AUTO CUT DEVICE RELAY CONTROL LEFT POWER WINDOW RELAY LEFT POWER WINDOW RELAY CONTROL OUTSIDE MIRROR FOLDING RELAY OUTSIDE MIRROR UNFOLDING RELAY PCB BLOCK BOX BLOWER RELAY POWER OUTLET 1 RELAY POWER OUTLET 2 RELAY POWER OUTPUT 1 RELAY POWER OUTPUT 2 RELAY POWER WINDOW RELAY CONTROL REAR HEATED RELAY REAR WIPER RELAY REAR WIPER RELAY CONTROL RELAY CONTROL RELAY CTRL RIGHT POWER WINDOW RELAY RIGHT POWER WINDOW RELAY CONTROL RR HTD RELAY START RELAY START RELAY E/R JUNCTION BLOCK T/GATE OPEN RELAY T/GATE RH RELAY CONTROL TAILGATE RELAY CONTROL TWO TURN UNLOCK RELAY TWO TURN UNLOCK RELAY CONTROL UNFOLDING RELAY CTRL UNLOCK RELAY CONTROL

ACCEL PEDAL POSITION SENSOR AEB SENSOR AMBIENT TEMPERATURE SENSOR AUTO LIGHT SENSOR AUTO LIGHT SENSOR GND AUTO LIGHT SENSOR POWER AUTO LIGHT SENSOR SIGNAL AUTO LIGHT, PHOTO SENSOR BATTERY SENSOR BOOST PRESSURE SENSOR BRAKE BOOSTER VACUUM PRESSURE SENSOR BRAKE FLUID LEVEL SENSOR CAMSHAFT POSITION SENSOR 1 CAMSHAFT POSITION SENSOR 2 CLUTCH SPEED SENSOR ASSEMBLY CRANKSHAFT POSITION SENSOR DRIVER FRONT IMPACT SENSOR DRIVER PRESSURE SIDE IMPACT SENSOR DRIVER SIDE IMPACT SENSOR ENGINE COOLANT TEMPERATURE SENSOR ETC MOTOR, THROTTLE POSITION SENSOR EVAPORATOR SENSOR FUEL TANK PRESSURE SENSOR INPUT SPEED SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEFT FRONT TIRE PRESSURE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR TIRE PRESSURE SENSOR LEFT REAR WHEEL SENSOR LEVEL SENSOR MAP SENSOR OIL TEMPERATURE SENSOR OUTPUT SPEED SENSOR PASSENGER FRONT IMPACT SENSOR PASSENGER PRESSURE SIDE IMPACT SENSOR PASSENGER SIDE IMPACT SENSOR PASSENGER WEIGHT CLASSIFICATION SENSOR PHOTO SENSOR RAIL PRESSURE SENSOR RIGHT FRONT TIRE PRESSURE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR TIRE PRESSURE SENSOR RIGHT REAR WHEEL SENSOR SENSOR 1 FUSE SENSOR 2 FUSE THROTTLE POSITION SENSOR WASHER LEVEL SENSOR

CENTER SPEAKER DRIVER DOOR SPEAKER DRIVER TWEETER SPEAKER LEFT REAR DOOR SPEAKER PASSENGER DOOR SPEAKER PASSENGER TWEETER SPEAKER RIGHT REAR DOOR SPEAKER SUB WOOFER SPEAKER

AUTO LIGHT SWITCH BACKUP LAMP SWITCH BLOWER SWITCH BSD ON/OFF SWITCH BSD SWITCH CENTER FASCIA SWITCH CLUTCH SWITCH CRASH PAD SWITCH CRASH PAD SWITCH/ CENTER FASCIA SWITCH DIMMER, PASSING SWITCH DOOR LOCK SWITCH DRIVER AIR VENTILATION SEAT SWITCH DRIVER FRONT HEIGHT ADJUSTER SWITCH DRIVER LUMBAR SUPPORT SWITCH DRIVER REAR HEIGHT ADJUSTER SWITCH DRIVER RECLINING LIMIT SWITCH DRIVER RECLINING SWITCH DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT MANUAL SWITCH DRIVER SEAT WARMER SWITCH DRIVER SLIDE SWITCH DRIVER WINDOW SWITCH ESC OFF SWITCH FRONT FOG LAMP SWITCH FRONT FOG LAMP SWITCH 'ON' FRONT WIPER SWITCH HAZARD SWITCH HEADLAMP HIGH SWITCH HEADLAMP LOW SWITCH HORN SWITCH IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH IGNITION SWITCH KEY-IN SWITCH LDWS SWITCH LEAK CURRENT AUTO CUT DEVICE SWITCH LEAK CURRENT AUTO CUT DEVICE SWITCH B-CAN CONTROL HIGH LEAK CURRENT AUTO CUT DEVICE SWITCH CONTROL LEFT REAR POWER WINDOW SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH MIRROR FOLDING SWITCH MIST SWITCH MOOD LAMP SWITCH MULTI- FUNCTION SWITCH NEUTRAL SWITCH OIL PRESSURE SWITCH P POSITION SWITCH P/N SWITCH PARKING BRAKE SWITCH PARKING SWITCH PASSENGER AIR VENTILATION SEAT SWITCH PASSENGER FRONT HEIGHT ADJUSTER SWITCH PASSENGER LUMBAR SUPPORT SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER REAR HEIGHT ADJUSTER SWITCH PASSENGER RECLINING LIMIT SWITCH PASSENGER RECLINING SWITCH PASSENGER SEAT BELT BUCKLE SWITCH PASSENGER SEAT MANUAL SWITCH PASSENGER SEAT WARMER SWITCH PASSENGER SLIDE SWITCH PASSENGER WINDOW SWITCH POWER OUTSIDE MIRROR SWITCH POWER WINDOW MAIN SWITCH REAR DEFOGGER SWITCH REAR WASHER SWITCH REAR WIPER SWITCH REAR WIPER SWITCH INT REAR WIPER SWITCH ON REAR WASHER SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR WINDOW SWITCH SELECT SWITCH SELECTOR SWITCH SPORT MODE SWITCH STEERING WHEEL HEATER SWITCH STEERING WHEEL SWITCH STOP LAMP SWITCH SUNROOF SWITCH SWITCH SELECT SWITCH SIG TAILGATE GATE OPEN SWITCH TAILGATE HANDLE SWITCH TAILGATE LUGGAGE HANDLE LAMP SWITCH TAILGATE OPEN SWITCH TAILLAMP SWITCH TRANSAXLE RANGE SWITCH TRANSMISSION RANGE SWITCH TURN LAMP SWITCH WASHER SWITCH WINDOW LOCK SWITCH

ATM SOLENOID CANISTER CLOSE VALVE FUEL PRESSURE CONTROL VALVE HEADLAMP SOLENOID HIGH BEAM SOLENOID KEY SOLENOID PURGE CONTROL SOLENOID VALVE RCV CONTROL SOLENOID VALVE SHIFT LOCK SOLENOID SOLENOID PWR 1 SOLENOID PWR 2 START SOLENOID VARIABLE INTAKE SOLENOID VALVE WASTE GATE VALVE WASTEGATE VALVE

(OR RED/ WIRE AUTO PNK WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BRN/YEL WIRE C-CAN HIGH PNK ON/START INPUT WIRE GRN WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE HEADLIGHTS SYSTEM PNK EXTERIOR LIGHTS SYSTEM WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE PNK ON/START INPUT WIRE PNK ON/START WIRE PNK PNK WIRE PNK RR DEFOG SW IN WIRE PNK TAIL WIRE PNK TAILLAMP SWITCH WIRE PNK VEHICLE SPEED WIRE PNK WIRE PNK/BLK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/ORG WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE

1.6L 1.6L 1.6L TURBO 1.6L 2.0L 1.6L TURBO 1.6L A/T 1.6L A/T 1.6L M/T 1.6L A/T 1.6L M/T 2.0L 1.6L TURBO 1.6L M/T 1.6L M/T 2.0L 1.6L TURBO 1.6L 2.0L 1.6L TURBO 1.6L A/T 1.6L M/T 2.0L 1.6L TURBO 1.6L M/T 1.6L A/T 1.6L TURBO 2.0L 1.6L 1.6L TURBO 2.0L 1.6L A/T 1.6L M/T 1.6L TURBO 2.0L, 1.6L W/O UVO W/ UVO W/ SMART KEY W/O SMART KEY 6 1.6L TURBO EXCEPT 1.6L TURBO 1.6L, 1.6L TURBO 2.0L 1.6L, 2.0L 2 STEPS 2.0L 2.0L A/T 2.0L, 1.6L TURBO 3 STEPS 4 DOOR OPEN SIG 4.2 INCH "P" "P" POSITION SW (CENTER (OR A/C PRESSURE TRANSDUCER A/T DCT A/T M/T A/V TAIL OUT ABS IND. ACC RLY CTRL ACC/ON I/P ACC/ON INPUT ACC/ON PWR AEB IND AIR BAG IND AIR TEMP INPUT AIR TEMP SIG ALT ELEC LOAD SIG ALT ELECTRONIC LOAD SIG ALT L OUT ANTI-THEFT ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS ANTI-THEFT, DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS APS 1 GND APS 1 SIG APS 1 SPLY APS 2 GND APS 2 SIG APS 2 SPLY APT GND APT SIG APT SPLY APT/RPS PWR ARISU-LT AUDIO IN- AUTO DOWN AUTO DOWN/ UP AUTO HEADLAMP LEVELING DEVICE MODULE AUTO LIGHT AUTO LIGHT SENS PWR AUTO LIGHT SW AUTO UP AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUX DETECT AUX JACK AUX L IN AUX R IN AUX REF AUX, USB JACK AV TAILOUT B- B- CAN CAN LOW HIGH B-CAN B-CAN B-CAN LOW HIGH B-CAN HI B-CAN HIGH B-CAN LO B-CAN LOW B-CAN LOW COMPUTER DATA LINES SYSTEM C-CAN LOW B-CAN LOW I/P-G B/T IN B/T IN AUDIO IN BACK LIGHTING CONTROL BACKUP LAMPS CIRCUIT BACKUP SIG BACKUP SIGNAL BLADE POS LOW BLADE POSITION LOW BLOWER BACK BLOWER BK BLOWER CH BLOWER CUSHION BLOWER ON SIGNAL BLOWER PWR BODY K-LINE BPF LNA BPS GND BPS SIG BRAKE IND BRAKE LIGHT BRAKE LIGHT SW BRAKE LT SW BRAKE TEST SW BRAKE VAC SENS SIG BRK FLUID BRK FLUID LEVEL SENS BRK LIGHT SW BRK LT BRK LT SW BRK SIG BRK TEST SW BSD IND BVS GND BVS SPLY C-CAN C-CAN HI C-CAN HIGH C-CAN LO C-CAN LOW C/FAN HIGH RLY CTRL C/FAN LOW RLY CTRL C/FAN RLY CTRL HI C/FAN RLY CTRL HIGH C/FAN RLY CTRL LO C/FAN RLY CTRL LOW CALL END OFF CCP CAN CCP-CAN HIGH CCP-CAN LOW CCV CTRL CHARGE IND CHECK IND CKPS GND CKPS SIG CLEAN SIGNAL CLOCK- SPRING CLOSE SW CLUSTER IONIZER CLUTCH SPEED 1 GND CLUTCH SPEED 1 POWER CLUTCH SPEED 2 GND CLUTCH SPEED 2 POWER CLUTCH SW CMPS 1 GND CMPS 1 INTAKE GND CMPS 1 SIG CMPS 2 EXHAUST GND CMPS 2 GND CMPS 2 SIG COMFORT IND COMM HIGH COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONSTANT CURRENT COOLING FAN CONTROLLER COOLING FANS SYSTEM CRASH INPUT CRASH OUTPUT CRUISE CONTROL SYSTEM CRUISE IND CRUISE SET IND CVVT 2 CTRL EXHAUST D IND D OUT DATA LINES DEFOGGER SYSTEM DELAY CONTROL DETENT OUT DIAL BACK ILL DN UP DOOR AJAR SIGNAL DOOR KEY UNLOCK DRIVER SIG DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR OPEN DOOR OPEN IND DOOR OPEN SIG DOOR UNLK IN DOOR UNLK SIG DOOR UNLOCK DOOR UNLOCK SIG DOT LCD DOT LCD, ANALOG DOT LCD, ANALOG TFT LCD DOT LCD, ANALOG TFT LCD W/ NAVIGATION W/O NAVIGATION W/ UVO W/O NAVIGATION, UVO DOT MATRIX DISPLAY DOWN AUTO DOWN OFF UP AUTO UP DOWN AUTO DOWN DOWN OFF DOWN SHIFT DOWN UP DOWN/ LEFT DR LK DR UNLK DRIV AIR VENT SEAT SW DRIV SEAT WARMER SW DRIVER AIR BAG DRIVER ANCHOR PRETENSIONER DRIVER BACK WARMER DRIVER CURTAIN AIR BAG DRIVER CUSHION WARMER DRIVER DOOR AJAR SIG DRIVER DOOR AJAR SIG I/P-B DRIVER DOOR AJAR SIGNAL DRIVER DOOR KEY UNLOCK SIG DRIVER POWER OUTSIDE MIRROR DRIVER SAFETY POWER WINDOW MODULE DRIVER SEAT BELT PRETENSIONER DRIVER SEAT WARMER DRIVER SEAT WARMER MODULE DRIVER SIDE AIR BAG DRIVER SMART KEY OUTSIDE HANDLE DRIVER/ PASSENGER DOOR KEY DRL INPUT DRV DR AJAR SIG DRV SEAT BELT BKLE SW E/R JUNCTION BLOCK E/R-A E/R-B E/R-C E/R-D ECM/ PCM ECT GROUND ECT SIGNAL ECTS GND ECTS GROUND ECTS SIG ECTS SIGNAL ELECTRICAL LOAD SIG ELECTRO- CHROMIC MIRROR ELECTROCHROMIC MIRROR ELECTRONIC A/C COMPRESSOR EMS COM END OFF END VOICE OFF ENG CTRL RLY ENG CTRL RLY INPUT ENG CTRL RLY ON I/P ESC IND ESC MODULE ESC OFF IND ESC OFF SW ETC MTR ETCS SIG EXCEPT 2.0L EXHAUST MANIFOLD) EXTERNAL BUZZER FAN PWM FET DRAIN FET GATE FL SIG FL VCC FLEX RAY HIGH FLEX RAY LOW FLEX SW 1 FOLDING SW SIG FR SIG FR VCC FRONT CIGARETTE LIGHTER, POWER OUTLET FRONT DEICER FRONT FOG IND FRONT POWER OUTLET FRONT SEAT WARMER MODULE FRONT WASHER FRONT WASHER SIG FRONT WIPER INT FRONT WIPER MIST FRONT WIPER SW HIGH FRONT WIPER SW LOW FRT DEICER RLY CTRL FTPS GND FTPS SIG FUEL CAP IND FUEL CAP OPEN IND FUEL LEVEL FLOAT FUEL METER FUEL SENDER FUEL TANK FUEL TANK LEVEL SEND FUEL TANK LVL SEND GLASS STATUS SIG/SERIAL GLASS STATUS SIG/TOOL FOR GLASS GND MEMORY PWR GND PWR GND SIG GND SW GROUND DISTRIBUTION SYSTEM HAC BRK HAC BRK RLY DRIVE HAC BRK RLY DRV HAC SIG HALL EFFECT HEAD AUTO HEAD TAIL HEADLAMP B-CAN LOW SIGNAL LOW HIGH HEADLAMP HIGH SW INPUT HEADLAMP LOW SIG HEADLAMP LOW SIGNAL HEADLAMP LOW SW INPUT HEADLAMP ON SIG HEADLAMP ON SIGNAL HEADLAMP SOL RLY CTRL HEADLAMPS CIRCUIT HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM AUTO LIGHT SENS GND HEADLIGHTS SYSTEM AUTO LIGHT SENS SIG HIGH BEAM IND HIGH IND HIGH LOW HIGH PASS HIGH TEMPERATURE IND HOT AT ALL TIMES HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HTD IND HTD WHL IND I/P-A I/P-A I/P-G I/P-B I/P-C I/P-D I/P-E I/P-F I/P-F I/P-G I/P-G I/P-G I/P-E I/P-G I/P-F IC IGNITER IG 2 IIII III II ILL OFF ILL PWR ILL+ GND IMMO COM LINE IMMO COMM LINE IMMO COMMUNICATION LINE IMMOBILIZER IND IMMOBILIZER MODULE INJ 1 CTRL INJ 2 CTRL INJ 3 CTRL INJ 4 CTRL INJECTOR 1 INJECTOR 1 CTRL INJECTOR 2 INJECTOR 2 CTRL INJECTOR 3 INJECTOR 3 CTRL INJECTOR 4 INJECTOR 4 CTRL INPUT CIRCUIT INPUT SIG INPUT SPD PWR INPUT SPD SIG INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT TIME INTERNAL CONTROL ION DIAG ION SIGNAL IPS 0 IPS 1 MEMORY POWER CONTROL CONTROL K LINE K-LINE SIG KEY ILL CTRL KEY IN SW KEY INTERLOCK SOL KEY LK KEY OUT IND KEY UNLK KEYPAD GROUND KEYPAD SIGNAL KNOCK SENS GND KNOCK SENS SIG L-CAN HIGH L-CAN LOW LCD MODULE ILL LDWS IN LEAK CURRENT AUTO CUT DEVICE LEAK CURRENT AUTO CUT DEVICE RLY CTRL LEFT BLIND SPOT DETECTION RADAR LEFT DRL LEFT DRL OUT LEFT HEADLAMP LEFT REAR DOOR AJAR B-CAN HIGH SIG LEFT REAR DOOR AJAR SIG LEFT REAR DOOR AJAR UNLOCK SIGNAL SIGNAL LEFT REAR SEAT WARMER LEFT RIGHT LEFT TURN IND LF SIG LF VCC LH DRL LH RH LIN COMMUNICATION LIN LINE LIN-COMM LINES SYSTEM LO INT LOCAL CAN HIGH LOCAL CAN LOW LOCAL-CAN LOCAL-CAN HI LOCAL-CAN LO LOW BEAM IND LOW FUEL IND LOW HIGH LOW HIGH IND IND LOW IND LOW WASHER LEVEL IN LR DR AJAR SIG LR VCC LVL SENDER M-CAN HIGH M-CAN LOW M/T A/T MANUAL A/C MANUAL A/C AUTOMATIC A/C MAP SENS/FTPS PWR MATCHING CIRCUIT MATCHING LNA CIRCUIT MAX BLOWER ON SIGNAL MDPS IND MEM PWR MEMORY POWER MEMORY POWER COM MEMORY PWR MIC - MIC GND MIC SHIELD MICRO CONTROLLER MID IND MID IND SW MIRRORS SYSTEM MODE SEEK DOWN MODE SELECT MTR 2 (EVEN HALL 2 N IND N OUT NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NERNST VOLT NEUTRAL SW NORMAL IND NTC- OFF DOWN OFF HI OFF ON OFF UP OIL LEVEL IND OIL PRESSURE IND OIL TEMP SENS OIL TEMPERATURE ON DOOR ON I/P ON INPUT ON OFF ON START/INPUT ON/ C-CAN LOW HIGH INPUT ON/ MEMORY POWER INPUT ON/ST IN ON/START I/P ON/START IN ON/START INPUT OPEN SW OPT GND OTHER SIGNAL BUZZER OUTPUT SPD PWR OUTPUT SPD SIG OUTSIDE MIRROR OVER SPEED IND P IND P OUT P POSITION PARKING BRAKE SIG PARKING BRK SIG PARKING BRK SW PASS AIR VENT SEAT SW PASS DOOR AJAR SIG PASS DR AJAR SIG PASS SEAT WARMER SW PASS/BELT IND PASSENGER AIR BAG 1 PASSENGER AIR BAG 2 PASSENGER AIR BAG 3 PASSENGER AIR BAG OFF IND PASSENGER ANCHOR PRETENSIONER PASSENGER BACK WARMER PASSENGER CURTAIN AIR BAG PASSENGER CUSHION WARMER PASSENGER DOOR AJAR SIG PASSENGER DOOR AJAR SIGNAL PASSENGER DOOR KEY UNLOCK SIGNAL PASSENGER LR PASSENGER POWER OUTSIDE MIRROR PASSENGER SAFETY POWER WINDOW MODULE PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT WARMER PASSENGER SEAT WARMER MODULE PASSENGER SIDE AIR BAG PASSENGER SMART KEY OUTSIDE HANDLE PCB BLOCK PCSV CTRL POSITION SW POWER CONDITIONING POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PUMPING CURRENT PWM CTRL OUTPUT PWR SUPPLY R - OUT R IND R SIG RCV INPUT READER IC REAR DEF SW REAR DEFOGGER REAR DEFOGGER SW INPUT REAR POWER OUTLET REAR SEAT WARMER MODULE REAR WASHER REAR WASHER SIG REAR WIPER INT REAR WIPER ON REAR WIPER RLY CTRL REMOTE CTRL SW GND REMOTE CTRL SW SIG RES+ RESET SW 3 REVERSE PROTECTION, FILTER RF SIG RF VCC RH DRL RIGHT BLIND SPOT DETECTION RADAR RIGHT DRL RIGHT DRL OUT RIGHT HEADLAMP RIGHT REAR DOOR AJAR SIG RIGHT REAR DOOR LOW AJAR SIG SIGNAL RIGHT REAR SEAT WARMER RIGHT TURN IND RL SIG RL VCC RLY CTRL RLY DRV RPM O/P RPS GND RPS SIG RR + LR + RR DR AJAR SIG RR HTD RLY CTRL RR SIG RR VCC S GND S OUT SAFETY PWR WINDOW POWER WINDOW SYSTEM ENABLE OUTPUT KEY ILL CTRL SEAT BELT IND SEATS SYSTEM SEEK SEEK DOWN UP SEEK UP SEL 1 POSITION GND SEL 2 POSITION GND SEL 1 POSITION SIG SEL 1 POSITION SPLY SEL 1 SENS GND SEL 1 SENS OUT SEL 1 SENS PWR SEL 1 SOL GND SEL 1 SOL PULL SEL 1 SOL PUSH SEL 2 POSITION SIG SEL 2 POSITION SPLY SEL 2 SENS GND SEL 2 SENS OUT SEL 2 SENS PWR SEL 2 SOL GND SEL 2 SOL PULL SEL 2 SOL PUSH SELECT SW SELECT SW TRANSAXLE RNG SW SIG N SENS GND SENS GROUND SENS PWR SERIAL SIG SET- SHIFT INTERLOCK SYSTEM SIG 1 GND SIG 3 SIG 3 GND SIG 4 SIG FILTER SIG GND 1 SIGNAL 1 SIGNAL 2 SIGNAL 3 SIGNAL 4 SIGNAL GND SMART HIGH BEAM IND SMART JUNCTION BLOCK SOL PWR 1 SOL PWR 2 SOUND SYSTEMS SPD SIG SPDIF GND SPEED SIG SPORT IND SR- SS A SS B SSB AMBER SSB ILL GND SSB ILL GROUND SSB ILL POWER SSB ILL PWR SSB SW 1 SSB SW 2 START FEEDBACK START FEEDBACK SIG START RLY START RLY CTRL START SW INPUT STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEERING WHEEL) STOP SIGNAL ELECTRONIC MODULE STP SIG SUNROOF IND SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SW 2 SW INPUT SW SIG TAIL HEAD OFF AUTO TAIL OFF TAIL ON IND TAILGATE HANDLE SW TAILGATE LATCH TAILGATE OPEN SW TAILGATE RLY CTRL TCU TYPE TEMPERATURE METER TERMINAL CTRL ACC RLY TFT LCD TFT LCD DOT LCD, ANALOG TILT UP TILT UP SW TIRE PRESSURE MONITORING MODULE TOOL FOR BLIND TPMS IND TPS GND TPS SIG 1 TPS SIG 2 TPS SPLY TRANSAXLE RNG SW SIG D TRANSAXLE RNG SW SIG P TRANSAXLE RNG SW SIG R TRANSMISSION ASSEMBLY TRANSMISSIONS SYSTEM TRUNK OPEN IND TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL BUZZER TWO TURN UNFOLDING SW SIG UNLOCK RR UP DOWN UP OFF UP SHIFT UP/ RIGHT USB CHARGER 1 USB CHARGER 2 USB D-/IPOD TX USB JACK USB/IPOD GND USB/IPOD VCC VBATT MTR RLY VEHICLE SPD INPUT VEHICLE SPEED INPUT VEHICLE SPEED SENS VEHICLE SPEED SIG VENT SW HIGH IND VENT SW LOW IND VENT SW MID IND VENT SW MID IND WARMER SW HIGH IND WARMER SW LOW IND GND VFS LINE VFS OD VFS T/CON VFS UD VIDEO+ VIRTUAL GND VISV CTRL VOL DOWN VOL UP W/ AHLS W/ AIR VENTILATION SEAT W/ AUTO UP/DOWN POWER WINDOW W/ AUTO UP/DOWN POWER WINDOW W/O AUTO UP/DOWN POWER WINDOW W/ AUTO UP/DOWN POWER WINDOWS W/ AUTO UP/DOWN, SAFETY W/ AUTO UP/DOWN, SAFETY W/O AUTO UP/DOWN, SAFETY W/ BI-FUNCTION W/ BSD W/ CRASH PAD W/ DOT LCD, ANALOG W/ DRIVER POWER SEAT W/ DRIVER POWER SEAT W/O DRIVER POWER SEAT W/ DRL W/ HID W/ LANE DEPARTURE WARNING SYSTEM W/O LANE DEPARTURE WARNING SYSTEM W/ LDWS W/ LDWS W/O LDWS W/ LED W/ NAVIGATION W/ NAVIGATION W/O NAVIGATION W/ UVO W/ POWER SEAT W/ POWER SEAT W/O POWER SEAT W/ POWER SEAT W/O POWER SEAT W/ UVO W/O UVO W/ REAR SEAT WARMER W/ REAR SEAT WARMER W/O REAR SEAT WARMER W/ SMART KEY W/ SMART KEY, IMMO W/O SMART KEY, IMMO W/ SMART KEY/IMMO W/O SMART KEY/IMMO W/ SUNROOF W/ UVO W/ UVO W/ UVO W/ UVO W/O UVO W/ UVO W/O UVO DOT LCD, ALALOG W/ UVO W/O UVO W/O LDWS W/ LDWS W/ UVO, NAVIGATION W/O AIR VENTILATION SEAT W/O AIR VENTILATION SEAT W/ AIR VENTILATION SEAT W/O AUTO UP/DOWN POWER WINDOW W/O AUTO UP/DOWN POWER WINDOWS W/O AUTO UP/DOWN, SAFETY W/O AUTO UP/DOWN, SAFETY W/ AUTO UP/DOWN, SAFETY AUTOMATIC A/C MANUAL A/C W/O BSD W/O DRIVER POWER SEAT W/O DRL W/O HID W/O IMMO/SMART KEY W/ IMMO/SMART KEY W/O LDWS W/O LDWS W/ LDWS W/O LED W/O LED W/ LED W/O NAVIGATION W/O NAVIGATION W/ CENTER FASCIA W/O NAVIGATION W/ NAVIGATION W/O NAVIGATION W/ UVO W/O NAVIGATION, UVO W/O SMART KEY W/O SUNROOF W/O UVO W/O UVO W/ UVO W/O UVO, NAVIGATION WARMER SW HIGH IND WARMER SW LOW IND WARMER SW MID IND WASHER SIG WGV INPUT WHEEL SPEED WHL SPD WIPER OPERATION INPUT WIPER RLY CTRL WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM FRONT WIPER INT TIME
