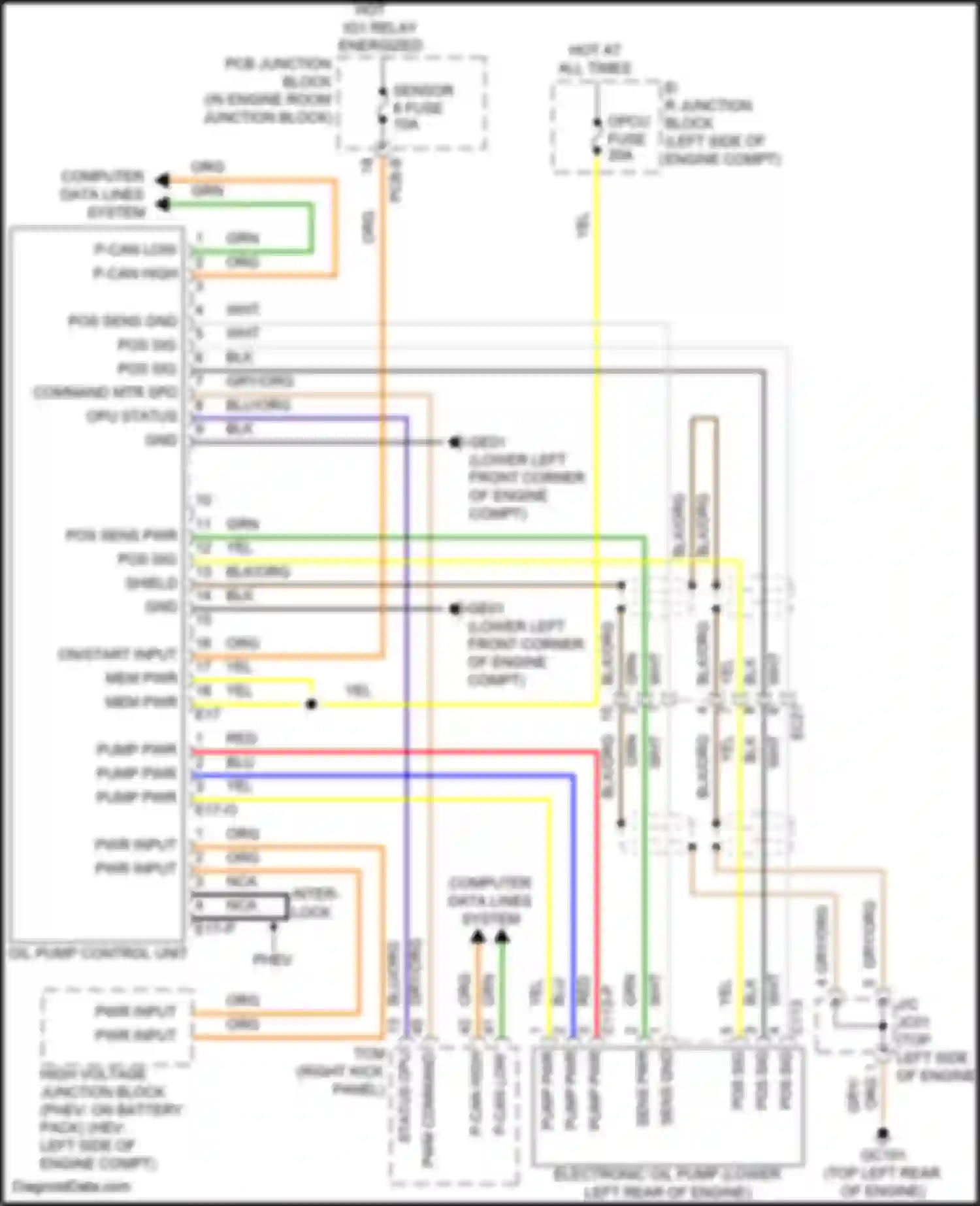

Wiring diagram engine performance 1.6l turbo plug-in hybrid, electric oil pump circuit for Kia Sorento IV facelift (2023-2024)

BLK WIRE BLK/ORG WIRE BLU WIRE BLU/ORG WIRE COMMAND MTR SPD COMPUTER DATA LINES SYSTEM E/R JUNCTION BLOCK ELECTRONIC OIL PUMP (LOWER LEFT REAR OF ENGINE) GRN WIRE GRY WIRE GRY/ORG WIRE HIGH VOLTAGE JUNCTION BLOCK HOT AT ALL TIMES HOT W/ INTER LOCK MEM PWR NCA WIRE OIL PUMP CONTROL UNIT ON/START INPUT OPCU FUSE OPU STATUS ORG/ WIRE P-CAN HIGH P-CAN LOW PCB JUNCTION BLOCK PCB-B POS SENS GND POS SENS PWR POS SIG U POS SIG V POS SIG W PUMP PWR-U PUMP PWR-V PUMP PWR-W PWM COMMAND PWR INPUT (+) RED WIRE SENS GND SENS PWR SENSOR 8 FUSE SHIELD STATUS OPU TCM WHT WIRE YEL WIRE
