Kia Sorento IV (2020-2024) turn sig lamp sw out Wiring diagrams
This page contains all the electrical diagrams for the component. turn sig lamp sw out, in which he is found in the car Kia Sorento IV (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

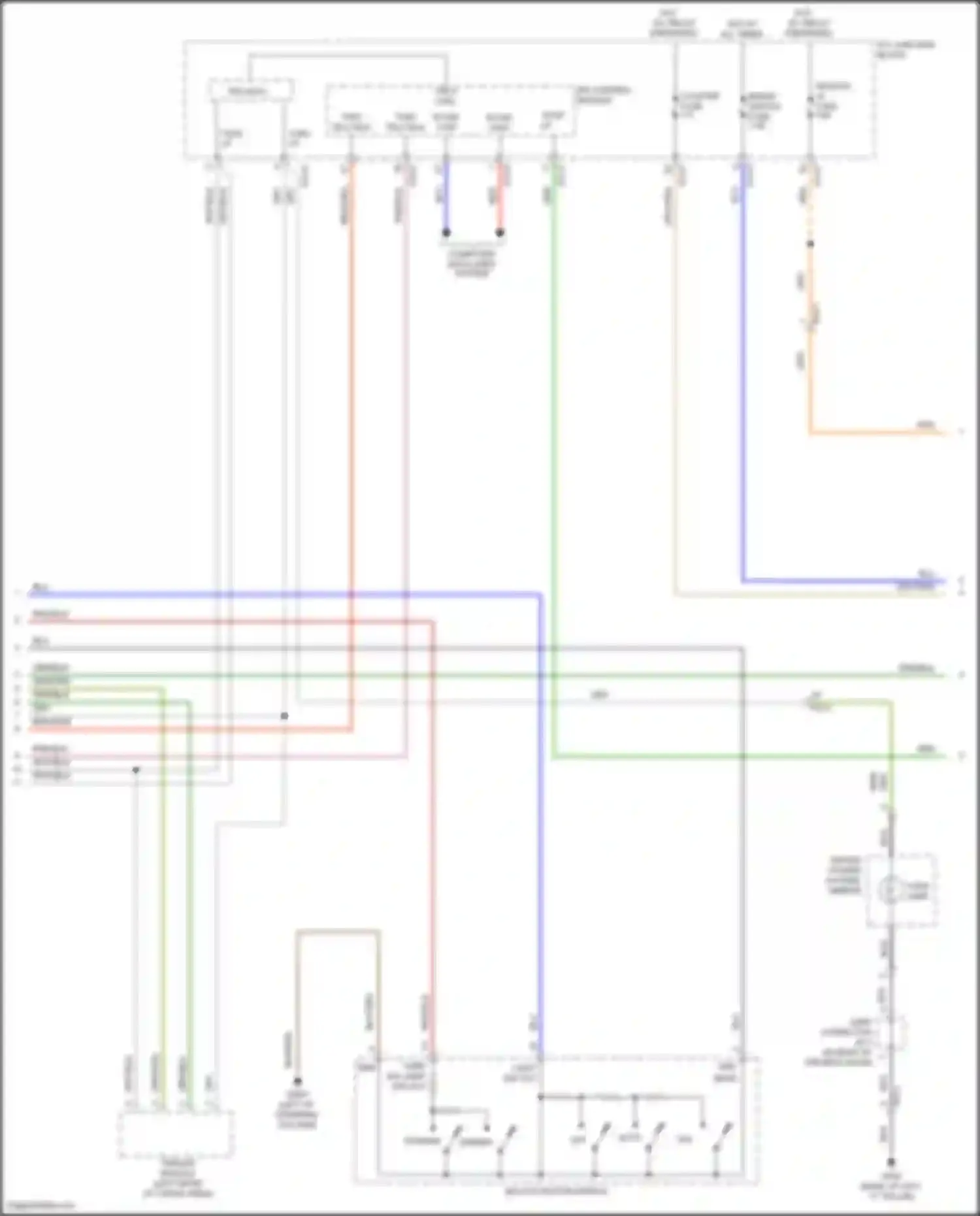

Wiring diagram turn sig lamp sw out (1 of 2)
7.5
AUTO
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BRAKE SWITCH FUSE
CLUSTER FUSE
COMPUTER DATA LINES SYSTEM
DIMMER
DRIVER POWER OUTSIDE MIRROR
GND (BCM)
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
GRY WIRE
GRY/ORG WIRE
HOT AT ALL TIMES
HOT W/
ICU JUNCTION BLOCK
ICU-A
ICU-D
ICU-E
ICU-F
ICU-H
IPS 4 CTRL
IPS CONTROL MODULE
LIGHT SW OUT
MODULE 10 FUSE
MULTI- FUNCTION SWITCH
NCA WIRE
OFF
ORG/ WIRE
PASSING
PNK/BLK WIRE
RED WIRE
RED/BLK WIRE
RED/ORG WIRE
STOP LP SW
T/SIG LP RL
T/SIG LP RR
T/SIG TELLTALE
TAIL
TRAILER MODULE
TURN LAMP
TURN SIG LAMP SW OUT
WHT/BLK WIRE
Go to component -> Exterior lamps circuit, except hybrid (3 of 4) -> TURN SIG LAMP SW OUT
