Kia Sephia II (1997-2001) control ring Wiring diagram
This page shows the only wiring diagram for the component.control ring, which is found in the car Kia Sephia II (1997-2001). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

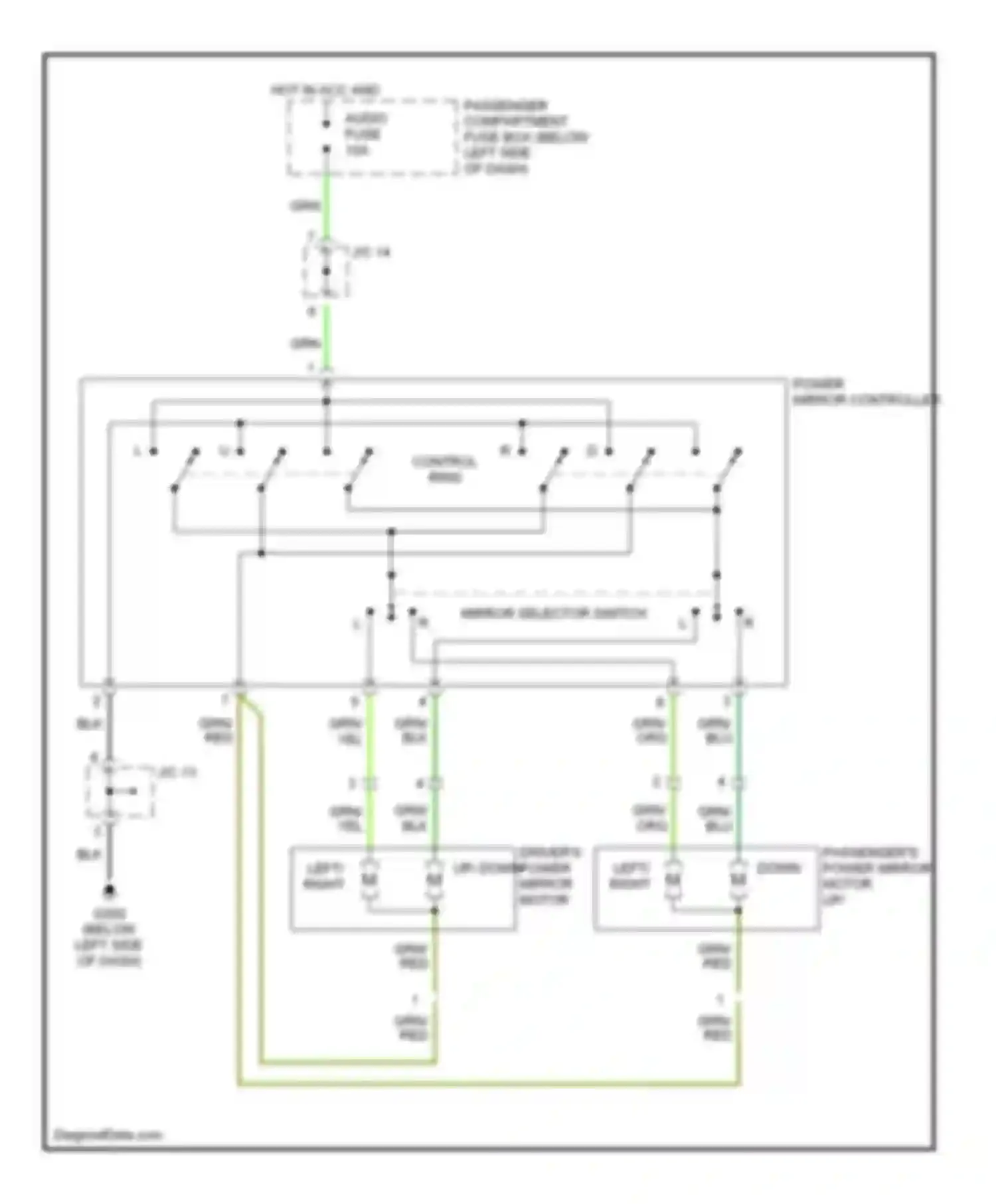

Wiring diagram control ring (1 of 1)
AUDIO FUSE
BLK WIRE
BLU WIRE
CONTROL RING
DRIVER'S POWER MIRROR MOTOR UP/ DOWN
GRN WIRE
HOT IN ACC AND ON
J/C 14
JC-13
LEFT RIGHT
MIRROR SELECTOR SWITCH
ORG/ WIRE
PASSENGER COMPARTMENT FUSE BOX (BELOW LEFT SIDE OF DASH)
PASSENGER'S POWER MIRROR MOTOR UP/ DOWN
POWER MIRROR CONTROLLER
RED WIRE
YEL WIRE
