Power door lock circuit for Kia Sephia I facelift (1994-1998)

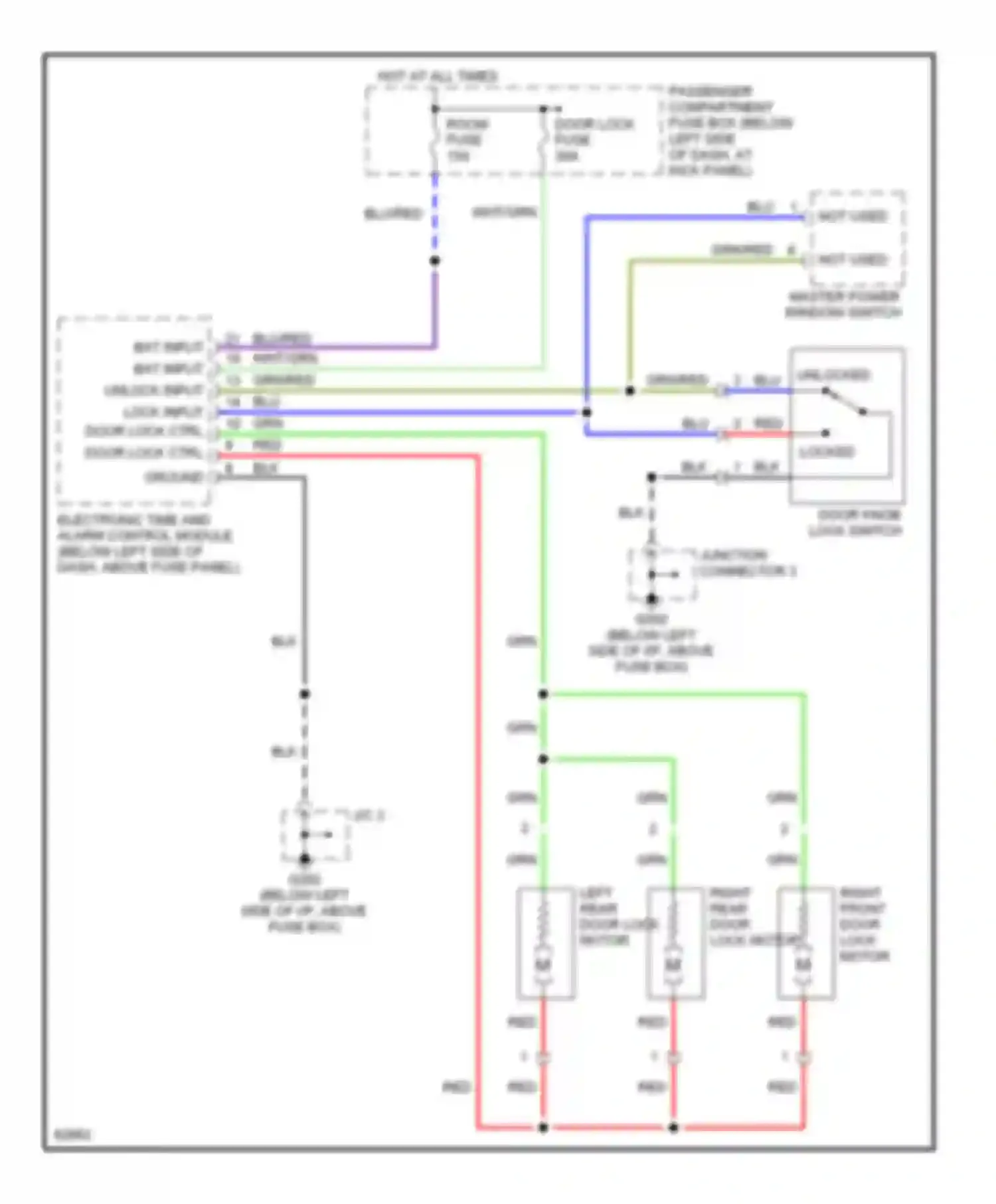

Power door lock circuit
BLK WIRE
BLU WIRE
BLU/RED WIRE
DOOR KNOB LOCK SWITCH
DOOR LOCK FUSE
GRN WIRE
GRN/RED WIRE
HOT AT ALL TIMES
J/C 3
JUNCTION CONNECTOR 3
LEFT REAR DOOR LOCK MOTOR
LOCKED
MASTER POWER WINDOW SWITCH
NOT USED
PASSENGER COMPARTMENT FUSE BOX (BELOW LEFT SIDE OF DASH, AT KICK PANEL)
RED WIRE
RIGHT FRONT DOOR LOCK MOTOR
RIGHT REAR DOOR LOCK MOTOR
ROOM FUSE
UNLOCKED
WHT/GRN WIRE
