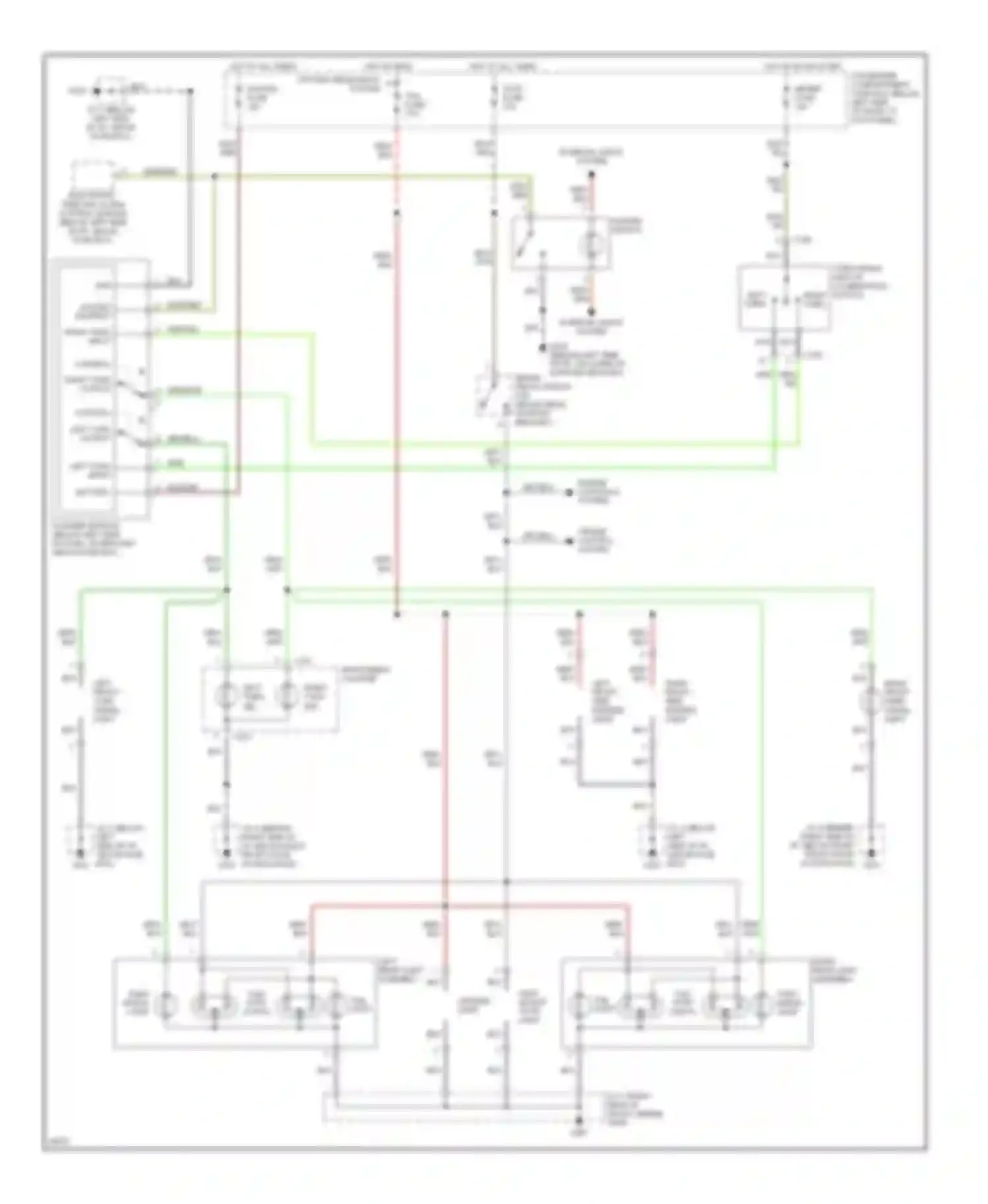

Kia Sephia I facelift (1994-1998) Exterior lamps circuit

BATTERY BLK WIRE BLK/RED WIRE BRAKE PEDAL SWITCH (ON BRAKE PEDAL SUPPORT BRACKET) CONTROL CRUISE CONTROL SYSTEM ENGINE CONTROLS SYSTEM FLASHER MODULE (BELOW LEFT SIDE OF DASH, ON BRACKET ABOVE FUSE BOX) GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE HAZARD FUSE HAZARD SW INPUT HAZARD SWITCH HIGH MOUNT STOP LIGHT HOT AT ALL TIMES HOT IN HEAD OR PARK HEADLIGHTS SYSTEM HOT IN ON OR START INSTRUMENT CLUSTER J/C 3 (BELOW LEFT SIDE OF I/P, ABOVE FUSE BOX) J/C 4 (BEHIND RIGHT SIDE OF I/P, BELOW RIGHT FRONT DOOR ACCESS HOLE) J/C 7 (RIGHT REAR OF TRUNK, BEHIND TRIM) LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT REAR LIGHT ASSEMBLY LEFT TURN IND LEFT TURN INPUT LEFT TURN OUTPUT LEFT TURN RIGHT TURN LICENSE LIGHT METER FUSE NCA WIRE ORG/ WIRE PASSENGER COMPARTMENT FUSE BOX (BELOW LEFT SIDE OF DASH, AT KICK PANEL) RED WIRE RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TURN SIGNAL LIGHT RIGHT REAR LIGHT ASSEMBLY RIGHT TURN IND RIGHT TURN INPUT RIGHT TURN OUTPUT STOP FUSE TAIL FUSE TAIL- LIGHT TAIL/ STOP LIGHTS TURN SIGNAL LIGHT TURN SIGNAL SWITCH (COMBINATION SWITCH) WHT WIRE YEL WIRE
