Kia Seltos I facelift (2022-2024) ips 17 control Wiring diagram
This page shows the only wiring diagram for the component.ips 17 control, which is found in the car Kia Seltos I facelift (2022-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

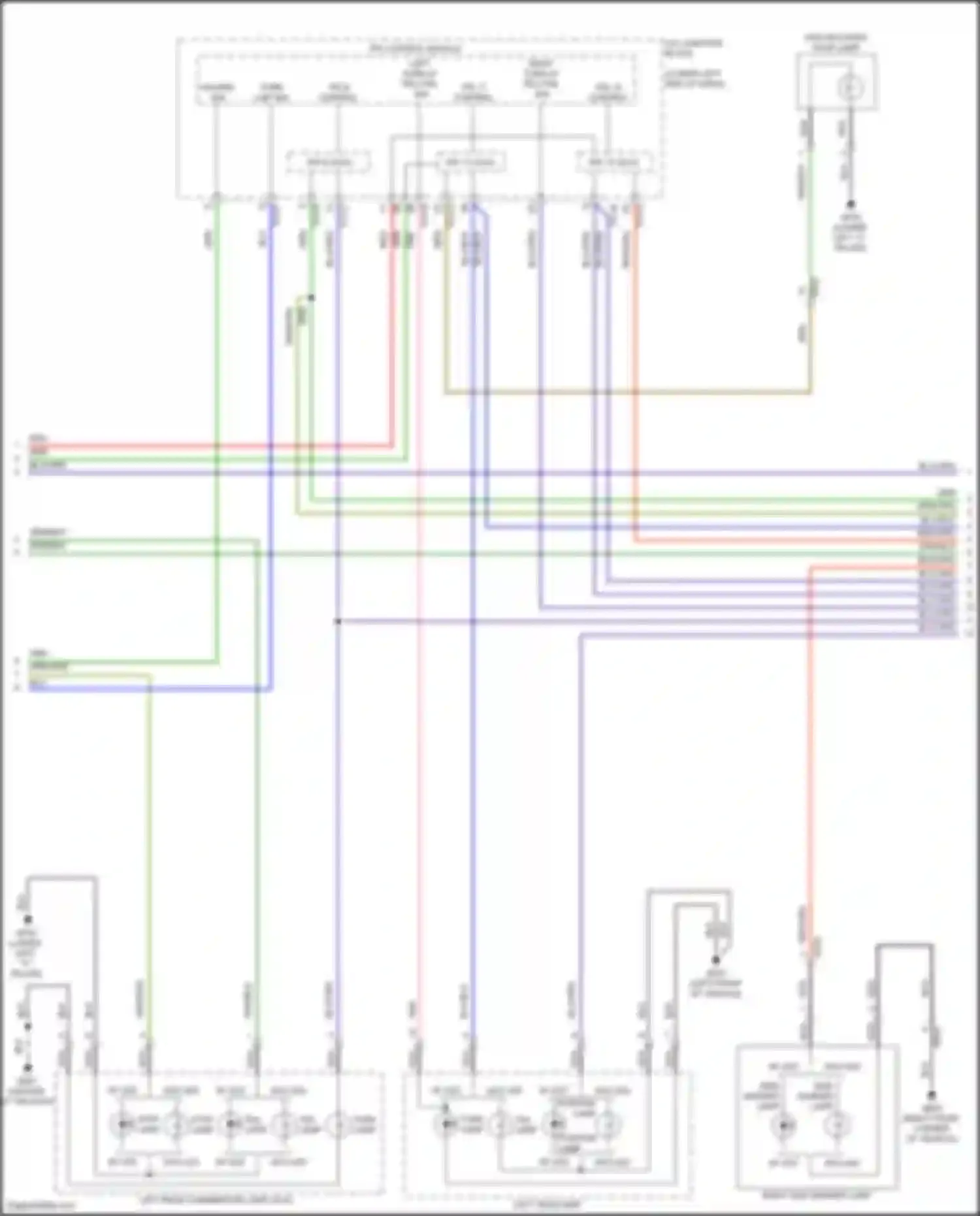

Wiring diagram ips 17 control (1 of 1)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BRN WIRE
GRN WIRE
GRN/BLK WIRE
GRN/ORG WIRE
HAZARD SW
HIGH MOUNTED STOP LAMP
ICU JUNCTION BLOCK
ICU-B
ICU-C
ICU-D
ICU-F
IPS 10 CONTROL
IPS 17 CONTROL
IPS 8 CONTROL
IPS CONTROL MODULE
LEFT HEADLAMP
LEFT REAR COMBINATION LAMP (OUT)
LEFT TURN LP TELLTAIL SW
NCA WIRE
PNK WIRE
POSITION LAMP
RED WIRE
RED/ORG WIRE
RIGHT SIDE MARKER LAMP
RIGHT TURN LP TELLTAIL SW
SIDE MARKER LAMP
STOP LAMP
TAIL LAMP
TURN LAMP
TURN LMP SIG
W/ LED
W/ LED W/O LED
W/O LED
Go to component -> Exterior lamps circuit (2 of 4) -> IPS 17 CONTROL
