Back-up lamps circuit for Kia Sedona I (1998-2006)

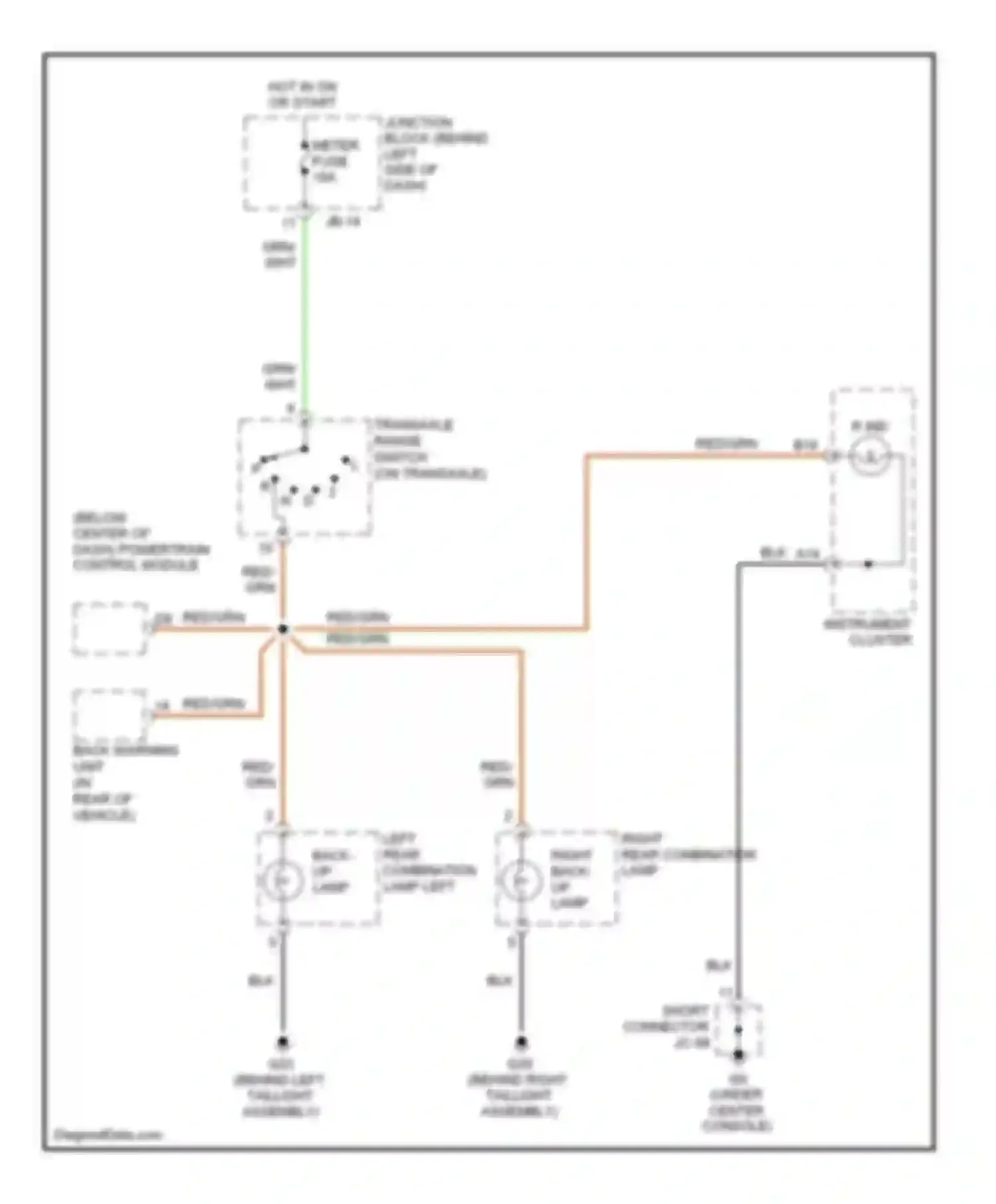

Back-up lamps circuit
BACK WARNING UNIT (IN REAR OF VEHICLE)
BLK WIRE
GRN WIRE
HOT IN ON OR START
INSTRUMENT CLUSTER
JB-14
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT REAR COMBINATION LAMP LEFT BACK-UP LAMP
METER FUSE
R IND
RED WIRE
RED/GRN WIRE
RIGHT BACK-UP LAMP
RIGHT REAR COMBINATION LAMP
SHORT CONNECTOR JC-09
TRANSAXLE RANGE SWITCH (ON TRANSAXLE)
WHT WIRE
