Car Wiring Diagrams for Headlights circuit, w/o drl for Kia Rio III (2011-2015)

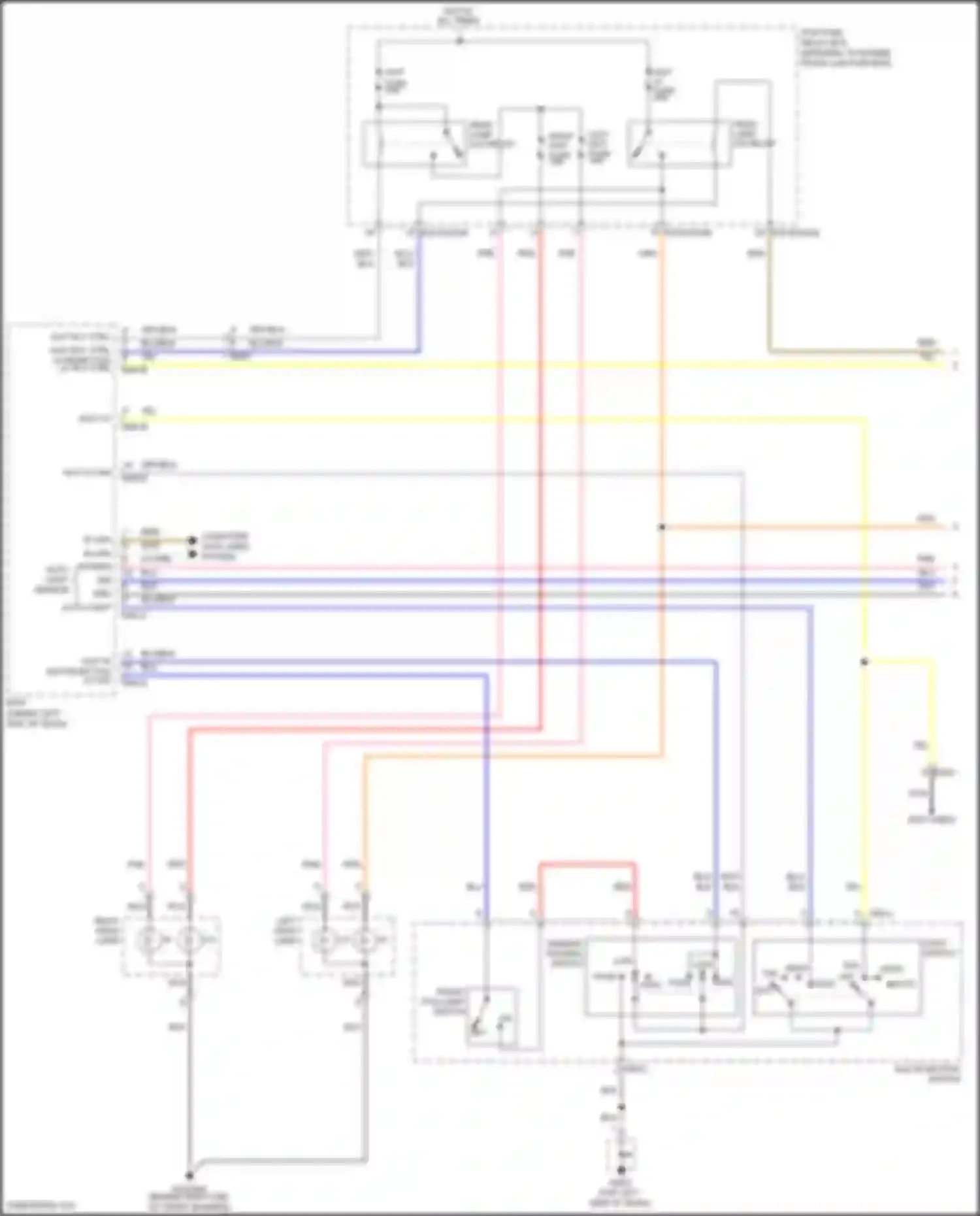

AUTO AUTO LIGHT SENSOR AUTO LIGHT SW B-CAN HI B-CAN LO PNK POWER WIRE BCM BLK WIRE BLU WIRE BLU/BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DIMMER, PASSING SWITCH E/R-EGGGA E/R-EGGGB FRONT FOG LAMP SWITCH GRY WIRE GRY/BLK WIRE H/LP FUSE H/LP HI FUSE H/LP HI SW FRONT FOG LP SW ON H/LP LO SIG H/LP LO SW H/LP RLY CTRL HI FRONT FOG LP RLY CTRL H/LP RLY CTRL LO HEAD HEAD LAMP (LO) RELAY HEAD TAIL AUTO OFF HEAD- LAMP HI RELAY HIGH PASS HIGH HOT AT ALL TIMES LEFT H/LP FUSE LEFT HEAD- LAMP LIGHT SWITCH MULTIFUNCTION SWITCH NCA WIRE OFF ORG/ WIRE PASS PCB FUSE, RELAY BOX PNK WIRE RED WIRE RIGHT H/LP FUSE RIGHT HEAD- LAMP SIG TAIL OFF WHT WIRE YEL WIRE

AUTO LIGHT SENSOR AUTO LIGHT, PHOTO SENSOR B-CAN C-CAN TRANSCEIVER TRANSCEIVER BLK WIRE BLU WIRE BRN WIRE CLUSTER FUSE COMPUTER DATA LINES SYSTEM E/R JUNCTION BOX FOG LP FRT FUSE FRONT FOG IND FRONT FOG LAMP RELAY H/LP HIGH IND FUSE HIGH BEAM IND HOT AT ALL TIMES HOT IN ON HOT IN ON OR START I/P JUNCTION BOX I/P-B I/P-E INSTRUMENT CLUSTER LEFT FRONT FOG LAMP LOW BEAM IND LOW LOW HIGH MICOM NCA WIRE ORG/ WIRE PNK WIRE POWER CONNECTOR RED WIRE REGULATOR RIGHT FRONT FOG LAMP ROOM LP FUSE S GND W/ AUTO LIGHT WHT WIRE YEL WIRE
