Kia Rio II (2005-2009) up/ down down up up down Wiring diagram

This page shows the only wiring diagram for the component.up/ down down up up down, which is found in the car Kia Rio II (2005-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

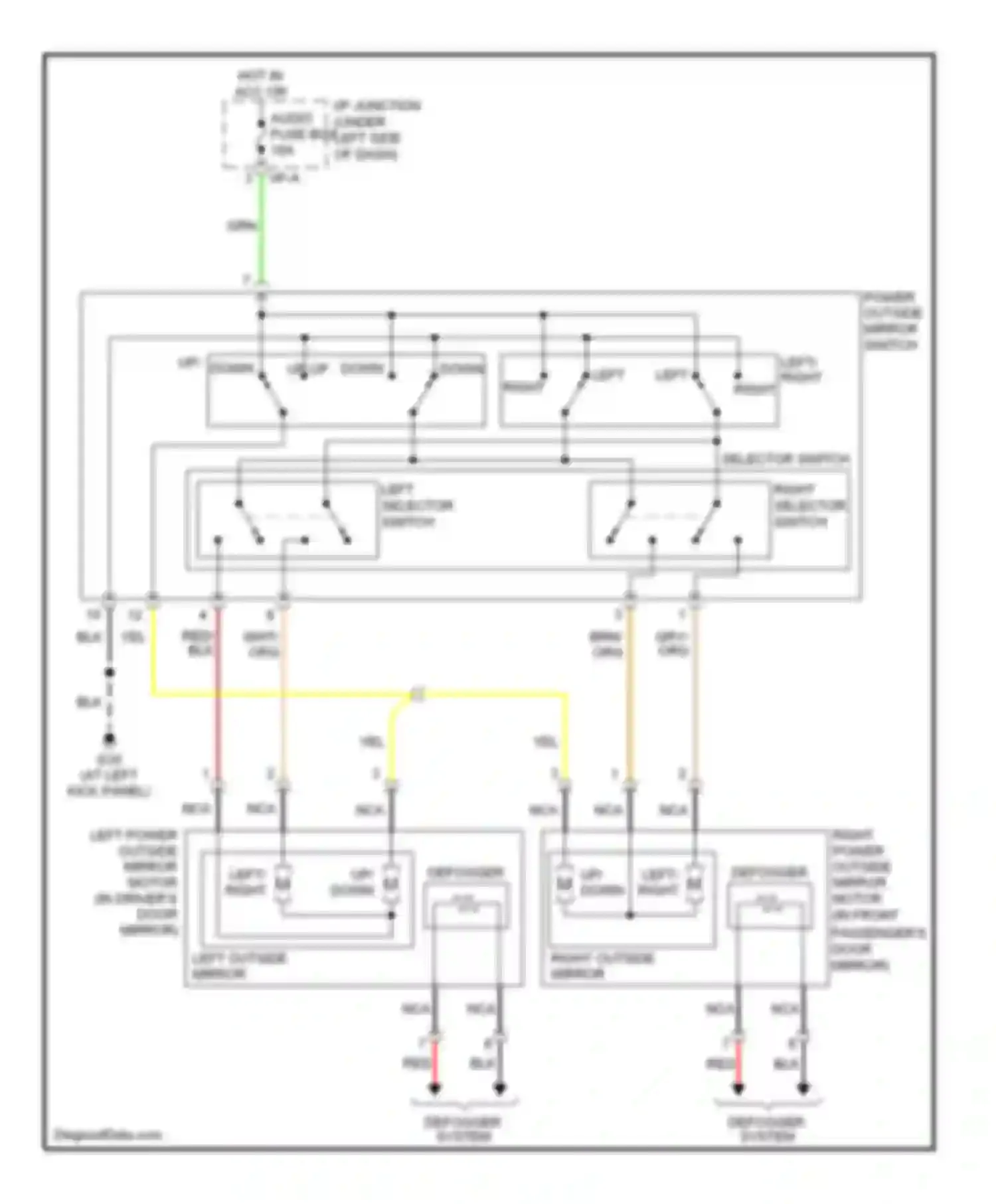

Wiring diagram up/ down down up up down (1 of 1)

Wiring diagram up/ down down up up down for Kia Rio II (2005-2009)

Get access

AUDIO FUSE BOX (UNDER LEFT SIDE OF DASH) I/P-A BLK WIRE BRN WIRE DEFOGGER DEFOGGER SYSTEM DEFOGGER UP/ DOWN LEFT/ RIGHT GRN WIRE GRY WIRE HOT IN ACC OR ON I/P JUNCTION LEFT LEFT OUTSIDE MIRROR LEFT POWER OUTSIDE MIRROR MOTOR (IN DRIVER'S DOOR MIRROR) LEFT RIGHT LEFT SELECTOR SWITCH NCA WIRE ORG/ WIRE POWER OUTSIDE MIRROR SWITCH RED WIRE RIGHT RIGHT OUTSIDE MIRROR RIGHT POWER OUTSIDE MIRROR MOTOR RIGHT SELECTOR SWITCH SELECTOR SWITCH UP DOWN UP/ DOWN DOWN UP UP DOWN WHT WIRE YEL WIRE

Go to component: -> Power mirror circuit -> UP/ DOWN DOWN UP UP DOWN
