Kia Optima IV (2015-2018) signal gnd Wiring diagram
This page shows the only wiring diagram for the component.signal gnd, which is found in the car Kia Optima IV (2015-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

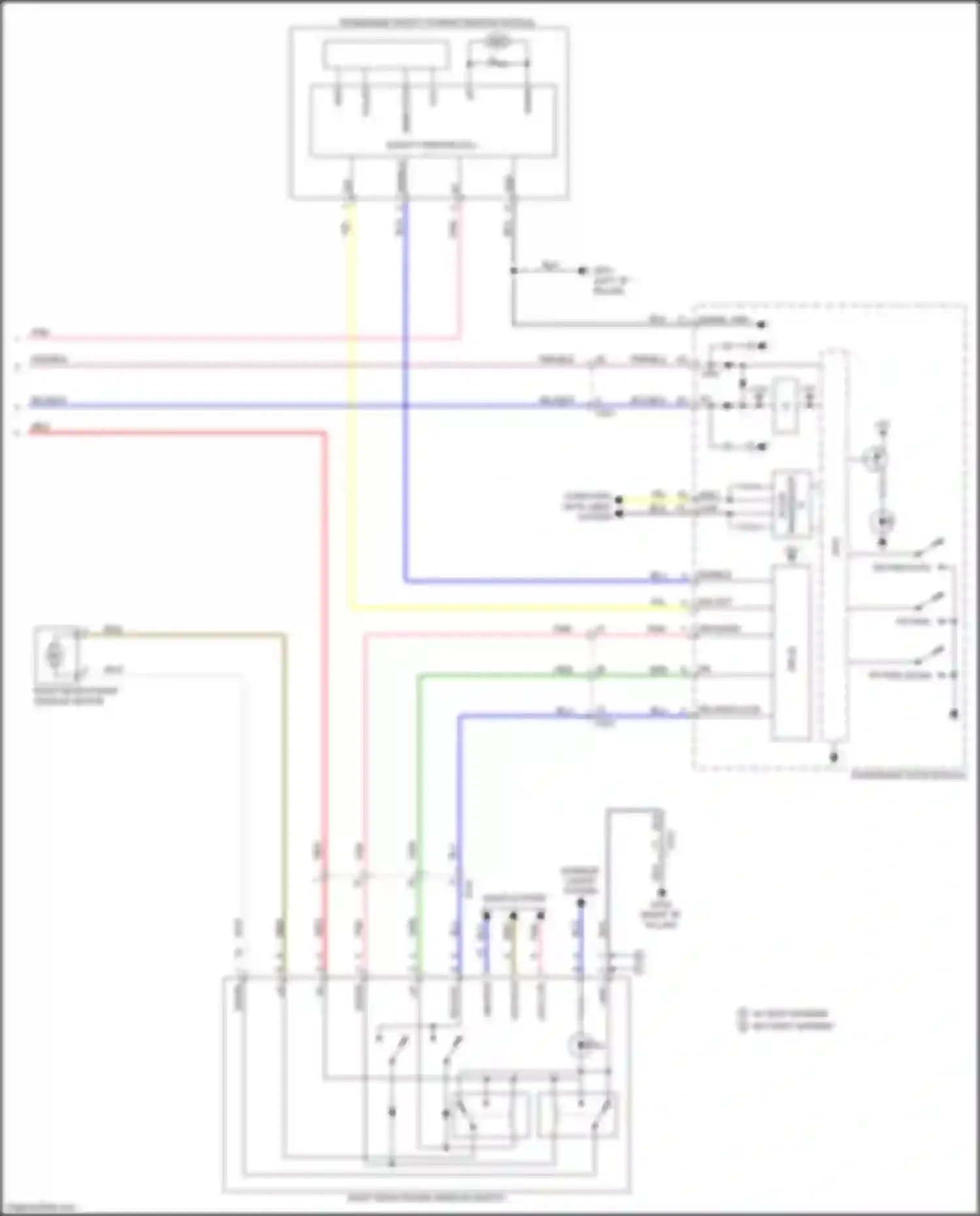

Wiring diagram signal gnd (1 of 1)
B-CAN
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DIRECTION
DOWN
DRIVE IC
ENABLE
FR PWD AUTO
FR PWD DOWN
FR PWD UP
GRN WIRE
HEATER SW
ILL
LED HIGH
LED LOW
MCU
PASSENGER DOOR MODULE
PASSENGER SAFETY POWER WINDOW MODULE
PNK WIRE
PNK/BLK WIRE
PULSE
RED WIRE
RIGHT REAR POWER WINDOW MOTOR
RIGHT REAR POWER WINDOW SWITCH
RR DOWN
RR UP
RR WDW LOCK
SAFETY WINDOW ECU
SEATS SYSTEM
SIG OUT
SIGNAL GND
TRANSCEIVER/
VCC
W/ SEAT WARMER W/O SEAT WARMER
W/LOCK
WHT WIRE
YEL WIRE
Go to component -> Power windows circuit, except hybrid w/ ims w/ driver/passenger auto up/down & safety power windows (2 of 2) -> SIGNAL GND
