Wiring Diagrams for Kia Optima IV (2015-2018)

Automatic a/c circuit, except hybrid Automatic a/c circuit, hybrid Manual a/c circuit

Anti-lock brakes circuit, except hybrid w/ epb Anti-lock brakes circuit, except hybrid w/o epb Anti-lock brakes circuit, hybrid

Forced entry circuit, except hybrid Forced entry circuit, hybrid Immobilizer circuit, except hybrid w/o smart key system Immobilizer circuit, except hybrid w/ smart key system Immobilizer circuit, hybrid

1.6l turbo, body control module circuit 1.6l turbo, ips control module circuit

2.0l hybrid, body control module circuit 2.0l hybrid, ips control module circuit

2.0l plug-in hybrid, body control module circuit 2.0l plug-in hybrid, ips control module circuit

2.0l turbo, body control module circuit 2.0l turbo, ips control module circuit

2.4l, body control module circuit 2.4l, ips control module circuit

Computer data lines circuit, except hybrid Computer data lines circuit, hybrid

Cooling fan circuit, except hybrid Cooling fan circuit, hybrid

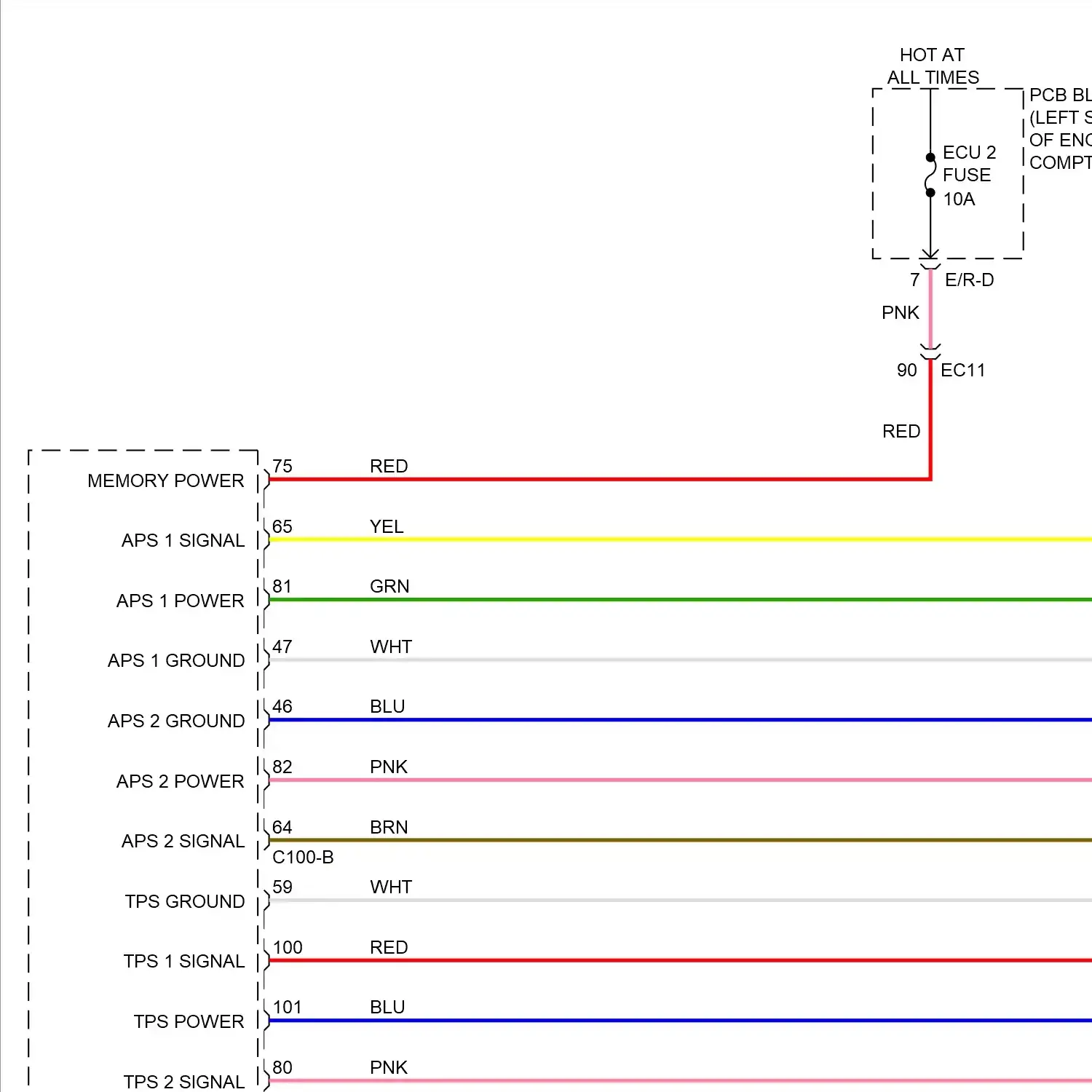

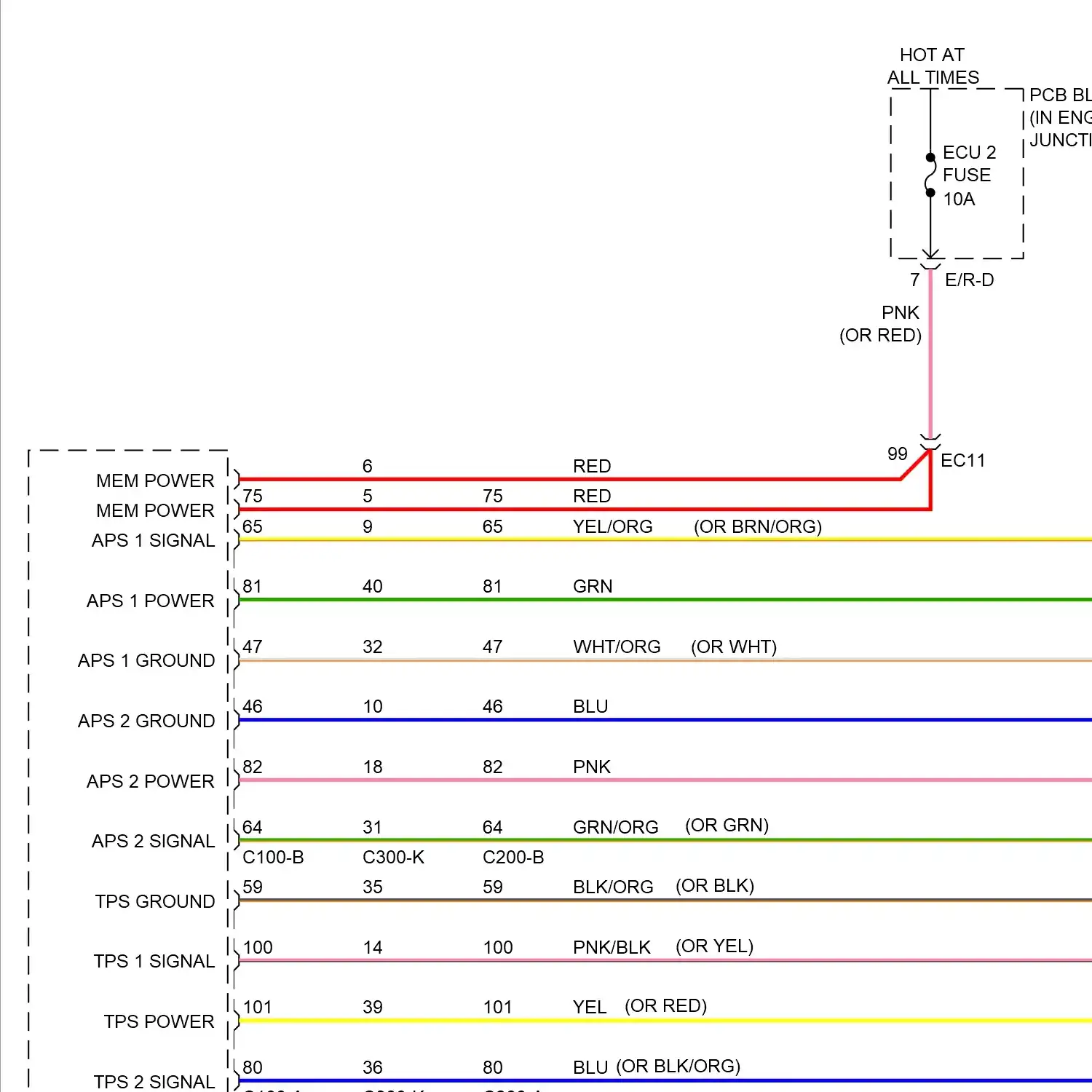

Cruise control circuit, except hybrid Cruise control circuit, hybrid

Defoggers circuit, except hybrid Defoggers circuit, hybrid w/ auto defogger Defoggers circuit, hybrid w/o auto defogger

Electronic power steering circuit, except hybrid column type Electronic power steering circuit, except hybrid rack type Electronic power steering circuit, hybrid

Wiring diagram engine performance 1.6l turbo

Wiring diagram engine performance 2.0l hybrid, hybrid control circuit Wiring diagram engine performance 2.0l hybrid, mfi control circuit Wiring diagram engine performance 2.0l hybrid, virtual engine sound system circuit

Wiring diagram engine performance 2.0l plug-in hybrid, hybrid control circuit Wiring diagram engine performance 2.0l plug-in hybrid, mfi control circuit Wiring diagram engine performance 2.0l plug-in hybrid, virtual engine sound system circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.4l

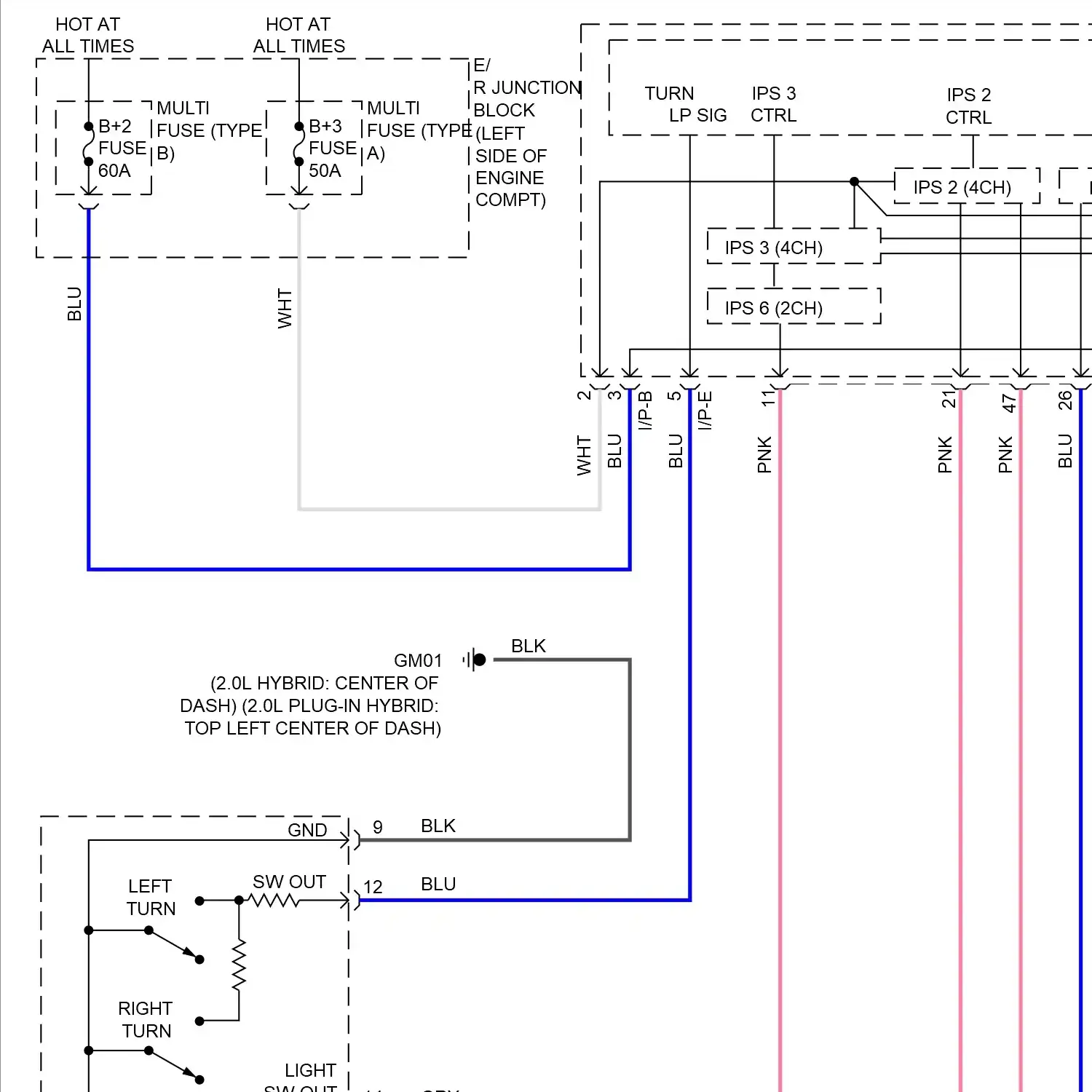

Backup lamps circuit, except hybrid Backup lamps circuit, hybrid Exterior lamps circuit, except hybrid Exterior lamps circuit, hybrid

1.6l turbo, ground distribution circuit

2.0l hybrid, ground distribution circuit

2.0l plug-in hybrid, ground distribution circuit

2.0l turbo, ground distribution circuit

2.4l, ground distribution circuit

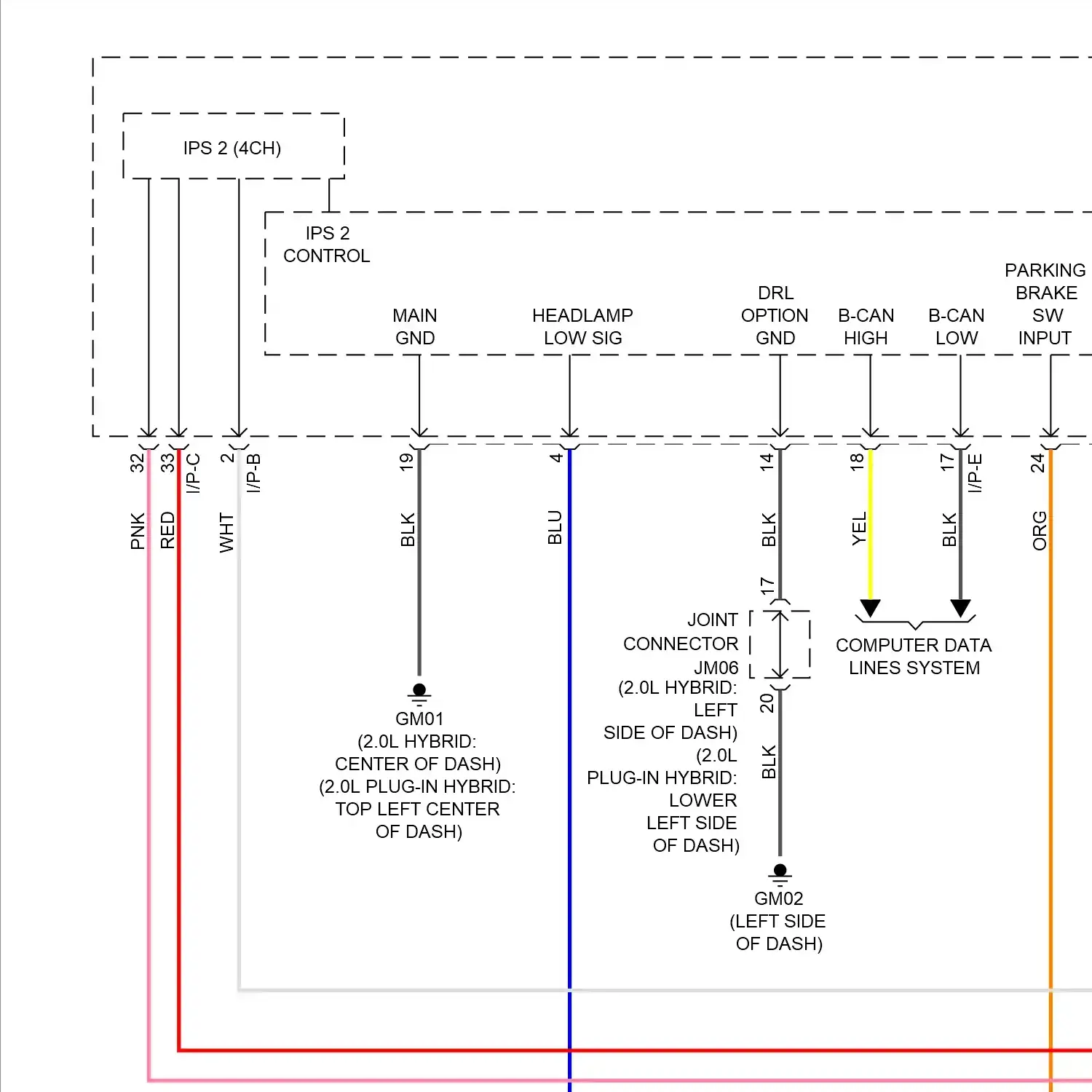

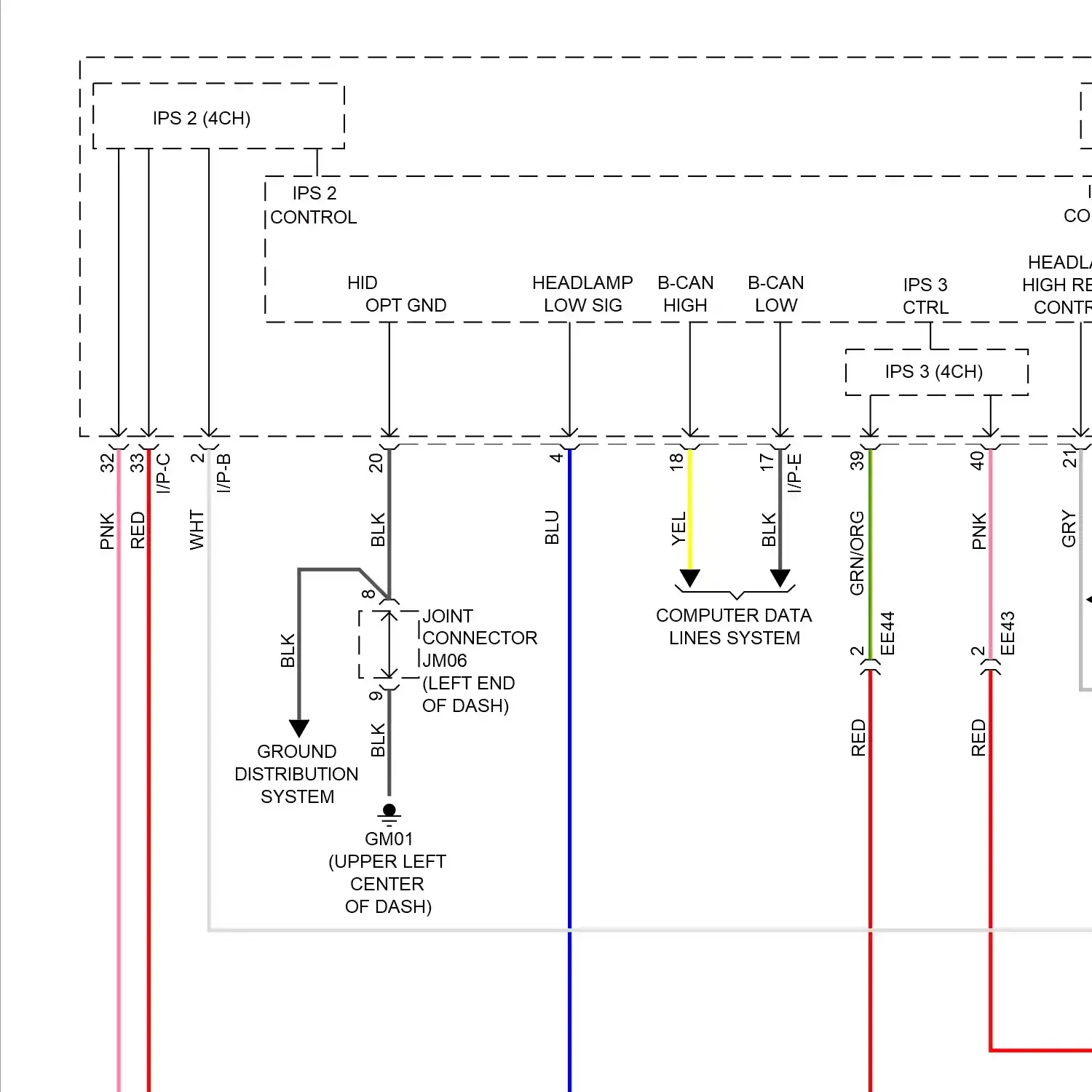

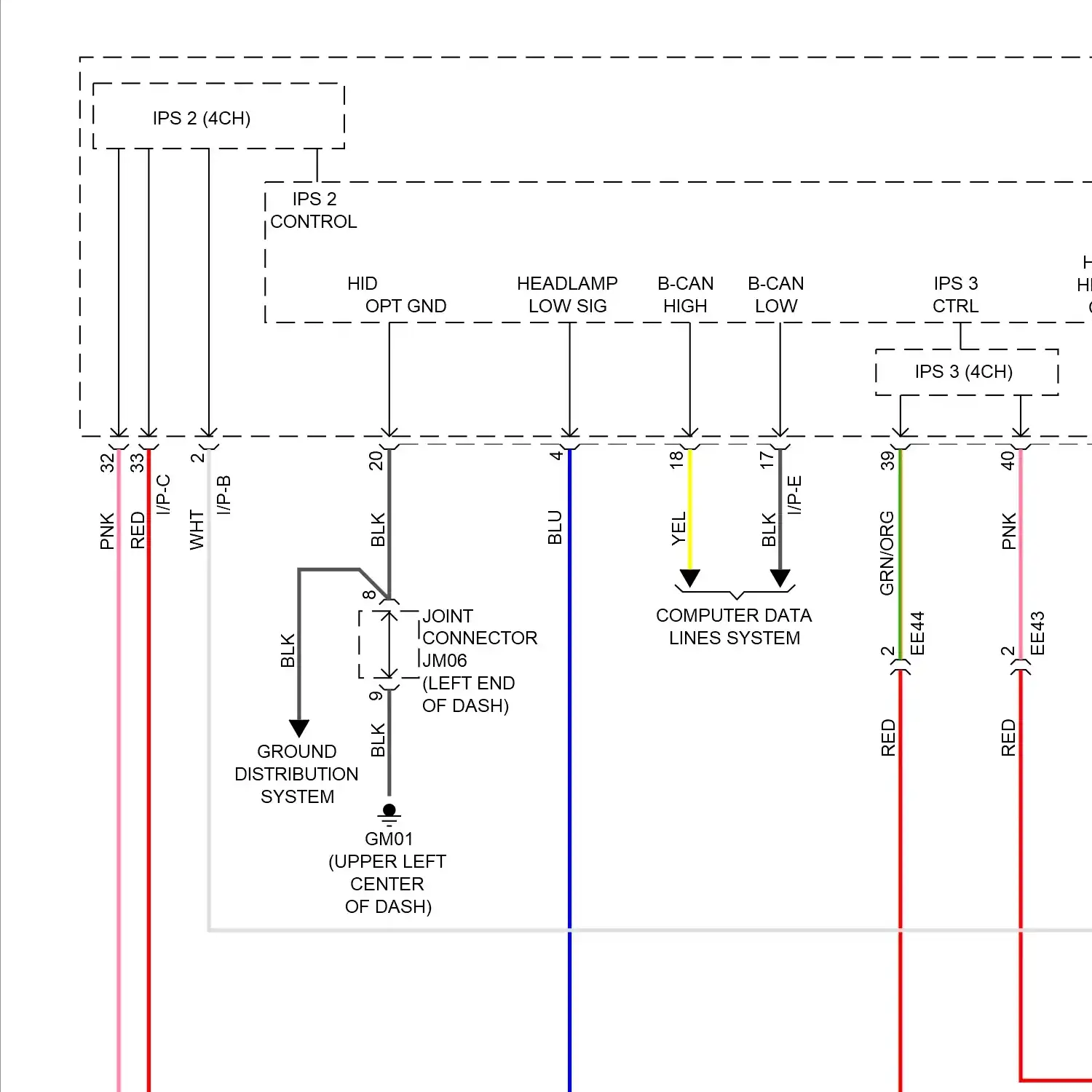

Adaptive front lighting circuit, except hybrid w/ hid headlights Adaptive front lighting circuit, except hybrid w/o hid headlights Adaptive front lighting circuit, hybrid Auto headlamps leveling system (ahls) circuit Autolamps circuit, except hybrid Autolamps circuit, hybrid Headlamps circuit, except hybrid Headlamps circuit, hybrid

Horn circuit

Instrument cluster circuit, except hybrid Instrument cluster circuit, hybrid

Courtesy lamps circuit, except hybrid Courtesy lamps circuit, hybrid Instrument illumination circuit, except hybrid Instrument illumination circuit, hybrid

Memory mirrors circuit Memory seat circuit

Blind spot information system circuit Lane departure warning circuit Lane keeping assist circuit Navigation circuit, except hybrid & plug in hybrid version 1.0 w/ amplifier Navigation circuit, except hybrid & plug in hybrid version 1.0 w/o amplifier Navigation circuit, except hybrid & plug in hybrid version 4.0 & pio w/ amplifier Navigation circuit, except hybrid & plug in hybrid version 4.0 & pio w/o amplifier Navigation circuit, hybrid & plug in hybrid Parking assistant circuit Surround view monitor circuit

1.6l turbo, power distribution circuit

2.0l hybrid, power distribution circuit

2.0l plug-in hybrid, power distribution circuit

2.0l turbo, power distribution circuit

2.4l, power distribution circuit

Power door locks circuit, except hybrid Power door locks circuit, hybrid

Electrochromic mirror circuit, except hybrid & plug-in hybrid Electrochromic mirror circuit, hybrid Electrochromic mirror circuit, plug-in hybrid w/ mts Electrochromic mirror circuit, plug-in hybrid w/o mts Power mirror circuit

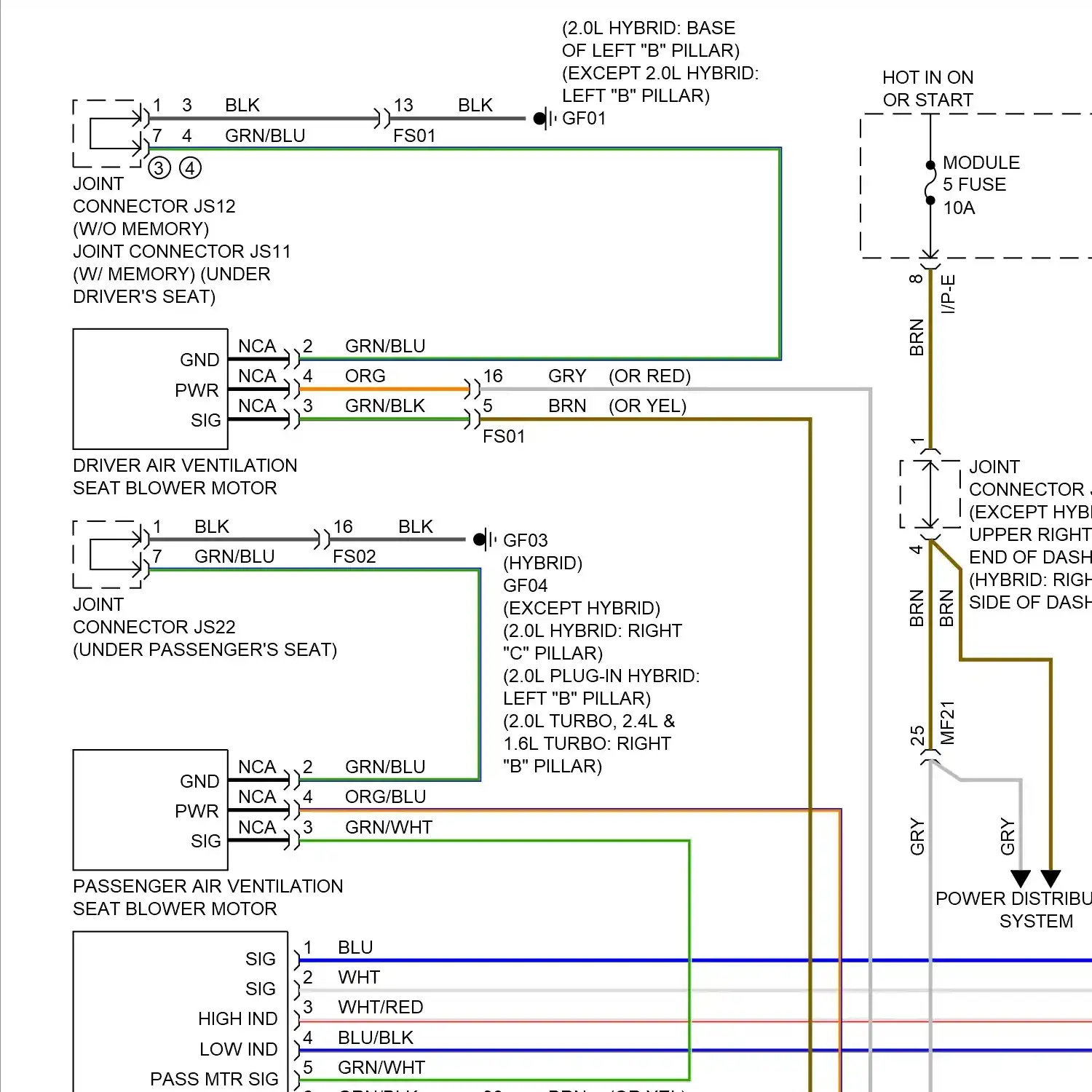

Driver power seat circuit, 10-way Driver power seat circuit, 12-way Driver"s lumbar circuit Front heated seats circuit Heated steering wheel circuit Passenger lumbar circuit Passenger power seat circuit, 10-way Passenger power seat circuit, 8-way Rear heated seats circuit Seat ventilation circuit

Power top/sunroof circuit, except hybrid Power top/sunroof circuit, hybrid

Power windows circuit, except hybrid w/ driver auto down Power windows circuit, except hybrid w/ ims w/ driver/passenger auto up/down & safety power windows Power windows circuit, except hybrid w/o ims w/ driver auto up/down & safety power windows Power windows circuit, except hybrid w/o ims w/ driver/passenger auto up/down & safety power windows Power windows circuit, hybrid w/ ims Power windows circuit, hybrid w/o ims

Radio circuit, except hybrid & plug in hybrid version 1.0 w/ navigation & amplifier Radio circuit, except hybrid & plug in hybrid version 1.0 w/ navigation w/o amplifier Radio circuit, except hybrid & plug in hybrid version 4.0 & pio w/ navigation & amplifier Radio circuit, except hybrid & plug in hybrid version 4.0 & pio w/ navigation w/o amplifier Radio circuit, except hybrid & plug in hybrid w/o navigation & display Radio circuit, except hybrid & plug in hybrid w/o navigation w/ display Radio circuit, hybrid Radio circuit, plug in hybrid w/ navigation Radio circuit, plug in hybrid w/o navigation, uvo & amplifier Radio circuit, plug in hybrid w/o navigation & uvo w/ amplifier Radio circuit, plug in hybrid w/o navigation w/ uvo & amplifier Radio circuit, plug in hybrid w/o navigation w/ uvo w/o amplifier

Electric parking brake circuit Shift interlock circuit, except hybrid w/ a/t Shift interlock circuit, except hybrid w/ dct Shift interlock circuit, hybrid

Charging circuit Starting circuit, w/o smart key Starting circuit, w/ smart key

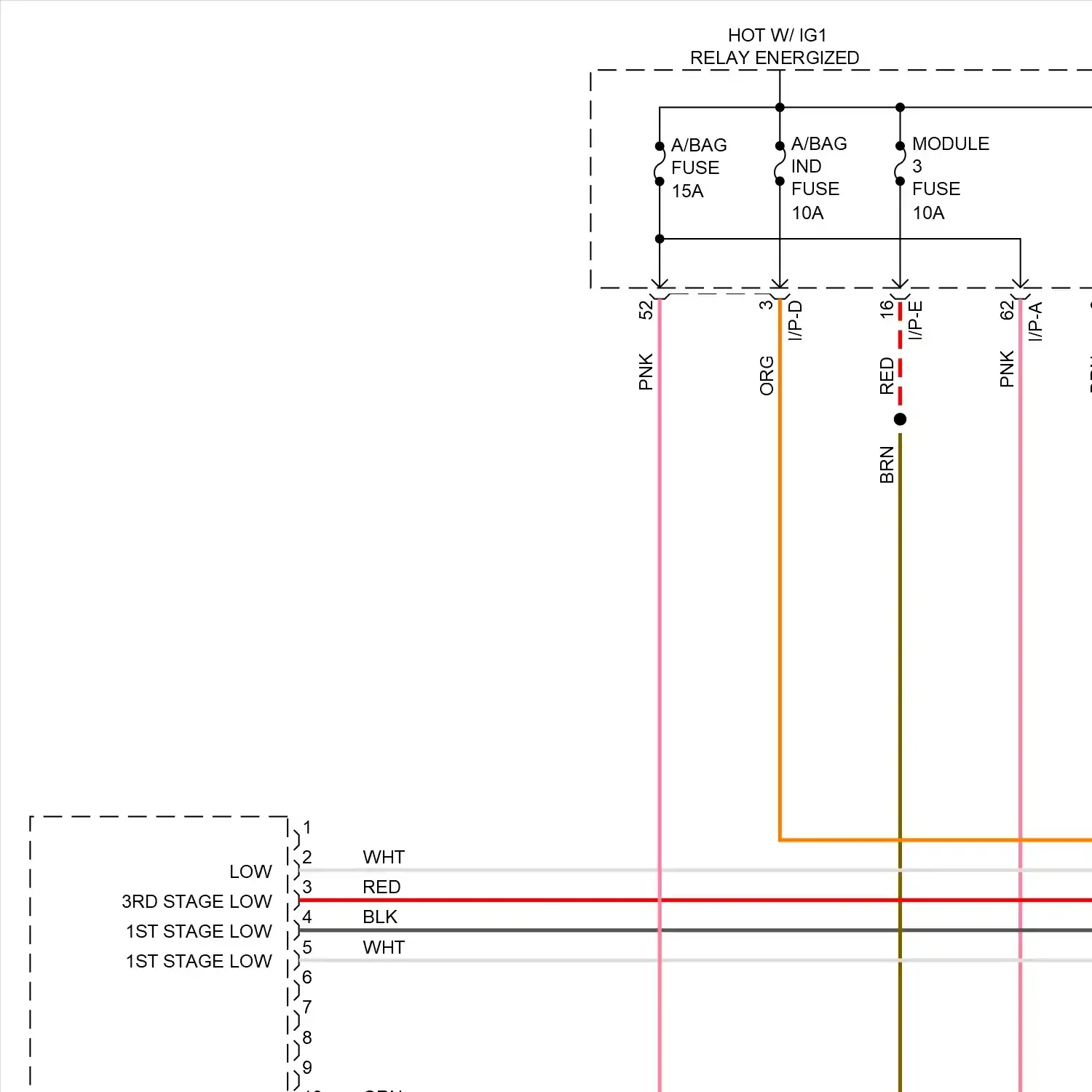

Supplemental restraints circuit, except hybrid Supplemental restraints circuit, hybrid

1.6l turbo, transmission circuit

2.0l hybrid, transmission circuit

2.0l plug-in hybrid, transmission circuit

2.0l turbo, transmission circuit

2.4l, transmission circuit

Trunk & fuel door release circuit, except hybrid Trunk & fuel door release circuit, hybrid

Chime circuit, except hybrid Chime circuit, hybrid Tire pressure monitoring circuit, except hybrid Tire pressure monitoring circuit, hybrid

Wiper/washer circuit, except hybrid Wiper/washer circuit, hybrid

ANTENNA COIL ANTI-LOCK BRAKES SYSTEM B-CAN TRANSCEIVER IC BATTERY JUNCTION BLOCK BATTERY SAFETY PLUG BURGLAR ALARM HORN BURGLAR ALARM HORN RLY CTRL C-CAN TRANSCEIVER C-CAN TRANSCEIVER LOW CONNECTION W/ BATTERY SUB HARNESS DOOR LOCK IND HORN 1 HORN 2 HORN RLY CTRL IGN COIL CTRL CYL 1 IGN COIL CTRL CYL 2 IGN COIL CTRL CYL 3 IGN COIL CTRL CYL 4 IGNITION COIL 1 IGNITION COIL 1 SHIELD IGNITION COIL 2 IGNITION COIL 2 SHIELD IGNITION COIL 3 IGNITION COIL 3 SHIELD IGNITION COIL 4 IGNITION COIL 4 SHIELD KEY LOCK M-CAN TRANSCEIVER MAIN BATTERY MODULE 1 MAIN BATTERY MODULE 2 MAIN BATTERY MODULE 3 MAIN BATTERY MODULE 4 MAIN BATTERY MODULE 5 MAIN BATTERY MODULE 6 MAIN BATTERY MODULE 7 MAIN BATTERY MODULE 8 MAIN BATTERY MODULE 9 MAIN BATTERY MODULE 10 MAIN BATTERY MODULE 11 MAIN BATTERY MODULE 12 MAIN BATTERY SAFETY PLUG PRE-CHARGE RESISTOR RL WDW LOCK RR WDW LOCK STARTER MTR CTRL SW STARTER MTR RLY CTRL STARTER RLY CTRL STARTER RLY CTRL SW TRANSCEIVER IC W/ AMPLIFIER W/O AMPLIFIER WINDOW LOCK

(LOWER LEFT REAR OF ENGINE COMPT, ACTUATOR OUTPUT AUTO DEFOGGER ACTUATOR AUTO DEFOGGER ACTUATOR CLOSE AUTO DEFOGGER ACTUATOR F/B AUTO DEFOGGER ACTUATOR OPEN AUTO DEFOGGER MODE ACTUATOR BLOWER MOTOR BMS BLOWER MOTOR CHECK ENGINE IND CLUTCH ACTUATOR COOLING FAN MOTOR DC MOTOR + DRIVER AIR VENTILATION SEAT BLOWER MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER MODE ACTUATOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER SLIDE MOTOR DRIVER TEMPERATURE ACTUATOR ELECTRIC E-CVVT MOTOR ELECTRIC WASTE GATE ACTUATOR ELECTRIC WASTEGATE ACTUATOR ENGINE CONTROLS SYSTEM ENGINE CTRL ENGINE CTRL RLY CTRL ENGINE CTRL RLY CTRL C-CAN LOW ENGINE CTRL RLY ON PWR ENGINE SPD SIG ENGINE SPEED SIG ETC DC MOTOR - FOLDING MOTOR FRONT WIPER MOTOR FUEL FILLER ACTUATOR FUEL LID ACTUATOR HYBRID MOTOR HYBRID STARTER, GENERATOR MOTOR INTAKE ACTUATOR LEFT HEADLAMP LEVELING DEVICE ACTUATOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR ELECTRIC PARKING BRAKE ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE ACTUATOR MOTOR CTRL RLY MOTOR CTRL SW OF ENGINE COMPT) PASSENGER AIR VENTILATION SEAT BLOWER MOTOR PASSENGER DOOR LOCK ACTUATOR PASSENGER FRONT HEIGHT ADJUSTER MOTOR PASSENGER MODE ACTUATOR PASSENGER POWER WINDOW MOTOR PASSENGER REAR HEIGHT ADJUSTER MOTOR PASSENGER RECLINING MOTOR PASSENGER SLIDE MOTOR PASSENGER TEMPERATURE ACTUATOR PSU MOTOR PTC MOTOR RIGHT HEADLAMP LEVELING DEVICE ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR ELECTRIC PARKING BRAKE ACTUATOR RIGHT REAR POWER WINDOW MOTOR SELECT ACTUATOR SHIFT ACTUATOR SHIFT MOTOR #1 SHIFT MOTOR #2 START MOTOR TOP OF ENGINE) TRUNK LID MOTOR WASHER MOTOR WIPER MOTOR

COMBINATION ANTENNA EXTERNAL ANTENNA GLASS ANTENNA INTERNAL ANTENNA SMART KEY BUMPER ANTENNA SMART KEY TRUNK ANTENNA

FUEL PRESSURE REGULATOR VALVE REGULATOR IC START STOP BUTTON SWITCH START/STOP BUTTON SWITCH STOP START BUTTON SWITCH STOP/START BUTTON SWITCH

CAMERA B+ CAMERA DET GND CAMERA DETECT CAMERA DETECT 1 CAMERA DETECT GND CAMERA DETECT GND P-GND VIDEO Y-SHIELD CAMERA GND CAMERA P GND DISPLAY Y SHIELD CAMERA PWR CAMERA S GND CAMERA S GROUND CAMERA V GND CAMERA V GND DISPLAY V GND Y CAMERA V GROUND CAMERA V IN CAMERA V IN DISPLAY VOUT Y DRIVER DOOR CAMERA FRONT VIEW CAMERA FRONT VIEW CAMERA GROUND FRONT VIEW CAMERA POWER FRONT VIEW CAMERA SHIELD FRONT VIEW CAMERA V-GND FRONT VIEW CAMERA V-IN LH SIDE CAMERA GND LH SIDE CAMERA POWER LH SIDE CAMERA SHIELD LH SIDE CAMERA V-GND LH SIDE CAMERA V-IN PASSENGER DOOR CAMERA REAR CAMERA GROUND REAR CAMERA SHIELD REAR CAMERA V GND REAR CAMERA V-IN REAR VIEW CAMERA RH SIDE CAMERA GND RH SIDE CAMERA PWR RH SIDE CAMERA SHIELD RH SIDE CAMERA V-GND RH SIDE CAMERA V-IN SHIELD-Y CAMERA SHIELD VGND-Y CAMERA V/GND VOUT-Y CAMERA V/IN W/ REAR VIEW CAMERA W/ REAR VIEW CAMERA W/O REAR VIEW CAMERA W/O REAR VIEW CAMERA W/O REAR VIEW CAMERA W/ REAR VIEW CAMERA

DATA LINK CONNECTOR MULTI-PURPOSE CHECK CONNECTOR MULTIPURPOSE CHECK CONNECTOR

A/C BLOWER MOTOR CONTROL MODULE A/C CONTROL MODULE BMS CONTROL MODULE BMS CONTROL MODULE BMS ASSEMBLY FRONT AIR VENTILATION CONTROL MODULE FRONT AIR VENTILATION SEAT CONTROL MODULE FRONT SEAT WARMER CONTROL MODULE FUEL CONTROL MODULE FUEL PUMP CONTROL MODULE IGPM IPS CONTROL MODULE IPS CONTROL MODULE IPS CONTROL MODULE IPS CONTROL IPS 2 REAR SEAT WARMER CONTROL MODULE SMART KEY CONTROL MODULE SRS CONTROL MODULE

+ECU A/V, NAVIGATION HEAD UNIT ACTIVE AIR FLAP UNIT AFLS UNIT CONTROL UNIT) DBL UNIT ECU 1 FUSE ECU 2 FUSE ECU 3 FUSE ECU WAKE UP SIGNAL ELECTRIC OIL PUMP UNIT ESC UNIT HEV ECU 1 FUSE HEV ECU 2 FUSE HYBRID INVERTER HYBRID POWER CONTROL UNIT HYBRID POWER CONTROL UNIT HYBRID POWER CONTROL UNIT HPCU INTEGRATED BRAKE ACTUATION UNIT MDPS UNIT OBC UNIT SAFETY WINDOW ECU SMART CRUISE CONTROL UNIT SUNROOF ECU VESS UNIT

A/BAG FUSE A/BAG IND FUSE A/CON FUSE ABS 1 FUSE ABS 2 FUSE ABS 3 FUSE ACTIVE HYDRAULIC BOOSTER 1 FUSE ACTIVE HYDRAULIC BOOSTER 2 FUSE ACTIVE HYDRAULIC BOOSTER 3 FUSE ALT FUSE AMP FUSE AMS FUSE B+1 FUSE B+2 FUSE B+3 FUSE B+4 FUSE B+5 FUSE B/UP LAMP FUSE BATTERY C/FAN FUSE BATTERY FUSE BLOCK BATTERY MANAGEMENT FUSE BLOWER FUSE BRAKE SWITCH 1 FUSE BRAKE SWITCH FUSE CLUSTER FUSE COOLING FAN 1 FUSE COOLING FAN 2 FUSE COOLING FAN FUSE DCT 1 FUSE DCT 2 FUSE DEICER FUSE DOOR LOCK FUSE DR LOCK FUSE E-CVVT 1 FUSE E-CVVT 2 FUSE E-CVVT 3 FUSE EEWP FUSE ELECTRICAL WATER PUMP FUSE EPB 1 FUSE EPB 2 FUSE EV FUSE FUEL PUMP FUSE FUSE SW CTRL FUSE SWITCH FUSE SWITCH CTRL GATEWAY FUSE H/LAMP HI FUSE HEATED MIRROR FUSE HEATED STEERING FUSE HORN FUSE IGN COIL FUSE INTERIOR LAMP FUSE MDPS 1 FUSE MDPS 2 FUSE MDPS FUSE MEMORY 1 FUSE MODULE 1 FUSE MODULE 2 FUSE MODULE 3 FUSE MODULE 4 FUSE MODULE 5 FUSE MODULE 6 FUSE MODULE 7 FUSE MODULE 8 FUSE MODULE 9 FUSE MULTI MEDIA FUSE MULTIMEDIA FUSE OBC FUSE OPCU 1 FUSE OPCU 2 FUSE OPU FUSE P/SEAT PASS FUSE P/WINDOW LH FUSE P/WINDOW RH FUSE POWER OUTLET 1 FUSE POWER OUTLET 2 FUSE POWER OUTLET 3 FUSE POWER OUTLET FUSE PTC HEATER 1 FUSE PTC HEATER 2 FUSE REAR HEATED FUSE S/HEATER FRT FUSE S/HEATER RR FUSE SMART KEY FUSE START FUSE SUNROOF 1 FUSE SUNROOF 2 FUSE TCU 1 FUSE TCU 2 FUSE TRUNK FUSE VACUUM PUMP 1 FUSE VACUUM PUMP 2 FUSE WASHER FUSE WIPER 1 FUSE WIPER 2 FUSE

DRV HEATER GND DRV SEAT WARMER HEATER GND HEATER GND HEATER OXY DN HEATER OXY UP HEATER PAD HEATER SW HEATER SW SIG PASS HEATER GND PASS SEAT WARMER HEATER GND PTC HEATER STEERING WHEEL HEATER MODULE STEERING WHEEL HEATER OUT STEERING WHEEL HEATER PWR STEERING WHL HEATER PAD OUT STEERING WHL HEATER PAD PWR STEERING WHL HEATER SW IND STEERING WHL HEATER SW SIG W/ SEAT HEATER W/O AIR VENTILATION SEAT W/ AIR VENTILATION SEAT W/O SEAT HEATER W/ SEAT HEATER W/O SEAT HEATER

ATM SHIFT LEVER INDICATOR CHARGE INDICATOR CHARGER INDICATOR POINTER ILL POINTER ILLUMINATION POINTER LCD ILLUMINATION SECURITY INDICATOR SHIFT LEVER INDICATOR WIRELESS CHARGER INDICATOR

BACKUP LAMP BACKUP LAMP GND BACKUP LAMP SIG CENTER PERSONAL LAMP CENTER ROOM LAMP DR LP TRUNK LH RH ROOM OUT HIGH OUT LAMP SW DRIVER DOOR MOOD LAMP DRIVER DOOR SCUFF LAMP EXTERIOR LIGHTS, DEFOGGER SYSTEMS FOG LAMP SW I/P GLOVE BOX LAMP) H/LAMP HIGH SW HEAD LAMP HIGH SW IN HEAD- LAMP HIGH MOUNTED STOP LAMP INLET LAMP INTERIOR LIGHTS LEFT FRONT FOG LAMP LEFT FRONT VANITY LAMP LEFT HEADLAMP LAMP LEFT LICENSE LAMP LEFT MAP LAMP LEFT REAR PERSONAL LAMP MOOD LAMP OVERHEAD CONSOLE LAMP PAB OFF LAMP PASSENGER DOOR MOOD LAMP PASSENGER DOOR SCUFF LAMP PUDDLE LAMP RIGHT FRONT FOG LAMP RIGHT FRONT VANITY LAMP RIGHT HEADLAMP LAMP RIGHT LICENSE LAMP RIGHT MAP LAMP RIGHT REAR PERSONAL LAMP ROOM LAMP OUT STOP B-CAN LAMP HIGH SIG LOW STOP LAMP STOP LAMP SIG STOP LAMP SW STOP LAMP SW SIG TAIL LAMP TAIL LAMP IN TRUNK ROOM LAMP TURN LAMP W/ CENTER ROOM LAMP W/ ROOM LAMP W/ SUNROOF W/O SUNROOF W/ CENTER ROOF LAMP W/O CENTER ROOF LAMP W/ SUNROOF W/O SUNROOF W/ CENTER ROOM LAMP W/O CENTER ROOM LAMP W/O CENTER ROOM LAMP W/O ROOM LAMP

CCV CTRL FUEL PUMP RLY CTRL ELE WATER PUMP ELECTRIC OIL PUMP ELECTRIC OIL PUMP SHIELD FUEL PUMP RLY CTRL PUMP PWR-U PUMP PWR-V PUMP PWR-W SIG PISTON PUMP OUT HIGH SIG PISTON PUMP OUT LOW SINGLE PISTON PUMP VACUUM PUMP WATER PUMP

ACC RELAY BATTERY C/FAN RELAY BATTERY C/FAN RELAY E/R JUNCTION BLOCK BLOWER RELAY BLOWER RELAY E/R JUNCTION BLOCK BURGLAR ALARM HORN RELAY BURGLAR ALARM HORN RELAY ICM RELAY BOX BURGLAR ALARM RELAY BURGLAR ALARM RELAY CONTROL COOLING FAN 1 RELAY COOLING FAN 2 RELAY COOLING FAN RELAY DEICER RELAY DOOR LOCK RELAY DOOR UNLOCK RELAY E-CVVT RELAY E/R JUNCTION BLOCK POWER OUTLET RELAY ENGINE CONTROL RELAY FRONT WIPER HIGH RELAY FUEL FILLER OPEN RELAY FUEL FILLER OPEN RELAY CTRL FUEL PUMP RELAY H/LAMP HI RELAY HEADLAMP HIGH RELAY CONTROL HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ ACC RELAY ENERGIZED IGPM HOT W/ LEAK AUTO CUT CURRENT DEVICE RELAY ENERGIZED HOT W/ LEAK CURRENT AUTO CUT DEVICE RELAY ENERGIZED ICM RELAY BOX ICM RELAY BOX T/TURN UNLOCK RELAY ICM RELAY BOX TWO TURN UNLOCK RELAY LEAK CURRENT AUTO CUT DEVICE RELAY LEAK CURRENT AUTO CUT RELAY LEFT POWER WINDOW RELAY LEFT PWR WINDOW RELAY CONTROL MAIN NEGATIVE RELAY MAIN POSITIVE RELAY OUTSIDE MIRROR FOLDING RELAY OUTSIDE MIRROR UNFOLDING RELAY POWER OUTLET RELAY POWER RELAY ASSEMBLY POWER WINDOW LH RELAY POWER WINDOW RH RELAY PRE CHARGE RELAY PTC HEATER 1 RELAY PTC HEATER 2 RELAY PWR WINDOW RELAY CONTROL REAR HEATED RELAY RELAY ENERGIZED RELAY ENERGIZED IGPM RIGHT POWER WINDOW RELAY RIGHT PWR WINDOW RELAY CONTROL START RELAY T/TURN UNLOCK RELAY TOW TURN UNLOCK RELAY ICM RELAY BOX TRUNK LID RELAY TWO TURN UNLOCK RELAY WIP PWR RELAY WIPER HIGH RELAY WIPER LOW RELAY WIPER POWER RELAY

ACCEL PEDAL POSITION SENSOR ACTIVE INCAR SENSOR AMBIENT TEMPERATURE SENSOR AUTO DEFOGGER SENSOR AUTO LIGHT SENSOR AUTO LIGHT, PHOTO SENSOR BATTERY MODULE TEMPERATURE SENSOR 1 BATTERY MODULE TEMPERATURE SENSOR 2 BATTERY MODULE TEMPERATURE SENSOR 3 BATTERY MODULE TEMPERATURE SENSOR 4 BATTERY MODULE TEMPERATURE SENSOR 5 BATTERY SENSOR BATTERY TEMPERATURE SENSOR BOOST PRESSURE SENSOR BRAKE BOOST PRESSURE SENSOR BRAKE FLUID LEVEL SENSOR BRAKE FLUID STOP LEVEL LAMP SENSOR SW SIG CLUTCH PRESSURE SENSOR CLUTCH SPEED SENSOR ASSEMBLY CLUTCH SPEED SENSOR ASSEMBLY SHIELD CRANKSHAFT POSITION SENSOR CURRENT SENSOR DRIVER FRONT IMPACT SENSOR DRIVER FRONT SIDE IMPACT SENSOR DRIVER PRESSURE SIDE IMPACT SENSOR DRIVER REAR SIDE IMPACT SENSOR DRIVER SIDE IMPACT PRESSURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ETC MOTOR, THROTTLE POSITION SENSOR EVAPORATOR SENSOR FLUID LEVEL SENSOR FUEL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR INDICATOR SWITCH SENSOR INPUT SPEED SENSOR KNOCK SENSOR KNOCK SENSOR SHIELD LEFT FRONT TIRE PRESSURE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR PARKING ASSIST SENSOR LEFT REAR TIRE PRESSURE SENSOR LEFT REAR WHEEL SENSOR MAIN BATTERY TEMPERATURE SENSOR MAP SENSOR MASS AIR FLOW SENSOR MIRROR POSITION SENSOR OCCUPANT DETECTION SENSOR OIL TEMPERATURE SENSOR OUTPUT SPEED SENSOR PASSENGER FRONT IMPACT SENSOR PASSENGER FRONT SIDE IMPACT SENSOR PASSENGER OCCUPANT DETECTION SENSOR PASSENGER PRESSURE SIDE IMPACT SENSOR PASSENGER REAR SIDE IMPACT SENSOR PASSENGER SEAT BELT BUCKLE SENSOR PASSENGER SIDE IMPACT PRESSURE SENSOR PHOTO SENSOR RAIL PRESSURE SENSOR RAIN SENSOR REAR HEIGHT SENSOR RIGHT FRONT TIRE PRESSURE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR PARKING ASSIST SENSOR RIGHT REAR TIRE PRESSURE SENSOR RIGHT REAR WHEEL SENSOR SENSOR 1 FUSE SENSOR 2 FUSE SENSOR GND SENSOR POWER SENSOR PWR STEERING ANGLE SENSOR THROTTLE POSITION SENSOR WASHER LEVEL SENSOR

CENTER SPEAKER CLUSTER SPEAKER DRIVER DOOR SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SURROUND SPEAKER PASSENGER DOOR SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SURROUND SPEAKER SPEAKER 1+ SPEAKER 2+ SPEAKER OUT - VESS SPEAKER WOOFER SPEAKER

AJAR SWITCH AUTO HOLD SWITCH AVM SWITCH BLADE POSITION SWITCH IN BLOWER SWITCH BRAKE LIGHT SWITCH BSD ON/OFF SWITCH BSD SWITCH CLOSE SWITCH CONSOLE SWITCH CONTROL SWITCH CRASH PAD SWITCH DMS/ECO SWITCH DOOR LOCK SWITCH DOOR SWITCH DOOR UNLOCK SWITCH DOOR WARNING SWITCH DOWN PADDLE SHIFT SWITCH DOWN PADDLE SWITCH DOWN SWITCH DRIVER COOL SWITCH DRIVER FRONT HEIGHT SWITCH DRIVER HEATER SWITCH DRIVER IMS SWITCH DRIVER REAR HEIGHT SWITCH DRIVER RECLINING LIMIT SWITCH DRIVER RECLINING SWITCH DRIVER SEAT BELT BUCKLE MAT SWITCH INPUT DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT MANUAL SWITCH DRIVER SLIDE SWITCH DRIVER WINDOW SWITCH ELECTRIC PARKING BRAKE SWITCH EPB SWITCH ESC OFF SWITCH FOLDING SWITCH INPUT FOOT PARKING BRAKE SWITCH FUEL FILLER DOOR SWITCH FUEL FILLER, TRUNK OPEN SWITCH FUEL LID OPEN SWITCH GLOVE BOX LAMP/ SWITCH HANDLE SWITCH HAZARD SWITCH HEADLAMP HIGH SWITCH OUT HEV SWITCH HOOD SWITCH HORN SWITCH IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH IGNITION SWITCH INLET DOOR SWITCH INT/VOL SWITCH LDWS SWITCH LEFT AUDIO REMOTE CONTROL SWITCH LEFT AUDIO REMOTE CONTROL SWITCH STEERING WHEEL LEFT FRONT VANITY LAMP SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SEAT WARMER SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH LIGHT SWITCH OUT LIGHT SWITCH SIG LIMIT SWITCH LKAS SWITCH MULTI- FUNCTION SWITCH OIL PRESSURE SWITCH OPEN SWITCH P POSITION SWITCH P/N SWITCH PANORAMA SUNROOF SWITCH PARKING SWITCH PAS SWITCH PASSENGER COOL SWITCH PASSENGER HEATER SWITCH PASSENGER POWER WINDOW MAIN SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER RECLINING LIMIT SWITCH PASSENGER SEAT MANUAL SWITCH PASSENGER WINDOW SWITCH PLUG SWITCH POWER OUTSIDE MIRROR SWITCH POWER WINDOW MAIN SWITCH REAR DEFOGGER SWITCH REAR DEFOGGER SWITCH INPUT REAR VIEW CAMERA, TRUNK LID HANDLE SWITCH RIGHT FRONT VANITY LAMP SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT WARMER SWITCH RIGHT REAR WINDOW SWITCH RIGHT TRIP REMOTE CONTROL SWITCH RIGHT TRIP/ CRUISE REMOTE CONTROL SWITCH RIGHT TRIP/CRUISE REMOTE CONTROL SWITCH SELECT SWITCH SELECTOR SWITCH SPORT MODE SWITCH START SWITCH STEERING WHEEL HEATER SWITCH STOP LAMP SWITCH STOP LAMP SWITCH LOW SIGNAL SWITCH I/P SWITCH OUT TILT UP SWITCH TRANSAXLE RANGE SWITCH TRANSAXLE RANGE SWITCH SIGNAL N TRUNK LID OUTSIDE HANDLE SWITCH TRUNK LID SWITCH TRUNK ROOM LAMP SWITCH UNFOLDING SWITCH INPUT UP PADDLE SHIFT SWITCH UP PADDLE SWITCH UP SWITCH VACUUM SWITCH WASHER MOTOR SWITCH POWER WINDOW LOCK SWITCH WIPER B/UP SWITCH SIG WIPER SWITCH SIG WIPER SWITCH SIGNAL

ATM SOLENOID CANISTER CLOSE VALVE CHANGE OVER SOL VALVE EGR VALVE ELECTRICAL CONTROL VALVE ELECTRONIC A/C COMPRESSOR FUEL PRESSURE CONTROL VALVE FUEL TANK ISOLATION VALVE HIGH BEAM SOLENOID KEY SOLENOID OVER SOL VALVE) PURGE CONTROL SOLENOID VALVE RCV CONTROL SOLENOID VALVE SELECT SOLENOID 1 SELECT SOLENOID 2 SHIFT LOCK SOLENOID SOLENOID POWER 1 SOLENOID POWER 2 SOLENOID PWR 1 SOLENOID PWR 2 START SOLENOID VARIABLE INTAKE SOLENOID VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BRN/RED WIRE BRN/WHT WIRE BSD ON/OFF SWITCH IND PNK WIRE CKPS GND PNK CMPS GND 1 WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE HIGH PNK WIRE I/P-E I/P-D PNK WIRE LED GREEN LT GRN WIRE LT GRN/BLK WIRE MEMORY PWR PNK ON/START INPUT WIRE MEMORY PWR PNK WIRE MTR RESOLVER SHIELD PNK WIRE N POSITION SW CODE PNK D POSITION SW CODE WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE PNK CURRENT SENS VOUT WIRE PNK ON/ST I/P WIRE PNK ON/START IN WIRE PNK ON/START INPUT WIRE PNK P-CAN HIGH WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK START SW WIRE PNK TELL TAIL LH WIRE PNK VEHICLE SPEED WIRE PNK WIRE PNK/BLK WIRE R POSITION SW CODE PNK ON/START INPUT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE RLY CTRL GND PNK RLY CTRL MAIN- WIRE SEL POSITION SENS 1 SUPPLY PNK SEL POSITION SENS 2 SUPPLY WIRE SEL SOL 1 GND PNK SEL SOL 2 PULL WIRE SEL SOL 1 PULL PNK SEL SOL 2 PUSH WIRE SENS SIG PNK ON/START INPUT WIRE TEMP SENS 3 GND PNK TEMP SENS 4 GND WIRE TEMP SENS 3 SIG PNK TEMP SENS 4 SIG WIRE TRANSAXLE RANGE SWITCH SIGNAL PNK WIRE VIO WIRE VIO/ORG WIRE VIO/RED WIRE VOUT C PNK VGND C WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE YELLOW)

1 2 SIG 3 GND 1.6L TURBO 2.0L TURBO 1.6L TURBO 2.0L TURBO, 1.6L TURBO 1.6L TURBO 2.0L TURBO, 2.4L 4.0 VERSION, PIO 1.0 VERSION 1.6L TURBO 2.4L 1.6L TURBO, 2.0L TURBO, 2.4L VERSION 1.0 W/ NAVIGATION 1.6L TURBO, 2.0L TURBO, 2.4L W/O NAVIGATION W/ DISPLAY 2 WAY 2 WAY 10 WAY 2.0L HYBRID 2.0L HYBRID 2.0L PLUG-IN HYBRID W/ SEAT WARMER W/O SEAT WARMER 2.0L HYBRID, 2.0L PLUG IN HYBRID 2.0L HYBRID, 2.0L PLUG-IN HYBRID W/ UVO 2.0L PLUG-IN HYBRID 2.0L PLUG-IN HYBRID SUPERVISION 2.0L PLUG-IN HYBRID W/O NAVIGATION W/ UVO 2.0L PLUG-IN HYBRID W/O UVO 2.0L TURBO 2.0L TURBO 1.6L TURBO 2.0L TURBO 2.4L 2.0L TURBO 2.4L 1.6L TURBO 2.0L TURBO 2.4L A/T DCT 2.0L TURBO, 1.6L TURBO 2.4L 2.0L TURBO, 2.4L 2.0L TURO, 1.6L TURBO, 2.4L, 2.0L HYBRID 2.4L 2.4L 1.6L TURBO 2.4L 2.0L TURBO 1.6L TURBO 2.4L, 2.0L TURBO 1.6L TURBO 2.4L 2.0L TURBO 3.5 INCH 4.0 4.0 VERSION, 1.0 VERSION 4.3 INCH COLOR TFT 8 WAY 8-WAY 10-WAY 10 WAY 8 WAY 10-WAY 10-WAY 12-WAY 12 WAY 12-WAY 10-WAY 26 VFS 133-A 133-P "L" SELECT MIRR "P" POS SW "P" POSITION SW "R" SELECT MIRR #10 (CONVENTIONAL (NOT (OR +B MTR+ A/BAG GND A/C GND A/C PRESSURE TRANSDUCER ABS IND. ACC ILL OUT ACC LED ACC RLY CTRL ACC/ ON I/P ACC/ON IN ACC/ON INPUT ACT ECO IN ACT REC ACTIVE ECO SW IN AEB IND AEB MODULE AEB OFF IND AFLS IND AIR BAG AIR BAG IND AIR CONDITIONING SYSTEM ALT COM ALT L IN ALT LOAD PWM AM/FM F/CABLE ANT 2 GND ANT 2 PWR ANT #1 GND ANT #1 PWR ANT-AS ANT-G ANT-LS ANT-R ANT-S ANT-W ANTI-THEFT ANTI-THEFT SYSTEM APS 1 GND APS 1 GROUND APS 1 POWER APS 1 PWR APS 1 SIG APS 1 SIGNAL APS 2 GND APS 2 GROUND APS 2 POWER APS 2 PWR APS 2 SIG APS 2 SIGNAL APS GND 1 APS GND 2 APS PWR 1 APS PWR 2 APS SIG 1 APS SIG 2 AST SW ATM SHIFT LEVER AUTO ACT CLOSE AUTO ACT F/B AUTO ACT OPEN AUTO CUT AUTO CUT RLY CTRL AUTO DEFOGGER ACTR CLOSE AUTO DEFOGGER ACTR F/B AUTO DEFOGGER ACTR OPEN AUTO DIMMER AUTO DOWN AUTO DOWN DOWN AUTO HEADLAMP LEVELING DEVICE MODULE AUTO HIGH BEAM IND AUTO HOLD IND AUTO HOLD SW AUTO LIGHT AUTO LIGHT GND AUTO LIGHT SENS AUTO LIGHT SENS GND AUTO LIGHT SENS SIG AUTO LIGHT SENS SUPPLY AUTO LIGHT SIG AUTO LIGHT SPLY AUTO LT SENS AUTO UP AUTO UP UP AUTO- HOLD AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUX DET AUX DETECT AUX GND AUX L + AUX L IN AUX L LIN AUX R + AUX R IN AUX VIDEO IN AUX VIDEO OUT - AUX, USB JACK AVH SW AVM IND AVM MODE AVM MODE GND B+1 B+4 B+ (CHANGE B-CAN B-CAN HI B-CAN HIGH B-CAN LO B-CAN LOW B-CAN STOP LP LOW SW SIG B/V P GND BACK B+ BACKUP GND BACKUP LAMPS CIRCUIT BACKUP SIG GND BACKUP SIGNAL BATT GND BATT INTERLOCK HARNESS SIG BATT PWR BATT-CAN BATT-CAN HI BATT-CAN HIGH BATT-CAN LO BATT-CAN LOW BELT IND BLADE POS SW IN BLOWER COMMON BLOWER MAX SIG BMS ASSEMBLY BMS COOLING FAN 1 BMS COOLING FAN 2 BODY K-LINE BOOSTING REG BPS GND BPS SIG BRAKE FLUID BRAKE FLUID LEVEL SENS BRAKE IND BRAKE LIGHT BRAKE LIGHT SW BRAKE LT SW BRAKE PEDAL MODULE BRAKE SIG BRAKE SW SIG BRAKE SW TEST BRAKE TEST SW BRAKE VEHICLE TEST SPD SW BRK FLUID LEVEL SENS BRK FLUID LVL SENS BRK LT SW BRK SW SIG BRK TEST SW BSD IND BUCKLE SW I/P BUMPER ANT GND BUMPER ANT PWR BUMPER GND BURGLAR ALARM BUS BAR BYPASS VLV C-CAN C-CAN HI C-CAN HIGH C-CAN HIGH C-CAN LOW C-CAN HIGH LOCAL-CAN HIGH C-CAN LO C-CAN LOW C-CAN LOW LOCAL-CAN LOW C-CAN PR HIGH C-CAN PR LOW C-GND C/FAN 1 RLY CTRL LO C/FAN 2 RLY CTRL HI CAN HI CAN HIGH CAN LO CAN LOW CAN-HIGH CAN-LOW CAN-LOW CAN-HIGH CCP CAN HI CCP CAN LO CCP-CAN HIGH CCP-CAN LOW CCV CTRL CENTER REAR OF LUGGAGE COMPT) CHARGE IND CHARGING SYSTEM CIGARETTE LIGHTER ILLUMINATION CKPS GND CKPS SIG CLEAN SIG CLOCK- SPRING CMPS GND 2 CMPS PWR 1 CMPS SIG 1 CMPS SIG 2 COLOR TFT COLUMN TYPE COMP PWR - COMP+ COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONVENTIONAL SUPERVISION COOLING FAN CTRL COOLING FAN RLY CTRL LOW PWM FAN CTRL COOLING FAN RLY HIGH COOLING FAN RLY LOW COOLING FANS COOLING FANS SYSTEM CP SHIELD GND CRASH I/P CRASH IN CRASH O/P CRASH OUTPUT CRASH OUTPUT BATT INTERLOCK HARNESS GND CRUISE CONTROL CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM ANTI-THEFT SYSTEM CRUISE ON/OFF CTR + CTRL RLY CURRENT SENS GND CURRENT SENS SIG CUSH B+ CVVT OUTPUT EXHAUST CVVT OUTPUT INTAKE CYL 1 CYL 2 CYL 3 CYL 4 D IND D OUT D-CAN HI D-CAN LO DATA I/O DATA LINES DC VFS DCT A/T DEDICATED DRL DEDICATED DRL OPTION GND DEFOGGER SYSTEM DEICER RLY CONTROL DEICER RLY CTRL DETECT 2 DETECT GND DETENT OUT DIAGNOSIS CIRCUIT DIAL ILL DIAL ILLUMINATION DIAL LCD ILL DIGITAL INPUT DIMMING CIRCUIT DISPLAY SHIELD-C DN SHIFT DOOR LK DOOR LK DOOR UNLK DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR SW DOOR UNLK DOOR UNLK DOOR LK DOOR WARNING SW DOWN ENTER DOWN IN DOWN SHIFT DOWN/ AUTO DOWN DOWN/ LEFT DR DR UNLK LK DR KEY UNLK DRV DR KEY UNLK PASS DR LK DR LK RLY CTRL DR LK SW LK DR LK SW UNLK DR LP RR DOOR DR SW DR TEMP ACTR COOL DR TEMP ACTR F/B DR TEMP ACTR WARM DR UNLK DR UNLK RLY CTRL DR WARNING SW DRIV DR LCK/UNLCK SW DRIVE IC DRIVE MODE SW IN DRIVER AIR BAG DRIVER AIR VENTILATION SEAT WARMER DRIVER ANCHOR PRETENSIONER DRIVER CURTAIN AIR BAG DRIVER DOOR DRIVER DOOR MODULE DRIVER DOOR SW DRIVER DOOR SW LOW DRIVER DR SW DRIVER EMERGENCY FASTENING DEVICE DRIVER FIS HIGH DRIVER FIS LOW DRIVER IMS MODULE DRIVER KNEE AIR BAG DRIVER POWER OUTSIDE MIRROR DRIVER SAFETY POWER WINDOW MODULE DRIVER SEAT BELT DRIVER SEAT BELT PRETENSIONER DRIVER SEAT WARMER DRIVER SIDE AIR BAG DRIVER SMART KEY OUTSIDE HANDLE DRIVER'S DOOR DRL IND DRL OPT GND DRL OPT GND GND DRL OPT SIG GND GND SW DRL OPTION GND DRV ACT COOL DRV ACT F/B DRV ACT WARM DRV BACK B+ DRV CUSH B+ DRV DOOR DOOR SW SW DRV DR ANT GND DRV DR ANT PWR DRV DR KEY LK SIG DRV DR KEY UNLK SIG DRV DR LCK/UNLCK SW DRV DR LK/UNLK SIG DRV DR SW DRV FRT HEIGHT MTR DN DRV FRT HEIGHT MTR SIG DRV FRT HEIGHT MTR UP DRV FRT HEIGHT SW DN DRV FRT HEIGHT SW UP DRV MODE DEF DRV MODE F/B DRV MODE VENT DRV MTR PWR DRV MTR SIG DRV RECLINING MTR FR DRV RECLINING MTR RR DRV RECLINING MTR SIG DRV RECLINING SW FR DRV RECLINING SW RR DRV RR HEIGHT MTR DN DRV RR HEIGHT MTR SIG DRV RR HEIGHT MTR UP DRV RR HEIGHT SW DN DRV RR HEIGHT SW UP DRV SEAT DRV SEAT BELT DRV SEAT WARMER BACK B+ DRV SEAT WARMER CUSH B+ DRV SLIDE MTR FR DRV SLIDE MTR RR DRV SLIDE MTR SIG DRV SLIDE SW FR DRV SLIDE SW RR DRV/PASS DR DRV/PASS DR KEY LK SIG DTP GND E-CVVT RLY CTRL E-CVVT RLY ON PWR E/R JUNCTION BLOCK E/R-A E/R-B E/R-C E/R-D E/R-E E/R-F ECO IND ECR ON PWR ECTS GND ECTS GROUND ECTS SIG ECTS SIGNAL ELECTRIC PARKING BRAKE MODULE ELECTRO- CHROMIC MIRROR ELECTROCHROMIC MIRROR ELECTRONIC A/C COMPRESSOR EMS COM ENABLE OUT ENG CTRL RLY 'ON' PWR ENG CTRL RLY CTRL ENG RPM ENG SPD SIG EPB IND EPB SW SIG ESC IND ESC MODULE ESC OFF IND ESC OFF SW ESP OFF SW EV MODE IND EVAP SENS EXCEPT 2.0L HYBRID 2.0L HYBRID EXCEPT HYBRID EXCEPT HYBRID HYBRID EXCEPT HYBRID HYBRID EXCEPT PLUG-IN HYBRID EXCEPT HYBRID HYBRID W/O MEMORY W/ MEMORY EXT BUZZER EXTERNAL BUZZER F/P RLY CTRL FAN CTRL FEEDBACK SIG FET DRAIN FET GATE FL PWD AUTO FL PWD DOWN FL PWD UP FL SIG FL VCC FLASH MEMORY FLEX RAY HI FLEX RAY HIGH FLEX RAY LO FLEX RAY LOW FLEXRAY HIGH FLEXRAY LOW FLUID LVL SENS FOLDING RLY CTRL FPS GND FPS IN FPS INPUT FPS PWR FPS SIG FR PWD AUTO FR PWD DOWN FR PWD UP FR RR FR SIG FR VCC FRONT CIGARETTE LIGHTER FRONT CIGARETTE LIGHTER, POWER OUTLET 2 FRONT DEICER FRONT FOG IND FRONT POWER OUTLET 1 FRONT POWER OUTLET 2 FRT WIP RLY CTRL HIGH FRT WIP RLY CTRL LOW FTIV CTRL FUEL FILLER OPEN RLY CTRL FUEL FILLER OPEN STATE I/P FUEL FILLER OPEN STATE INPUT FUEL FILLER SW I/P FUEL FILLER SW INPUT FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL LEVEL FLOAT FUEL SENDER FUEL TANK FUEL TANK LEVEL SENDER 1 FUEL TANK LEVEL SENS 1 GDI HI PRESS HI GDI HI PRESS LO GLASS STATUS SIGNAL/TOOL FOR GLASS GND 2 GND IN GND ON/START INPUT GND SIG GND SIG 1 GND SIG 2 GND SIG 3 GND VL GPS OUT/B+ GROUND DISTRIBUTION SYSTEM H-CAN HI H-CAN HIGH H-CAN LO H-CAN LOW H/LP HI H/LP LO HALL 1 HALL 2 HALL 3 HALL SENS GND HALL SENS-PWR HALL SIG U HALL SIG V HALL SIG W HANDLE SW HANDLE) HAZ SIG HAZ SW HAZARD SIG HAZARD SW HEADLAMP LO SIG HEADLAMP LOW BACKUP HEADLAMP LOW SIG HEADLAMPS CIRCUIT HEADLIGHTS SYSTEM HEV SW GND HEV SW SIG HID OPT GND HIGH BEAM HIGH BEAM IND HIGH IND HIGH LOW HIGH SW IN HIGH SW INPUT HIGH TEMPERATURE IND HOOD SW HOT AT ALL TIMES HOT AT ALL TIMES IGPM HOT IN ACC OR ON HOT IN ON HOT IN ON OR HOT IN ON OR ACC HOT IN ON OR START HOT W/ HSG RESOLVER HSG RESOLVER SENS 1 HSG RESOLVER SENS 2 HSG RESOLVER SENS 3 HSG RESOLVER SENS 4 HSG RESOLVER SHIELD HSG TEMP SENS GND HSG TEMP SENS SIG HTR 1 HTR 2 HV- HYBRID CONTROL CIRCUIT HYBRID INVERTER I/P-A I/P-A I/P-E I/P-B I/P-C I/P-C I/P-A I/P-C I/P-D I/P-D I/P-E I/P-F IAT SENS IC IGNITER IG 1 IGN 1 IGN ILL OUT IGN LED IGNITION KEY IMMO ANT GROUND IMMO ANT POWER IMMO DATA LINE IMMO GND IMMO IN IMMO IND IMMO PWR IMMOBILIZER MODULE IN ACTR F/B IN ACTR FRE IN ACTR REC IN SPD SIG IN SPD SUPPLY INJ CTRL 1 HIGH INJ CTRL 1 LOW INJ CTRL 2 HIGH INJ CTRL 2 LOW INJ CTRL 3 HIGH INJ CTRL 3 LOW INJ CTRL 4 HIGH INJ CTRL 4 LOW INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 4 INPUT SIG INTERFACE INPUT SPD SIG INPUT SPD SPLY INPUT SPEED INPUT SPEED SIG INPUT SPEED SUPPLY INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT/VOL SIG INT/VOL SW INTAKE ACT F/B INTAKE ACT FRE INTERLOCK - INTERNAL RECEIVER IONIZER DIAG IPOD RX IPS 1 IPS 1 CONTROL IPS 1 CTRL IPS 2 IPS 2 CONTROL IPS 2 CTRL IPS 3 IPS 3 CONTROL IPS 3 CTRL IPS 7 IPS 7 CONTROL IPS 7 CTRL IPS 8 IPS 8 CONTROL IPS 8 CTRL IPS CONTROL IPS 1 K LINE K-LINE SIG INTERFACE KEY BOARD KEY HOLE ILL OUT KEY ILL KEY LK KEY LK SIG KEY UNLK KEY UNLK SIG KEY UNLOCK KEYPAD GND KEYPAD SIGNAL LANE DEPARTURE WARNING MODULE LANE KEEPING ASSIST MODULE LEAK CURRENT LEAK CURRENT AUTO CUT DEVICE LEAK CURRENT AUTO CUT DEVICE RLY CTRL LED HIGH LED LOW LEFT "C" PILLAR) LEFT BLIND SPOT DETECTION RADAR LEFT DOWN MIRR LEFT FRONT LEFT FRONT STRUT TOWER) LEFT HEADLAMP LEFT REAR SEAT WARMER LEFT RIGHT LEFT TURN LEFT TURN IND LEFT UP MIRR LEVEL SENDER LEVEL SENDER 1 LEVEL SENS LF SIG LF VCC LF+ LH DR LP OUT LH RH REAR REAR DOOR DOOR SW SW LH SEAT WARMER GND LH SEAT WARMER NTC- LH SEAT WARMER PWR LIGHT SW LIGHT SW OUT LIGHT SW SIG LIN COMM BUS LIN COMMUNICATION BUS LIN LINE LIN/DIA DATA LINE LINES SYSTEM LK/ UNLK SIG LKAS IND LKAS SW SIG LO WASHER LVL IN LOCAL CAN HIGH LOCAL CAN HIGH PARKING BRAKE SW LOCAL CAN LOW LOCAL-CAN HI LOCAL-CAN LO LOW BEAM IND LOW FUEL IND LOW HIGH LOW IND LOW VOLTAGE DC-DC CONVERTER LOW WASHER LEVEL IN LOW WASHER LEVEL INPUT LP SIG LP VFS LR DR LR DR LK LR DR LK/UNLK SIG LR DR LK/UNLK SW SIG LR DR SW LR SURR- LR VCC LS DRIVER LTE OUT M-CAN M-CAN HI M-CAN HIGH M-CAN HIGH 29 32 M-CAN LOW M-CAN LO M-CAN LOW M-CAN LOW M-CAN HIGH MAIN BATT - MAIN BATT GND MAIN GND MANUAL A/C MAP SENS PWR MAP SENS SIG MAP, TIA GND MASTER IND MATCHING CIRCUIT MCU B+ MDPS IND MEM POWER MEM PWR MEMORY POWER MEMORY POWER CPU MEMORY POWER LOAD MEMORY PWR MEMORY PWR CPU MIC - MIC SHIELD MICRO CONTROLLER MID IND MIRR B+ MIRROR CONTROL IC MIRRORS SYSTEM MODE ACTR DEF MODE ACTR F/B MODE ACTR VENT MTR GND MTR PWR MTR RESOLVER SENS 1 MTR RESOLVER SENS 2 MTR RESOLVER SENS 3 MTR RESOLVER SENS 4 MTR TEMP SENS GND MTR TEMP SENS SIG MTS KEYPAD MTS KEYPAD SIG N IND N OUT NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NOT USED NOT USED NTC + GND NTC- NVLD DATA LINE OBC REGISTER OBC WAKE UP OCV 1 CTRL OCV 2 CTRL OCV CTRL OD VFS OFF DOWN OFF ON OFF UP OIL PR SW IN OIL PRESS SW IN OIL PRESSURE IND OIL TEMP SENS OIL TEMPERATURE OLED CONTROL ON I/P ON IN ON/ST IN ON INPUT ON/ST IN ON/ST INPUT ON/START I/P ON/START IN ON/START INPUT ON/START POWER OPTION GND OPU STATUS OTS GND OTS SIG OUT DETENT OUT SPD SIG OUT SPD SUPPLY OUT/B+ OUTLET CHARGE PLUG 1 OUTLET CHARGE PLUG 2 OUTLET CHARGE PLUG 3 OUTLET CHARGE PLUG 4 OUTLET CHARGE PLUG 5 OUTPUT SPD SIG OUTPUT SPD SPLY OUTPUT SPEED SIG OUTPUT SPEED SUPPLY OUTSIDE MIRR FOLDING RLY CTRL OUTSIDE MIRR UNFOLDING RLY CTRL OUTSIDE MIRROR OXY SENS DN GND OXY SENS DN SIG OXYGEN SENS DOWN GND OXYGEN SENS DOWN HTR OXYGEN SENS DOWN SIG OXYGEN SENS UP HTR OXYGEN SENS UP V-G OXYGEN SENS UP V-IP OXYGEN SENS UP V-N OXYGEN SENS UP V-RC P IND P OUT P POSITION P POSITION SW CODE P SENS GND P SENS VCC P SENS VOUT P-CAN HI P-CAN HIGH P-CAN LO P-CAN LOW P-GND P-GND VIDEO Y-SHIELD PAB OFF PAB OFF IND PARKING BRAKE PARKING BRAKE IND. PARKING BRAKE SW PARKING BRAKE SW I/P PARKING BRAKE SW INPUT PARKING BRK PARKING BRK SW PARKING BRK SW INPUT PARKING IND PAS IND PAS LIN PAS MODE PAS PWR PAS SW IND PAS SW MODE PASS ACT COOL PASS ACT F/B PASS ACT WARM PASS BACK B+ PASS BUCKLE SENS HIGH PASS CUSH B+ PASS DOOR SW PASS DR ANT GND PASS DR ANT PWR PASS DR KEY PASS DR KEY UNLK SIG PASS DR LCK/UNLCK SW PASS DR LK/ PASS DR LK/UNLK SIG PASS DR SW PASS FIS HIGH PASS FIS LOW PASS MODE ACT F/B PASS MODE ACT OFF PASS MODE ACT ON PASS MTR PWR PASS MTR SIG PASS SBR PASS SEAT PASS SEAT BELT PASS SEAT BELT IND PASS SEAT WARMER BACK B+ PASS SEAT WARMER CUSH B+ PASS TEMP ACTR COOL PASS TEMP ACTR F/B PASS TEMP ACTR WARM PASSENGER ACTIVE AIR BAG PASSENGER AIR BAG 1 PASSENGER AIR BAG 2 PASSENGER AIR VENTILATION SEAT WARMER PASSENGER ANCHOR PRETENSIONER PASSENGER CURTAIN AIR BAG PASSENGER DOOR MODULE PASSENGER DOOR) PASSENGER EMERGENCY FASTENING DEVICE PASSENGER POWER OUTSIDE MIRROR PASSENGER SAFETY POWER WINDOW MODULE PASSENGER SEAT BELT IND PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT WARMER PASSENGER SIDE AIR BAG PASSENGER SMART KEY OUTSIDE HANDLE PASSENGER'S DOOR PBA OFF PCB BLOCK PCSV CTRL PDF GND PDF PWR PDF SIG PDT GND PDT PWR PDT SIG PIO 4.0 PMP PWR U PMP PWR V PMP PWR W POINT LCD ILL POWER DISTRIBUTION SYSTEM POWER GROUND POWER HIGH VOLTAGE INSIDE POWER OUTLET 1 POWER TOPS SYSTEM POWER WINDOW RLY CTRL POWER WINDOWS SYSTEM PTC HTR RLY CTRL 1 PTC HTR RLY CTRL 2 PWM CHIP ENABLE PWM COMMAND PWM CURRENT F/B PWM FAN CTRL PWM IN PWR GND PWR IN PWR SUPPLY REGULATION PWR-U PWR-V PWR-W R - OUT R IND RADIO +B READY IND REAR DEFOGGER REAR DEFOGGER IND REAR DEFOGGER SW REAR DEFOGGER SW IN REAR DEFOGGER SW INPUT REAR DEFOGGER/FRONT REAR GROUND REAR HEATED REAR POWER REAR POWER OUTLET REAR SIG REAR USB CHARGER REAR USB CHARGER 1 REAR USB CHARGER 2 REMOTE + REMOTE CTRL SW GND REMOTE CTRL SW SIG RES+ RESET+ RESOLVER SENS 1 RESOLVER SENS 2 RESOLVER SENS 3 RESOLVER SENS 4 RESOLVER SHIELD RF SIG RF VCC RF+ RH DR LP OUT RH SEAT WARMER GND RH SEAT WARMER NTC- RH SEAT WARMER PWR RHEOSTAT DOWN IN RHEOSTAT UP IN RIGHT BLIND SPOT DETECTION RADAR RIGHT DOWN MIRR RIGHT END OF DASH) RIGHT HEADLAMP RIGHT LEFT RIGHT REAR SEAT WARMER RIGHT TURN RIGHT TURN IND RIGHT UP MIRR RL DOWN RL DR SW RL PWD DOWN RL PWD UP RL SIG RL UP RL VCC RLY CTRL RLY CTRL ACC RLY CTRL GND RLY CTRL MAIN + RLY CTRL PRE RPAS IND RPAS MODE RPAS POWER RPAS PWR RR DEFOGGER IND RR DEFOGGER SW RR DOWN RR DR - RR DR LK RR DR LK/UNLK SIG RR DR LK/UNLK SW SIG RR DR SW RR PWD DOWN RR PWD UP RR SIG RR SURR- RR UP RR VCC S GND S GND 1 S OUT SAFETY PLUG SIG SAFETY PLUG SIG GND SAFETY PWR SAFETY PWR WND ENABLE OUT SAFETY WINDOW SBR MAT SBR PASS SBR PASSENGER SBR PASSENGER IND SCC CRUISE ON/OFF SEAT BELT BUCKLE ASSEMBLY) SEAT BELT IND SEAT BELT REMINDER SEAT BELT REMINDER MAT SEATS SYSTEM SECURITY IND SEL POSITION SENS 1 GND SEL POSITION SENS 2 GND SEL POSITION SENS 1 SIGNAL SEL POSITION SENS 2 SIGNAL SEL SOL 1 PUSH SEL SOL 2 GND SELECT SW SENS -H VCC SENS -V SENS -H SENS GND SENS H SENS INTERFACE SENS PWR SENS SENS -V -H SENS SIG SENS SIG DTP VOUT SENS SUPPLY SENS V SENS- VCC SERIAL FOR WEBASTO SERIAL SIG INTERFACE SERVICE IND SET- SET- RES+ SHIELD C SHIELD GND SHIELD Y SHIELD-Y B/V P-GND SHIFT INTERLOCK SYSTEM SIDE A/BAG OPT GND SIG 1 GND SIG 3 SIG 4 SIG A SIG B SIG C SIG GND SIG IN SIG OUT SIG SW SIG-D SIGNAL GND SMART JUNCTION BLOCK SOL POWER 1 SOL POWER 2 SOL PWR 1 SOL PWR 2 SOUND SYSTEMS SPD SIG SPDIF GND SPEED OUT SPORT IND SS A SS B SSB ACC SSB ACC ILL IN SSB ACC ILL OUT SSB IGN SSB IGN ILL IN SSB IGN ILL OUT SSB ILL SSB ILL GND SSB ILL GROUND SSB ILL POWER SSB ILL PWR SSB RING SSB SW 1 SSB SW 2 START FD SIG START FDBK SIG START RLY START RLY O/P START RLY OUT START SW START/ON INPUT STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL HTR PAD OUT STEERING WHEEL HTR PAD PWR STEERING WHEEL HTR PAD PWR 1 STEERING WHEEL HTR PAD PWR 2 STEERING WHEEL HTR SW IND STEERING WHEEL HTR SW SIG STEERING WHEEL STEERING WHEEL HEATED MODULE STEERING WHEEL) STEP MTR HLLD ACTR STEP MTR ISM HLLD ACTR STOP LP SIG STOP LP SW STOP LP SW SIG STOP LP SW SIG LOW STR FEEDBACK SIG SUNROOF OPEN SIG SUNROOF OPEN SW INPUT SUPPLEMENTAL RESTRAINTS SYSTEM SURROUND VIEW MONITOR SURROUND VIEW MONITOR SHIELD SW 1 SW 1 APPLY SW 2 SW 2 RELEASE SW 3 SW 4 SW CTRL SW I/P SW I/P FOLDING SW IND SW INPUT SW OUT SW SIG SW SIGNAL SXM OUT TAIL AUTO TAIL AV TAIL ON TAIL ON IND TAILLAMP IN TANK LVL SENDER 1 TELL TAIL RH TEMP GND TEMP SENS 1 GND TEMP SENS 1 SIG TEMP SENS 2 GND TEMP SENS 2 SIG TEMP SENS 5 GND TEMP SENS 5 SIG TEMP SENS GND TEMP SENS SHIELD TEMP SENS SIG TEMP SIG TEMPERATURE GAUGE TEST SW TFT CONTROL SIG TPMS IND TPS 1 SIG TPS 1 SIGNAL TPS 2 SIG TPS 2 SIGNAL TPS GND TPS GROUND TPS POWER TPS PWR TRANSMISSIONS SYSTEM TRANSPONDER READER IC TRN LMP SIG TRNK LID HANDLE SW TRNK REL SW TRNK ROOM LMP TRUNK ANT GND TRUNK ANT PWR TRUNK GND TRUNK IPS 3 OPEN CTRL TRUNK LID TRUNK LID RLY TRUNK LID RLY CTRL TRUNK LOD RLY CTRL TRUNK OPEN TRUNK OPN STATUS TRUNK REL SW TRUNK RELEASE TRUNK ROOM TRUNK ROOM LP TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LP SIG TWO TURN TWO TURN UNLK TWO TURN UNLK RLY CTRL UD VFS UNFOLDING RLY CTRL UNLK RLY CTRL UNLK SIG UP AUTO UP UP DOWN UP DOWN GROUP UP IN UP OFF UP SHIFT UP/ RIGHT USB /IPOD GND USB D- USB GND USB VCC USB VOD USB/IPOD GND USB/IPOD VDD USB/IPOD VOD USED) V EL V G V GND V IN V IP V N V OUT V RC V- GND V- GND OUT V- GND V- OUT GND V-GND VIDEO Y-GND V-IN VIDEO Y-IN V-IN VIDEO Y-IN C-IN VBAT ILL VBATT ILL VEH SPD VEHICLE SPD VEHICLE SPD IN VEHICLE SPD SIG VEHICLE SPEED VEHICLE SPEED SIGNAL VERSION 1.0 PIO, VERSION 4.0 VERSION 4.0, 1.0 PIO VERSION 1.0 PIO, VERSION 4.0 W/ NAVIGATION W/O NAVIGATION VERSION 4.0, PIO VF SPEED VGND-C VGND-Y VIDEO C SHIELD VIDEO C-IN VIDEO GND VIDEO OUT VIDEO Y GND VIDEO Y SHIELD VIDEO Y-IN VIDEO+ VIDEO-C GND VIRTUAL GND VIS CTRL VOL 2 VOL 3 VOL 4 VOUT-C VOUT-Y W/ ACC W/ AIR VENTILATION SEAT W/ AIR VENTILATION SEAT W/O AIR VENTILATION SEAT W/ AUTO UP/DOWN, SAFETY W/ AUTO- CRUISE W/ AVM W/ AVM W/O AVM W/ AVM W/O AVM 2.0L HYBRID 2.0L PLUG-IN HYBRID W/ BSD W/ CIGARETTE LIGHTER W/ DISPLAY W/ DRL W/ EPB W/ EPB W/O EPB W/ EPB W/O EPB PLUG-IN HYBRID EXCEPT PLUG-IN HYBRID EXCEPT HYBRID HYBRID W/ EPB W/O EPB W/ UVO W/O UVO W/ NAVIGATION W/O NAVIGATION W/ FRONT AUTO UP/DOWN, SAFETY W/ HID W/ HID W/O HID W/ IMMOBILIZER W/ LDWS W/ LED W/ LED W/O LED W/ MDPS W/ MEMORY W/ MEMORY W/O MEMORY EXCEPT HYBRID HYBRID W/ MEMORY, W/O SEAT WARMER W/ MEMORY, SEAT WARMER W/O MEMORY, W/ SEAT WARMER W/ NAVIGATION W/ NAVIGATION W/O NAVIGATION W/ DISPLAY W/ NAVIGATION W/O NAVIGATION W/ UVO W/ NAVIGATION W/O NAVIGATION W/ UVO W/O UVO W/ PANORAMA SUNROOF W/ SEAT WARMER W/O SEAT WARMER W/ SMART KEY W/ SMART KEY W/O SMART KEY W/ NAVIGATION W/O NAVIGATION W/ SMART KEY, IMMO W/O SMART KEY, IMMO W/ SUNROOF W/ SUNROOF W/O SUNROOF W/ SUPERVISION W/ USB CHARGER W/ USB CHARGER W/O USB CHARGER W/ UVO W/ VENTILATION SEAT W/ WIRELESS CHARGER W/O ACC W/O AEB W/ AEB W/O AIR VENTILATION SEAT W/O AIR VENTILATION SEAT W/ AIR VENTILATION SEAT W/O AUTO UP/DOWN, SAFETY W/O AUTO- CRUISE W/O AVM W/ AVM W/O BSD W/O CIGARETTE LIGHTER W/O DISPLAY W/O DRIVER AUTO UP/DOWN SAFETY W/O EPB W/ EPB W/O EPB W/ EPB VERSION 1.0 VERSION 4.0, PIO W/ DISPLAY W/O DISPLAY W/O HID W/O IMMOBILIZER W/O JBL AMP W/ JBL AMP W/O LDWS W/O MEMORY W/O NAVIGATION W/O NAVIGATION W/ NAVIGATION W/O NAVIGATION W/ NAVIGATION W/O HID W/ HID VERSION 4.0, 1.0, W/ DISPLAY PIO 6 W/O NAVIGATION, UVO W/O PANORAMA SUNROOF W/O SMART KEY W/O SUNROOF W/O UVO W/O VENTILATION SEAT W/O WIRELESS CHARGER W/O WIRELESS CHARGING WAKE UP SIG WARNING IND WARNING SYSTEMS WASHER SIG WASHER SIGNAL WHEEL SENS OUT WIFI OUT WIP B/UP SW SIG WIP PWR RLY CTRL WIP RLY CTRL HIGH WIP RLY CTRL LOW WIP SIG WIP, LIGHT GND WIPER B/UP SIG WIPER BLADE POSITION WIPER HIGH RLY CTRL WIPER INT/VOL SIG WIPER INT/VOL SIGNAL WIPER LOW WIPER LOW BACKUP SIG WIPER LOW BACKUP SIGNAL WIPER LOW RLY CTRL WIPER P INPUT WIPER POWER CTRL RLY WIPER POWER RLY CTRL WIPER RLY CTRL HIGH WIPER RLY CTRL LOW WIPER SIG WIPER, LIGHT GND WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIRELESS CHARGER
