Kia Optima III facelift (2013-2015) ssb feedback signal Wiring diagram
This page shows the only wiring diagram for the component.ssb feedback signal, which is found in the car Kia Optima III facelift (2013-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

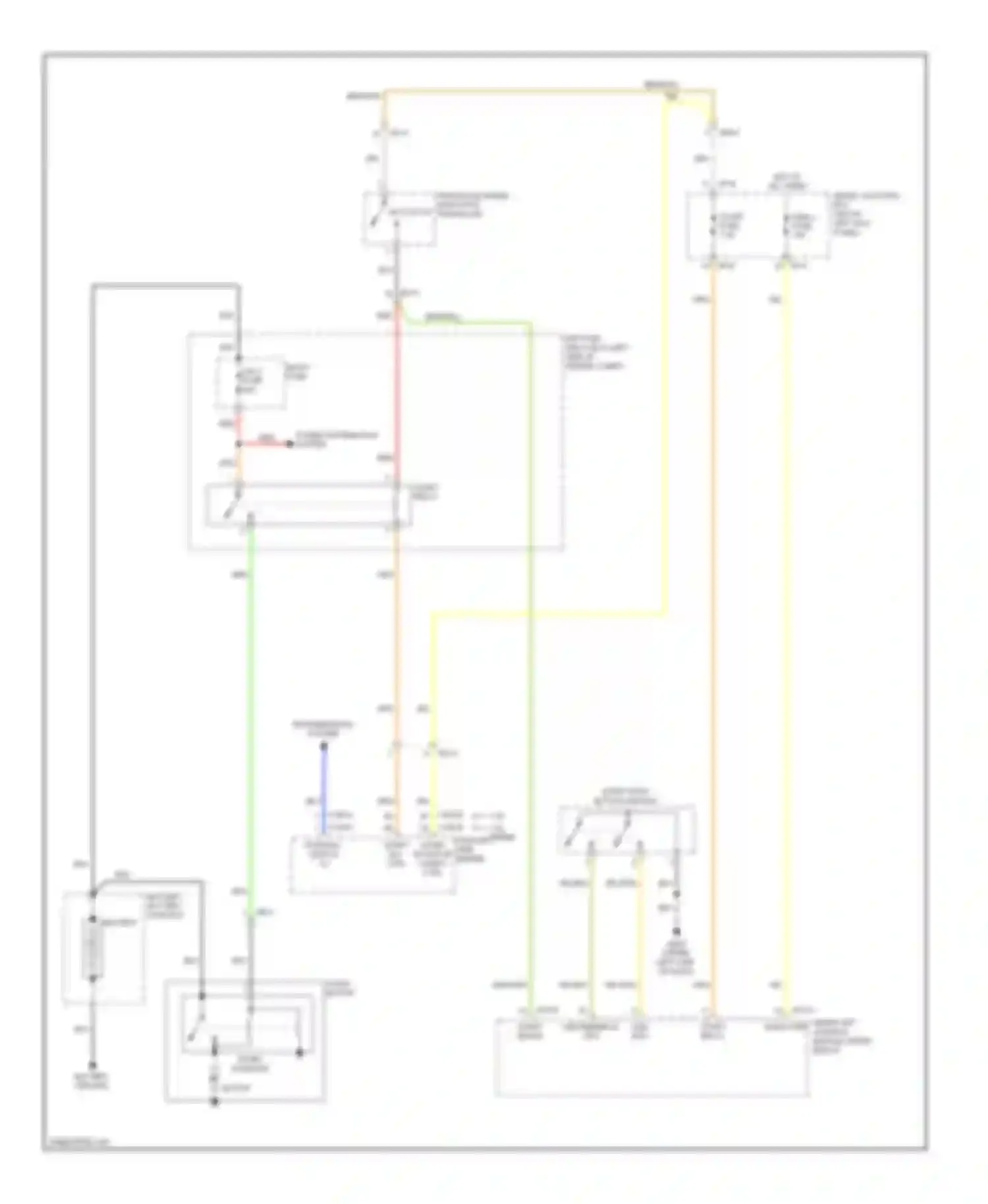

Wiring diagram ssb feedback signal (1 of 1)
BATTERY
BATTERY GROUND
BATTERY, BATTERY FUSE BOX
BLK WIRE
BLU WIRE
BRN/ORG WIRE
E/R FUSE, RELAY BOX (LEFT SIDE OF ENGINE COMPT)
FUSE
GRN WIRE
GRN/ORG WIRE
GRY WIRE
HOT AT ALL TIMES
I/P-E
I/P-F
IGN 2 FUSE
MOTOR
MULTI FUSE
ORG/ WIRE
PCM (LEFT SIDE OF MOTOR RLY ENGINE COMPT) CTRL CTRL SW
PDM 2 FUSE
POSITION SWITCH)
POWER DISTRIBUTION SYSTEM
RED WIRE
RELAY
SMART JUNCTION BOX (ABOVE LEFT KICK PANEL)
SMART KEY CONTROL MODULE (RIGHT END OF DASH) PWR
SOLENOID
SSB
SSB FEEDBACK SIGNAL
START STOP BUTTON SWITCH
TRANSAXLE RANGE SWITCH P/N SW (TOP OF TRANSAXLE)
TRANSMISSIONS SYSTEM
YEL WIRE
YEL/BLK WIRE
YEL/ORG WIRE
Go to component -> Starting circuit, with smart key system -> SSB FEEDBACK SIGNAL
